AK150 Crawler Hydraulic Anchoring Drilling Rig

Hole Range

90-219mm

Hole Depth

0-70m

Recommend Chassis Type

Crawler

The AK150 Crawler Anchoring Drilling Rig is a high-efficiency, multifunctional hydraulic drilling machine independently developed for superior performance in challenging ground conditions. Featuring a powerful 103 kW engine and advanced dry dust removal system with 12 filter elements, this rig delivers reliable anchoring solutions for soil layers, sand, pebbles, and weathered rock formations. With a maximum drilling depth of 70 meters and hole diameters from 90 to 219 mm, the AK150 combines robust crawler mobility, 360° upper body rotation, and precise hydraulic control for fast, stable operation. Ideal for engineering projects requiring anchor cables and bolt holes, it offers excellent quality, high cost-performance, and versatile application in construction and geotechnical works.

Inquire Now

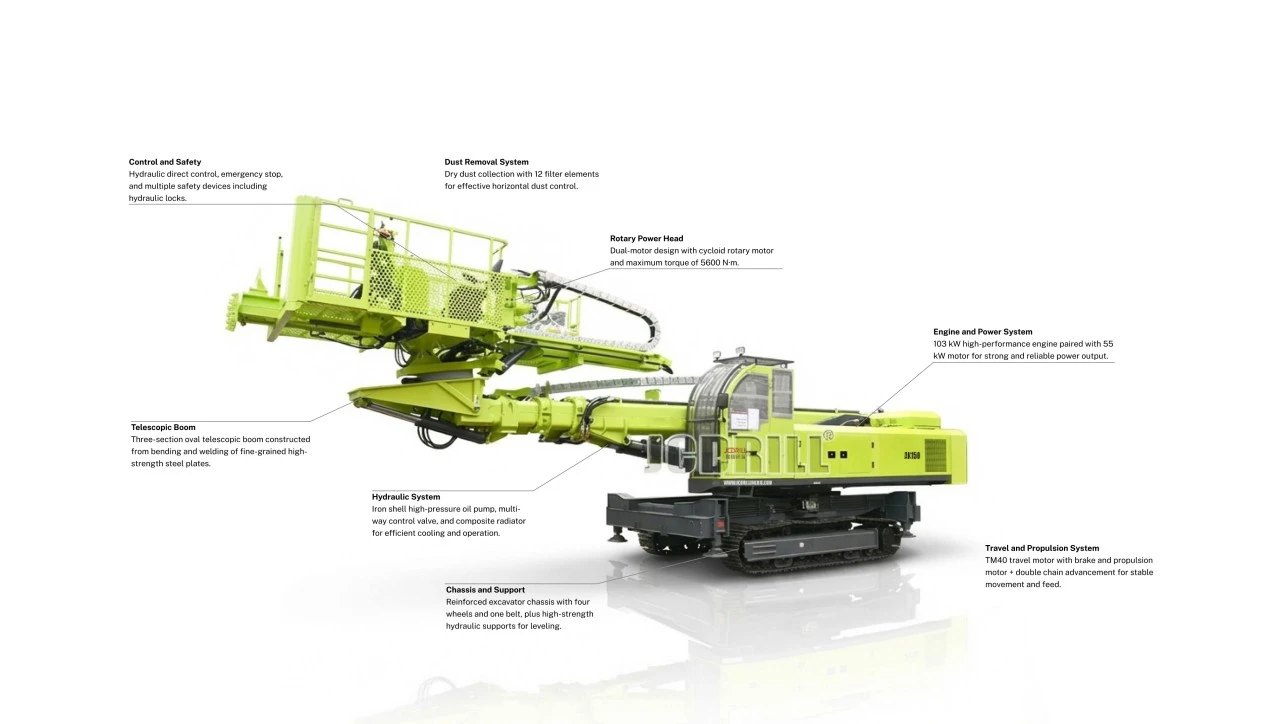

Functions and Features

Main Components

Advanced Hydraulic System Features hydraulic direct control with multi-way valve, proportional balance valve, two-way hydraulic lock, and hydraulic explosion-proof device for safe, precise, and smooth operation.
Superior Dust Control Dry dust removal system with 12 filter elements provides efficient horizontal dust collection, minimizing environmental impact and improving working conditions.
Enhanced Safety Features Includes emergency stop switch, large flow proportional balance valve, hydraulic locks, and other safety equipment for reliable protection during operation.

Powerful and Efficient Drilling Performance Equipped with a 103 kW engine and 55 kW motor, dual-motor rotary power head, and maximum swing torque of 5600 N·m, the rig achieves high rotation speed up to 82 rpm with three-speed transmission for rapid and stable drilling in various formations.
Excellent Mobility and Stability Reinforced excavator chassis with maintenance-free four wheels and one track, combined with high-strength hydraulic supports and leveling system, ensures superior stability and easy maneuvering on slopes and rough terrain.
Flexible and Versatile Design Three-section telescopic oval boom made of fine-grained high-strength steel, 360° upper body rotation with dual brakes, and worm gear working platform rotation enable multi-angle drilling and broad adaptability.

Product Description

The AK150 Crawler Hydraulic Anchoring Drilling Rig is a high-efficiency, multifunctional drilling machine designed for demanding construction and geotechnical projects. Powered by a 103 kW engine and a 55 kW motor, it features a dual-motor rotary power head with a maximum swing torque of 5600 N·m, capable of drilling hole diameters from 90 to 219 mm and depths up to 70 meters. Its advanced hydraulic system, 360° upper body rotation, and telescopic boom enable precise, multi-angle drilling for anchor cables, bolts, and soil nailing applications.

Built on a reinforced crawler chassis with maintenance-free supports, the AK150 delivers excellent stability, mobility, and slope adaptability, while its integrated dry dust removal system with 12 filter elements ensures a cleaner and safer working environment. With versatile design, robust performance, and customizable options for hydraulic systems, engine type, and drill configurations, the AK150 provides a reliable, cost-effective solution for foundation pit support, tunnel pre-support, mining reinforcement, and various civil engineering projects.

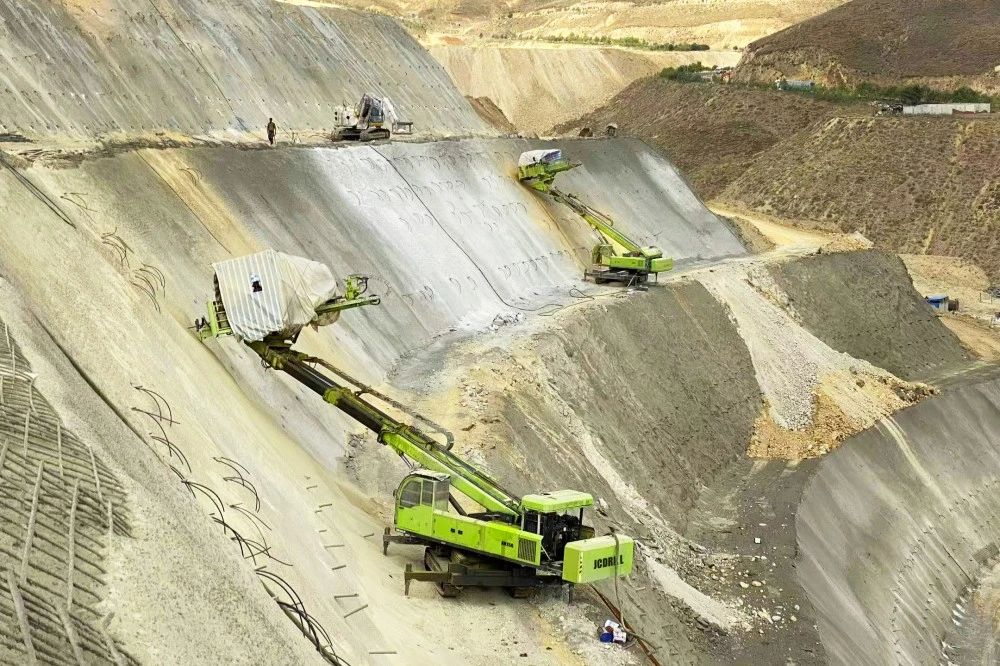

High-Efficiency Anchoring:

Robust dual-motor rotary system, precise hydraulic control, 360° rotation, and advanced dust removal enable stable, fast, and versatile drilling for soil, rock, and complex geotechnical applications.

Product Specifications

Specification	Unit	AK150
Maximum Lift Height	m	15
Engine	KW	103
Motor	KW	55
Control Method		Hydraulic Direct Control Two-way
Dust Removal Method		Dry Dust 12 Filter Elements
Control Valve		Multi-way Valve
Rotary Motor		Cycloid
Travel Motor		With Brake Plunger
Rotary Power Head		Dual Motor
Maximum Swing Torque	N.M	5600
Rotation Speed	Rpm	82 Three-speed Transmission
Cylinder		CYRT Standard
Swivel Support		GB
Way Of Advancement		Motor + Double Chain
Propulsion Motor		With Brake
Propulsion Beam Structure		GB
Maximum Hole Diameter	mm	90-219
Maximum Drilling Depth	m	0-70
Oil Pump		Iron Shell High Pressure
Telescopic Boom Material		Bending And Welding Of Fine-grained High-strength Steel Plates
Telescopic Boom		Oval Arms, Three-section Telescopic
Upper Body Rotation		360° (Dual Brake)
Hydraulic Support		Lower Support, High-strength Hydraulic Support, Leveling
Chassis		Reinforced Excavator Chassis, Maintenance-free With Four Wheels And One Belt
Heat Sink		Composite Radiator
Working Platform Rotation		Worm Gear National Standard
Safety Equipment		Emergency Stop Switch, Large Flow Proportional Balance Valve, Two-way Hydraulic Lock, Hydraulic Explosion-proof Device, Etc.
Travel Motor		TM40
Dimensions	mm	1200024003800
Total Weight	T	21

View Less
