AK180 Crawler Anchoring and Slope Protection Drilling Rig for Engineering Construction

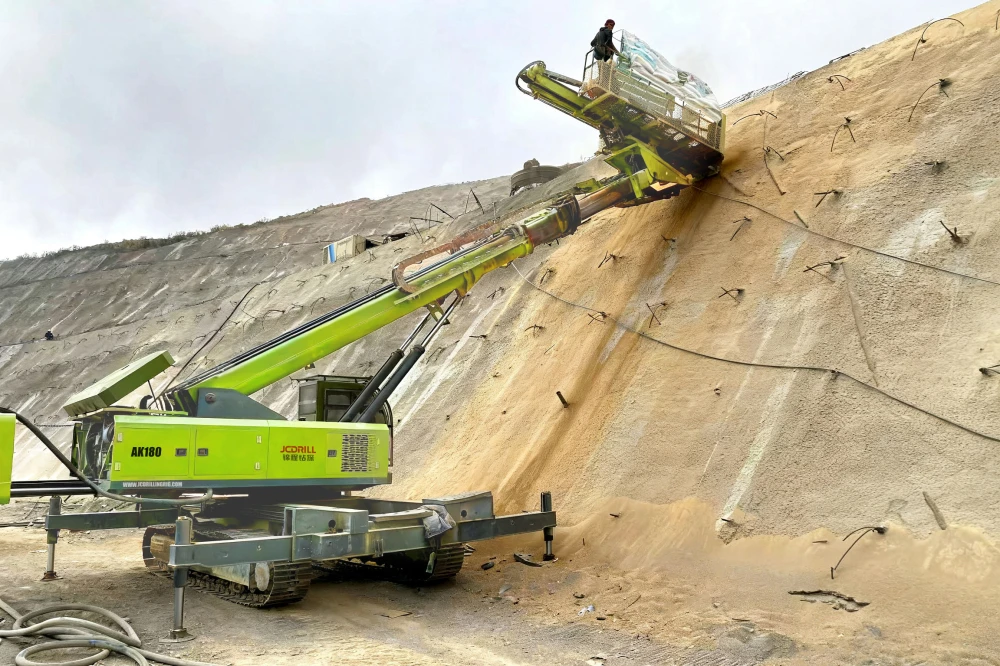

The AK180 Crawler Anchoring and Slope Protection Drilling Rig is a versatile, high-performance hydraulic rig designed for engineering construction, slope stabilization, and geotechnical applications. Equipped to handle soil, sand, pebble, and weathered rock formations, it features a diesel engine and electric motor dual power system with a motor-driven hydraulic rotary power head and chain propulsion mechanism. Its stepless speed regulation and multiple drilling methods enable precise anchor cable, bolt, auger, and down-the-hole drilling with consistent efficiency and low failure rates.

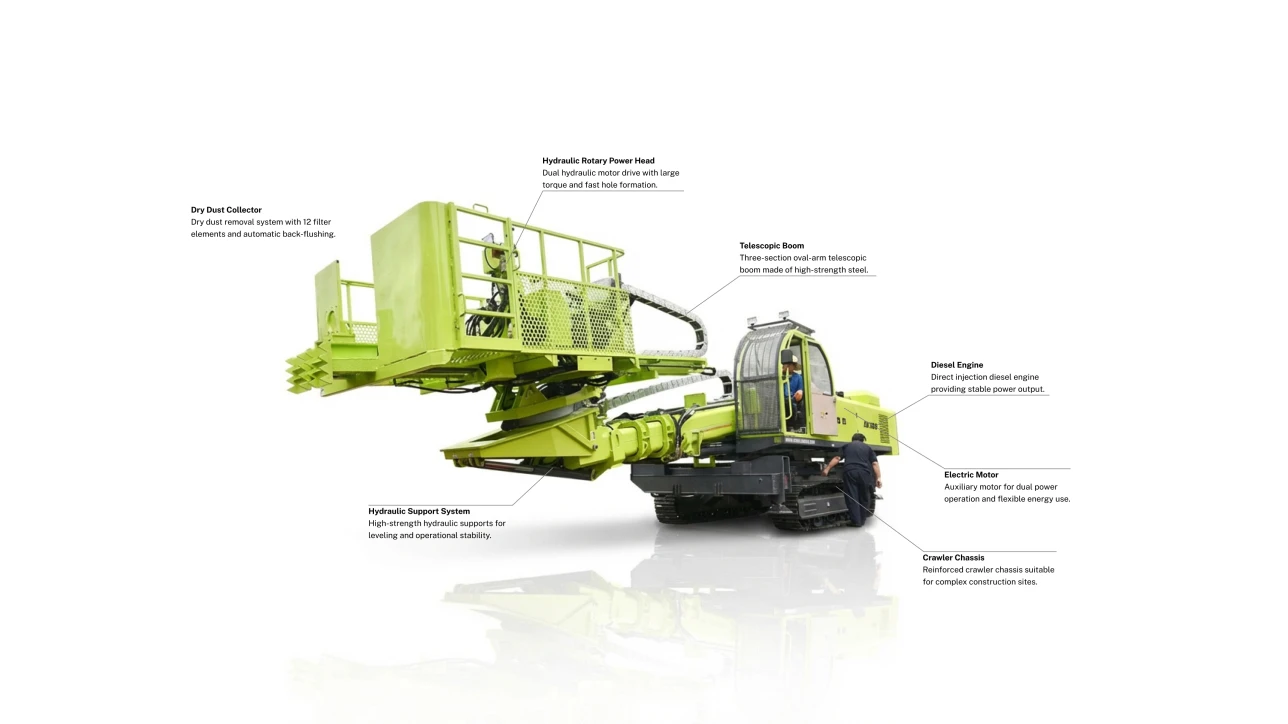

Built on a robust crawler chassis with a three-section hydraulic telescopic boom, the AK180 offers excellent mobility, stability, and adaptability in complex terrains. The rig’s efficient dry dust removal system with automatic back-flushing filter elements enhances operator safety and environmental compliance, while the multi-angle drilling capability (vertical 90° to 65° elevation) ensures flexible operation in foundation pits, slope protection, and other civil engineering projects.
