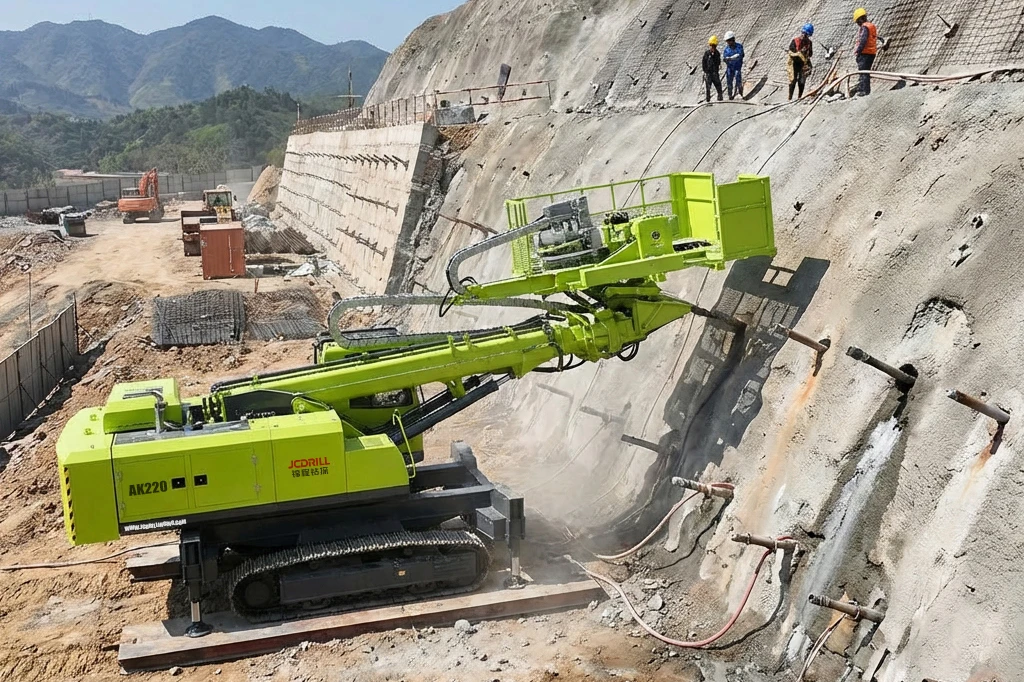

The AK220 is a crawler-mounted anchoring drilling rig designed for slope protection and engineering construction applications. It is suitable for drilling in soil layers, sand and pebble layers, and weathered rock formations. The rig adopts a diesel engine and motor dual power system combined with a motor-driven hydraulic rotary power head and chain propulsion mechanism. With stepless speed regulation, multiple drilling angles, and a full hydraulic telescopic boom, the AK220 delivers reliable performance, high efficiency, low failure rate, and easy maintenance in complex construction environments.
Product Description

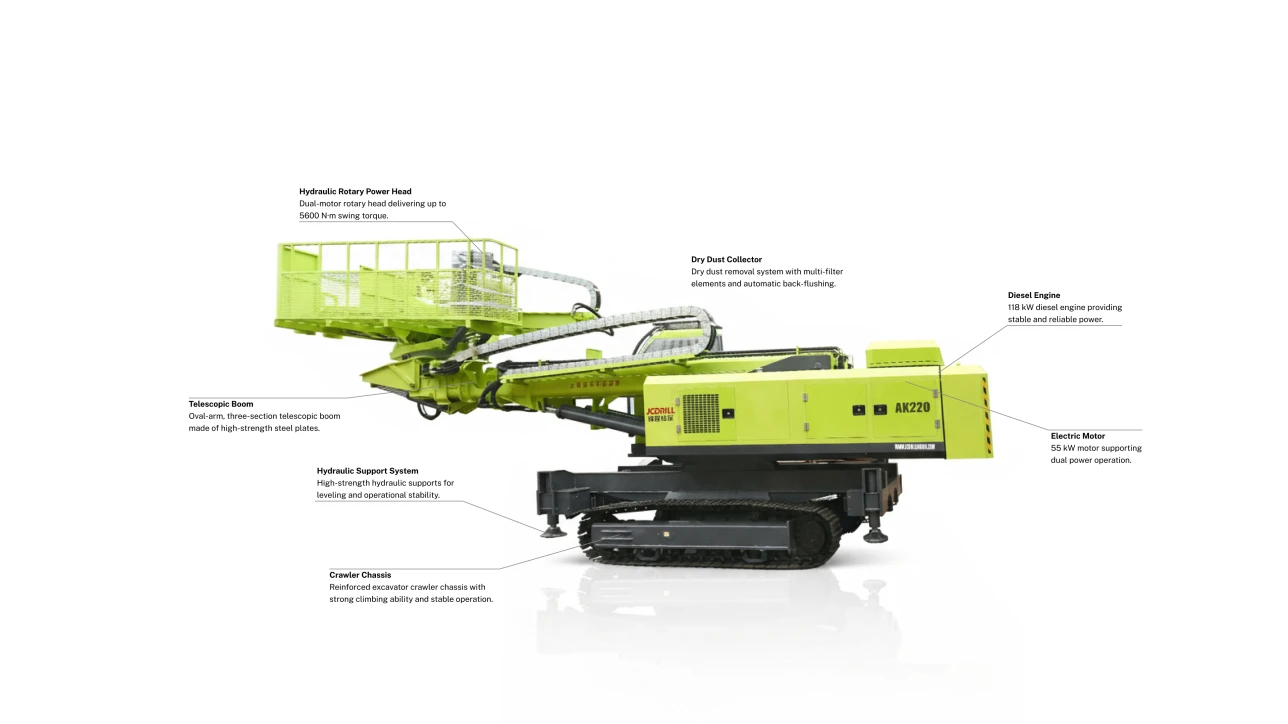

The AK220 Crawler Anchoring and Slope Protection Drilling Rig is a high-performance hydraulic rig designed for engineering and slope stabilization projects. Suitable for soil, sand, pebble, and weathered rock formations, it features a diesel engine and electric motor dual power system, combined with a motor-driven hydraulic rotary power head and chain propulsion mechanism. Its stepless speed regulation ensures smooth and precise drilling for anchor cables, bolt holes, down-the-hole operations, and casing installation.
Equipped with a three-section full hydraulic telescopic boom, the AK220 provides excellent reach and flexibility in confined or uneven terrains. The rig supports multi-angle drilling from 90° vertical to 65° elevation, and its efficient dry dust removal system with 12 filter elements and automatic back-flushing enhances operator safety, environmental compliance, and overall productivity in complex construction environments.
Product Specifications
| Specification | Unit | AK220 |
| Maximum Lift Height | m | 22 |
| Engine | KW | 118 |
| Motor | KW | 55 |
| Control Method | Hydraulic Direct Control Two-way | |
| Dust Removal Method | Dry Dust Removal 12 Filter Elements | |
| Control Valve | Multi-way Valve | |
| Rotary Motor | Cycloid | |
| Travel Motor | With Brake Plunger | |
| Rotary Power Head | Dual Motor | |
| Maximum Swing Torque | N.M | 5600 |
| Rotation Speed | Three-speed Transmission | |
| Cylinder | GB | |
| Swivel Support | GB | |
| Way Of Advancement | Motor + Double Chain | |
| Propulsion Motor | With Brake | |
| Propulsion Beam Structure | GB | |
| Maximum Hole Diameter | mm | 219 |
| Maximum Drilling Depth | m | 70 |
| Oil Pump | Iron Shell High Pressure | |
| Telescopic Boom Material | Bending And Welding Of Fine-grained High-strength Steel Plates | |
| Telescopic Boom | Oval Arms, Three-section Telescopic | |
| Upper Body Rotation | 360° (Dual Brake) | |
| Hydraulic Support | Lower Support, High-strength Hydraulic Support, Leveling | |
| Chassis | Reinforced Excavator Chassis, Maintenance-free With Four Wheels And One Belt | |
| Heat Sink | Composite Radiator + Independent Oil Diffuser | |
| Working Platform Rotation | Worm Gear National Standard | |
| Safety Equipment | Emergency Stop Switch, Large Flow Proportional Balance Valve Group, Two-way Hydraulic Lock, Hydraulic Explosion-Proof Device, Etc. | |
| Travel Motor | TM40 | |
| Dimensions | mm | 12400*3000*2760 |
| Total Weight | T | 28 |
