AK30 Hydraulic Construction Anchor Drilling Rig for Slope Support and Foundation Engineering

Hole Range

80-130mm

Hole Depth

30-40m

Recommend Chassis Type

Crawler
Trailer
Skid

The AK30 is a compact hydraulic anchor drilling rig designed for construction anchoring and slope stabilization projects. It supports both diesel engine and electric motor configurations, making it adaptable to various job site conditions. With a drilling depth of up to 40 meters and a flexible 0–360° drilling angle range, the rig is ideal for multi-directional operations. Its stable hydraulic system, efficient chain feed mechanism, and reliable power head ensure consistent drilling performance in soil, rock, and mixed formations.

Inquire Now

Functions and Features

Main Components

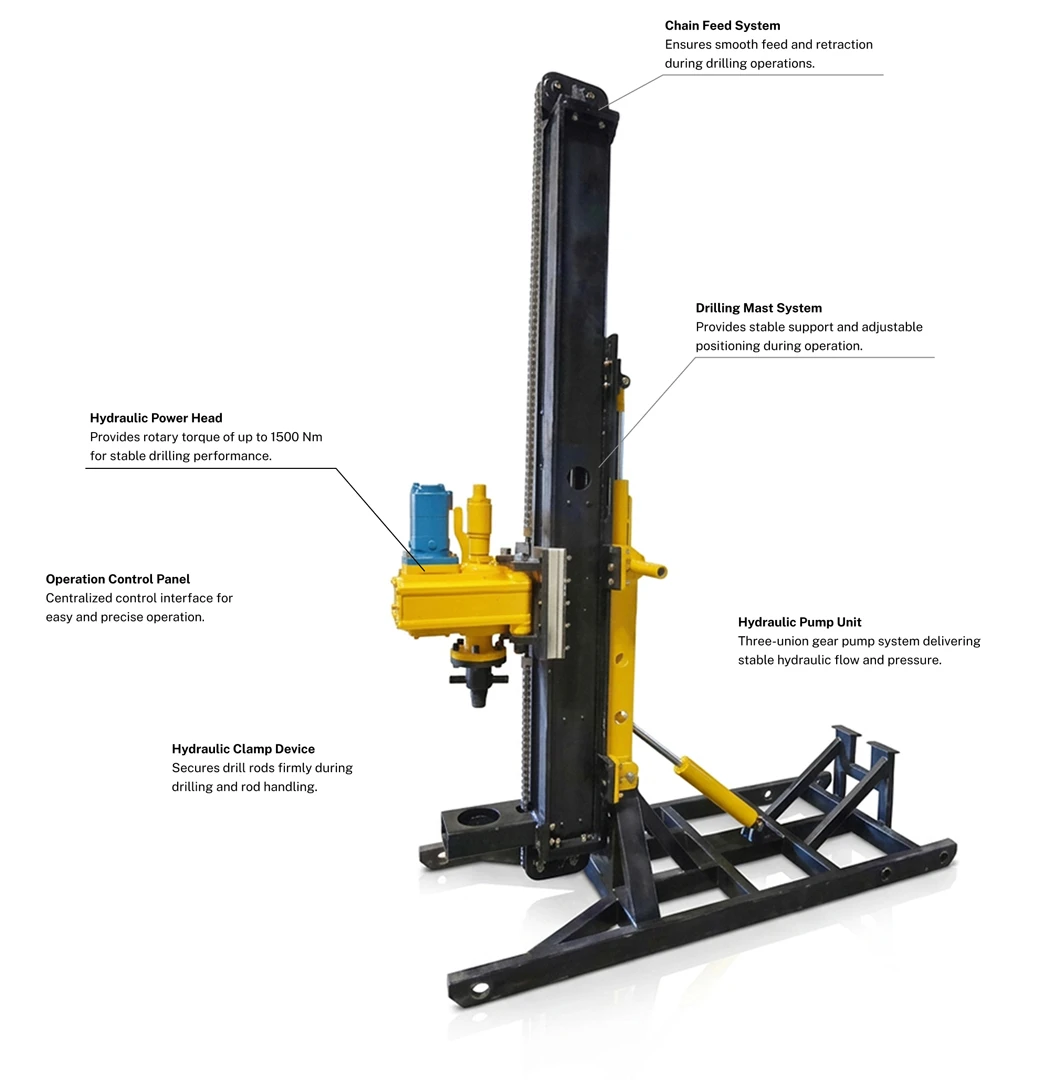

Stable Hydraulic Drive System Adopts Rexroth hydraulic technology with a three-pump system, ensuring stable pressure and reliable performance.

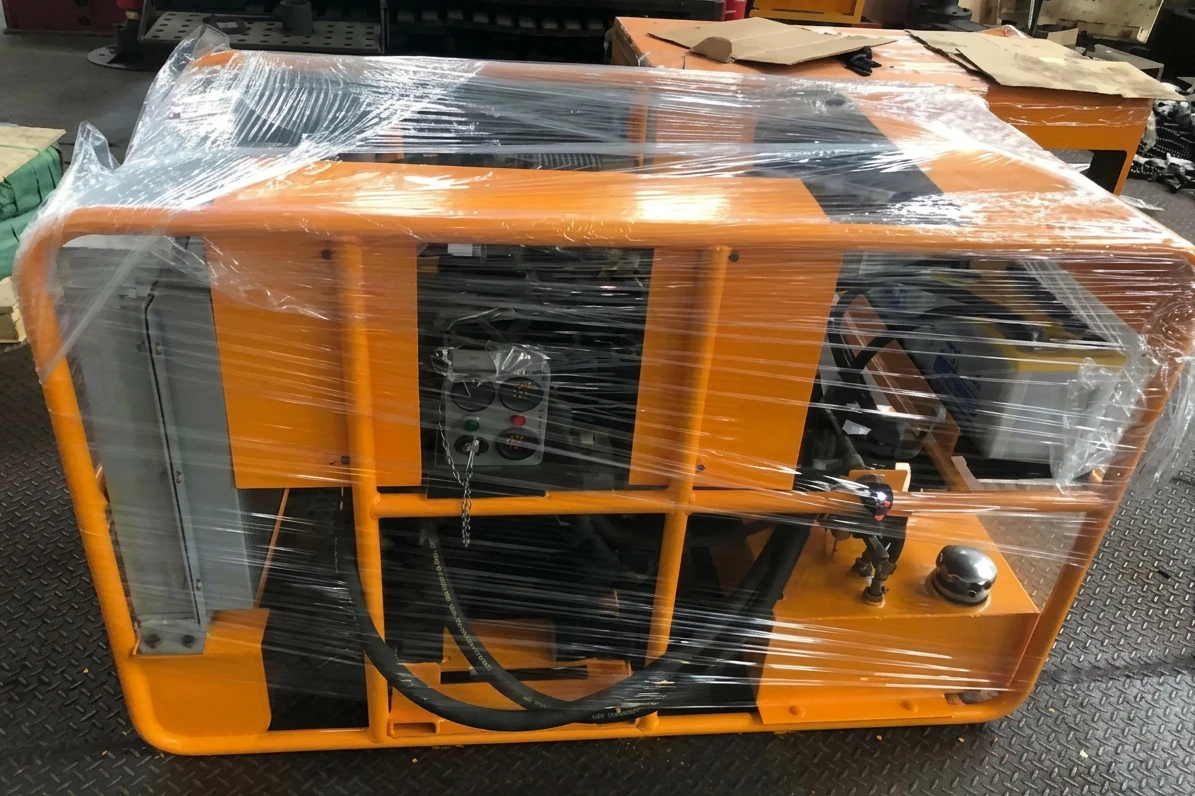

Dual Power Options Available with Yanmar diesel engine or electric motor, allowing operation in both outdoor and power-restricted environments.

360° Multi-Angle Drilling Capability The rig supports full 0–360° drilling angles, enabling flexible positioning for slope anchoring and complex foundation projects.
Efficient Chain Feed Mechanism Chain-driven feed system provides smooth and consistent drilling motion, improving drilling accuracy and efficiency.
Compact and Lightweight Design Weighing approximately 170 kg (power unit), the rig is easy to transport and suitable for confined construction sites.

Product Description

The AK30 anchor drilling rig is engineered for efficient and flexible construction drilling in confined and complex environments. Its compact structure allows easy transportation and quick setup on site. Equipped with a high-efficiency hydraulic system and precise control panel, the rig ensures smooth drilling operations and reduced operator fatigue. The optional diesel or electric power system provides versatility for different working conditions, while the wide-angle drilling capability enhances adaptability for slope anchoring and foundation reinforcement projects.

Flexible Operation in Confined Spaces

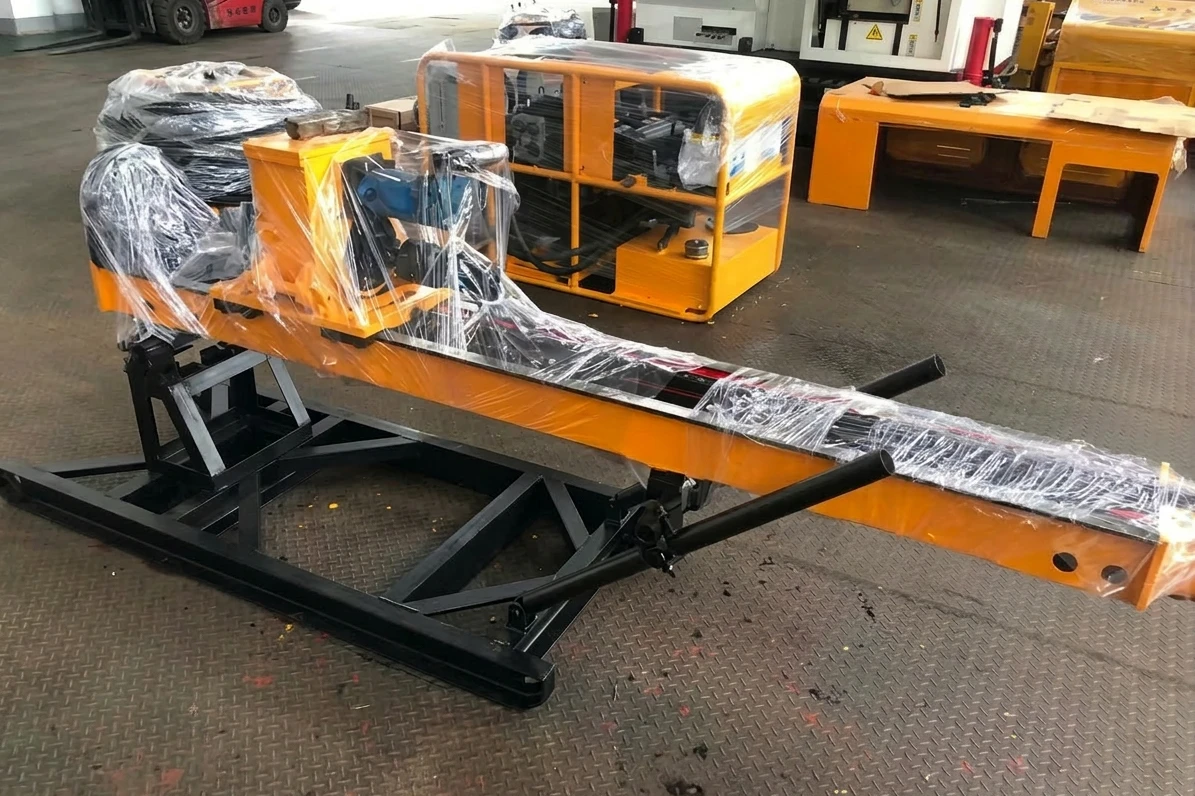

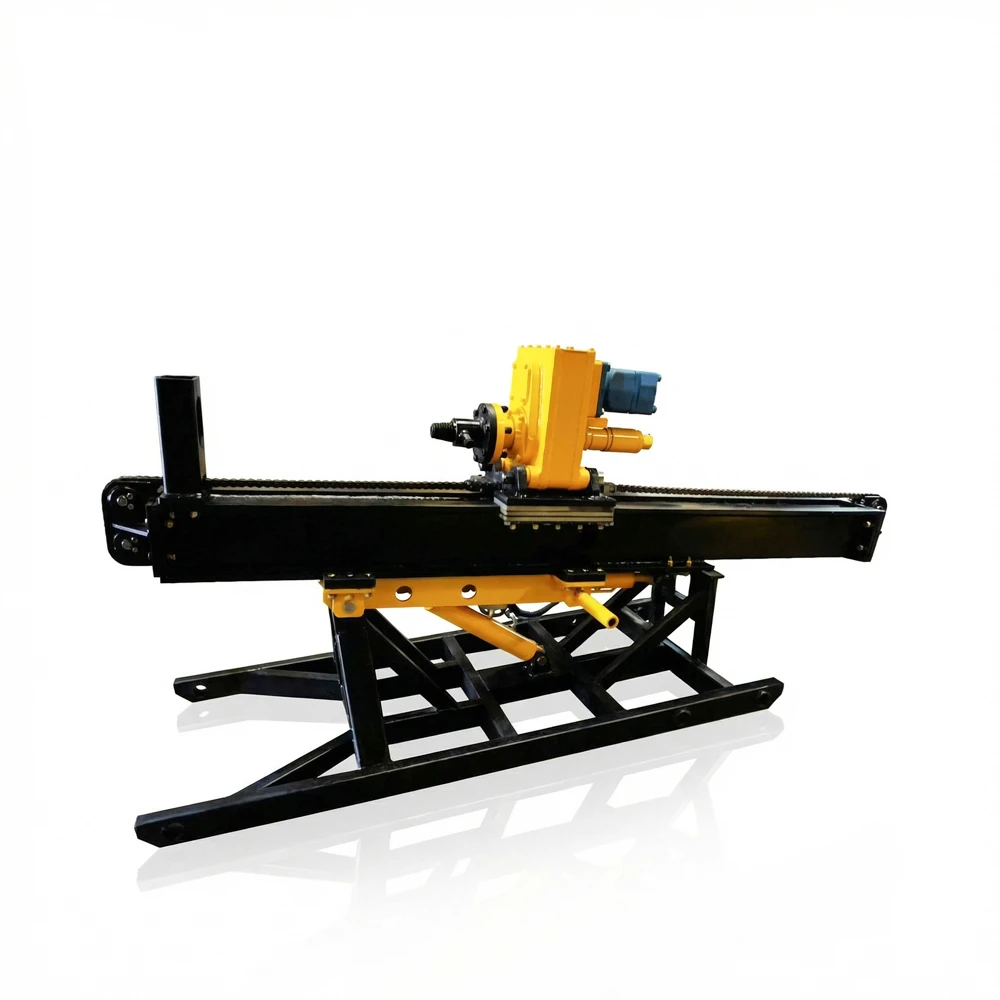

Compact structure and lightweight design make the AK30 ideal for narrow and complex job sites. It supports multi-angle drilling and allows quick setup and easy relocation.

Stable Power and Efficient Drilling

Equipped with a reliable hydraulic system and flexible power options, the rig delivers stable output and smooth drilling performance across various soil and rock conditions.

Product Specifications

Drilling Capacity	AK30(Engine Power)	AK30E(Electric Power)
Type	Hydraulic(4part)	Hydraulic(4part)
Hole depth	30-40 m	30-40 m
Hole diameter	80-130 mm	80-130 mm
Drilling rod(Diameter×Length )	76mm*1500m/89×1500 mm	76mm*1500m/89×1500 mm
Hole angle range	0-360°	0-360°
Output speed of top drive power head (forward and reverse)	24 -114 r/min	24 -114 r/min
Output torque of top drive power head	1500 Nm	1500 Nm
Feeding stroke of top drive power head	1800 mm	1800 mm
Mast slide stroke	500 mm	500 mm
Maximum lifting capacity of top drive power head	30 kN	30 kN
Maximum thrust force of top drive power head	15 kN	15 kN
Rated pressure of hydraulic system	18 Mpa	18 Mpa
Drilling guide type	Chain wheel feed	Chain wheel feed
Hydraulic Clamp	Available	Available
Engine/Motor	Yanmar(Imported from Japan)
Type	Four-stroke/water-cooled	Electric Motor
Model	4TNV88-SYY
Power	23 kW	15 kW
Working Speed	2200rpm
Weight	170kgs
Hydraulic system	Germany Rexroth Technology
Type	Gear pump(3 union pump)	Gear pump(3 union pump)
Flow rate	16/12/5L/min	16/12/5L/min
Pressure	18MPa	18MPa
