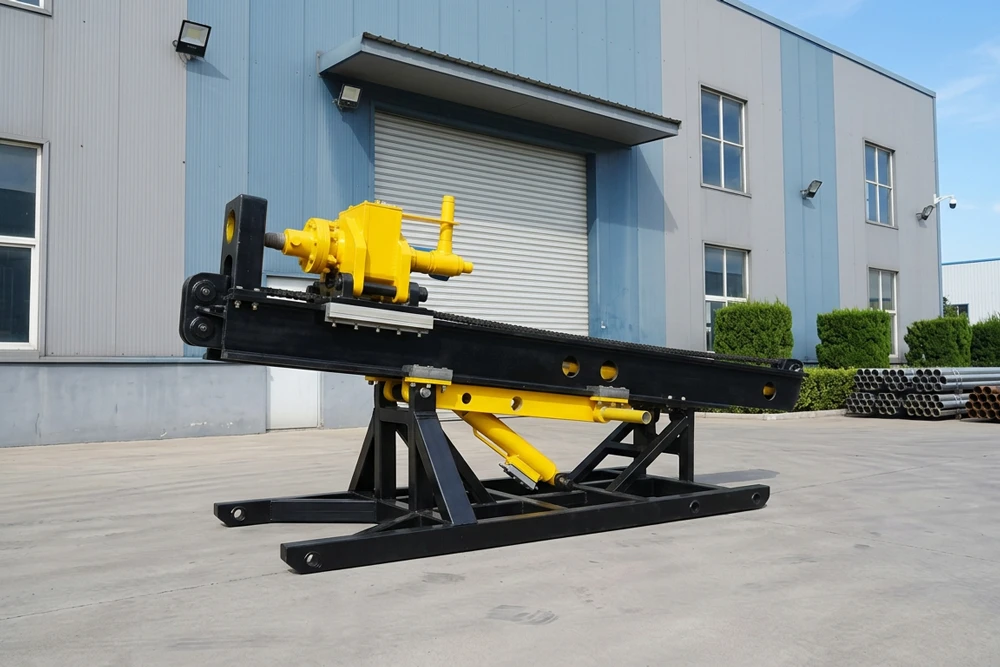

AK50 Hydraulic Construction Anchor Drilling Rig for Deep Foundation and Slope Stabilization

Hole Range

100-168mm

Hole Depth

40-60m

Recommend Chassis Type

Crawler
Trailer
Skid

The AK50 hydraulic anchor drilling rig is designed for medium-depth anchoring and foundation reinforcement projects. With a maximum drilling depth of 60 meters and increased rotary torque, it provides stronger drilling performance compared to smaller models. The rig adopts a hydraulic cylinder feed system, ensuring smoother and more stable operation. Its wide drilling diameter range and adjustable drilling angles make it suitable for slope stabilization, foundation engineering, and various construction applications in complex geological conditions.

Inquire Now

Functions and Features

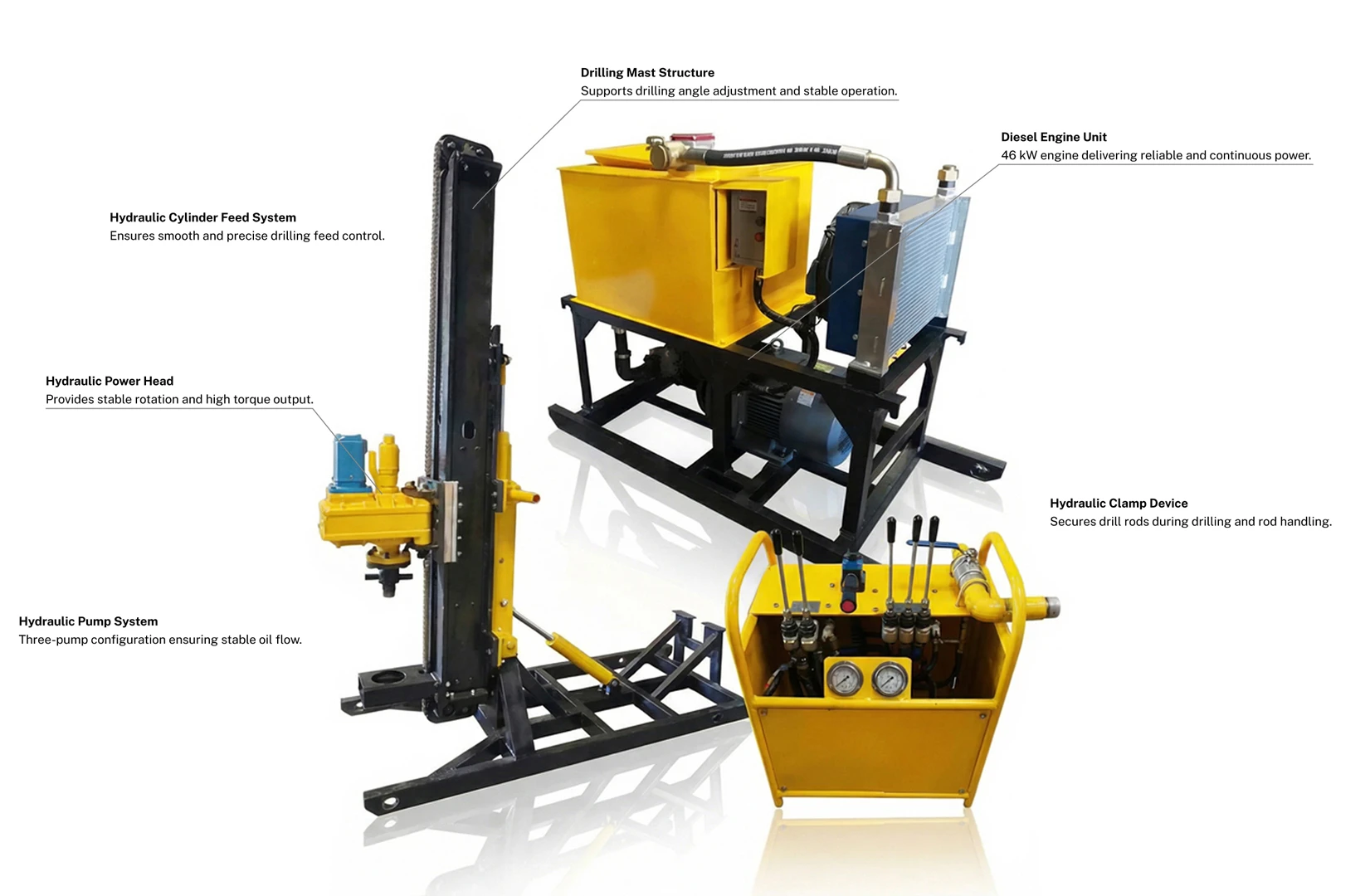

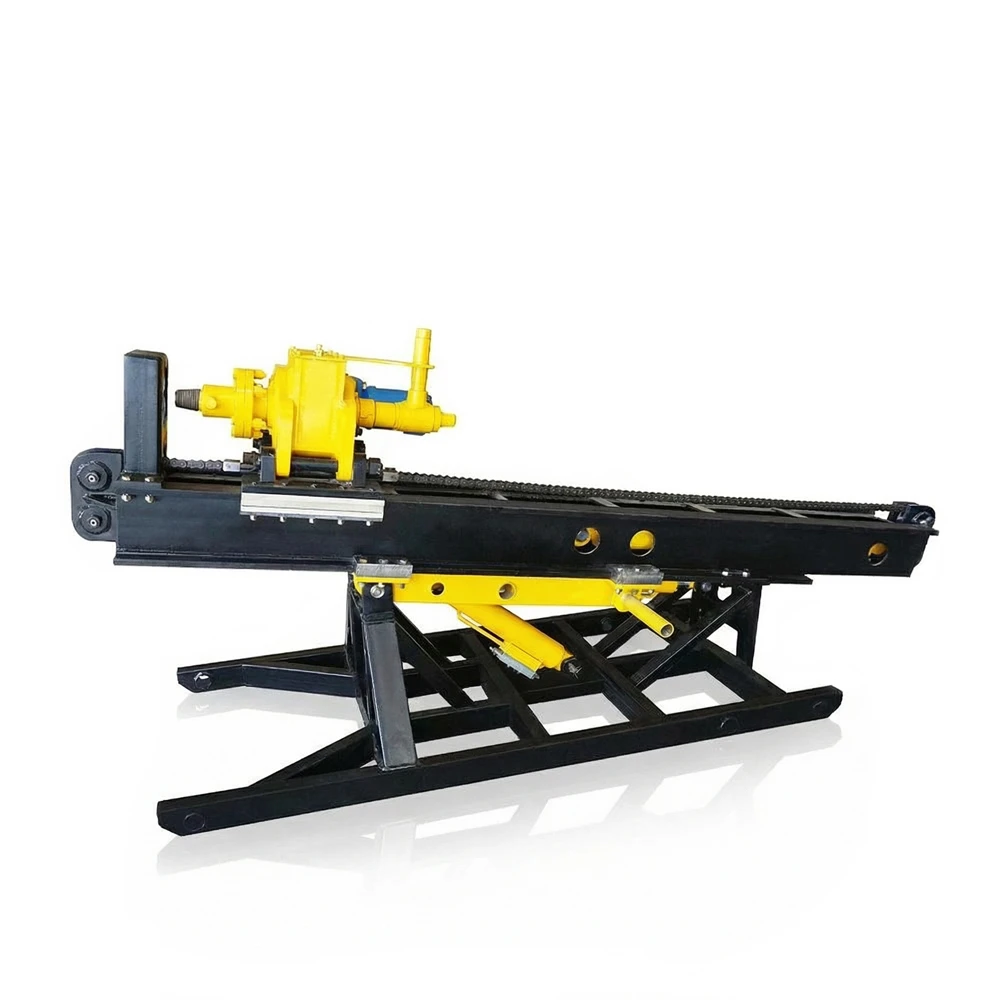

Main Components

Hydraulic Cylinder Feed System Provides smoother feeding and better stability compared to traditional chain systems.
Adjustable Drilling Angle Offers 0–120° drilling range, allowing flexible operation in different working conditions.

High Torque Power Head Delivers up to 2000 Nm torque, improving drilling efficiency in harder formations.
Wide Drilling Diameter Range Supports 100–168 mm hole diameter, suitable for various anchoring requirements.
Stable Hydraulic System Optimized hydraulic pressure ensures reliable performance and long service life.

Product Description

The AK50 anchor drilling rig offers enhanced drilling capability and stability for demanding construction environments. Its optimized hydraulic system and high-performance power head ensure reliable output and consistent drilling efficiency. The hydraulic cylinder feed structure improves precision and reduces vibration during operation. With a compact yet robust design, the rig is easy to transport and install, making it an ideal solution for medium-depth anchoring and foundation reinforcement projects.

Higher Torque for Deeper Drilling

With a rotary torque of up to 2000 Nm and drilling depth reaching 60 meters, the AK50 delivers stronger penetration performance, making it suitable for deeper anchoring and more demanding geological conditions.

Stable Hydraulic Feed System

The hydraulic cylinder feed system ensures smoother and more stable drilling compared to chain feed structures. Combined with continuous speed regulation, it provides precise control and improved drilling efficiency.

Product Specifications

Specification	Unit	AK50
Type		Hydraulic(4part)
Hole depth	m	40-60
Hole diameter	mm	φ100-φ168
Drilling rod(Diameter×Length)	mm	76×1500 / 89×1500
Hole angle range	°	0-120
Output speed of top drive power head (forward and reverse)	r/min	5-120 (continuous speed regulation)
Output torque of top drive power head	Nm	2000
Feeding stroke of top drive power head	mm	1800
Mast slide stroke	mm	500
Maximum lifting capacity of top drive power head	kN	30
Maximum thrust force of top drive power head	kN	15
Rated pressure of hydraulic system	Mpa	20
Drilling guide type		Hydraulic Cylinder feed
Hydraulic Clamp		Available
Parts Max.Weight	Kgs	200
Size	mm	3100×1000×1500
Engine/Motor		Changchai
Type		4-stroke, direct injection
Cylinder		Four cylinder
Cooling System		Water cooled
Model		ZN485Q
Power	kW	46
Working Speed	rpm	2200
Hydraulic System		Gear Pump
Type		Gear pump(3 union pump)
Flow rate	L/min	16/12/5L/min
Pressure	MPa	18
