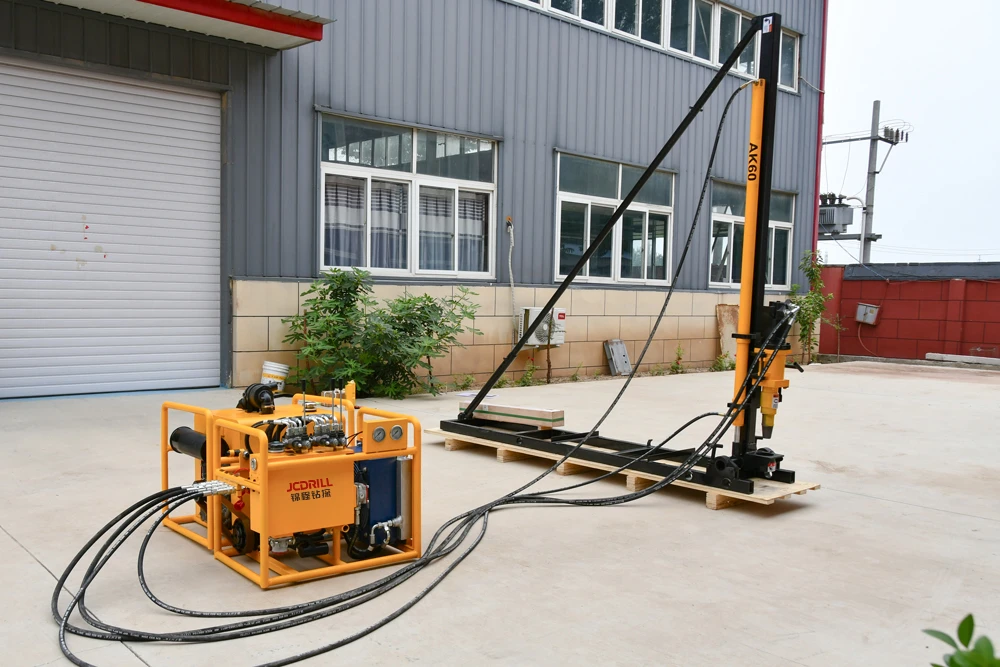

AK60 Hydraulic Anchor Drilling Rig for Deep Anchoring and Foundation Reinforcement

Hole Range

90-180mm

Hole Depth

50-70m

Recommend Chassis Type

Crawler
Trailer
Skid

The AK60 hydraulic anchor drilling rig is designed for deep anchoring and demanding foundation engineering projects. With a drilling depth of up to 70 meters and a wider drilling diameter range, it provides enhanced performance for complex geological conditions. The rig adopts a stable hydraulic system and optimized power head, delivering strong torque and efficient drilling speed. Its flexible angle adjustment and reliable structure make it suitable for slope stabilization, foundation reinforcement, and various construction applications requiring high efficiency and stability.

Inquire Now Brochure PDF

Functions and Features

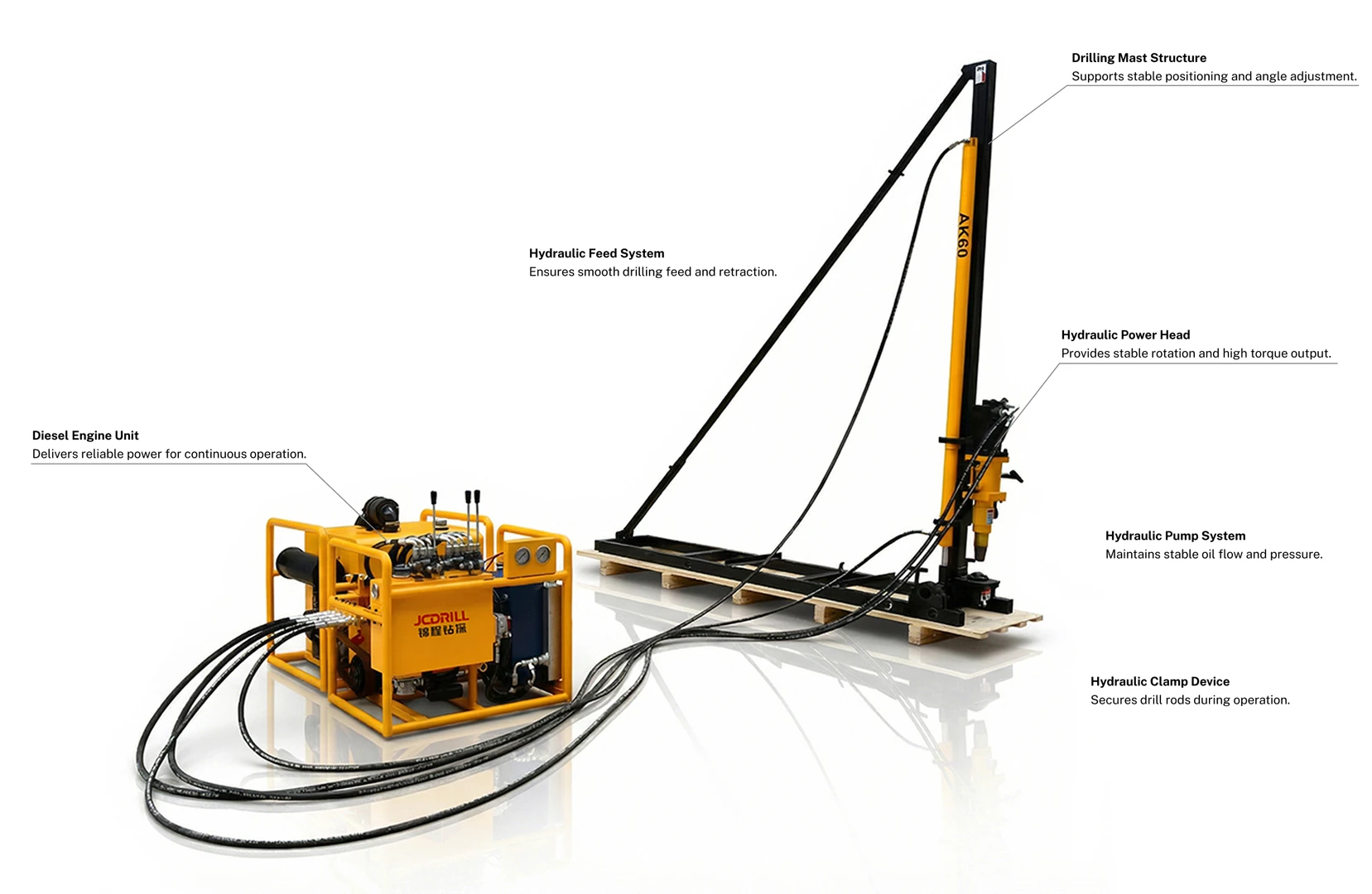

Main Components

High Torque Output Optimized power head delivers strong torque for improved performance in hard formations.
Wide Drilling Diameter Range Capable of drilling 90–180 mm holes for various construction requirements.

Enhanced Drilling Capacity Supports drilling depth up to 70 meters, meeting the requirements of deeper anchoring projects.
Wide Drilling Diameter Range Capable of drilling 90–180 mm holes for various construction requirements.
Flexible Angle Adjustment Allows multi-angle drilling for complex terrain and slope applications.

Features Introduction

Product Description

The AK60 anchor drilling rig combines high drilling capacity with stable operation, making it ideal for medium to deep anchoring projects. Its reinforced structure and optimized hydraulic system ensure consistent performance under heavy-duty working conditions. The rig is designed for easy operation and quick setup, improving overall construction efficiency. With strong adaptability to different terrains and formations, the AK60 provides a reliable solution for modern foundation engineering needs.

Strong Performance for Deeper Projects

With a drilling depth of up to 70 meters, the AK60 is well-suited for medium to deep anchoring projects, ensuring stable and efficient drilling in complex formations.

Wider Diameter for Versatile Applications

Supporting hole diameters up to 180 mm, the rig meets various anchoring and foundation requirements, offering greater flexibility across different construction scenarios.

Stable and Reliable Hydraulic System

The optimized hydraulic system ensures smooth operation, stable pressure output, and consistent performance during long working hours.

Product Specifications

Specification	Unit	AK60
Drilling Specification
Rock Hardness	F=6-20
Operation Type	Hydraulic
Drilling depth	m	0-60
Drilling diameter	m	70-165
Drill rod Length	mm	1500
Drill rod diameter	mm	60/76/89
Drilling angle	°	0 ~ 90 °
Rotary Head
Rotation Speed	Rpm	5-80
Rotation Torque	Nm	1500
Feeding System
Feed Stroke	mm	1800
Max.Pull Back Force	Kn	40
Max.Feed Force	Kn	15
Power (Electric motor or Diesel Engine)
Electric Rated Power	Hp	16
Engine Type		2Cylinder air cooling
Engine Brand		KIPOR
Rated Power	Kw	12

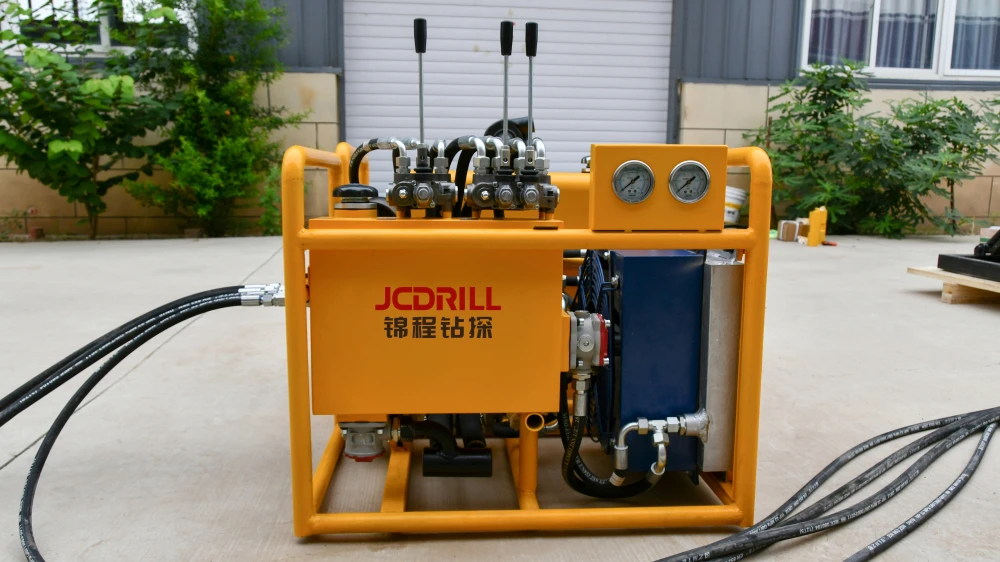

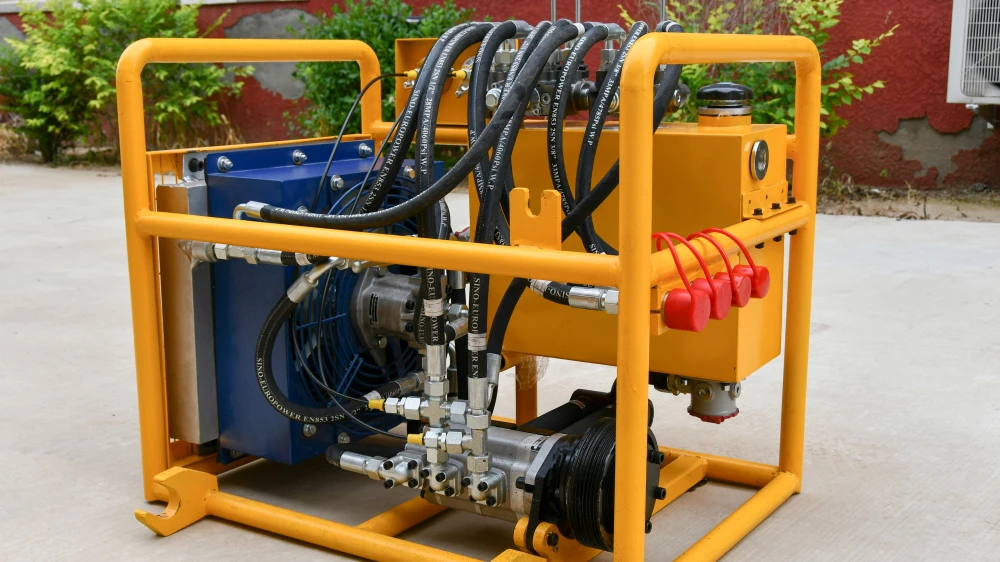

Hydraulic pump
Type		3Stage, gear pump
Flow rate	L/min	16/12/5
Working pressure	Mpa	16
Air Compressor Demand
Air Consumption	M³/min	11.3-21
Working Pressure	Mpa	1.4-2.4
Compressor Type		Rotary Screw/Movable
Dimension
Mast Dimension	mm	3400 × 1000 × 1500
Power Unit weight	Kgs	120
Hydraulic Unit weight	Kgs	100
Mast Unit Weight	Kgs	57+37+52+60+14=218Kg
