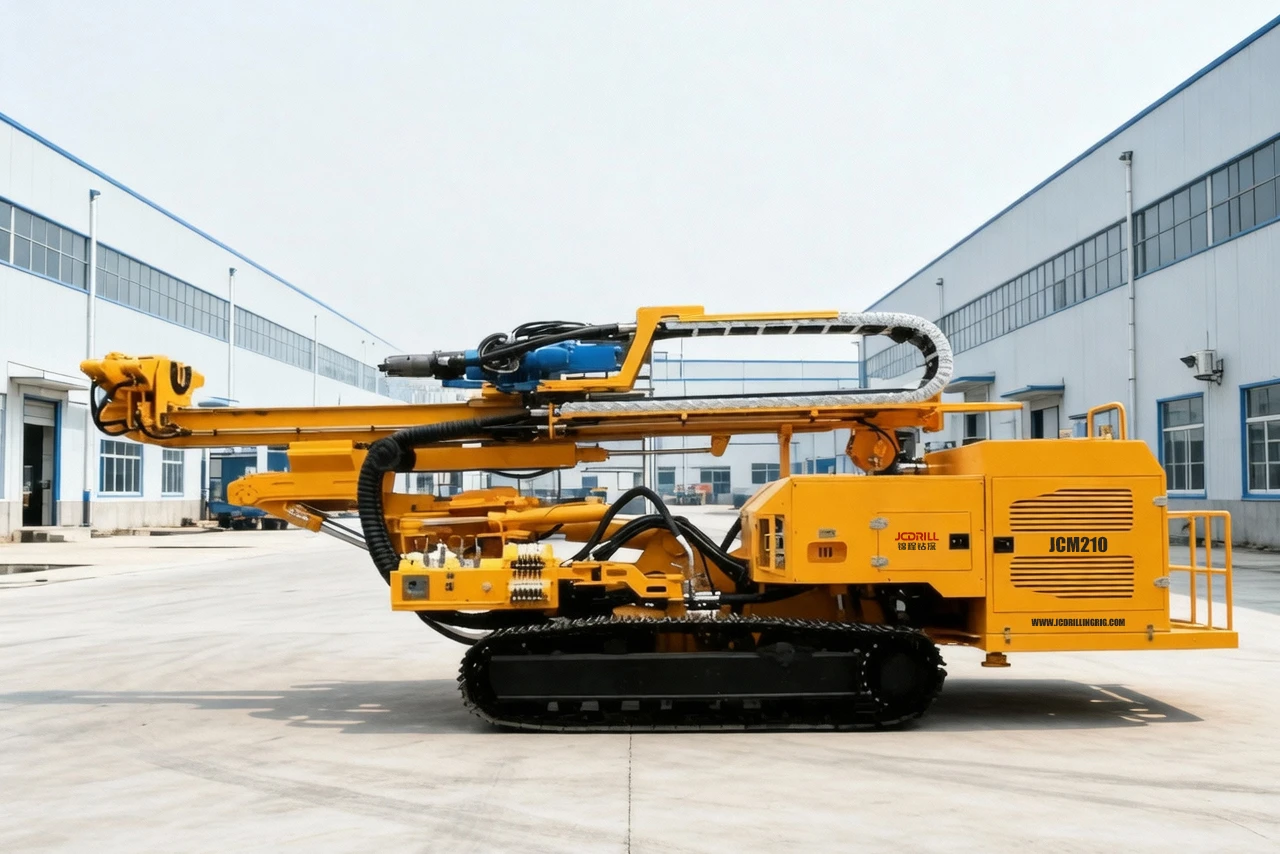

JCM210 Full Hydraulic Anchor Drilling Rig for Multi-Angle Rock and Soil Anchoring Construction

Hole Range

60–260mm

Recommend Chassis Type

Truck
Crawler
Trailer

The JCM210 is a full hydraulic anchor drilling rig designed for anchoring construction in complex geological formations. It adopts an enhanced power system with increased output power, making it suitable for hard rock, pebble layers, and demanding engineering conditions. Equipped with a rotary and percussive hydraulic drifter, the rig delivers stable torque, efficient penetration, and flexible multi-angle operation. Its articulated structure and reinforced key components improve operational adaptability, reliability, and service life, meeting high-standard requirements for deep hole anchoring and foundation treatment projects.

Inquire Now

Functions and Features

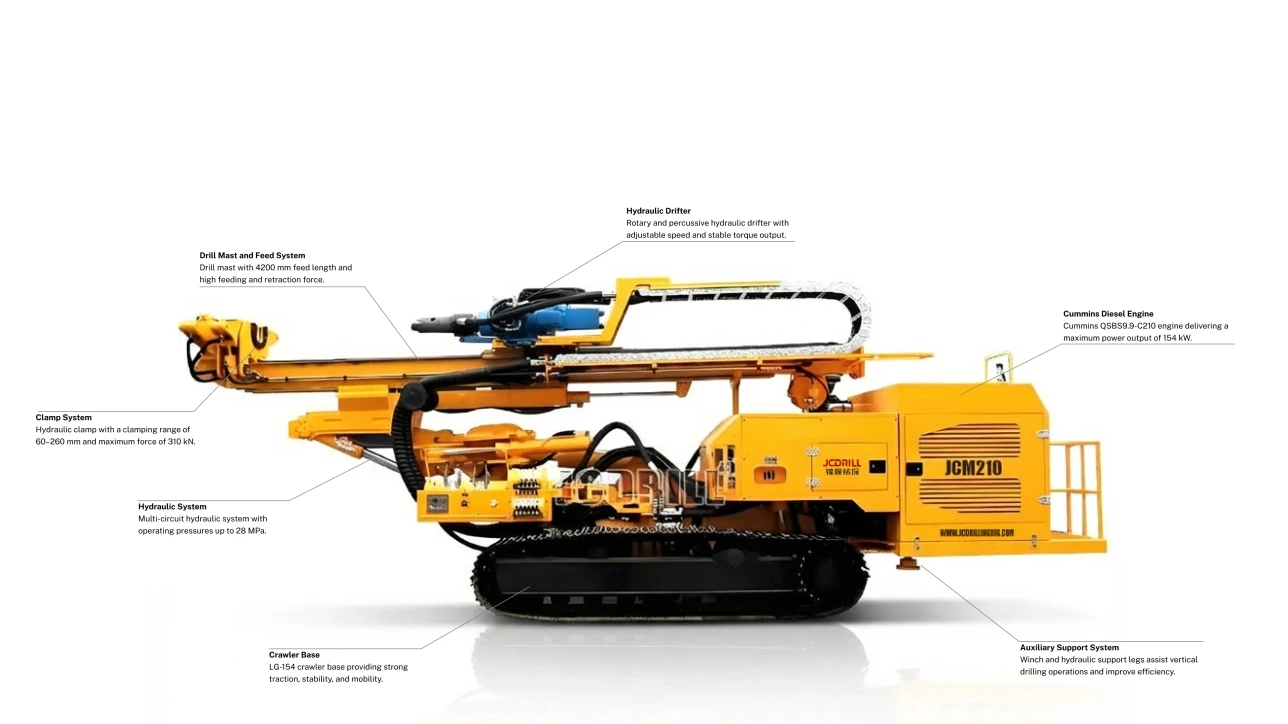

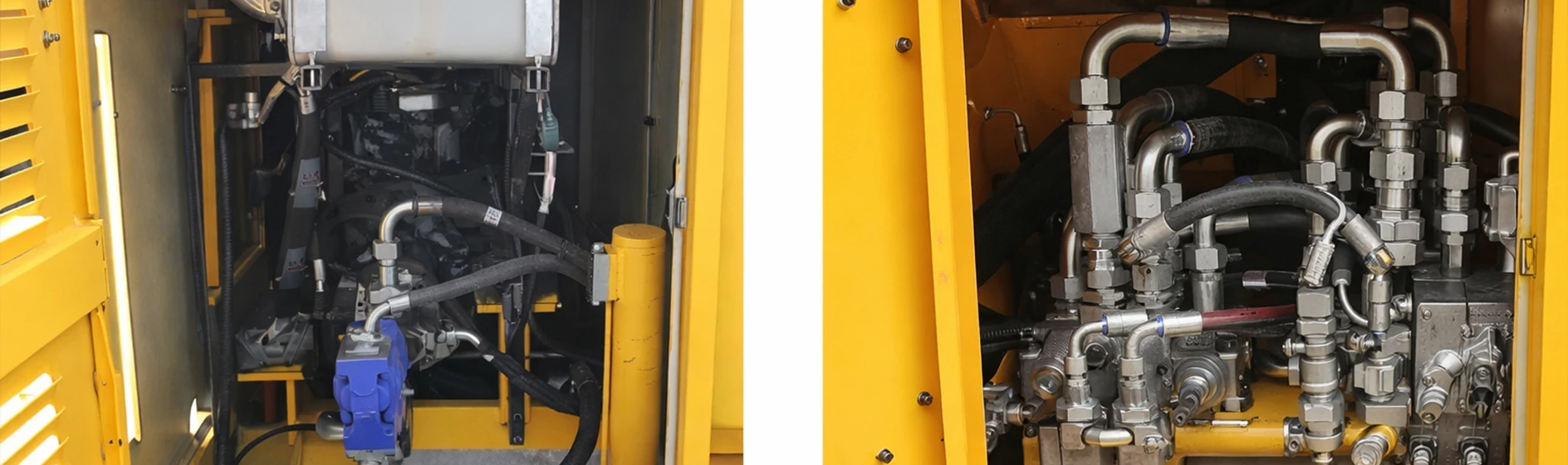

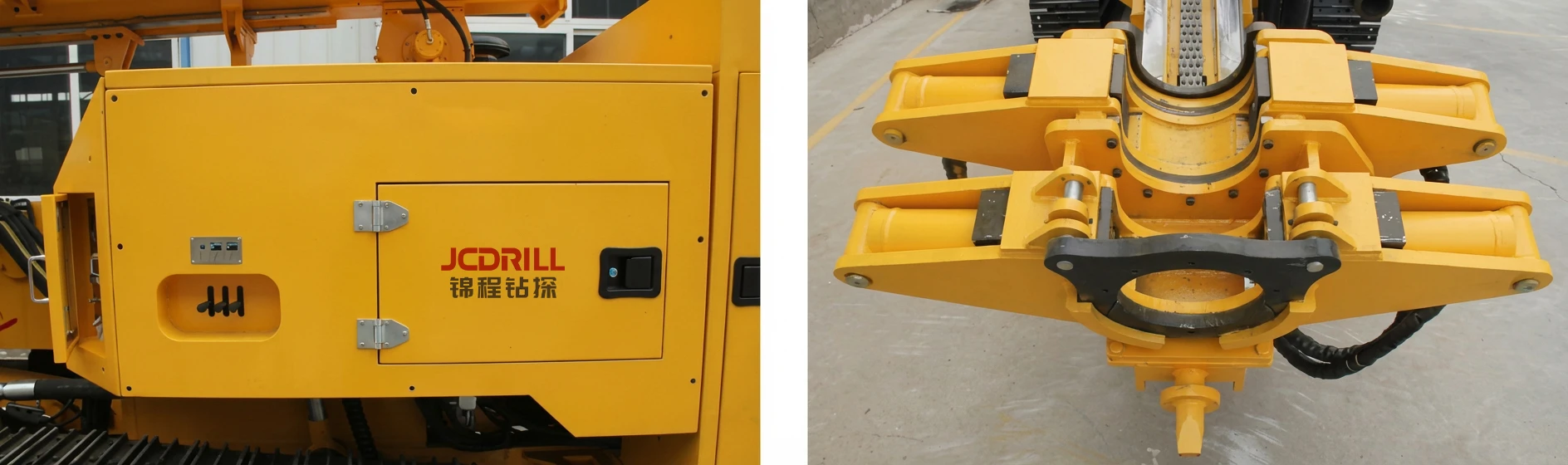

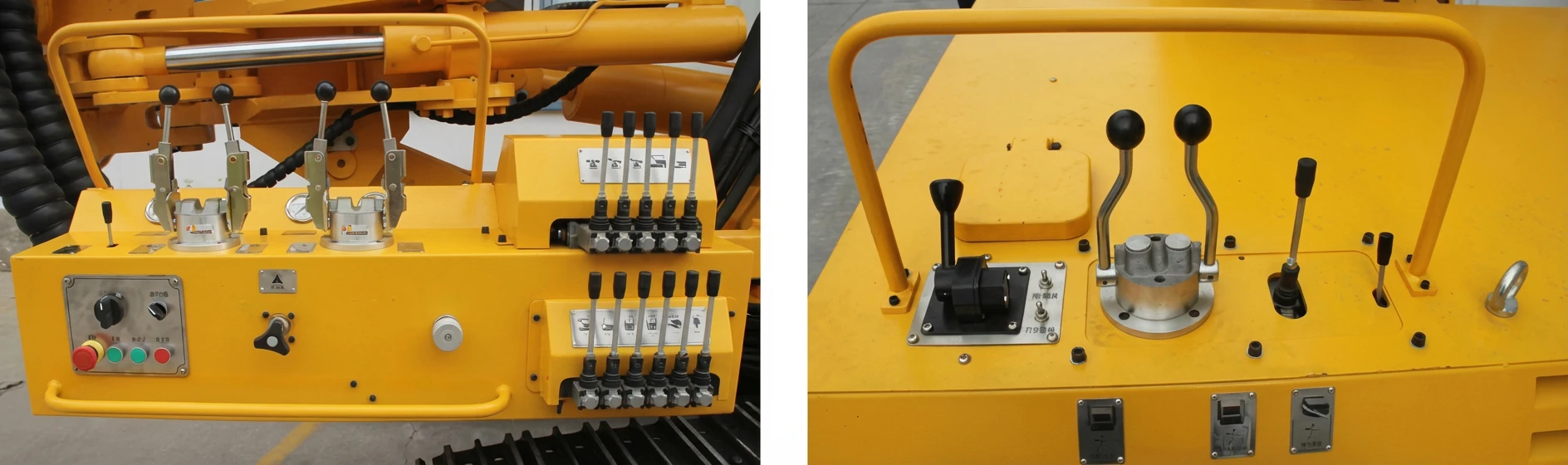

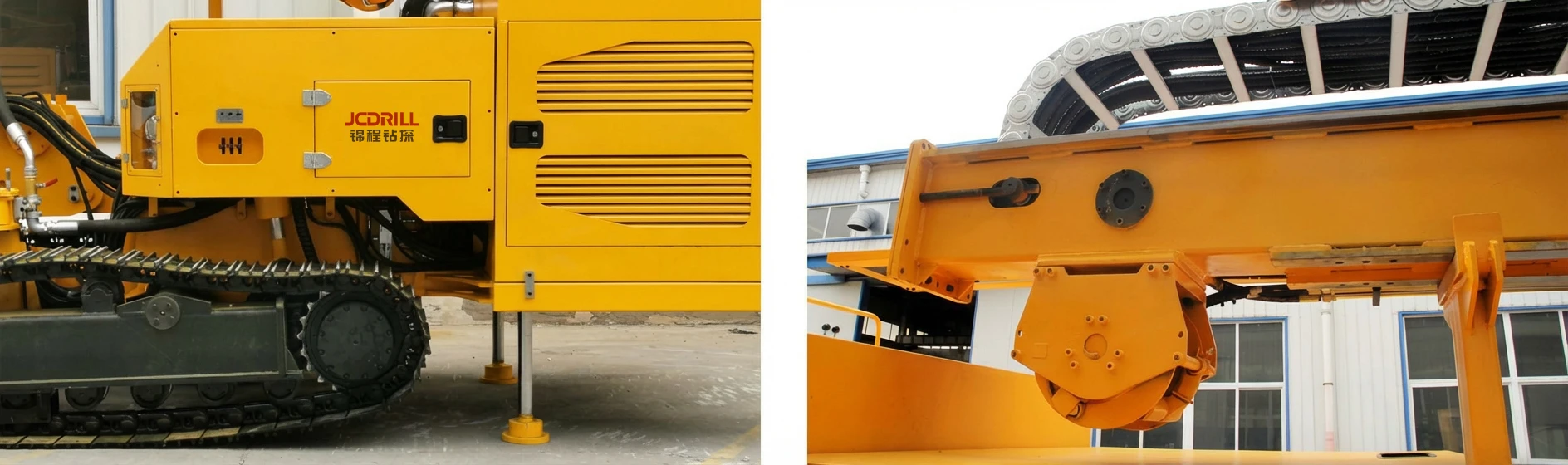

Main Components

Enhanced Power System Equipped with a 154 kW Cummins engine, providing strong and stable power output for complex formations.
High Torque and Stable Output High-speed torque up to 8,600 N·m ensures reliable drilling performance in hard rock and pebble layers.

Rotary and Percussive Drilling Capability Supports both rotary and percussive drilling modes, adapting to different rock and soil anchoring conditions.
Multi-Angle Flexible Construction Structural design with left and right swing cylinders allows flexible movement and multi-angle drilling operations.

Features Introduction

Product Description

The JCM210 Full Hydraulic Anchor Drilling Rig is engineered for high-performance anchoring operations in complex rock and soil formations. Its articulated structure, reinforced components, and flexible mast design allow multi-angle drilling and stable operation in confined spaces, deep foundations, and challenging geological conditions. The rig supports both rotary and percussive drilling modes, ensuring adaptability across a wide range of strata, including hard rock and pebble layers.
Powered by a 154 kW Cummins engine and equipped with a multi-circuit hydraulic system, the JCM210 delivers high torque of up to 8,600 N·m, smooth feed operation with 4200 mm stroke, and reliable, efficient penetration. Its fully hydraulic control enables precise, low-maintenance handling of all drilling, lifting, and positioning functions, making it ideal for slope stabilization, foundation reinforcement, tunnel anchoring, and other demanding civil engineering projects. Optional configurations include clamp sizes, auxiliary winches, and specialized hydraulic systems for customized construction requirements.

Rotary & Percussive Flexibility

Supports dual drilling modes for versatile anchoring in various rock and soil formations.

High Torque & Deep Hole Capability

Delivers up to 8,600 N·m torque with 4200 mm feed length for efficient deep-hole anchoring.

Product Specifications

Specification	Unit	JCM210

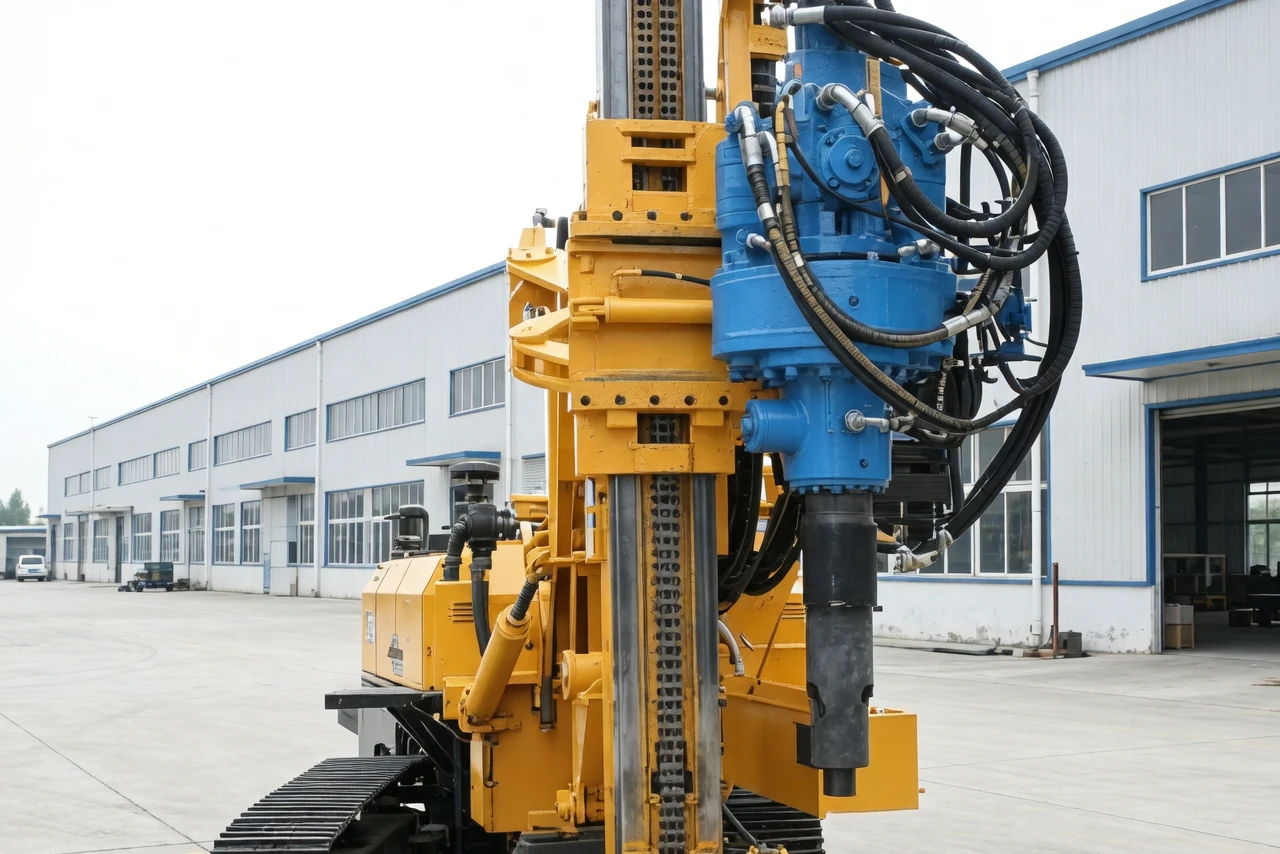

Hydraulic drifter
Mode of Operation		Rotary/Percussive
Percussion Frequency	Times/min	0-1200
Max. torque at high speed	Nm	8600
High rotating speed	r/min	0-88 ~ 132
Low rotating speed	r/min	0-44 ~ 66
Clamp range	mm	60-260
Max. clamp force	KN	310
Hydraulic system
Hydraulic pumps
1st circuit operating pressure	Mpa	0-28
2nd circuit operating pressure	Mpa	0-25
3rd circuit operating pressure	Mpa	0-25
Hydr. oil tank capacity	L	450
Engine
Brand		CUMMINS
Model		QSBS9.9-C210
Max. power output	KW	154
Rated output at 2200 rpm	KW	154
Electric system	V	24
Fuel tank capacity	L	300
Crawler base
Crawler type		LG-154
Towing force	kN	150
Crawler speed	km/h	1.7/2.5
Ground pressure	N/cm²	5.9
Overall width	mm	2280
Length of crawler units	mm	3295
Ground clearance	mm	410
Drill mast type
Motor reducer/chain
Feed length	mm	4200
Feed force	kN	55
Retraction force	kN	90
Feed rate	m/min	0-18
Retraction rate	m/min	0-11
Fast feed rate	m/min	0-55
Fast retraction rate	m/min	0-33
Dimension
Weight	kg	14500
