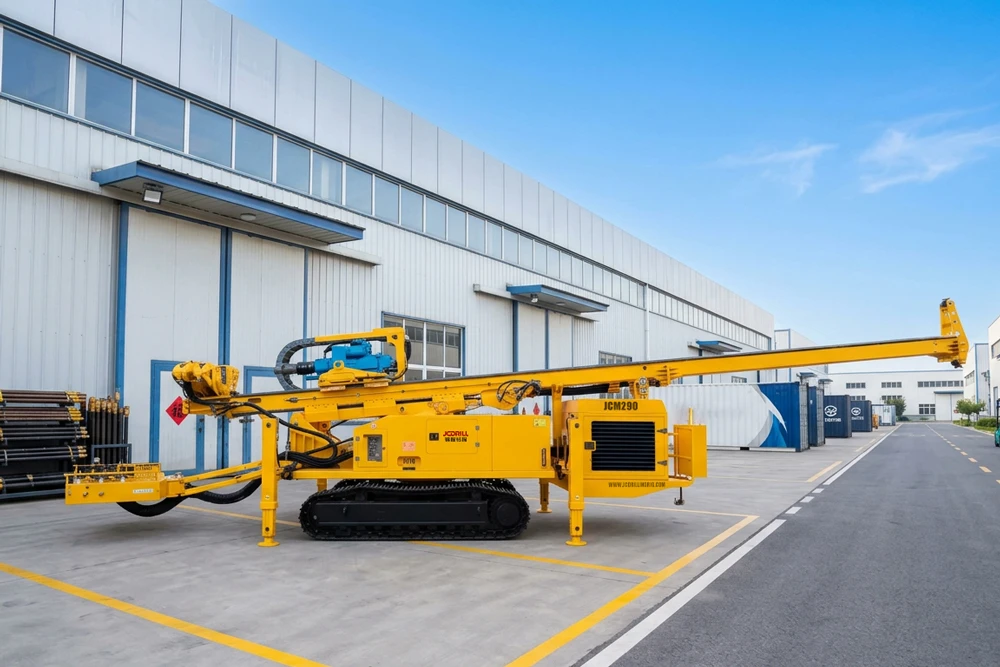

JCM290 Full Hydraulic Anchoring Drilling Rig for Large Diameter

Hole Range

60–430mm

Hole Depth

25m

Recommend Chassis Type

Truck
Crawler
Trailer

The JCM290 is an ultra-deep hole fully hydraulic anchoring drilling rig designed for high-efficiency large-diameter and deep anchoring construction. It features an extra-large clamp opening and an extended drilling mast with a 10,500 mm rotary head stroke, enabling one-pass vertical borehole drilling up to 10 meters without frequent rod coupling. The detachable mast design allows flexible operation for vertical, horizontal, and inclined drilling. With precise drilling angle monitoring and a swingable operation panel, the JCM290 delivers high accuracy, efficiency, and adaptability for demanding anchoring and foundation projects.

Inquire Now

Functions and Features

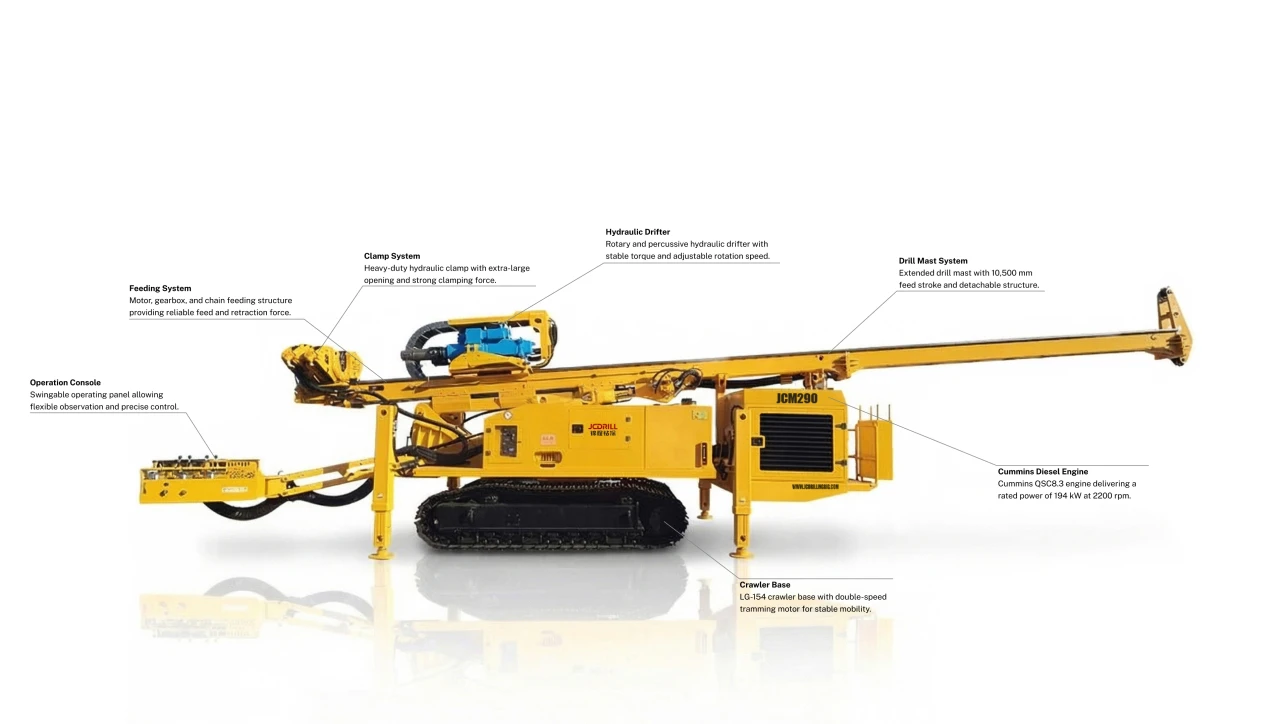

Main Components

Extra-Large Diameter Clamp System Clamp range up to 430 mm supports large-diameter anchoring construction requirements.

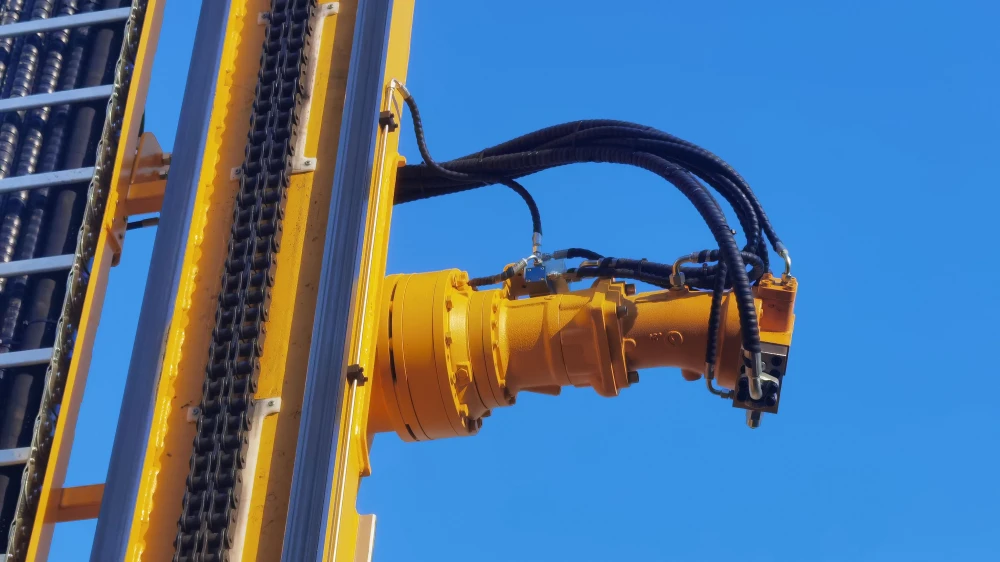

High Torque Output Delivers up to 17,000 N·m torque at low speed, suitable for deep and hard rock anchoring.

Ultra-Deep One-Pass Drilling Capability Extended mast stroke allows 10 m vertical borehole drilling in one operation, significantly improving drilling efficiency.
Rotary and Percussive Drilling Performance High and low gear rotation combined with percussive function ensures stable drilling in hard and complex formations.

Features Introduction

Product Description

The JCM290 Ultra-Deep Hole Full Hydraulic Anchoring Drilling Rig is purpose-built for large-diameter and deep anchoring construction requiring high accuracy and efficiency. Featuring an extended drilling mast with a 10,500 mm rotary head stroke, the rig enables one-pass vertical drilling of up to 10 meters, greatly reducing rod handling time and improving overall construction efficiency. Its extra-large clamp system supports diameters up to 430 mm, making it ideal for heavy-duty anchoring and foundation reinforcement projects.

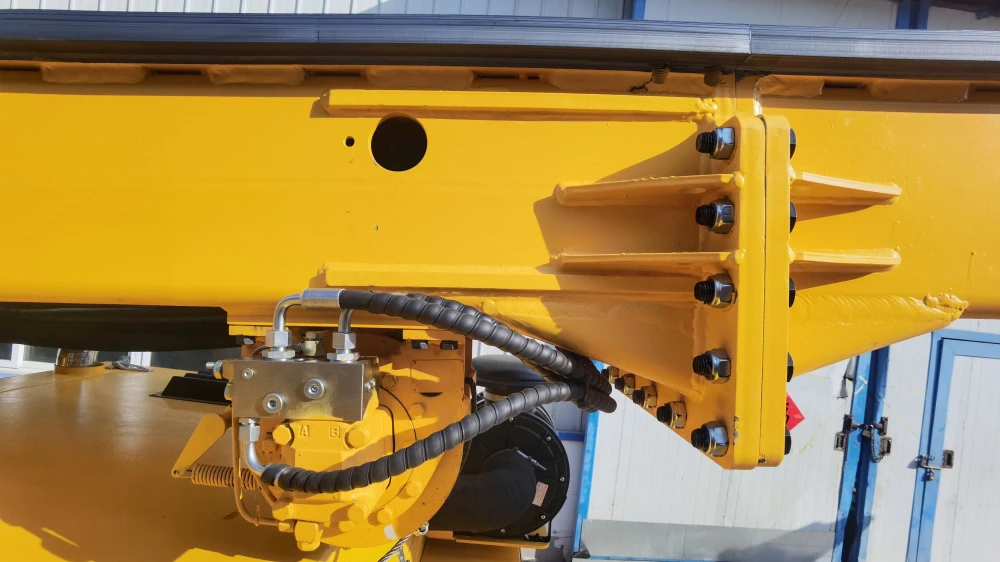

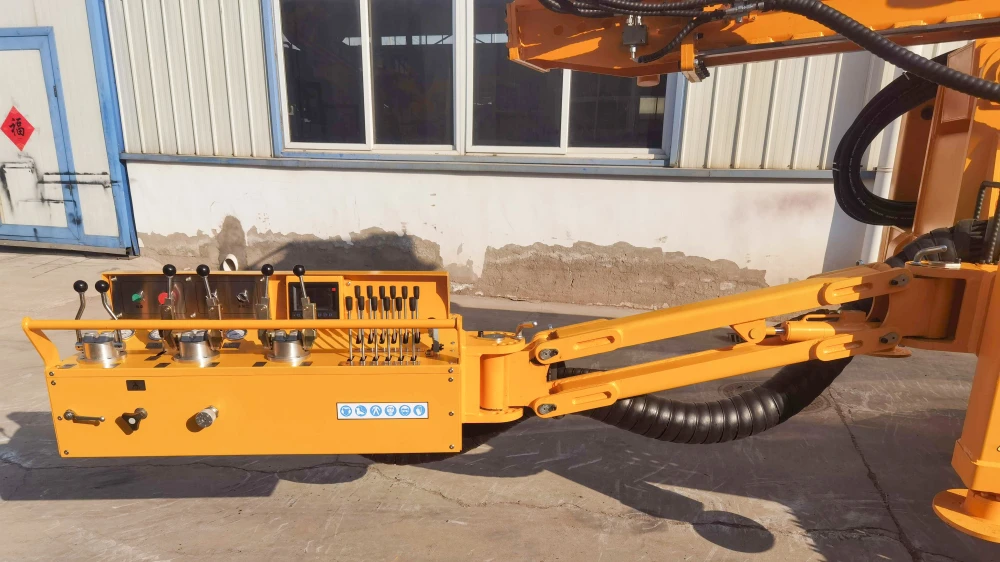

Designed for flexibility in complex working conditions, the JCM290 adopts a two-section detachable mast structure that allows vertical, horizontal, and inclined drilling configurations. With low-speed high-torque output up to 17,000 N·m, rotary–percussive drilling capability, and precise drilling angle monitoring, the rig ensures stable penetration and accurate borehole positioning in hard rock and deep formations. The swingable operation panel further enhances operator comfort and control, making the JCM290 a reliable solution for demanding civil engineering, mining, and geotechnical applications.

Efficient Ultra-Deep Drilling for Large-Diameter Anchoring

The JCM290 features a 10,500mm rotary head stroke for one-pass vertical drilling up to 10m, with a 430mm clamp range and 17,000 N·m torque, perfect for large-diameter, deep anchoring projects. Its detachable mast design and precise angle monitoring ensure flexible and accurate drilling in complex conditions.

Product Specifications

Specification	Unit	JCM290
Engine Model No.		QSC8.3-C260
Emission level		III
Rated power	kW	194kW @2200rpm

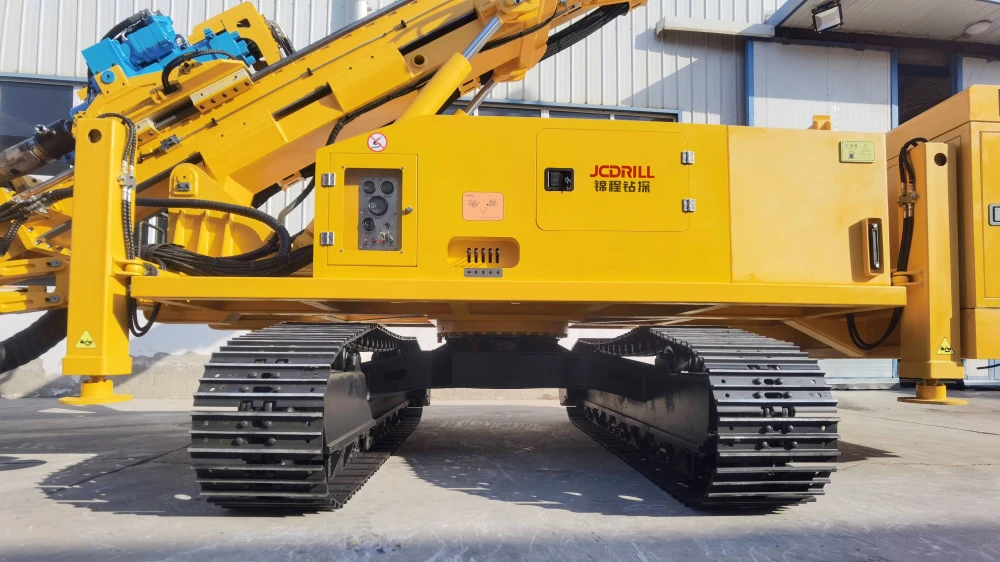

Caterpillar Band Model No.		LG-154
Tramming Motor		Double-speed
Tramming speed	km/h	1.5/2.3
Ground pressure	N/cm²	7.2
Gradeability	°	17
Rotation rate at low gear	r/min	0-50
Rotation rate at high gear	r/min	0-100
Torque range at high gear	Nm	9900
Torque range at low gear	Nm	17000
Impact work	N*m	1180
Percussion frequency	min⁻¹	1250
Feed stroke	mm	10500 (5450 after disassembly)
Feed force	kN	100
Retraction force	kN	100
Feed rate	m/min	0-12
Retraction rate	m/min	0-12
Feeding Pattern		Motor+Gear box+Chain
Clamp range	mm	60-430
Max. clamp force	kN	324
Dimension	mm	13250 (7950 after disassembly)22803198
Weight	T	18

View Less
