JMZ1095 Anchor Engineering Drilling Rig

Hole Range

115-152mm

Hole Depth

25m

Recommend Chassis Type

Truck
Crawler
Trailer

Disassemble multi-function drilling rig for limited access place is elaborately designed for grouting, anchor, micro-pile as well as core drilling at low head room working site such as basements, garages, bomb shelters, culverts and small tunnels, etc. With its high rotating speed rotary head (top hammer optional) and separated drill rig and power pack, It is flexible and more convenient in usage.

Inquire Now

Functions and Features

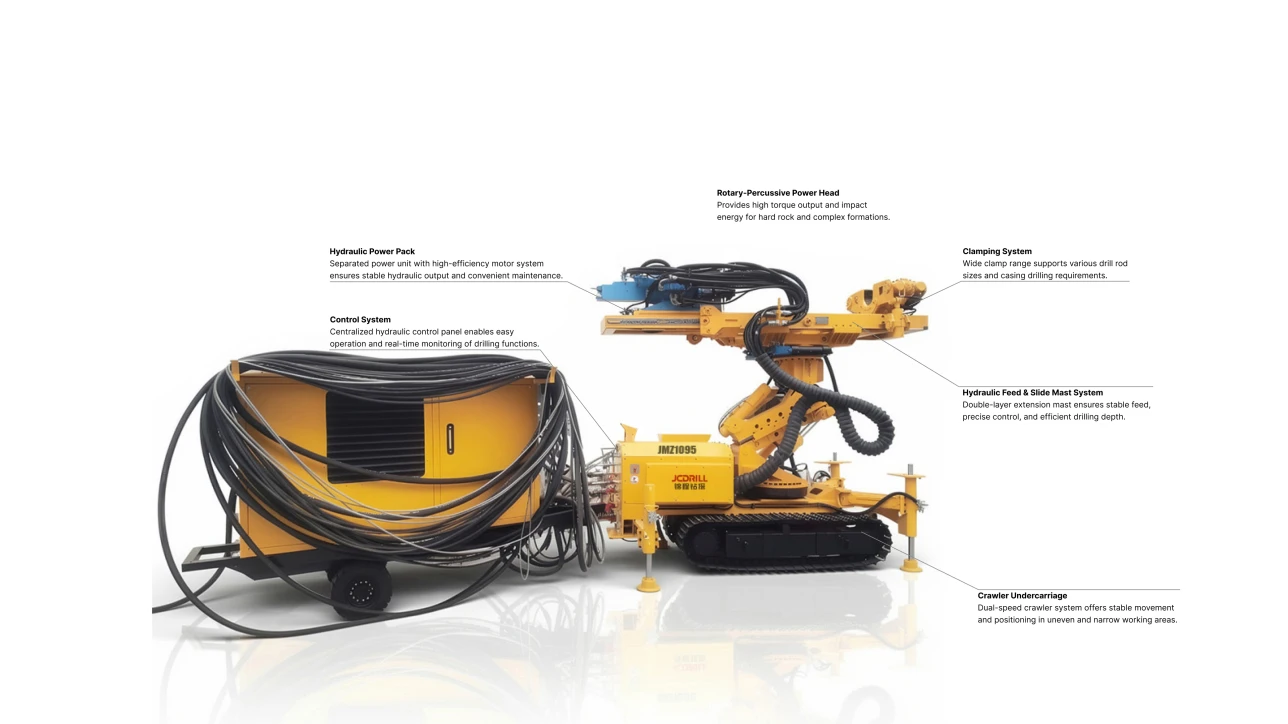

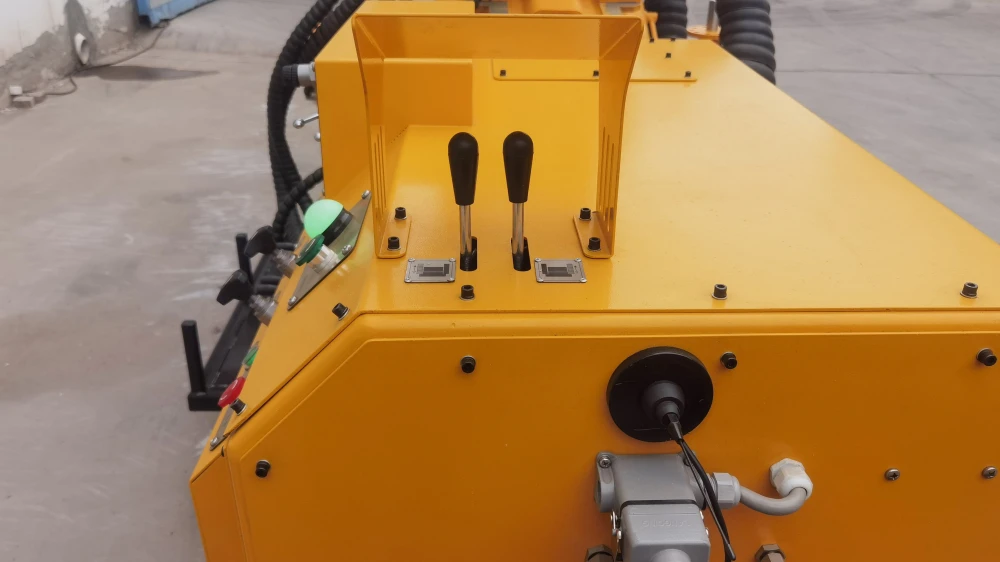

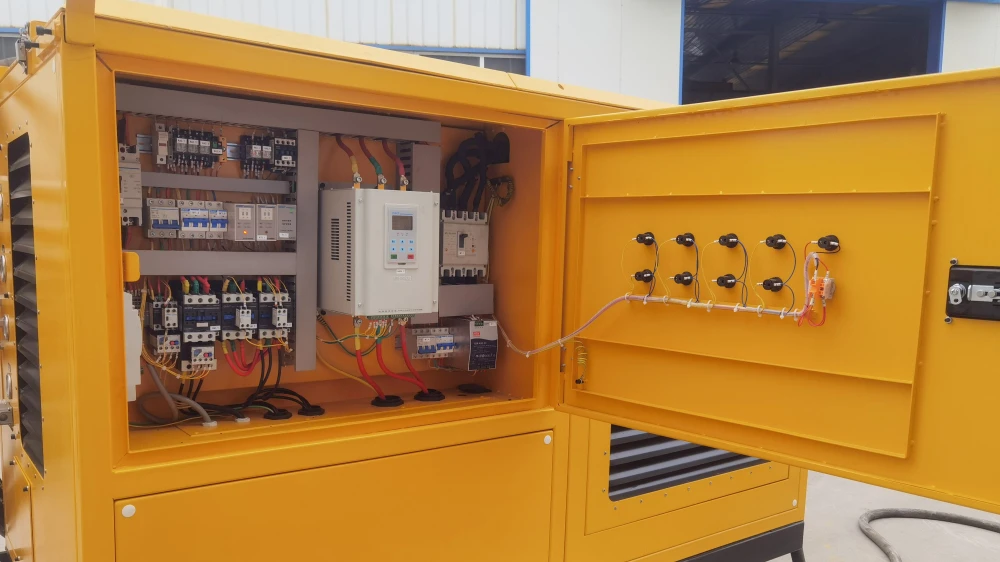

Main Components

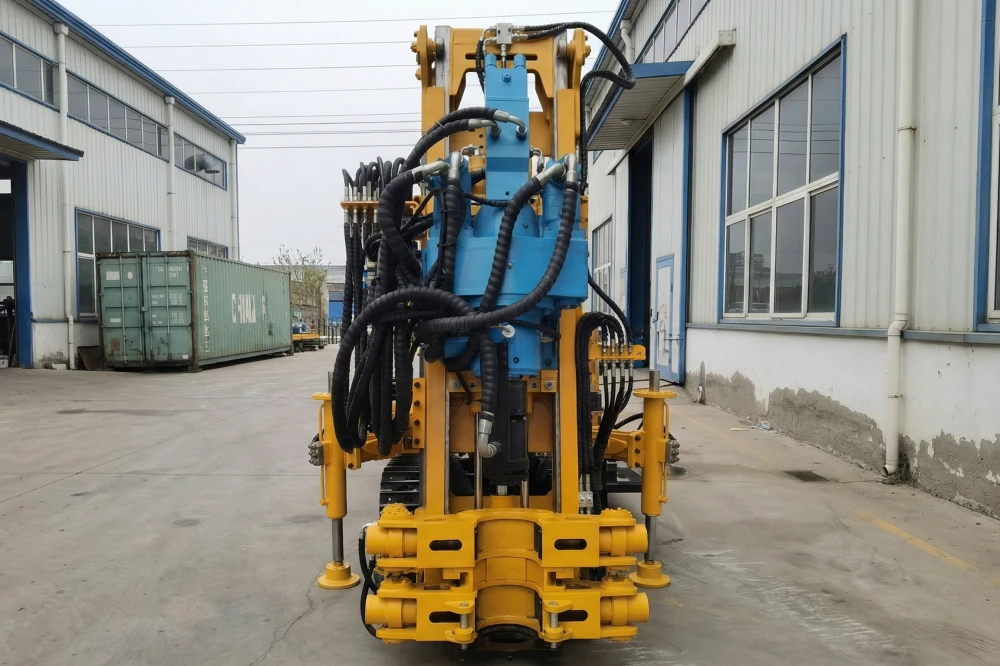

Rotary-Percussive Drilling Capability Impact rotation drilling head provides strong penetration in hard and complex formations.
Powerful Feed & Retraction System High feed force and retraction force support efficient drilling and smooth rod handling.

Low Headroom & Confined Space Design Disassemblable structure allows easy transportation and operation in basements, tunnels, culverts, and other restricted sites.
High Torque Output Delivers up to 10,000 N·m torque at low speed, ensuring stable drilling performance in demanding conditions.

Features Introduction

Product Description

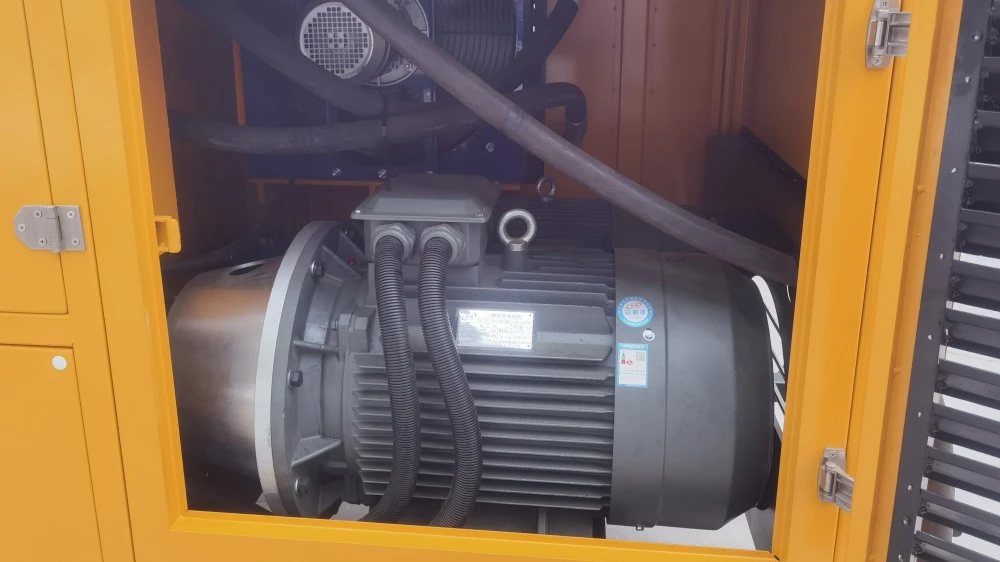

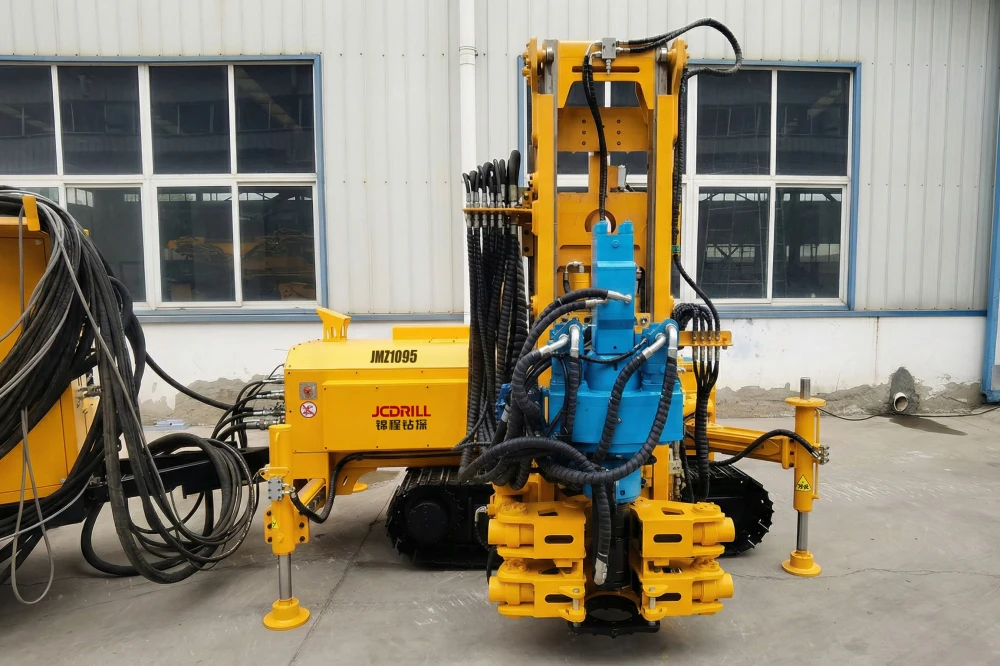

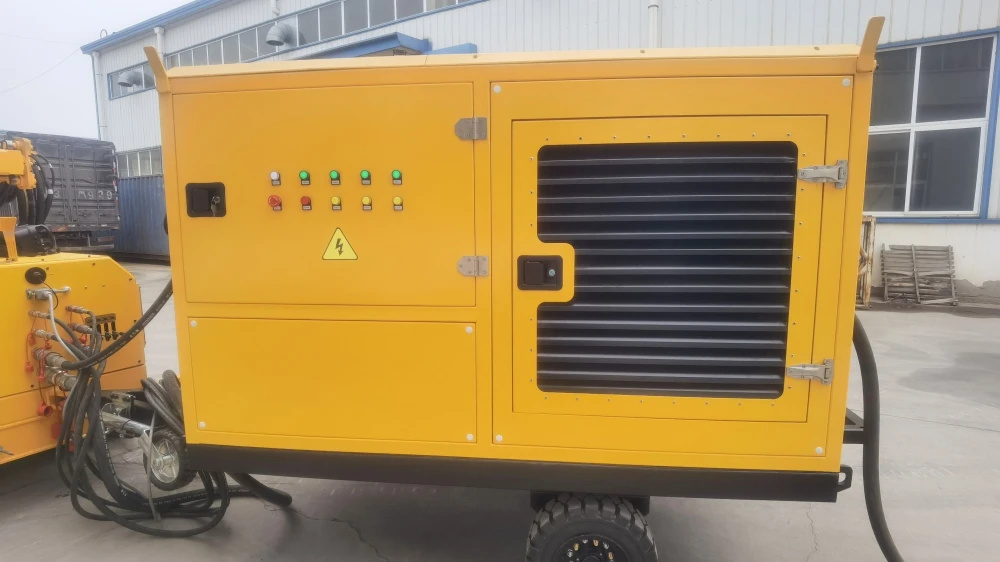

The JMZ1095 Disassemble Multi-Function Drilling Rig is specially designed for drilling operations in limited-access and low headroom environments, such as basements, underground garages, bomb shelters, culverts, and small tunnels. Its modular and disassemble structure allows the drilling unit and power pack to be transported and installed separately, ensuring easy access and flexible deployment in confined spaces.
Equipped with a rotary-percussive drilling head, the JMZ1095 delivers high torque and strong impact energy, enabling efficient performance in grouting, anchoring, micro-piling, casing drilling, and high-pressure core drilling. A stable hydraulic system, powerful feed and retraction force, and optimized structural design ensure reliable operation, high productivity, and reduced downtime in complex underground construction conditions.

Designed for Limited Access Worksites

Modular disassembly design enables smooth operation in low headroom and confined environments where conventional rigs cannot operate.

Powerful Impact Rotation for Efficient Drilling

Rotary-percussive drilling system delivers strong torque and impact energy, ensuring fast penetration and stable hole quality.

Product Specifications

Model	JMZ1045	JMZ1095
Rated power (kW)	55+18.5+2.2	55+37+2.2
Caterpillar Band Model No.	LG-101	LG-101
Tramming Motor	Double-speed	Double-speed
Tramming speed (km/h)	1.8 / 3.3	1.8 / 3.3
Ground pressure (N/cm²)	56	55
Gradeability (°)	20	20
Rotary head	High speed rotation (400 r/min)	Rotation with percussion
Rotation rate at low gear (r/min)	0~44	0~35
Rotation rate at high gear (r/min)	0~410	0~110
Torque at high gear (Nm)	1050	5000
Torque at low gear (Nm)	9850	10000
Impact work (N·m)	—	750
Percussion frequency (min⁻¹)	—	1100
Mast	Telescopic mast	Slide extension mast
Feed stroke (mm)	1200-2200	900-1900
Feed force (kN)	45	63
Retraction force (kN)	45	95
Feed rate (m/min)	0~8.5 / 0~17	0~9.2 / 0~28.5
Retraction rate (m/min)	0~8.5 / 0~17	0~6.1 / 0~18.5
Feeding pattern	Hydraulic motor + gear box	Hydraulic cylinder

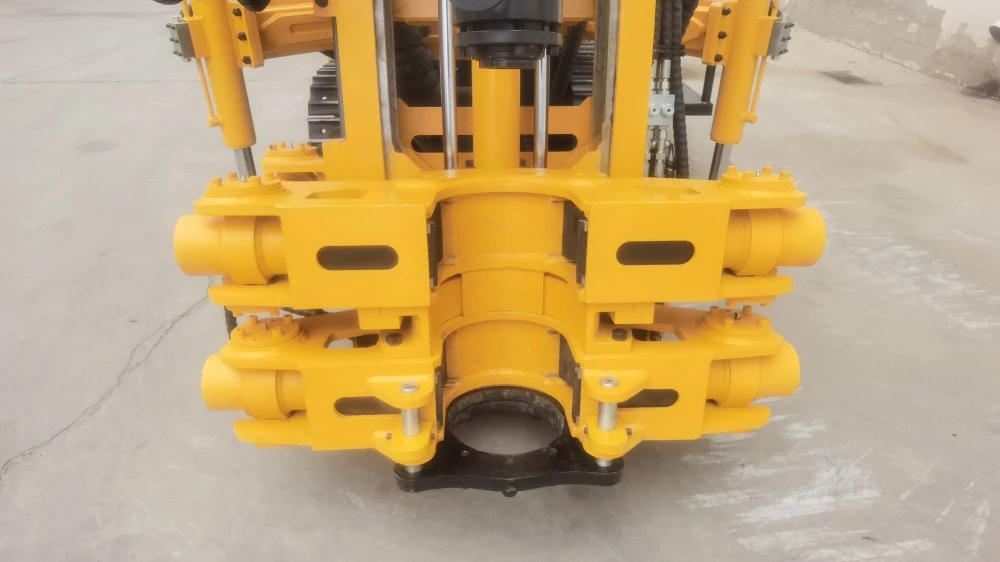

Clamp range (mm)	60-273	60-200
Maximum passing diameter (mm)	300	220
Transportation of drill rig (mm)	3353×1200×2544	3353×1200×2300
Power pack dimension (mm)	3200×1200×2000	3200×1200×2000
Weight (T)	5.7±2.3	5.5±2.4
