60–210mm
English
Hole Range
60–210mm
Hole Depth
25m
Recommend Chassis Type
Truck
Crawler
Trailer

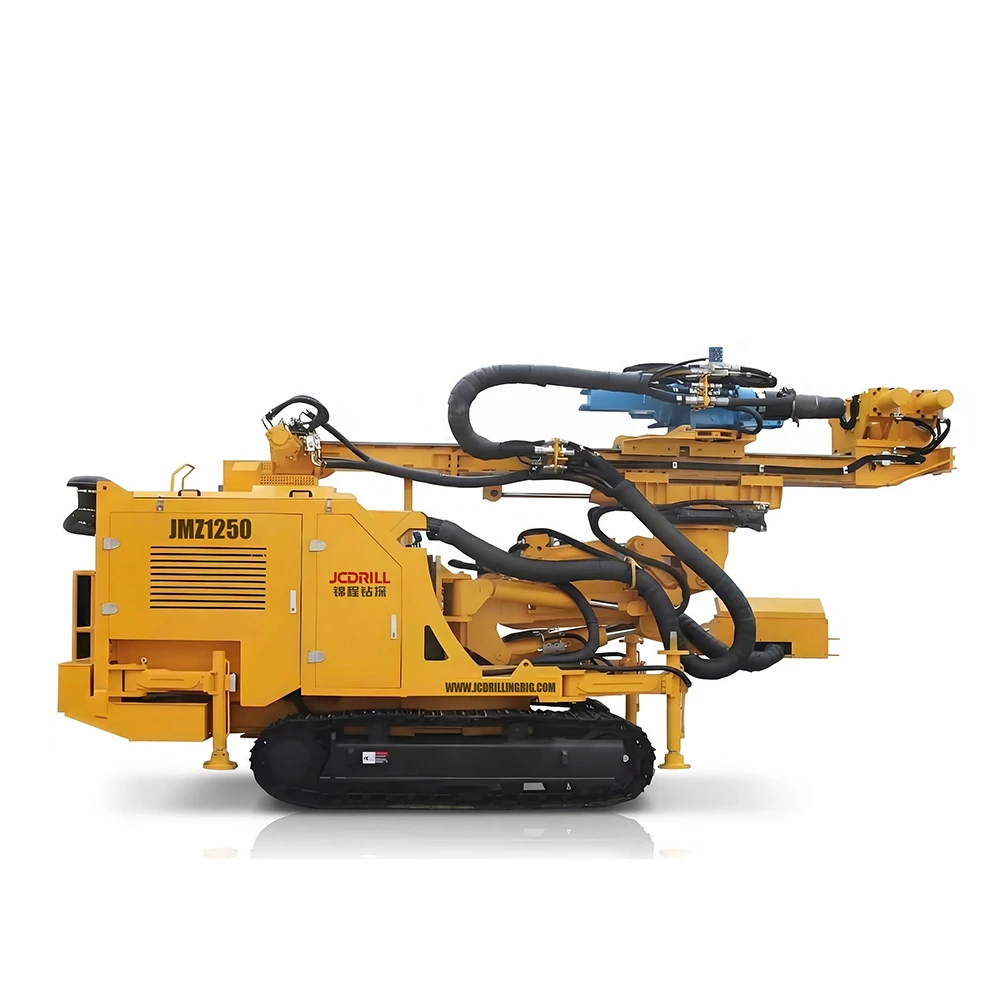

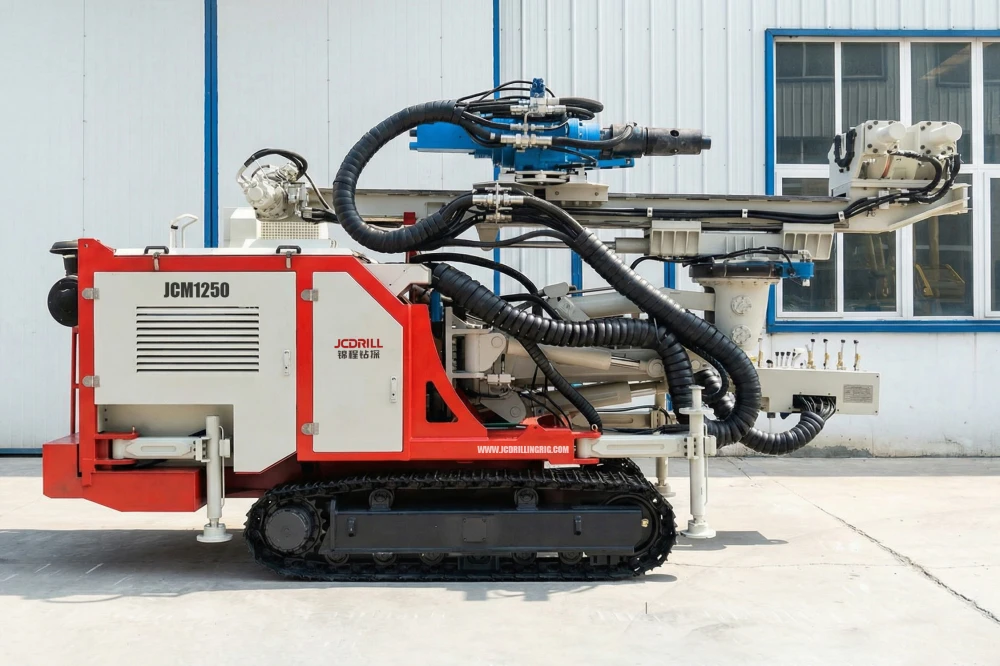

The JMZ1250 is a compact full hydraulic anchor drilling rig specially designed for anchor borehole drilling in small tunnels and confined working spaces. With a compact structure, articulated system, and rotating table design, the rig supports multi-position and multi-angle drilling operations. Equipped with a rotary–percussive hydraulic drifter and powered by a Cummins diesel engine, the JMZ1250 delivers stable torque output and reliable performance. Its small size, flexible operation, and crawler base make it suitable for anchoring construction where space is limited.

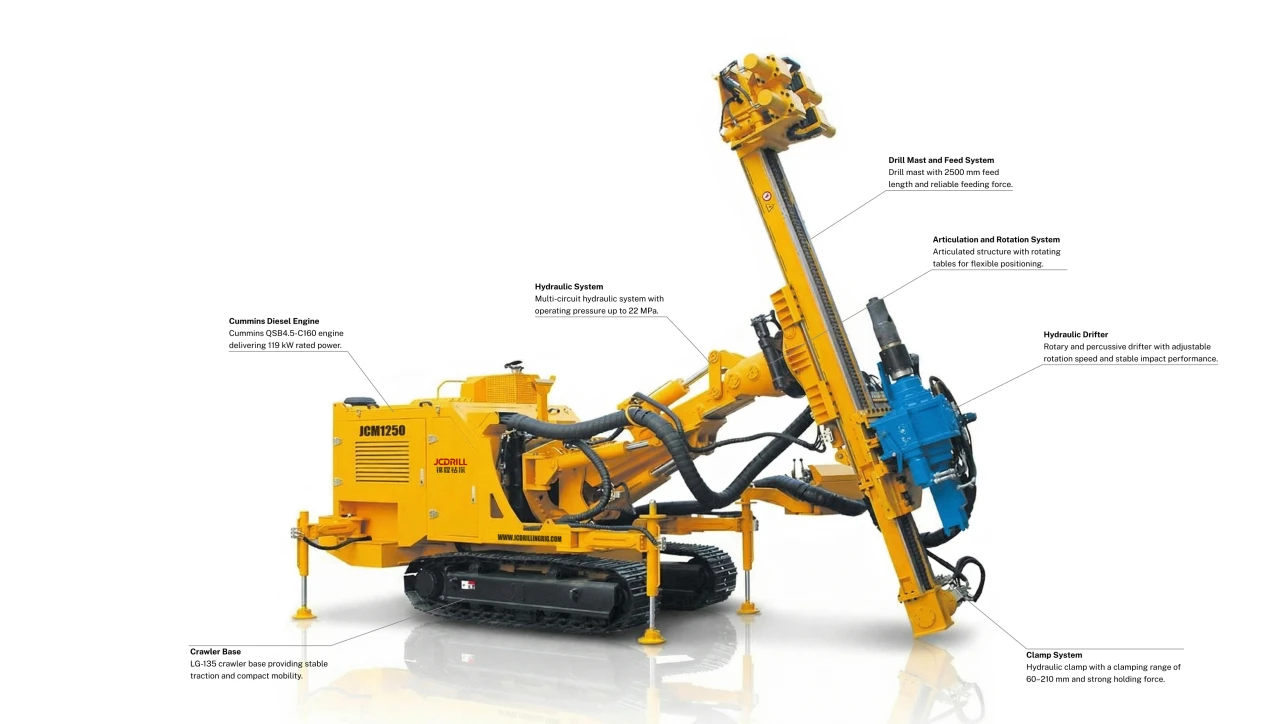

Features Introduction
Product Description

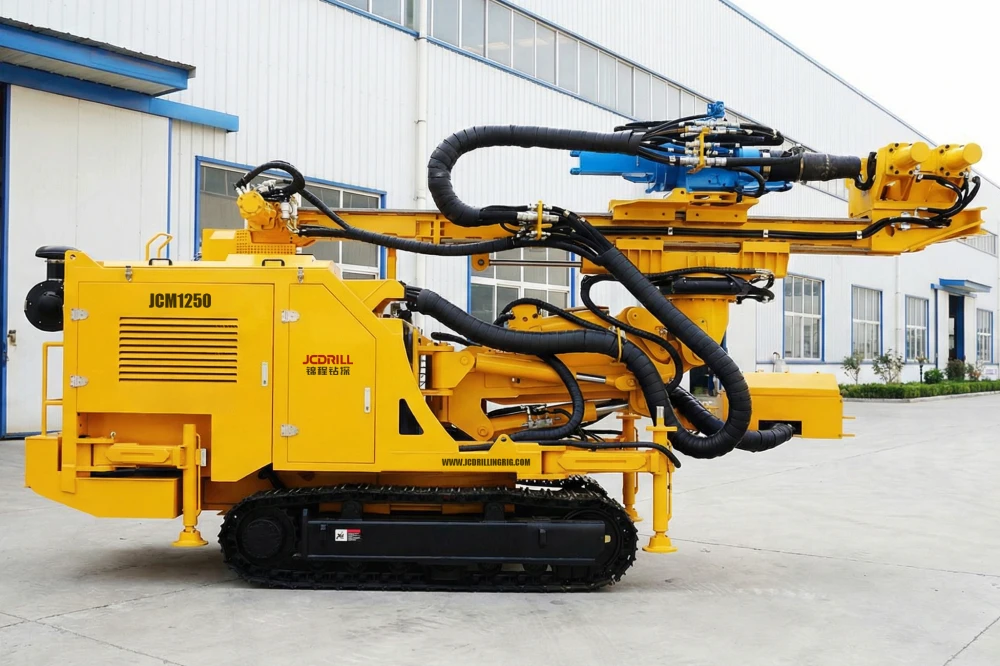

The JMZ1250 Compact Full Hydraulic Anchor Drilling Rig is purpose-built for anchoring construction in small tunnels and confined working spaces. With its compact structure, articulated mechanism, and rotating table design, the rig enables flexible multi-position and multi-angle drilling where conventional equipment cannot operate. Equipped with a rotary–percussive hydraulic drifter, it delivers stable torque output and reliable drilling performance across various anchoring conditions.

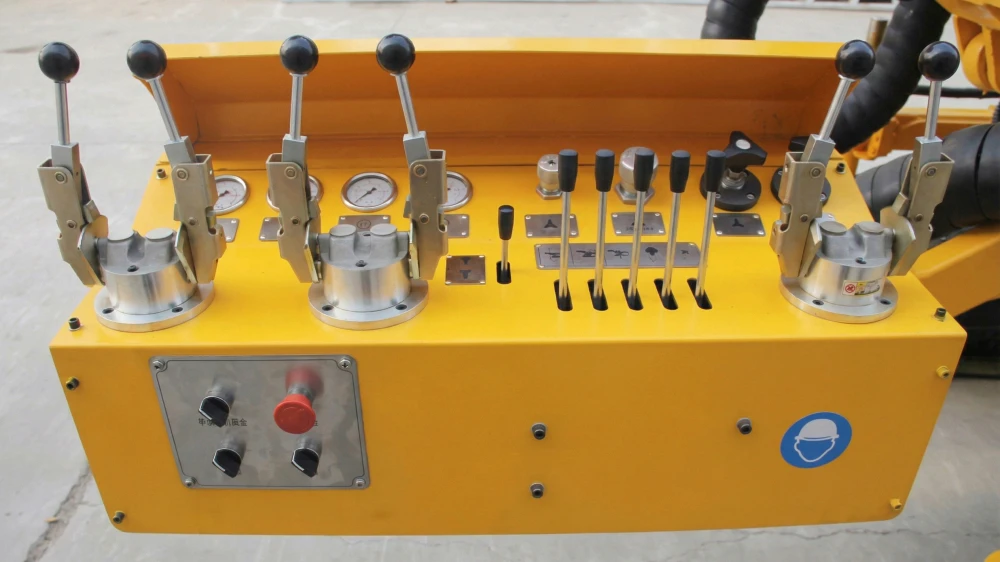

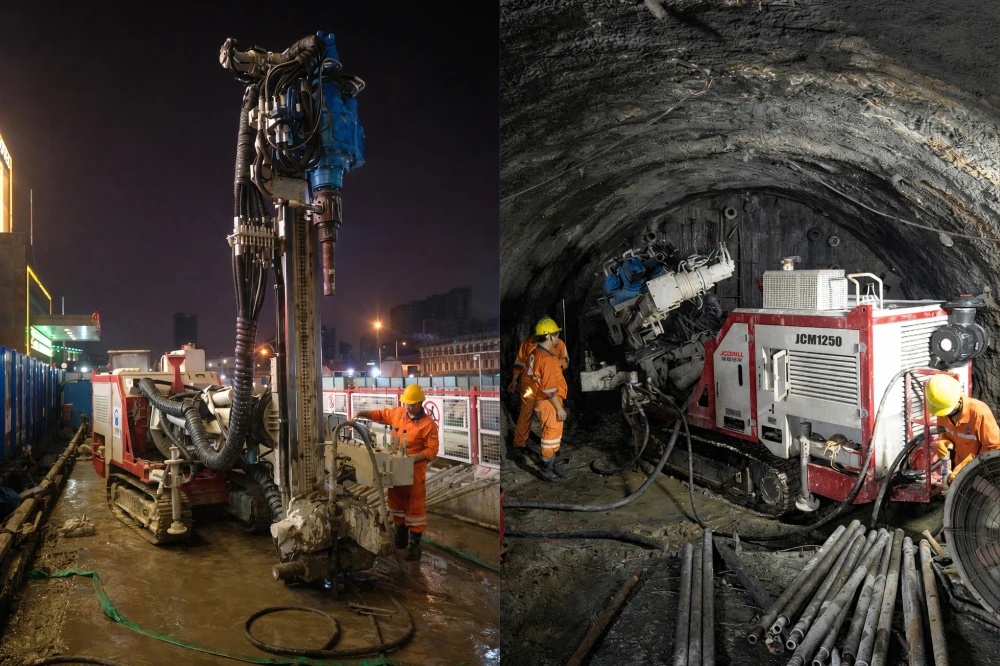

Powered by a Cummins diesel engine and mounted on a crawler chassis, the JMZ1250 combines strong mobility with precise hydraulic control. Its energy-efficient hydraulic system ensures smooth operation with reduced power consumption, while the compact dimensions and flexible maneuverability make it an ideal solution for tunnel anchoring, slope support, and foundation reinforcement projects in restricted environments.
Product Specifications
| Specification | Unit | JMZ1250 |
| Hydraulic drifter | ||
| Mode of Operation | Rotary/Percussive | |
| Percussion Frequency | Times/min | 0~1150 (Impact force about 550Nm) |
| Max. torque at high speed | Nm | 5500 |
| Max. torque at low speed | Nm | 11000 |
| High rotating speed | r/min | 0~134 |
| Low rotating speed | r/min | 0~67 (adjustable) |
| Clamp range | mm | 60~210 |
| Max. clamp force | KN | 212 |
| Hydraulic system | ||
| Hydraulic pumps | ||
| 1st circuit operating pressure | Mpa | 0-22 |
| 2nd circuit operating pressure | Mpa | 0-22 |
| 3rd circuit operating pressure | Mpa | 0-20 |
| Hydr. oil tank capacity | L | 400 |
| Engine | ||
| Brand | CUMMINS | |
| Model | QSB4.5-C160 III | |
| Rated output at 2200 rpm | KW | 119 |
| Electric system | V | 24 |
| Fuel tank capacity | L | 200 |
| Crawler base | ||
| Crawler type | LG-135 | |
| Towing force | kN | 65 |
| Crawler speed | km/h | 1.4 |
| Ground pressure | N/cm² | 6.39 |
| Overall width | mm | 1500 |
| Length of crawler units | mm | 2450 |
| Ground clearance | mm | 300 |
| Drill mast type | ||
| Motor reducer/chain | ||
| Feed length | mm | 2500 |
| Feed force | kN | 50 |
| Retraction force | kN | 50 |
| Feed rate | m/min | 0-10 |
| Retraction rate | m/min | 0-10 |
| Fast feed rate | m/min | 0-50 |
| Fast retraction rate | m/min | 0-50 |
| Dimensions | ||
| Dimension | mm | 5900x1500x2850 |
| Weight | kg | 10000 |
