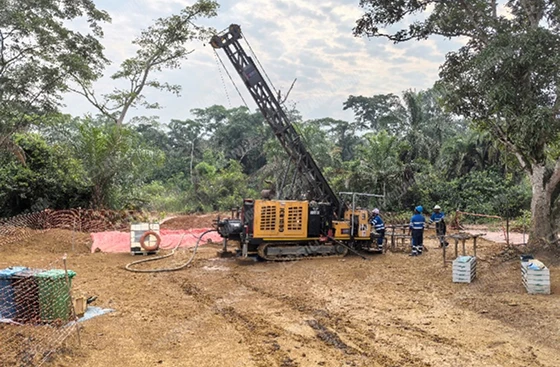

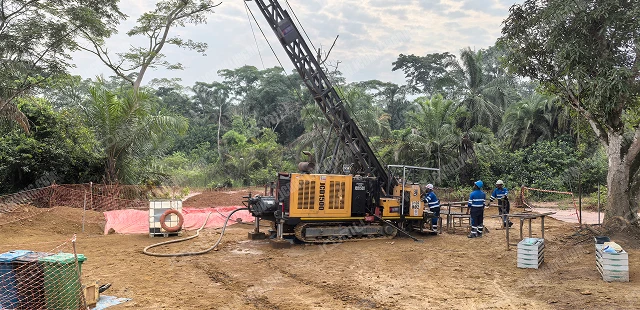

Diamond core drilling rigs are among the most essential pieces of equipment in modern mineral exploration. With their ability to produce high-quality, continuous core samples—even in extremely hard or complex geological formations—they provide the most reliable data for geological interpretation, resource estimation, and deep-level mineral discovery. Their applications extend across metallic minerals, non-metallic minerals, hydrogeology, geotechnical engineering, geothermal exploration, and environmental studies.
1. High-Quality Core Sampling
Using diamond-impregnated drill bits, diamond core drilling rigs cut through hard rock formations and extract intact, continuous core samples. These cores allow geologists to directly observe:
Geological Structure Analysis
Bedding and layer orientation
Fractures, joints, and fault zones
Metamorphic textures
Mineralization features
Alteration zones
Typical applications include:
analyzing complex fault zones
studying metamorphic terranes
determining the continuity and geometry of deep mineralized bodies
Because of their accuracy and continuity, core samples are irreplaceable for geological structure analysis.

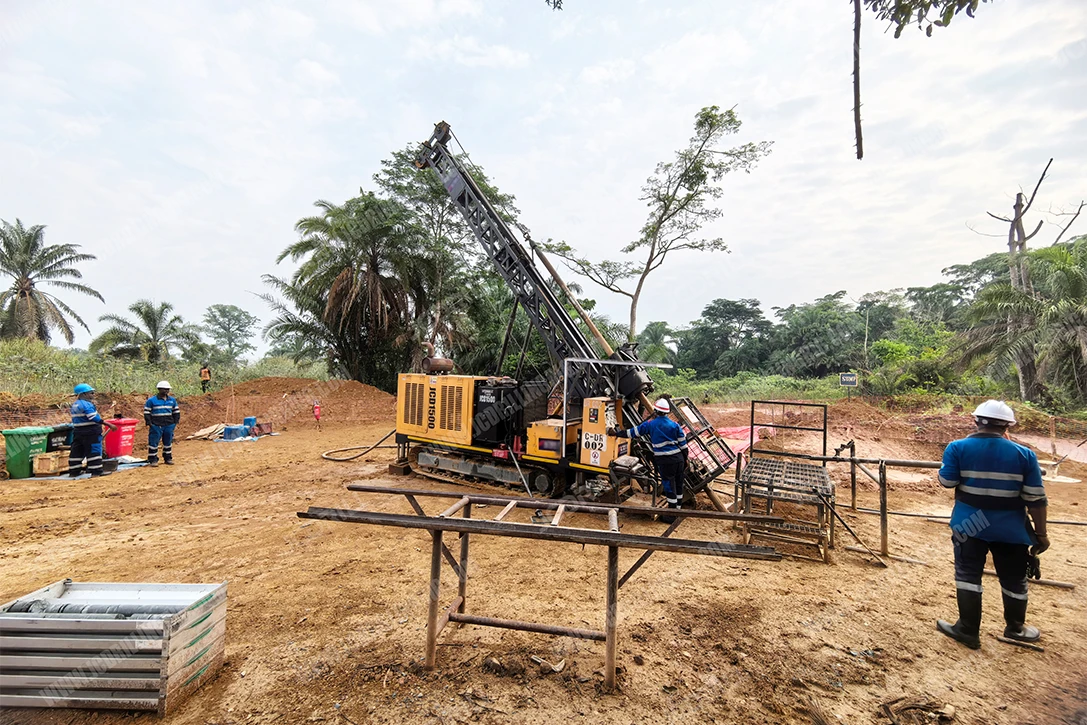

2. Metallic Mineral Exploration: A Key Tool for Deep-Level Prospecting
Diamond core drilling is the most important method for deep mineral exploration, especially for deposits of gold, copper, lead-zinc, nickel, lithium, and rare earth elements. It provides direct, high-precision data for resource calculation and ore body characterization.
Application scenarios:
tracing mineralized zones at depth (500–2,000+ meters)
determining ore body thickness, grade variation, and geometry
verifying blind deposits and marginal ore zones
supporting resource and reserve estimation
Diamond core drilling rigs greatly improve the accuracy of deep-level mineral exploration.
3. Geological Mapping and Geotechnical Investigation
Beyond traditional mineral exploration, diamond core drilling rigs are widely used in engineering geology to obtain accurate subsurface information before construction.
tunnels, bridges, dams, and foundation surveys
determining rock mass integrity and mechanical properties
identifying karst features, fractured zones, or unstable layers
The ability to operate in diverse geological environments makes these rigs crucial for risk reduction in large infrastructure projects.
4. Hydrogeological and Environmental Studies
Diamond core drilling also plays an important role in water and environmental investigations.
Use cases:
mapping aquifer structures and groundwater pathways
evaluating water quality and hydrogeological boundaries
analyzing soil and rock samples for pollutant migration studies
verifying the sealing capability of geological formations (e.g., CO₂ storage projects)
High-integrity cores allow precise interpretation of permeability, porosity, and rock-water interactions.
5. Geothermal and Pre-Oil/Gas Exploration
In geothermal exploration and early-stage oil/gas assessments, diamond drilling is used to collect detailed rock samples that reveal reservoir characteristics such as:
porosity and permeability
fracture density and orientation
thermal conductivity and rock strength
lithology and alteration zones
These data are essential for designing geothermal wells and evaluating unconventional reservoir potential.
6. Advantages of Diamond Core Drilling Rigs
Strong Adaptability
Capable of drilling through hard rock, fractured zones, inclined layers, and mixed formations.
Minimal Environmental Impact
Small borehole size reduces ground disturbance—ideal for ecologically sensitive areas.
High Data Accuracy
Continuous cores provide the most reliable information for geological modeling and 3D resource interpretation.
Compatibility with Advanced Core Systems
● wireline core retrieval ● double-tube and triple-tube systems ● oriented core drilling for structural geology
01. Precise Core Drilling
Diamond drill bits are used to obtain continuous, intact core samples thatform the most reliable foundation for all subsequent geological analysis.

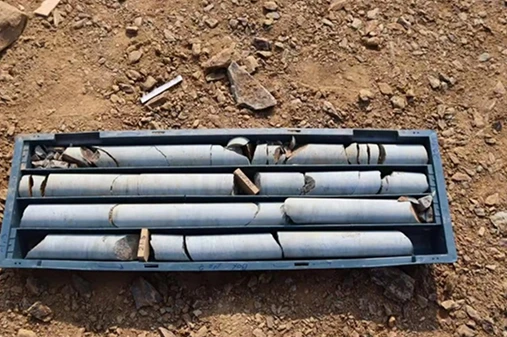

02. Proper Core Retrieval and Preservation
Wireline or double/triple-tube systems extract the core to the surface, where itis labeled and stored carefully tomaintain its integrity and order.
03. Systematic Core Logging
Geologists record detailed informationon lithology, structures, mineralization,and fractures to build an accuratesubsurface geological profile.
04. Laboratory Analysis and Interpretation
Core samples undergo laboratory testing and data modeling, providing essential inputs forresource estimation, engineering design, or environmental assessment.

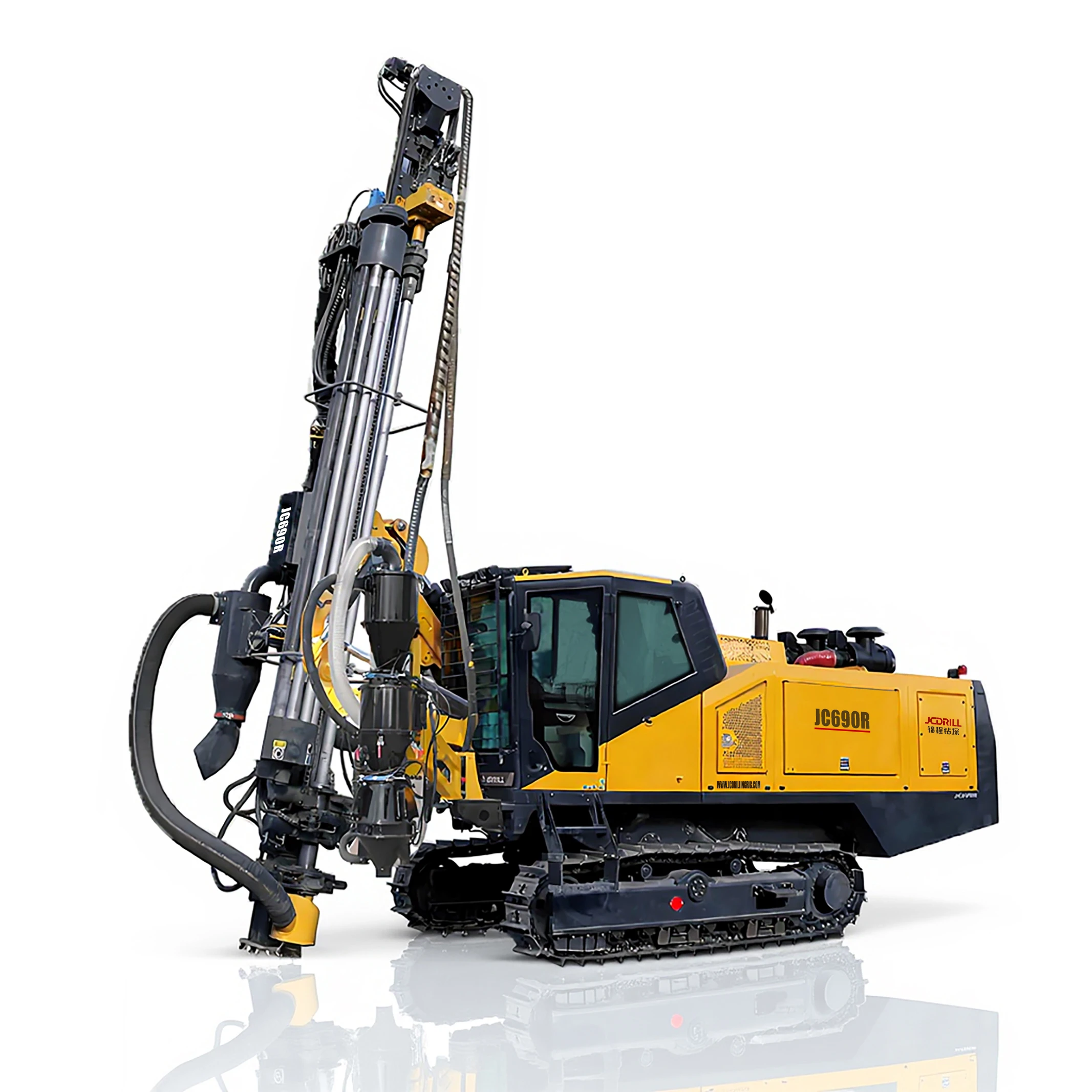

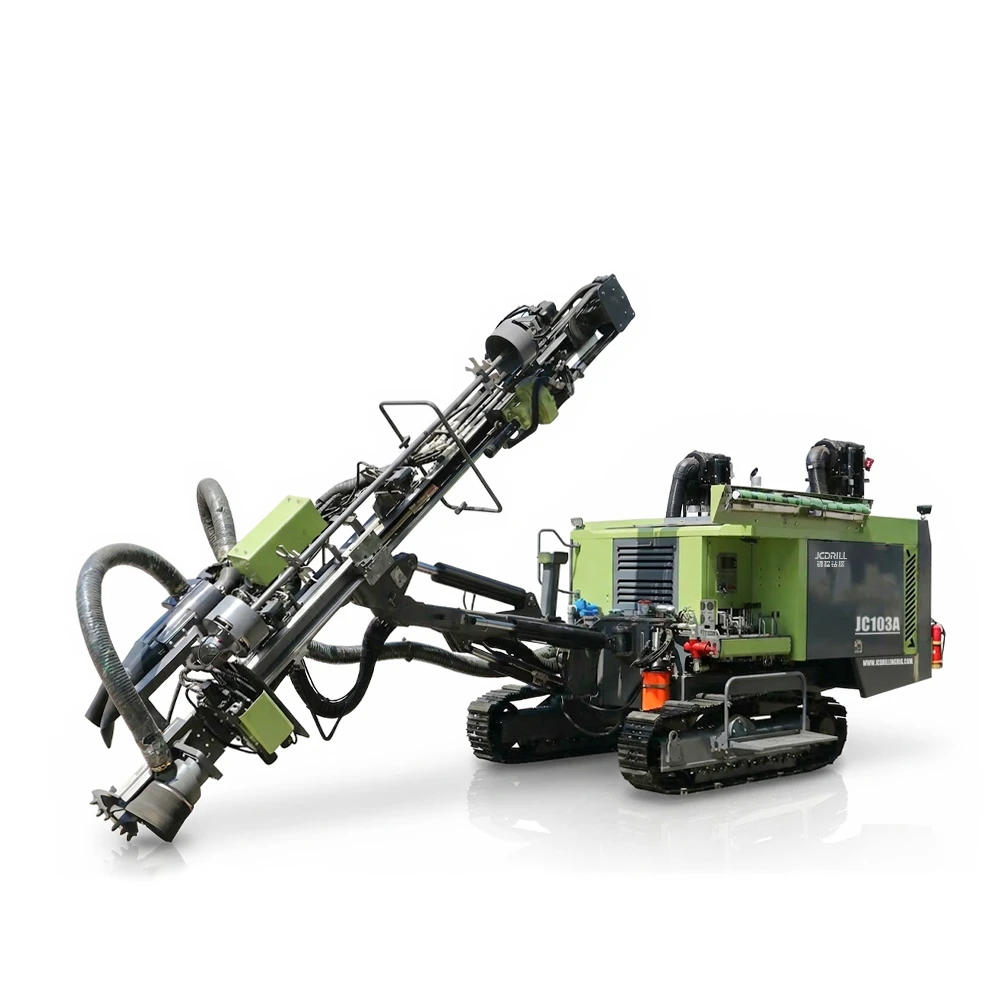

Rock blasting drilling rigs drill precise blastholes in quarries, supporting controlled rock fragmentation, bench advancement, and safe, efficient material extraction under varying geological conditions
