Diamond Core Drilling Tools — Wireline Systems Built for Maximum Core Recovery

In exploration drilling, the hole itself isn't the deliverable — the core sample is. A rig can drill a perfectly straight hole all day, but if the core barrel damages the sample on the way up, washes out a fractured zone, or loses recovery in broken ground, the entire drilling program has produced a hole with no usable data in it. That's the real cost of underspecced diamond core drilling tools: not a broken part, but a geological sample your client can't trust. We build our core drilling systems around that single outcome — protecting sample integrity from the bit face to the surface — because in exploration drilling, that's the only metric that actually matters to the buyer paying for the program.

How a Wireline Core System Actually Protects Your Sample

A wireline core barrel does two jobs that a conventional core barrel can't do at once: it cuts and captures the core, and it lets you retrieve that core without pulling the entire drill rod string out of the hole. The inner tube assembly latches into the barrel and rides down the rod string on a wireline cable; once a core run is complete, an overshot assembly is lowered on the same cable to retrieve just the inner tube — not the whole rod string — dramatically cutting round-trip time on deep holes. Inside the barrel itself, the outer tube carries flushing water down to the diamond bit face to cool it and clear cuttings, while the inner tube shields the actual core sample from that same wash-out flow — this is the entire reason double-tube designs exist, and it's the difference between a clean, intact sample and a washed-out one in loose or fractured ground. Choosing wireline core drilling tools without understanding this mechanism is how buyers end up with a barrel that's technically functional but still losing recovery on every difficult run.

How to Choose the Right Core Drilling Tools for Your Program

Every serious buyer sourcing diamond core drilling tools should be specifying against these variables before requesting a quote:

• Wireline size (AQ/BQ/NQ/HQ/PQ): Determines hole diameter, core diameter, and rod string compatibility — this is the single most important spec, since every other component in the string (bit, reamer shell, casing, rod) must match the same size series.
• Formation type and stability: Competent, stable rock can run efficiently on a standard double-tube barrel; loose, broken, or fractured formations need a design that isolates the inner tube from rotation entirely to protect the sample from vibration damage.
• Hole depth: Deeper holes amplify the time savings of a true wireline retrieval system over conventional core barrels, since round-trip retrieval time scales directly with depth.
• Bit type and impregnation: Diamond bit selection (surface-set vs. impregnated) needs to match rock hardness and abrasiveness — too soft a bit wears out fast in hard rock, while too aggressive a bit wastes life in softer formations.

If you're not sure which wireline size or barrel configuration your formation calls for, that's exactly the information our engineers confirm before quoting — hole depth, formation type, and target core diameter, not a guess based on a catalog page.

Our Core Drilling Tools Range — A Complete Matched Wireline System

As a supplier building the full diamond core drilling string rather than isolated parts, here's what we offer:

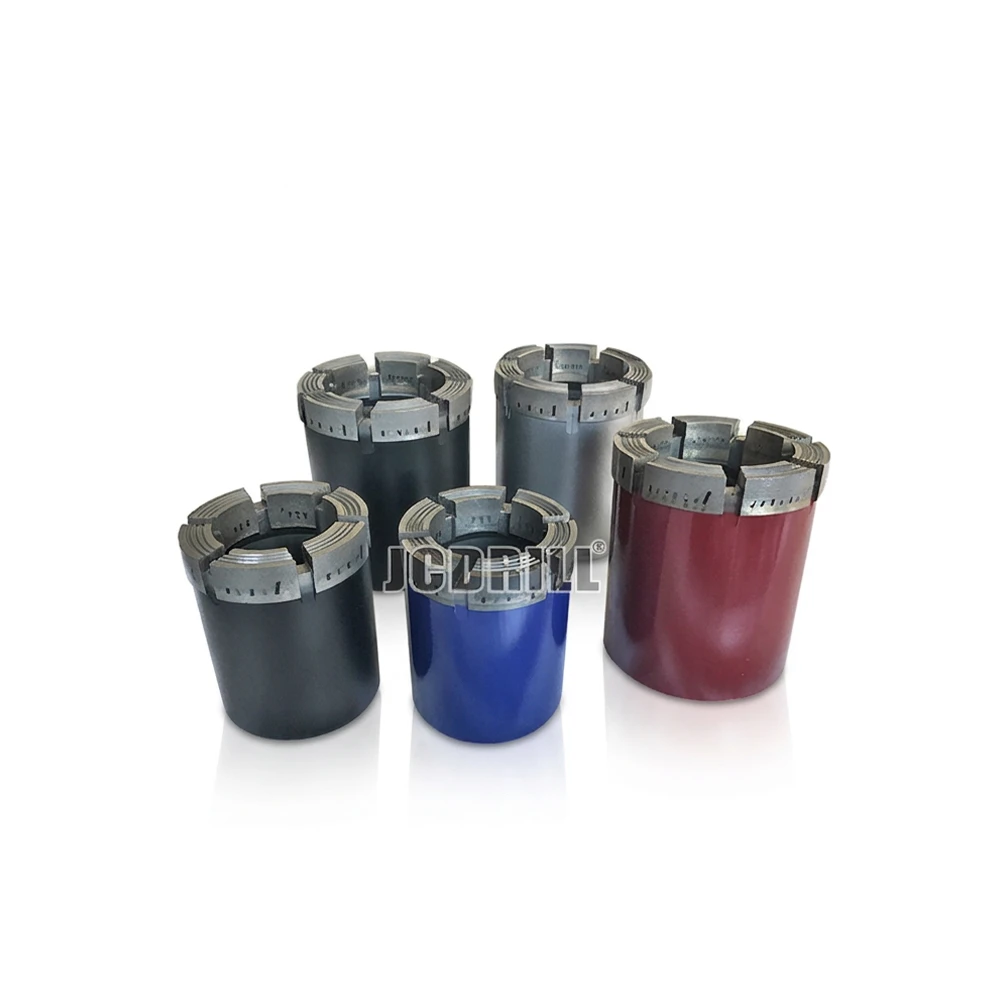

• Diamond Drill Core Bit — The cutting component of the system, selected by impregnation and matrix hardness against your specific formation.

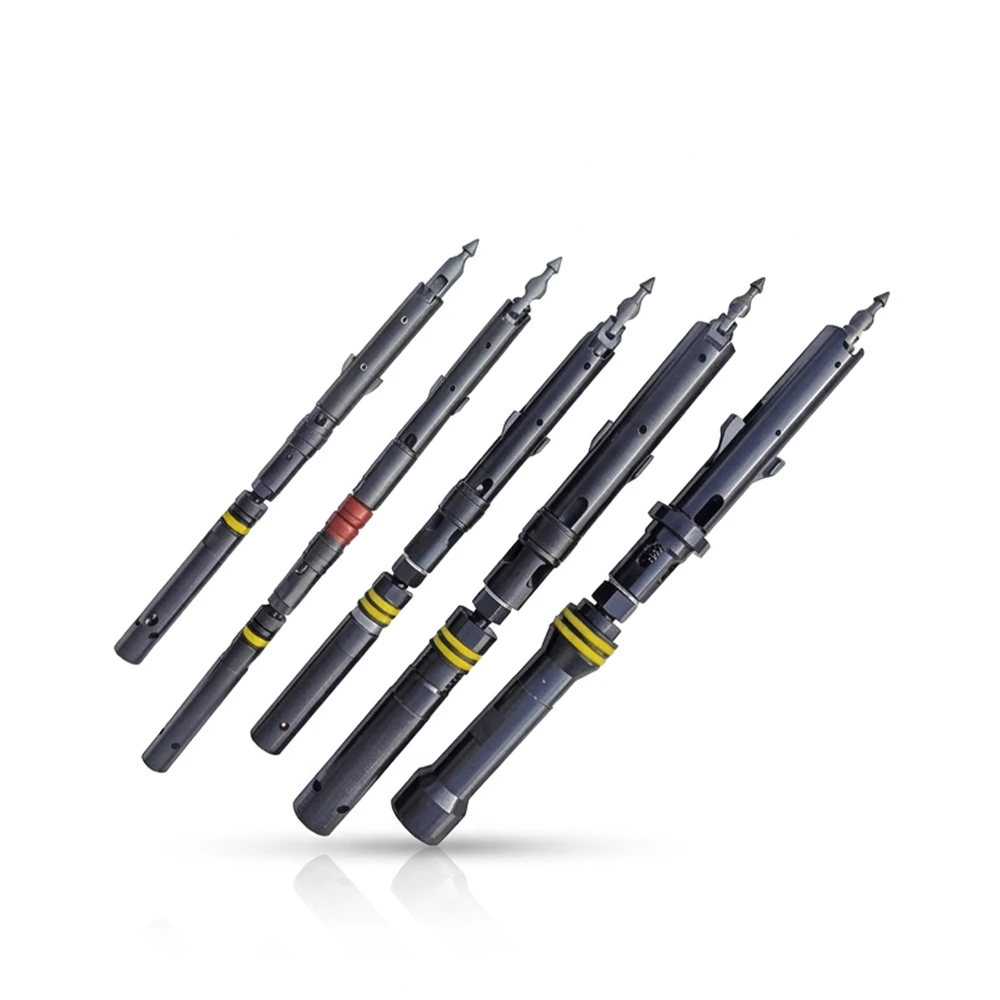

• Diamond Double Tube Wireline Core Barrel System — Available in NQ, HQ, PQ and other standard sizes, built to protect core samples in loose, broken, or fractured strata through isolated inner-tube design.
• Core Drilling Reamer Shell — Maintains consistent hole gauge behind the bit, protecting bit life and hole straightness across the run.

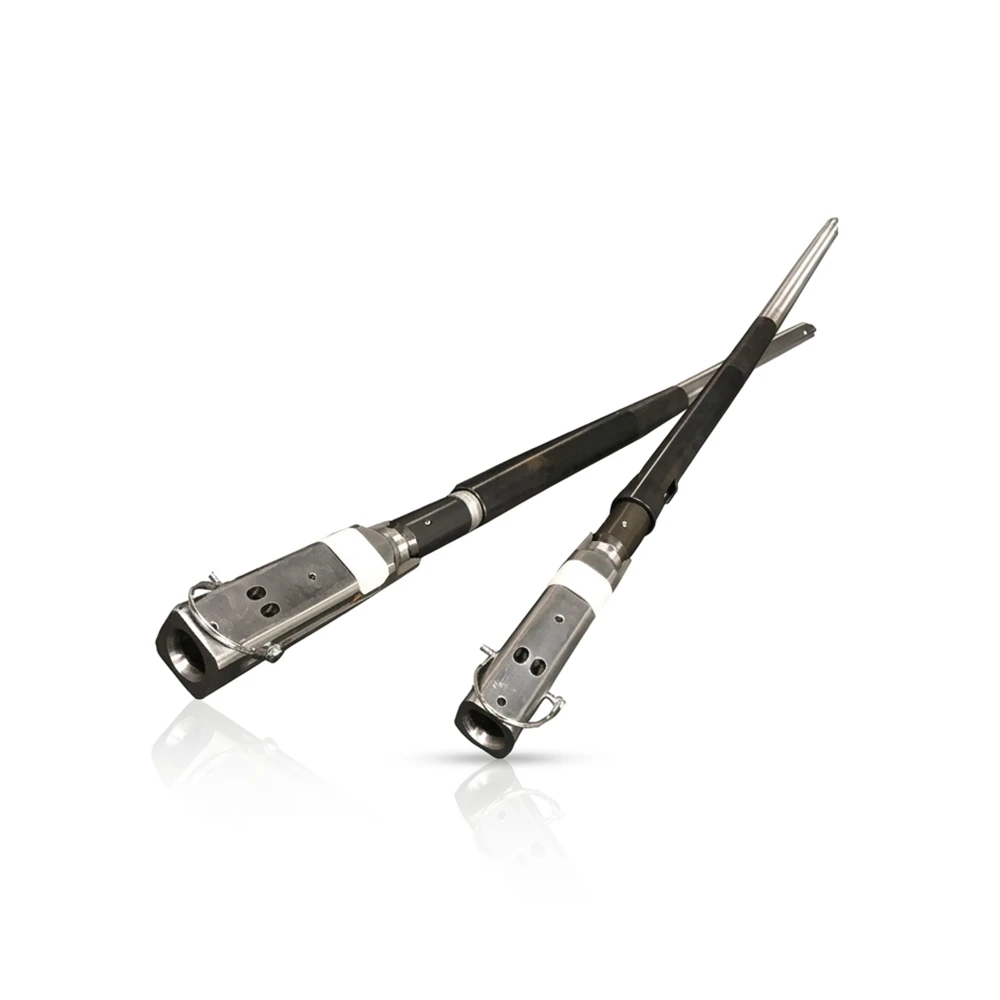

• Wireline Core Barrel Head Assembly / Overshot — The retrieval component that latches the inner tube for wireline recovery without pulling the full rod string.

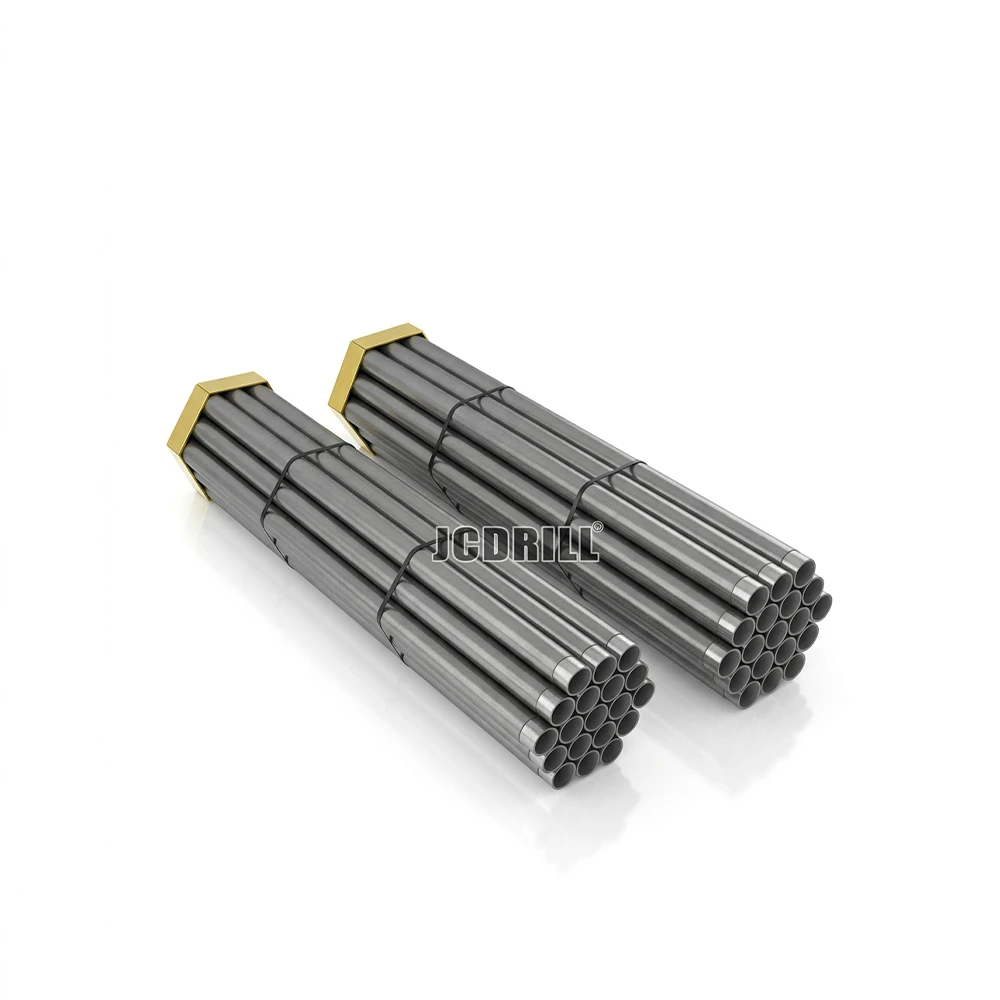

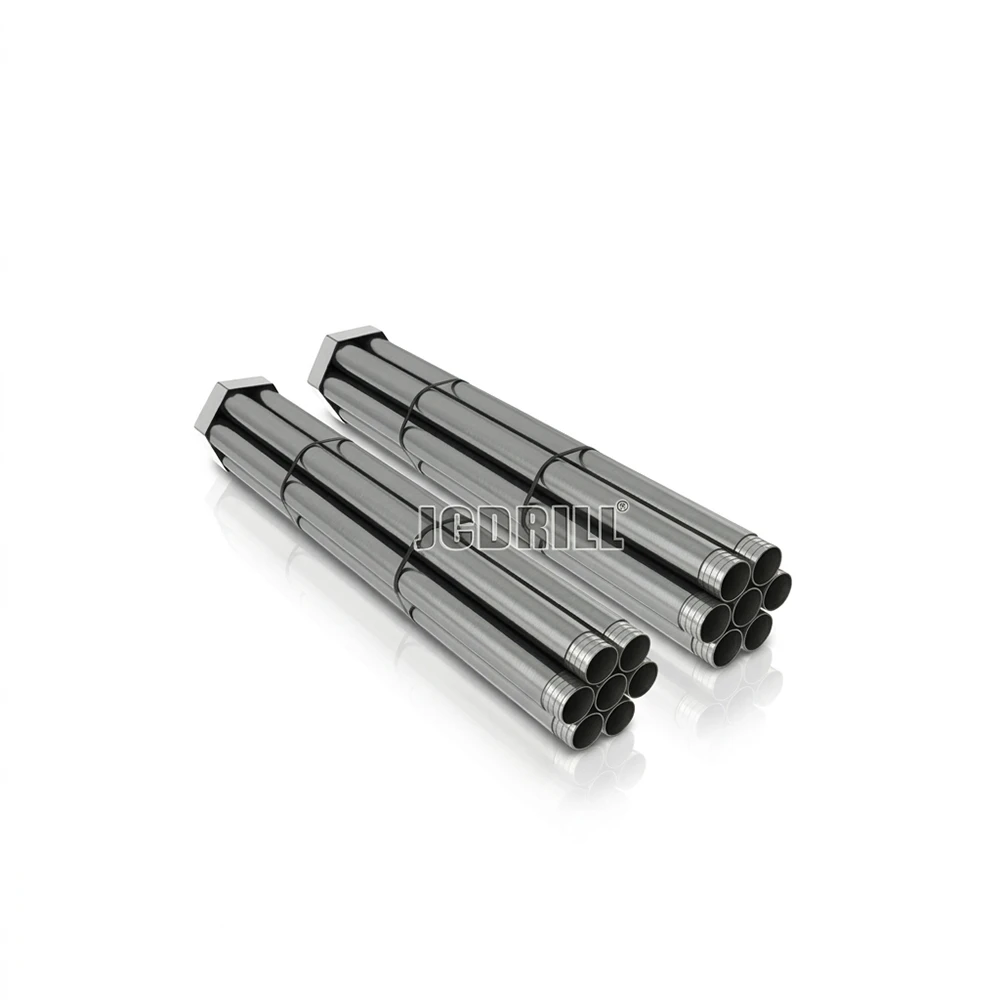

• Wireline WL Threads Core Drilling Rod and Wire Line Diamond Core Drill Rod Casing Tubes / Casing Pipes — Rod and casing built to standard wireline thread specifications, keeping the full string dimensionally consistent.

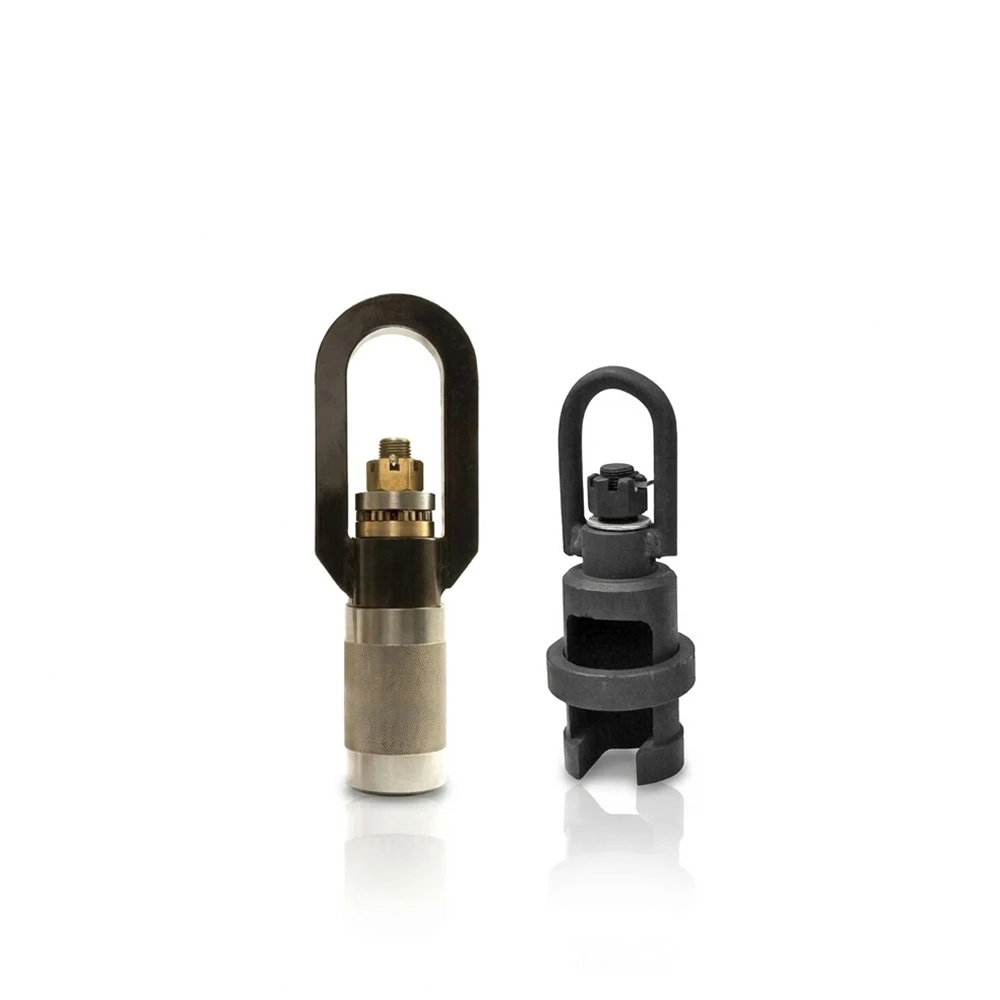

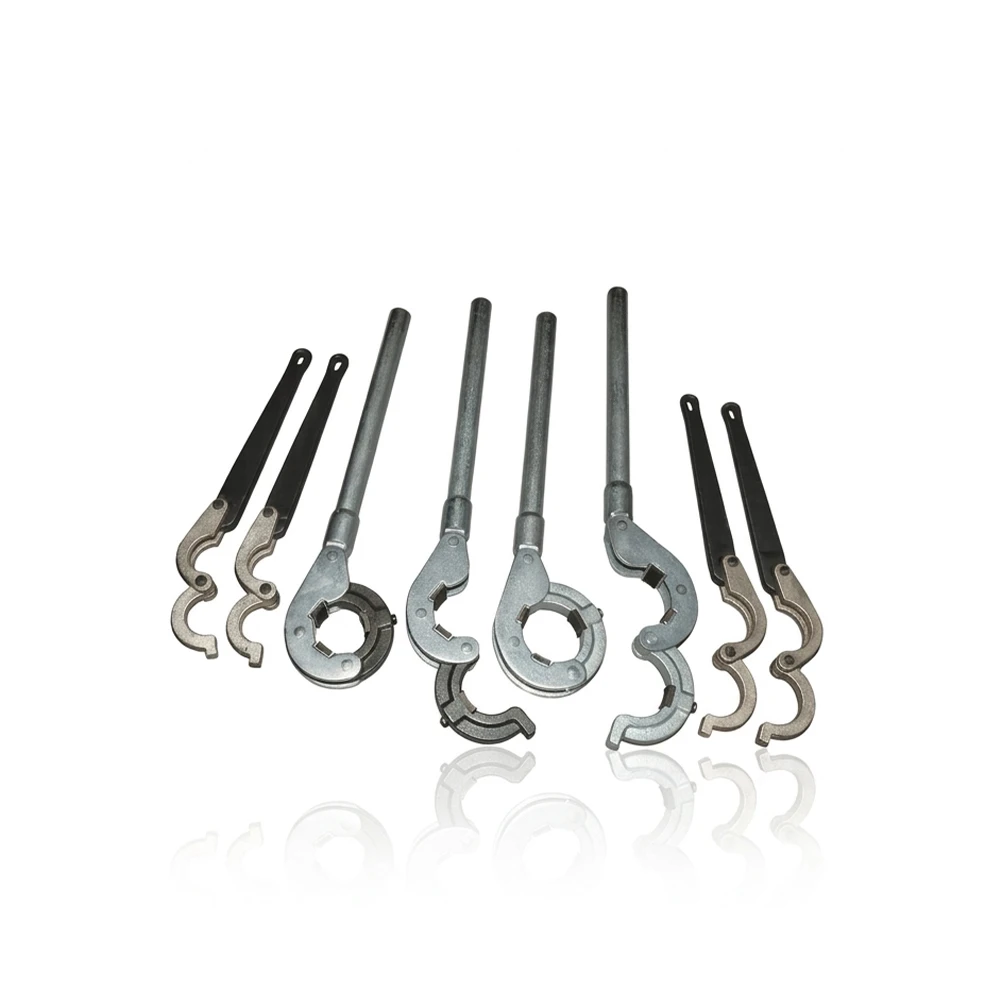

• Diamond Circle Wrench and Heavy Duty Hoisting Plug System — Handling tools purpose-built for wireline tube assembly and rod string hoisting.

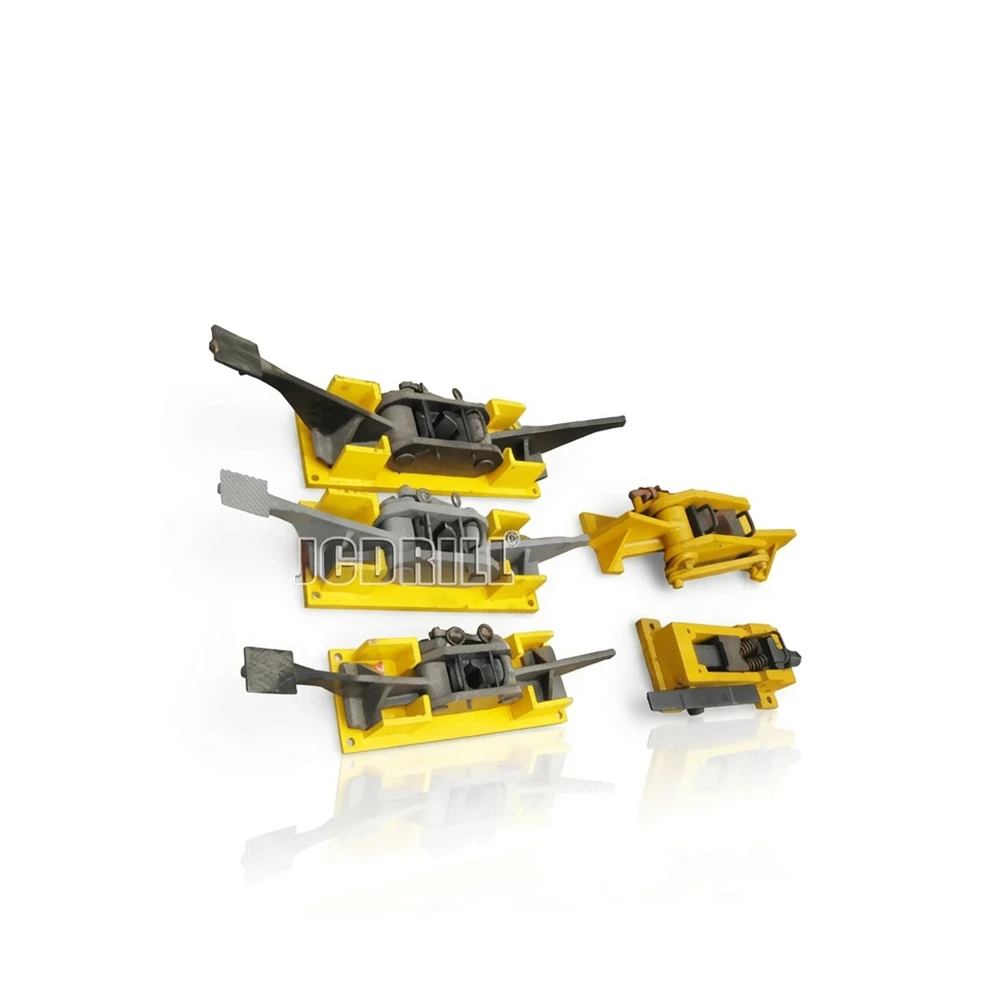

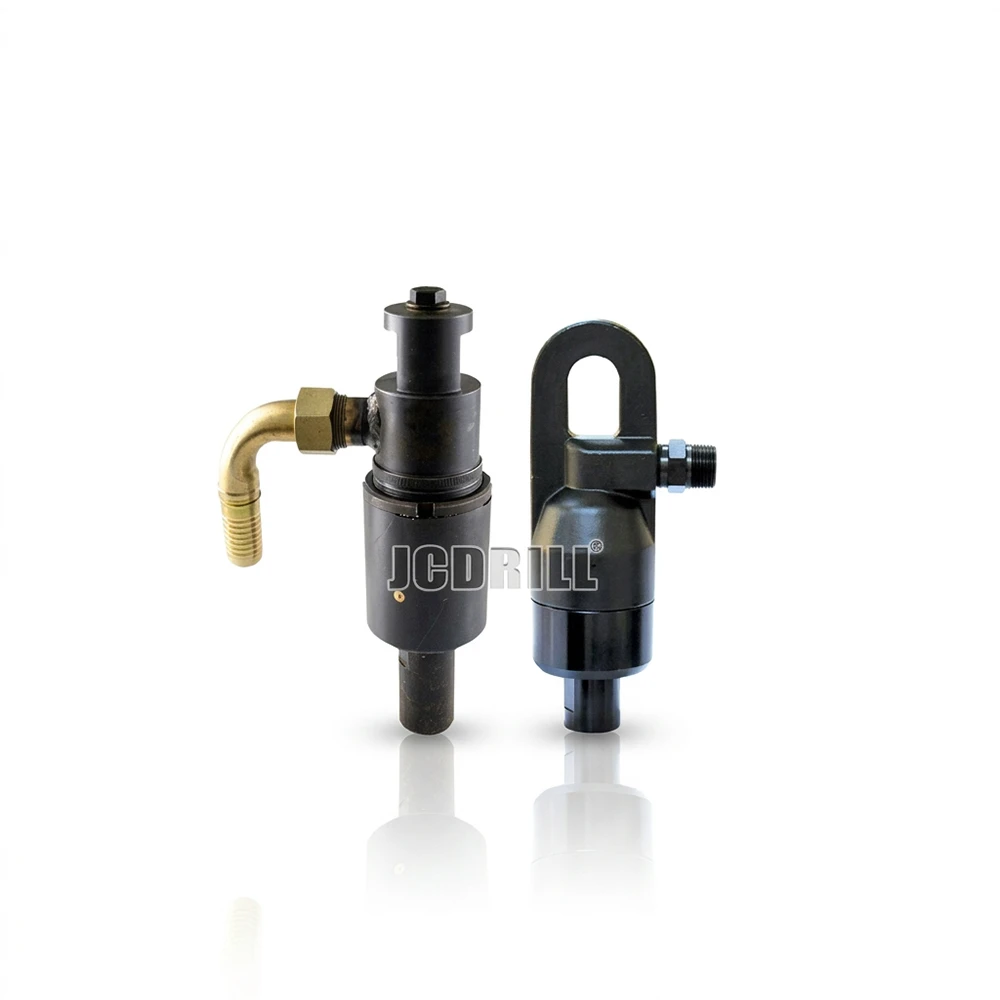

• Diamond Core Drilling Water Swivel and Foot Clamp / Dead Weight Clamp and Jaws — Supporting equipment for consistent flushing pressure and safe rod handling on site.

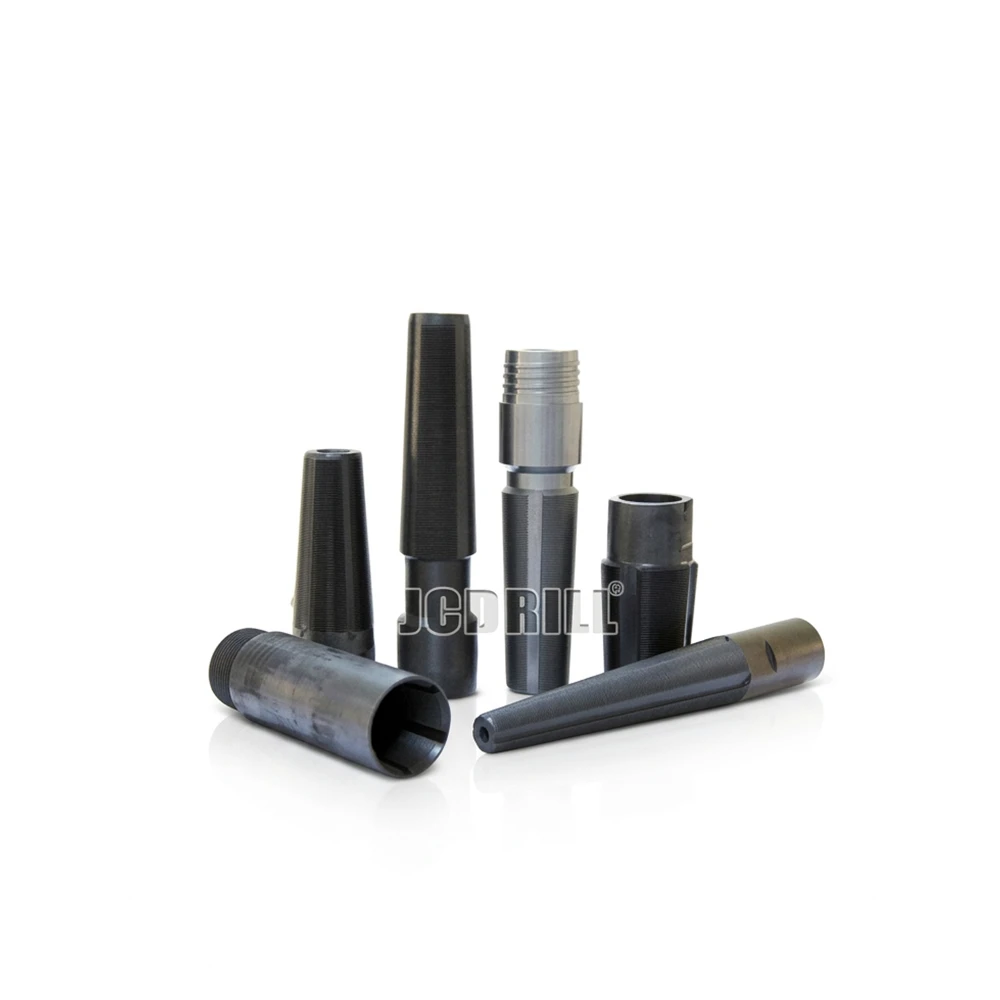

• Accident Treatment / Fishing Tools — Recovery tooling for retrieving stuck or dropped components without abandoning the hole.

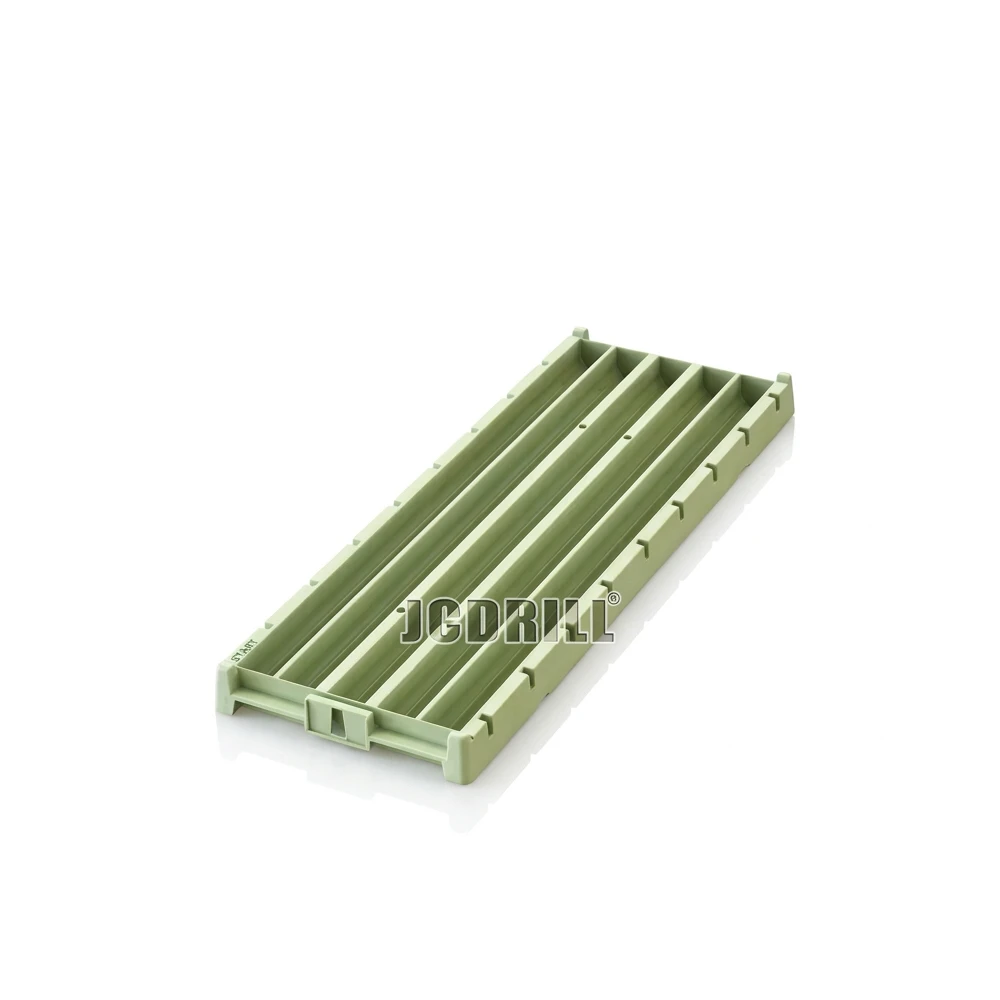

• HQ Size Plastic Drilling Core Box — Storage and transport trays in NQ, BQ, PQ sizing for gold, ore, and coal core sample preservation after recovery.

Engineered for Core Recovery, Backed by One Manufacturer

Sourcing diamond core drilling tools from a supplier that engineers the whole wireline string — not just the barrel or just the bit — is what protects the actual outcome your exploration program depends on:

• Consistent sizing across the full string — Bit, barrel, reamer shell, rod, and casing built to the same wireline size series, eliminating the dimensional mismatches that cause fitment failures mid-program.
• Core-protective barrel design — Double-tube construction selected and configured against your specific formation stability, not a single generic barrel sold across every ground condition.
• Complete retrieval and handling tooling — Overshot, hoisting plug, circle wrench, and fishing tools included as part of the same system, so a wireline order isn't missing the handling equipment needed to actually run it.
• Sample preservation through to storage — Core boxes sized to match your barrel series, so the sample stays organized and protected from the moment it's recovered.
• One accountable manufacturer — Rig, tooling, and the full core recovery system from one factory, so a recovery problem can be traced to its actual cause instead of two vendors disputing whose component is at fault.

FAQ

Q:What's the difference between wireline and conventional core barrels?
A wireline system lets you retrieve just the inner tube and core sample on a cable, without pulling the entire drill rod string out of the hole — this cuts round-trip time significantly on deep holes. A conventional core barrel requires pulling the full rod string every time you need to recover a core run.

Q:What do the size designations AQ, BQ, NQ, HQ, and PQ mean?
These are standard wireline size series, each specifying a different hole diameter and corresponding core diameter. NQ and HQ are the most common sizes for general mineral exploration; PQ is used where a larger core diameter is needed for more detailed sample analysis. Every component in your string — bit, barrel, rod, casing — needs to match the same size series.

Q:Why does my core barrel need to be double-tube instead of single-tube?
A double-tube design isolates the core sample from the rotating outer tube and flushing water, protecting it from wash-out and mechanical damage — this matters most in loose, broken, or fractured formations where a single-tube design would let cuttings and water contaminate or damage the sample.

Q:How do I know which wireline size fits my exploration program?
It depends on your target core diameter, hole depth, and rig capacity. Send us your formation type, target sample size, and drilling depth, and our engineers will confirm the right size series before you order.

Q:Can core drilling tools be used in loose or unstable formations?
Yes — this is exactly what double-tube, single-movement barrel designs are built for, isolating the inner tube from rotation so it doesn't damage the core through friction or vibration in unstable ground. Standard double-motion barrels work well in competent, stable rock but aren't the right choice for badly broken strata.

Get a Complete Wireline System Matched to Your Program

Core recovery problems almost never come from one bad component — they come from a barrel design that doesn't match the formation, or a size mismatch somewhere in the string. Send us your formation type, target core diameter, and hole depth, and our engineers will confirm a matched wireline system before you order.
