JC617 DTH Mining Drilling Rig for Hard Rock Blasting

Hole Range

90-100mm

Hole Depth

30m

Recommend Chassis Type

Crawler

JC617 is a robust down-the-hole drilling rig engineered for hard rock formations up to F=20, offering stable performance in mining, quarrying, and foundation drilling. Supporting φ90–100 mm hole diameters, it combines a reinforced feed system, high-efficiency hydraulic control, and a durable chassis to deliver reliable penetration, low operating costs, and long service life in harsh environments.

Inquire Now Brochure PDF

Functions and Features

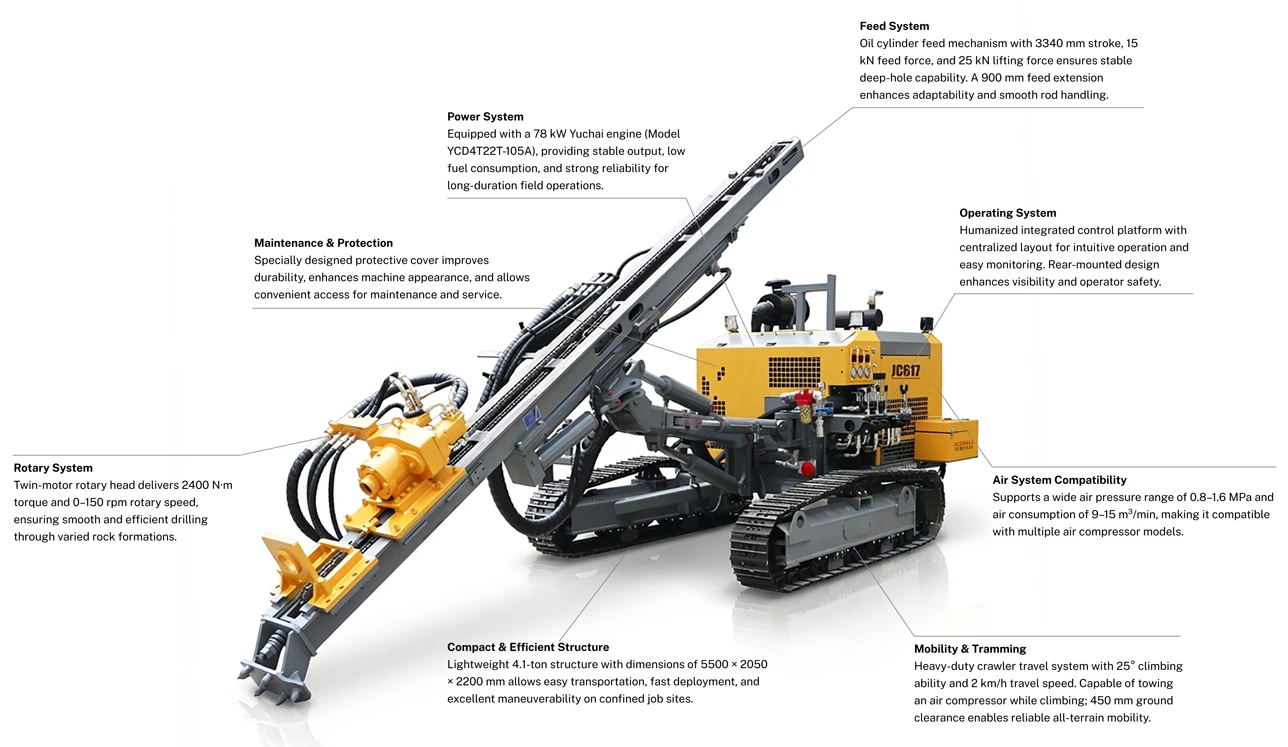

Main Components

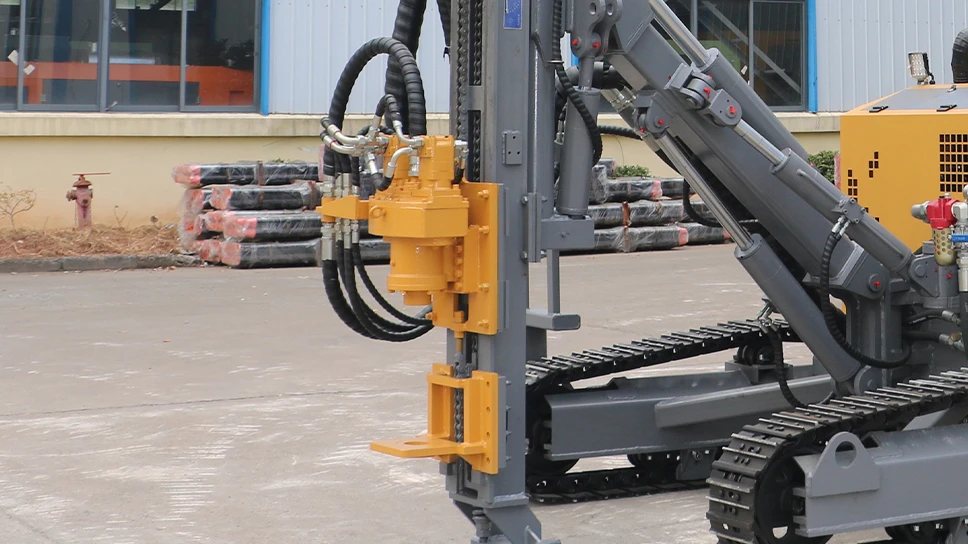

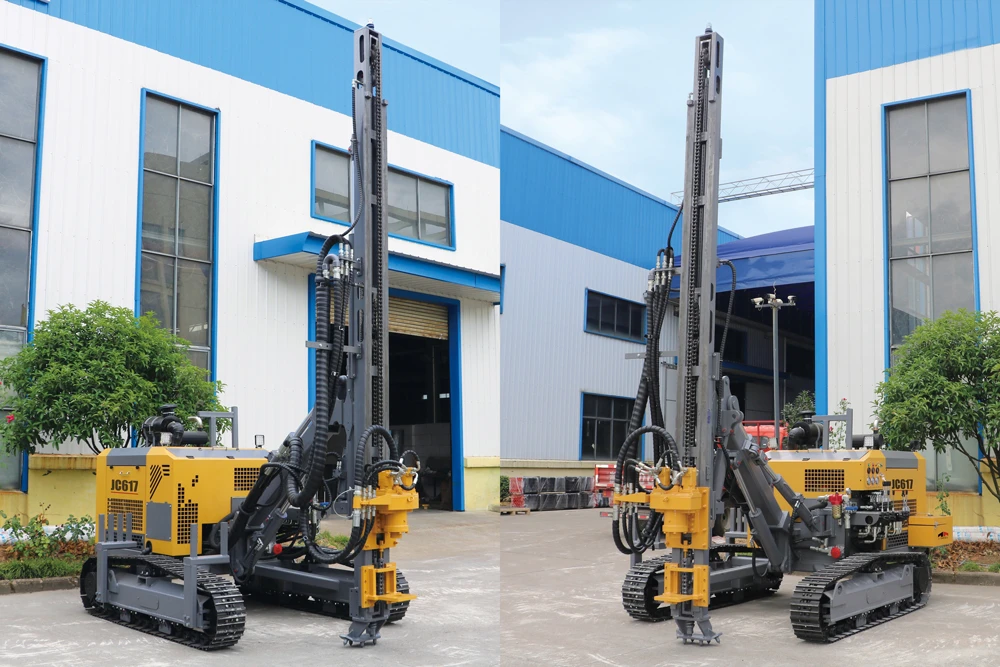

Twin-motor rotary system delivers high torque of 2400N·m and up to 150rpm speed, ensuring smooth drilling across various rock formations.

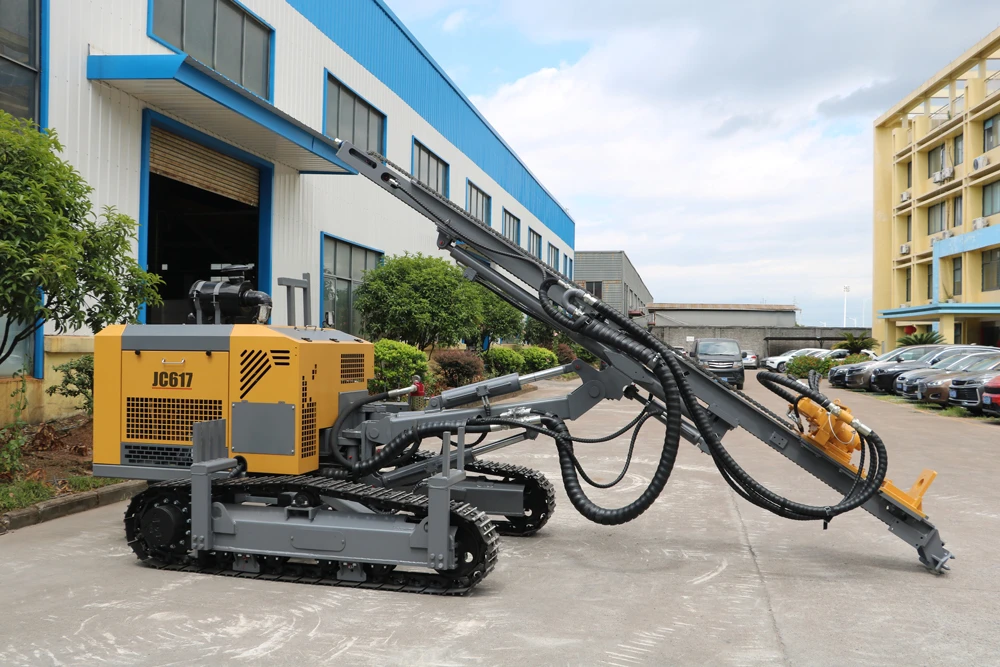

Oil cylinder feed system with 900mm feed extension enhances adaptability and ensures smooth rod handling. Wide range of working air pressure (0.8- 1.6MPa) and air consumption (9–15m³/min) provides compatibility with multiple air compressors.

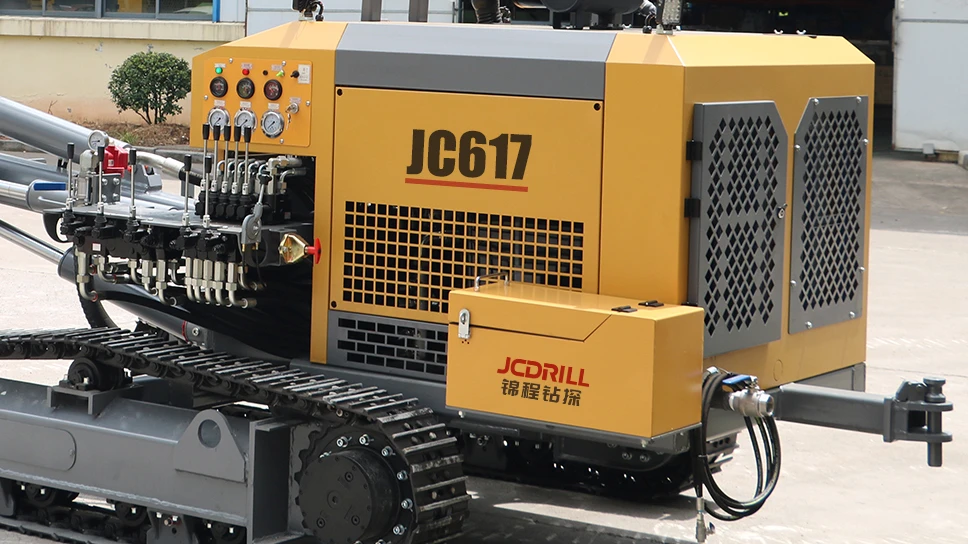

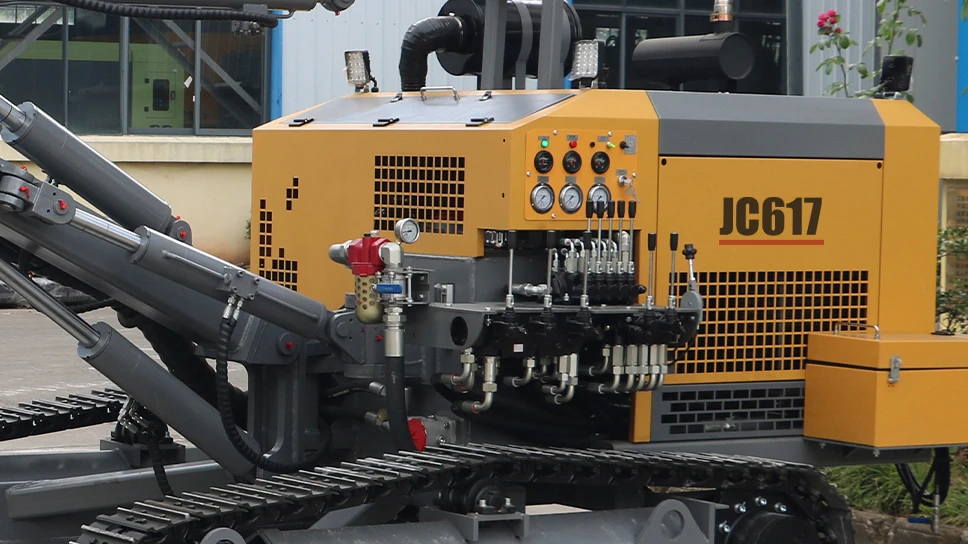

Humanized integrated operating platform is easy to operate, with centralized layout for convenient monitoring and control. Equipped with Yuchai 78kW engine (Model YCD4T22T-105A), offering stable power and low fuel consumption for long-time field operation.
3340mm long feed stroke with 15kN feed force and 25kN lifting force meets deeper hole requirements and improves drilling efficiency.

Features Introduction

Product Description

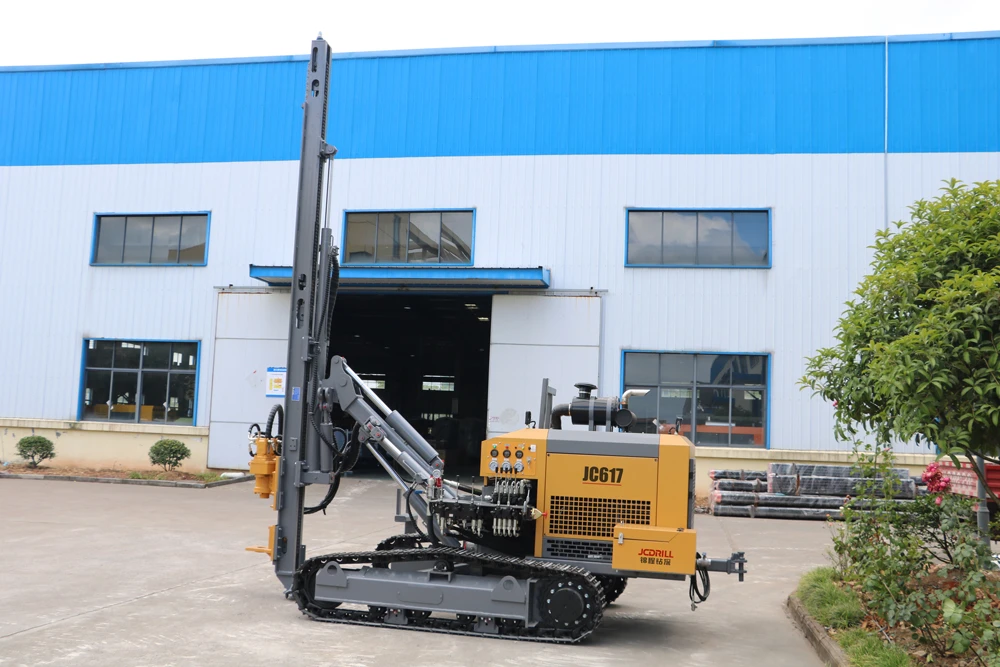

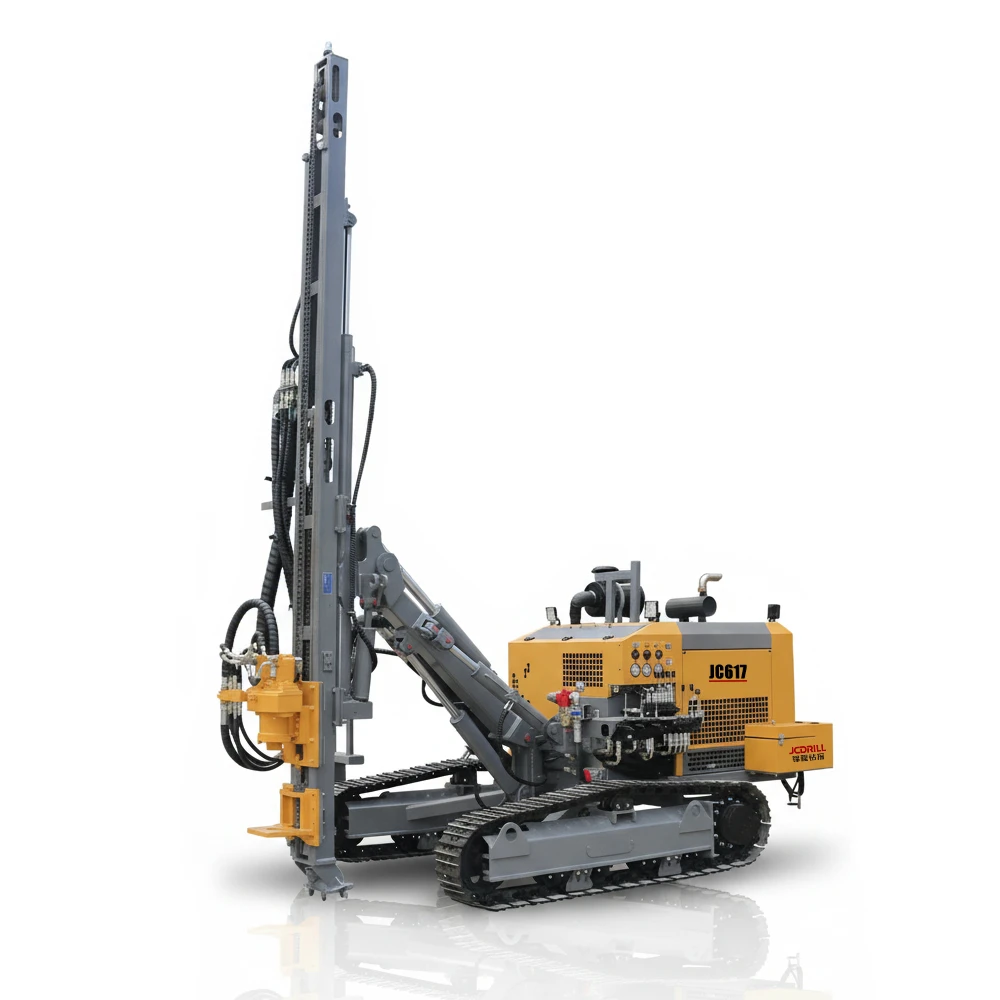

The JC617 DTH Mining Drilling Rig is designed for hard rock blasting applications in mining, quarrying, and foundation construction. Capable of drilling φ90–100 mm holes to depths of up to 30 meters in formations up to F=20, it delivers stable penetration and reliable performance under demanding working conditions.
Powered by a fuel-efficient 78 kW YUCHAI diesel engine, the JC617 features a dual-motor rotary system, reinforced oil-cylinder feed structure, and high-efficiency hydraulic control. Its compact crawler-mounted design, strong climbing ability, and low operating cost make it a practical and durable solution for small to medium-scale hard rock drilling projects.

Strong Performance for Hard Rock Blasting

Designed for formations up to F=20, the JC617 delivers stable and reliable drilling performance for quarrying, mining, and foundation blasting applications.

High-Torque Dual-Motor Rotation System

The twin-motor rotary system provides up to 2400 N·m torque and 150 rpm speed, ensuring smooth penetration and adaptability across varying rock conditions.

Efficient Feed and Lifting Capacity

With a 3340 mm feed stroke, 15 kN feed force, and 25 kN lifting force, the reinforced oil-cylinder feed system supports deeper holes and improves overall drilling efficiency.

Compact, Mobile, and Easy to Maintain

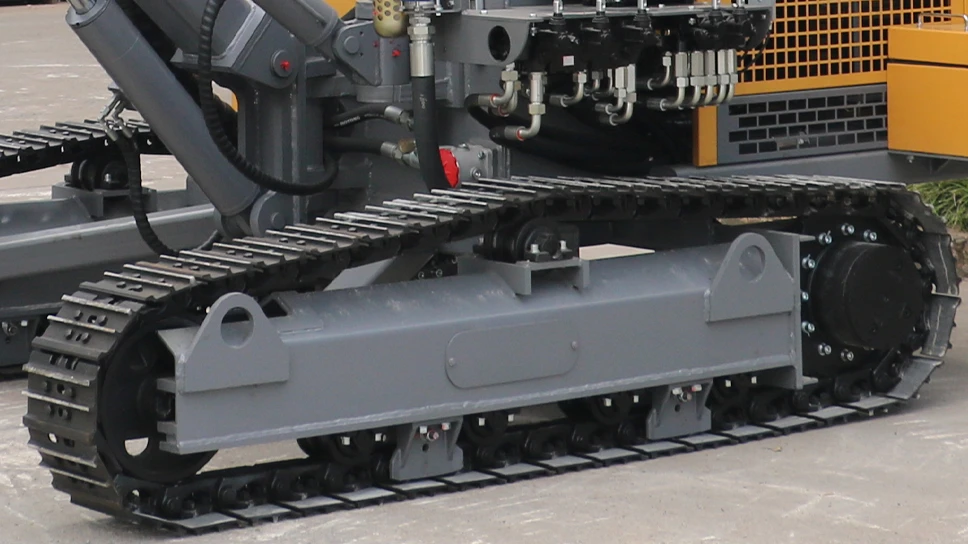

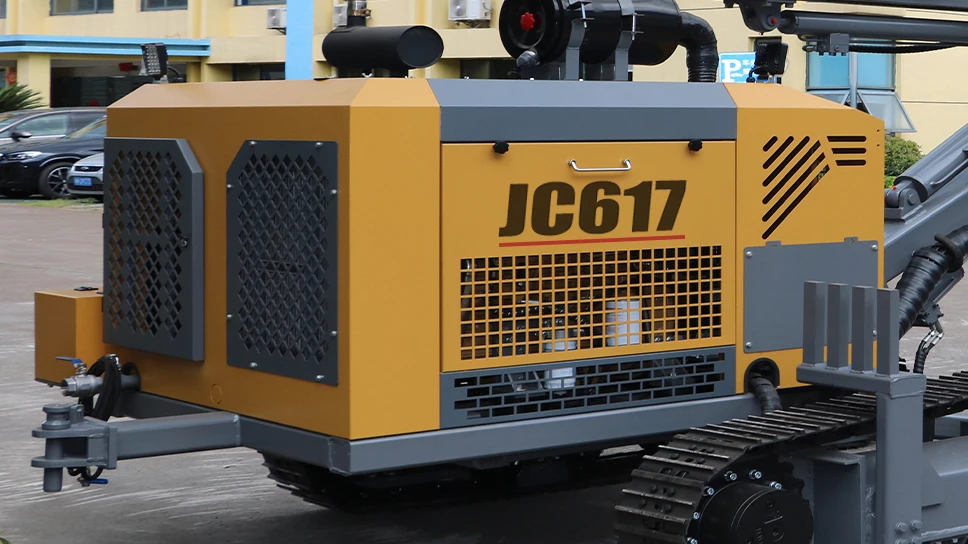

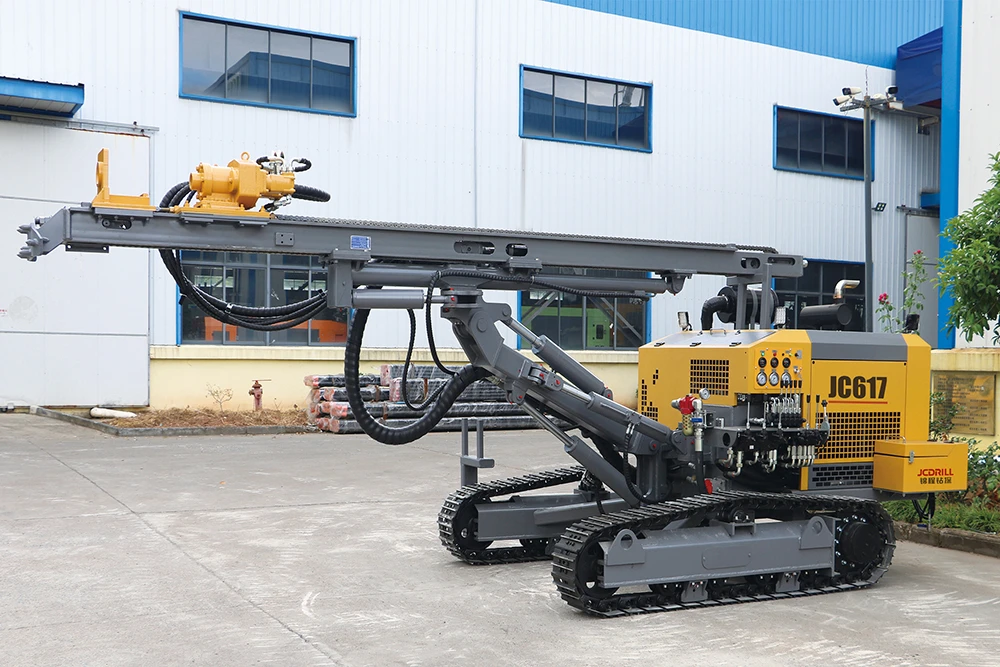

Weighing only 4.1 tons, the compact crawler-mounted structure offers 25° climbing ability, easy transportation, and convenient maintenance for harsh jobsite environments.

Product Specifications

Specification	Unit	JC617
Drilling Specifications
Hole Depth	m	30
Hole Diameter	mm	Φ90-100
Drilling Rod Diameter	mm	Φ64
Drilling Rod Length	mm	3000
DTH Hammer	inch	3"/4"
Rotation
Maximum Rotary Torque	N·m	2400
Rotation Speed	rpm	0-150
Lifting Force	kN	25
Feed System
Feed Type		Oil cylinder
Feed Stroke	mm	3340
Feed Extension	mm	900
Feed Force	kN	15
Engine
Engine Brand		YUCHAI
Engine Model		YCD4T22T-105A
Rated Horsepower	kW	78
Air Compressor Demand
Working Pressure	MPa	0.8-1.6
Air Consumption	m³/min	9-15
Weight & Dimensions
Weight	kg	4106
Transport Dimensions (L×W×H)	mm	5500 × 2050 × 2200
General Specification
Tramming Speed	km/h	0-2
Climbing Capacity	°	25
Ground Clearance	mm	450
Fuel Tank Capacity	L	70
Dust Collector		8 Core Dry type
Winch		Optional
