JC650 Crawler Hydraulic DTH Rock Blasting Drilling Rig

Hole Range

115-178mm

Hole Depth

60m

Recommend Chassis Type

Crawler

产品简介 The JC650 Crawler Hydraulic DTH Drilling Rig features a separate, automatic rod handling design, combining high safety and reliability. Compared to conventional split-type rigs, it significantly reduces operating costs, labor expenses, and environmental impact. The JC650 is a powerful tool for optimizing rock excavation.

Inquire Now

Functions and Features

Main Components

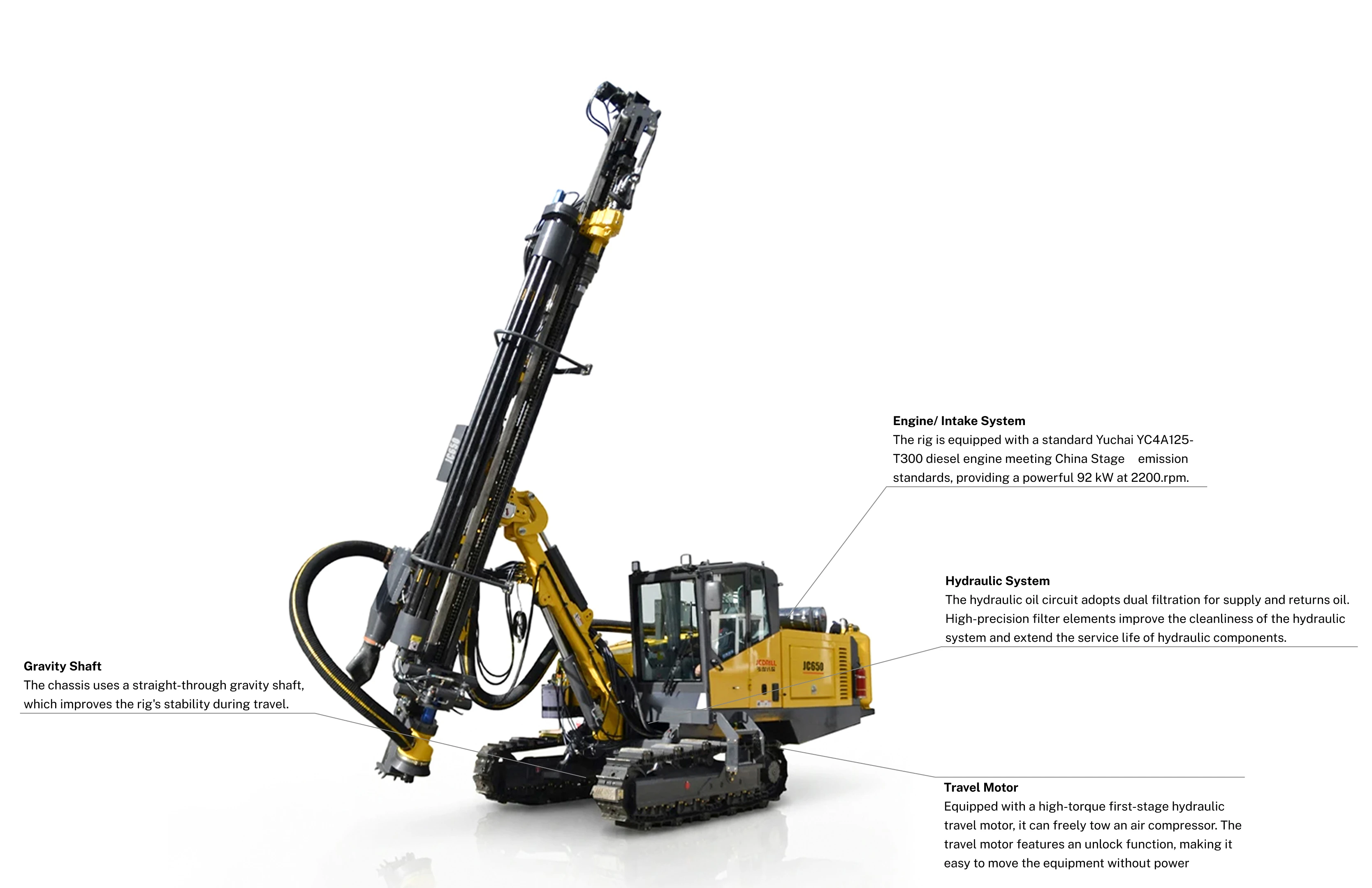

Automatic Rod Handling System The automatic rod handling system enhances drilling safety, reduces labor costs, and lowers operator fatigue. The rod magazine accommodates 5+1 drill rods, and with 3-meter rods, drilling depth can reach up to 18meters.
Engine Intake System When the drill rig is powered off, the engine air filter automatically pulses to remove dust, reducing manual maintenance and ensuring the engine draws in clean air. This helps extend the engine's service life.

Rotary Gearbox and Shock Absorption The straight-gear rotary gearbox offers high load capacity and adjustable rotation speed to match varying rock hardness. Paired with an Eaton hydraulic motor and rein-forced shock absorbers, it reduces the impact reaction during drilling, enhancing the durability and service life of the gearbox.
Robust Mechanical Arm The durable mechanical arm and cylinders are connected using locking-pin axles. The locking pins prevent rotation and axial movement of the pins, ensuring stable and secure component connections.
Adjustable Dust Hood The adjustable dust hood can move up and down, making it easy to remove rock cuttings around the hole during drilling and allowing clear observation of the drilling process.

Product Description

The JC650 is a hydraulic down-the-hole (DTH) drilling rig, widely used for blasting hole drilling in open-pit mining operations in industries such as cement, metallurgy, coal mining, and quarries. It is also suitable for construction projects in railways, highways, hydropower, and national defense infrastructure. Powered by a Yuchai diesel engine, the JC650 drives its hydraulic system to perform drilling, dust removal, and other operational functions. With a drilling diameter range of 115-178 mm, its design allows compatibility with multiple brands of air compressors for rock drilling and air flushing, ensuring high penetration rates and low energy consumption. Equipped with dry/wet dust collectors, an automatic rod handling system, and a comfortable operator cabin, the JC650 is ideal for long-duration operations in large-scale mining and major infrastructure projects.

High-Performance Drilling

Crawler-mounted DTH system with automatic rod handling delivers efficient and safe drilling in blasting and foundation operations.

Stable and Durable Components

Rotary gearbox, reinforced mechanical arm, and gravity shaft ensure reliable operation even on uneven terrain.

Dust Control and Operator Comfort

Adjustable dust hood and cabin ergonomics protect operators while maintaining high drilling accuracy.

Product Specifications

Specification	Unit	JC650
Rock Hardness		F=6-20
Hole Diameter	mm	115-178
Hole Depth	m	60
Drill pipe	mm	89×3000
Pipe Capacity	Pcs	5+1
Hammer Size		4" / 5" / 6"
Rotary Head
Rotation Torque	N·m	3300
Rotation Speed	rpm	0-80
Feeding System
Feed Stroke	mm	4115
Compensation Length	mm	1000
Feeding / Pull up Force	N	20000
Single Feed Length	mm	3000
Mast / Slide Frame
Max Swing of Mast	°	Left 90° / Right 31°
Max Dump of Mast	°	147°
Drill Arm Tilt (Left & Right)	°	35° each side
Drill Arm Tilt (Front & Back)	°	Level 23° / 55°
Engine
Manufacturer		YUCHAI
Rated Power	Kw/ rpm	92/ 1600
Fuel tank capacity	L	360
Air Compressor Demand
Working Pressure	Mpa	1.7-2.5
General
Traveling Speed (Slow/Fast)	km/h	1.5 / 3
Gradeability	°	30
Dust Collection Method		Dry or Optional Wet Dust Collection
Net Weight	kg	9700
Overall Dimensions (L×W×H)	mm	8610×2210×3410
