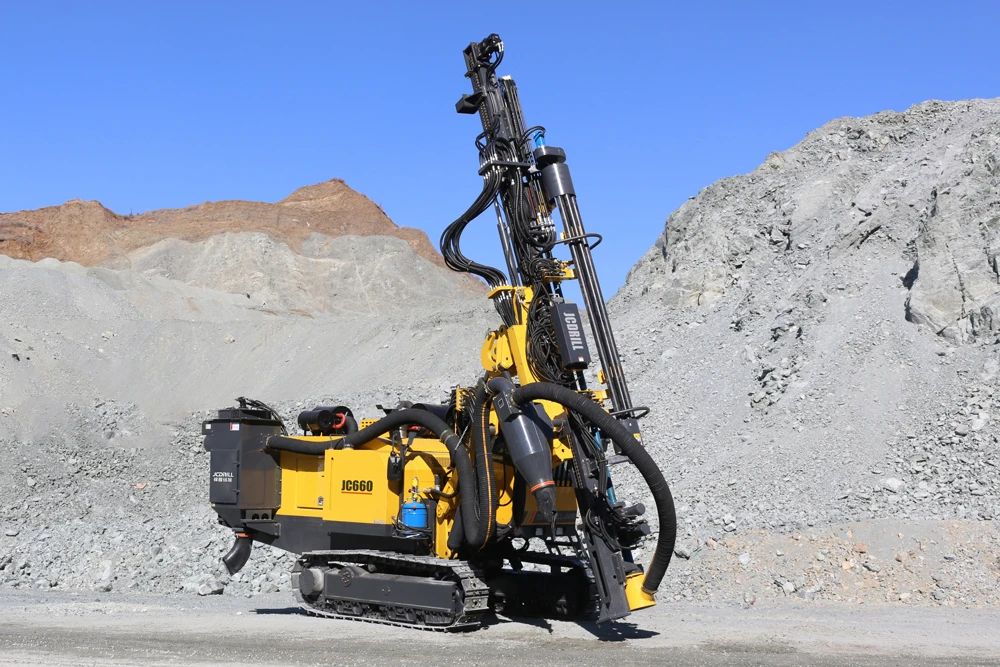

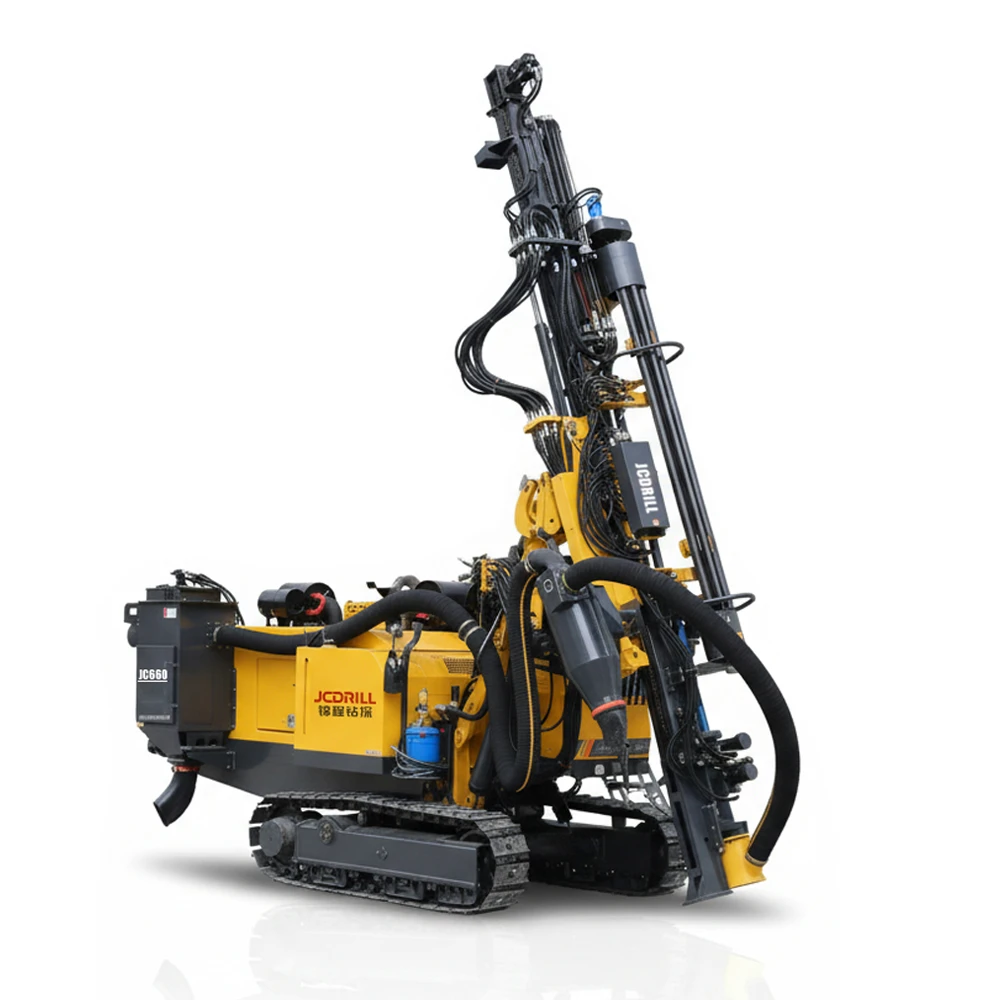

JC660 Integrated Hydraulic DTH Drilling Rig

Hole Range

90-130mm

Hole Depth

60m

Recommend Chassis Type

Crawler

The JC660 features a BSC two-stage energy-saving screw air compressor delivering 16 m³/min at 1.8 MPa, powered by a 191 kW Yuchai turbocharged engine meeting China III standards. Its automatic air-filter cleaning system and vertical direct-drive layout reduce maintenance and power loss. The Malta automatic rod handling system enables up to 18m drilling, while Eaton high-torque motors, a robust slewing reducer, and an integrated control console ensure efficient, reliable performance.

Inquire Now Brochure PDF

Functions and Features

Main Components

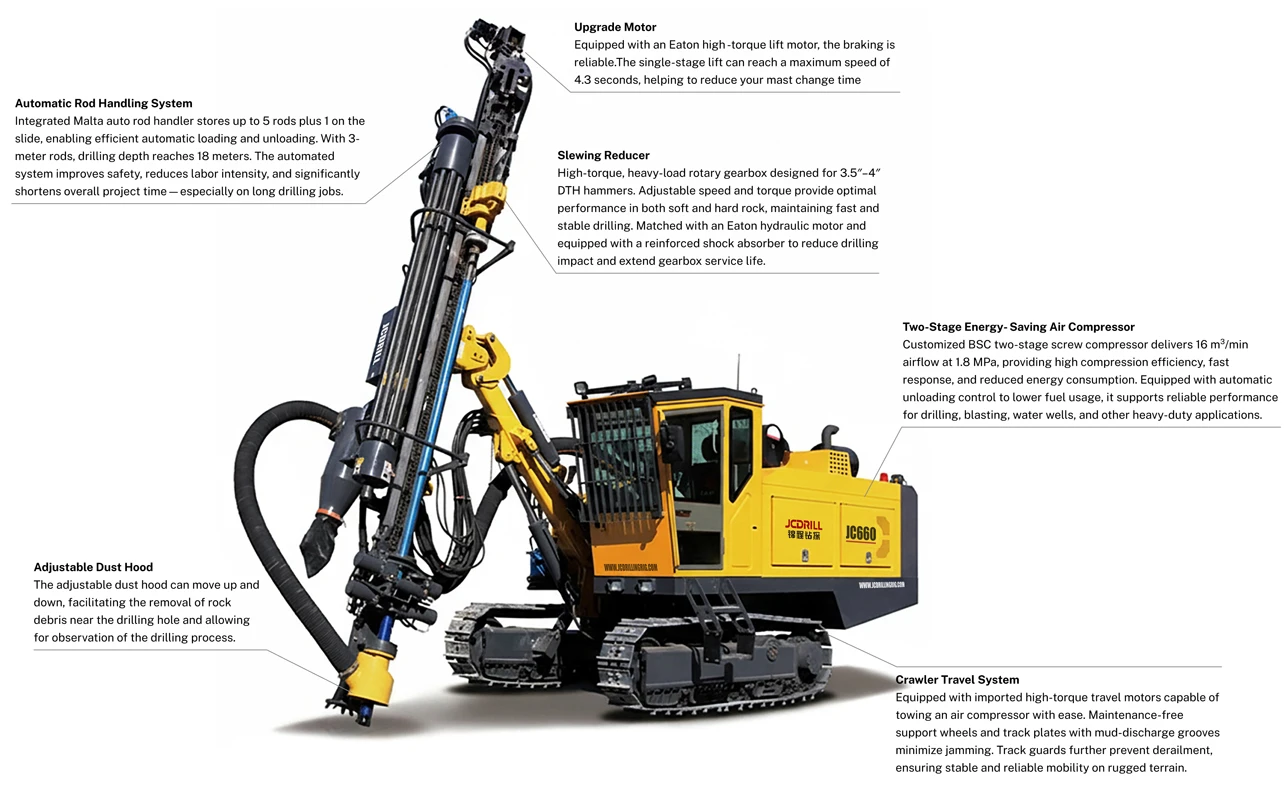

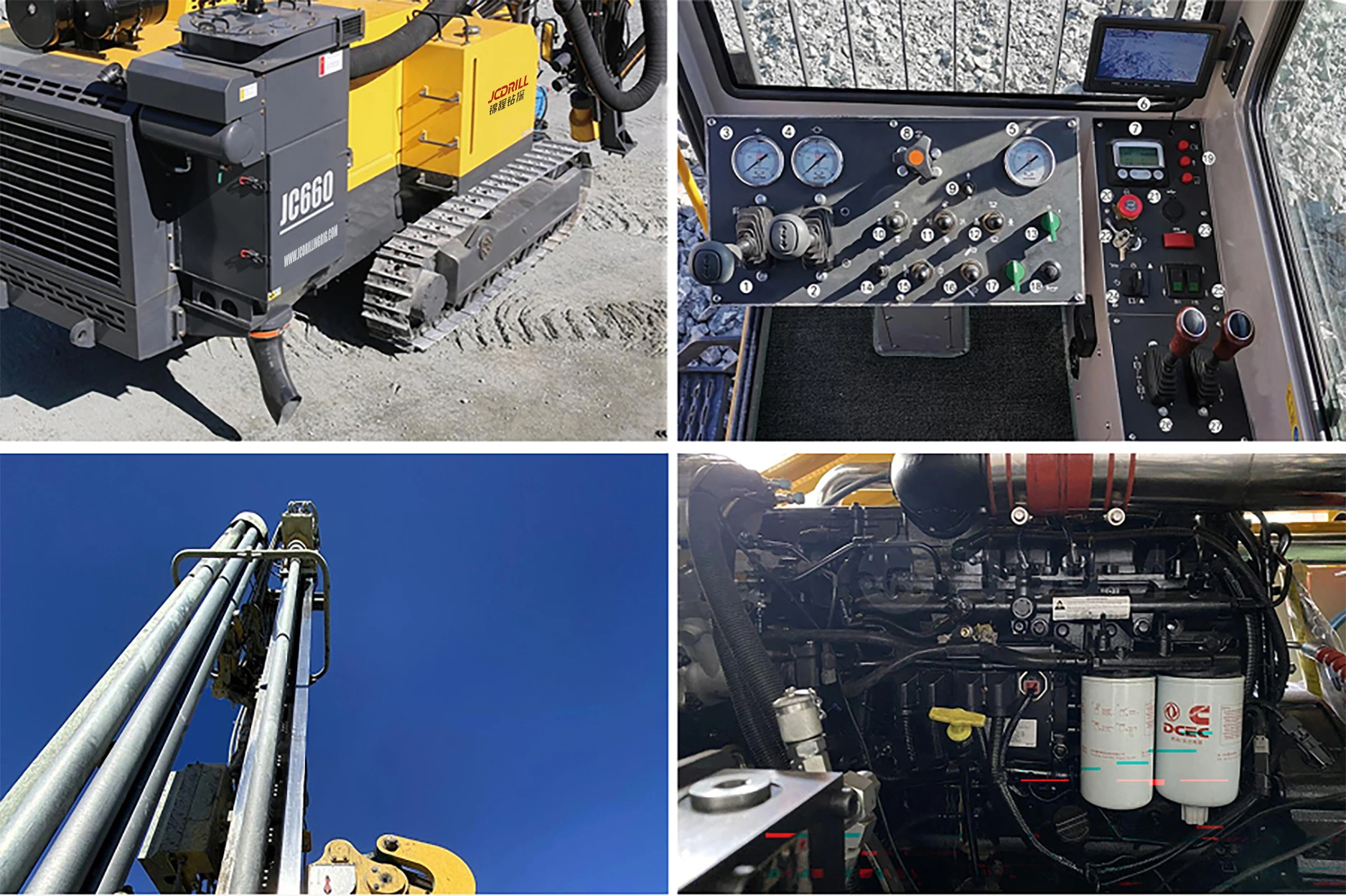

To achieve higher working efficiency in drilling operations, we used the Malta automatic rod handling system on the JC660 to improve drilling quality and safety while reducing labor costs and physical effort.
Equipped with imported high-torque travel motors, it can tow an air compressor freely. The support wheels are maintenance-free, and the track plates have mud-discharge grooves, reducing the chance of jamming.

The JC660 uses a customized BSC two-stage screw energy-saving main unit with an output of 16 m³/min and a pressure of 1.8 MPa, offering high compression efficiency, fast operation, and low energy consumption.
The adjustable dust hood can move up and down, facilitating the removal of rock debris near the drilling hole and allowing observation of the drilling process.

Features Introduction

Product Description

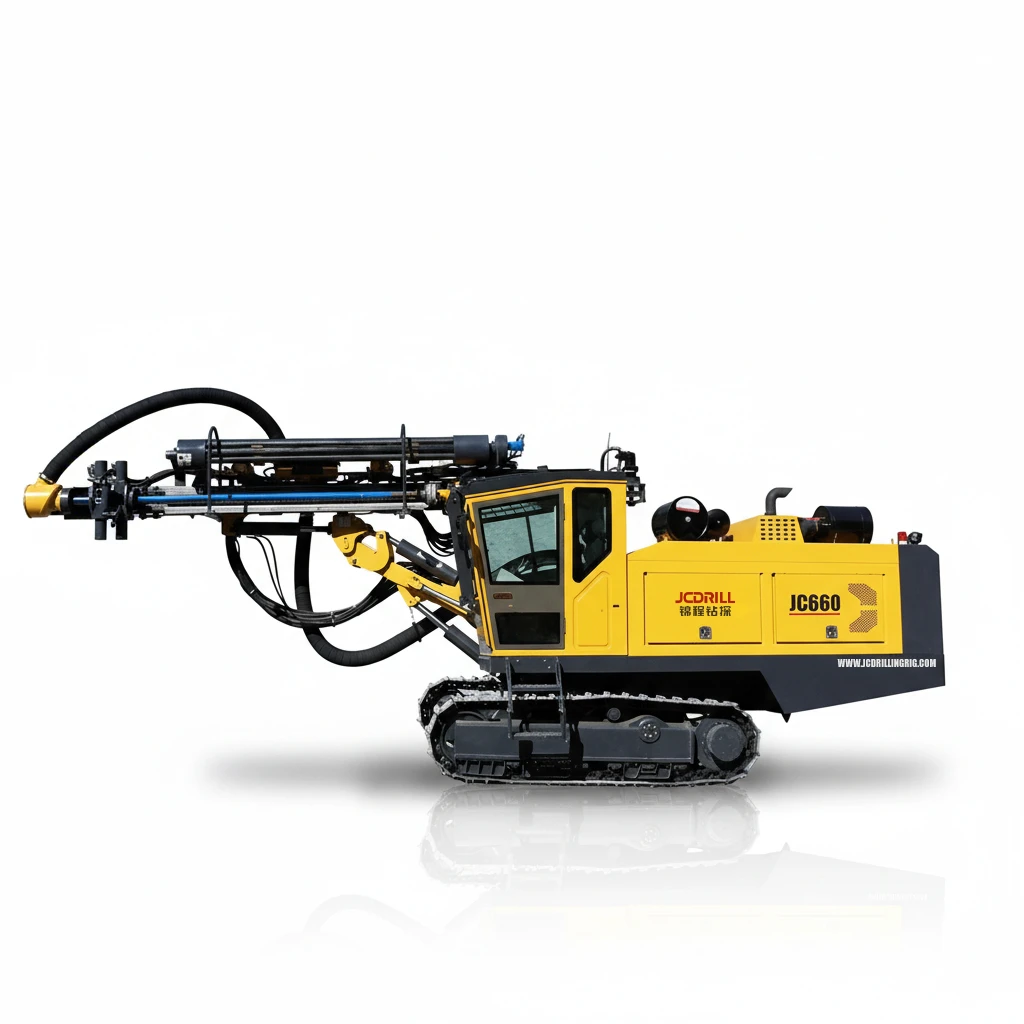

The JC660 Integrated Hydraulic DTH Drilling Rig is engineered for efficient hard rock drilling in quarrying, mining, and infrastructure projects. Powered by a 191 kW Yuchai turbocharged engine and a BSC two-stage energy-saving screw air compressor, it delivers stable airflow at 16 m³/min and 1.8 MPa, ensuring reliable penetration for φ90–130 mm holes up to 60 meters deep.
Featuring an automatic Malta rod handling system, Eaton high-torque motors, reinforced slewing reducer, and an integrated control console, the JC660 provides smooth, safe, and highly efficient drilling operations. Its vertical direct-drive layout, automatic air filter cleaning, and compact crawler-mounted design minimize maintenance, reduce power loss, and enhance operational reliability in harsh field environments.

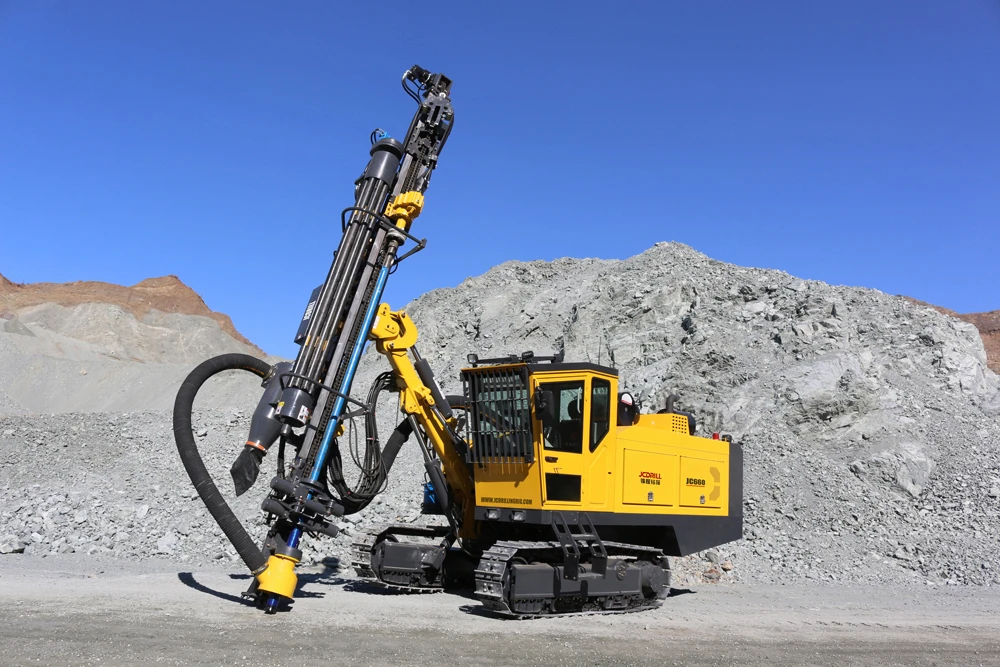

High-Efficiency Power and Air System

Equipped with a 191 kW Yuchai engine and a BSC two-stage screw air compressor, the JC660 delivers stable airflow (16 m³/min, 1.8 MPa), energy-saving operation, and reliable drilling performance for hard rock conditions.

Advanced Rod Handling and Hydraulic Control

The Malta automatic rod handling system, Eaton high-torque motors, and integrated hydraulic control console enable fast, safe, and efficient drilling up to 18 m, reducing labor intensity and improving overall operational productivity.

Product Specifications

Specification	Unit	JC660
Drilling Range	mm	90–130
Maximum Drilling Depth	m	60
Horizontal Drilling Height	mm	3600
Drill Rod Diameter	mm	76
Drill Rod Length	mm	4000
Number of Rods Stored		5+1
Automatic Rod Handling Drilling Depth	m	24
Engine
Model		Yuchai YCA08280-T301
Emission Standard		National III Emission Standard
Operating Speed	rpm	2200
Rated Power	kW	206
Fuel Tank	L	550
Air Compressor
Manufacturer		BSC BOSS Twin-Screw Compressor
Discharge Pressure	MPa	2
Discharge Flow	m³/min	16
Propulsion
Slide travel	mm	4115
Rapid feed rate	m/min	60
Lifting force	kN	20
Rotational speed	rpm	0-140
Rotational torque	N.m	0-3400
Ambient temperature	°C	-35/50
Altitude	m	≤2500
Travel System
Maximum travel speed	km/h	0-2.5
Ground clearance	mm	25
Climbing ability	°	350
Track width	mm	+/-6
Dust Collection
Filtration Area	m²	16
Number of Filter Cartridges		16
Dust Suction Pipe Diameter		5"
Motor Speed	rpm	3700
Working Angle
Boom Pitch	°	Pitch 23 / Tilt 54
Boom Swing	°	Left 18 / Right 35
Derrick Swing	°	Left 90 / Right 31
Dimensions
Length	mm	9000
Width	mm	2700
Height	mm	3300
Weight	kg	13500
*Standard drilling rig parameters, excluding drill rod kits and optional components
