90-115mm
English
Hole Range
90-115mm
Hole Depth
21m
Recommend Chassis Type
Crawler

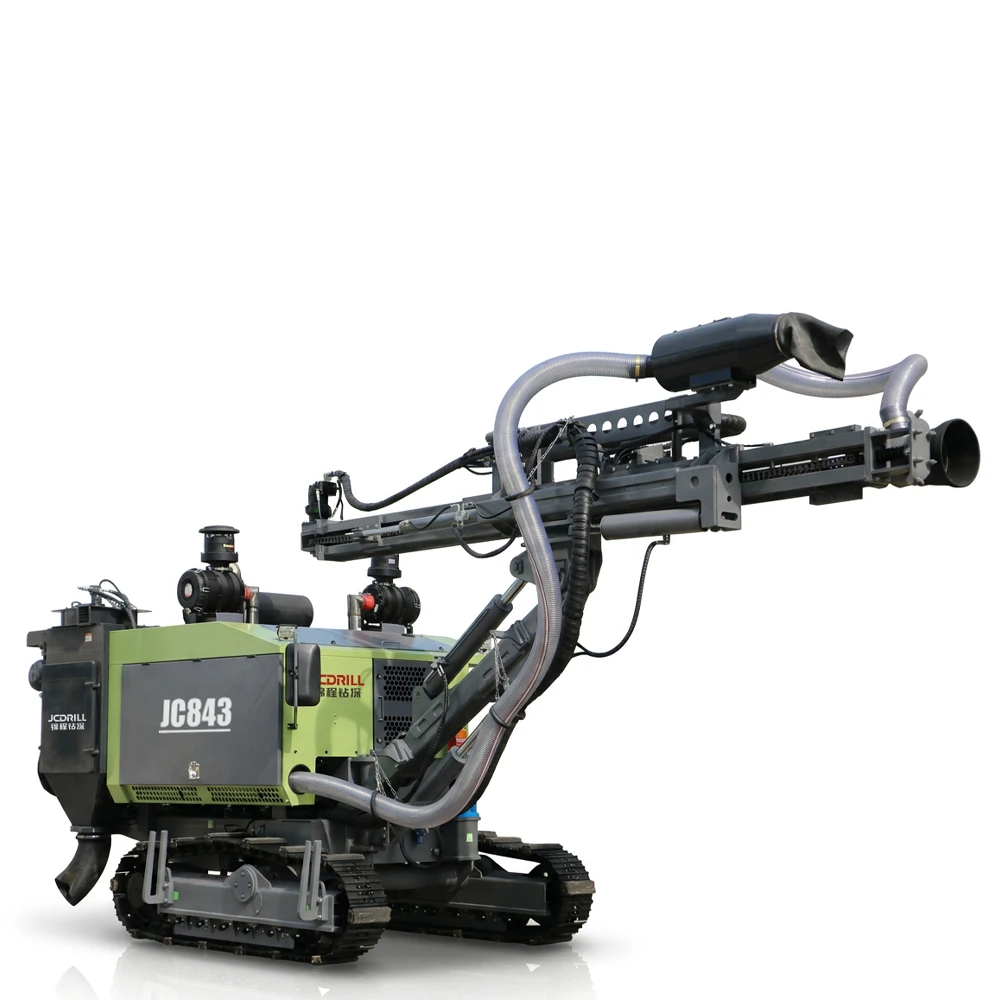

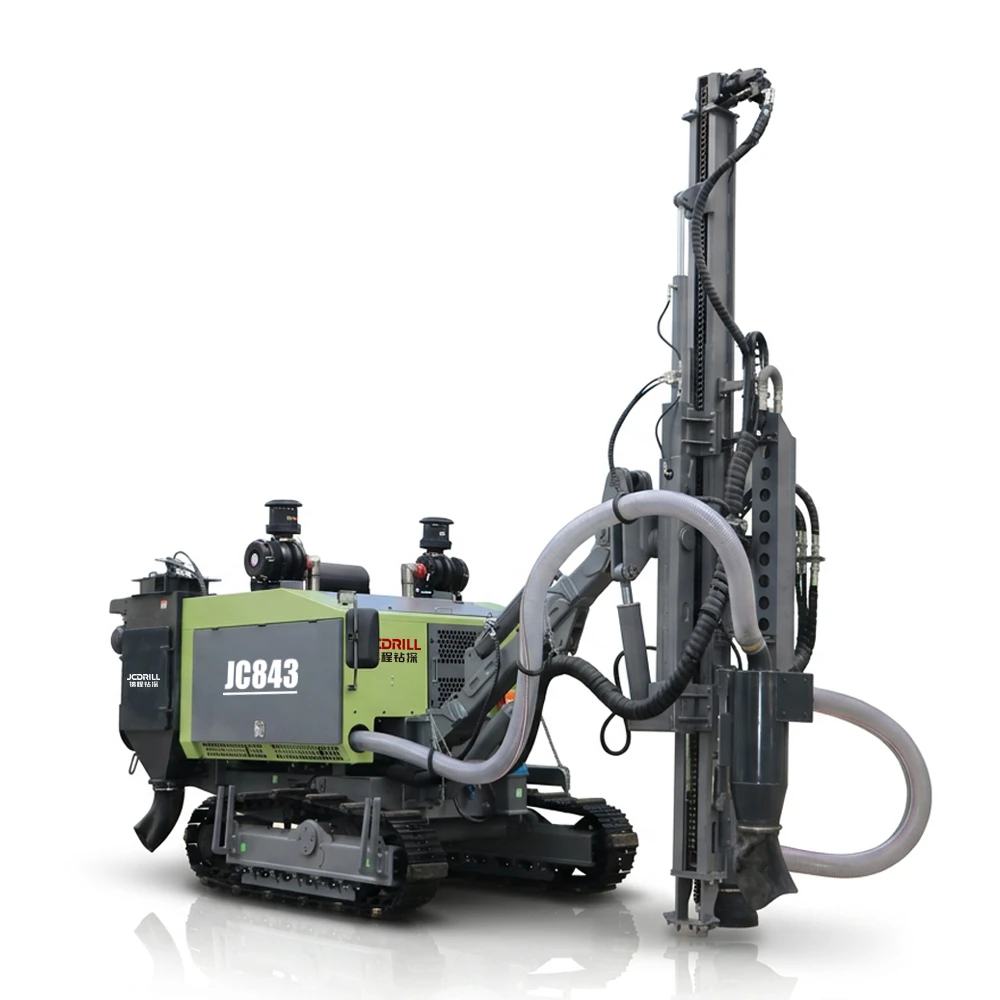

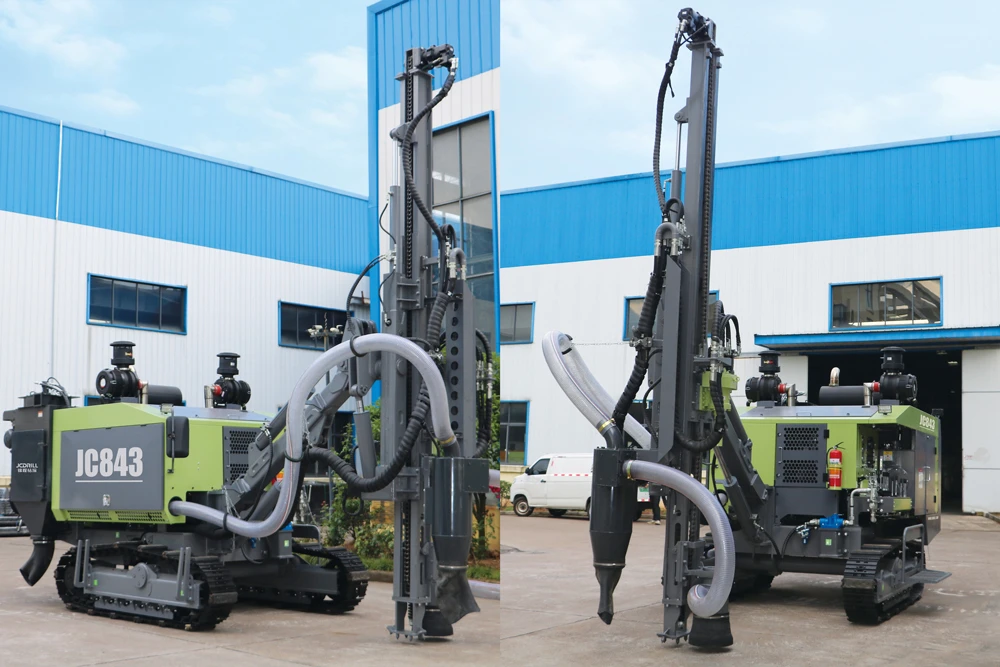

JC843 is a full-hydraulic down-the-hole drilling rig designed for precise and stable medium-depth drilling operations. With support for 21-meter drilling depth and hole diameters from φ90 to 115 mm, it delivers reliable performance in moderate to hard rock formations. The rig integrates a high-power Yuchai engine, efficient pneumatic system, and an optimized structural layout to ensure consistent penetration efficiency. Its reinforced frame, compact transport dimensions, and smooth site mobility make JC843 suitable for mining, construction anchoring, and infrastructure foundation projects. Enhanced reliability is further supported by a dry-type dust collection system and high-grade hydraulic and electrical components, enabling clean, safe, and efficient drilling in demanding environments.
Features Introduction
Product Description

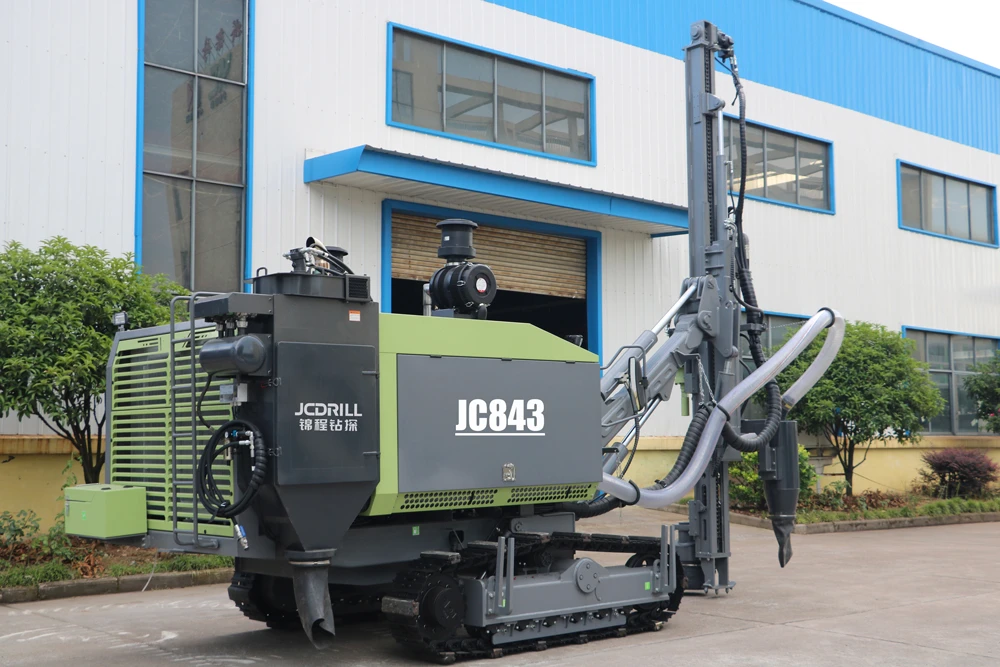

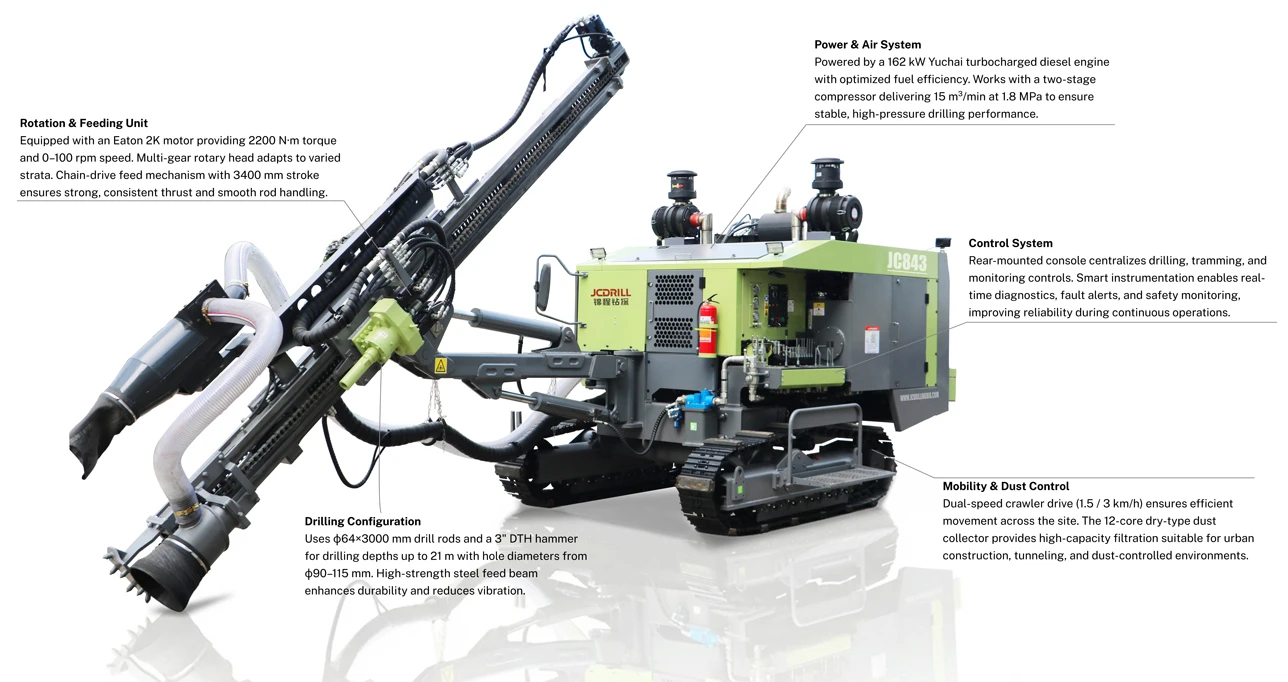

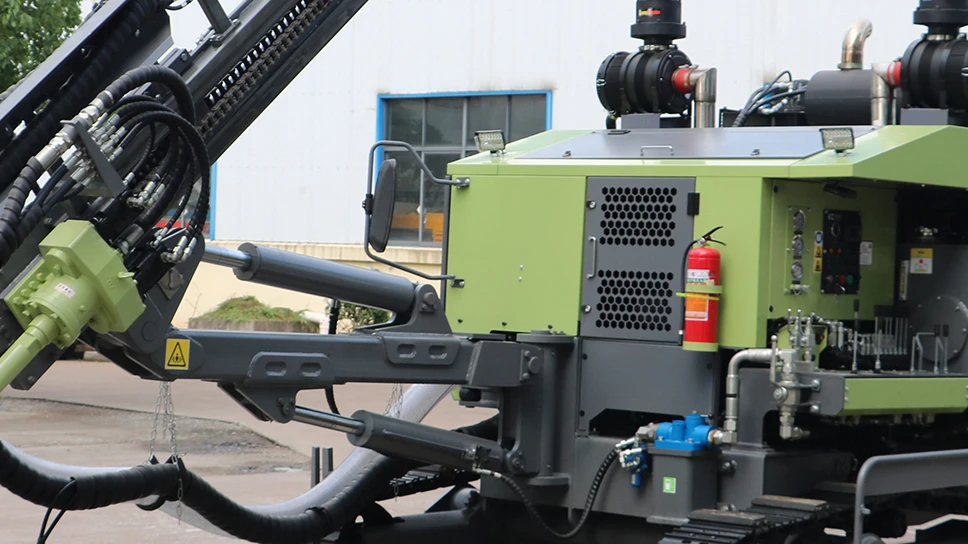

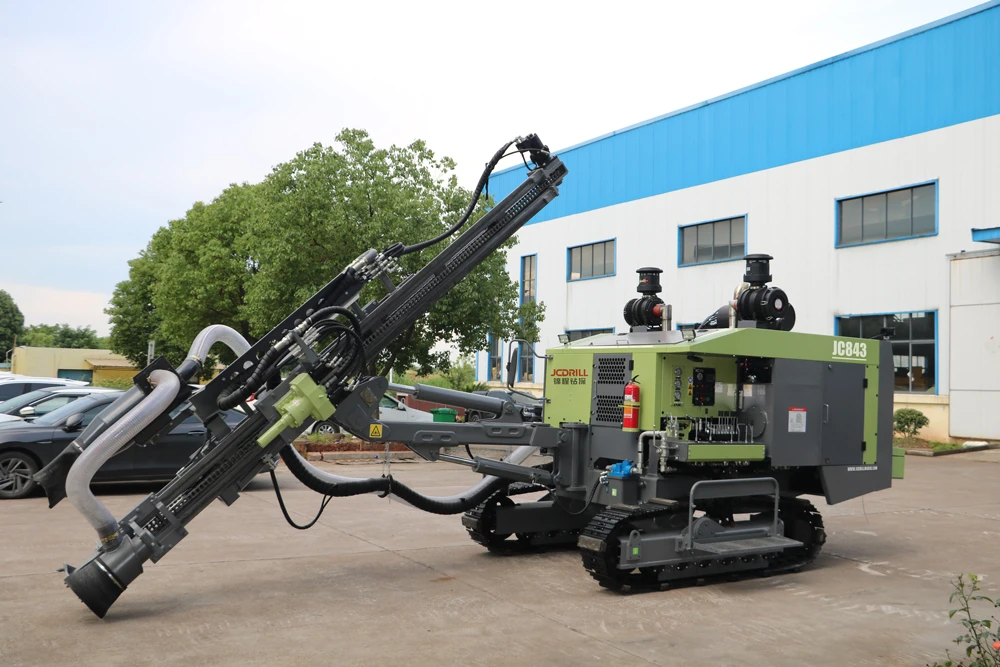

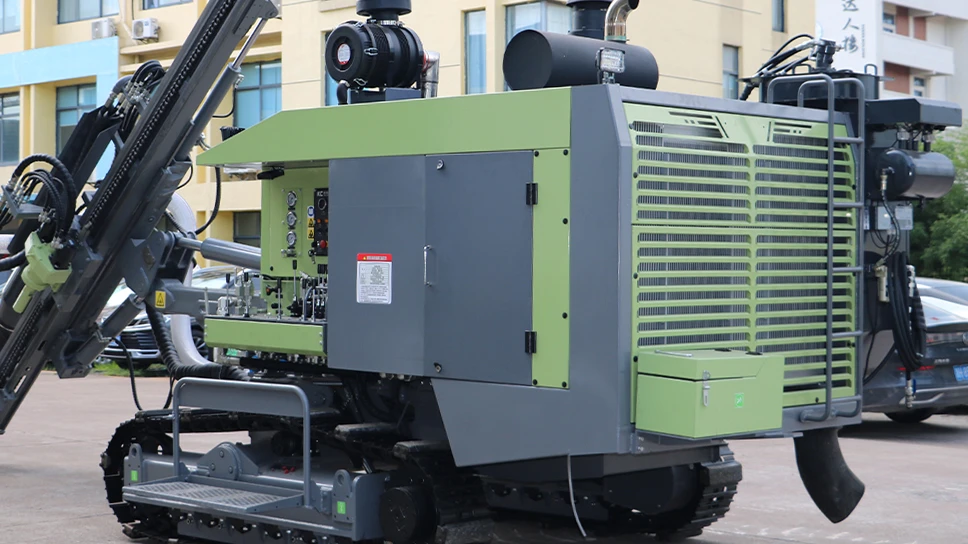

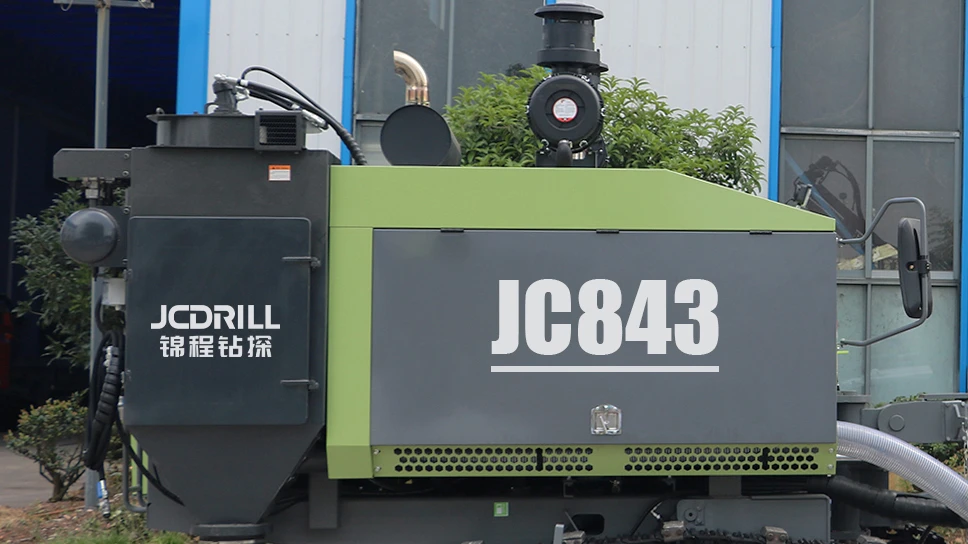

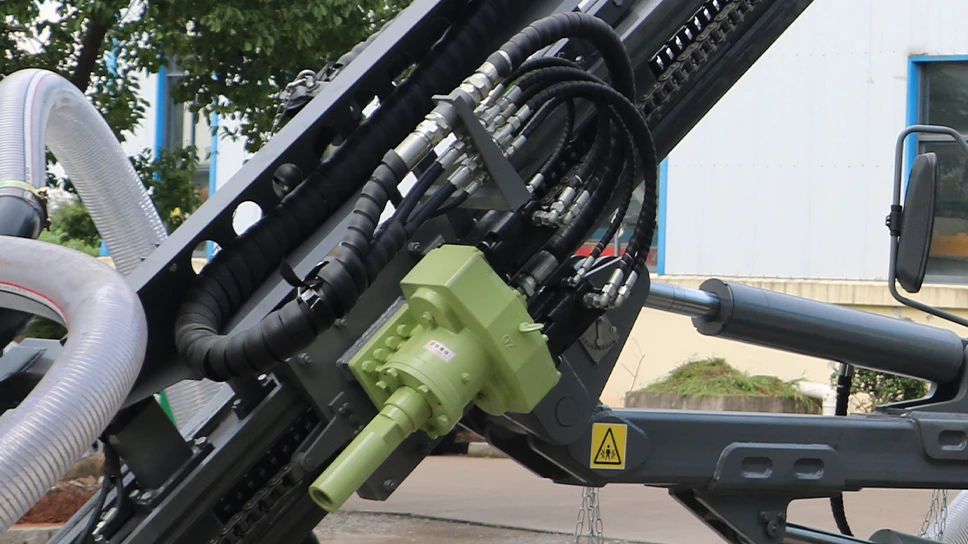

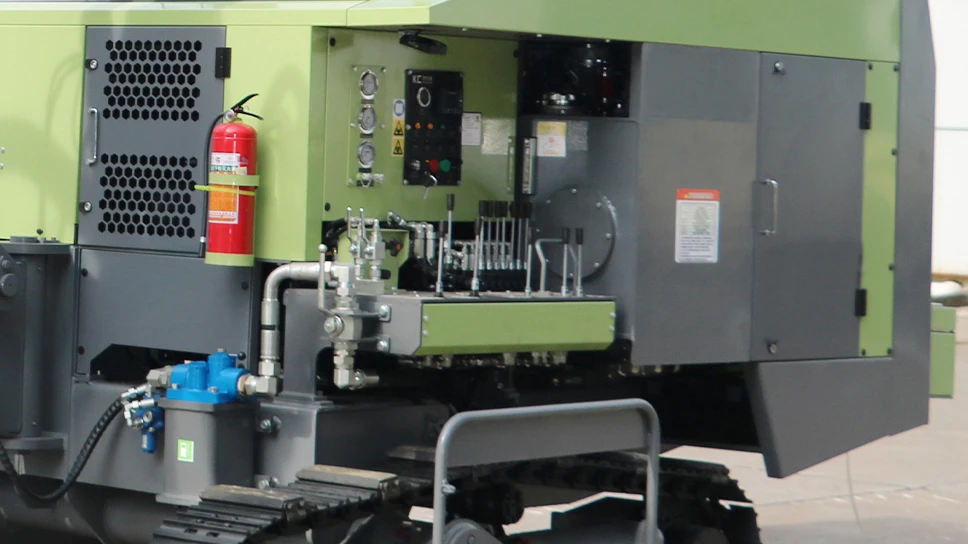

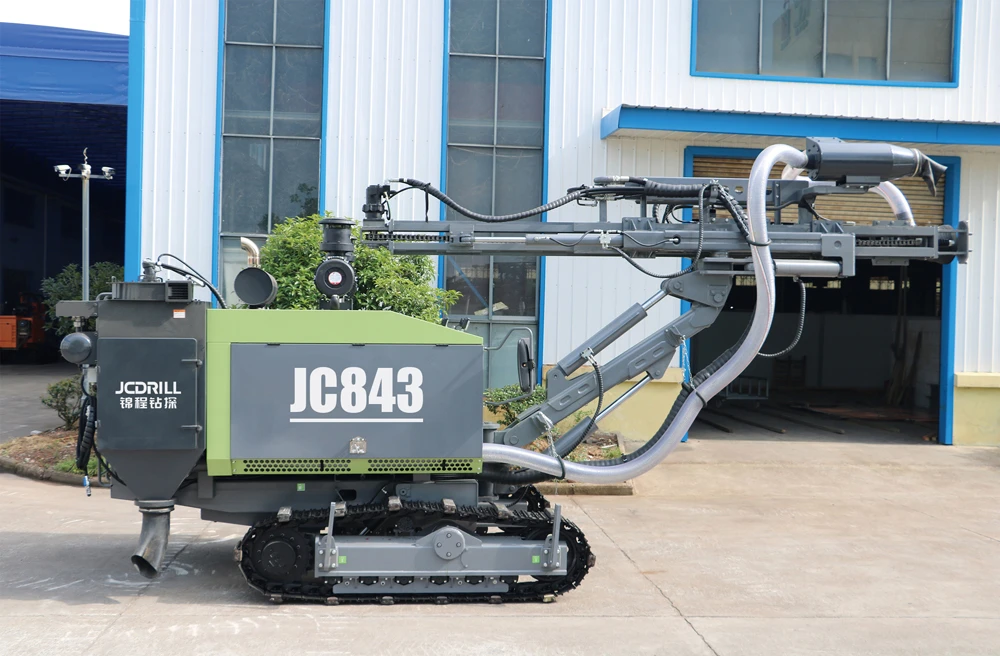

The JC843 is a fully hydraulic down-the-hole drilling rig engineered for medium-depth drilling operations with high precision and stability. Supporting drilling depths up to 21 meters and hole diameters from φ90 to 115 mm, the rig is ideal for mining, construction anchoring, and infrastructure foundation projects. Powered by a 162 kW Yuchai water-cooled turbocharged diesel engine, it features an Eaton 2K series rotary motor providing 2200 N·m torque and variable speed up to 100 rpm. The motor-driven chain feed system offers a 3400 mm stroke with 1100 mm extension, delivering smooth 12 kN feeding force for efficient rod handling. JC843 is equipped with a large-capacity 12-core dry dust collector, IP56-rated electrical components, and an intelligent integrated control panel, ensuring environmental compliance, operational safety, and real-time monitoring. Compact transport dimensions (8400×2300×2400 mm) and a crawler-mounted chassis provide flexible site mobility with dual-speed tramming (1.5–3 km/h), making it a reliable and efficient solution for demanding drilling environments.
Product Specifications
| Specification | Unit | JC843 |
| Drilling Specifications | ||
| Hole Depth | m | 21 |
| Hole Diameter | mm | φ90~115 |
| Drilling Rod Diameter | mm | φ64 |
| Drilling Rod Length | mm | 3000 |
| DTH Hammer Size | inches | 3" |
| Drill Bit | mm | 90 |
| Rotation | ||
| Rotary Torque | N·m | 2200 |
| Rotary Speed | rpm | 0~100 |
| Lifting Force | kN | 18 |
| Rotation Motor | - | Eaton 2K series |
| Feed System | ||
| Feed Type | - | Motor + Chain Drive |
| Feed Stroke | mm | 3400 |
| Feed Extension | mm | 1100 |
| Max. Feed Force | kN | 12 |
| Feed Beam | - | High-strength steel beams |
| Engine | ||
| Engine Brand | - | Yuchai |
| Engine Type | - | Diesel Engine |
| Rated Horsepower | kW | 162 |
| Air Compressor Demand | ||
| Working Pressure | MPa | 1.8 |
| Air Consumption | m³/min | 15 |
| Compressor Type | - | Two-stage compression |
| Weight & Dimensions | ||
| Weight | t | 9.5 |
| Transport Dimensions (L×W×H) | mm | 8400 × 2300 × 2400 |
| General Specification | ||
| Tramming Speed | km/h | Fast: 3 / Slow: 1.5 |
| Dust Collector | - | 12 Core Dry Type |
| Control Valve | - | QIANGTIAN |
| Electrical System | - | Imported components, IP56 waterproof/dustproof |
