JC860 Crawler Multifunction Rock Blasting Drilling Rig

Hole Range

90-152mm

Hole Depth

40m

Recommend Chassis Type

Crawler

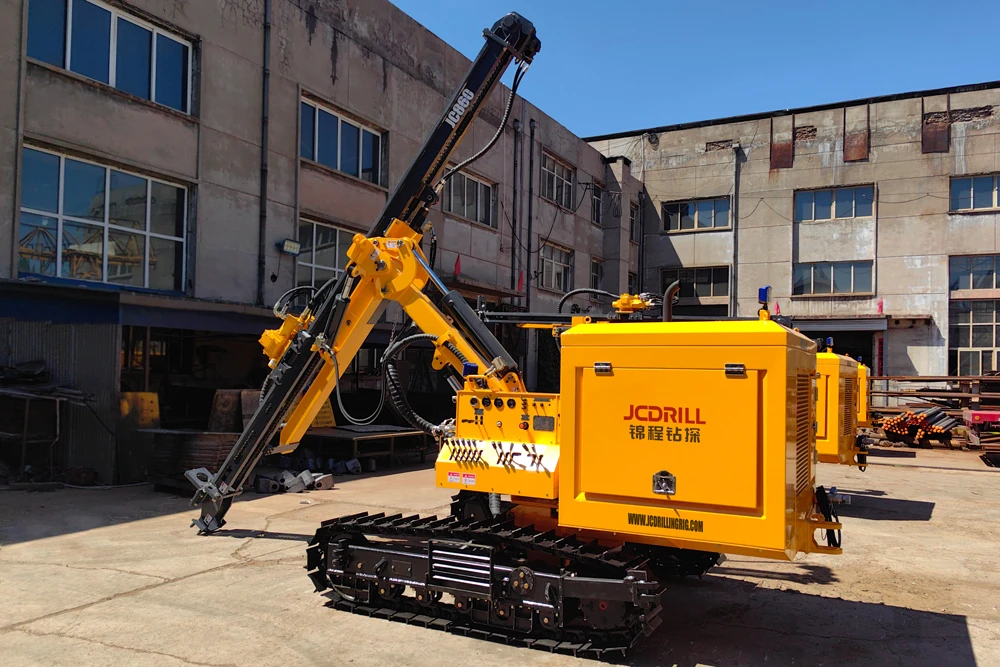

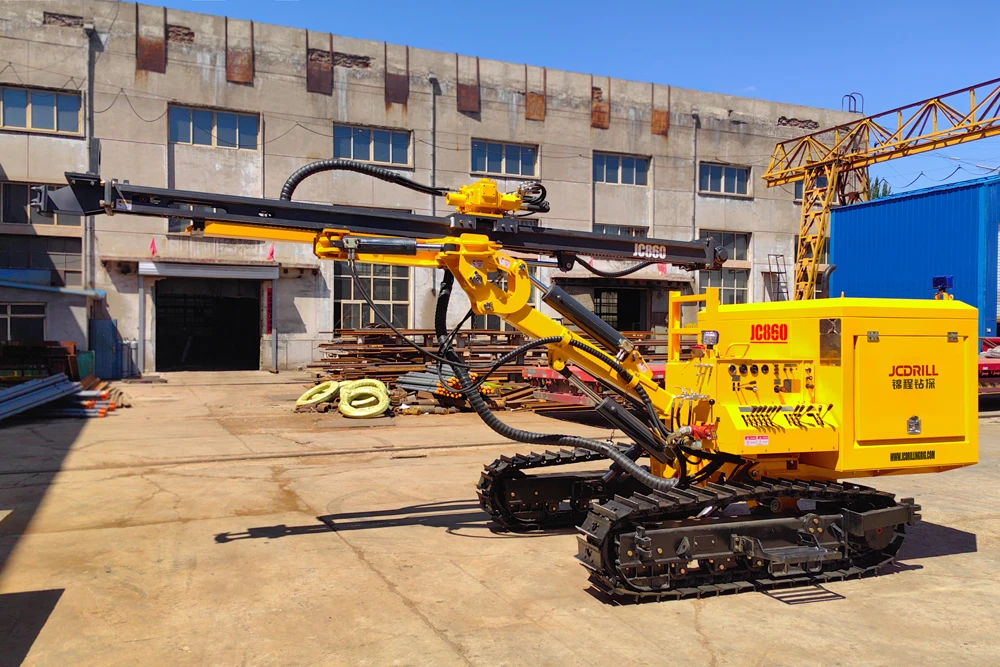

The JC860 hydraulic down-the-hole drilling rig is a versatile, engine-driven machine designed to replace traditional pneumatic drills in mining and construction. All drilling, feeding, rotation, and traveling functions are hydraulically powered, while compressed air is used only for impact and hole cleaning, reducing air consumption and operating costs. Its compact structure, light weight, and simple operation make it efficient and easy to use. Mounted on a rugged crawler chassis driven by hydraulic motors, JC860 offers strong mobility and stability on rough terrain. High feed force and rotary torque ensure reliable performance in complex worksites, making it suitable for blast-hole drilling in mines and quarries, as well as anchoring applications in roads, railways, power stations, and civil engineering projects.

Inquire Now Brochure PDF

Functions and Features

Main Components

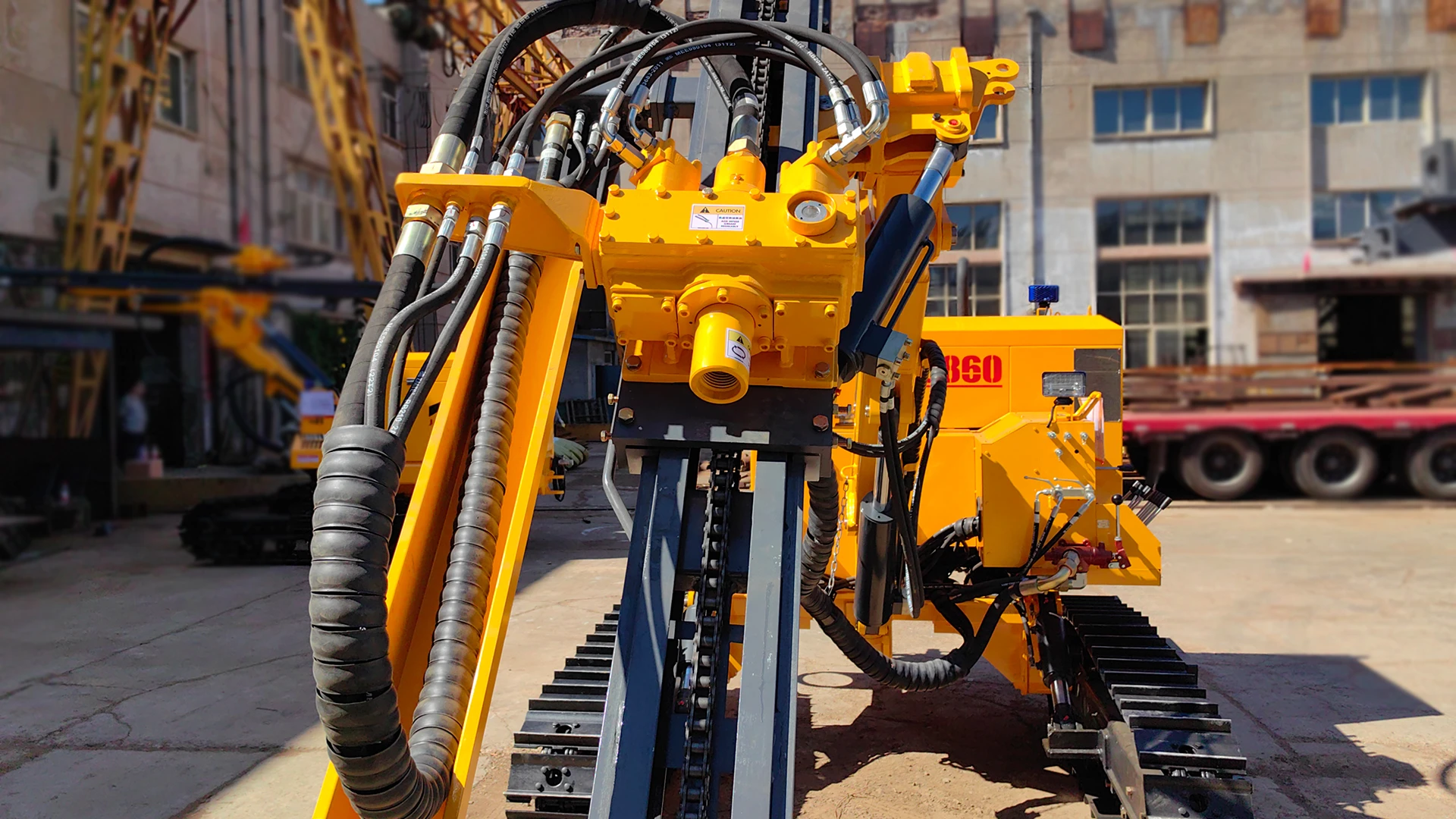

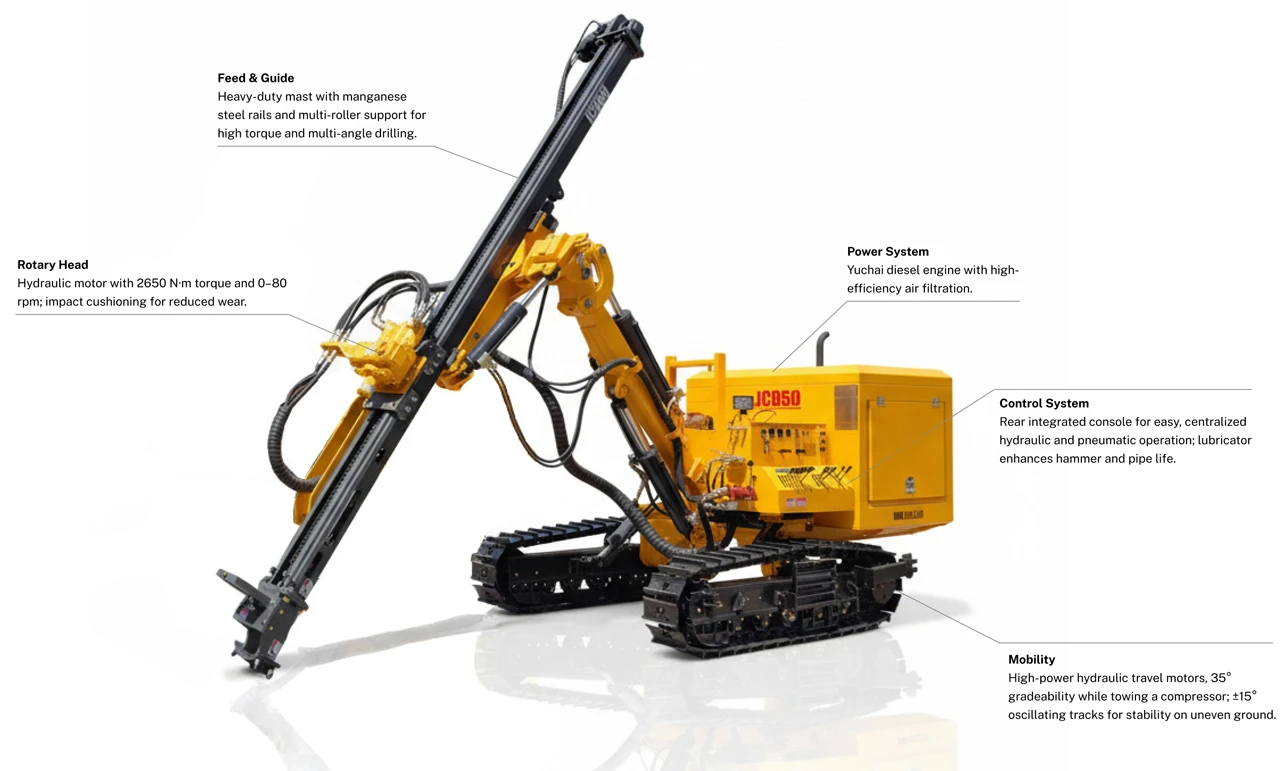

Rotary Head Assembly: The rotary head assembly adopts a hydraulic rotary motor with dual planetary gear reduction. The maximum output torque reaches 2650 N·m, with a rotary speed ranging from 0 to 80 r/min. The rotary system is designed with impact cushioning capability, effectively reducing drilling reaction forces transmitted to the motor, minimizing component wear. The internal structure is simple for easy maintenance. In addition, the rotary motor is equipped with a YX sealing ring, improving durability and service life.

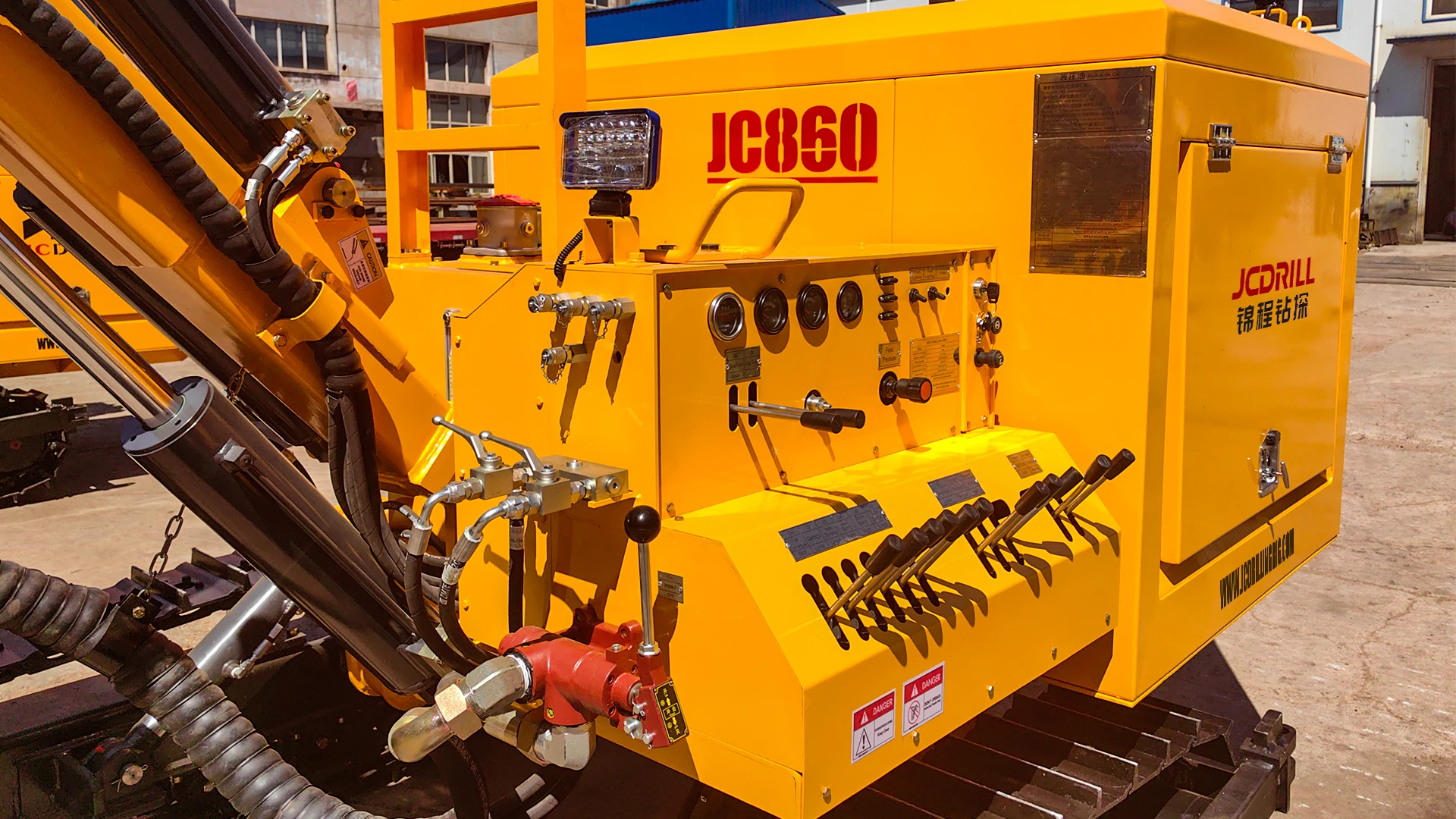

Operating System: The operating system is arranged at the rear of the rig, allowing the operator to easily monitor operations and centrally control the machine and hydraulic system. The pneumatic control system is safe and convenient, enabling one-handed operation during traveling.

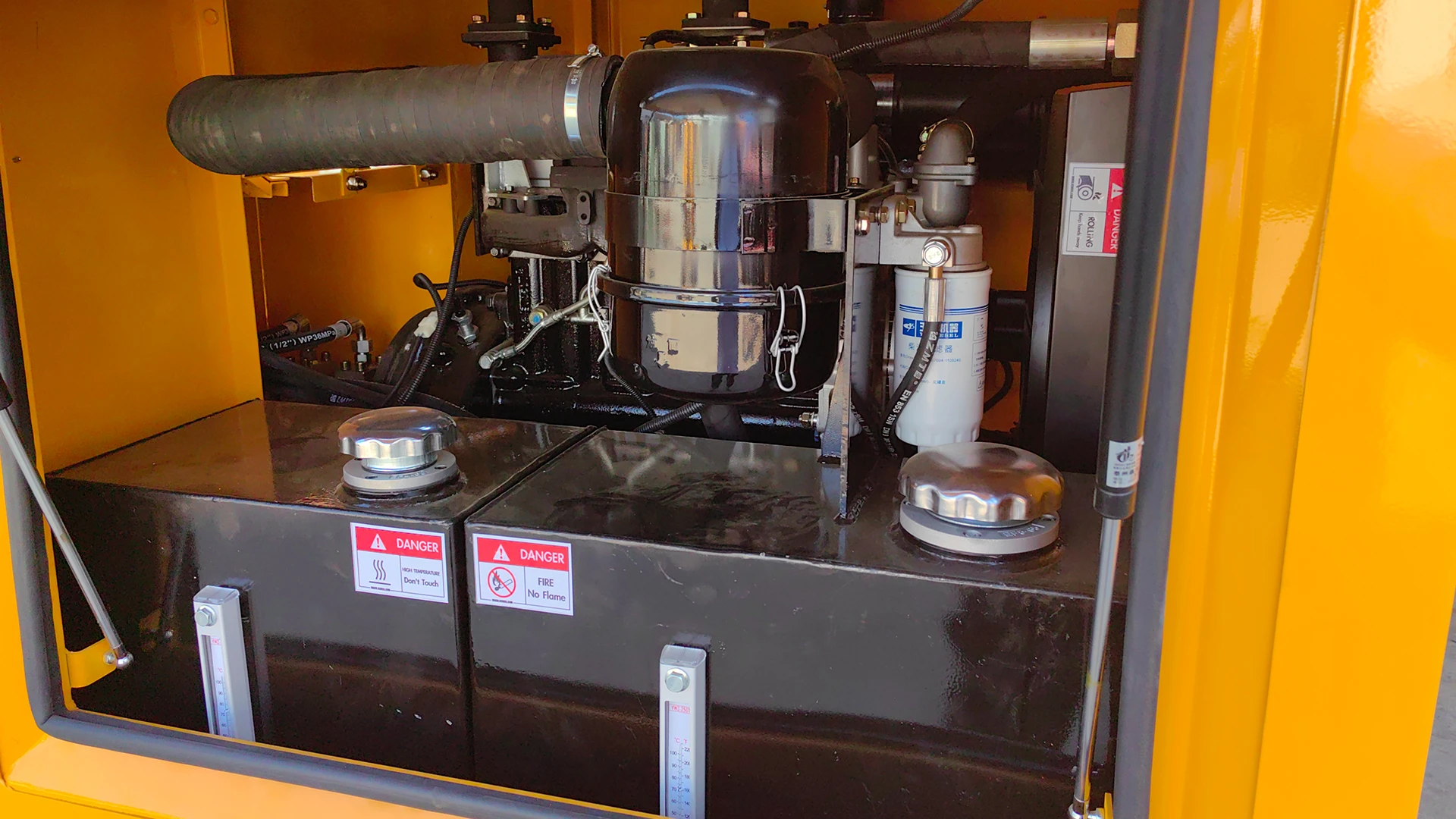

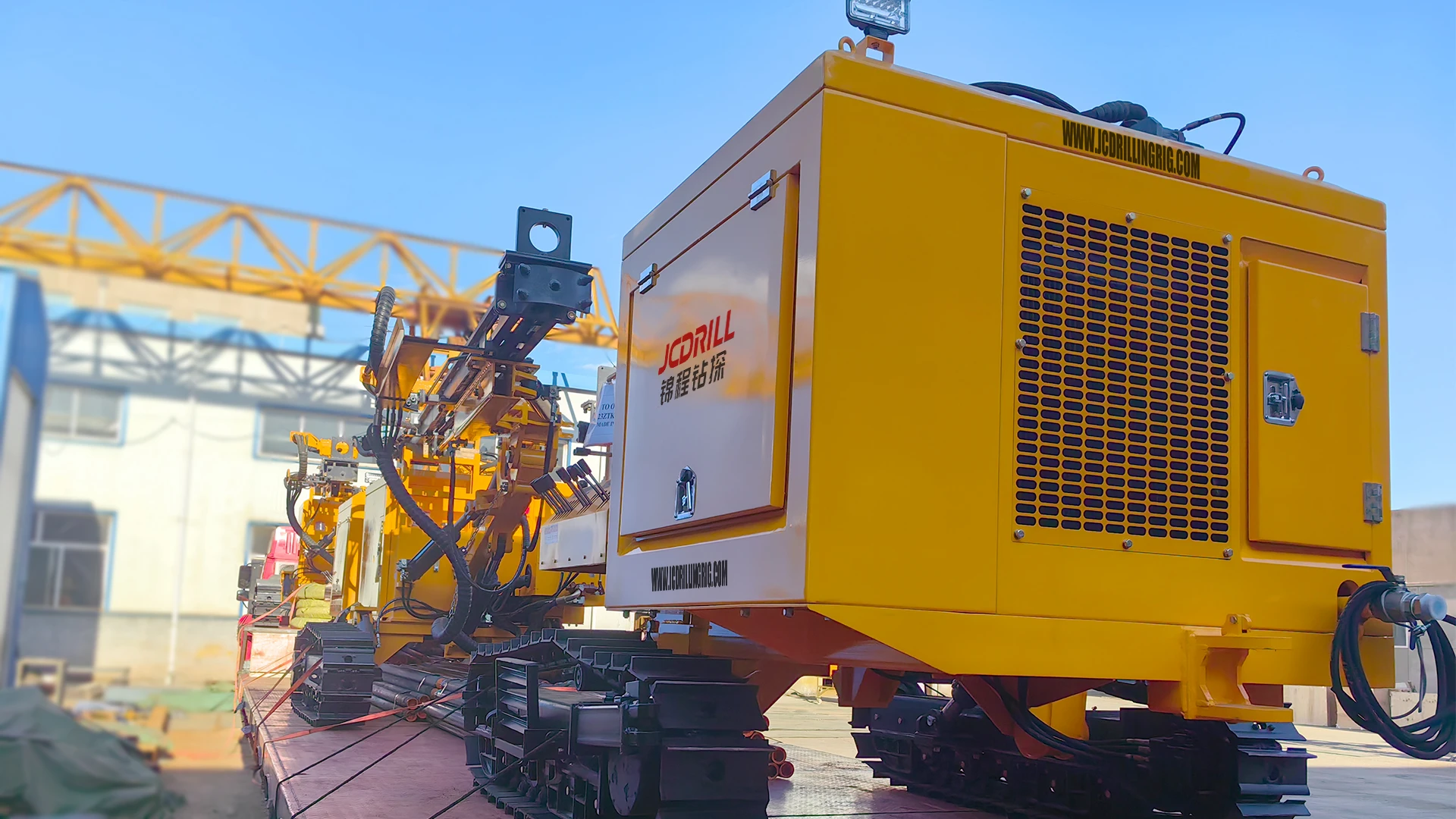

Diesel Engine: The drill is equipped with a Yuchai diesel engine featuring stable performance and strong output power. The engine intake system is fitted with a safe and reliable air filtration device, ensuring clean air intake and reliable engine operation.

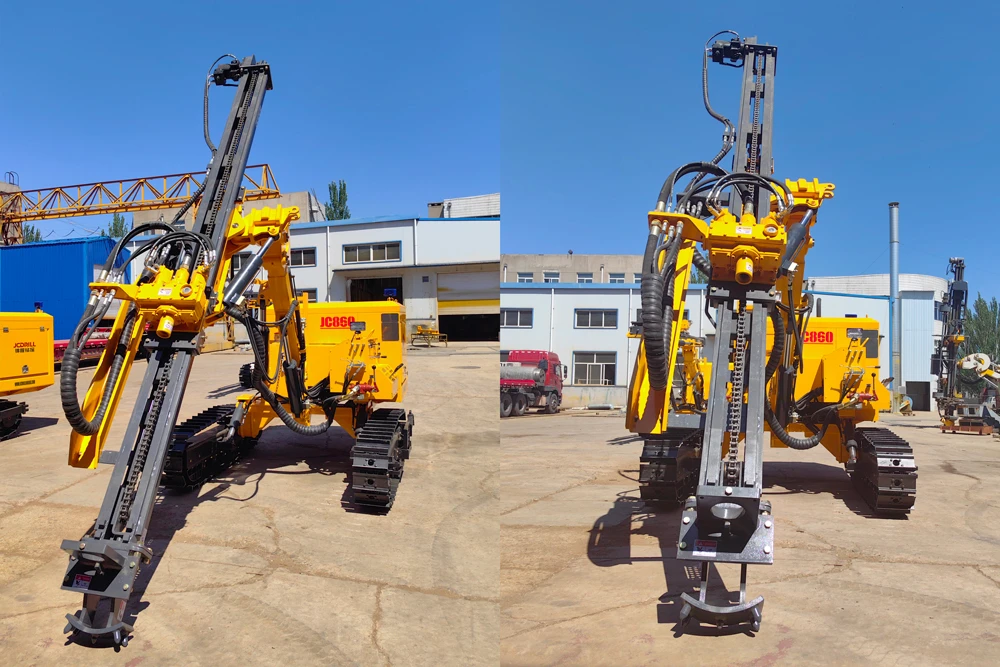

Mast Assembly / Drill Guide Assembly: The drill guide adopts a heavy-duty structure with manganese steel rail trims and a multi-roller design. This configuration enables the guide to withstand high torque and resist deformation, significantly extending the service life of the guide and sliding components while ensuring accurate drilling angles.

Features Introduction

Product Description

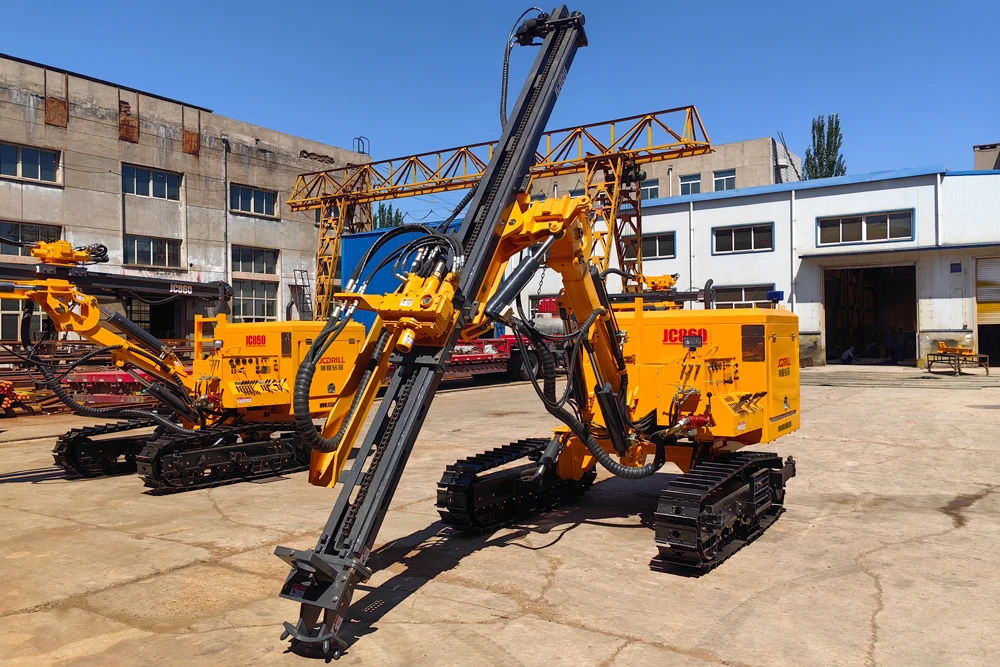

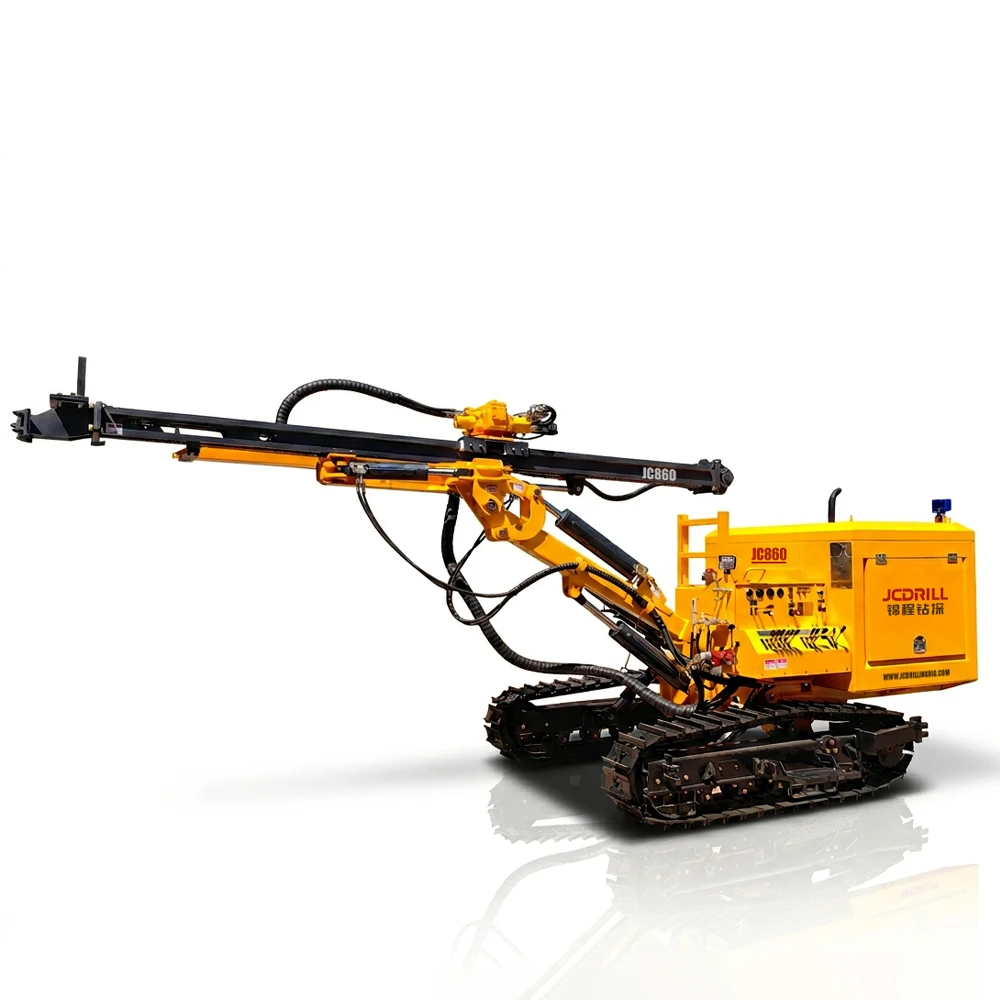

The JC860 is a versatile hydraulic down-the-hole drilling rig designed for mining, quarrying, blasting, and civil engineering projects. With drilling depths up to 40 meters and hole diameters from φ90 to 152 mm, it replaces traditional pneumatic drills by using hydraulics for all drilling, feeding, rotation, and traveling operations, while compressed air is only used for impact and hole cleaning. Powered by a reliable Yuchai diesel engine, the rig delivers stable power and efficient performance with reduced air consumption and operating costs. The hydraulic rotary head provides up to 2650 N·m torque and 0–80 rpm rotary speed, equipped with impact cushioning to minimize component wear. A heavy-duty mast and drill guide ensure precise drilling angles, while the lubricator system prolongs the service life of key components. Mounted on a rugged crawler chassis with imported hydraulic motors, the JC860 achieves excellent mobility and stability on rough terrain, with up to 35° gradeability even when towing an air compressor. The rear-mounted operating system allows centralized, intuitive control of all hydraulic and pneumatic functions, ensuring safe and efficient operation in demanding worksites.

High-Performance Diesel Engine

Equipped with a Yuchai diesel engine providing stable output and clean air intake through a reliable filtration system, ensuring continuous and efficient drilling performance.

Hydraulic Rotary Head

Dual planetary gear hydraulic rotary motor delivers up to 2650 N·m torque and 0–80 rpm, featuring impact cushioning to reduce reaction forces and minimize wear for extended service life.

Heavy-Duty Mast & Drill Guide

Manganese steel rail trims and multi-roller design enhance durability, maintain accurate drilling angles, and resist deformation under high torque conditions.

Crawler Mobility & Operational Safety

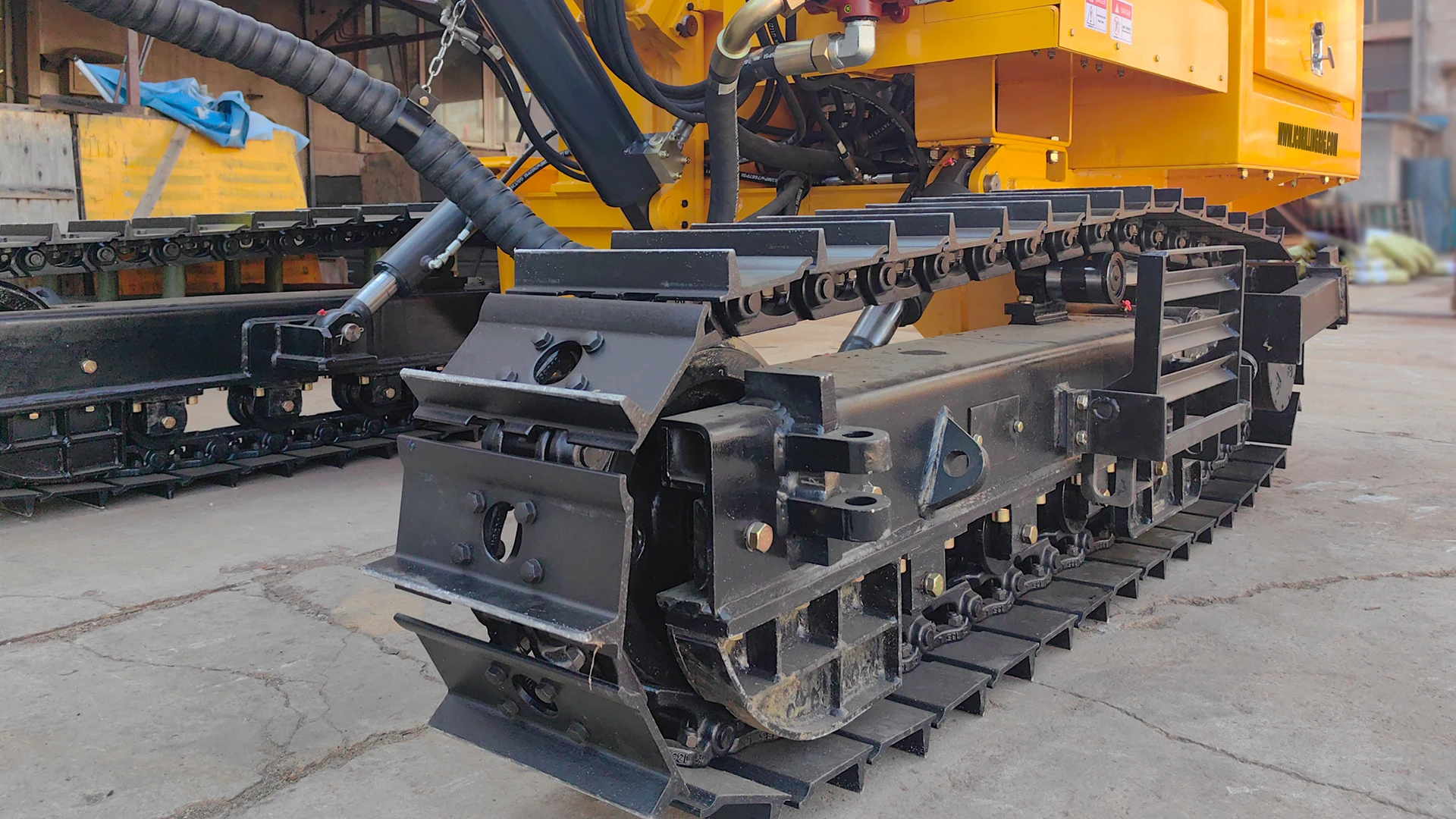

Imported hydraulic motors with closed-type reduction gearboxes provide robust mobility, 35° climbing ability, and smooth operation. Rear-mounted control panel enables safe, centralized control of all drilling and hydraulic systems.

Product Specifications

Specification	Unit	JC860
Drilling Specification
Rock Hardness	F=6~20
Hole Diameter	mm	90-152
Hole Depth	m	40
Drilling Rod Diameter	mm	60,76,89
Rotary Head
Rotation Torque	Nm	2650
Rotation Speed(Normal and Fast)	rpm	0-82/0-112
Feeding System
Max. Feed force	KN	25
Max. Lifting force	KN	30
Max. Feed Speed	M/min	15
Max. Lifting Speed	M/min	15
Boom& Guide
Max Swing of Boom	°	45° left / 45° right
Max Dump of Boom	°	up60 down20
Max Swing of Mast	°	30(L) / 91(R) or 91(L) / 30(R)
Max Dump of Mast	°	180
Feed Stroke	m	3.2
Engine
Manufacturer		YUCHAI
Rated Horse power	Kw	63
Type		4Cylinder,water cooling
Air Compressor Demand
Air Consumption	M³/min	11.3-21㎡/min(1.4-2.4 Mpa)
Compressor Type		Rotary Screw/Movable
Dust Collector
Dry/Wet		Optional
General Specification
Max. Travel Speed(Slow/Fast)	Km/h	2/3
Gradeability	°	24
Net Weight	kgs	5500
Shipping Dimension(LWH)	mm	600020002480
Ground Clearance	mm	252
