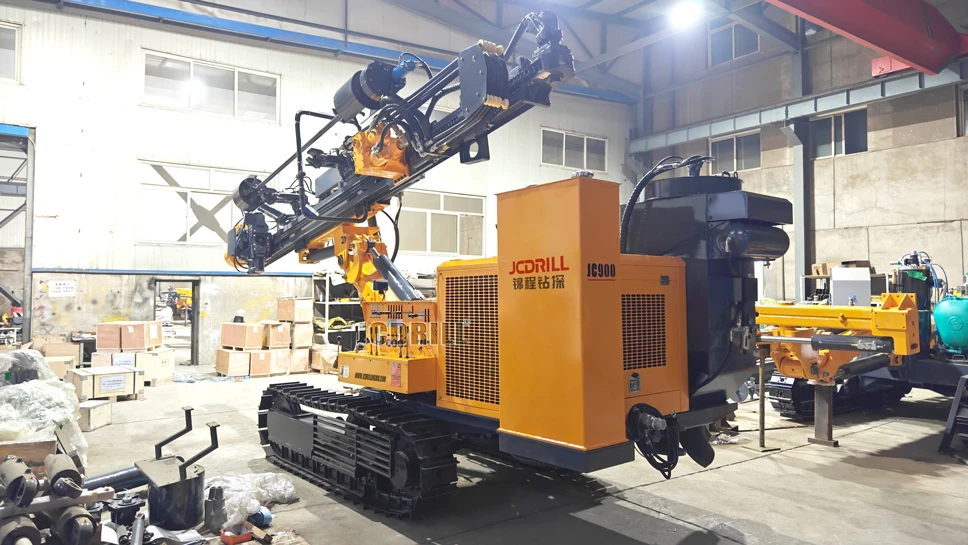

JC900 Pneumatic Hydraulic DTH Rock Blasting Drilling Rig

Hole Range

90-178mm

Hole Depth

22/60m

Recommend Chassis Type

Crawler

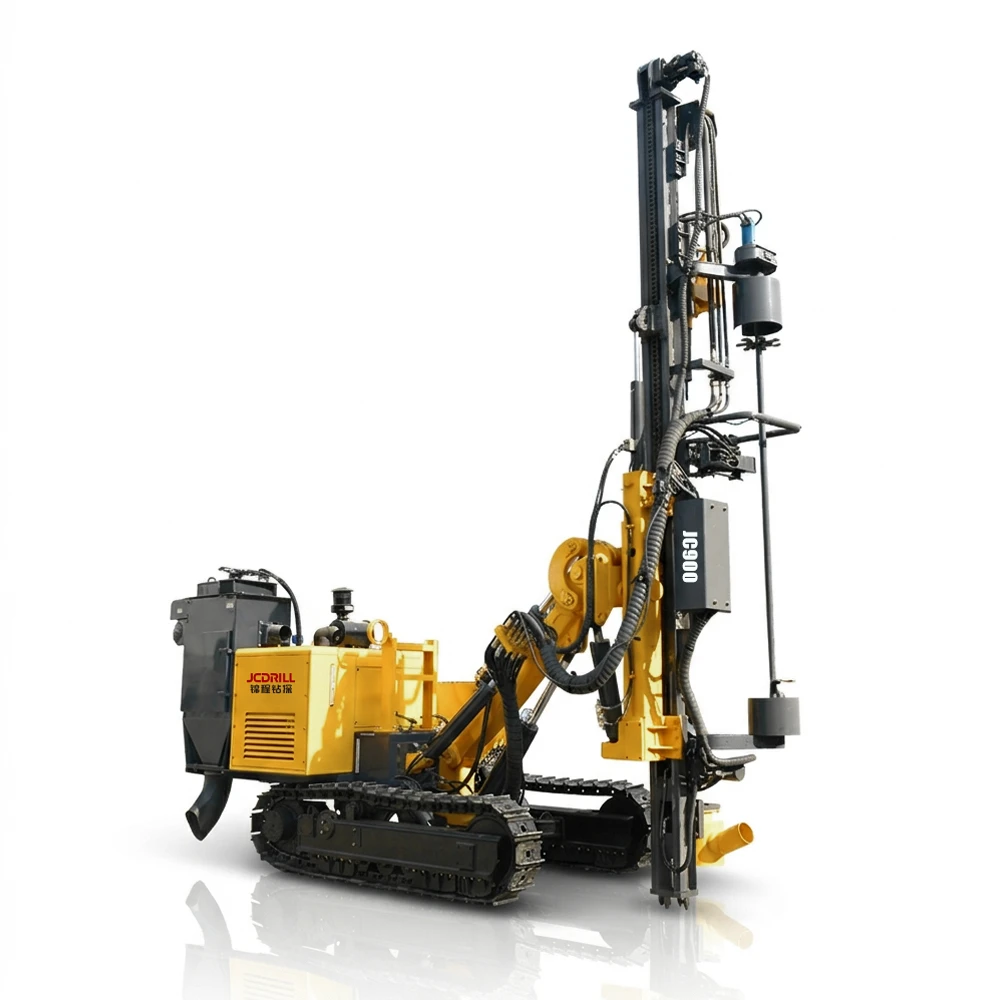

The JC900 is a hydraulic down-the-hole drilling rig designed for rock hardness F6–20, drilling 90–178mm holes up to 60m deep. Powered by a 70kW Yuchai engine (Cummins optional), it delivers 5600Nm torque and features a high-efficiency rotary system for stable, low-maintenance operation. With a multi-angle drill arm and durable crawler undercarriage, it ensures flexible, reliable performance in demanding conditions.

Inquire Now Brochure PDF

Functions and Features

Main Components

The rig is powered by a Yuchai 70 kW turbocharged engine (Cummins 74 kW optional), delivering strong output and easy maintenance. A two-stage air filtration system guarantees clean air intake, ensuring safe and reliable engine operation. The integrated oil-water radiator maintains stable performance of both the engine and hydraulic system in high-temperature environments.
The multi-angle drill arm with extended functions provides a wider drilling range. It supports horizontal drilling, front and rear inclined holes, as well as lateral angled holes, achieving a drilling coverage approximately 20% greater than that of similar drilling rigs.

Imported rotary seals provide excellent sealing performance and long service life. The polymer liner features high wear resistance, requires no lubrication, and offers greater operational convenience. The manganese steel guide rail ensures a rigid frame structure with strong wear resistance.
The original imported travel motor offers strong climbing capability and supports towing of an air compressor. The two-speed travel system enables faster movement, reducing shifting time. Maintenance-free support rollers eliminate the need for oil filling. Track guards are installed to prevent track derailment. The rig can also be equipped with an unpowered unlocking travel motor.

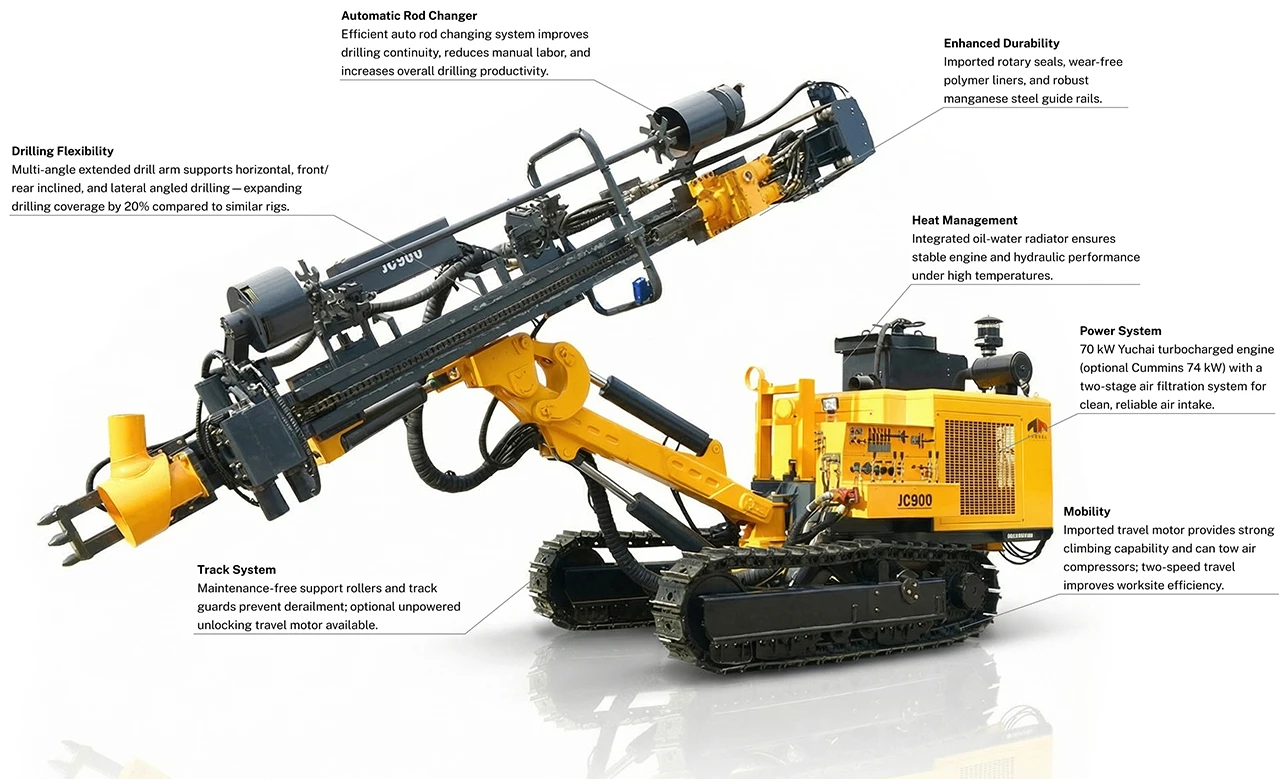

Features Introduction

Product Description

The JC900 hydraulic down-the-hole drilling rig is an upgraded model featuring a fully optimized structure and a more user-friendly design. Powered by a diesel engine or optional electric motor driving a hydraulic pump set, all drilling, feeding, lifting, traveling, and positioning functions are hydraulically operated for smooth and efficient performance. The rig is equipped with a high-torque rotary system and a newly designed planetary gearbox with a compact structure, larger reduction ratio, and higher transmission efficiency, ensuring stable operation with reduced failure rates and lower maintenance costs. Its design minimizes jamming in unconsolidated formations and delivers a high hole formation rate. Durable imported rotary seals, wear-resistant polymer liners requiring no lubrication, and manganese steel guide rails ensure long service life and reliable performance in demanding working conditions.

Powerful & Versatile DTH Drilling Solution

The JC900 Pneumatic Hydraulic DTH Rock Blasting Drilling Rig delivers efficient full-hydraulic operation with a high-torque rotary system, drilling diameters of 90–178mm and depths up to 60m, ensuring stable performance, low maintenance, and reliable productivity for quarrying, mining, and civil engineering applications.

Product Specifications

Specification	Unit	JC900
Drilling Specification
Rock Hardness		F=6~20
Hole Diameter	mm	90-178
Hole Depth	m	22/60
Drilling Rod	mm	76*3000
Drill rod tank		6+1
Rotary Head
Rotation Torque	Nm	5600
Rotation Speed	rpm	0-92
Feeding System
Max. Feed force	KN	16
Max. Lifting force	KN	20
Max. Feed Speed	M/min	15
Max. Lifting Speed	M/min	15
Boom&Guide
Max Swing of Boom	°	45° left / 45° right
Max Dump of Boom	°	Up23,Down55
Max Swing of Guide	°	90(L) / 31(R) or 31(L) / 90(R)
Max Dump of Guide	°	up55,Down 30
Mast Stroke	mm	4115
Engine
Manufacturer		YUCHAI/CUMMINS(Optional)
Rated Horse power	Kw	70/74
Type		4Cylinder,water cooling
Air Compressor demand
Air Consumption	M³/min	11-21m³/min(1.4-2.4 Mpa)
Compressor Type		Rotary Screw/Movable
General Specification
Max. Travel Speed	Km/h	2-3
Track width	mm	300
Undercarriage Floating Degree	°	±15
General Specification
Gradeability	°	24
Net Weight	kg	9500
Shipping Dimension(LWH)	mm	7260×2210×3250
Ground Clearance	mm	252
Dust Collector
Motor Speed	Rpm	3300
Filter Quantity		20

View Less
