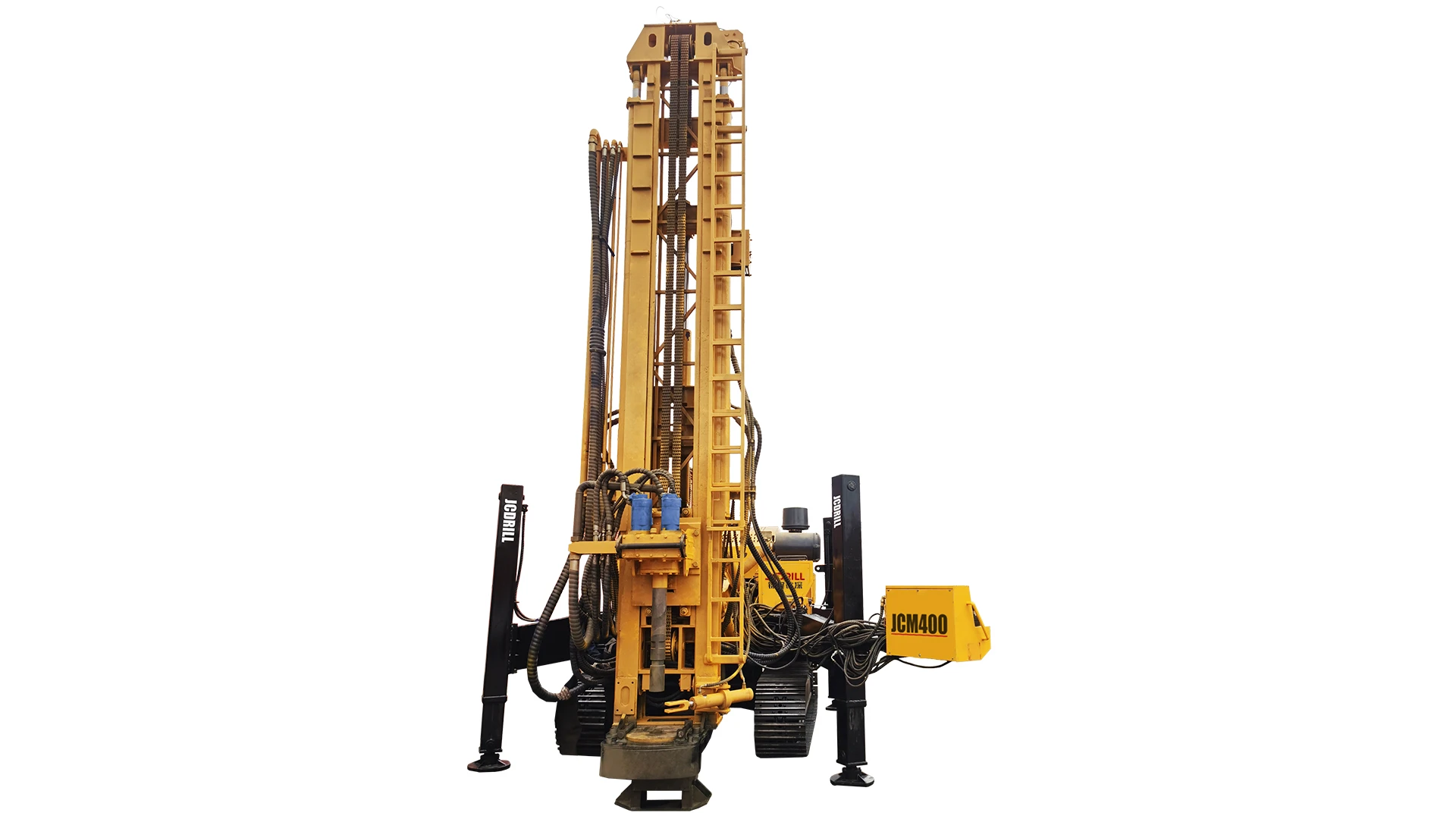

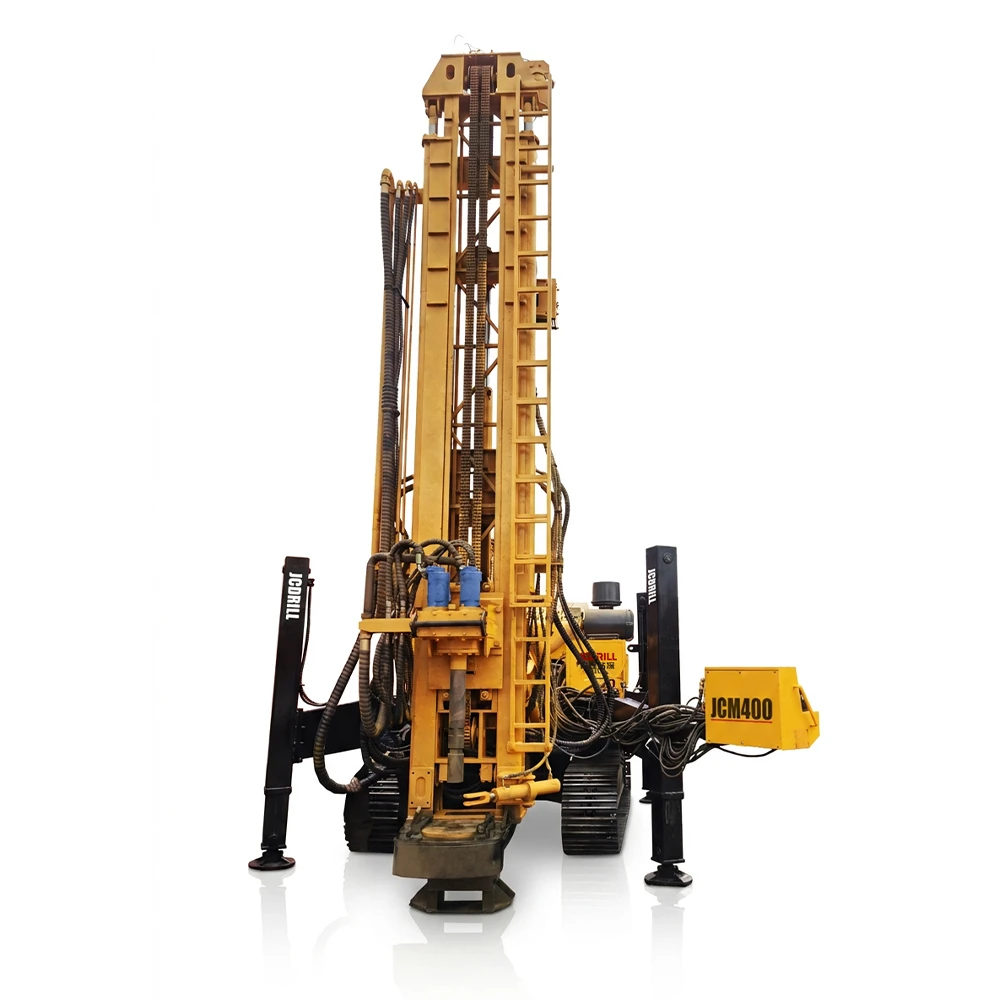

JCM400 Multifunction Fully Hydraulic Versatile Drilling Method Drilling Rig

Hole Range

115-380mm

Hole Depth

400m

Recommend Chassis Type

Truck
Crawler

The JCM400 is a fully hydraulic top-drive crawler drilling rig designed for anchoring, tunneling, geothermal, water well, and blasting projects. Supporting multiple drilling methods, it drills up to 400m with hole diameters to 380mm in rock hardness F6–20. Powered by a 247kW engine, it delivers up to 16000Nm torque and 25-ton pullback capacity, offering efficient, flexible, and reliable performance in complex job sites.

Inquire Now Brochure PDF

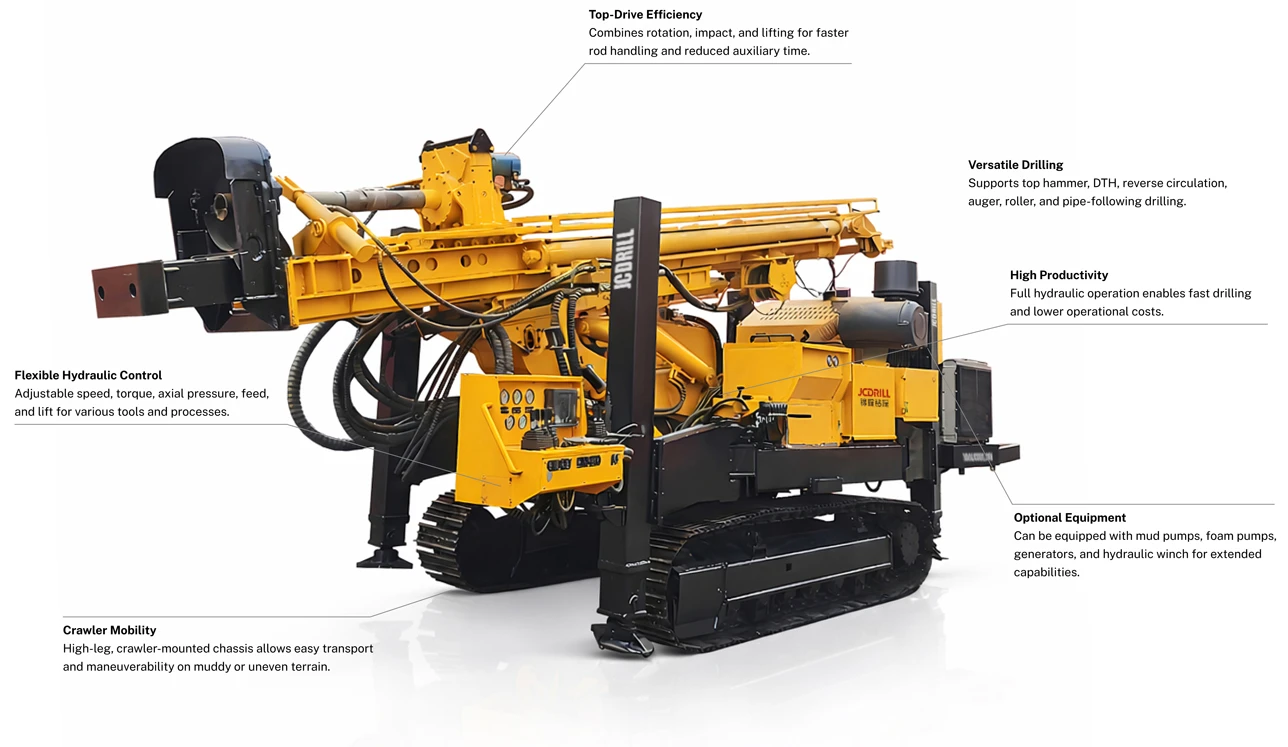

Functions and Features

Main Components

High working efficiency. Due to its full hydraulic and top drive impact, rotation, propulsion, and lifting capabilities, it is suitable for various drilling techniques and drilling tools, with convenient and flexible operation, fast drilling speed, and short auxiliary time, resulting in high operational efficiency. Drilling costs are lower. High leg track type. High support legs are convenient for loading and transportation, and can be directly loaded without the need for a crane. Crawler walking is more suitable for moving on muddy sites.

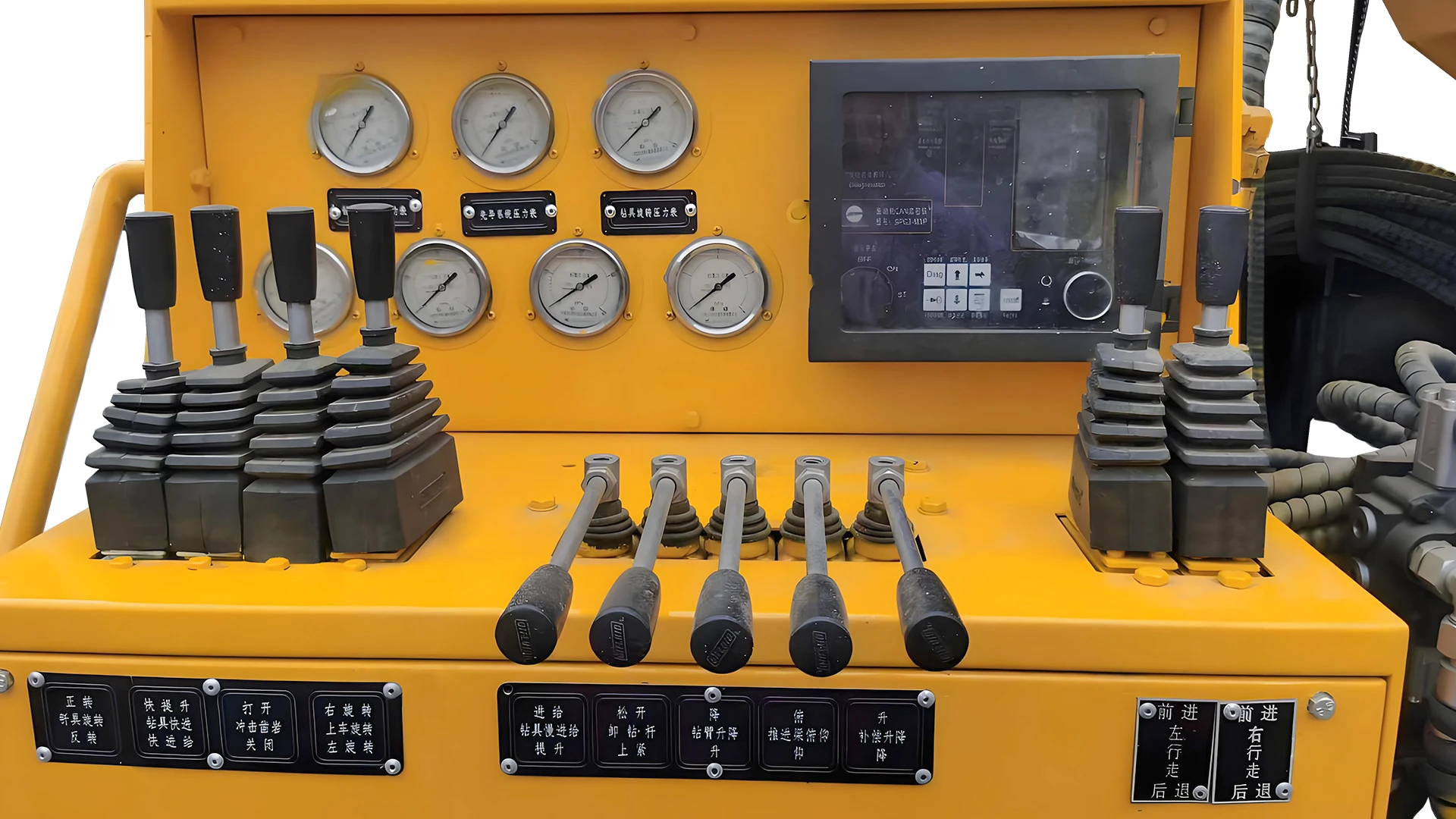

Fully hydraulic control is convenient and flexible. The rotation speed, torque, axial pressure, counter axial pressure, propulsion speed, and lifting speed of the drilling rig can be adjusted at any time to meet the needs of different drilling tool usage conditions and construction processes. Top drive rotation, impact, and propulsion lifting are convenient for connecting and unloading drill rods, shorten auxiliary time, and also facilitate pipe following drilling.

Features Introduction

Product Description

JCM400 fully hydraulic top impact rotary track multifunctional drilling rig, mainly suitable for tunnel pipe shed support holes and pilot survey holes, urban deep foundation pit anchoring holes, grouting reinforcement holes, hydropower stations, railway and highway slope large tonnage prestressed anchoring holes or drainage holes construction, as well as ground source heat pump hole construction; And take into account the construction of small and medium-sized foundation pile holes, water well irrigation holes, and blasting holes.
Multi-functional drilling Various drilling techniques can be used on this type of drilling rig, such as impact drilling, down the hole drilling, through air reverse circulation drilling, cutting drilling, roller drilling, and pipe following drilling, etc. The drilling rig can be equipped with mud pump, foam pump and generator according to user requirements. The drilling rig is also equipped with a hydraulic winch as standard.

Product Specifications

Specification	Unit	JCM400
Drilling Specification
Rock Hardness		F 6-20
Hole Diameter	mm	115-380
Hole Depth	m	400
Hydraulic system pressure	Mpa	22
Drill Pipe
Drilling Rod Diameter	mm	76.89.102.114
Drill rod Length	m	3.4.5.6
Hammer size	Inch	4"-8"
Rotation
Rotation Speed	rpm	60-120
Max Rotation torque	Nm	8000-16000
Feed System
Feeding method		Cylinder+Chain
Feed Stroke	mm	6.6
Feed force	Ton	0-10
Pull bac capacity	Ton	0-25
Normal Feeding Speed	M/min	3.95
Fast feeding speed	M/min	0.5 ~ 5.2
Normal lifting speed	M/min	19.9
Fast lifting speed	M/min	26.4
Mast Extension		1400
Mast lifting angle	°	-55
Mast dumpling angle	°	100
Hydraulic Winch
Winch capacity	Ton	1.5
Engine
Brand		Weichai
Model		WP10-330
Type		Water Cooling,6cylinder
Rated Power	Kw/Rpm	247/2200
Fuel tank capacity	L	120
Undercarriage
Undercarriage Rotation angle	°	360
Track width	mm	400
Ground Clearance	mm	≥350
Oscillation	°	10
Walking Speed	km/h	2-3
Grade Ability	°	20
Dust Collector(Optional)
Collecting type		Full hydraulic
Dimension & Weight
Shipping Length	mm	7500
Shipping Width	mm	2250
Shipping Height	mm	2900
Weight	Kgs	19000
