JCS500 Solar Piling Drilling Rig for Photovoltaic Foundation Construction

Hole Range

DTH: 130–400 mm / Auger: up to 500 mm

Hole Depth

Max. pile length: 4 m

Recommend Chassis Type

Crawler

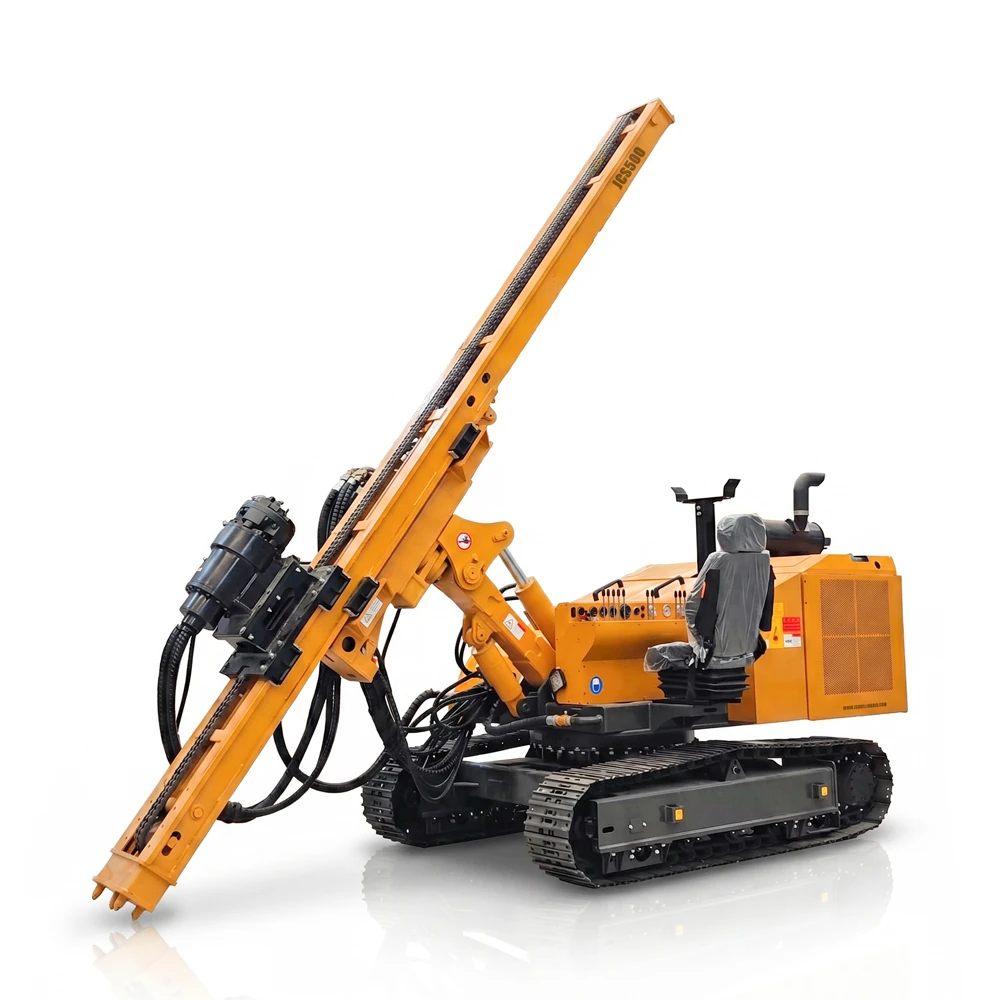

The JCS500 Solar Piling Drilling Rig is designed for efficient and precise foundation construction in photovoltaic projects. Powered by a reliable diesel engine and advanced hydraulic system, it delivers stable performance and strong torque output for drilling and pile driving operations. The rig supports multiple drilling methods and hydraulic hammer configurations, ensuring adaptability across different soil conditions. Its 360° rotating chassis, durable steel tracks, and compact structure allow flexible operation in complex terrains such as farmland, slopes, and sandy areas, making it an ideal solution for solar farm installation.

Inquire Now

Functions and Features

Main Components

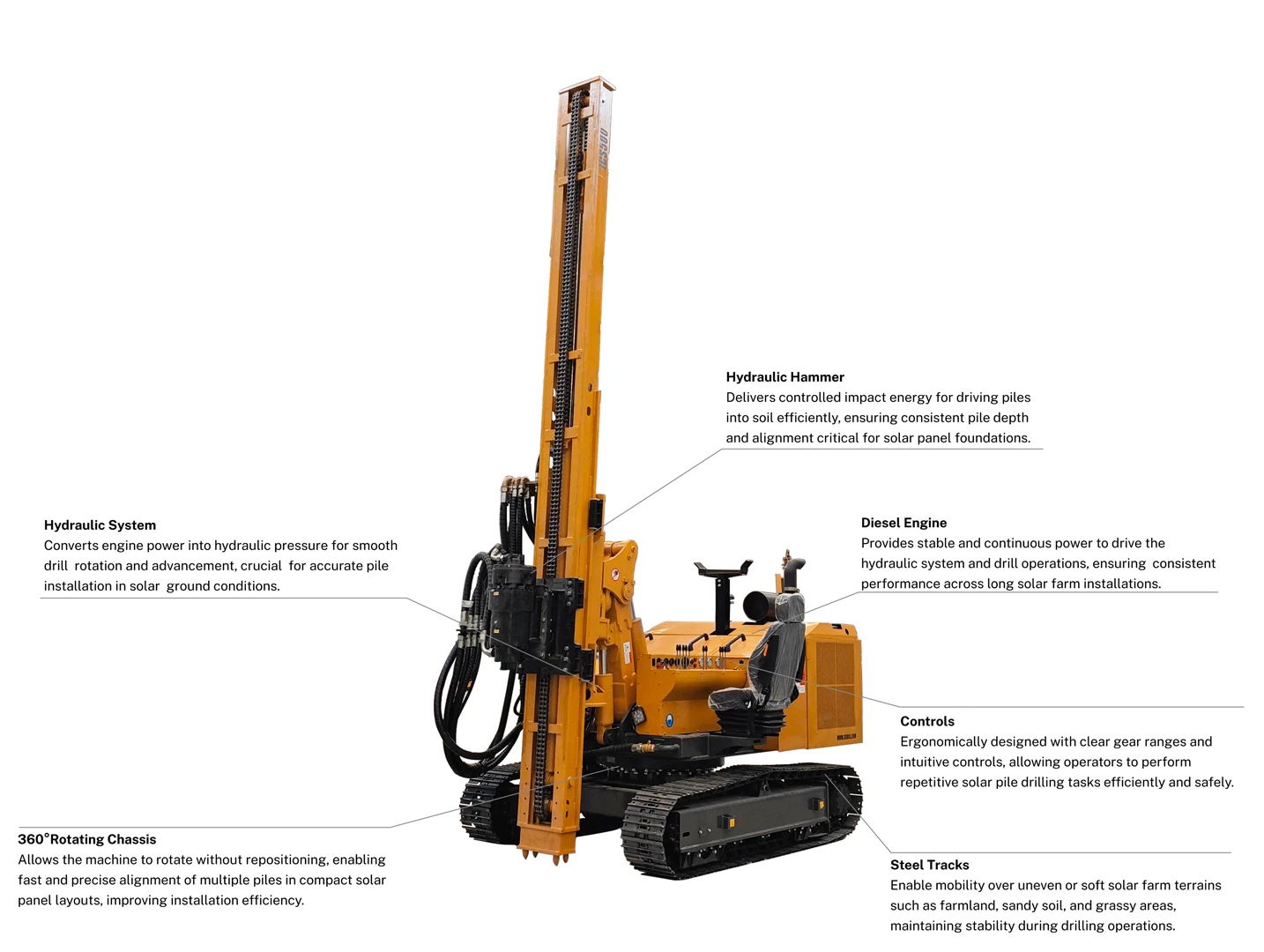

Advanced Hydraulic System With a working pressure up to 22 MPa and optimized flow distribution, the hydraulic system ensures smooth, stable, and precise operation under various working conditions.

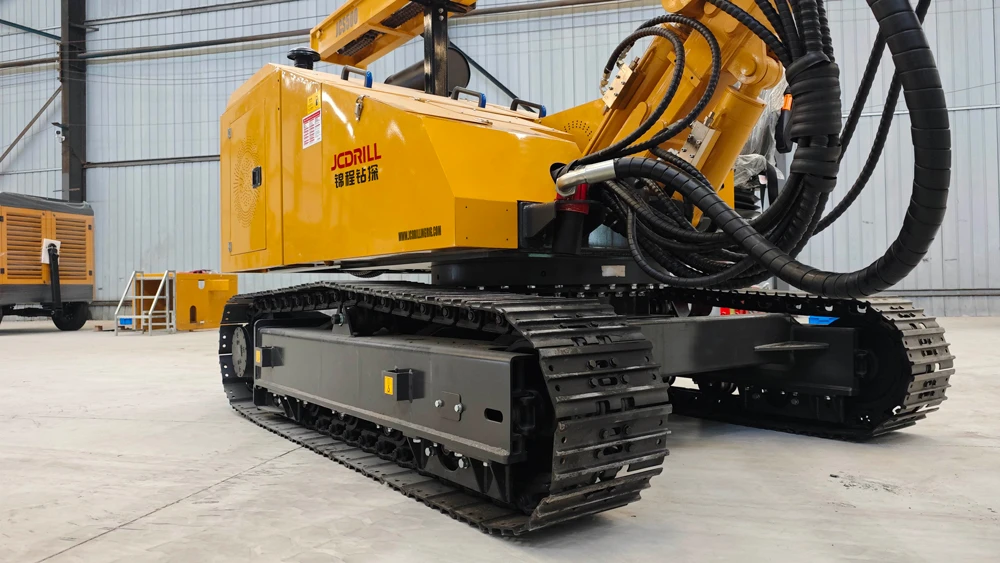

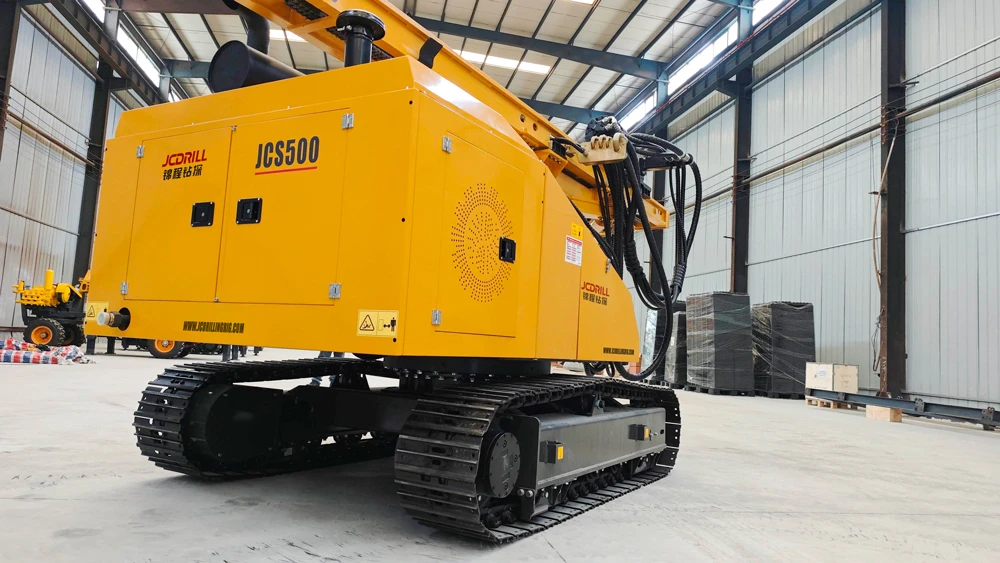

All-Terrain Mobility Equipped with 350 mm wide steel crawler tracks, the rig can operate stably on soft soil, slopes, and uneven terrain.
Strong Structural Durability High-strength steel structure with heat-treated components ensures long service life and reliable performance in harsh environments.

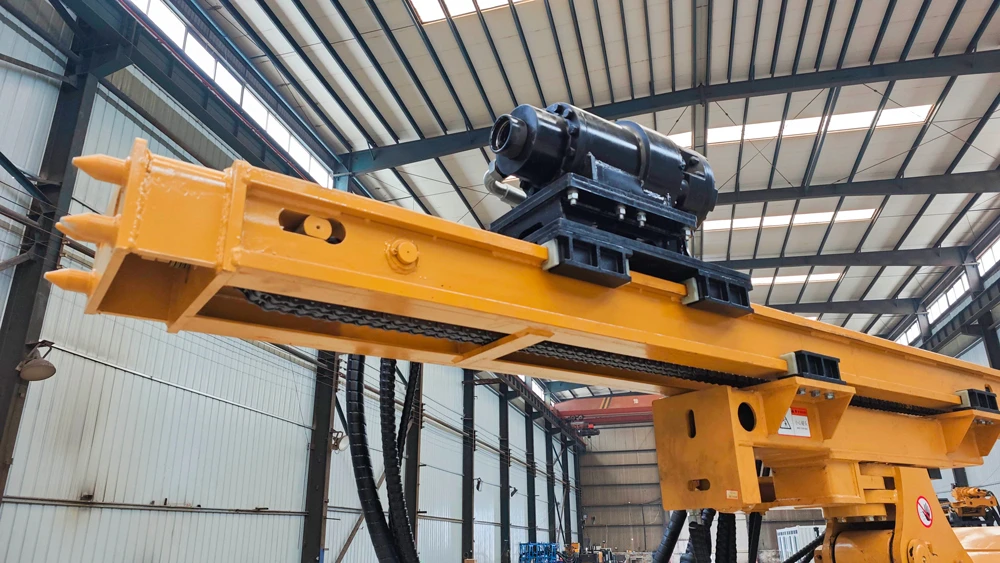

High-Efficiency Drilling and Piling The JCS500 combines drilling and pile driving functions, enabling continuous operation with high penetration rates and reduced auxiliary time, improving overall project efficiency.
360° Rotating Chassis The full-rotation design allows the machine to operate in all directions without repositioning, improving positioning accuracy and reducing working time.

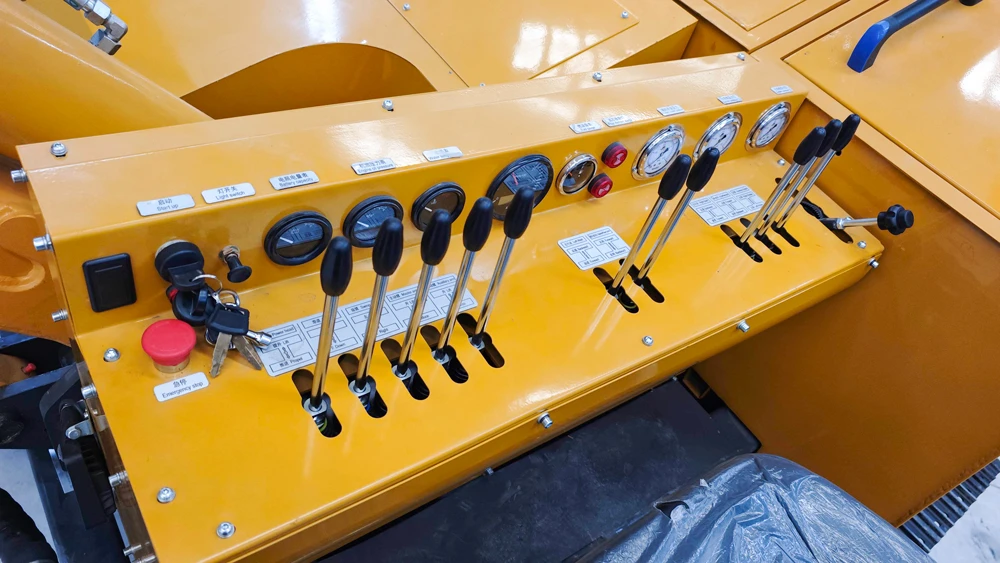

User-Friendly Control System Ergonomically designed control panel with clear layout ensures easy operation and reduces operator fatigue during long working hours.

Features Introduction

Product Description

The JCS500 Solar Piling Drilling Rig is designed to meet the demanding requirements of photovoltaic foundation construction. With its integrated drilling and pile driving functions, the machine significantly improves working efficiency while reducing operational time. The advanced hydraulic system ensures smooth and stable performance, while the 360° rotating chassis allows precise positioning without frequent relocation. Built with a durable structure and all-terrain crawler system, the JCS500 can operate reliably in farmland, sandy soil, slopes, and other complex environments, making it an ideal choice for modern solar projects.

High Efficiency Drilling & Piling

Combining drilling and hydraulic hammer functions, the JCS500 delivers fast penetration and consistent pile installation, improving overall job site productivity.

360° Flexible Operation

The full rotating chassis enables precise alignment without moving the base machine, reducing downtime and increasing efficiency in solar farm layouts.

Stable Performance in All Terrains

Equipped with durable steel tracks and a robust frame, the rig maintains stability and reliability across uneven ground, slopes, and soft soil conditions.

Product Specifications

Specification	Unit	JCS500
General
Maximum Pile Length	m	4
Drilling Rod Diameter	mm	75/ 85/ 100
Hole Diameter (Optional)	mm	DTH: 130-400 Auger: 500
Rotation
Power Head Torque (Optional)	N·m	8000-12000
Feed System
Feed Type	-	Hydraulic slide
Feed Stroke	mm	4100
Slider Swing Angle	°	Left 15, Right 15
Sliding Guide Tilt	°	Left 5, Right 5
Engine
Engine Brand	-	Yuchai/Cummins(Optional)
Rated Horsepower	Kw	85
Maximum Torque / Speed	N·m / rpm	375 / 1850
Rated Speed	rpm	2600
Fuel Tank Capacity	L	150
Hydraulic Hammer
Impact Power	J	1800
Hydraulic Hammer Model		75/85/100
Impact Frequency	bpm	350-800
Hydraulic Hammer Flow	L/min	50–110
Hydraulic System
Rated Displacement	ml/r	105
Work Pressure	MPa	19
Rated Flow	L/min	230
Hydraulic Oil Tank Capacity	L	230
Weight & Dimensions
Weight	kg	7232
Transport Dimensions (L×W×H)	mm	5670 × 1980 × 2375
Working Dimensions (L×W×H)	mm	2375 × 1980 × 5670
Tail Swing Radius	mm	2030
General Specification
Crawler Width	mm	350
Tramming Speed	km/h	3
Climbing Capacity	°	25
Ground Clearance	mm	290
Slew Angle	°	360
