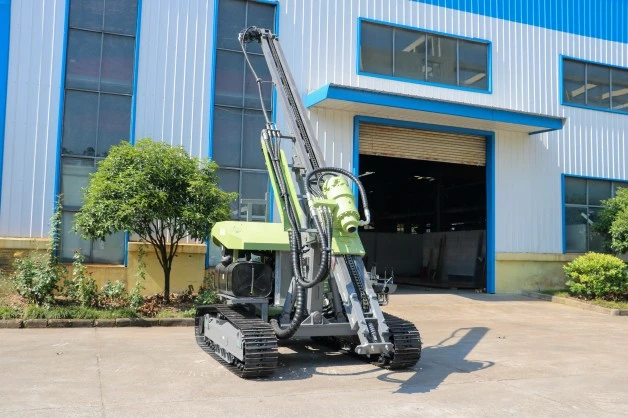

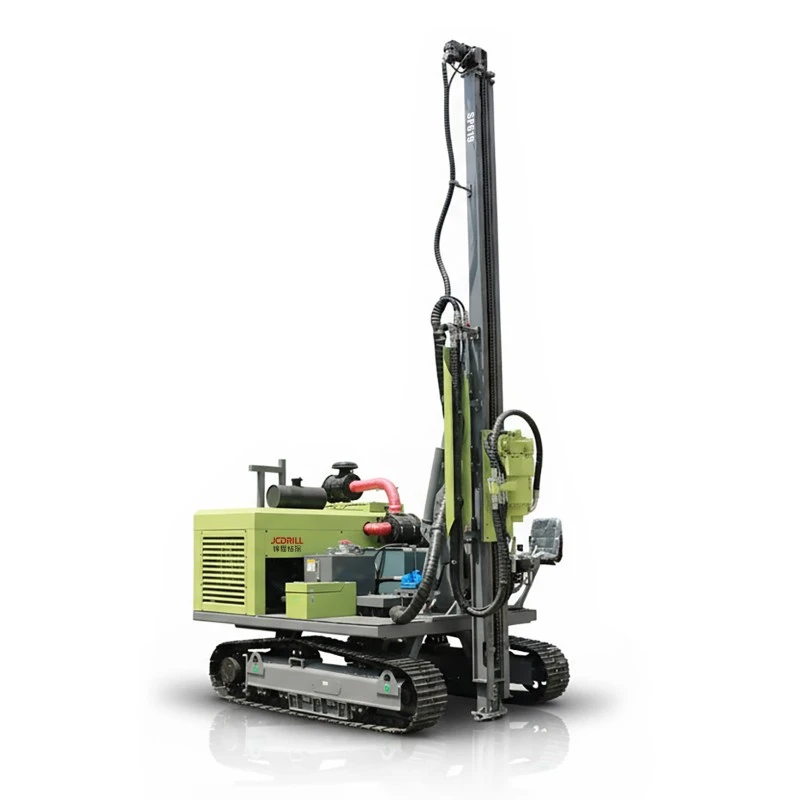

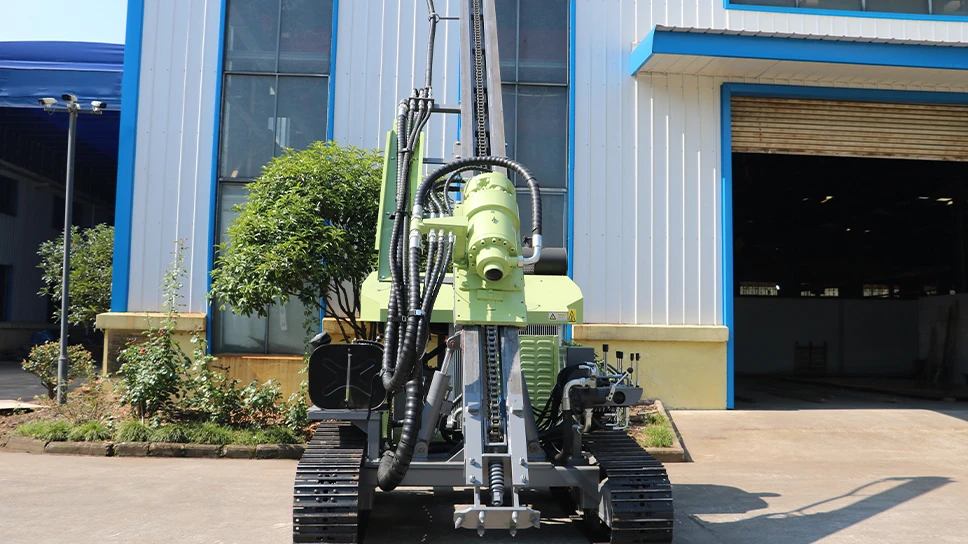

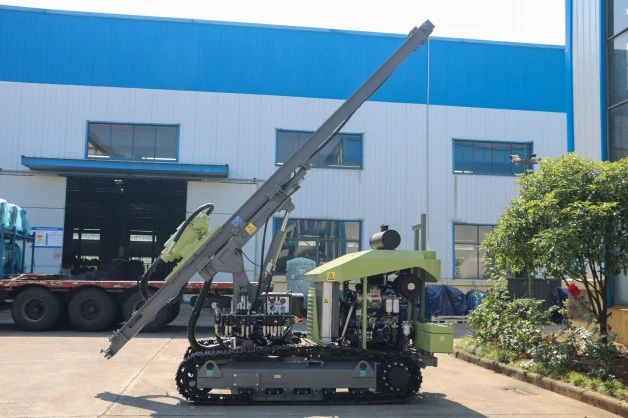

SP619 Solar Pilling Drilling Rig

Hole Range

90-400mm

Hole Depth

30m

Recommend Chassis Type

Crawler
Trailer

The SP619 is a compact, high-performance DTH drilling rig designed for shallow, large-diameter holes in municipal works, geothermal projects, pipelines, and small quarries. It supports φ90–φ400 mm drilling with up to 13,000 N·m torque and 80 rpm rotary speed. A 5,000 mm feed stroke, 900 mm extension, and strong feed/lift forces ensure smooth operation in unstable formations. Compatible with 1.0–2.4 MPa, 15–50 m³/min air systems, the SP619 delivers stable, efficient performance.

Inquire Now Brochure PDF

Functions and Features

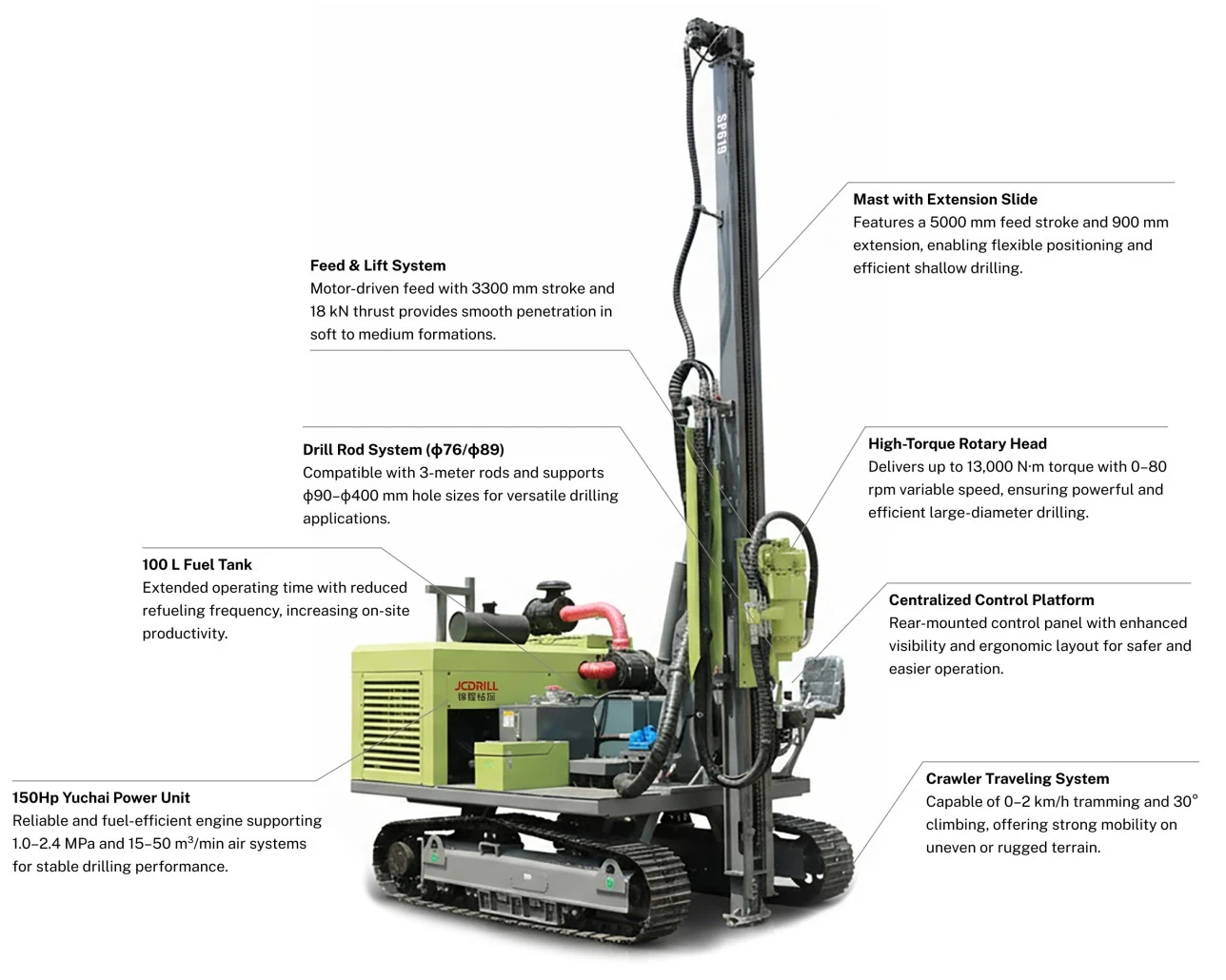

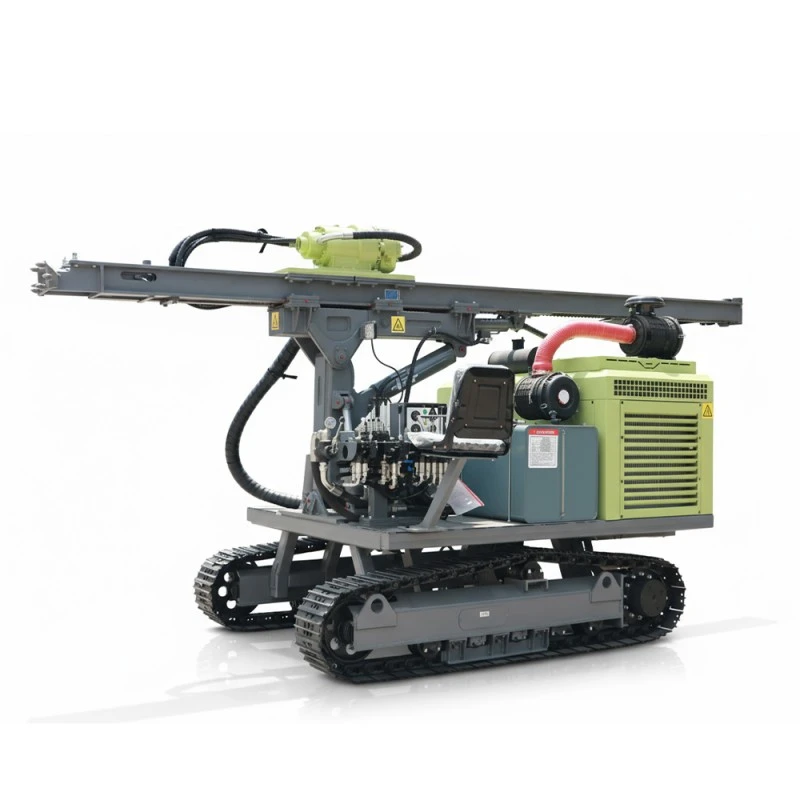

Main Components

High-torque rotary system delivers up to 13000N·m with variable speed (0–80rpm), ideal for large-diameter hole drilling in complex formations.
Equipped with φ76/φ89mm drill rods in 3-meter lengths, allowing rapid and stable drilling in shallow formation conditions.
Air compressor demand ranges from 15 to 50 m³/min and 1.0–2.4MPa, compatible with various air supply systems for both DTH and rotary drilling.
Tramming system supports 25° climbing angle with stable traction, capable of handling uneven terrain without compromising safety.

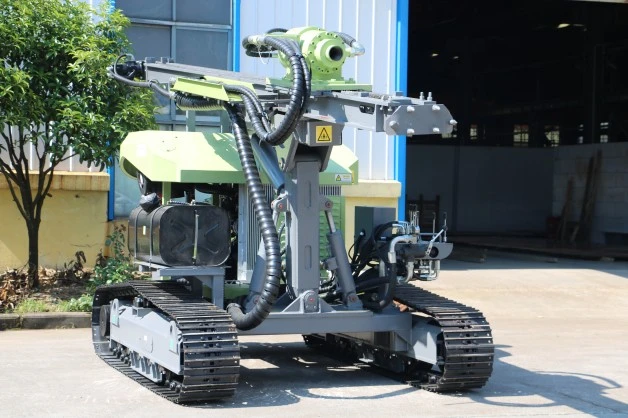

Control Platform: Rear-mounted centralized control system enables streamlined operation. Optimized layout improves operator visibility and access, ensuring smooth workflow in confined work environments.

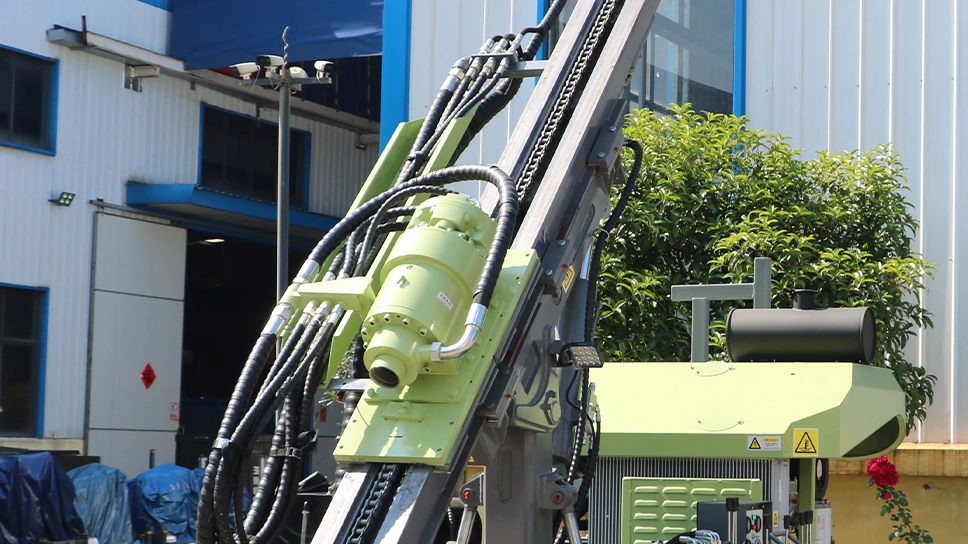

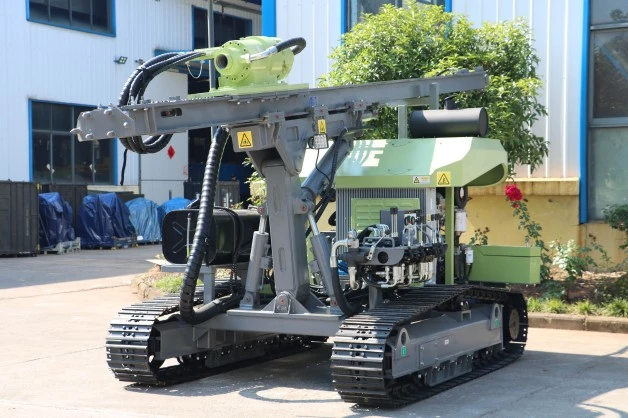

Rotary and Feed System: High-torque rotary head delivers up to 13000 N·m with variable speed up to 80rpm. Motor-driven feed system offers 3300 mm stroke and 18 kN thrust, providing reliable penetration in soft medium formations.
Drilling Capability: Supports 90- 400 mm hole diameter with dual rod diameter options, enabling flexible adaptation to various drilling tasks in foundation or shallow water well projects.

The whole machine weighs only 6.0 tons，A tramming speed of 0–2 km/h, 30° climbing ability, and 700 mm ground clearance give SP619 strong off-road capability and maneuverability in constrained or rugged job sites. With a design focus on operational efficiency, durability, and large-bore drilling flexibility.
Suitable for a wide range of hole diameters from φ90 to φ400mm, providing greater flexibility for different geological and engineering applications.
Powered by Yuchai 150Hp, featuring strong torque output and low fuel consumption for stable drilling performance.
6.0 ton lightweight structure with compact dimensions (6300×2200×2850mm) ensures easy transport and fast site positioning.
100L large-capacity fuel tank extends working hours and reduces refueling frequency, enhancing on-site efficiency.

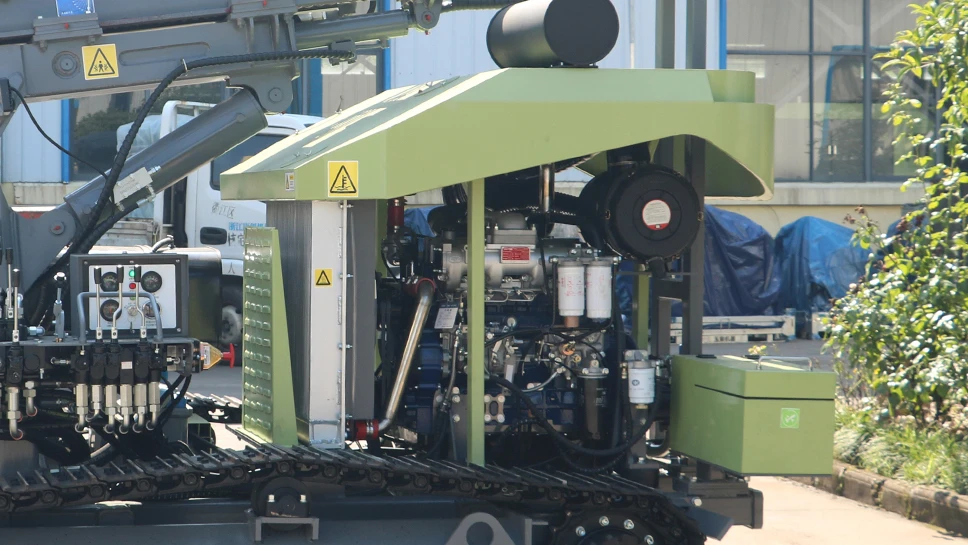

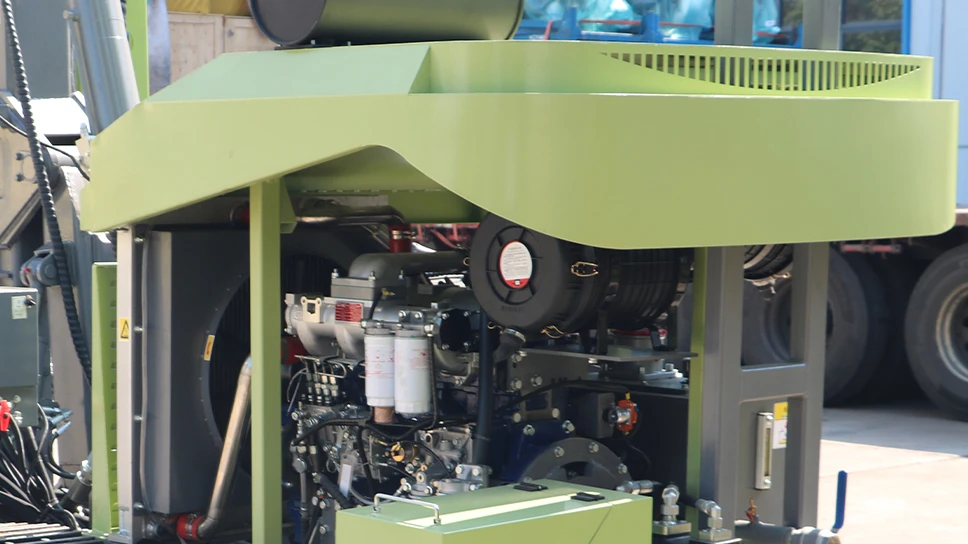

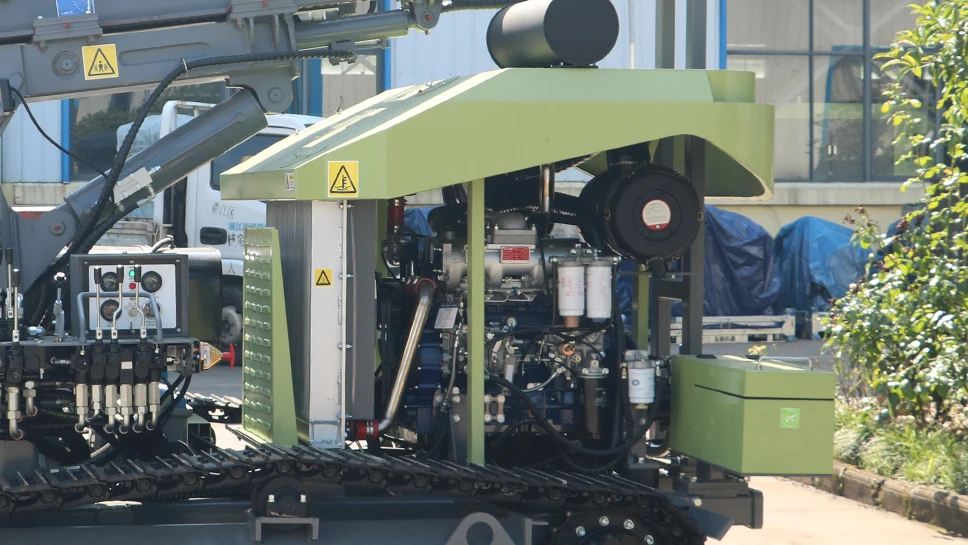

Power System: Equipped with a 150Hp Yuchai engine, delivering stable output. With air demand up to 50 m³/min and pressure range of 1.0- 2.4 MPa, it adapts easily to a wide range of DTH drilling needs.

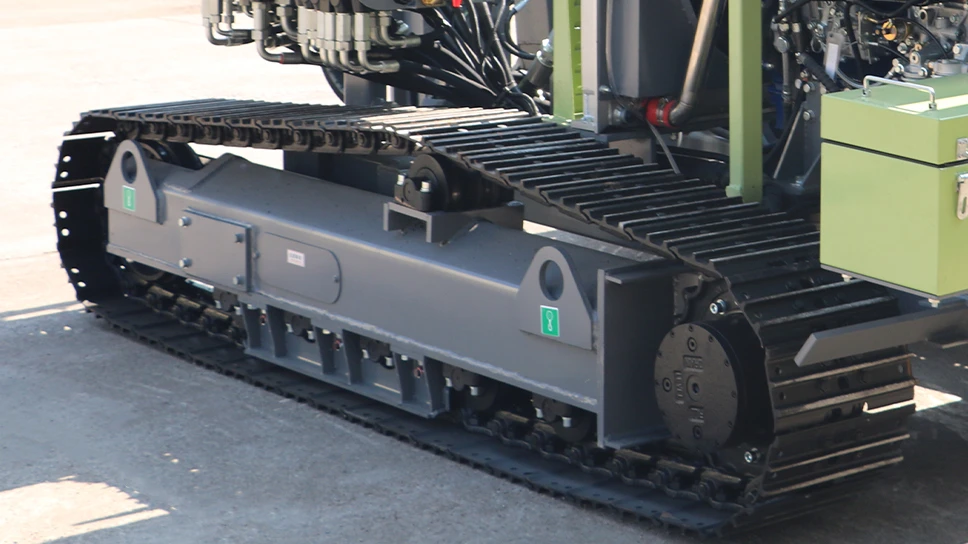

Mobility and Structure: Compact structure with 6.0Ton weight and 700 mm ground clearance ensures agility across rugged terrain. Crawler-type drive allows 2 km/h tramming speed and 30° climbing capacity.

Features Introduction

Product Description

The SP619 Solar Pilling Drilling Rig is a compact and high-performance DTH drilling solution specifically developed for solar piling, foundation works, municipal construction, geothermal projects, pipelines, and shallow water wells. Designed for large-diameter shallow drilling, it supports hole sizes from Ø90 to Ø400 mm with a maximum drilling depth of 30 meters, making it ideal for high-efficiency piling and infrastructure applications.

Powered by a 150 HP Yuchai diesel engine, the SP619 features a high-torque rotary system delivering up to 13,000 N·m with variable speed control up to 80 rpm. Its lightweight 6.0-ton crawler structure, combined with strong feed force, long feed stroke, and excellent off-road mobility, ensures stable, efficient drilling even in soft, loose, or unstable formations. Compatible with a wide range of air compressors, the SP619 offers reliable performance, easy transportation, and fast site setup.

High-Torque Large-Diameter Drilling Performance

The powerful rotary head delivers up to 13,000 N·m torque with variable speed control, ensuring efficient and stable drilling for Ø90–Ø400 mm holes in various ground conditions.

Compact, Lightweight & Highly Mobile Design

With a total weight of only 6.0 tons, 700 mm ground clearance, and crawler mobility, the SP619 offers excellent maneuverability on rugged terrain and confined job sites.

Reliable Power & Air System Compatibility

Equipped with a 150 HP Yuchai engine, the rig supports air supply requirements of 15–50 m³/min at 1.0–2.4 MPa, making it adaptable to a wide range of DTH and rotary drilling applications.

Efficient Operation & Operator-Friendly Control

The rear-mounted centralized control platform improves visibility and accessibility, while the long feed stroke and strong thrust ensure smooth drilling, reduced downtime, and higher on-site productivity.

Product Specifications

Specification	Unit	SP619
General
Hole Depth	m	30
Hole Diameter	mm	φ90-400
Drilling Rod Diameter	mm	φ76/φ89
Drilling Rod Length	mm	3000
Rotation
Maximum Rotary Torque	N·m	8000
Rotary Speed	rpm	0-80
Lifting Force	kN	20
Feed System
Feed Type		Motor
Feed Stroke	mm	5000
Feed Extension	mm	900
Feeding Force	kN	18
Engine
Engine Brand		Yuchai/Cummins(Optional)
Engine Model		YC6B150Z-K20/4BTAA3.9-C125
Rated Horsepower	Hp	150/125
Fuel Tank Capacity	L	250
Air Compressor Demand
Working Pressure	MPa	1.0-2.4
Air Consumption	m³/min	15-50
Weight & Dimensions
Weight	Kgs	6000
Transport Dimensions (L×W×H)	mm	6300 × 2200 × 2850
General Specification
Tramming Speed	km/h	0-2
Climbing Capacity	°	30
Ground Clearance	mm	700
