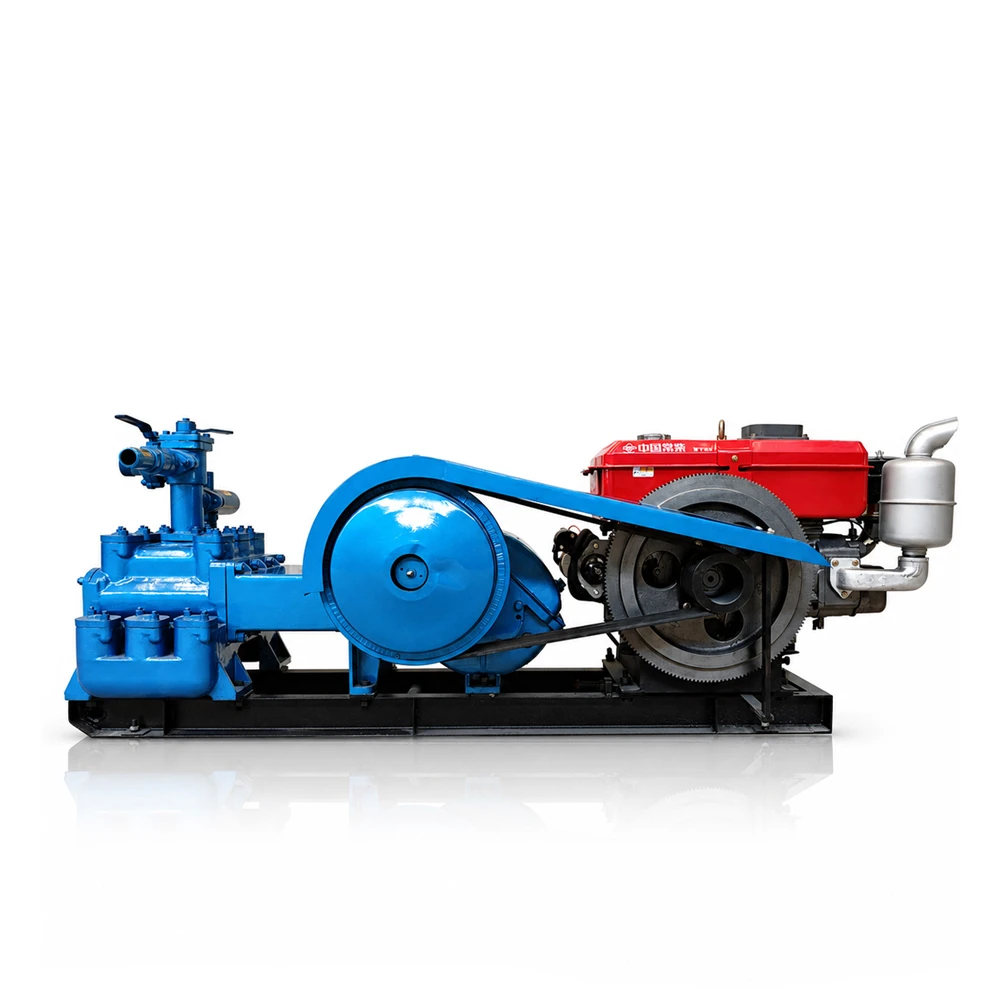

BW450 Multifunction Quality Hydraulic Mining Slurry Pump Water Drilling Mud Pump

The BW450 is horizontal tri-cylinder dual role penthouse Detroit piston pump. It is mainly used to supply flushing fluid to the drilling well in core drilling or hole drilling. The pump can discharge not only clear water, but also thick mud. And for the specialty of small external dimension, light weight, the pump is suitable for transportation in mountain. BW450/5 type mud pump is a horizontal triplex single acting reciprocating piston pump, which has three bore and four gear speed. Displacement and hole depth can be adjusted according to the application, the deepest can be adjusted to the application,the deepest can be used with 1800meters drilling rig,it also can be used cement perfusion.

Inquire Now

Functions and Features

Exploration: Coal mining exploration, Ore exploration
Pipe-installing: Geothermal pipe-installing for heat pump

Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction
Water well: Small hole diameter water well drilling
Foundation piling: Small-diameter hole foundation piling drilling

Product Description

They are also the main equipment of the geological survey,the main role in the process of core drilling boreholes is to supply fluid(mud or water),making it circulate during drilling and carry rock waste back to the ground,in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.

BW450 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 1500 meter.

Product Specifications

Unit	BW450/2		BW450/5
	Horizontal, Triplex, Double Acting Reciprocating		Horizontal three-cylinder reciprocating single-acting piston pump
	3		3
mm	100		95
mm	85		100
Time/min	170	115	223	168	112	86
L/min	450	350	450	340	240	172
Mpa	1.2	2	2	3	4	5
	CHANGCHAI L28
Hp	18.5		28
r/min	2200
mm	385
mm	B type, five slots,410 mm
mm	φ89 mm		φ76 mm
mm	φ51 mm		φ51 mm
mm	1350×820×1040		1100×995×650
kg	540		520
