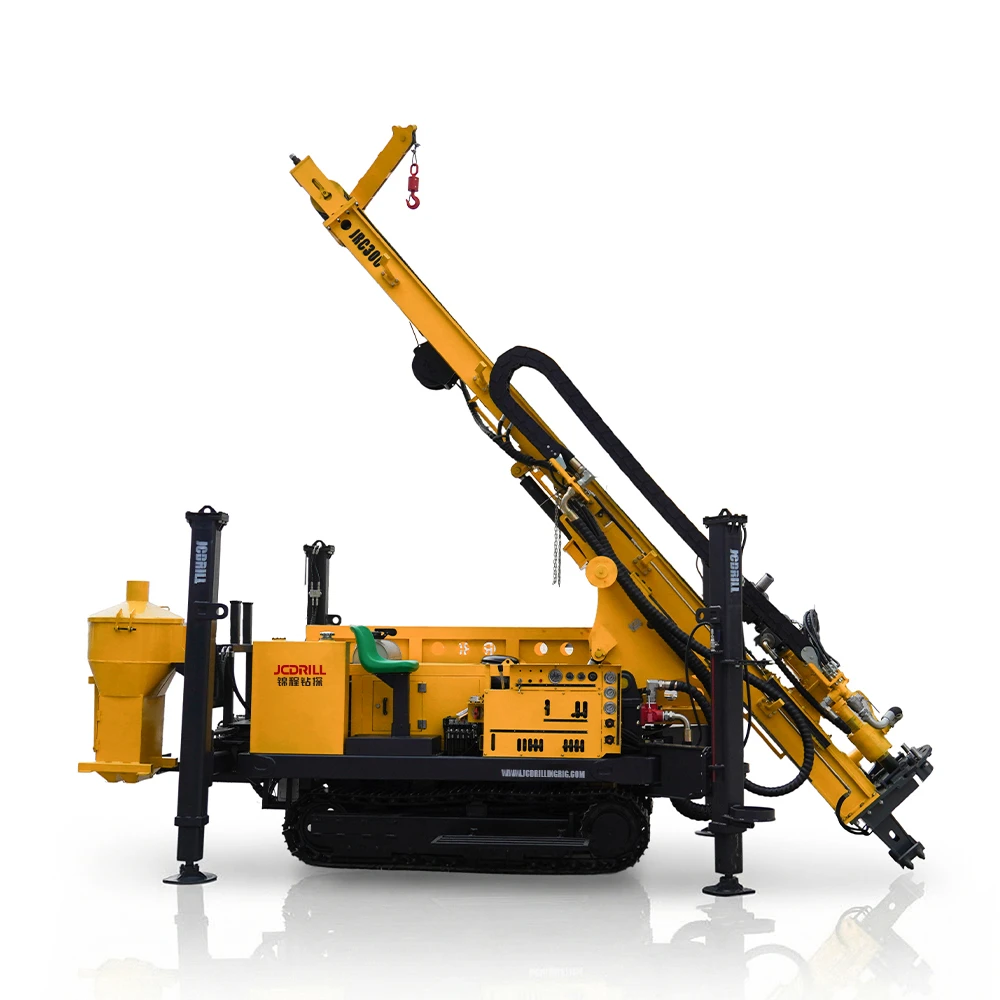

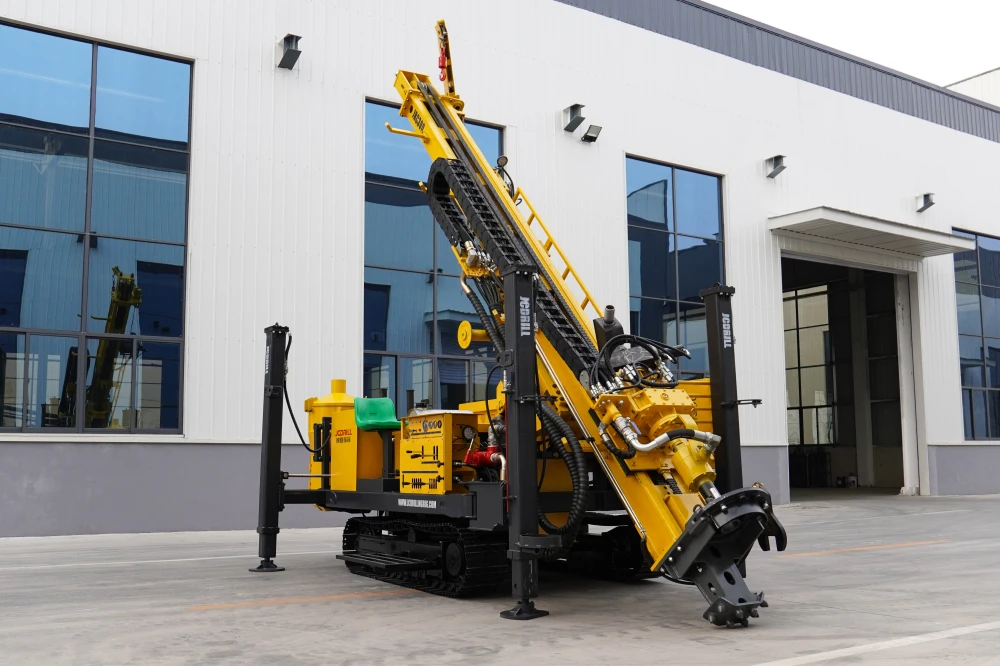

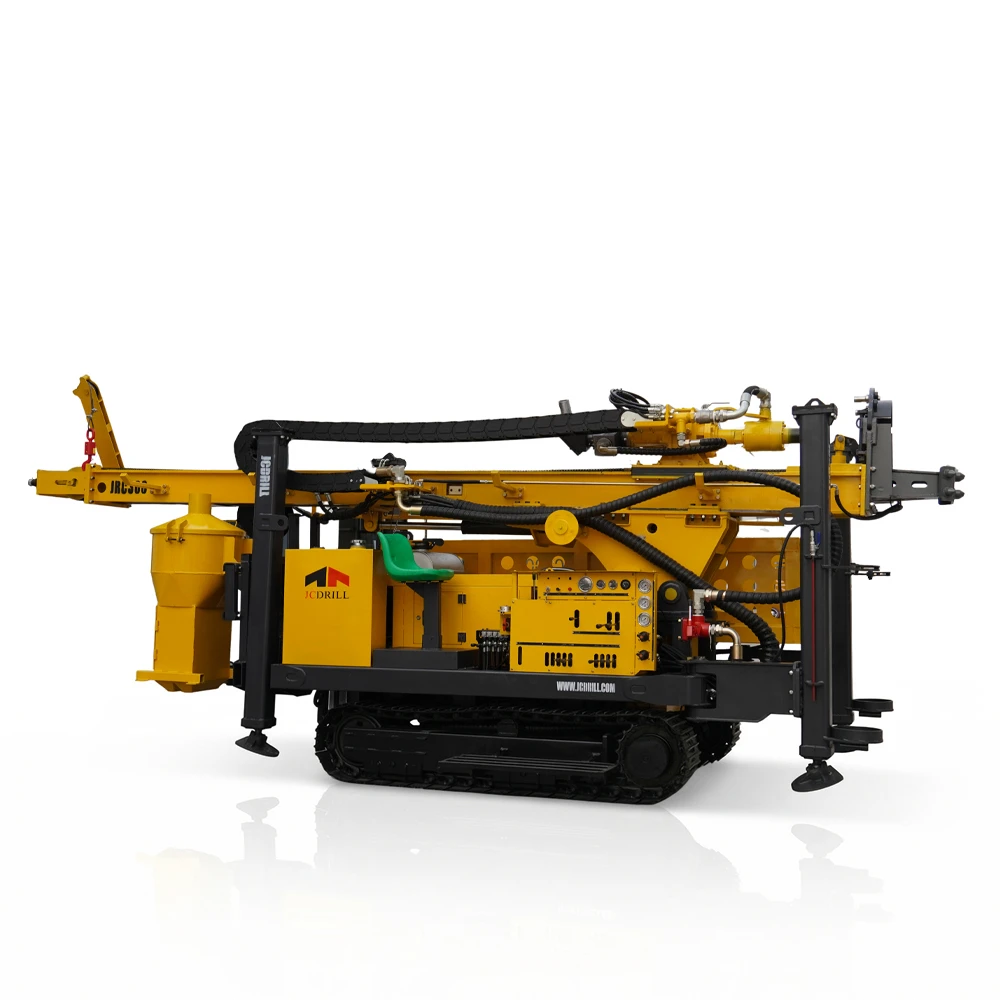

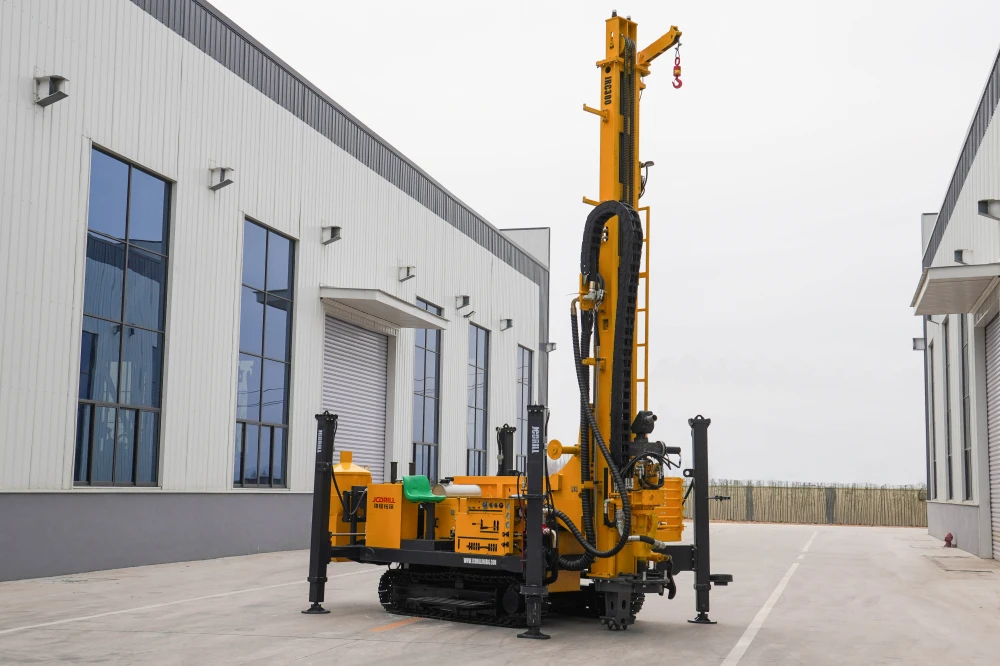

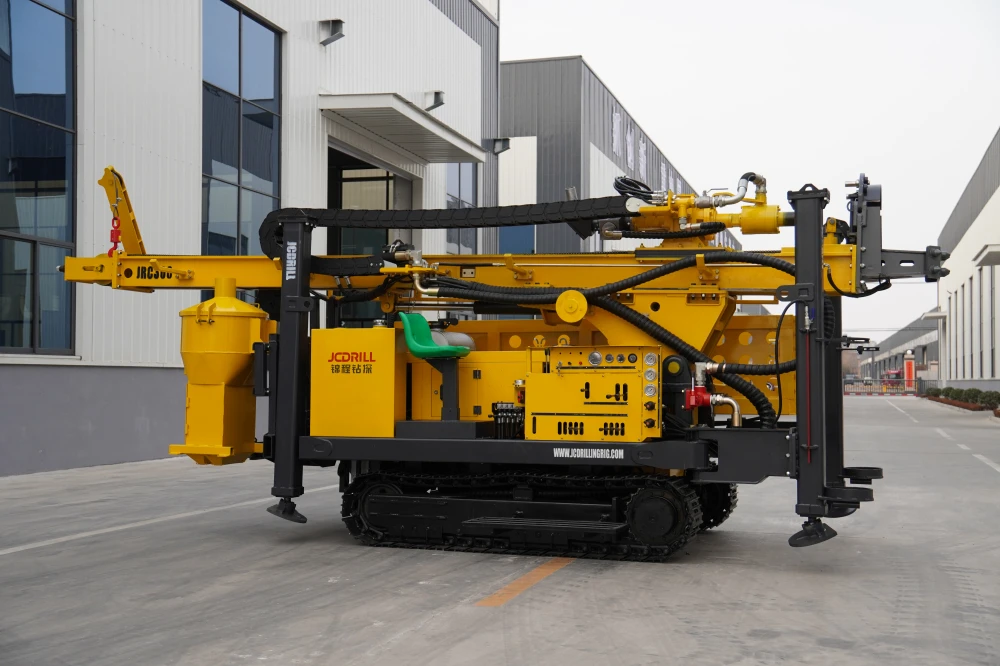

JRC300 Reverse Circulation Geological Exploration Drilling Rig

Hole Range

105-450mm

Hole Depth

350m

Recommend Chassis Type

Truck
Crawler
Trailer

The JRC300 Reverse Circulation (RC) Drilling Rig uses dual-wall drill rods that return cuttings through the inner tube, delivering clean, uncontaminated samples with precise depth control. High-capacity air compressors produce dry rock chips and ensure steady penetration even in demanding formations. Compared with conventional DTH or top-hammer sampling, RC drilling greatly reduces cross-contamination, making JRC300 results highly reliable for mineral exploration and resource estimation.

Inquire Now Brochure PDF

Functions and Features

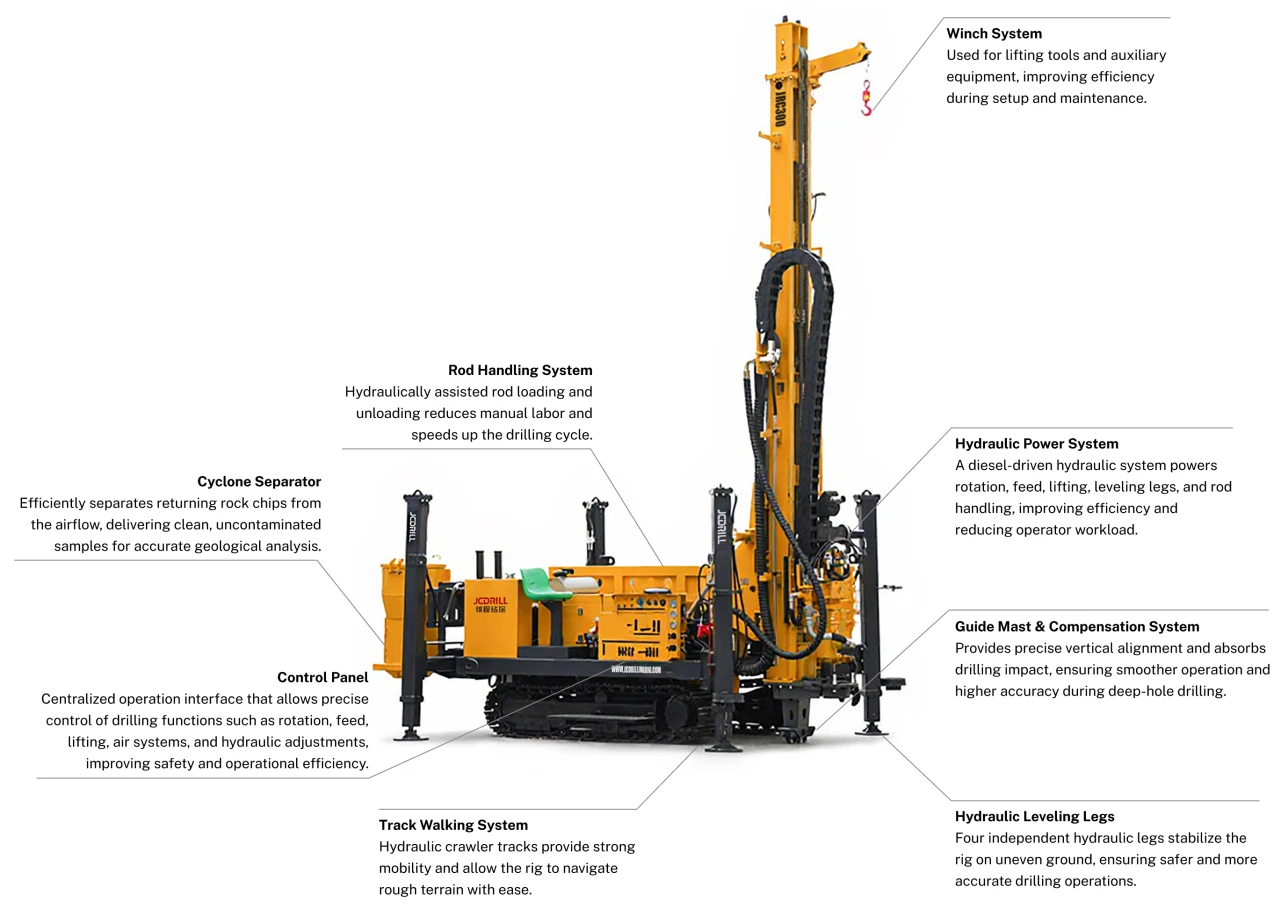

Main Components

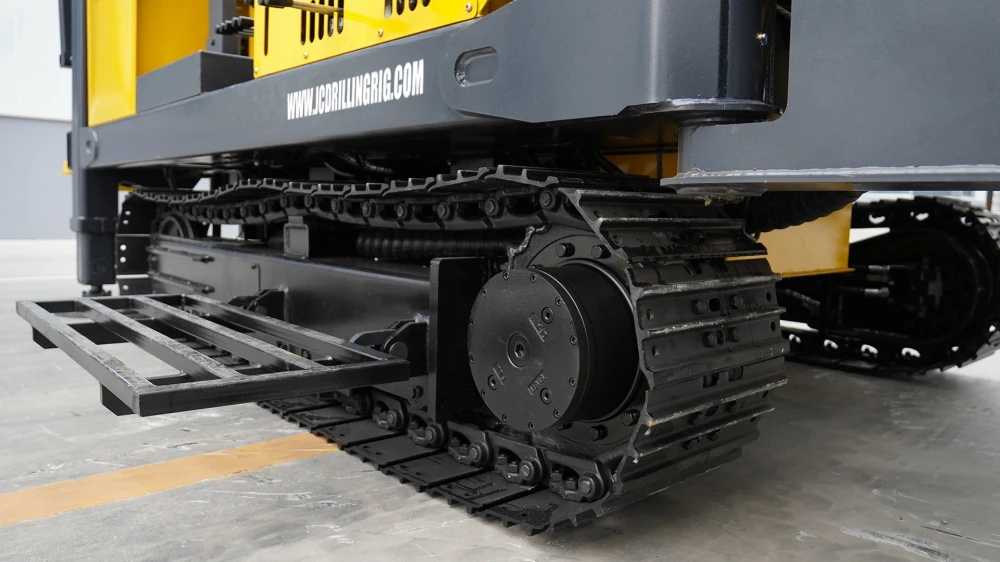

Diesel-driven hydraulic power: the on-board diesel engine powers a comprehensive hydraulic system that runs walking, rotation, feed, lifting, leg adjustment, and compensation functions.
Integrated DTH compatibility: the reverse circulation setup works with DTH hammers; compressed air is supplied by the compressor and cuttings are returned via the inner tube of the double-tube hammer.

Advanced dust control: gas-lift reverse circulation combined with a dust collector/cyclone separator effectively prevents environmental contamination and enables sample recovery.

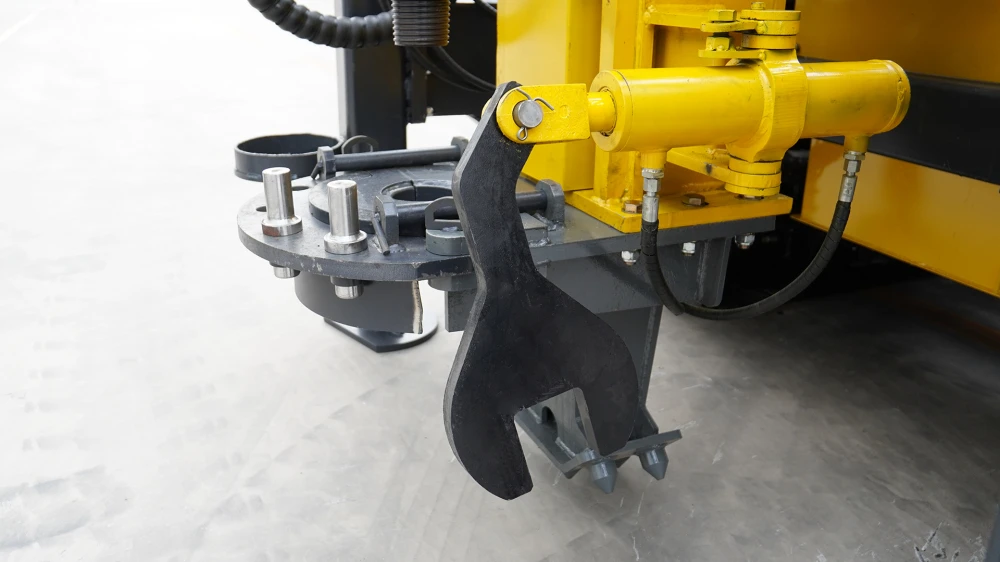

Fully hydraulic rod handling: pipe loading and unloading (rod change) are achieved hydraulically to reduce manual labor.

Features Introduction

Product Description

The JRC300 Reverse Circulation Geological Exploration Drilling Rig is a high-efficiency drilling solution designed for accurate sampling and reliable geological exploration. It supports drilling diameters from 105 to 450 mm with a maximum drilling depth of 350 m, and is widely used in mining exploration, quarrying, geothermal boreholes, and civil engineering projects where sample quality is critical.
Using dual-wall drill rods and gas-lift reverse circulation technology, the JRC300 returns cuttings through the inner tube to deliver clean, uncontaminated samples with precise depth control. Powered by a diesel-driven full hydraulic system, the rig integrates walking, rotation, feeding, lifting, rod handling, and leveling functions, significantly reducing manual labor while improving drilling efficiency, environmental protection, and overall operational reliability in demanding field conditions.

Reverse Circulation Sampling System

The dual-wall RC drilling system returns cuttings through the inner tube, ensuring clean, uncontaminated samples for accurate mineral exploration and resource evaluation.

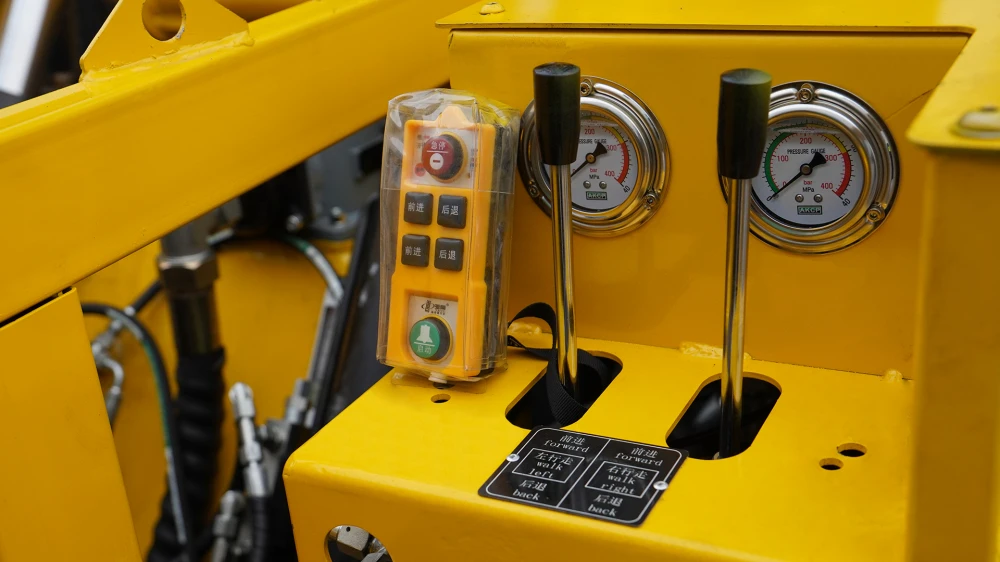

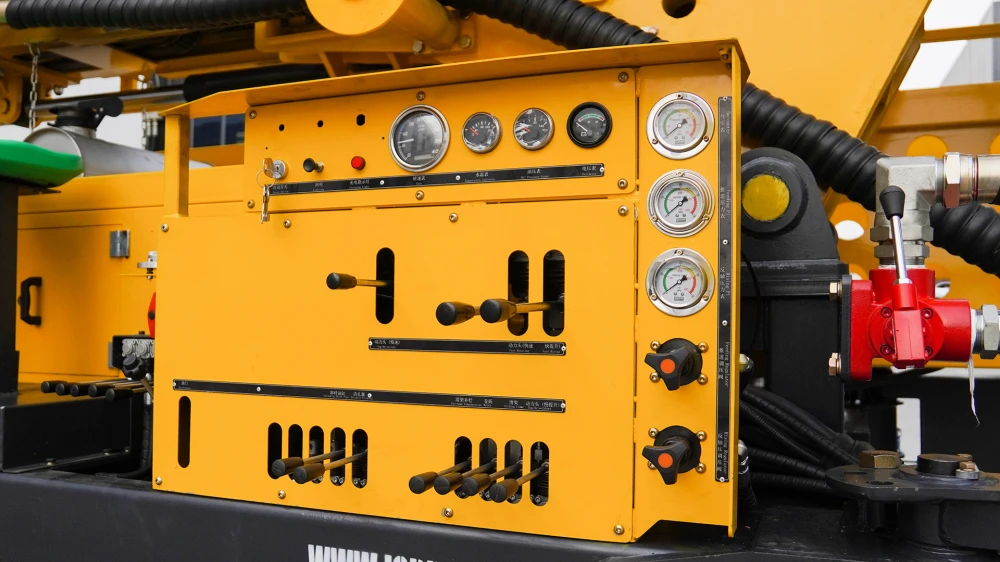

Full Hydraulic Integrated Operation

All drilling, handling, and mobility functions are hydraulically driven, providing smooth control, reduced labor intensity, and consistent drilling performance.

Stable & Environment-Friendly Design

The dust collection and cyclone separation system, combined with four hydraulic leveling legs, ensures stable operation, effective dust control, and environmentally responsible drilling on site.

Product Specifications

Specification	Unit	JRC300
Geology drilled		All kinds
Drilling Type		DTH & RC
Drill system and operation		Hydraulic
Max. Hole Diameter	mm	105-450
Max. Hole Depth	m	350
Rotation Torque	N.M	4800-9600
Rotation Speed	rpm	70-140
DTH Drill pipe diameter	mm	102/114/127
RC Drill pipe diameter	mm	102/114/127
Drill pipe length	mm	3000/4500 (Optional)
Max. Feed Speed	M/min	5-30
Max. Lifting Speed	M/min	5-18
Feed Stroke	mm	3700
Pull back Capacity	T	24
Lifting force of tool winch	T	1.5
Lifting height of tool winch	m	7.5
Engine
Diesel Engine type		CUMMINS
Rated Horse power	Kw	132
Electrical System	Volt	30
Centralizer
Type		Open
Diameter	mm	300
Dimension
Net Weight	Kgs	12000
Shipping Dimension	mm	6.85022E+11
Hydraulic Leg Feed Stroke	mm	1200
Gradeability	°	25
Ground Clearance	mm	300
Walking Speed	Km/h	2.5
