JRC500 Reverse Circulation Drilling Rig Full Hydraulic Deep Hole Exploration Machine

Hole Range

105-450mm

Hole Depth

500m

Recommend Chassis Type

Truck
Crawler
Trailer
Skid

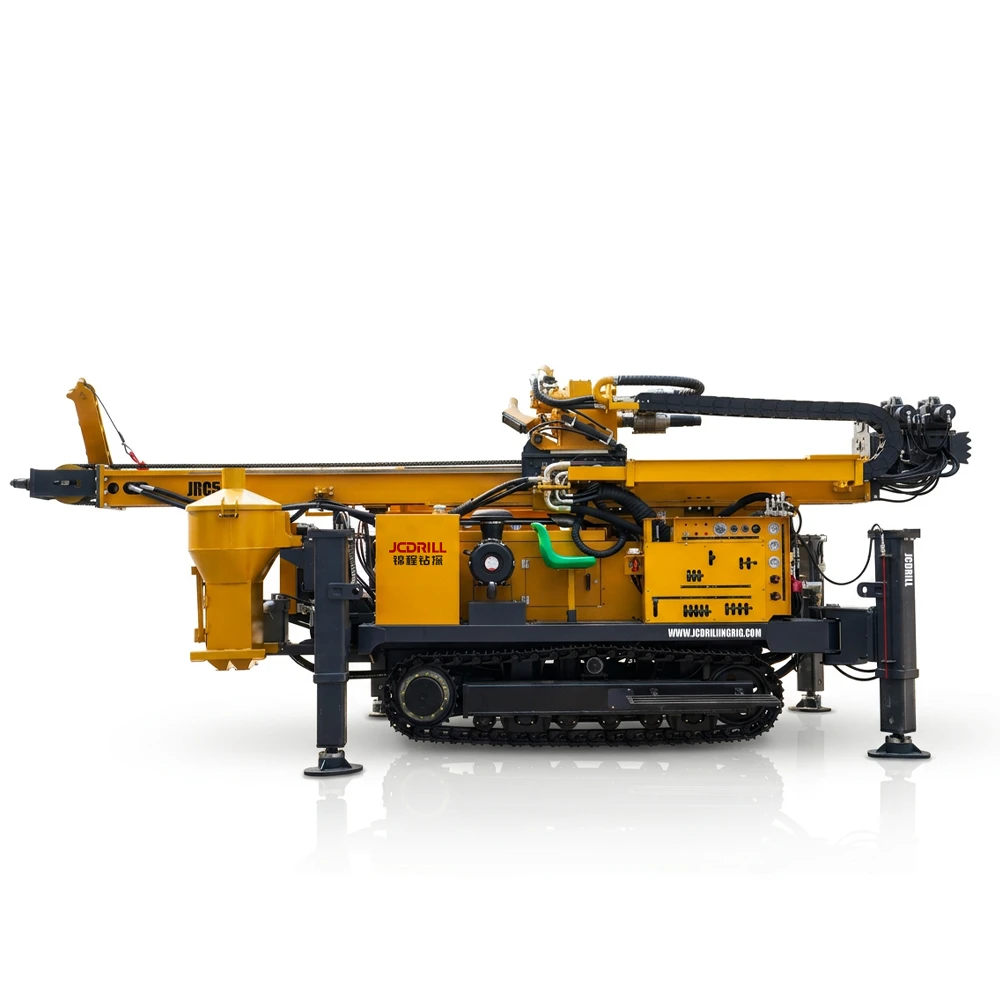

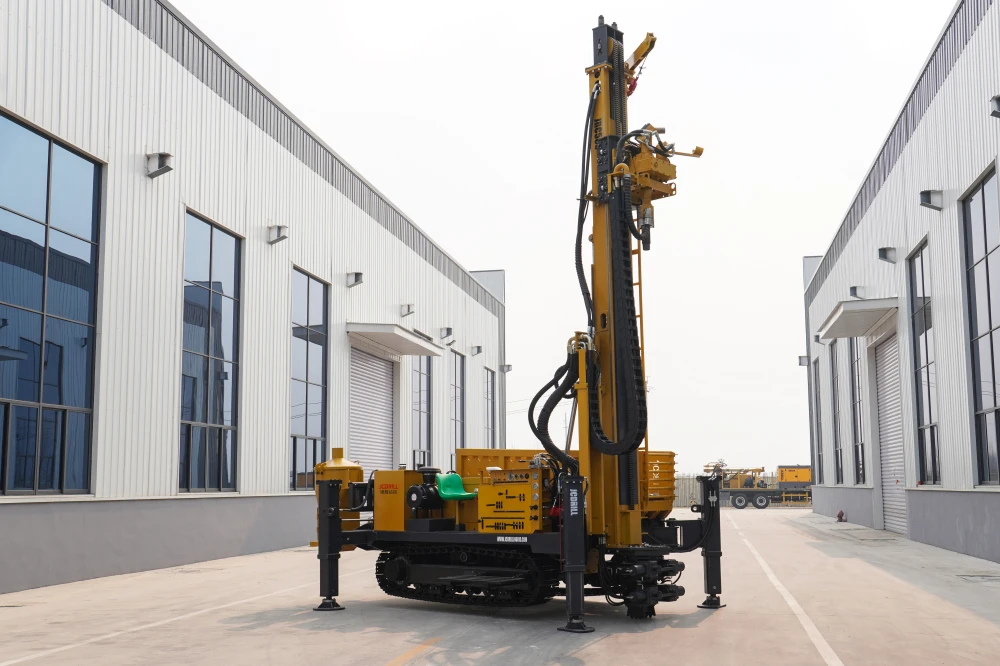

The JRC500 reverse circulation drilling rig is a high-efficiency, multi-purpose, environmentally friendly multi-track machine incorporating advanced gas lift reverse circulation technology. It efficiently collects rock dust through a dust collector to prevent pollution and utilizes a cyclone separator for slagging collection, suitable for geological prospecting and sampling analysis. Ideal for various compressed air ground hole drilling, the rig features fully hydraulic systems for lifting, guide compensation, drill pipe loading/unloading, rotation, feed, legs, winch, and walking. This setup reduces labor intensity, enhances construction efficiency and quality, making it the preferred choice for deep hole applications in exploration, wells, monitoring, and air-conditioning systems.

Inquire Now Brochure PDF

Functions and Features

Main Components

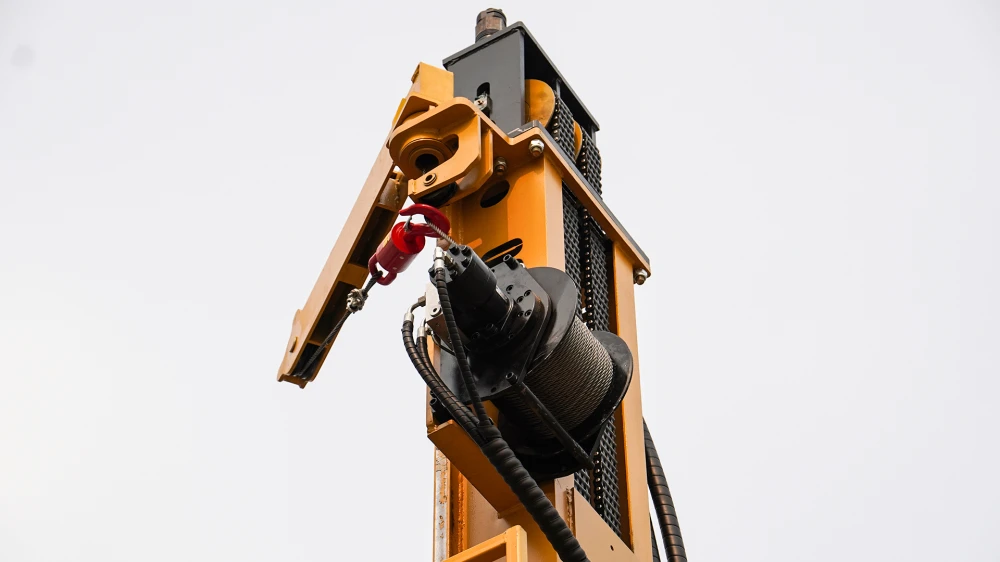

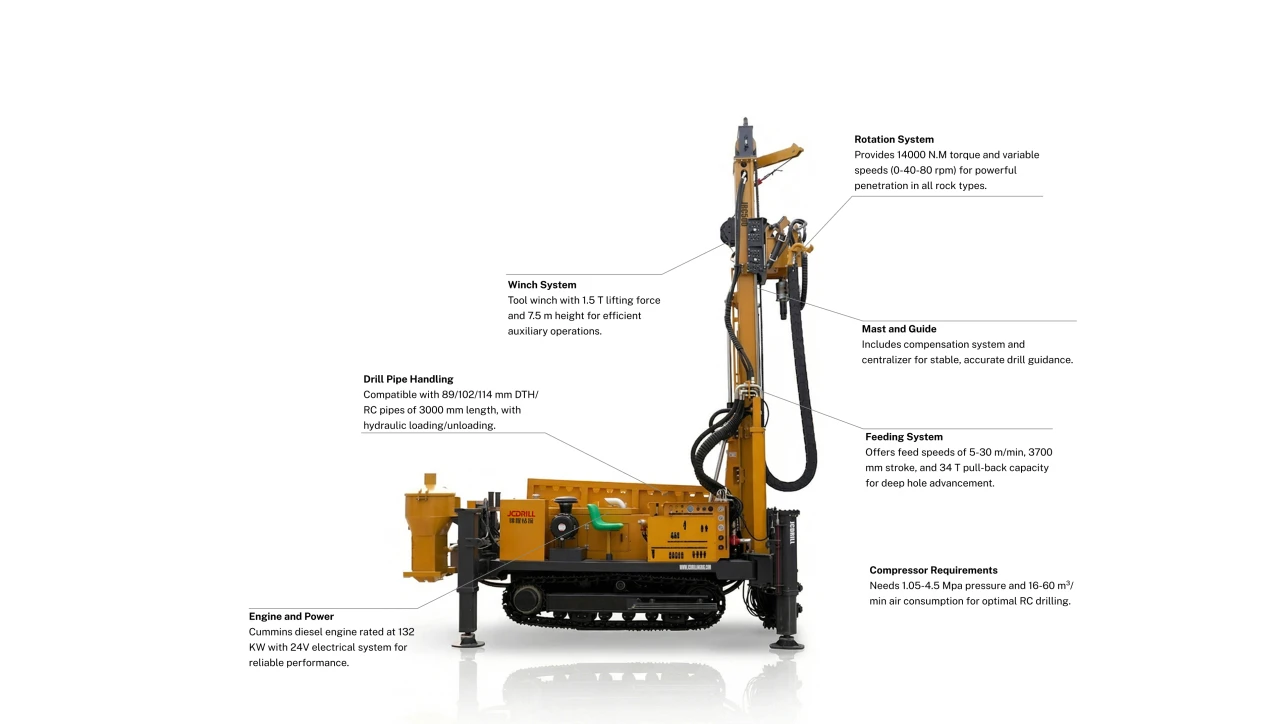

Reverse Circulation and DTH Compatibility Combines RC with DTH technology; air compressor supplies pressurized air for impact drilling and dust collection, delivering contamination-free samples.
Positive Circulation Option Supports positive circulation using standard drilling tools for added versatility in various applications.

Fully Hydraulic System Integration Diesel engine-powered hydraulic controls cover walking, rotation, feed, lifting, legs, compensation, and rod change, ensuring efficient, low-effort operations.
Dual Tube Mechanism Employs reverse circulation hammer and double tubes where pressurized air flows between tubes, expelling cuttings through the inner tube for reliable sampling.

Features Introduction

Product Description

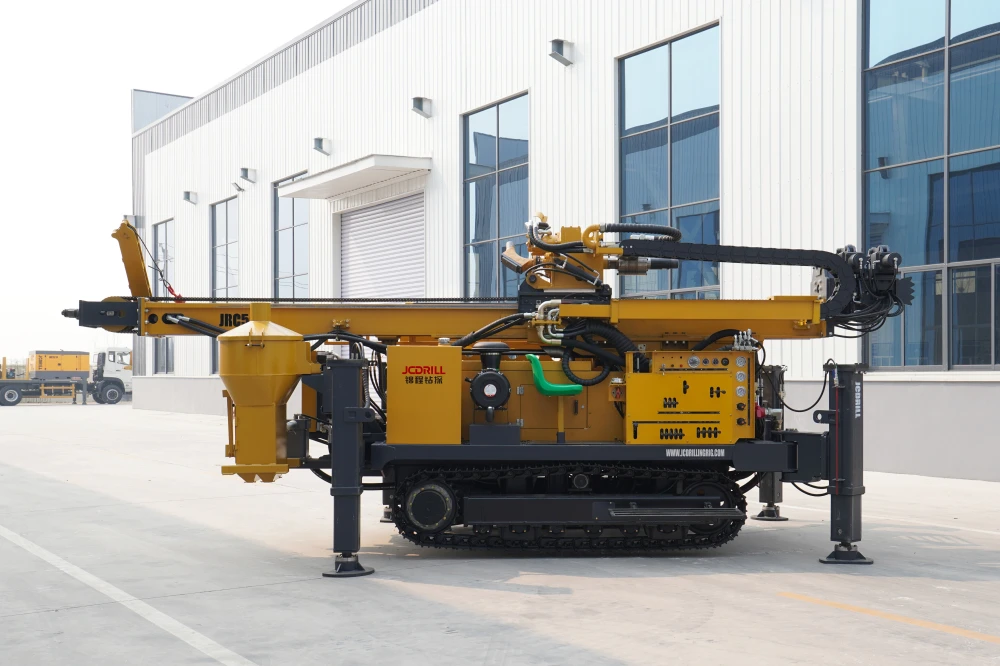

The JRC500 Reverse Circulation Drilling Rig is a full-hydraulic, deep-hole exploration machine designed for high-efficiency geological prospecting and sampling operations. With a drilling diameter range of 105–450 mm and a maximum drilling depth of 500 m, it adopts advanced gas-lift reverse circulation technology to ensure clean, accurate, and contamination-free sample recovery.

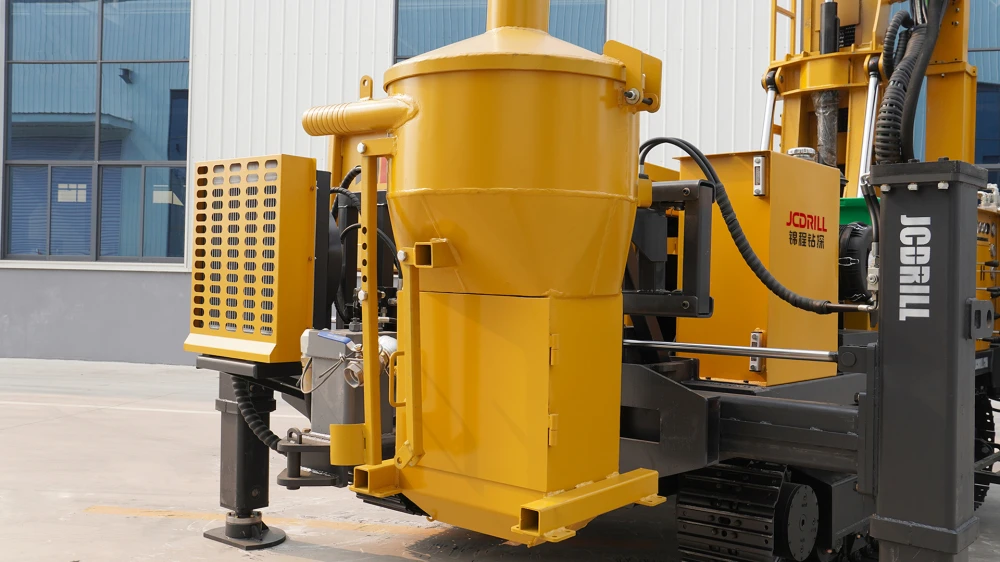

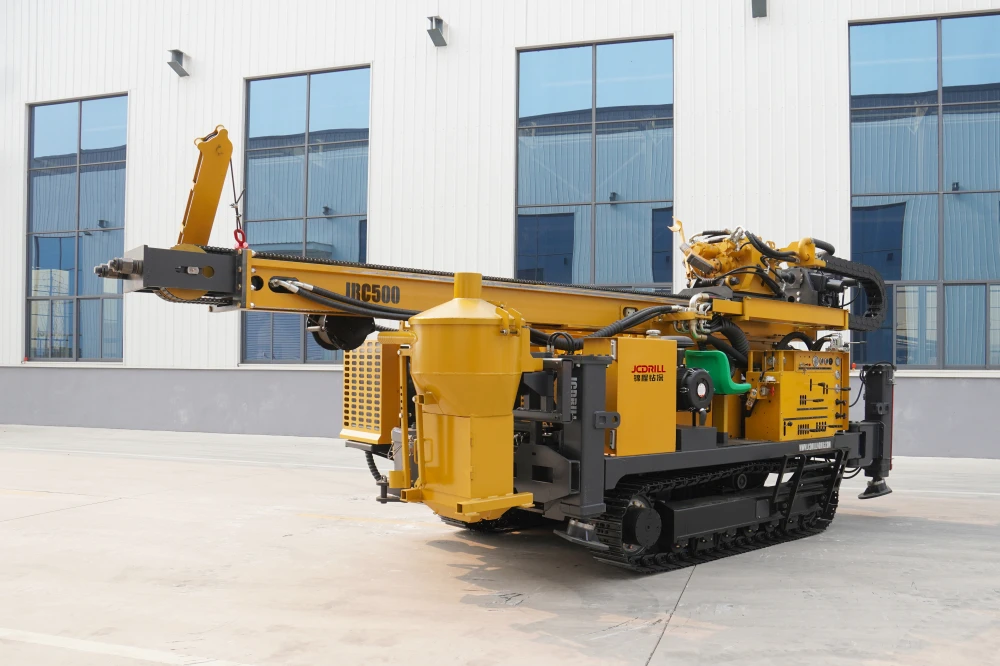

The rig integrates a dust collector and cyclone separator to effectively capture rock dust and cuttings, minimizing environmental pollution while improving sampling quality. Powered by a diesel engine, the fully hydraulic system controls walking, rotation, feeding, lifting, compensation, rod handling, winch operation, and leveling legs, significantly reducing labor intensity and enhancing drilling efficiency and construction quality. With excellent mobility, strong terrain adaptability, and versatile drilling capabilities, the JRC500 is an ideal solution for deep-hole applications in exploration, water wells, monitoring wells, and ground source heat pump systems.

Fully Hydraulic Integrated System

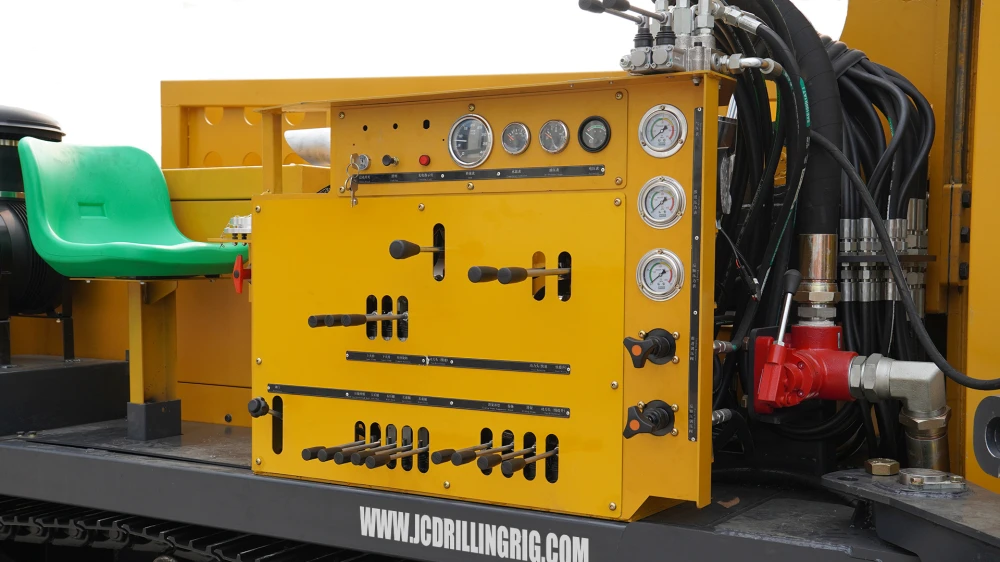

Diesel-driven hydraulic controls cover walking, rotation, feed, lifting, compensation, rod loading/unloading, and leveling, ensuring smooth operation with minimal manual effort.

Advanced Reverse Circulation Sampling

Gas-lift reverse circulation combined with DTH technology delivers clean, dry rock cuttings with minimal contamination, ideal for accurate geological sampling and analysis.

Dual-Tube & Multi-Process Capability

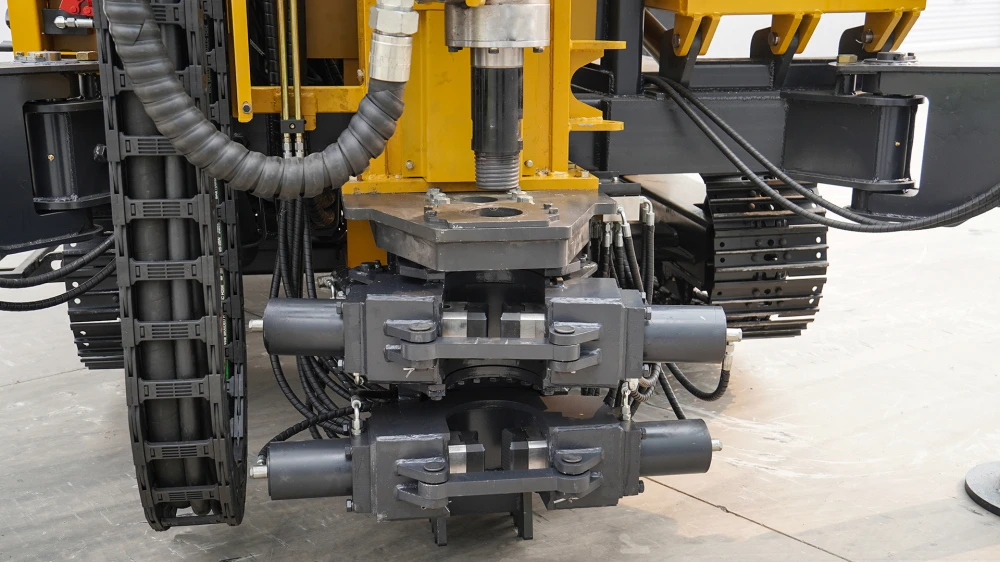

The reverse circulation hammer uses a dual-tube structure for reliable sample return, while optional positive circulation allows use of standard drilling tools for versatile applications.

High Mobility & Operational Stability

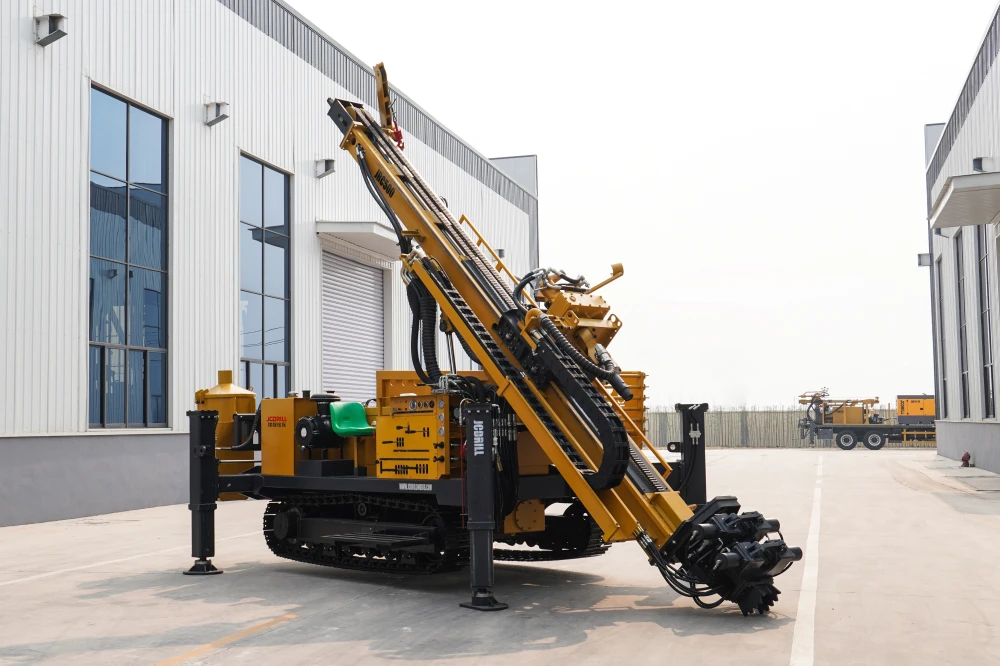

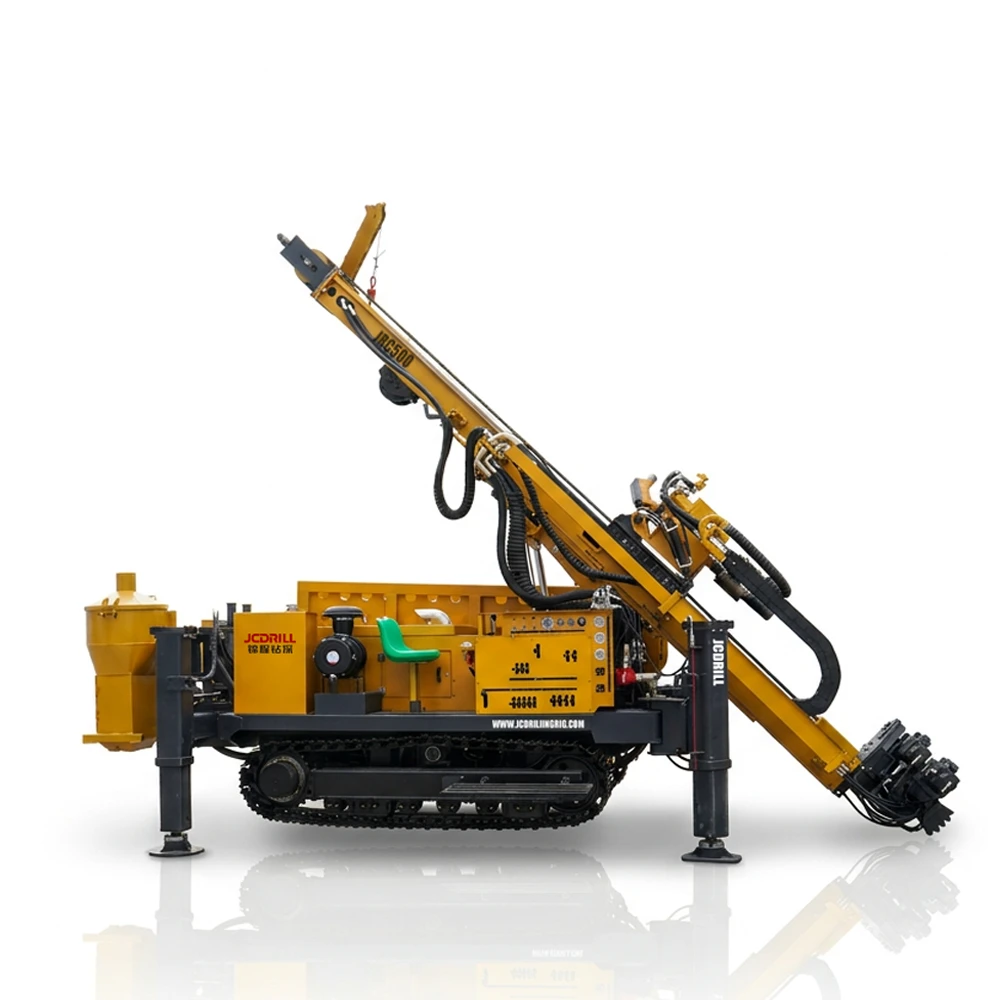

Self-walking crawler system with 2.5 km/h travel speed and 25° gradeability, supported by hydraulic legs for stable, safe, and precise drilling in rugged terrain.

Product Specifications

Spc.	Unit	JRC500
Geology drilled		All kinds
Drilling Type		DTH & RC
Drill system and operation		Hydraulic
Max.Hole Diameter	mm	105-450
Max.Hole Depth	m	500
Rotation Torque	N.M	14000
Rotation Speed	rpm	0-40-80
DTH Drill pipe diameter	mm	89/102/114
RC Drill pipe diameter	mm	89/102/114
Drill pipe length	mm	3000
Max. Feed Speed	M/min	5-30
Max. Lifting Speed	M/min	5-18
Feed Stroke	mm	3700
Pull back Capacity	T	34
Lifting force of tool winch	T	1.5
Lifting height of tool winch	m	7.5
Engine
Diesel Engine type		CUMMINS
Rated Horse power	Kw	132
Electrical System	Volt	24
Compressor Required
Pressure Required	Mpa	1.05—4.5
Air consumption	m³/min	16—60
Dimension
Net Weight	T	12
Shipping Dimension	mm	730022002650
Gradeability	°	25
Walking Speed	Km/h	2.5

View Less
