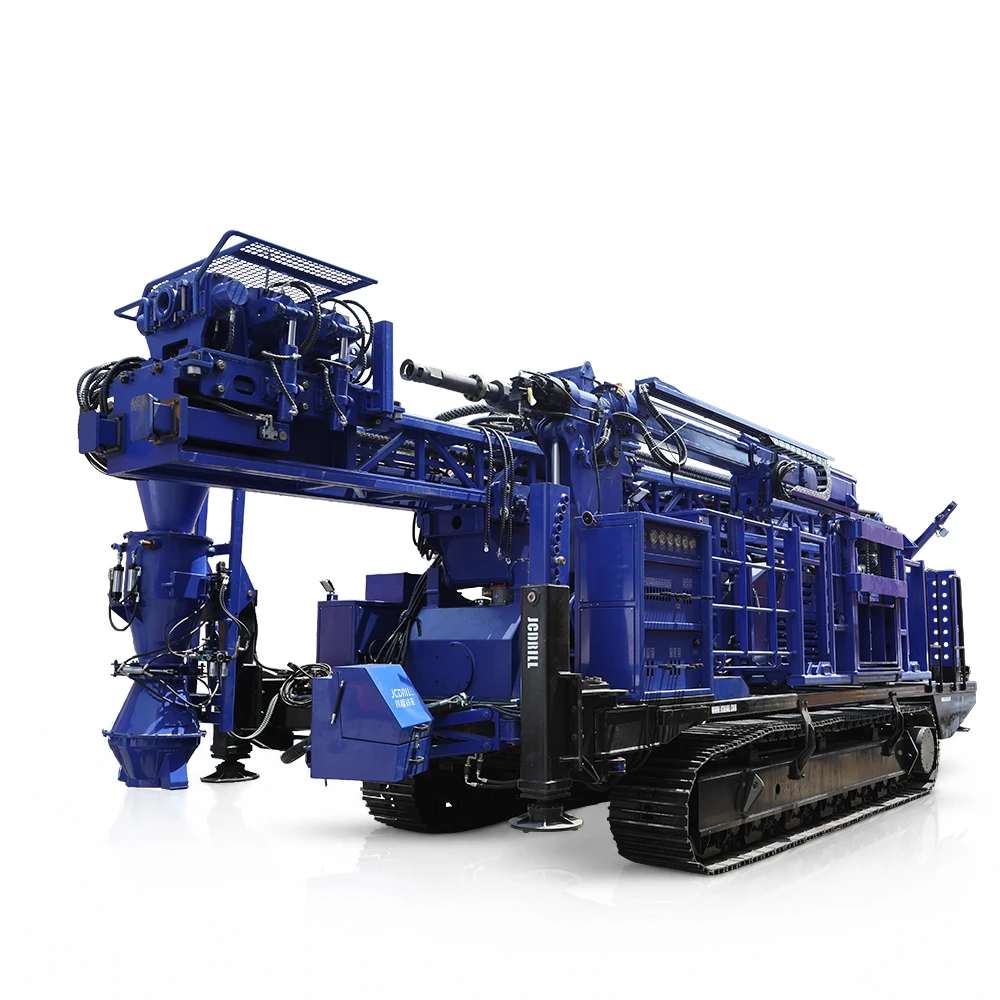

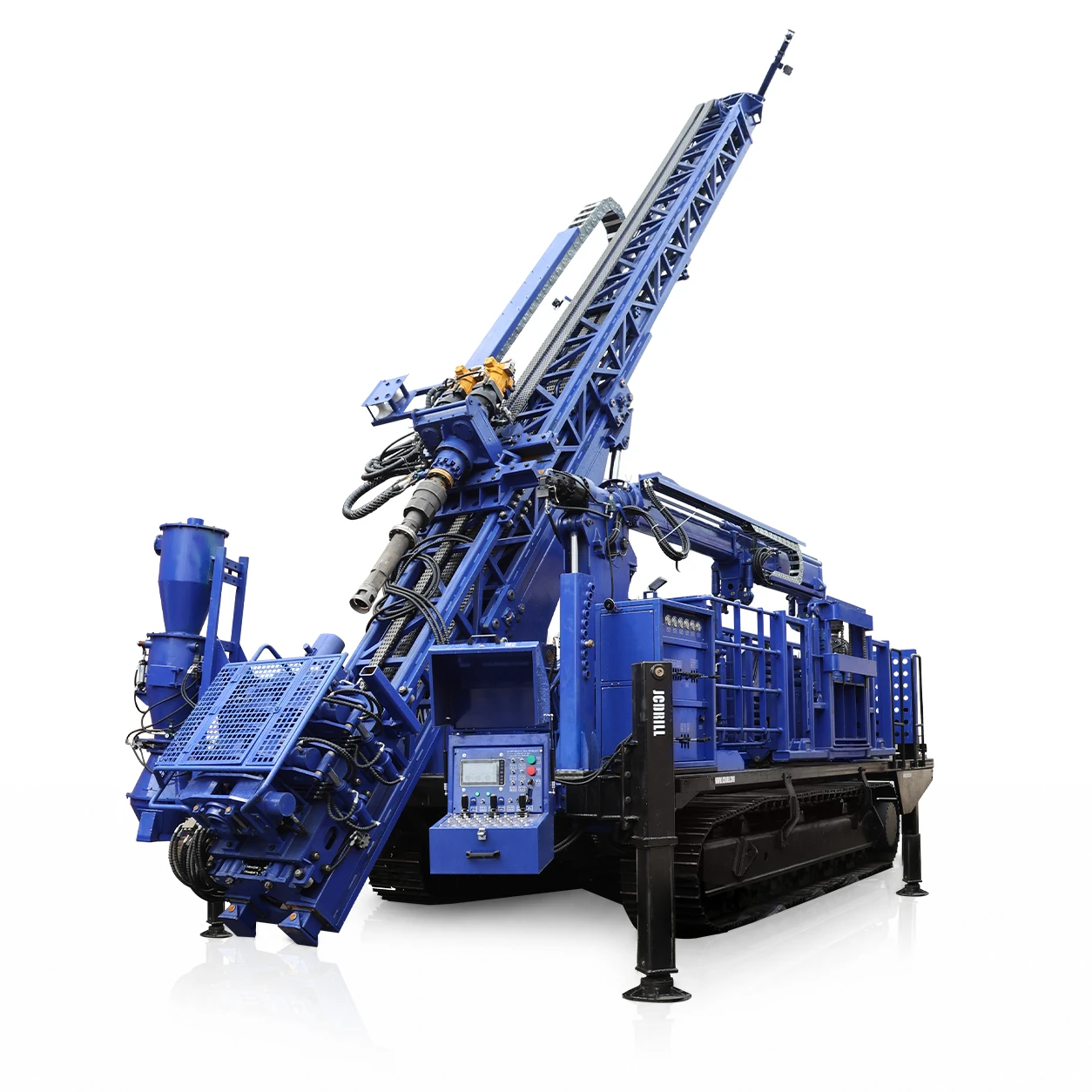

JRC500BA Integrated Automatic Rod Handling Reverse Circulation DTH Drilling Rig

Hole Range

105-450mm

Hole Depth

500m

Recommend Chassis Type

Truck
Crawler
Trailer

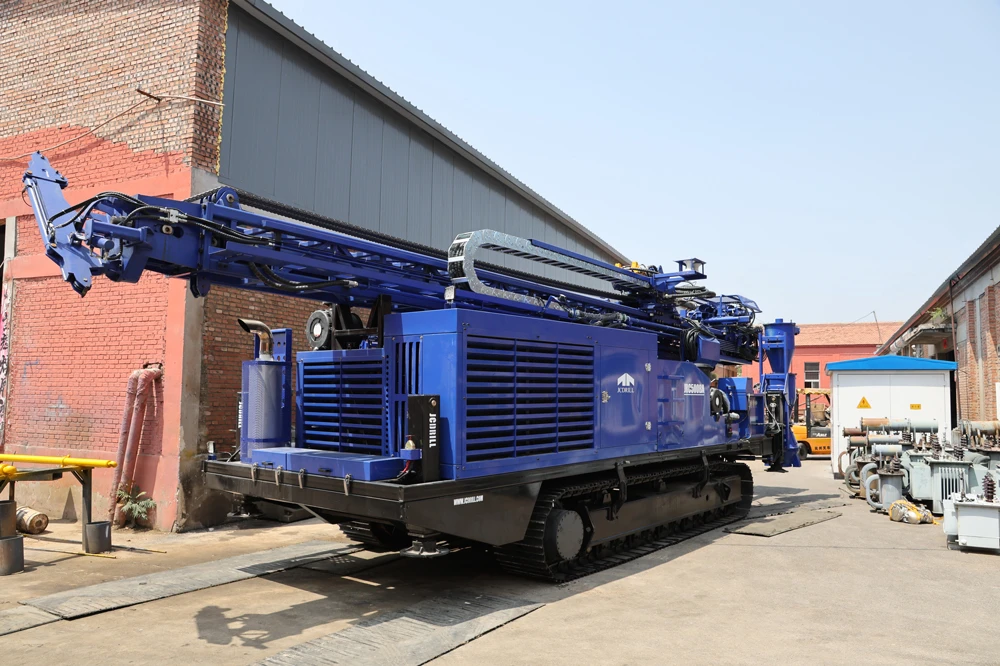

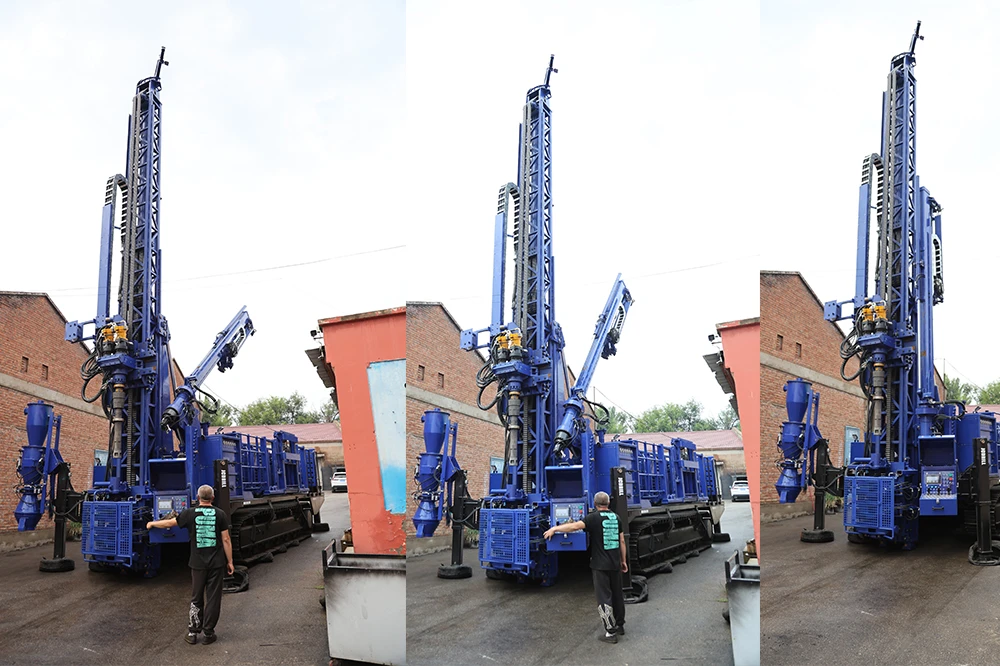

The JRC500BA is a crawler mounted fully hydraulic drilling rig designed for high efficiency Reverse Circulation and DTH drilling in demanding exploration projects. It integrates an automatic rod handling system, on-board air compressor, three-layer cyclone, and remote-control operation into one compact platform. With strong drilling capacity, stable hydraulic power, and a highly integrated structure, the rig is suitable for deep hole drilling in complex field conditions. It is developed to improve productivity, reduce manual labor, and provide reliable performance for mineral exploration and related applications.

Inquire Now

Functions and Features

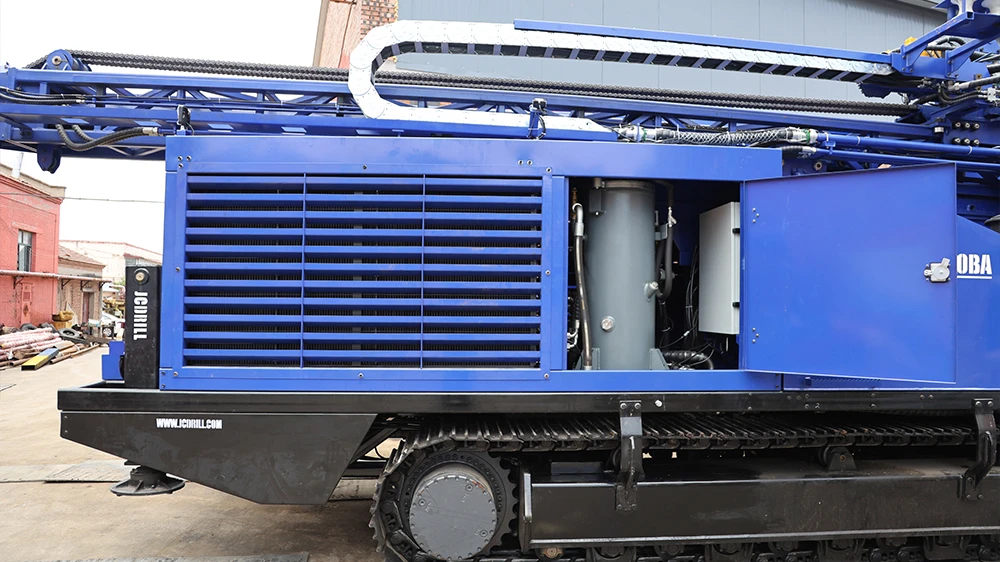

On-board Air Compressor Integration The crawler mounted air compressor is built into the rig frame, which improves mobility, reduces external equipment dependence, and supports stable air supply.

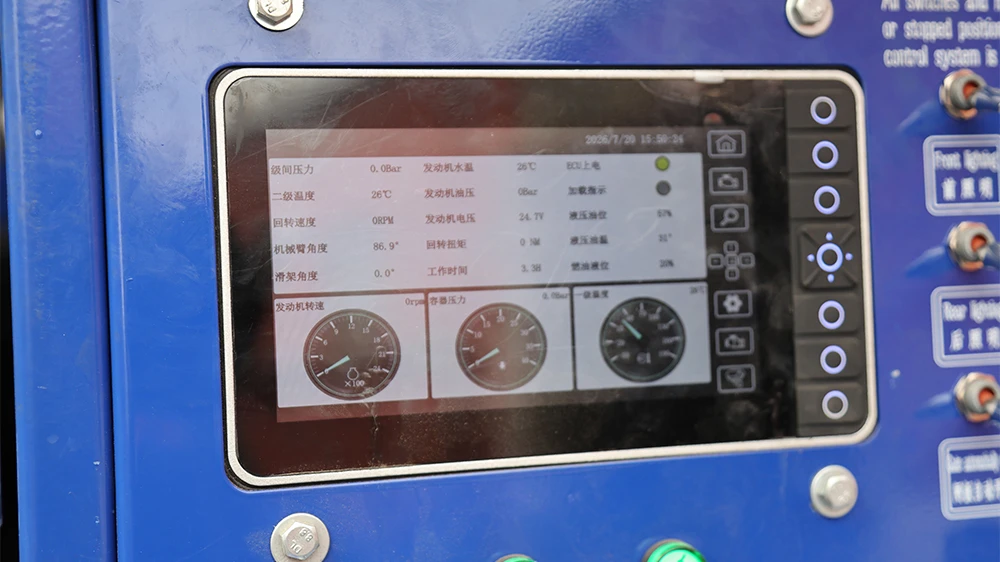

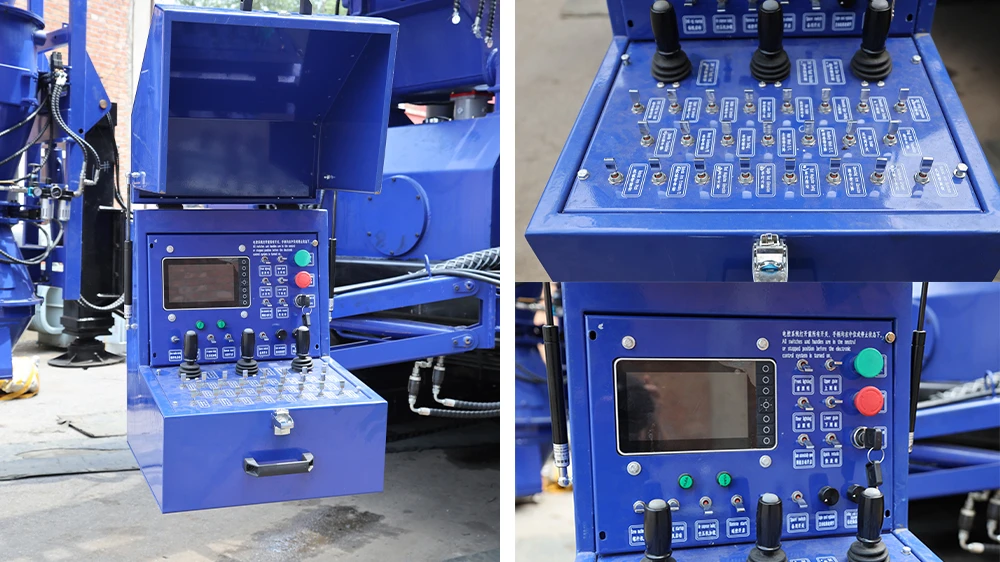

Hydraulic Remote Control Operation The handle plus remote control system allows flexible operation and helps the operator manage drilling and tramming more efficiently.
Strong Deep Hole Capability With a long feed stroke, high pullback capacity, and stable mast structure, the rig is suitable for deep drilling in complex geological conditions.

Automatic Rod Handling System The automatic rod handling system improves rod change efficiency, reduces labor intensity, and enhances operation safety during deep drilling work.

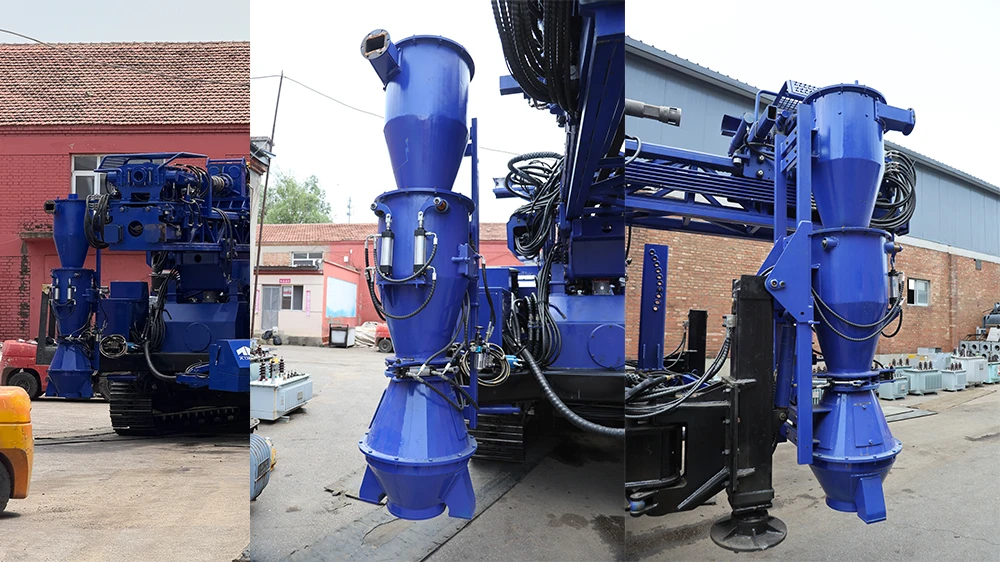

Three-layer Cyclone and Sampler The three-stage cyclone design supports efficient sample collection and separation, making sample recovery more stable and easier to monitor.
High Power Hydraulic Drive The fully hydraulic system with variable piston pump group provides stable power output and responsive control for drilling under heavy load conditions.

Features Introduction

Product Description

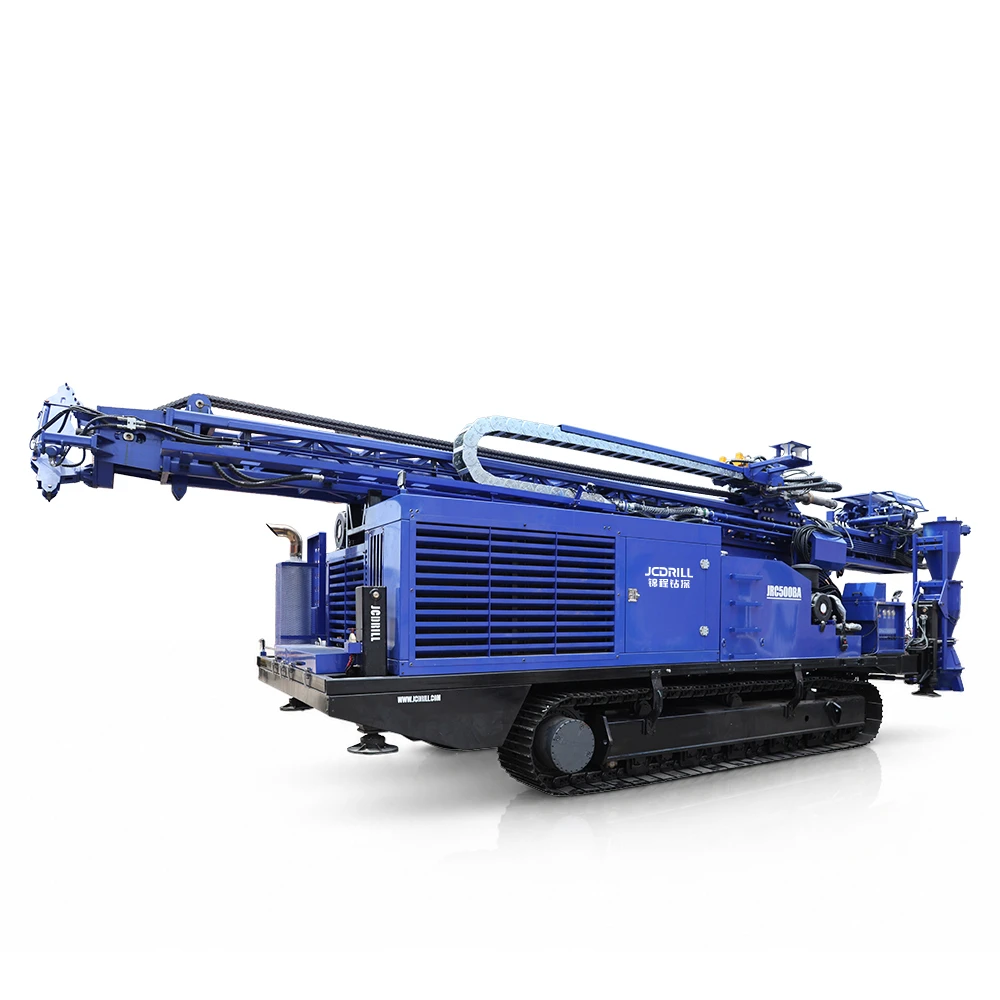

The JRC500BA is a fully hydraulic crawler mounted RC and DTH drilling rig designed for modern exploration projects that require high efficiency and strong integration. It combines an automatic rod handling system, on-board air compressor, three-layer cyclone, and remote control operation to reduce manual work and improve drilling continuity. The rig is powered by a high output Cummins engine and equipped with a variable piston pump hydraulic system for stable performance. Its compact integrated design improves mobility and field adaptability, while the long feed stroke and strong pullback capacity support deep hole drilling in complex conditions. This model is suitable for customers seeking a reliable, highly automated, and efficient drilling solution.

Integrated Automatic Rod Handling

Improves rod change efficiency and reduces manual labor.

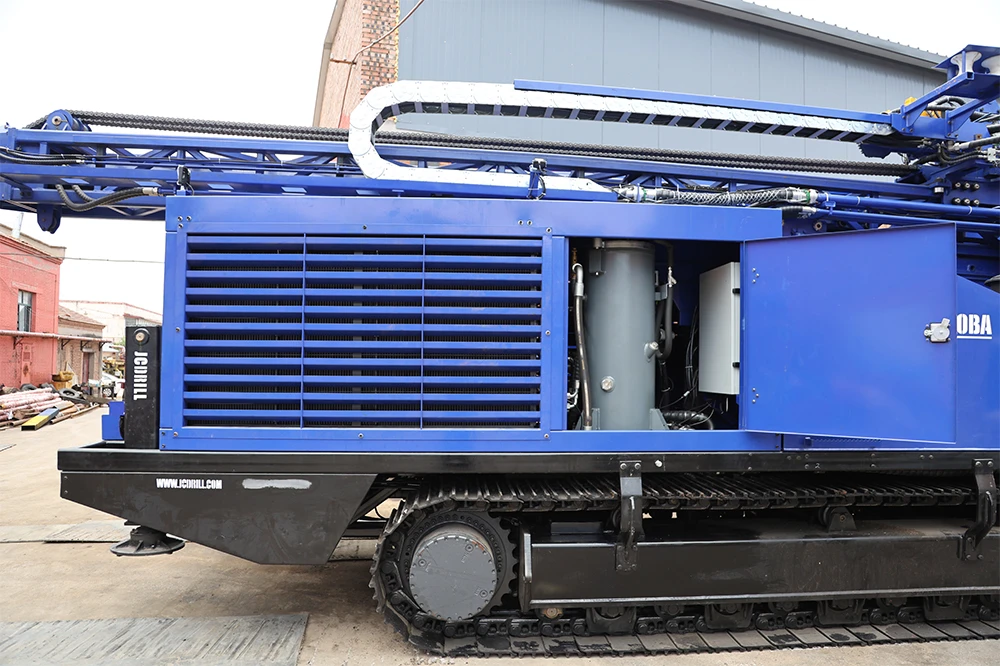

On-board Compressor System

Provides compact air supply and enhances field mobility.

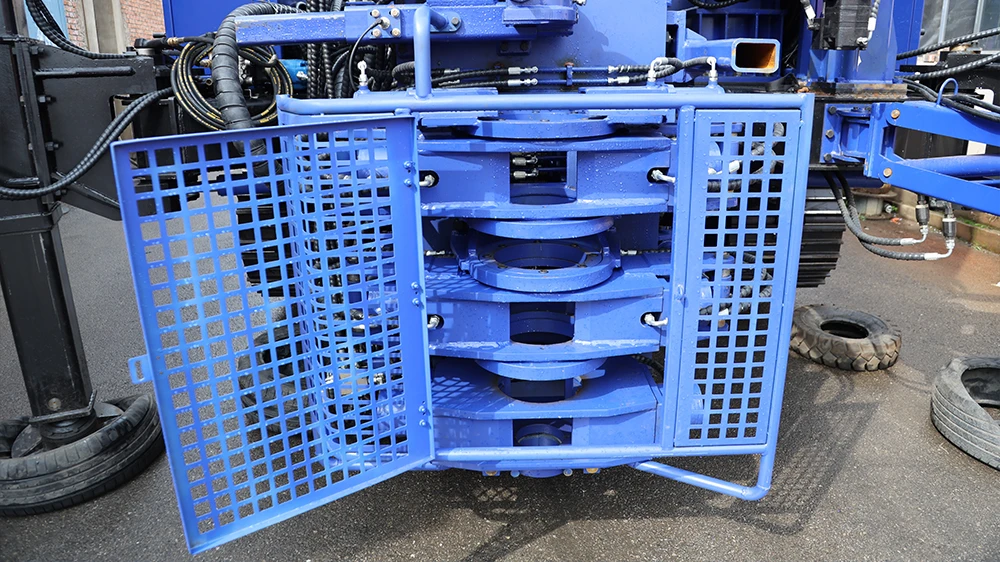

Three-layer Cyclone Sampling

Supports stable sample separation and easier monitoring.

Product Specifications

Spc.	Unit	JRC500BA
Geology Drilled		All kinds
Drilling Type
Drill system and operation		Hydraulic
Max.Hole Diameter	mm	105-450
Max.Hole Depth	m	500
RC Drill pipe diameter	mm	102/114/127
Drill pipe length	mm	6000

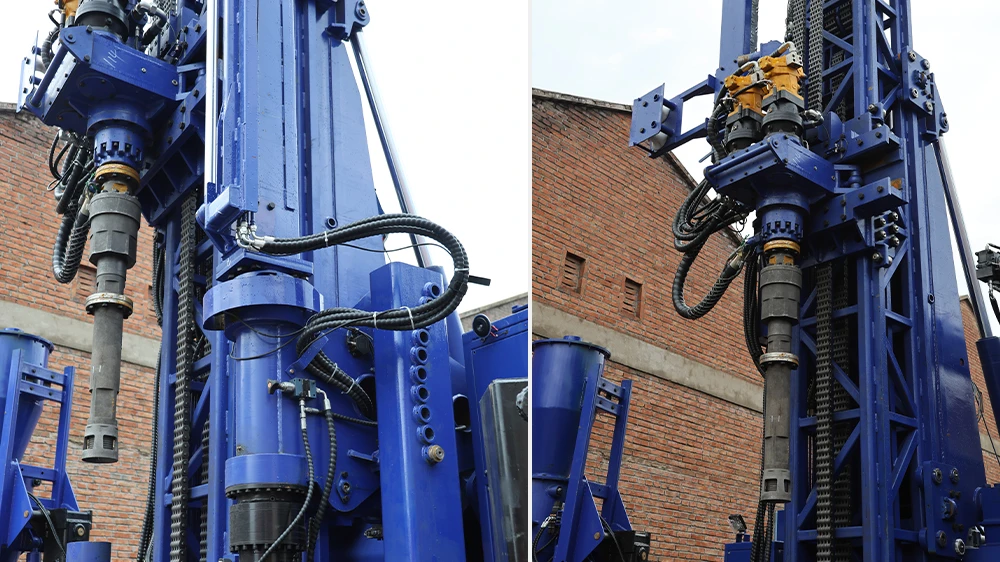

Rotation Unit
Rotation Torque	N.M	11800-5900
Rotation Speed	rpm	0-74-148
Mast
Compensation distance	mm	1500
Drilling Angle range	°	45-90
Feeding System
Feeding Structure		Cylinder&Chain
Max. Feed Speed	M/min	0-8.02
Max. Lifting Speed	M/min	4.1
Feed Stroke	mm	7600
Pull back Capacity	T	40
Push down Capacity	T	0-15
Winch
Lifting force of tool winch	T	1.5
Rope Diamter	mm	Φ10
Auxiliary winch	T	0.5
Rope Diamter	mm	6
Slips and breakout
Slipstable max.opeaning	mm	80-240
Cooling system
Engine system		CUMMINS Engine fan with radiator
Hydraulic System		Hydraulic Driven Cooler
Pipe Rack
Capacity(114x6m RC Drill pipe)	Pcs	30
Power Unit
Diesel Engine Model		6LTAA8.9-C325
Rated Horse power	kW	239
Fuel Tank Capacity	L	100
Compressor(On Board)
Model		JAC35/34
Pressure Required	Bar/Psi	34/493
Air Consumption	m³/min/CFM	35/1235
Hydraulic System
Pump Model		L8V-107-107
Pump type		Variable piston pump group
Sampling Collection System
Hydraulic blow-off valve		Standard
Cyclone Type		Three-layer cyclone & sampler
Hammer Oil tank
Tank Capacity	L	16
Control		Hydraulic control
Hydraulic Jacks
Max.Extension x2 front Jacks	°	90
Max.Extensionx2 Rear Jacks		N/A
Stroke of x2 front Jacks	mm	600
Stroke of x2 rear Jacks	mm	600
Control System
Control type		Handle + remote control
Safety alert System
Sample hose connection		Safety net for air pipe and sampling pipe
Emergency Stop button		Standard
Fire extinguisher		Standard
Tramming motor capacity		LTM60P
Footboard		Footboards on both sides of the rig
Seat		Standard
Reverse remind		Reverse buzzer, standard
Lifting point		Welded lifting points on the crawler frame
Rod change camera		2 cameras, at reverse and drill head connection positions
Dimension
Net Weight	Ton	39.5
Shipping Dimension	mm	12800×3200×3600
Gradeability	°	22
Walking Speed	km/h	1.5-2.5
