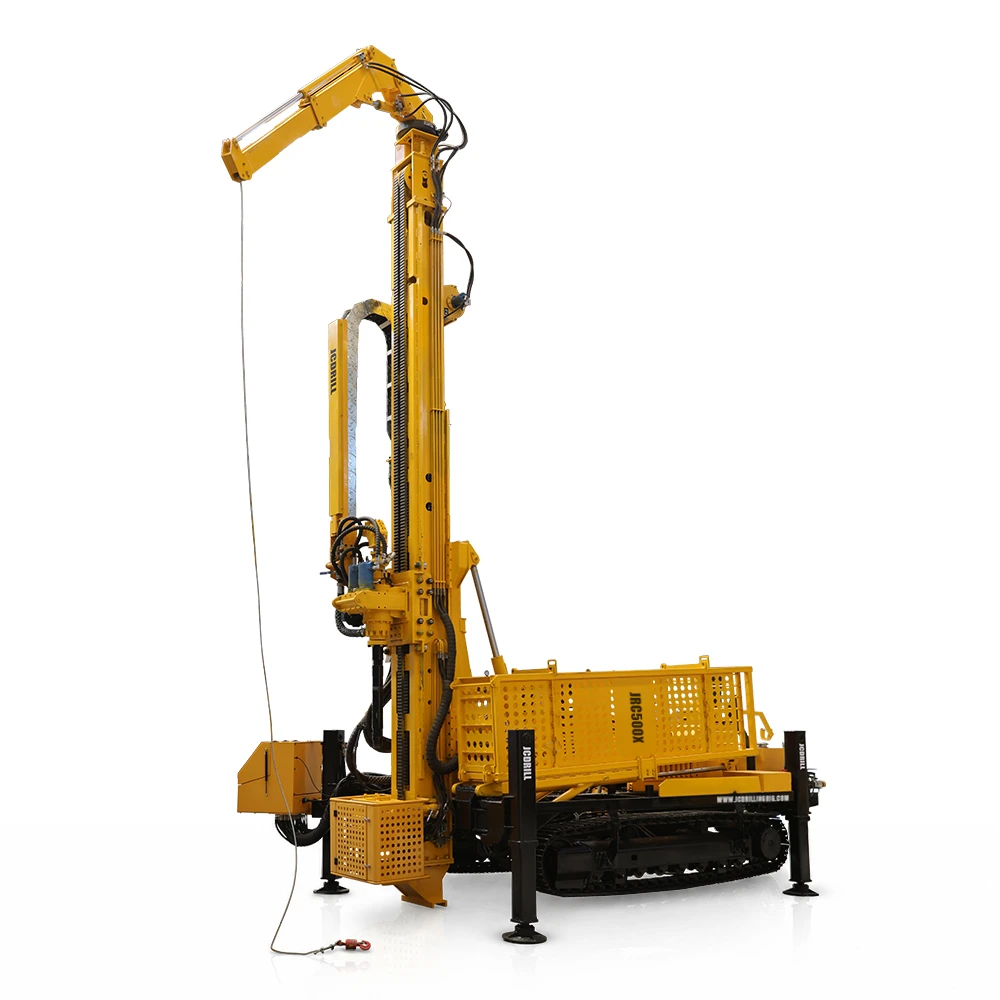

JRC500X Crawler Hydraulic RC DTH Drilling Rig

Hole Range

105-200mm

Hole Depth

RC:500m DTH:600m

Recommend Chassis Type

Truck
Crawler
Trailer

The JRC500X is a crawler mounted fully hydraulic drilling rig designed for both Reverse Circulation and DTH drilling. It is built for stable operation in mineral exploration, geological survey, water well drilling, and related field projects. With a high torque rotary head, efficient hydraulic system, and integrated sample recovery design, the rig offers reliable performance in complex working conditions. Its compact structure and flexible control layout help improve drilling efficiency, reduce operator workload, and support continuous operation on demanding sites.

Inquire Now

Functions and Features

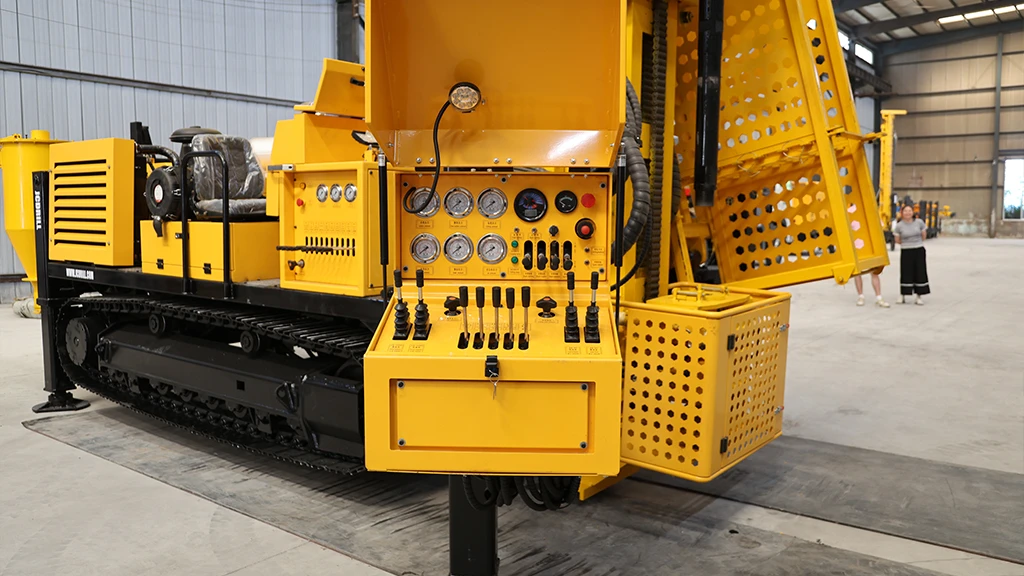

Fully Hydraulic System The hydraulic system delivers stable power transmission, precise control, and smooth operation during drilling and tramming.

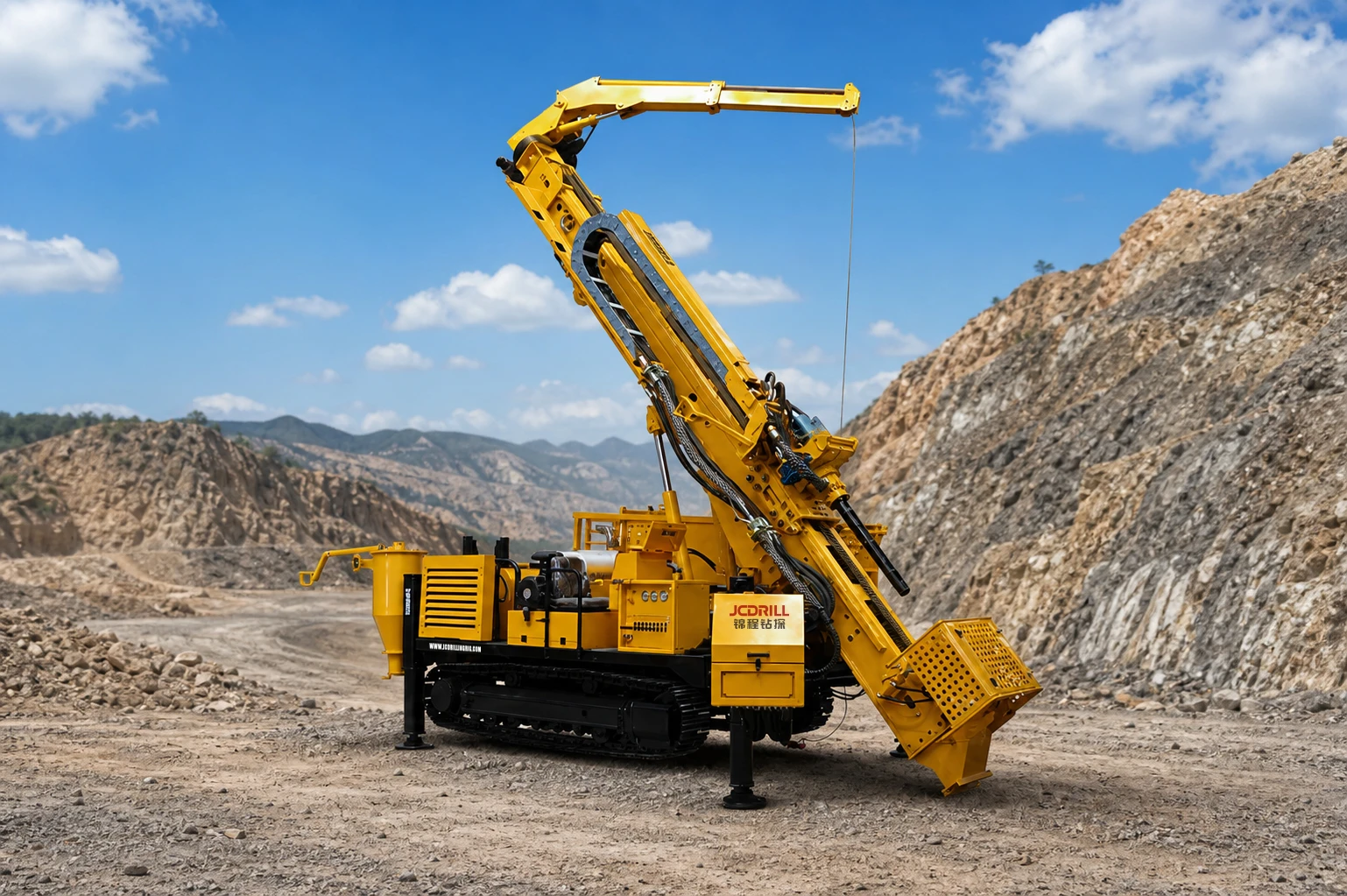

Strong Feed Performance The mast feed system offers a long stroke, high lifting force, and stable feed rate to support efficient drilling depth progress.

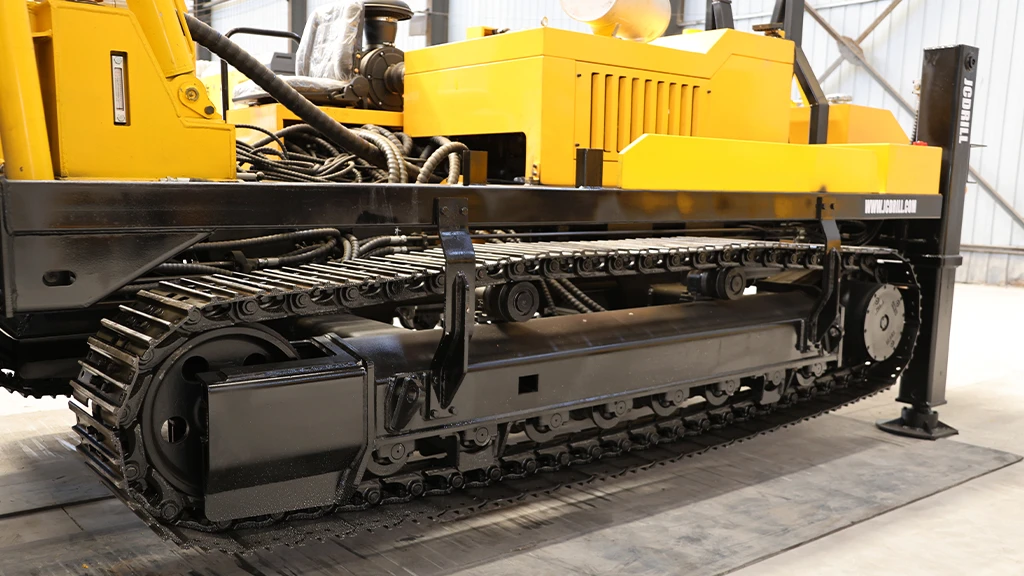

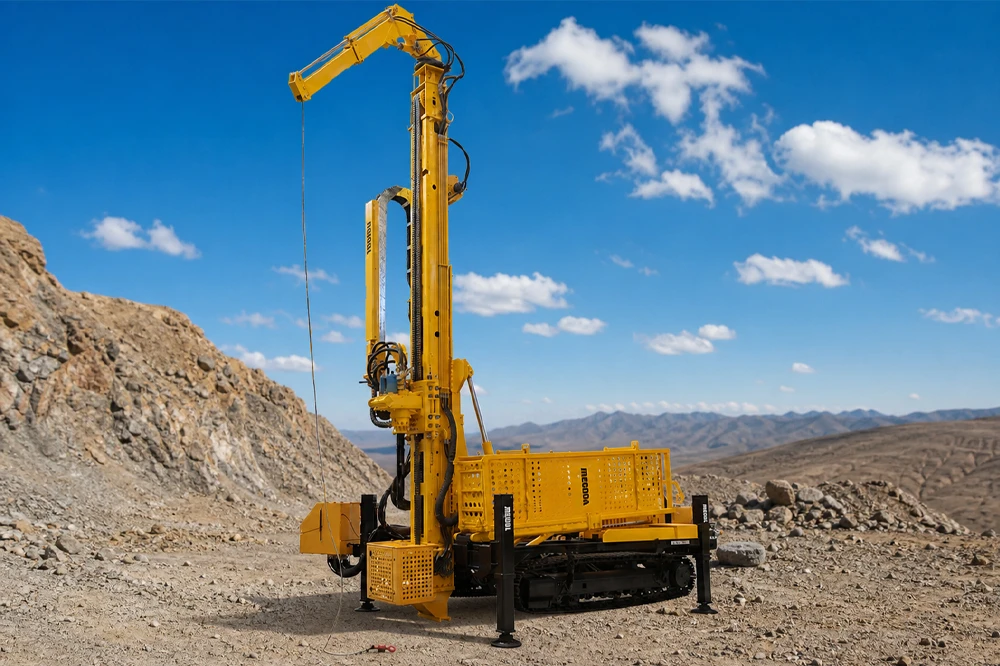

Crawler Mounted Structure The crawler chassis improves mobility and site adaptability, allowing the rig to work steadily on uneven ground.

Dual Purpose Drilling The rig is configured for both RC and DTH drilling, providing flexible operation for different geological and project requirements.
High Torque Rotary Head Two hydraulic motors drive the rotary head, providing strong torque output and selectable rotation speed for different drilling conditions.

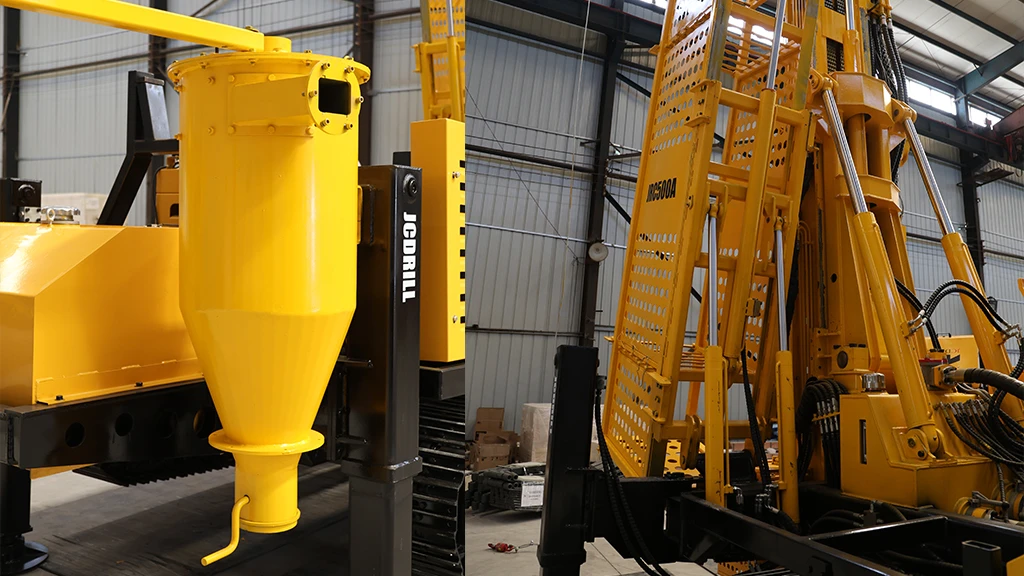

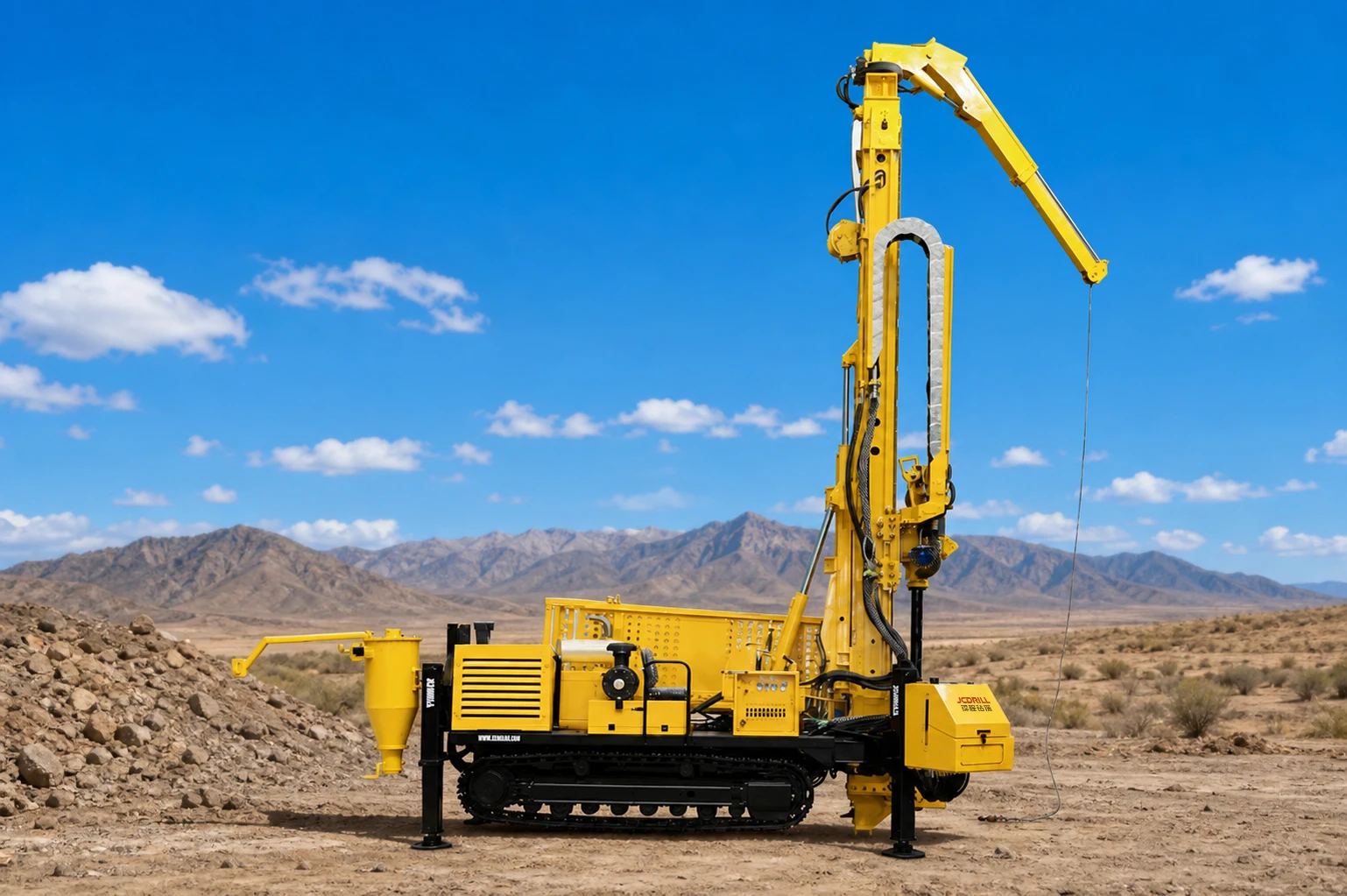

Integrated Sample Recovery The rear mounted cyclone system is designed for RC sample collection, making sample discharge visible and easier to monitor.

Features Introduction

Product Description

The JRC500X is a crawler mounted fully hydraulic RC and DTH drilling rig developed for demanding field applications. It combines a powerful Cummins diesel engine, a stable hydraulic system, and a high torque rotary head to support efficient drilling performance. The rig is suitable for mineral exploration, geological investigation, and other deep drilling projects that require reliable sample recovery and strong penetration capability. Its integrated cyclone system, reinforced chassis, and flexible rod handling design improve operating efficiency and site adaptability. This model is well suited for customers who need a durable, easy to operate, and maintenance friendly drilling solution.

Dual Mode Drilling System

Supports both RC and DTH drilling for wider application coverage.

High Torque Hydraulic Power

Delivers stable output and strong drilling performance in hard formations.

Visible Sample Recovery Design

Rear mounted cyclone allows easier monitoring of RC sample discharge.

Product Specifications

Specification	Unit	JRC500X
Drilling Type		DTH & RC
System And Operation		Hydraulic
Hole Dia.	mm	105-200
Max. Hole Depth	m	RC:500/DTH:600
DTH Drill pipe	mm	89/102/114
RC Drill pipe	mm	89/102/114
Rotary Head
Rotational Torque	N.M	10000-5000
Rotation Speed	rpm	0-40-80
Number Of Rotary Motors		2-490
Rotary Motor Brand		Eaton
Air box main Shaft Dia.		Φ60
Air box		Under rotation head
Types Of Slag Discharge Bends		Welding box
Blow down valve		Standard
Slag Discharge Hose Bracket		Standard
Undercarriage
Drill Pipe Length	mm	3000
Maximum Feed Rate	M/min	26.4
Maximum Lifting Speed	M/min	13.9
Feed Stroke	mm	3800
Compensation stroke	mm	1000
Lifting force	T	30
Feeding force		0-10
Hoisting Capacity	T	1.5
Wire Rope	m	30
Winch Bracket Rotation		Standard
Winch Bracket Expansion		Standard
Winch Bracket dumpling		Standard
Position/Quantity Of Led Lamp	Pcs	5
Mast pipe Chain		Standard
Mast Angle Positioning Mechanism		Cylinder
Engine
Diesel Engine Type		CUMMINS 6BTAA5.9-C205
Rated Power	Kw	153
Electrical System	Volt	24
Hydraulic System
Hydraulic System Flow Rate	L	300
Hydraulic System Pressure	Mpa	25
Types Of Hydraulic Pumps		Piston pump
Hydraulic Valve Brand		QT
Hydraulic Oil Tank Capacity		300L

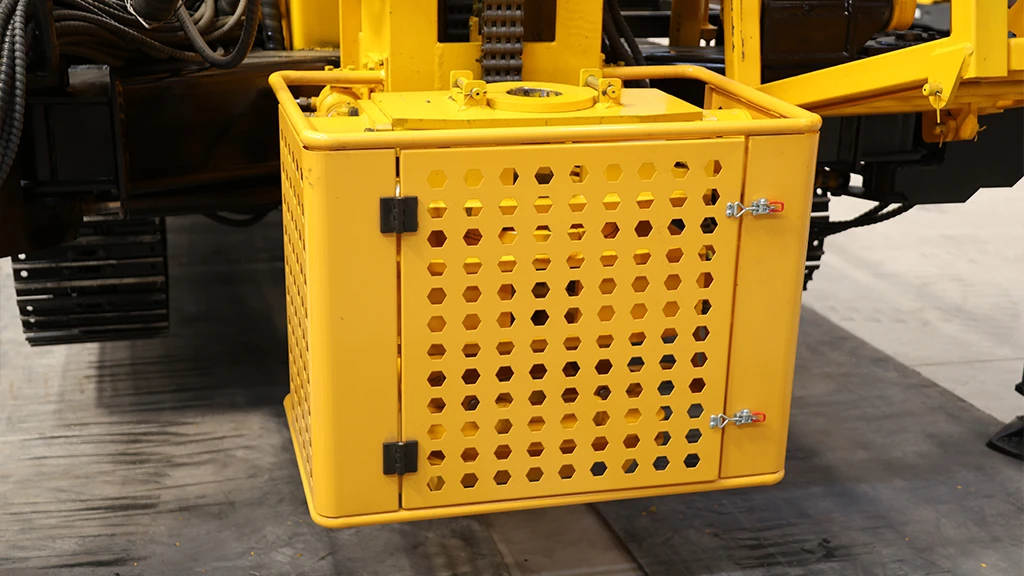

Hydraulic Clamp
Ctlinder quantity		5
Insert Wrench		Standard
Drill Pipe Box
Pipe quantity allowed		35
Hydraulic dumpling		Standard
Hydraulic extendation		Standard
Compressor (Optional)
Required Pressure	Mpa	1.05—3.5
Air Consumption	m³/min	20-50
Body
Model Of Walking Motor		LTM22
Hydraulic Support Leg		Standard
Front Hydraulic Leg Extension Method		Manual
Rear Hydraulic Leg Extension Method		N/A
Width Of Hydraulic Leg Square Steel		200-200
Lifting Point		Standard
Standing Platform (Can Stand, Can Sit)		Standard
Clean hose		Standard
Driving Seat		Standard
Hammer oil tank	L	12
Compressor Bracket		Standard
Remote Control(Walking system)		Standard
Level Gauge		Standard
Angle Gauge		Standard
Diesel Tank Capacity		260L
Cyclone
Single-Stage Cyclon		Standard
Sample hose		3.5”
Position Of Cyclone		Back of machine visible at control panel
Dimension
Net Weight	Ton	12.5
Shipping Length	mm	6800
Transport Width	mm	2250
Shipping Height	mm	2650
Hydraulic Leg Feed Stroke	mm	600
Gradability	°	25
Ground Clearance	mm	300
Walking Speed	Km/h	2.5
Fuel Tank capacity	L	340
