JCD1000S Crawler High-Torque Hydraulic System Diamond Core Drilling Rig for Deep Mineral Exploration

Hole Range

HTW, NTW, BTW

Hole Depth

500m, 1100m, 1400m

Recommend Chassis Type

Truck
Crawler
Trailer

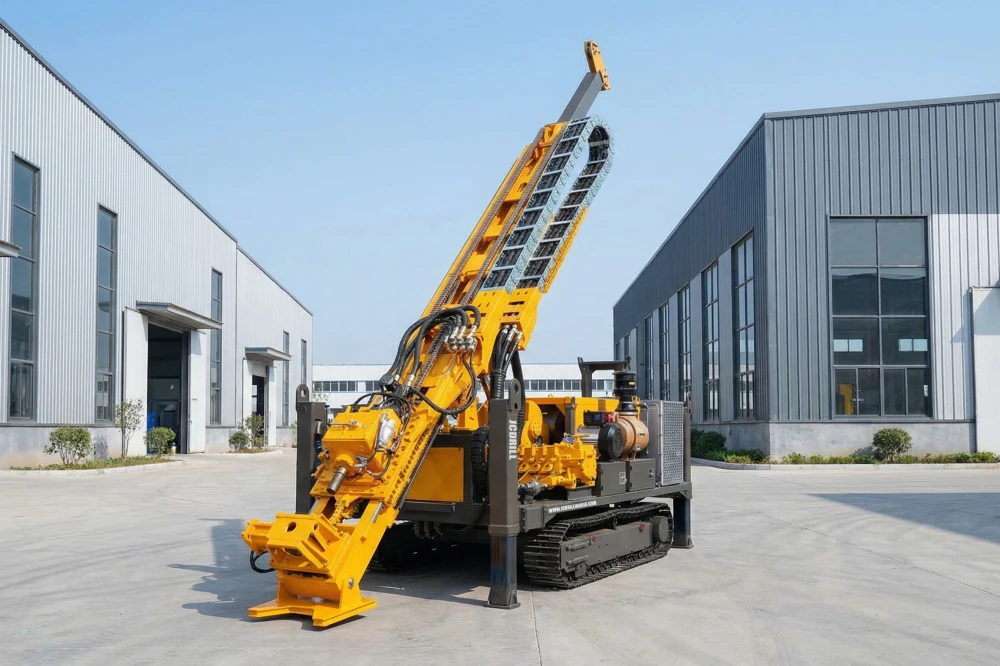

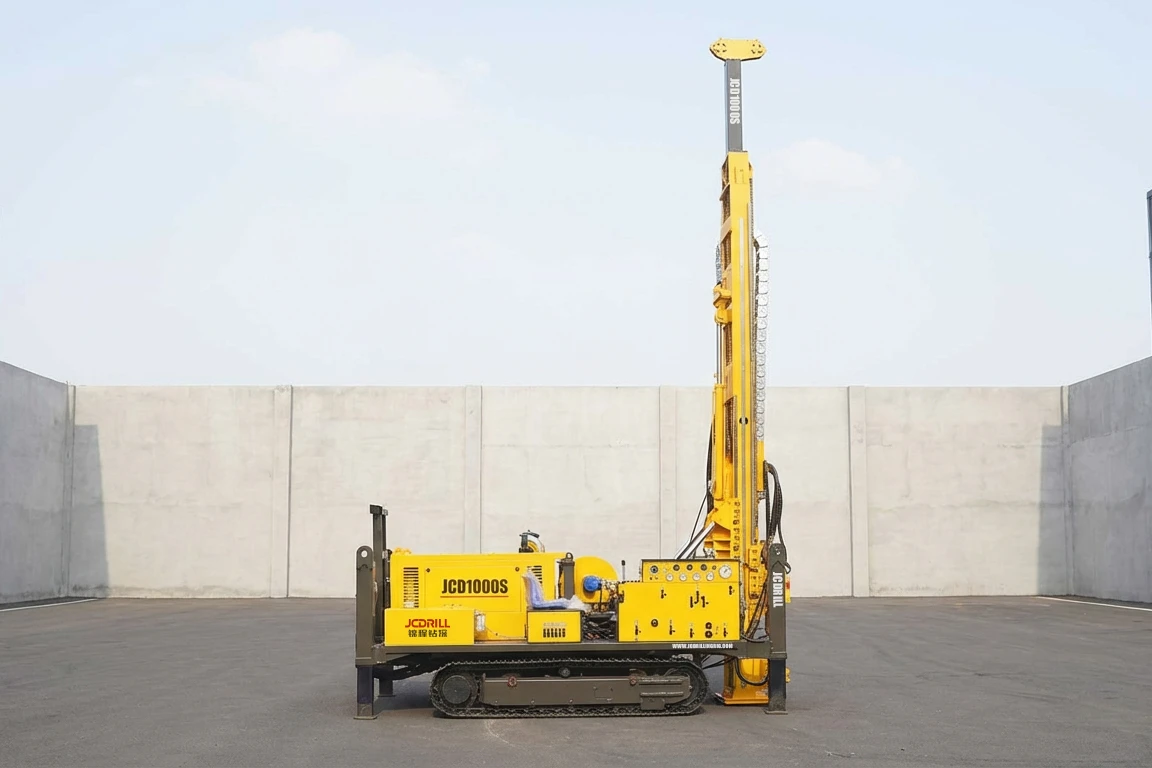

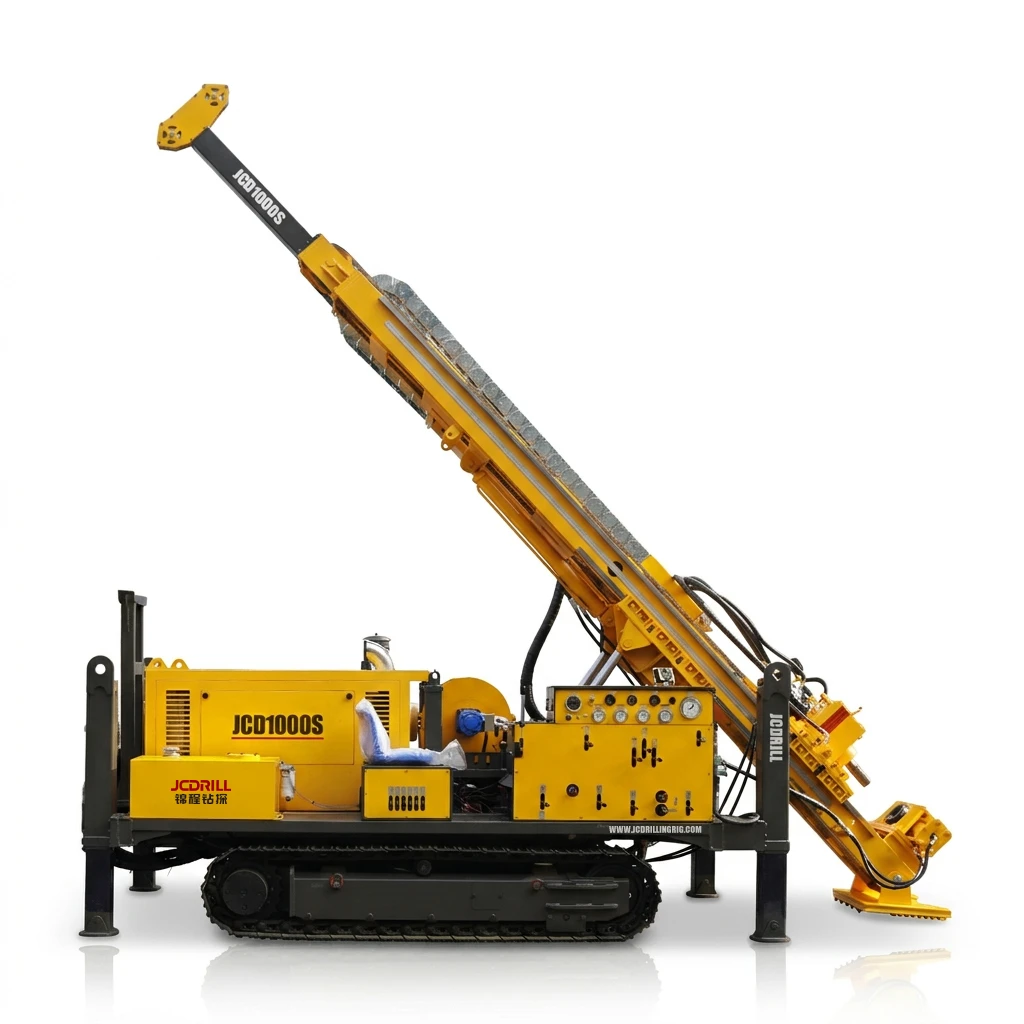

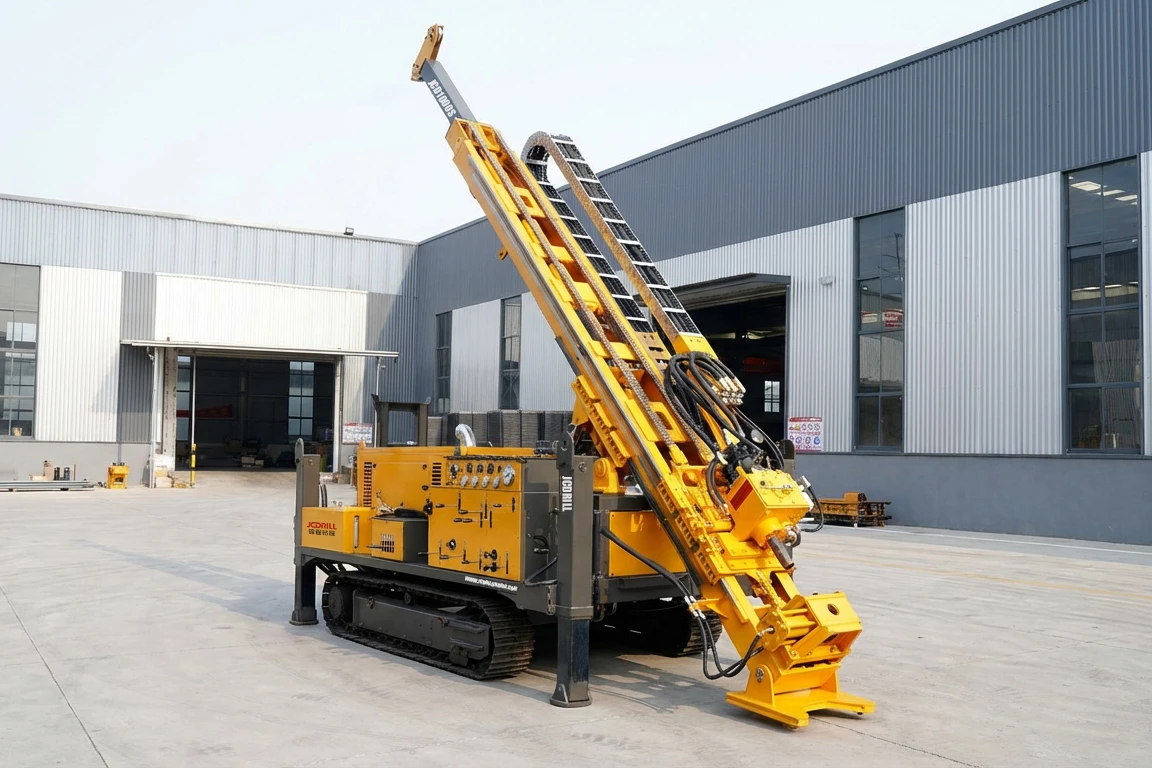

The JCD1000S is a robust crawler-mounted diamond core drilling rig engineered for demanding deep-hole projects in challenging geological environments. Featuring a powerful 118kW YUCHAI turbocharged diesel engine and a high-capacity 300L/min hydraulic system at 28MPa, it delivers exceptional torque up to 3500Nm and a 28-ton pull-up capacity. The rig supports HTW, NTW, and BTW drilling standards with depths reaching 1400 meters. Its one-piece ground-touching mast allows angle adjustments from 45° to 90°, while the 3500mm feed stroke enables efficient long-interval core recovery. Equipped with a BW-150 mud pump and 1100-meter rope hoist, it ensures stable flushing and lifting. Designed for mobility, it offers a 3.5 km/h walking speed, 40° climbing ability, and dual manual/remote controls for enhanced field autonomy and performance in large-scale mineral exploration.

Inquire Now Brochure PDF

Functions and Features

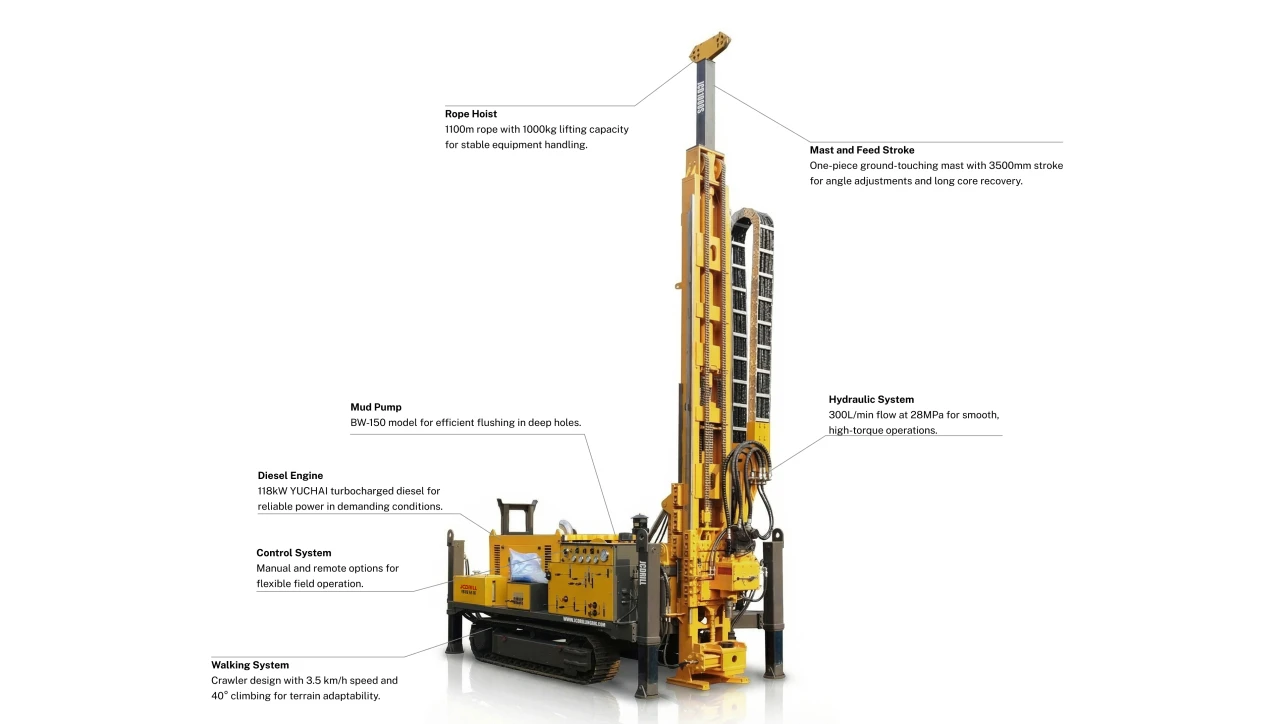

Main Components

Extended Feed Stroke and Capacity: Features a 3500mm feeding stroke and 28-ton lifting capacity, allowing precise penetration through thick geological layers and longer core runs with minimal interruptions.
Versatile Mobility and Control: Offers dual manual and remote operation modes, a walking speed of 3.5 km/h, and 40° climbing capability, making it ideal for complex terrain with reinforced structure for endurance and flexibility.

Powerful Hydraulic Performance: Integrates a 118kW turbocharged engine with a 300L/min hydraulic system at 28MPa, providing sustained high torque and smooth control for continuous deep drilling in resistant formations.
Efficient Flushing and Lifting: Includes a BW-150 mud pump and 1100-meter rope hoist with 1000kg capacity, ensuring reliable fluid circulation and equipment handling in extended deep-hole operations.

Product Description

The JCD1000S Crawler High-Torque Hydraulic System Diamond Core Drilling Rig is a heavy-duty drilling solution developed for deep mineral exploration and large-scale geological projects in challenging environments. It supports HTW, NTW, and BTW wireline diamond core drilling, with drilling depths of 500 m, 1100 m, and up to 1400 m, making it suitable for high-demand deep-hole applications.
Powered by a 118 kW YUCHAI turbocharged diesel engine and a high-capacity hydraulic system (300 L/min, 28 MPa), the JCD1000S delivers exceptional torque output up to 3500 Nm and a 28-ton pull-up capacity for stable and efficient drilling in hard and complex formations. The rig features a ground-touching one-piece mast adjustable from 45° to 90°, an extended 3500 mm feed stroke, a BW-150 mud pump, and an 1100 m rope hoist, ensuring reliable performance, strong adaptability, and high efficiency in deep exploration operations.

High-Torque Hydraulic Drilling System

The high-output engine and hydraulic system deliver sustained torque and smooth control, ensuring stable deep-hole drilling performance in hard and resistant formations.

Extended Feed Stroke & Deep Coring Capability

With a 3500 mm feed stroke and strong pull-up capacity, the JCD1000S enables longer core runs and efficient penetration through thick geological layers.

Heavy-Duty Mobility & Field Control

The crawler chassis, combined with manual and remote control operation, provides strong mobility, climbing ability, and operational flexibility in rugged and remote field environments.

Product Specifications

Specification	Unit	JCD1000S
Drilling Capacity
Drill Diameter		HTW-NTW-BTW
Drill Depth	m	500-1100-1400
Hydraulic System
Rated Pressure	MPA	28
Rated Flow	L/min	300
Heat Dissipation		Air Cooling
Engine
Brand		YUCHAI
Type		Turbocharger
Rated Speed	RPM	2400
Rated Power	kW	118
Drilling System
Torque	N.M.	1000-3500
Speed	RPM	1300
Tower Type		One-piece Ground-touching
Feeding Stroke	mm	3500
Drilling Angle	°	45-90
Max. Pull Up Capacity	Ton	28
Max. Push Down Capacity	Ton	14
Rope Hoist
Lifting Capacity	kg	1000
Speed	RPM	100-300
Wire Rope Diameter	mm	6
Rope Capacity	m	1100
Walking System
Operation Type		Manual & Remote Control
Walking Speed	KM/H	3.5
Climbing Angle	°	40
Mud Pump
Model		BW-150
Flow	L/MIN	0-150
Pressure	MPA	0-7
Hydraulic Generator
Type	Variable Frequency Brushless, Maintenance-Free
Power	kW	11
Voltage	V	220/380
Weight & Dimensions
Transport Size	mm	600021002400
Weight	Ton	8.5
