BTW, NTW, HTW, PTW
English
Hole Range
BTW, NTW, HTW, PTW
Hole Depth
200, 600, 900, 1200m
Recommend Chassis Type
Truck
Crawler
Trailer

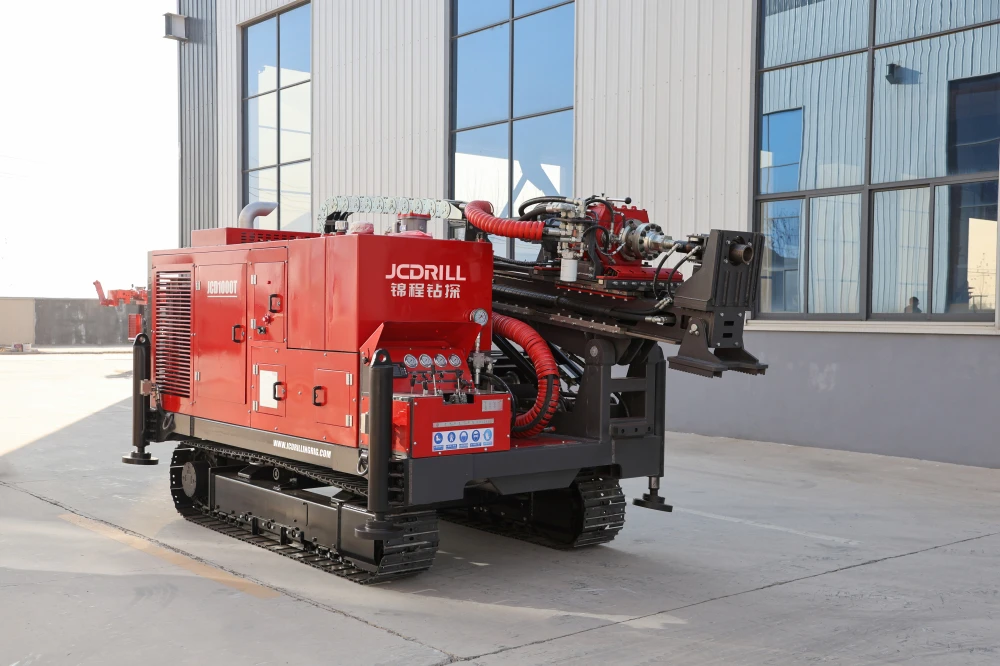

The JCD1000T is a robust, full-hydraulic crawler-mounted diamond core drilling rig engineered for demanding mineral exploration tasks. Capable of drilling up to 1200 meters in depth, it features a foldable and extendable mast for easy transport and quick setup in remote or confined areas. The rig supports multi-angle drilling from 45° to 90°, with hydraulic outriggers ensuring stability on challenging terrain. Its adjustable rotary head with side-shift facilitates efficient rod handling and precise control. Powered by a reliable Cummins diesel engine, the JCD1000T combines high torque, stepless speed adjustment, and remote-controlled mobility for superior performance in complex geological conditions, making it ideal for deep core sampling and exploration projects.
Features Introduction
Product Description

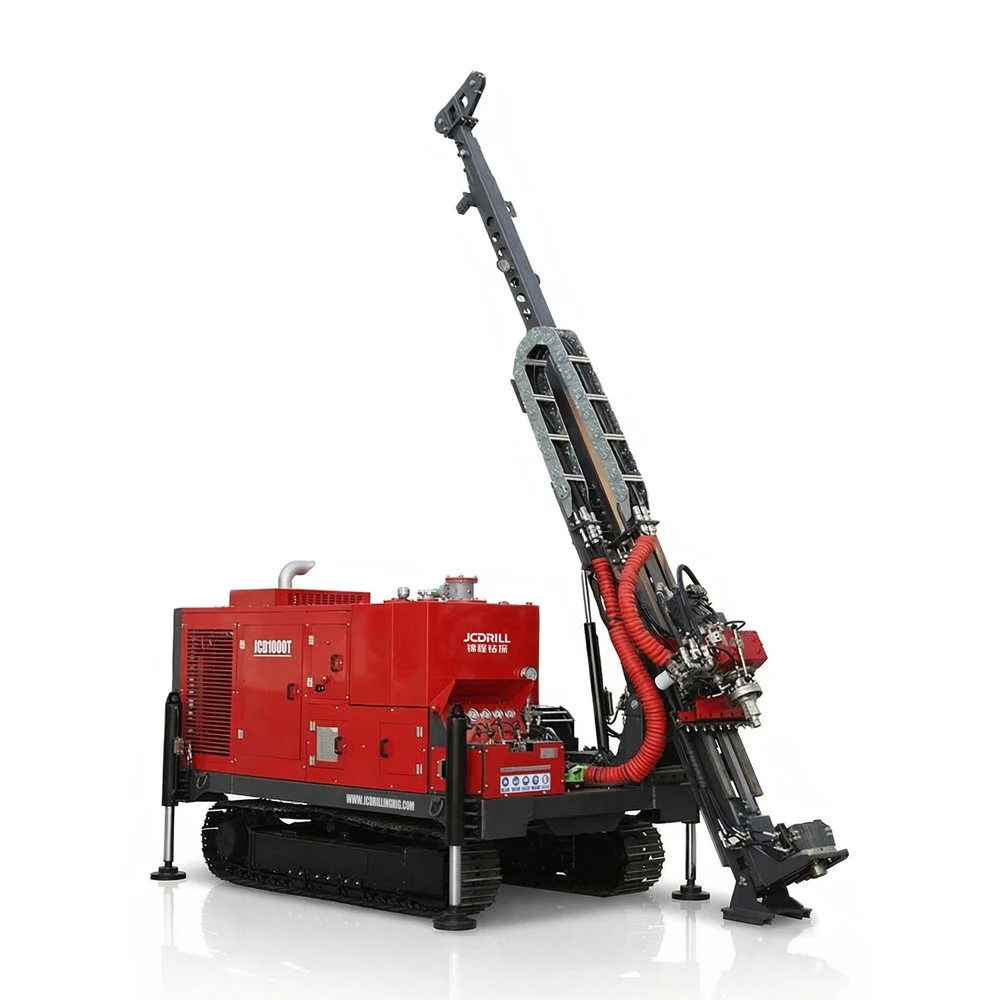

The JCD1000T Crawler Hydraulic Diamond Core Drilling Rig is a high-performance, full-hydraulic rig designed for deep mineral exploration and complex geological projects. It supports BTW, NTW, HTW, and PTW wireline core drilling systems, with drilling depths of 200 m, 600 m, 900 m, and up to 1200 m, making it ideal for deep-core sampling and multi-angle drilling operations in demanding environments.

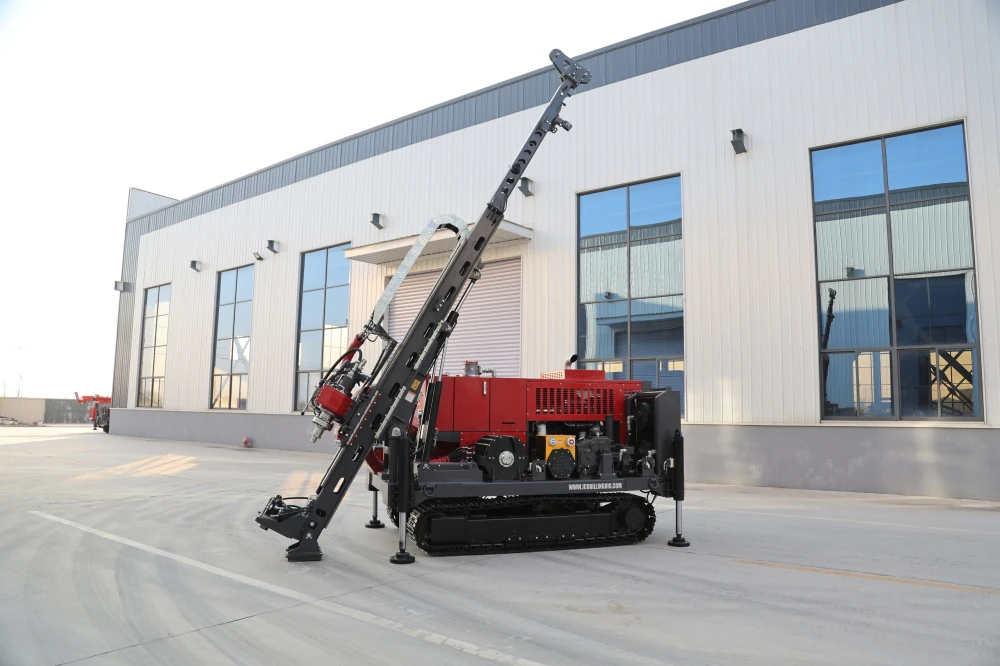

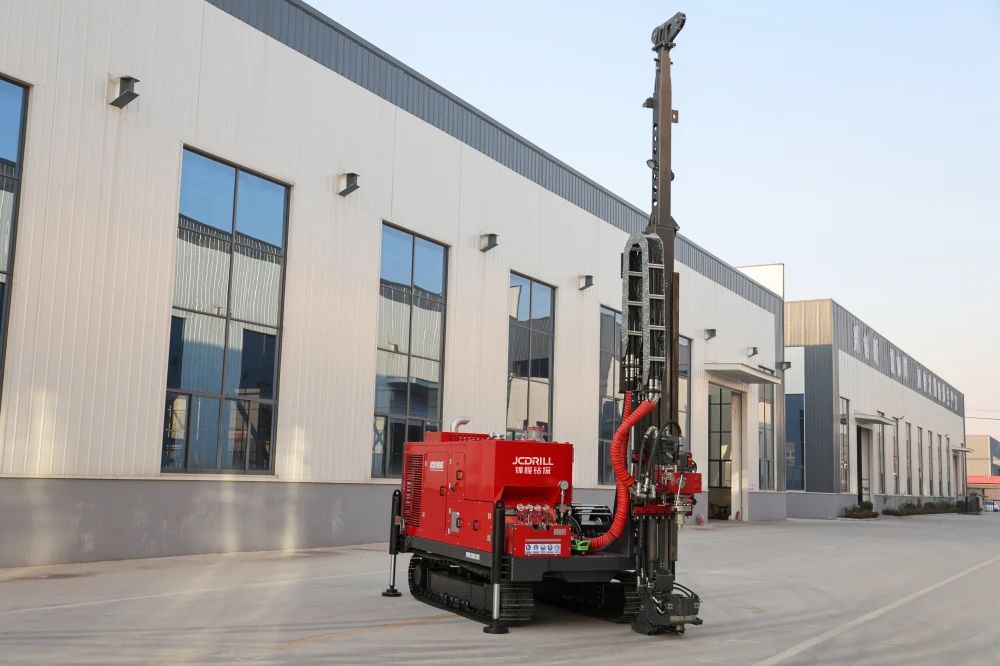

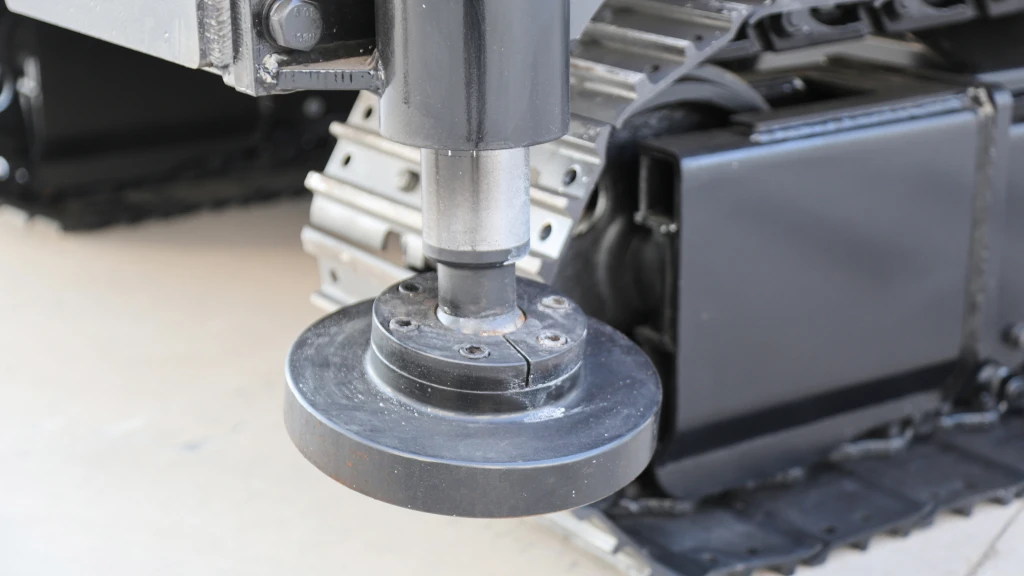

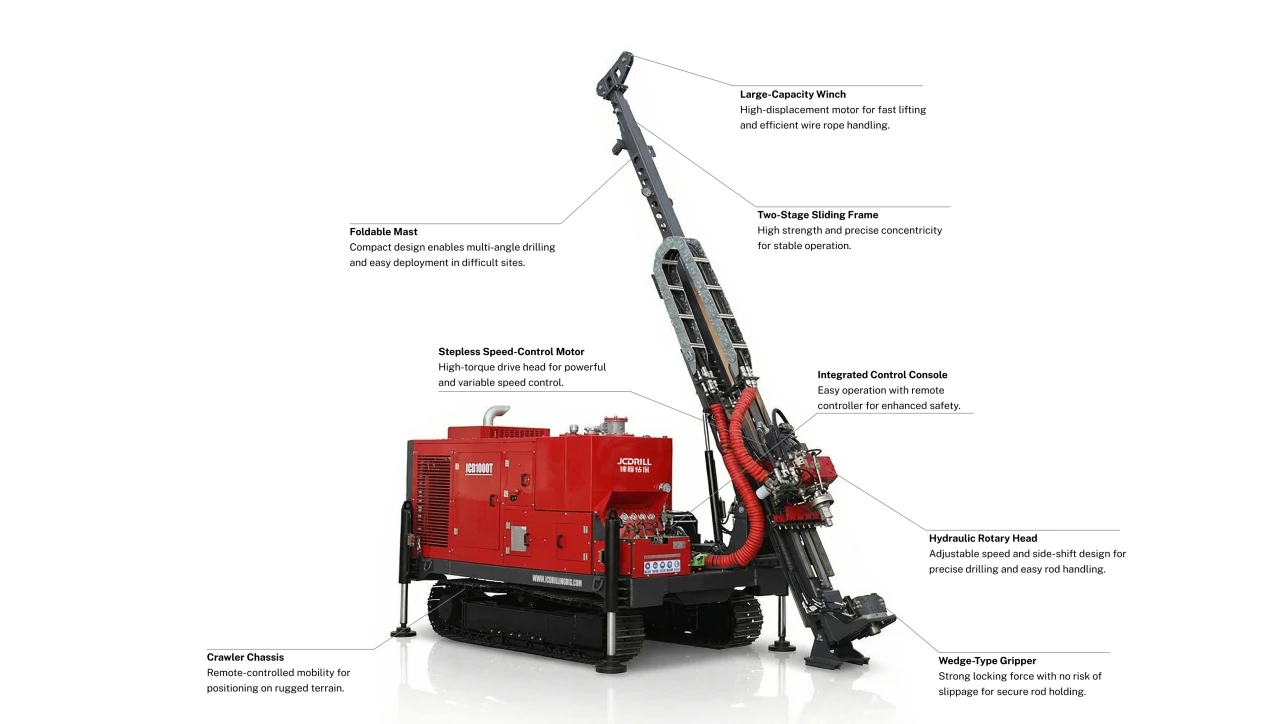

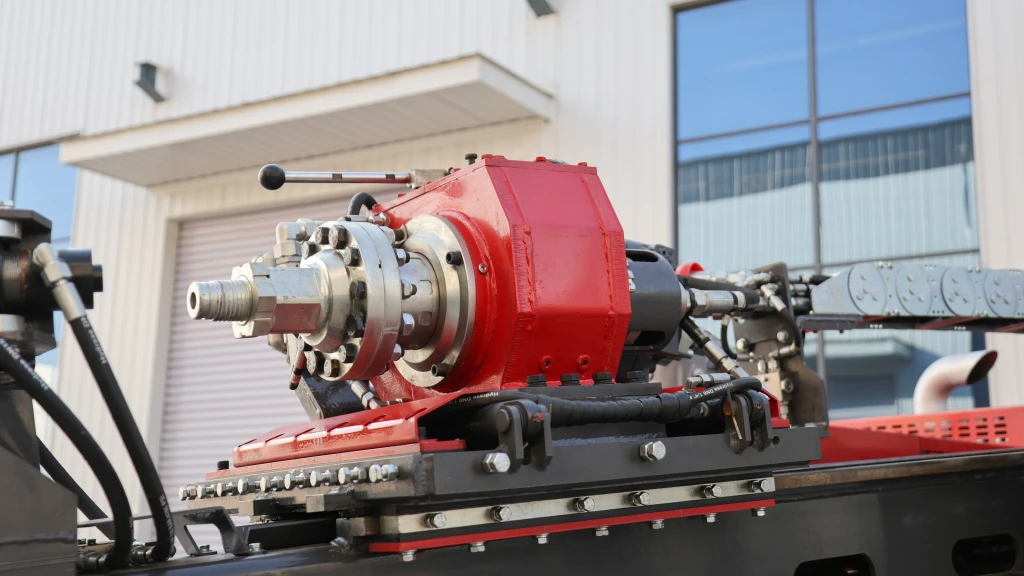

Equipped with a foldable and extendable mast, hydraulic outriggers, and an adjustable rotary head with side-shift, the JCD1000T ensures precise control, efficient rod handling, and rapid setup in remote or confined sites. Powered by a reliable Cummins diesel engine with stepless speed adjustment and remote control mobility, the rig delivers stable torque and high drilling efficiency, combining robust structure, advanced control systems, and field adaptability for consistent performance in challenging terrain.
Product Specifications
| Specifications | Unit | JCD1000T |
| Drilling Capacity | BTW-NTW-HTW-PTW | |
| Drill Depth | m | 1200-900-600-200 |
| Drive Head | ||
| Drive Mode | Forward & Reverse | |
| Transmission Type | Gear Drive | |
| Spindle Speed | rpm | 200-1200 |
| Max Torque | Nm | 2300 |
| Feeding System | ||
| Stroke | Forward & Reverse | |
| Feeding Speed | rpm | Gear Drive |
| Feeding Force | rpm | 200-1200 |
| Drilling Angle | ||
| Drill Pipe Length | Nm | 2300 |
| Engine | ||
| Brand | Cummins | |
| Power | kW | 132 |
| Rated Speed | rpm | 2200 |
| Rod Holder | ||
| Max Inner Diameter | mm | 118 |
| Holding Capacity | kg | 13,000 |
| Hydraulic Winch | ||
| Lifting Capacity | T | 0.6 |
| Lifting Speed | m/min | 150 |
| Wire Rope Capacity | m × mm | 1200 × 6 |
| Dimensions & Weight | ||
| Overall Weight | kg | 7600 |
| Dimensions (L×W×H) | mm | 4500 × 2300 × 2400 |
