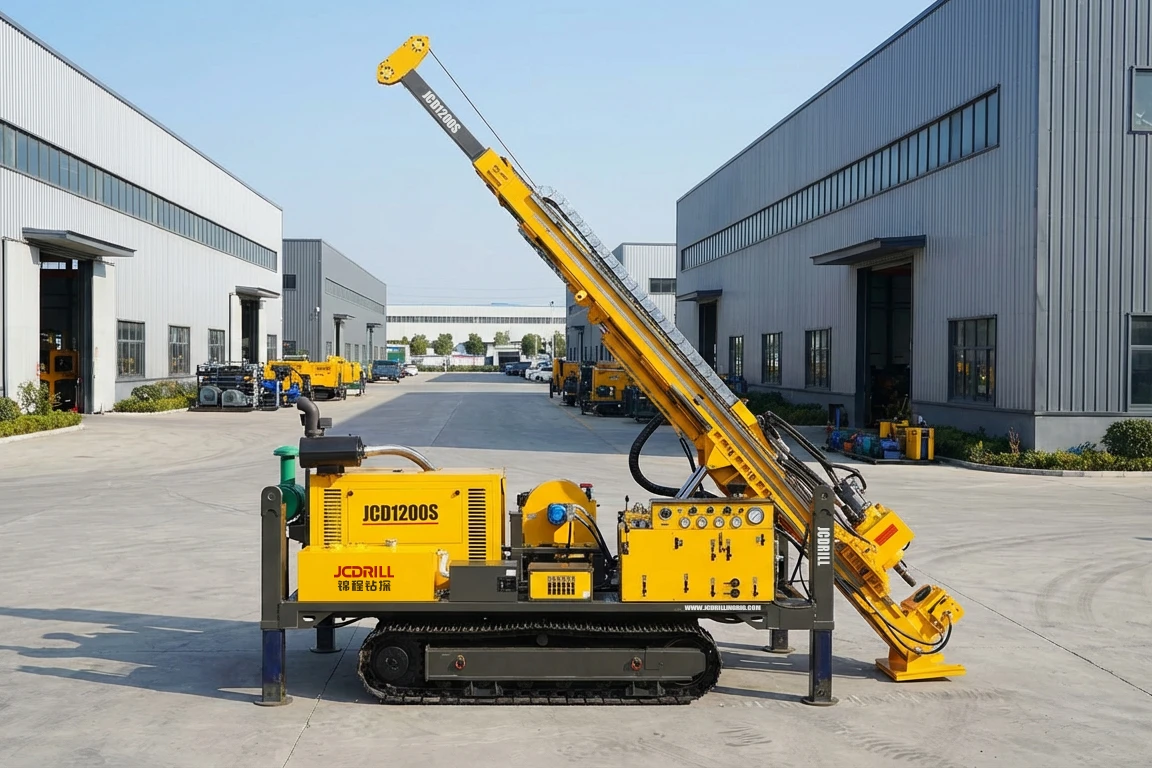

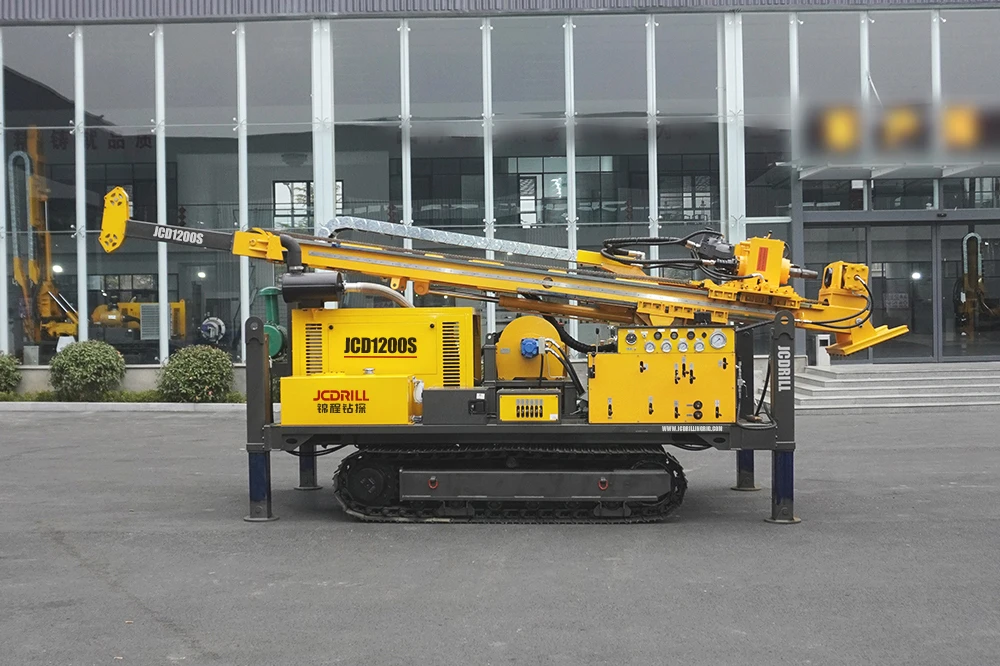

JCD1200S Mineral Exploration and Geological Crawler Diamond Core Drilling Rig for Ultra-Deep

Hole Range

HTW, NTW, BTW

Hole Depth

500m, 1200m, 1500m

Recommend Chassis Type

Truck
Crawler
Trailer

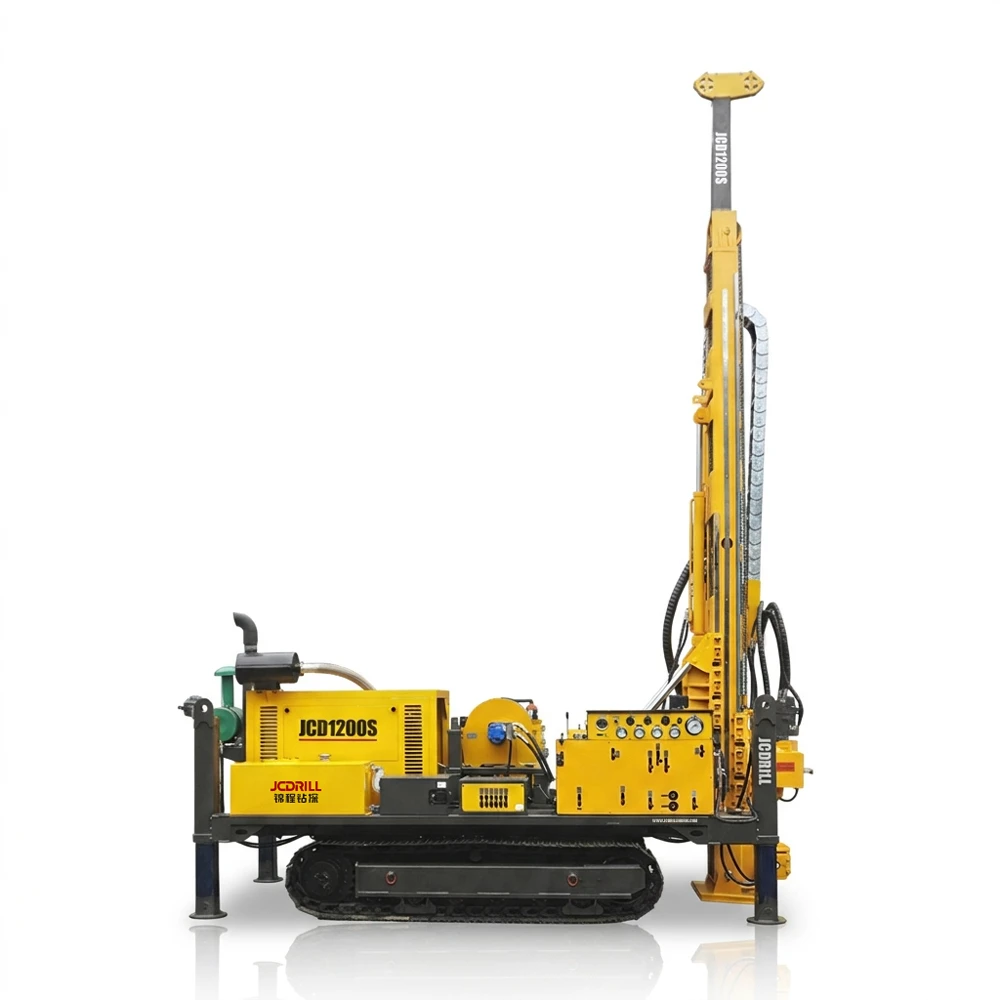

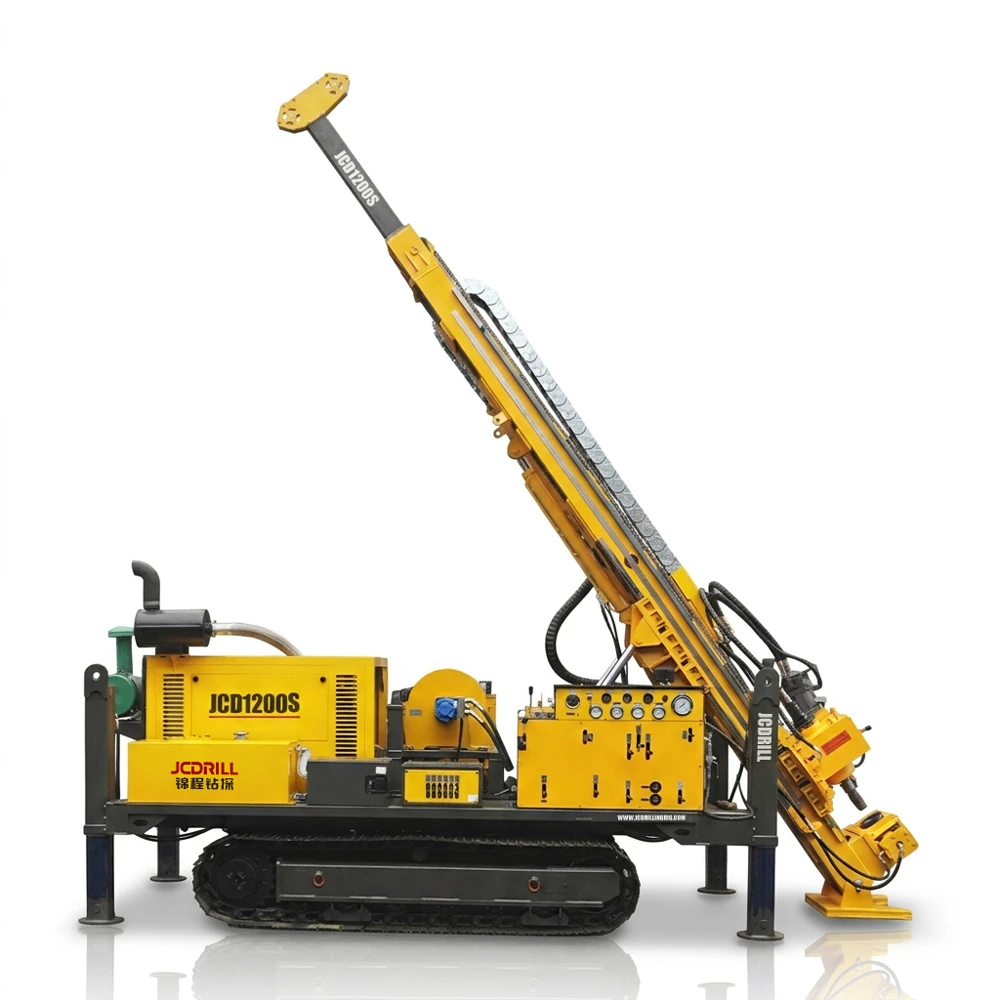

The JCD1200S is a heavy-duty crawler-mounted diamond core drilling rig designed for deep mineral exploration up to 1500 meters. Powered by a 140kW YUCHAI turbocharged engine and a 28MPa hydraulic system, it delivers strong torque, stable performance, and reliable operation in demanding conditions. With a 3500mm feed stroke, 30-ton pull-up capacity, dual-rope hoist system, integrated BW-200 mud pump, and 11kW hydraulic generator, it ensures efficient, self-powered drilling in remote and complex terrains.

Inquire Now Brochure PDF

Functions and Features

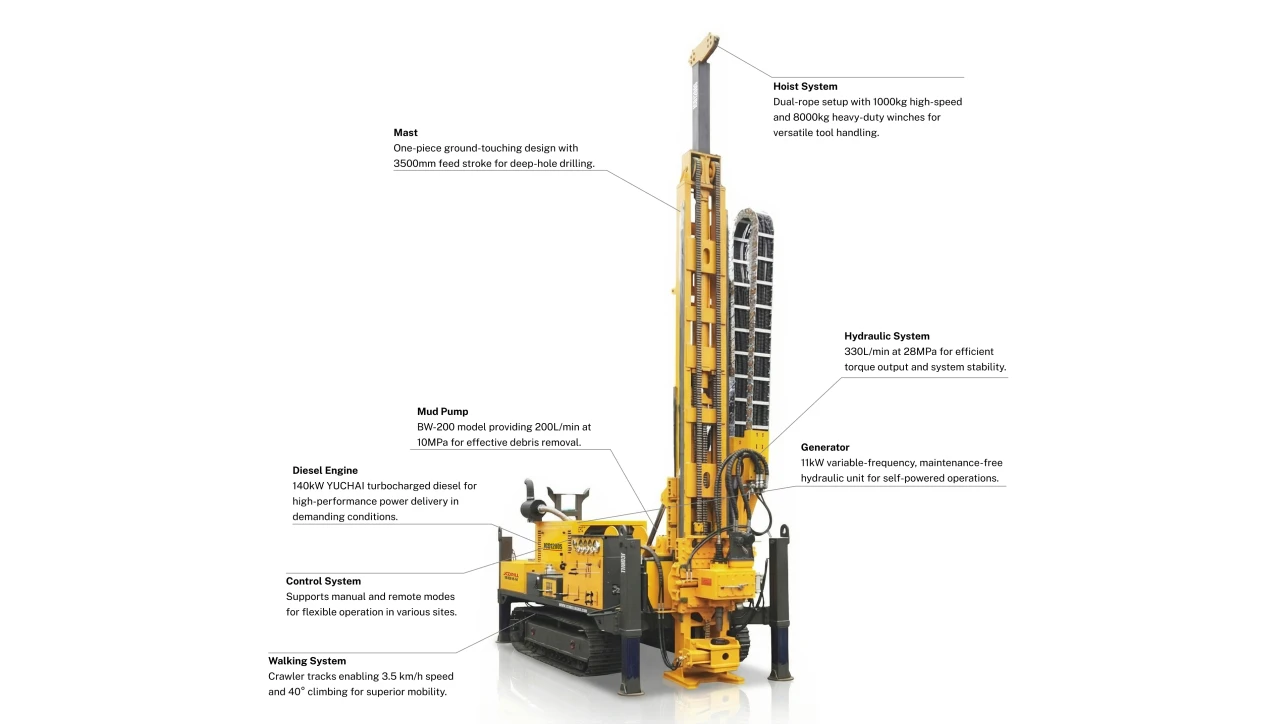

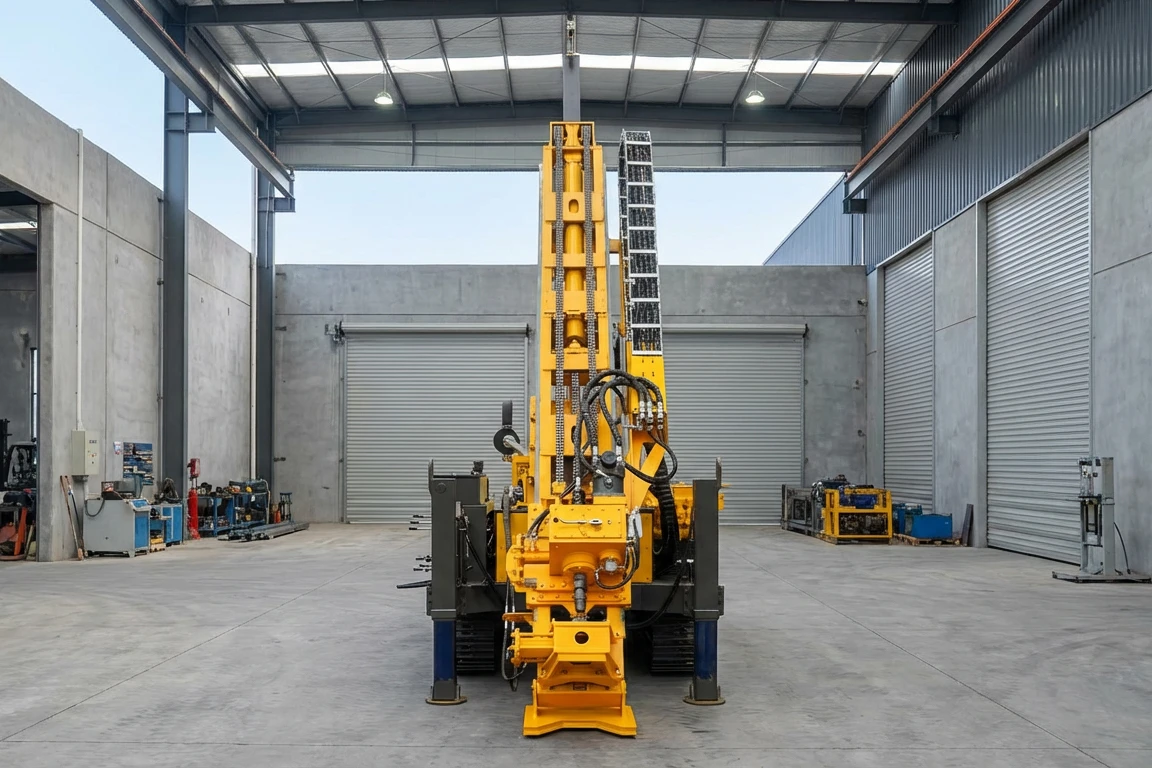

Main Components

Long Feed Stroke and Lifting Capacity Its 3500mm feed stroke and 30-ton lifting capacity provide excellent mechanical advantage for coring through deep, dense, and variable formations with precision and control.
Integrated Mud Pump and Generator Equipped with a 200L/min BW-200 mud pump and onboard 11kW generator, the rig supports sustained operation in remote environments with reliable flushing and self-powered functionality.

Powerful Engine and Hydraulic System Powered by a 140kW YUCHAI engine and a 330L/min hydraulic system, delivering superior torque and continuous high-pressure output for deep and intensive drilling tasks.
Dual-Rope Hoist System Featuring both a 1000kg high-speed line and an 8000kg heavy-duty winch, ensures strong versatility for handling rods, casing, and heavy tools efficiently.

Product Description

The JCD1200S is a robust crawler-mounted diamond core drilling rig engineered for large-scale and ultra-deep exploration projects. It features a powerful 140kW YUCHAI turbocharged diesel engine paired with a 330L/min hydraulic system at 28MPa, delivering exceptional torque and stability for demanding operations. With a 3500mm feed stroke and 30-ton pull-up capacity, it excels in penetrating high-resistance formations at angles from 45° to 90°. The dual-rope hoist system includes a 1000kg high-speed auxiliary winch and an 8000kg heavy-duty hoist for efficient handling of rods, casing, and tools. Equipped with a BW-200 mud pump (200L/min, 10MPa) and an 11kW maintenance-free hydraulic generator, it ensures reliable flushing and self-powered functionality in remote sites. Its mobility, with 3.5 km/h travel speed and 40° climbing ability, combined with remote and manual controls, makes it versatile for various terrains and professional-grade deep mineral coring tasks.

Ultra-Deep Core Drilling Capability

Supports HTW, NTW, and BTW coring with drilling depths up to 1500m, delivering stable and precise performance for large-scale mineral exploration projects.

Powerful Hydraulic Drive System

Powered by a 140kW YUCHAI engine and 330L/min hydraulic system, combined with a 3500mm feed stroke and 30-ton lifting capacity for strong, efficient penetration in hard formations.

Integrated Heavy-Duty & Remote Operation Design

Equipped with dual winches, a BW-200 mud pump, and onboard generator, offering reliable rod handling, self-powered operation, and excellent mobility across challenging terrains.

Product Specifications

Specification	Unit	JCD1200S
Drilling Capacity
Drill Diameter		HTW-NTW-BTW
Drill Depth	m	500-1200-1500
Hydraulic System
Rated Pressure	MPA	28
Rated Flow	L/min	330
Heat Dissipation		Air Cooling
Engine
Brand		YUCHAI
Type		Turbocharger
Rated Speed	RPM	2400
Rated Power	kW	140
Drilling System
Torque	N.M.	1000-3800
Speed	RPM	1300
Tower Type		One-piece Ground-touching
Feeding Stroke	mm	3500
Drilling Angle	°	45-90
Max. Pull Up Capacity	Ton	30
Max. Push Down Capacity	Ton	15
Rope Hoist
Lifting Capacity	kg	1000/8000
Speed	RPM	100-300 / 0-50
Wire Rope Diameter	mm	6/ 16
Rope Capacity	m	1200 / 40
Walking System
Operation Type		Manual & Remote Control
Walking Speed	KM/H	3.5
Climbing Angle	°	40
Mud Pump
Model		BW-200
Flow	L/MIN	0-200
Pressure	MPA	0-10
Hydraulic Generator
Type	Variable Frequency Brushless, Maintenance-Free
Power	kW	11
Voltage	V	220/380
Weight & Dimensions
Transport Size	mm	600021002400
Weight	Ton	9.5
