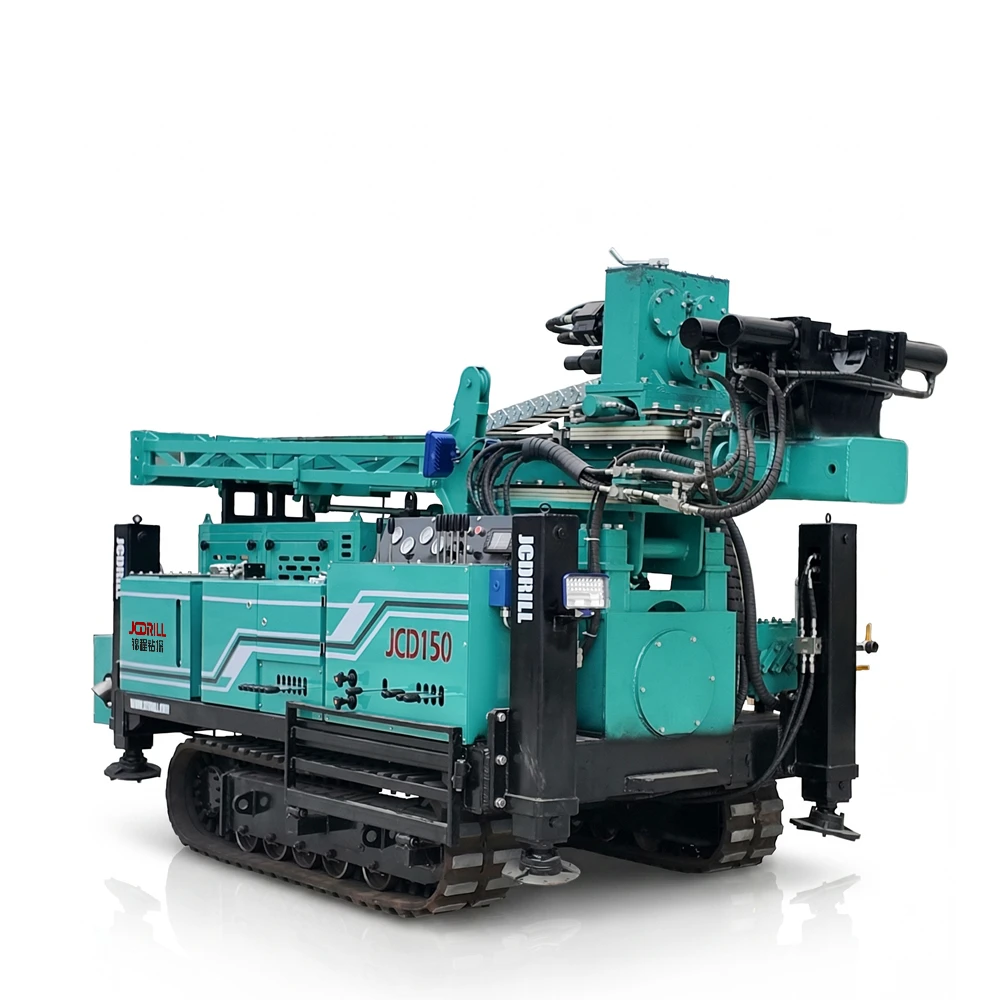

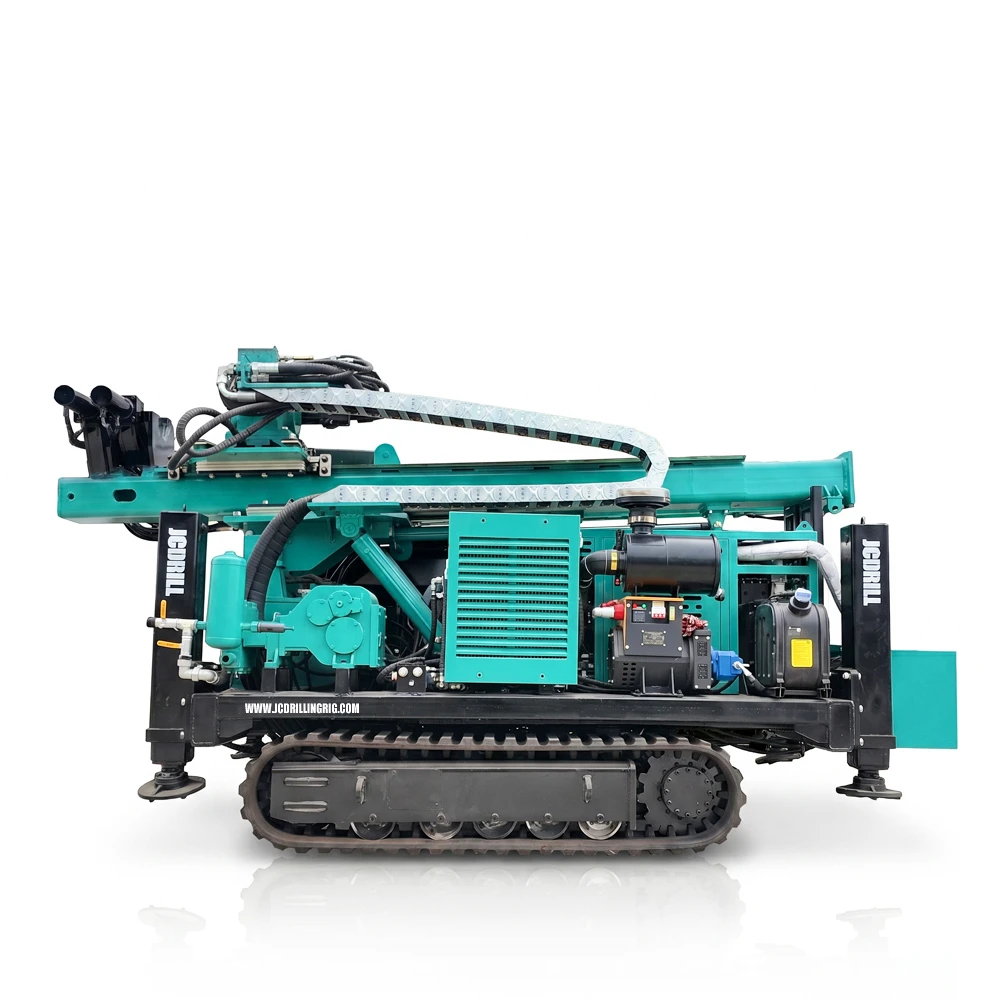

JCD150 Full Hydraulic Portable Core Drilling Rig for Wireline Diamond Drilling

Hole Range

BQ, NQ, HQ

Hole Depth

200m (BQ), 150m (NQ), 120m (HQ)

Recommend Chassis Type

Crawler

The JCD150 is a compact, full hydraulic portable drilling rig designed for geological exploration in remote and hard-to-access areas. It is optimized for wireline diamond coring and can efficiently operate in unconsolidated layers, clay, sand, and rock formations. Featuring a fission-style modular design, it is easy to assemble, disassemble, and transport. Equipped with a robust diesel engine, high-precision hydraulic system, and advanced drill head, the JCD150 delivers high penetration rates, operational reliability, and reduced labor intensity while maintaining energy efficiency and environmental protection.

Inquire Now

Functions and Features

Centralized Control Console All operations, including feed, rotation, and lifting, are conveniently managed from a single console, reducing auxiliary time and improving drilling efficiency.
Modular Fission Design Split-type design enables the rig to be lightweight, portable, and operable in narrow spaces with flexible drilling angles from 45°–90°.
Durable Hydraulic System Mobile hydraulic components with integrated valve blocks and complete circuit protection reduce failure rates and minimize operating costs.

Full Hydraulic Drill Head Hydraulic pumps drive the drill head rotation and feeding cylinder system for full-stroke feeding at both high and low speeds, ensuring smooth and consistent drilling.
Directional Circulation Equipped with a BW160 mud pump, the rig can drill with slurry circulation, effectively removing cuttings in clay, sand, and rock layers.
High Power Density Engine HUADONG 40kW diesel engine provides strong, stable performance with a water-cooled system, energy saving, and low environmental impact.

Product Description

The JCD150 Full Hydraulic Portable Drilling Rig is ideal for diamond core drilling in remote or restricted areas. Its modular fission design allows for easy assembly, transport, and operation in confined spaces. With a high-power diesel engine driving a full hydraulic drill head and feed system, it ensures consistent penetration and drilling precision. The rig can operate with directional mud circulation for efficient cuttings removal. Optional dual hydraulic clamps and remote control make the JCD150 highly adaptable for challenging geological conditions.

Hydraulic Drill Head

Full hydraulic drive allows consistent, high-precision rotation and feed for various rock formations.

Automatic Rod Clamp & Feed

Reduces labor intensity with dual hydraulic clamp option and smooth 2000mm feed stroke.

Portable Modular Design

Lightweight fission-type modules enable easy transport and operation in remote or narrow drilling sites.

Product Specifications

Item	Unit	JCD150
Drill system and operation		Hydraulic
Hole Diameter	mm	BQ NQ HQ
Hole Depth	m	200,150,120
Dimension	mm	275015001650
Weight	Kgs	2300
Winch
Lifting force of hoist	Kgs	400-500
Length of steel wire rope	m	50
Speed		adjustable
Rotation
Rotation Torque	Nm	850
Rotation Speed- adjustable	rpm	500
Rotary Head Swing out		Mechanical swing out
Feed&Mast
Feed Stroke	mm	2000
Drill pipe Length	mm	1500-2000
Control-Mast		Mast compensation, two cylinder clamp
Mud pump
Model		BW160 Hydraulic driven
Flow rate	L/Min	160
Pressure	Bar	8
Engine
Diesel Engine type		HUADONG
Engine Model		HD490
Rated Power	Kw/Hp	48/65
Cooling Method		Water/radiator/Fan
Optional Parts
Safety cage		On mast/removable
Engine		Yanmar 3TNV88
Hydraulic Clamp		5cylinder clamp
