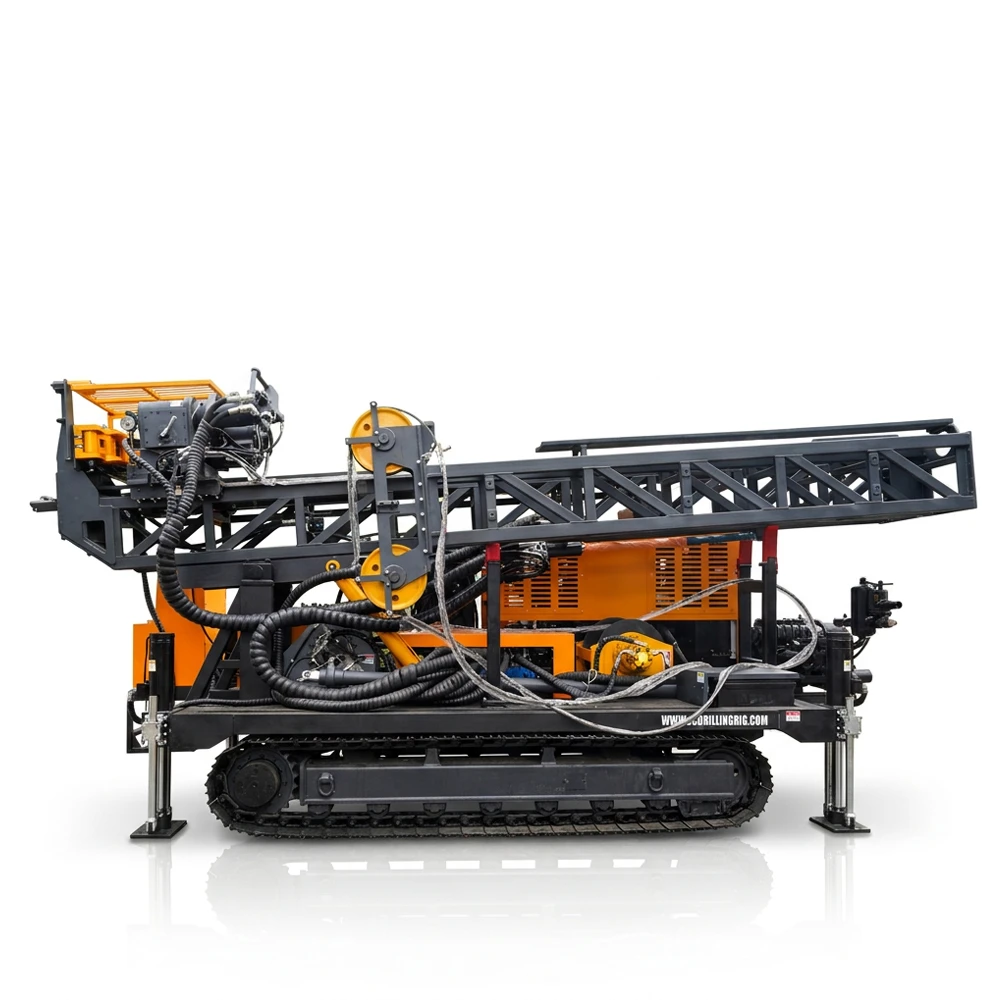

JCD1500 Full Hydraulic Diamond Core Drilling Rig for Exploration

Hole Range

NQ, HQ, PQ

Hole Depth

700, 1000, 1500m

Recommend Chassis Type

Truck
Crawler
Trailer

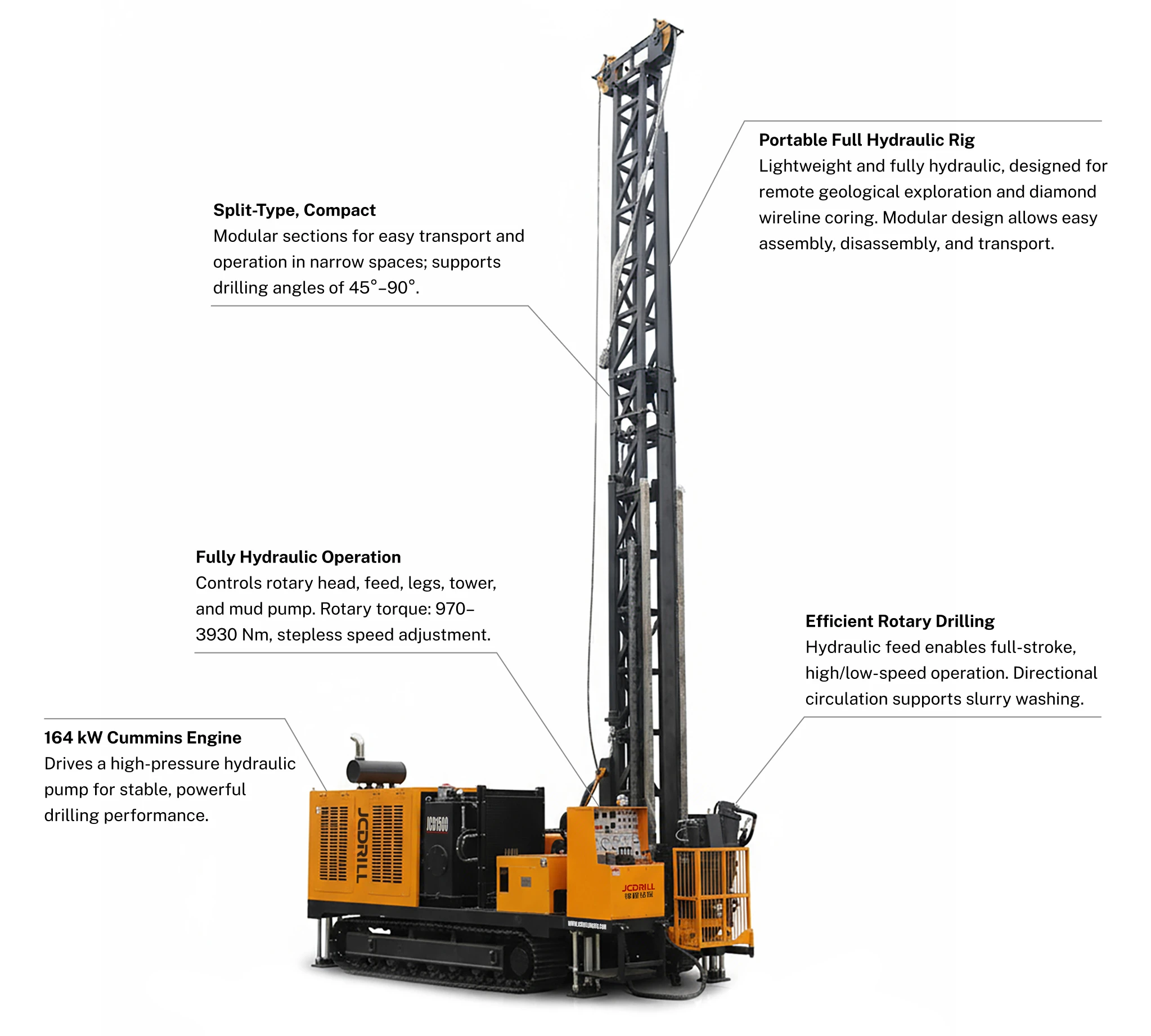

The JCD1500 Full Hydraulic Portable Drilling Rig is a lightweight rig designed for geological exploration in remote, hard-to-access areas. Ideal for wireline diamond coring, it features a diesel power unit, hydraulic system, control panel, mast, winches, drill head, and feed system. Fully hydraulic operation ensures high penetration and reliability, while a modular design allows easy assembly and transport. Hydraulic landing legs, tower, and rotary head (970–3930 Nm, stepless speed) handle complex geological conditions efficiently.

Inquire Now Brochure PDF

Functions and Features

Main Components

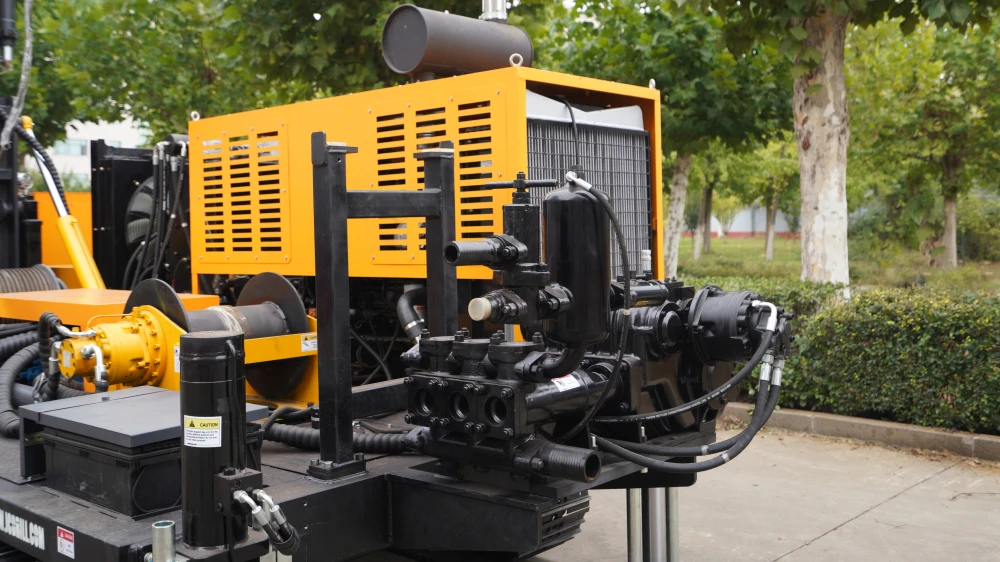

This hydraulic rotary rig supports directional circulation and can be paired with a BW250 mud pump, allowing drilling through clay, sand, or rock with the appropriate bit. Powered by a 164 kW CUMMINS engine driving a high-displacement, high-pressure plunger pump, it delivers stable, robust performance.

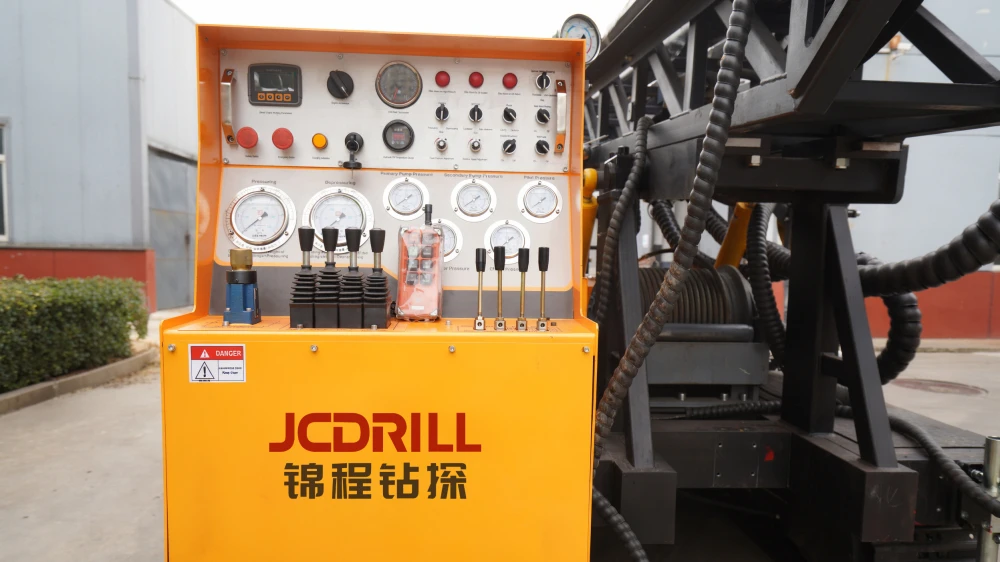

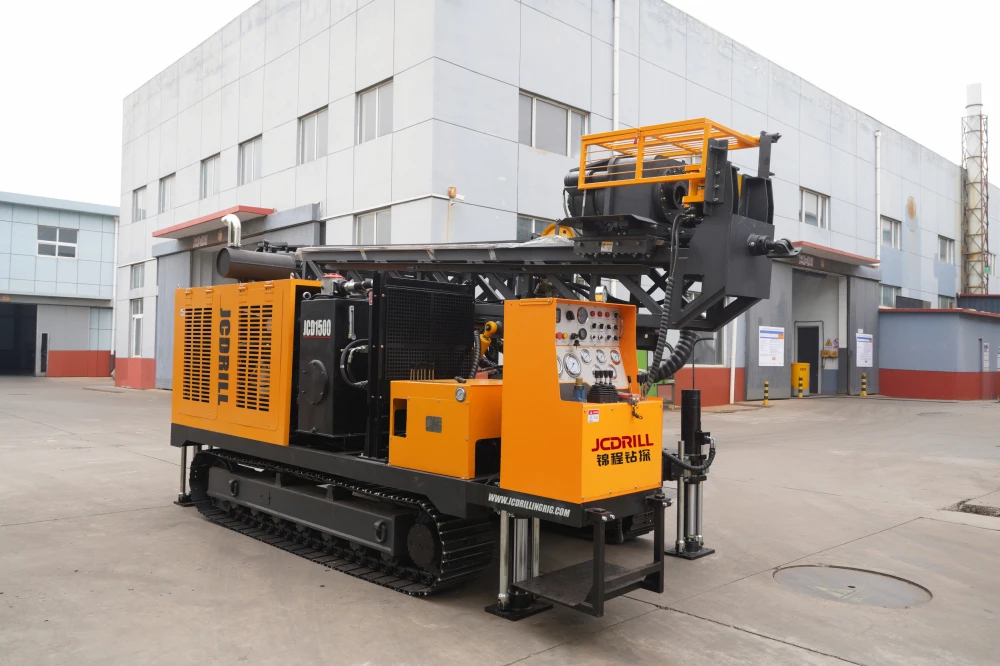

The Full Hydraulic Drill Head Rig features a diesel-driven hydraulic pump that powers both the rotary head and the feeding cylinder, enabling full-stroke feeding at variable speeds. A centralized control console streamlines operations, while rapid lifting and pulling reduce auxiliary time and boost efficiency.

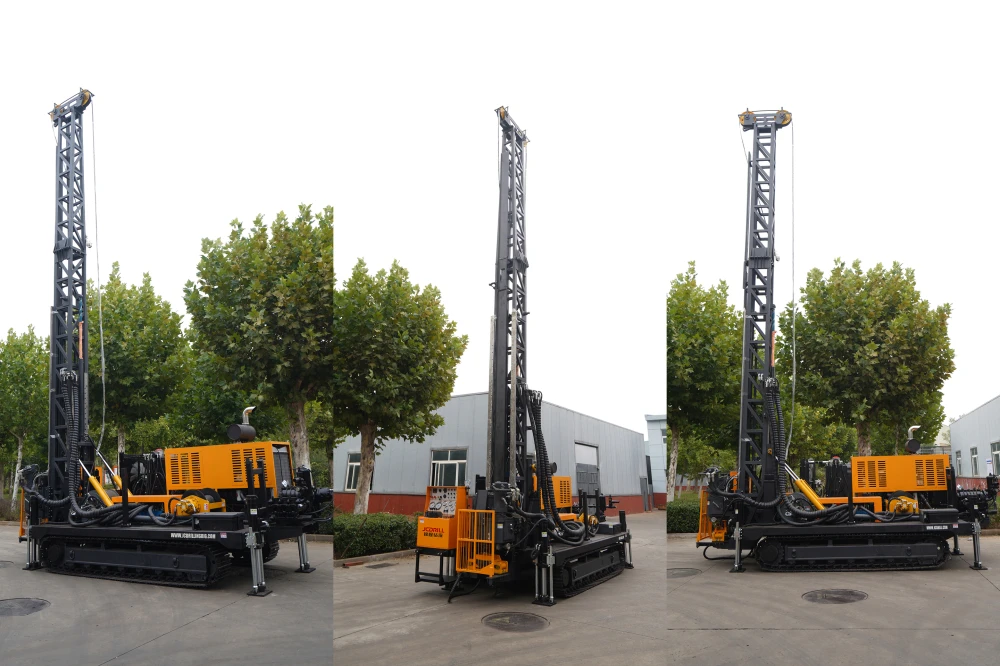

Its split-type design—including power unit, hydraulic tank, operator platform, and drilling section—ensures easy assembly and dismantling, enabling operations in narrow spaces at angles from 45° to 90°.

Features Introduction

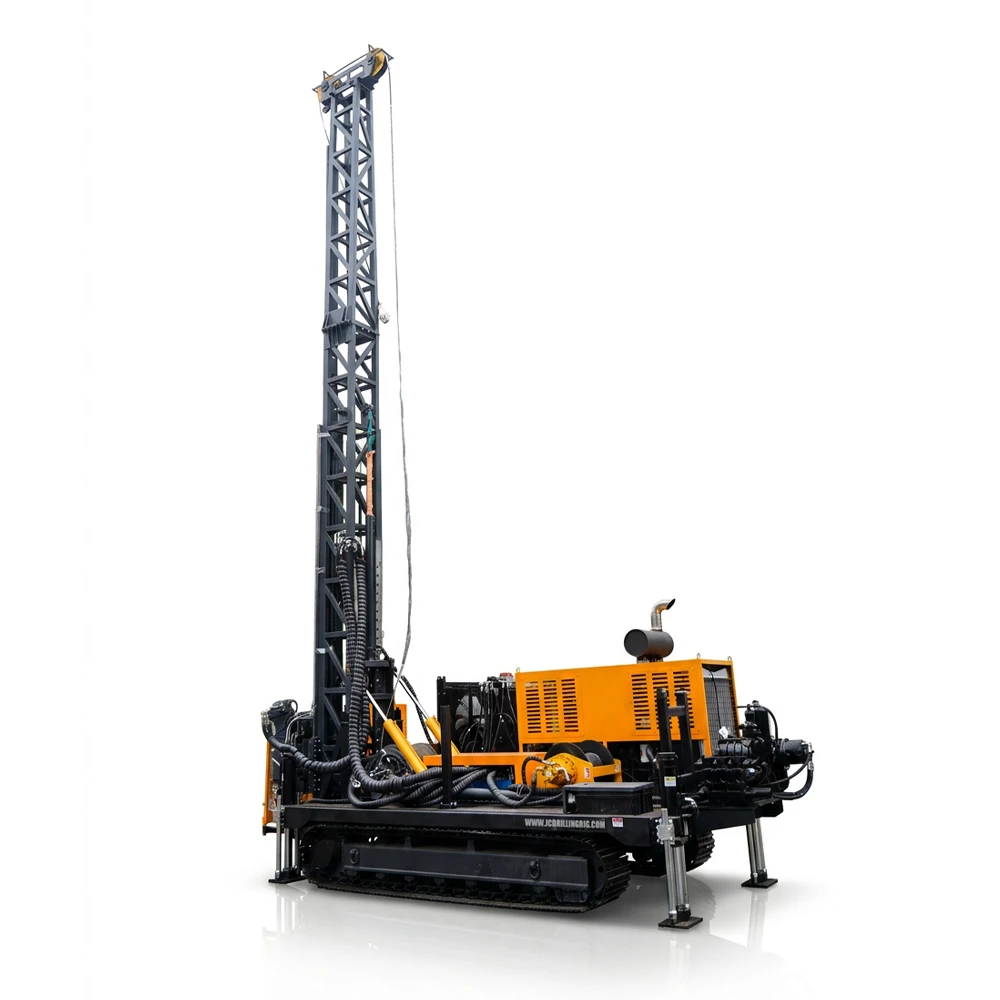

Product Description

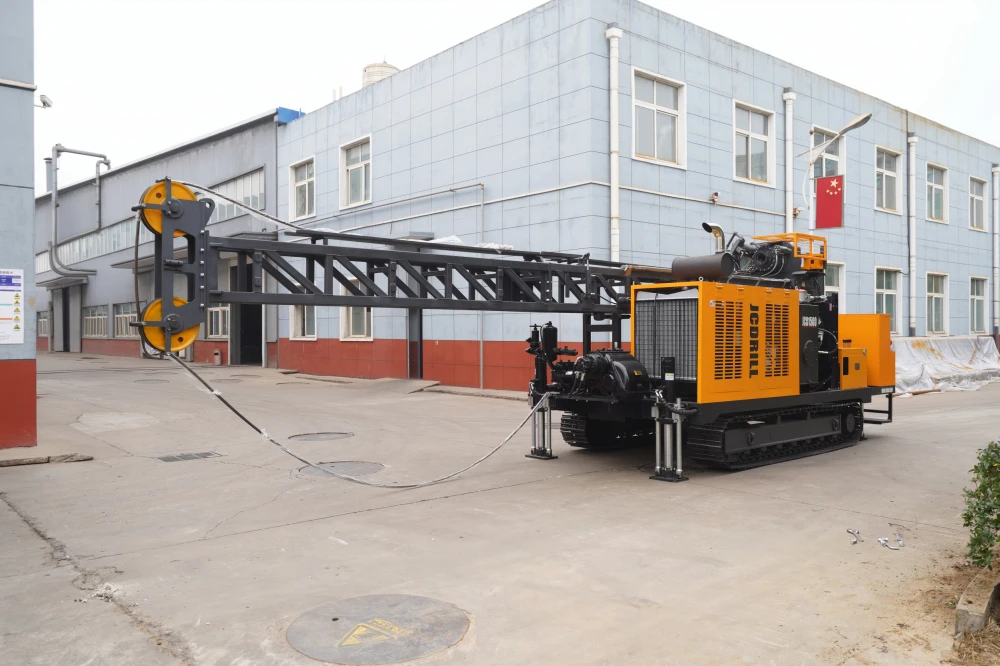

The JCD1500 Full Hydraulic Diamond Core Drilling Rig is a portable drilling rig designed for geological exploration and mineral prospecting. It supports wireline diamond core drilling with NQ, HQ, and PQ hole sizes, and drilling depths of 700 m, 1000 m, and up to 1500 m. Featuring a diesel-powered full hydraulic system and a high-torque rotary head (970–3930 Nm), the rig delivers stable performance and efficient penetration in complex geological conditions.
It supports drilling angles from 45° to 90°, can be equipped with a BW250 mud pump for directional circulation drilling, and is suitable for geological exploration, mineral prospecting, core drilling, and soil investigation, offering a reliable and flexible solution for exploration projects.

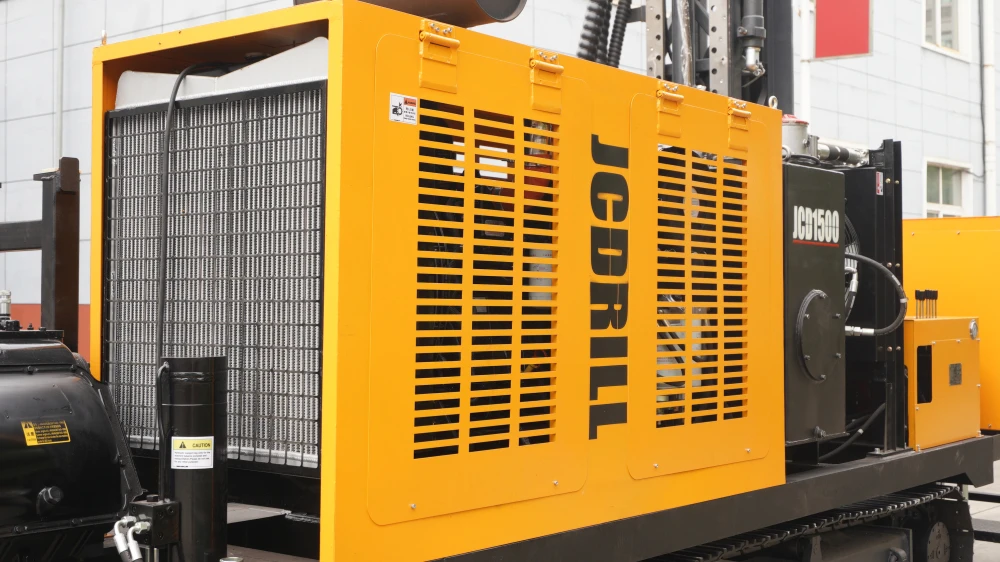

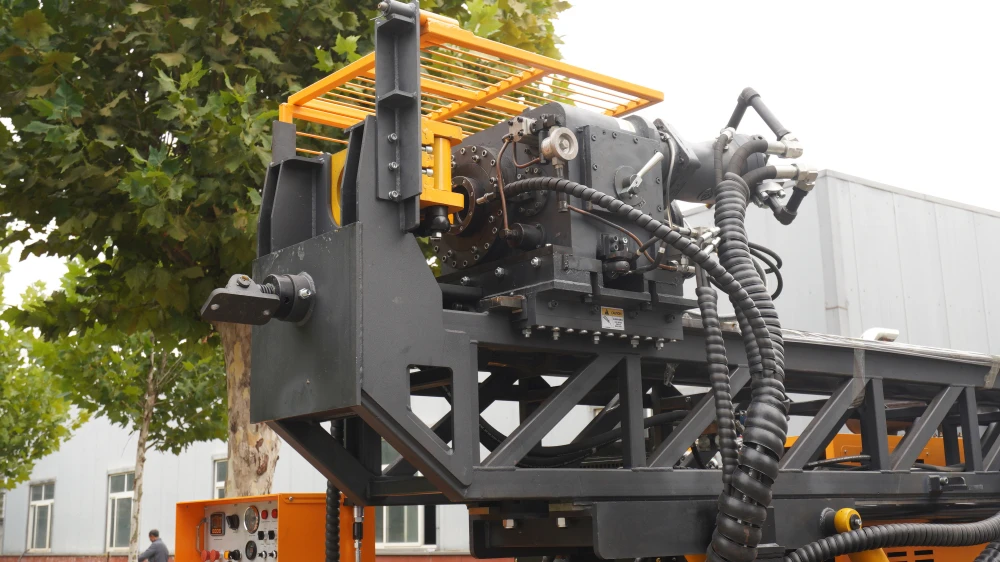

Full Hydraulic Power System

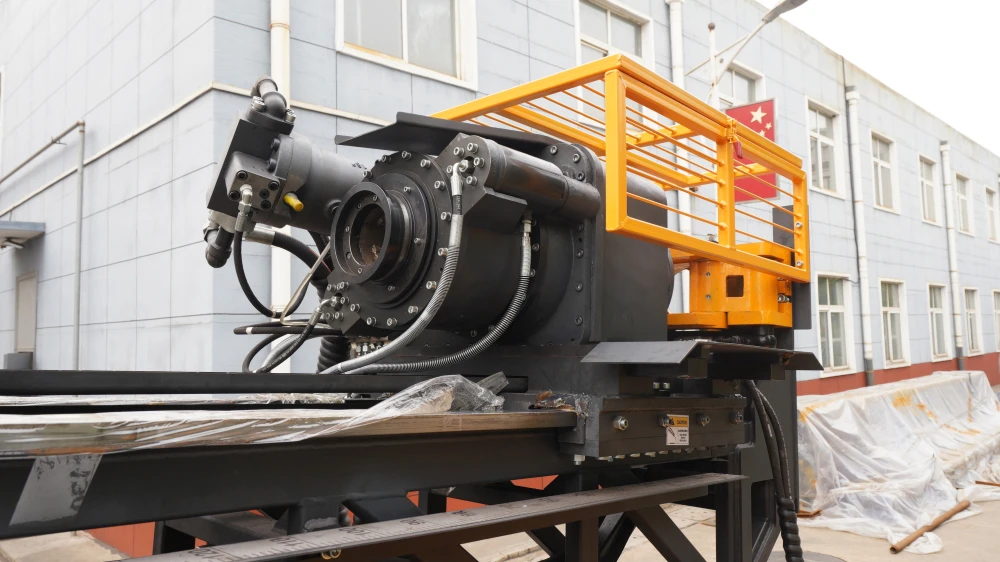

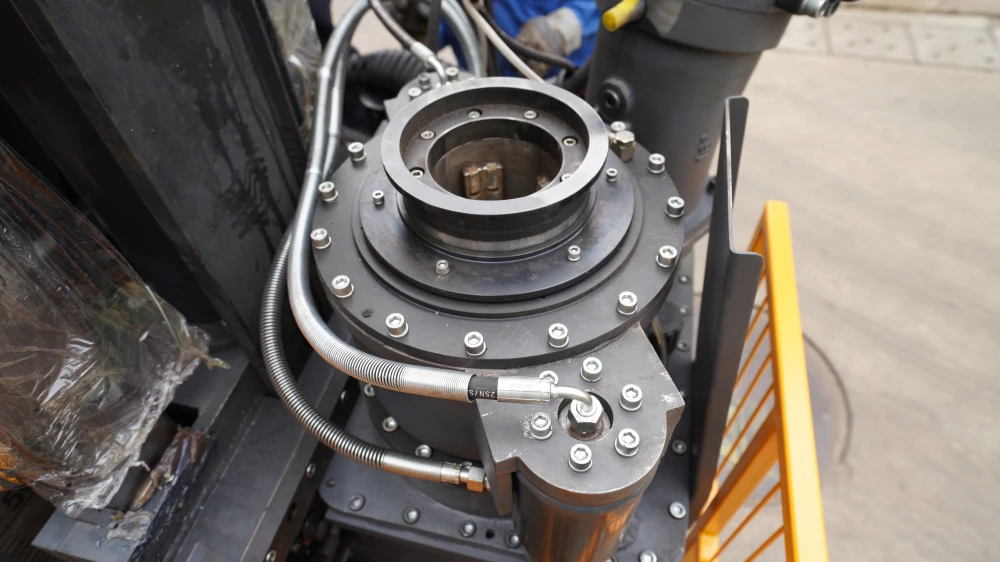

Driven by a diesel-powered hydraulic system, the JCD1500 delivers stable rotation and smooth feeding with stepless speed control. The high-torque rotary head ensures efficient penetration and reliable performance in hard and complex geological formations.

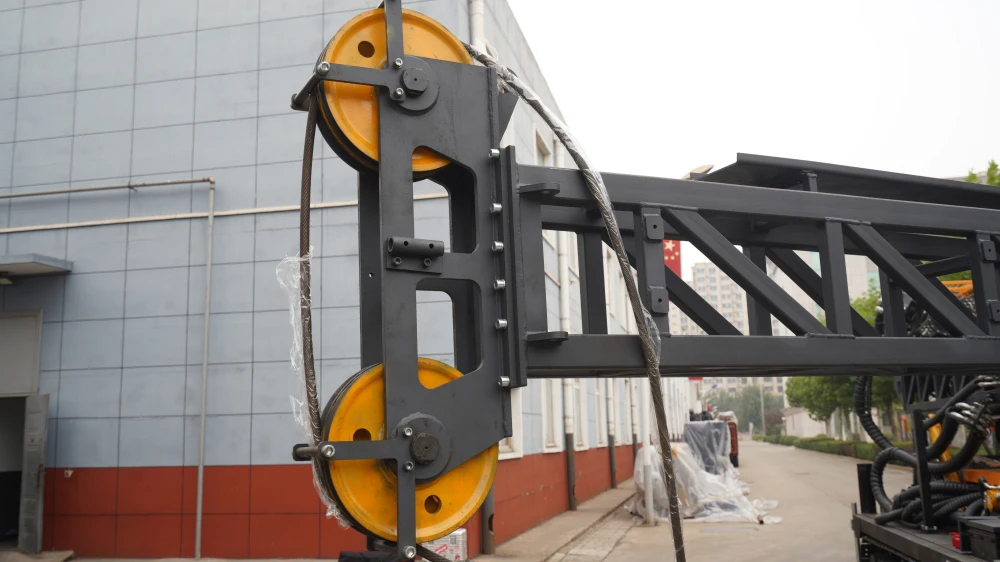

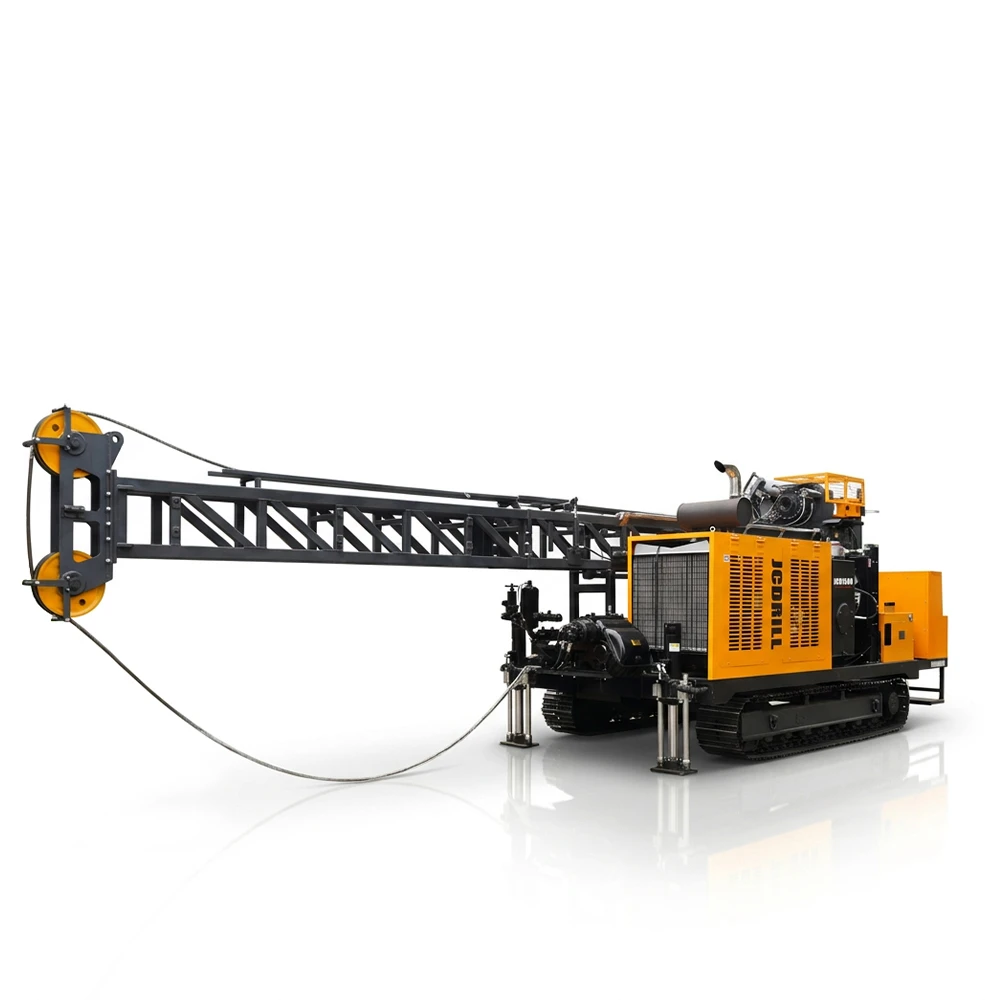

Optimized Structural Layout

The optimized structural layout improves stability during drilling while simplifying on-site installation. It supports flexible working angles and ensures reliable performance under challenging field conditions.

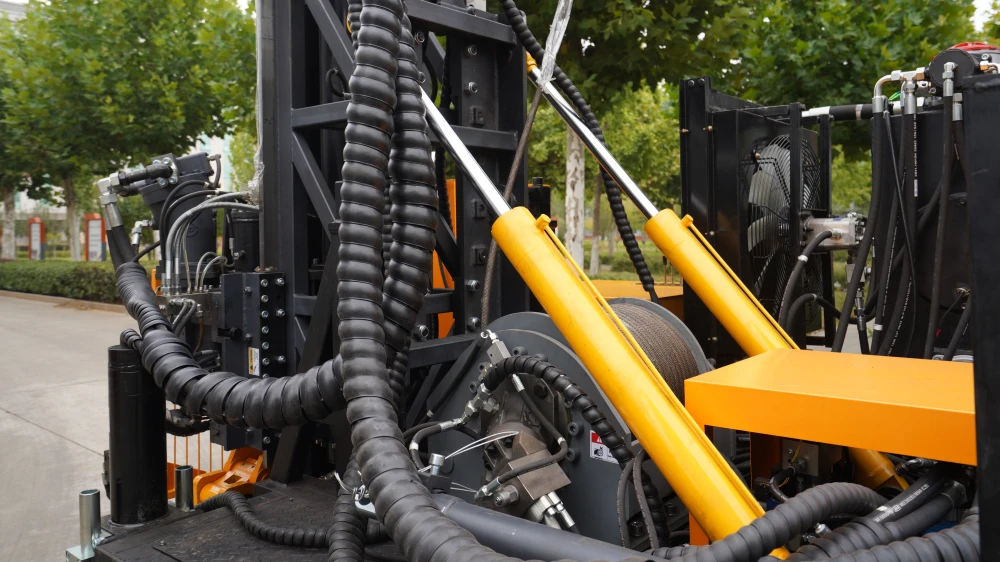

Efficient & Reliable Drilling Performance

Supporting wireline diamond core drilling with NQ, HQ, and PQ sizes, the JCD1500 is suitable for depths up to 1500 m. It can be equipped with a mud pump for directional circulation drilling, ensuring consistent results across various ground conditions.

Product Specifications

Specification	Unit	JCD1500
Drilling Method		Wireline Diamond Core Drilling
Drill Depth	m	700, 1000, 1500
Drilling Diameter		NQ, HQ, PQ
Drill System & Operation		Hydraulic
Mobility		Steel Crawler
Rotation Torque	Nm	Gear-1: 3930-1840
Rotation Torque	Nm	Gear-2: 2060-970
Speed	Rpm	Gear-1: 10-520
Speed	Rpm	Gear-2: 20-1000
Drill Tower Height	mm	9960
Max. Drill Pipe Length	m	6
Drilling Angle	°	45-90
Feeding Mode		Hydraulic Cylinder
Feeding Force	kN	65
Lifting Capacity	kN	170
Main Winch (Single/Double Rope)	kN	95 / 190
Lifting Speed (Single/Double Rope)	m/min	40 / 20
Wireline Coring Winch		Rope Ø6 mm, 1500 m, 18 kN, 110-200 m/min
Diesel Engine	kW	164 (CUMMINS)
Drill pipe length	m	3-6
Drill pipe diameter		BQ, NQ, HQ, PQ
Mud Pump	L/min / Mpa	220 / 3
Weight	kgs	11000
Dimensions	mm	6500×2290×2550
