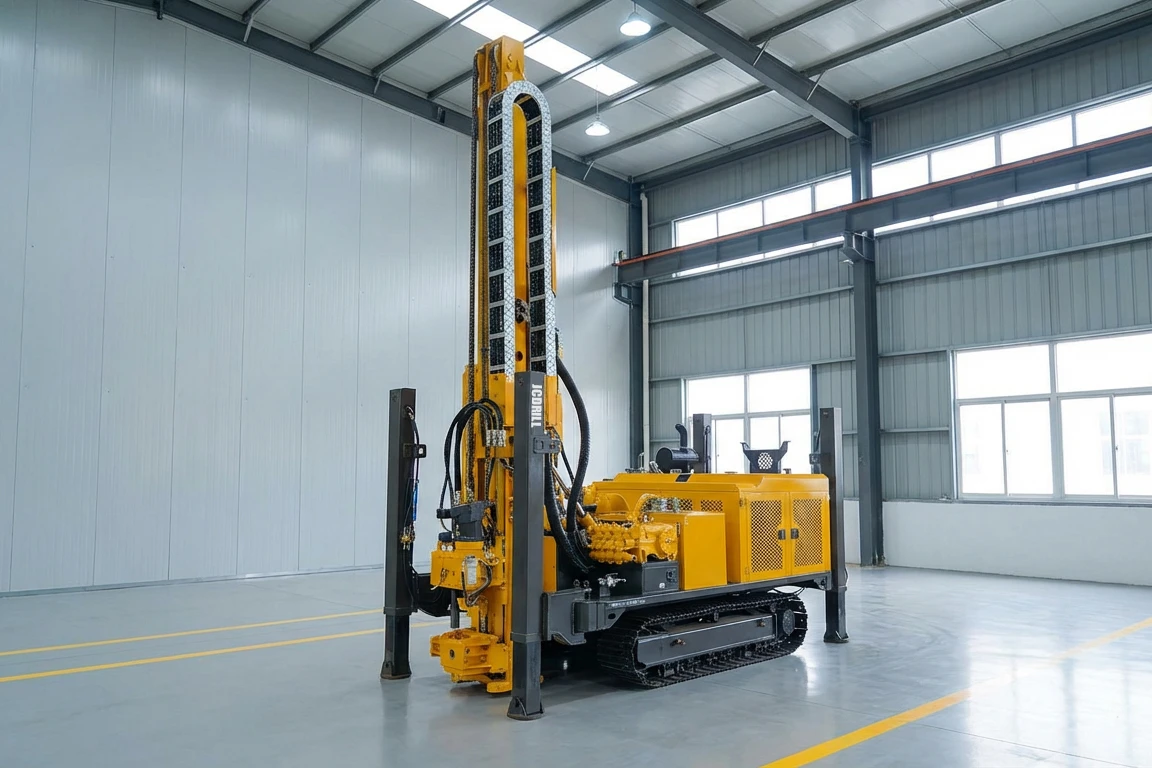

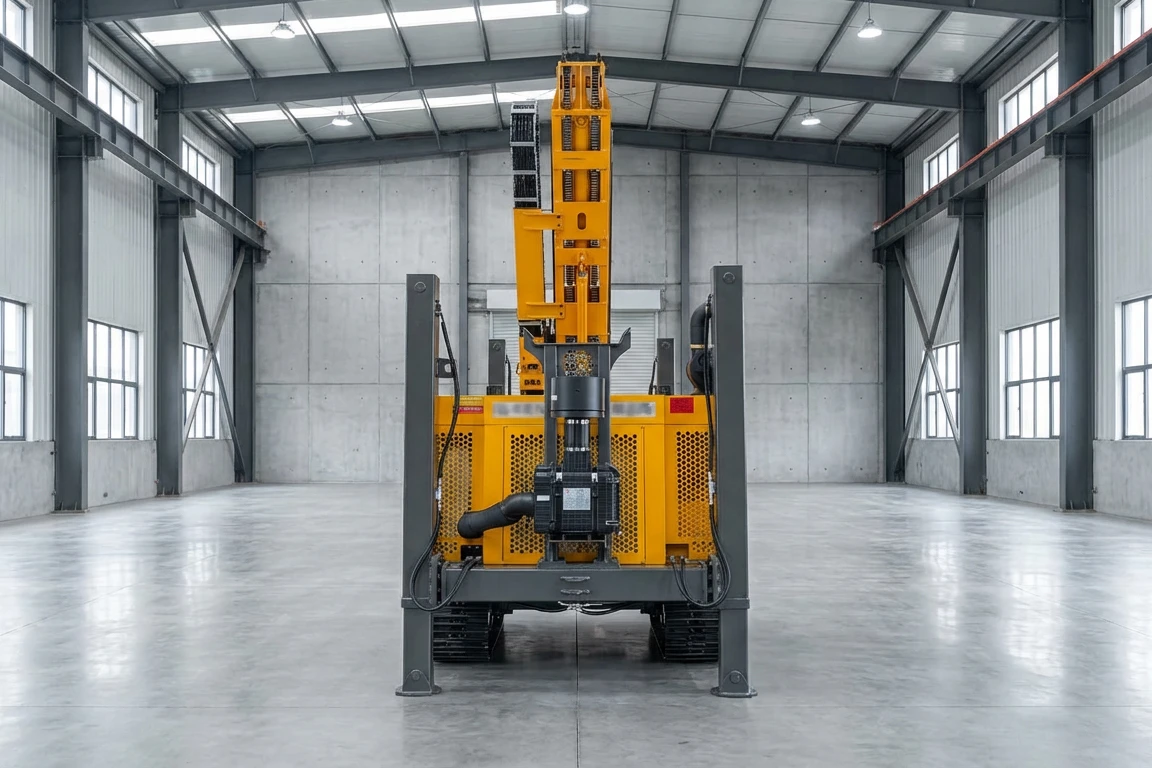

JCD1500S Crawler Diamond Core Drilling Rig for Mineral Exploration and Geotechnical Drilling

Hole Range

HTW, NTW, BTW

Hole Depth

500m, 1500, 1800m

Recommend Chassis Type

Truck
Crawler
Trailer

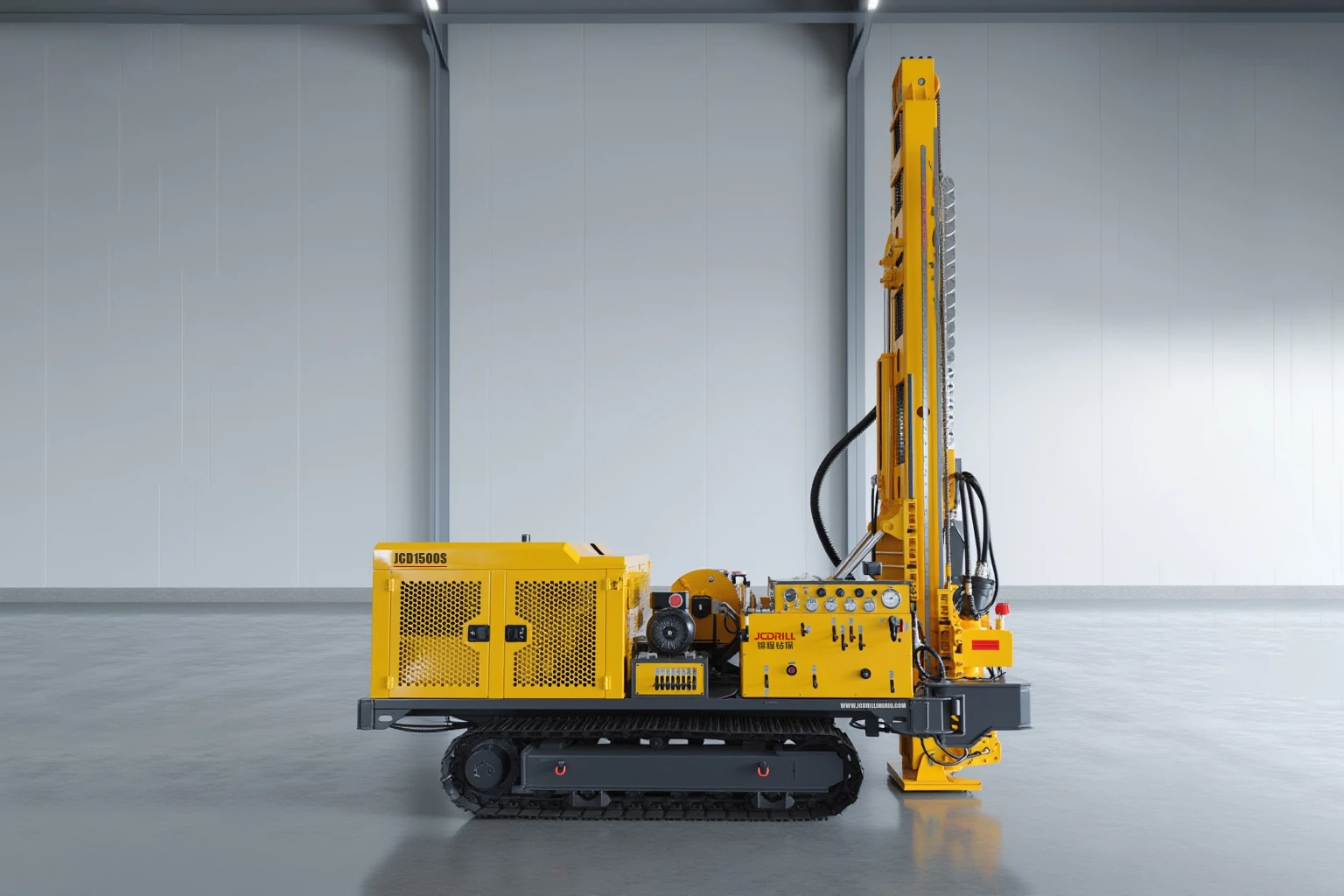

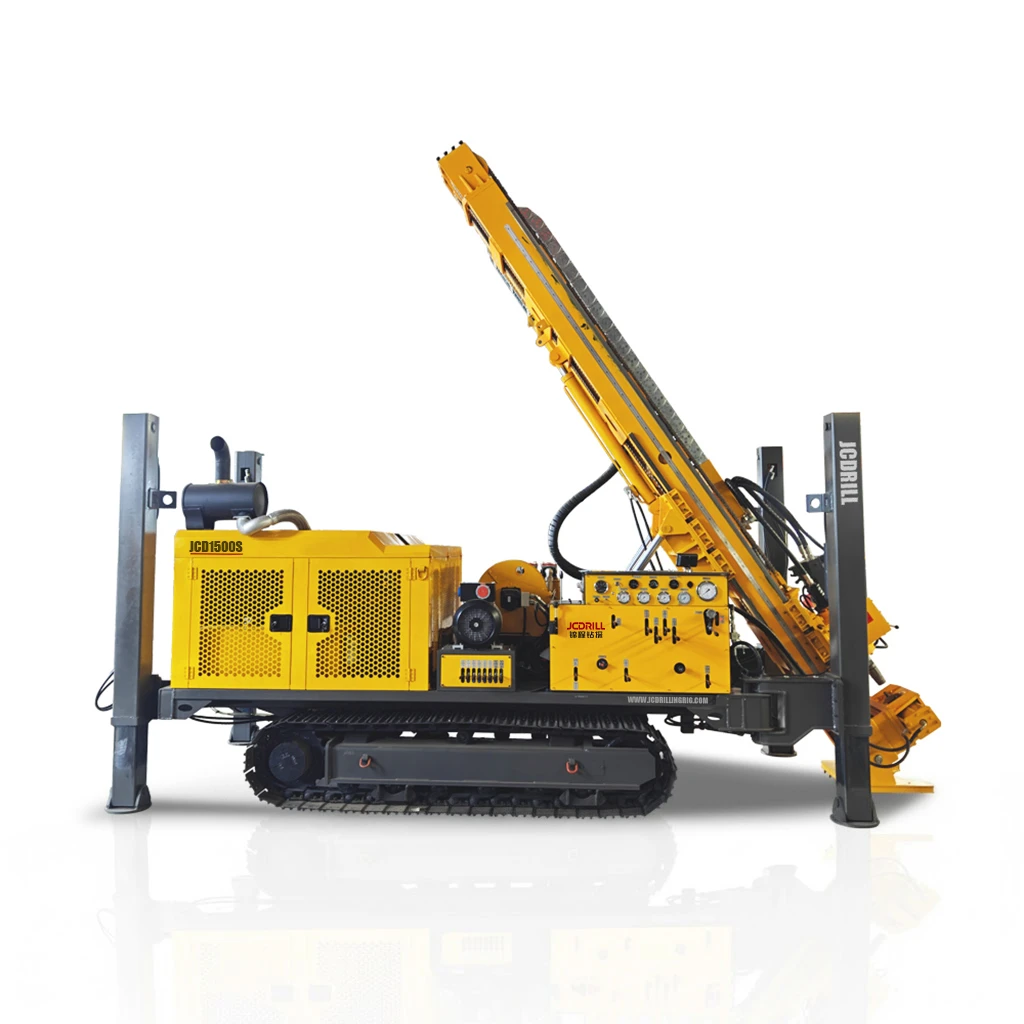

The JCD1500S is a robust crawler-mounted diamond core drilling rig engineered for ultra-deep operations in challenging terrains. Powered by a 150kW WEICHAI turbocharged diesel engine and a high-capacity 330L/min hydraulic system, it delivers up to 4000Nm of torque for efficient penetration in high-resistance formations. Featuring a ground-touching mast adjustable from 45° to 90°, a 3500mm feed stroke, and 36-ton pull-up capacity, it ensures stable core recovery at depths up to 1800m. Equipped with a dual-rope hoist system (1000kg high-speed and 10,000kg heavy-duty), BW-250 mud pump, and 11kW generator, the rig offers reliable flushing, power, and mobility with 3.5 km/h walking speed and 40° climbing ability, ideal for mineral exploration and geotechnical projects.

Inquire Now Brochure PDF

Functions and Features

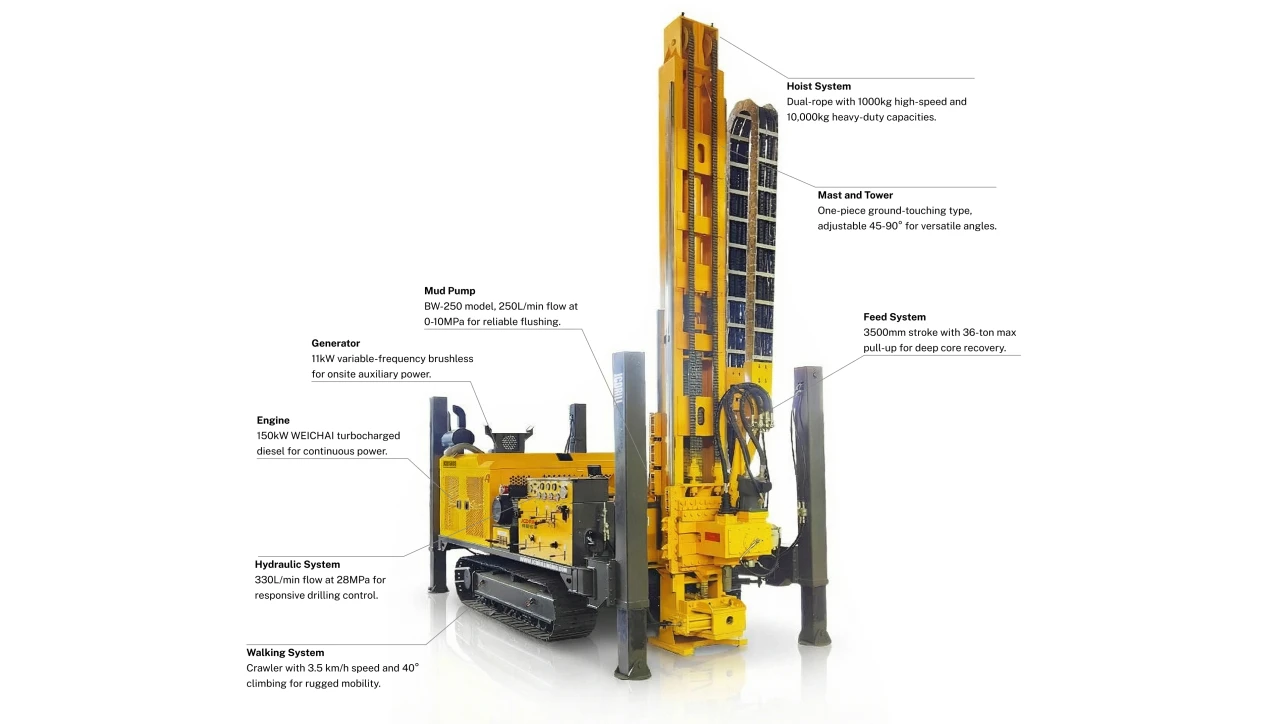

Main Components

Adjustable Mast and Feed Stroke: Ground-touching mast supports 45° to 90° angle adjustments, paired with a 3500mm smooth feed stroke and 36-ton pull-up capacity for stable operations in vertical or inclined boreholes up to 1800m depth. Dual-Rope Hoist System: Includes a 1000kg high-speed winch and 10,000kg heavy-duty hoist for efficient handling of rods, casing, and downhole tools, enhancing productivity in complex conditions.

Powerful Engine and Hydraulic System: Driven by a 150kW WEICHAI turbocharged diesel engine with a 330L/min hydraulic flow, providing stable pressure, responsive control, and up to 4000Nm torque for ultra-deep drilling in resistant formations.
Reliable Mud Pump and Generator: BW-250 mud pump delivers 250L/min flow at 10MPa pressure for effective flushing, while an 11kW variable-frequency brushless hydraulic generator provides auxiliary power for long-term field use. Enhanced Mobility and Controls: Offers manual and remote operation modes, 3.5 km/h walking speed, and 40° climbing capacity for adaptability in rugged terrains.

Product Description

The JCD1500S crawler-mounted diamond core drilling rig is engineered for mineral exploration and geotechnical drilling in rugged and demanding environments. Supporting HTW, NTW, and BTW coring with maximum depths up to 1800m, it delivers stable and precise performance for ultra-deep operations. Powered by a 150kW WEICHAI turbocharged diesel engine and a 330L/min high-capacity hydraulic system, the rig produces up to 4000Nm of torque for efficient penetration in high-resistance formations. Its ground-touching mast, adjustable from 45° to 90°, combined with a 3500mm feed stroke and 36-ton pull-up capacity, ensures strong lifting performance and smooth drilling control. Equipped with a dual-rope hoist system, BW-250 mud pump, onboard 11kW generator, and 40° climbing capability, the JCD1500S offers reliable flushing, efficient rod handling, and excellent mobility for complex terrain and long-term field operations.

Ultra-Deep Drilling Performance up to 1800m

Supports HTW, NTW, and BTW coring with drilling depths up to 1800m, ensuring stable and precise core recovery in mineral exploration and geotechnical projects.

High-Torque Hydraulic Power System

Powered by a 150kW WEICHAI engine and 330L/min hydraulic system, delivering up to 4000Nm torque with a 3500mm feed stroke and 36-ton pull-up capacity for demanding formations.

Integrated Heavy-Duty & All-Terrain Design

Equipped with dual winches (1000kg & 10,000kg), BW-250 mud pump, and onboard generator, offering reliable flushing, efficient tool handling, and strong mobility with 40° climbing capability.

Product Specifications

Specification	Unit	JCD1500S
Drilling Capacity
Drill Diameter		HTW-NTW-BTW
Drill Depth	m	500-1500-1800
Hydraulic System
Rated Pressure	MPA	28
Rated Flow	L/min	350
Heat Dissipation		Air Cooling
Engine
Brand		WEICHAI
Type		Turbocharger
Rated Speed	RPM	2400
Rated Power	kW	150
Drilling System
Torque	N.M.	1000-4000
Speed	RPM	1300
Tower Type	One-piece Ground-touching
Feeding Stroke	mm	3500
Drilling Angle	°	45-90
Max. Pull Up Capacity	Ton	36
Max. Push Down Capacity	Ton	18
Rope Hoist
Lifting Capacity	kg	1000 / 10000
Speed	RPM	100-300 / 0-50
Wire Rope Diameter	mm	6/ 18
Rope Capacity	m	1500 / 50
Walking System
Operation Type	Manual & Remote Control
Walking Speed	KM/H	3.5
Climbing Angle	°	40
Mud Pump
Model		BW-250
Flow	L/MIN	0-250
Pressure	MPA	0-10
Hydraulic Generator
Type	Variable Frequency Brushless, Maintenance-Free
Power	kW	11
Voltage	V	220/380
Weight & Dimensions
Transport Size	mm	600021002400
Weight	Ton	10.5
