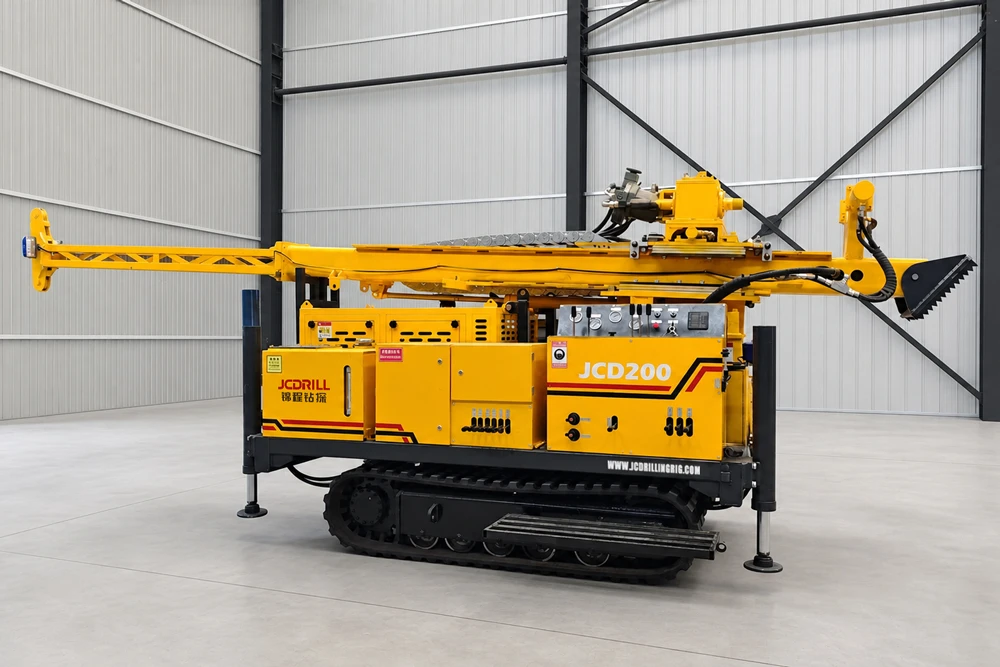

JCD200 Versatile Drilling Rig for Mineral Exploration

Hole Range

HQ / NQ / BQ

Hole Depth

150/ 250/ 400m

Recommend Chassis Type

Truck

The JCD200 Multi-function Drilling Rig is a compact and highly efficient crawler-mounted drilling machine designed for wireline core drilling, DTH drilling, auger drilling, water well drilling, and SPT applications. Powered by a 76kW Quanchai diesel engine, it delivers strong torque and stable hydraulic performance for complex geological conditions. With a drilling depth capacity up to 400m and flexible 45–90° angle adjustment, the JCD200 ensures high efficiency, reliability, and adaptability. Its multifunctional design makes it ideal for mineral exploration, geotechnical investigation, water well projects, and foundation engineering.

Inquire Now

Functions and Features

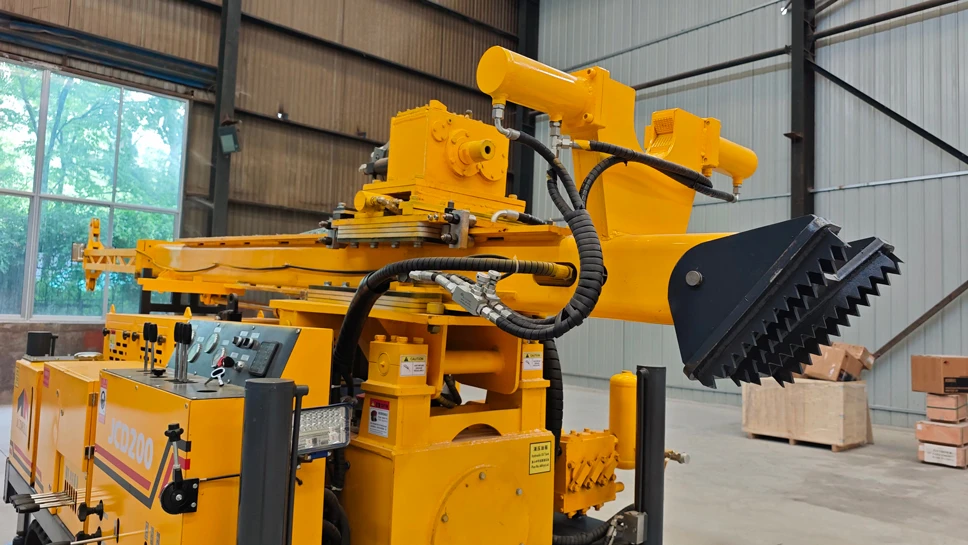

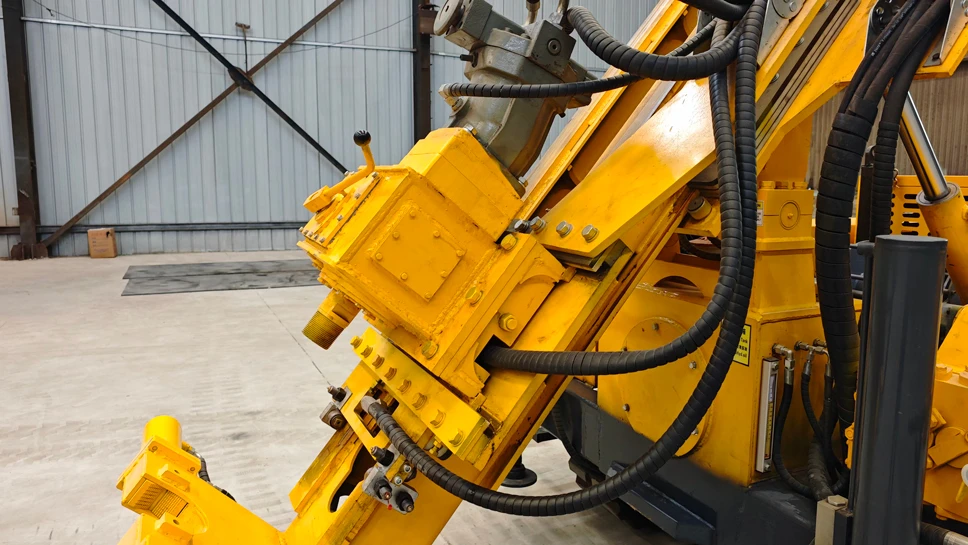

High-Torque Hydraulic System Equipped with a 300–2200 Nm rotary torque system and variable speed control up to 1200 rpm, ensuring stable performance in soft and hard formations.

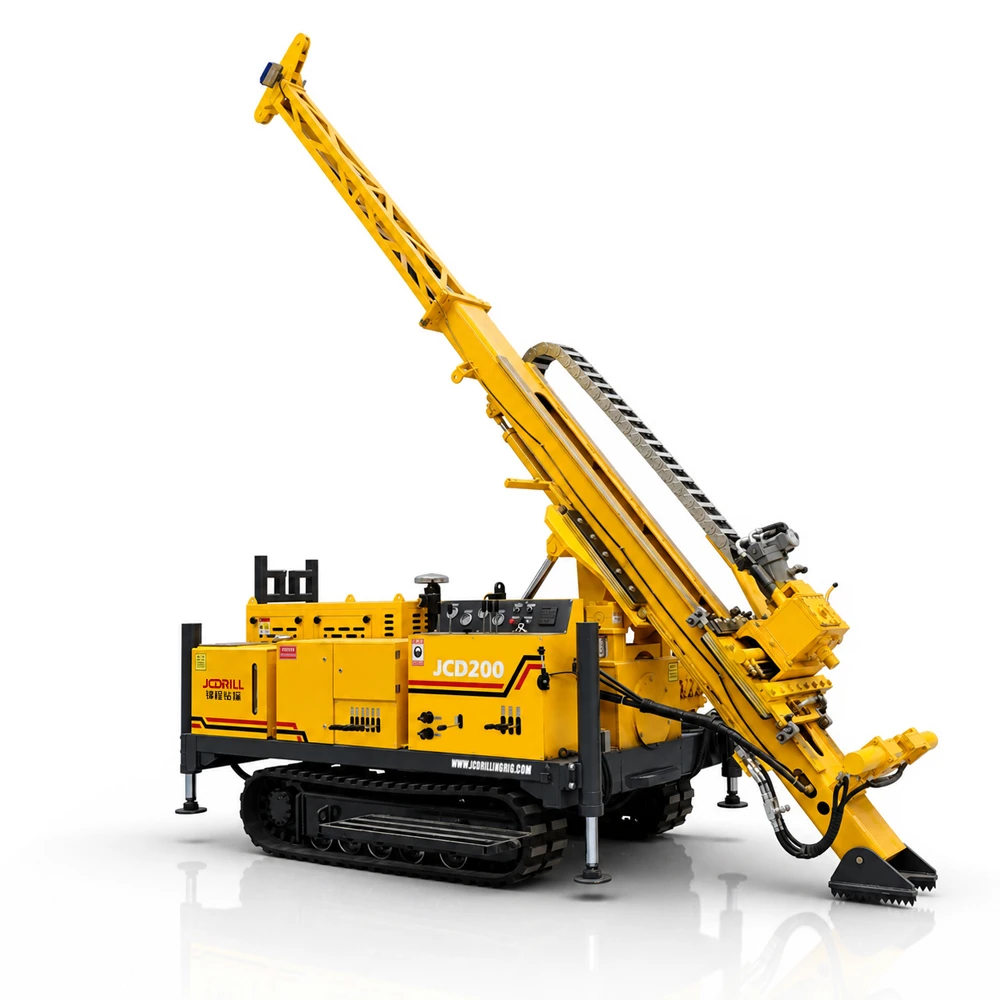

Flexible Drilling Angle System Supports 45°–90° drilling angles, suitable for vertical, inclined, and geotechnical drilling requirements.

Multi-Method Drilling Capability Supports diamond core drilling, DTH hammer drilling, auger drilling, water well drilling, and SPT testing, making it a true all-in-one exploration rig.
Powerful 76kW Engine Powered by a reliable Quanchai diesel engine, delivering consistent output for long-hour field operations with low fuel consumption.
Integrated Mud Pump System BW90-3 mud pump ensures efficient cuttings removal with stable 90 L/min flow and 7 MPa pressure.

Features Introduction

Product Description

The JCD200 is a true multi-purpose drilling rig designed to handle a wide range of geological and construction applications. Whether used for diamond core drilling, DTH rock drilling, auger soil drilling, or water well projects, it delivers consistent hydraulic power and operational stability. Its compact crawler design allows easy transportation and deployment in remote or rugged terrain. With a strong 76kW engine and advanced hydraulic system, the rig ensures high penetration rates, precise control, and low maintenance costs, making it an ideal solution for modern drilling contractors.

Multi-Function Drilling Capability

Supports core, DTH, auger, and water well drilling in one compact rig for maximum versatility.

High-Efficiency Hydraulic System

Advanced hydraulic power system ensures stable torque output and smooth drilling performance.

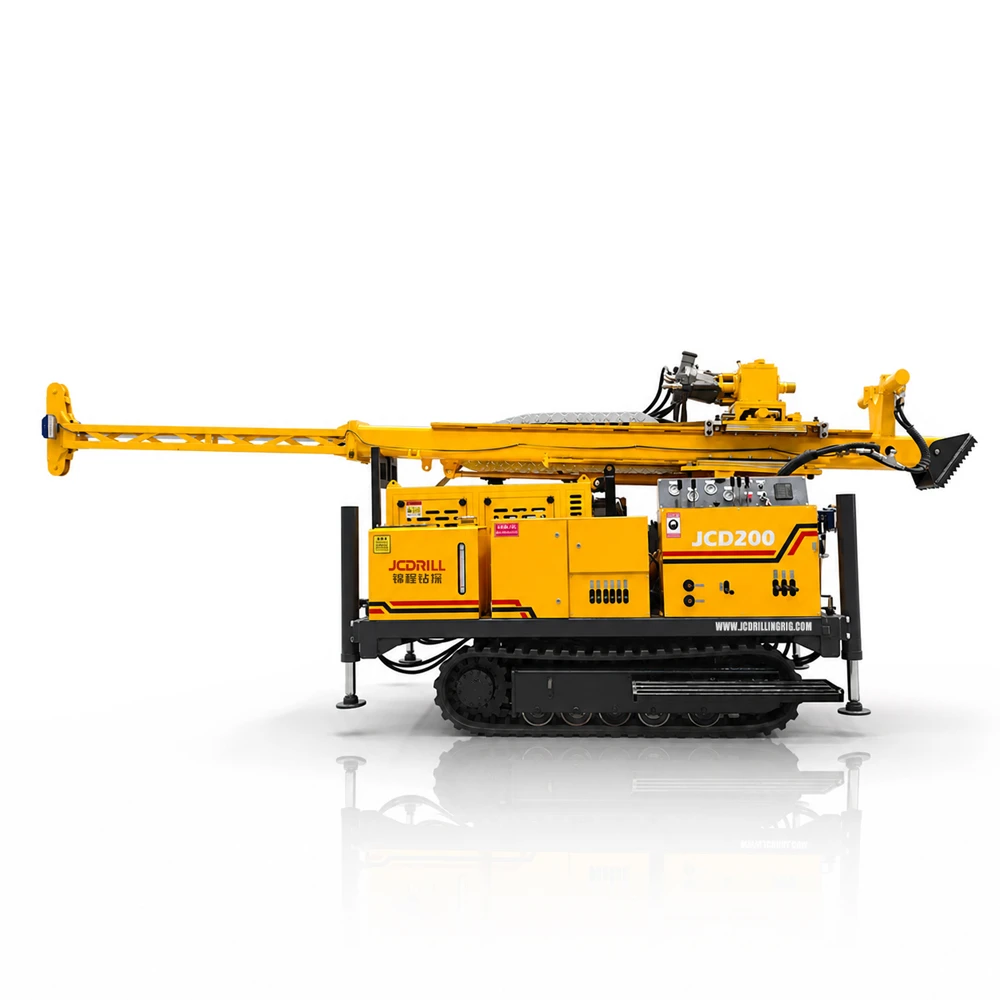

Heavy-Duty Crawler Structure

Strong crawler chassis provides excellent stability and mobility in complex field conditions.

Product Specifications

Specification	Unit	JCD200
Drilling Capacity
Drilling Method		Wireline Coring, DTH, SPT, Auger Drilling
Drilling Diameter	mm	HQ / NQ / BQ
Drilling Depth	m	150 / 250 / 400
Clamp Range		60/73/89/114/127/140/152
Drilling System
Rotation Torque	Nm	300-2200
Rotation Speed	rpm	0-1200
Rod Length	m	1.5
Feed Stroke	mm	1900
Drilling Angle	°	45-90
Max. Pull Up Capacity	T	10
Max. Push Down Capacity	T	6
Clamp		2-Cylinder Clamp
Engine
Engine Brand		Quanchai
Engine Power	kW	76
Mud Pump
Mud Pump Model		BW90-3
Mud Pump Flow	L/Min	90L/Min
Mud Pump Pressure	Mpa	7
Winch System
Hydraulic Winch	Kgs	500kg
Winch Speed	rpm	100-300
Wire Rope (Dia. x Length)	mm*m	6 x 400
Winch Support		Foldable Auxiliary Mast
Walking System
Travel Speed	km/h	2.5
Gradeability	°	30
Operating Platform Pedal		Standard
Crawler Chassis Type		Round Rubber Crawler
Travel Remote Control		Standard
General
Dimensions	mm	3800 x 1800 x 2280
Total Weight	Ton	4.2
Hydraulic Outrigger		Round Outrigger
Outrigger Stroke	mm	600
Hydraulic Generator		Standard

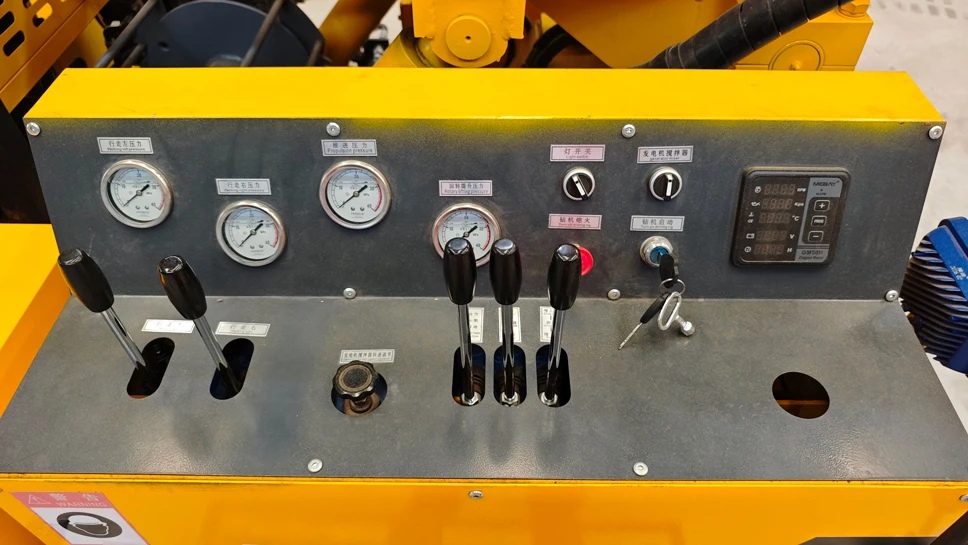

Emergency Stop Switch		1 on Control Panel
LED Light		1 on Mast Top, 1 on Control Panel
