JCD2000S Crawler Diamond Core Drilling Rig for Deep Geological Exploration High-Torque Coring

Hole Range

HTW, NTW, BTW

Hole Depth

1000m, 2000m, 2500m

Recommend Chassis Type

Truck
Crawler
Trailer

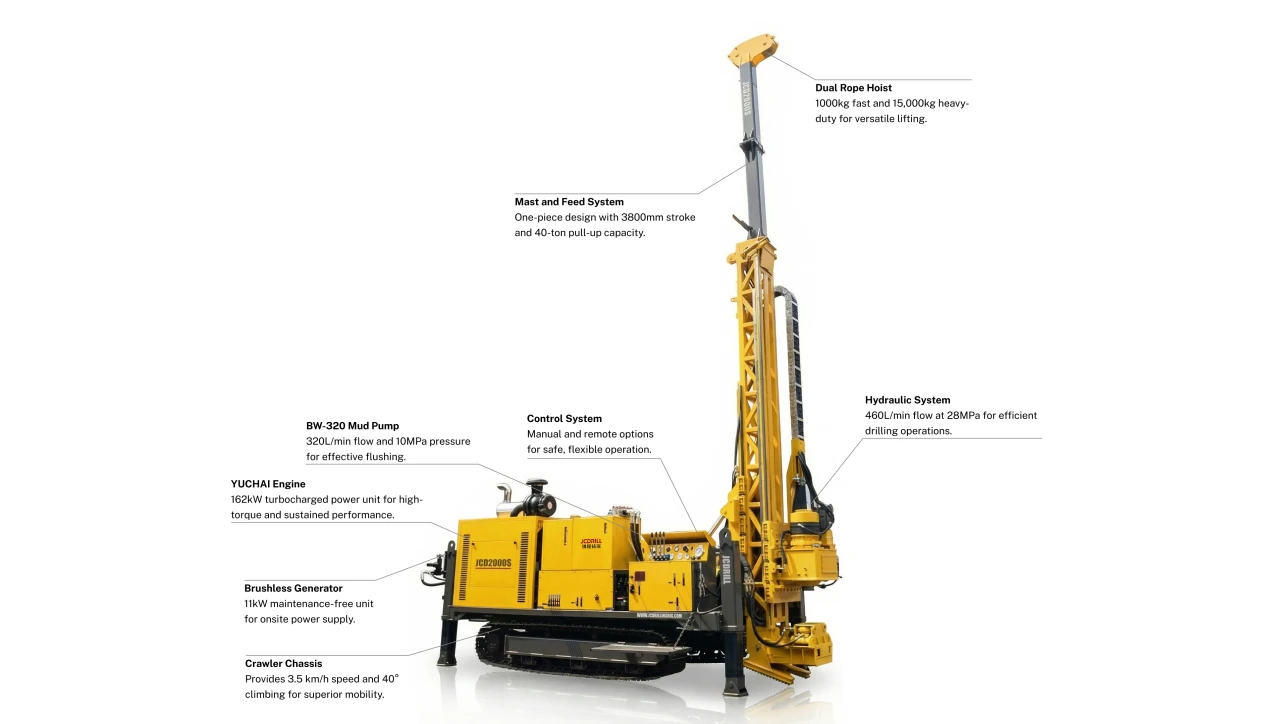

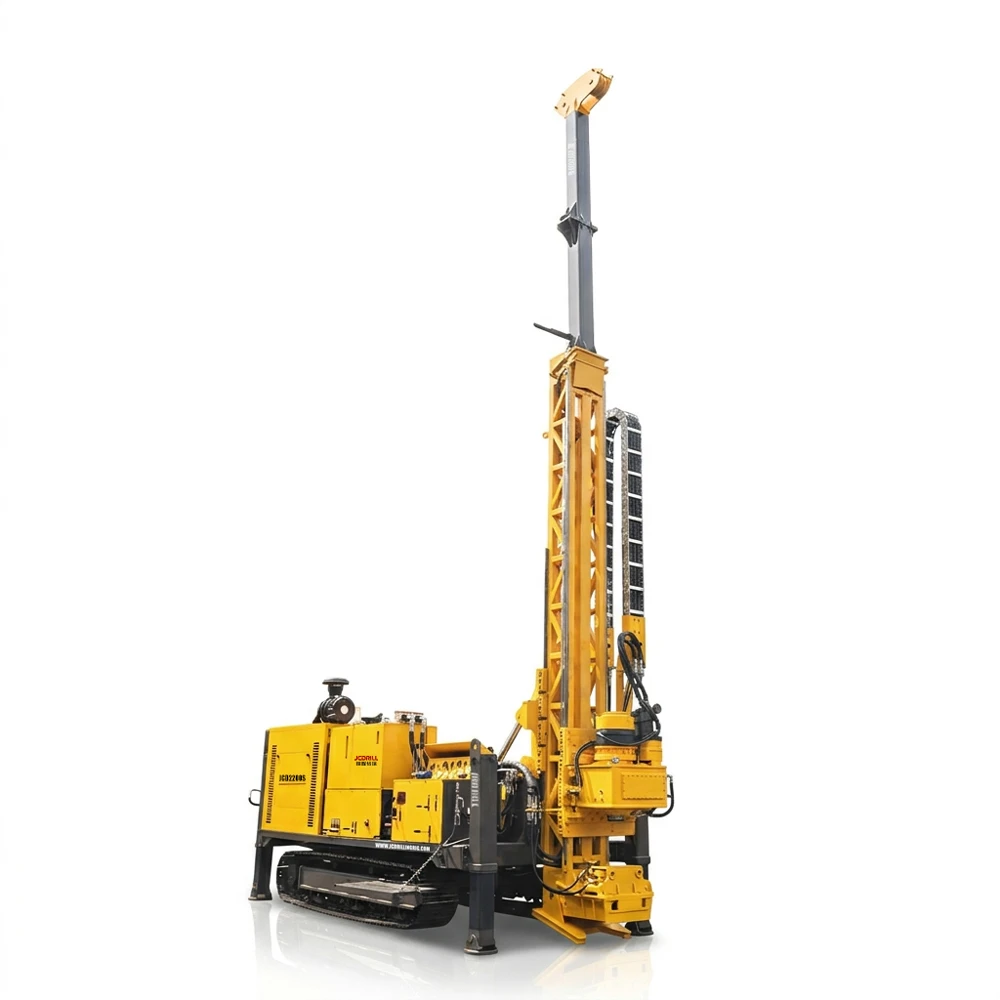

The JCD2000S is a high-performance crawler diamond core drilling rig engineered for demanding deep exploration projects. It supports HTW, NTW, and BTW drilling methods with depths reaching up to 2500 meters, making it ideal for extreme geological conditions. Powered by a 162kW YUCHAI turbocharged engine and a robust 460L/min hydraulic system at 28MPa, it delivers exceptional torque of up to 6400Nm for efficient penetration in resistant formations. The rig features a one-piece ground-touching mast with a 3800mm feed stroke and 40-ton pull-up capacity, ensuring stable operations at angles from 45° to 90°. Equipped with a dual rope hoist system (1000kg high-speed and 15,000kg heavy-duty), a BW-320 mud pump for effective flushing, and an 11kW brushless generator, the JCD2000S combines superior power, mobility, and reliability for long-duration field work in remote environments.

Inquire Now Brochure PDF

Functions and Features

Main Components

Extended Feed Stroke and Pull-Up Capacity The one-piece ground-touching mast offers a 3800mm feed stroke and 40-ton pull-up force, delivering precise control and structural strength for ultra-deep coring across adjustable angles from 45° to 90°.
Integrated Mud Pump and Generator Includes a BW-320 mud pump with 320L/min flow and 10MPa pressure for continuous flushing, paired with an 11kW maintenance-free brushless generator to supply reliable power for auxiliary equipment in remote sites.

Powerful Engine and Hydraulic System Equipped with a 162kW YUCHAI turbocharged engine and a high-flow 460L/min hydraulic system at 28MPa, the JCD2000S provides sustained torque up to 6400Nm, enabling efficient deep drilling in high-resistance geological formations.
Dual Rope Hoist System Features a 1000kg high-speed hoist for quick rod handling and a 15,000kg heavy-duty hoist for lifting casings and downhole tools, enhancing safety and operational efficiency during extended drilling cycles.

Product Description

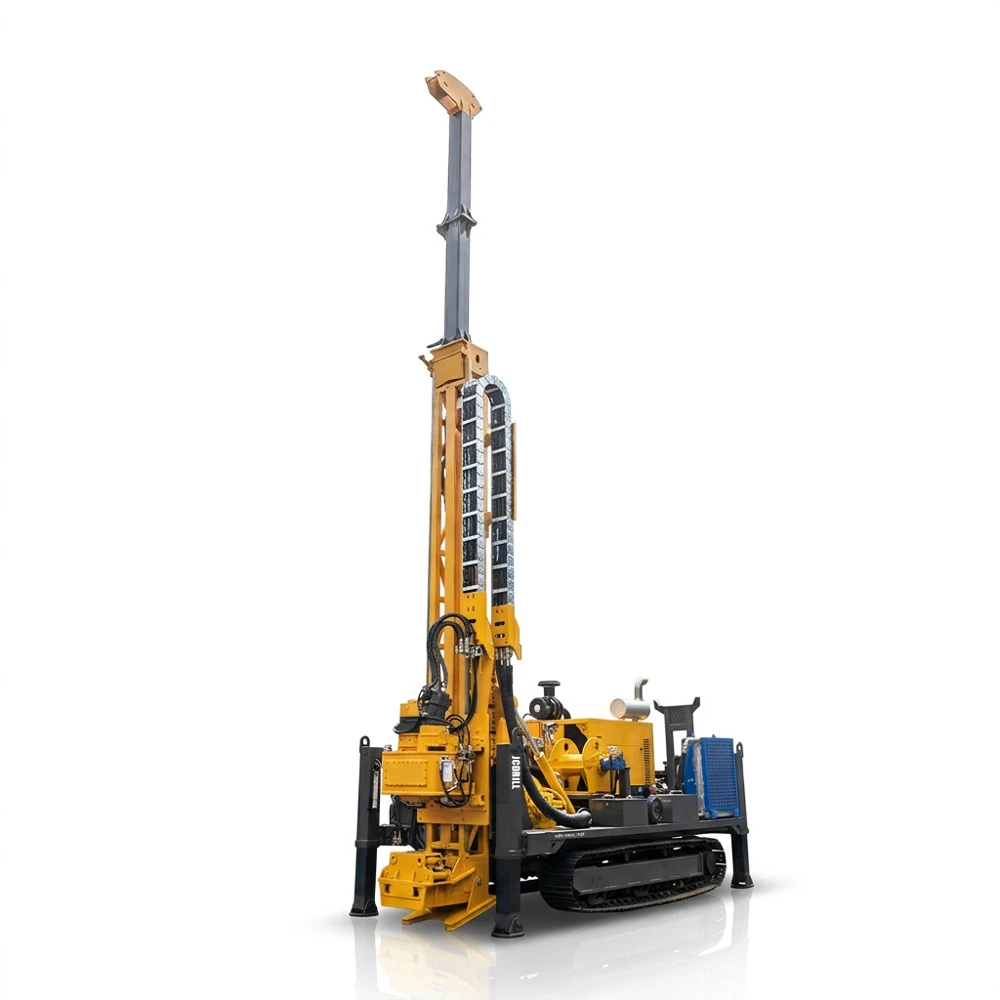

The JCD2000S Crawler Diamond Core Drilling Rig is a heavy-duty, high-torque drilling solution developed for ultra-deep geological exploration and demanding mineral projects. It supports HTW, NTW, and BTW wireline diamond core drilling, with drilling depths of 1000 m, 2000 m, and up to 2500 m, making it ideal for extreme deep-hole coring operations in complex geological conditions.
Powered by a 162 kW YUCHAI turbocharged engine and a high-flow hydraulic system (460 L/min, 28 MPa), the JCD2000S delivers exceptional torque up to 6400 Nm and a 40-ton pull-up capacity for stable and efficient drilling in hard formations. The rig features a one-piece ground-touching mast with a 3800 mm feed stroke, a dual rope hoist system, a BW-320 high-capacity mud pump, and an 11 kW brushless generator, ensuring long-duration reliability, strong adaptability, and consistent performance in remote field environments.

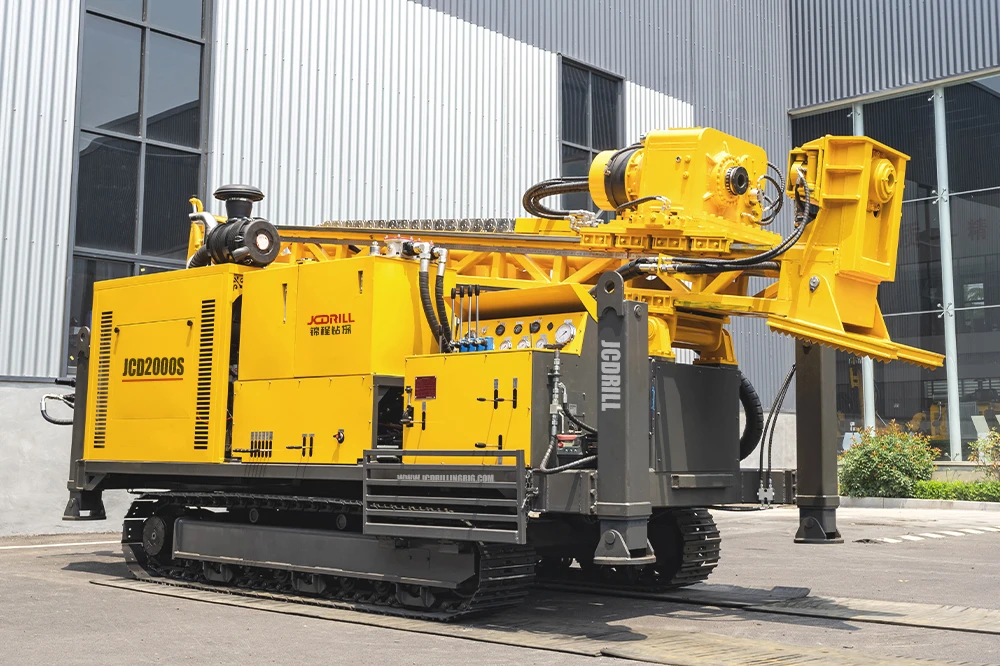

Ultra-High-Torque Hydraulic Drilling System

The high-power engine and large-flow hydraulic system deliver sustained torque and stable output, enabling efficient ultra-deep drilling in high-resistance geological formations.

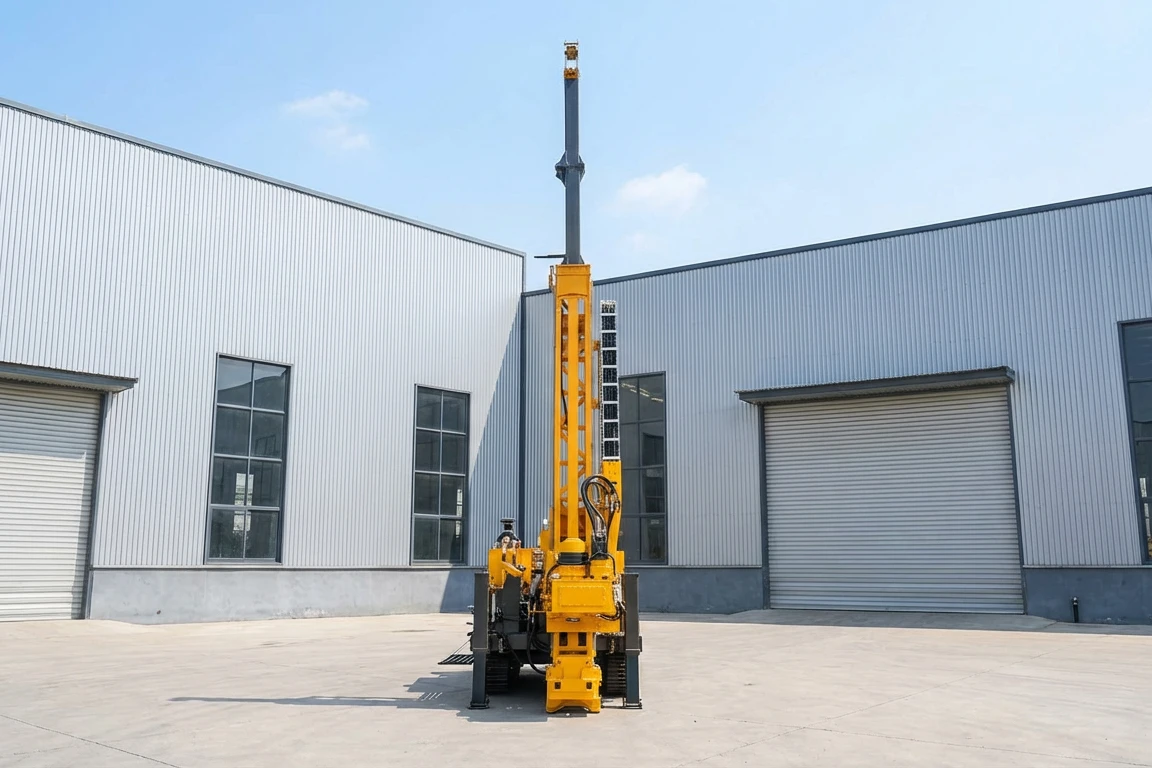

Heavy-Duty Mast & Deep Coring Capacity

The one-piece ground-touching mast with extended feed stroke and 40-ton pull-up force ensures precise control, high stability, and reliable performance for deep and inclined drilling operations.

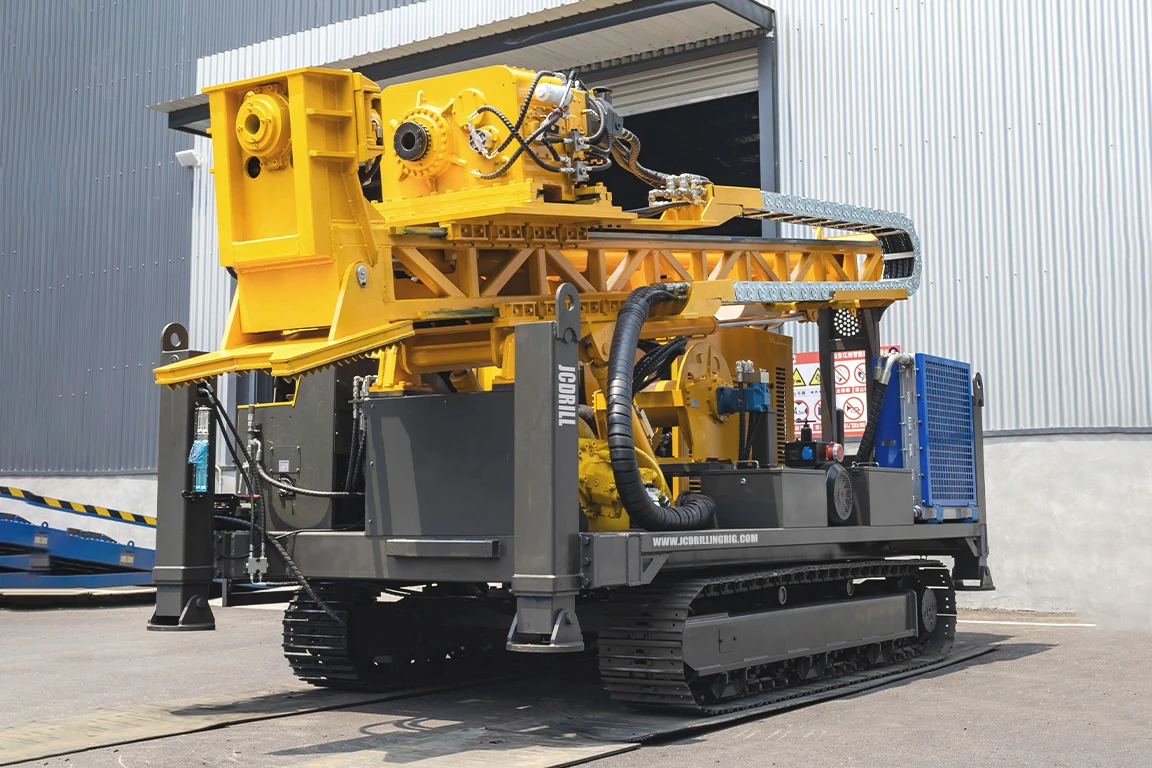

Dual Hoist System & Field Reliability

The dual rope hoist configuration, combined with high-capacity mud pumping and auxiliary power generation, supports safe, efficient, and continuous operation during long-term deep exploration projects.

Product Specifications

Specification	Unit	JCD2000S
Drilling Capacity
Drill Diameter		HTW-NTW-BTW
Drill Depth	m	1000-2000-2500
Hydraulic System
Rated Pressure	MPA	28
Rated Flow	L/min	460
Heat Dissipation		Air Cooling
Engine
Brand		YUCHAI
Type		Turbocharger
Rated Speed	RPM	2400
Rated Power	kW	162
Drilling System
Torque	N.M.	1000-6400
Speed	RPM	1100
Tower Type		One-piece Ground-touching
Feeding Stroke	mm	3800
Drilling Angle	°	45-90
Max. Pull Up Capacity	Ton	40
Max. Push Down Capacity	Ton	20
Rope Hoist
Lifting Capacity	kg	1000 / 15000
Speed	RPM	100-400 / 0-50
Wire Rope Diameter	mm	6/ 24
Rope Capacity	m	2000 / 45
Walking System
Operation Type	Manual & Remote Control
Walking Speed	KM/H	3.5
Climbing Angle	°	40
Mud Pump
Model		BW-320
Flow	L/MIN	0-320
Pressure	MPA	0-10
Hydraulic Generator
Type	Variable Frequency Brushless, Maintenance-Free
Power	kW	11
Voltage	V	220/380
Weight & Dimensions
Transport Size	mm	629322102762
Weight	Ton	12.7
