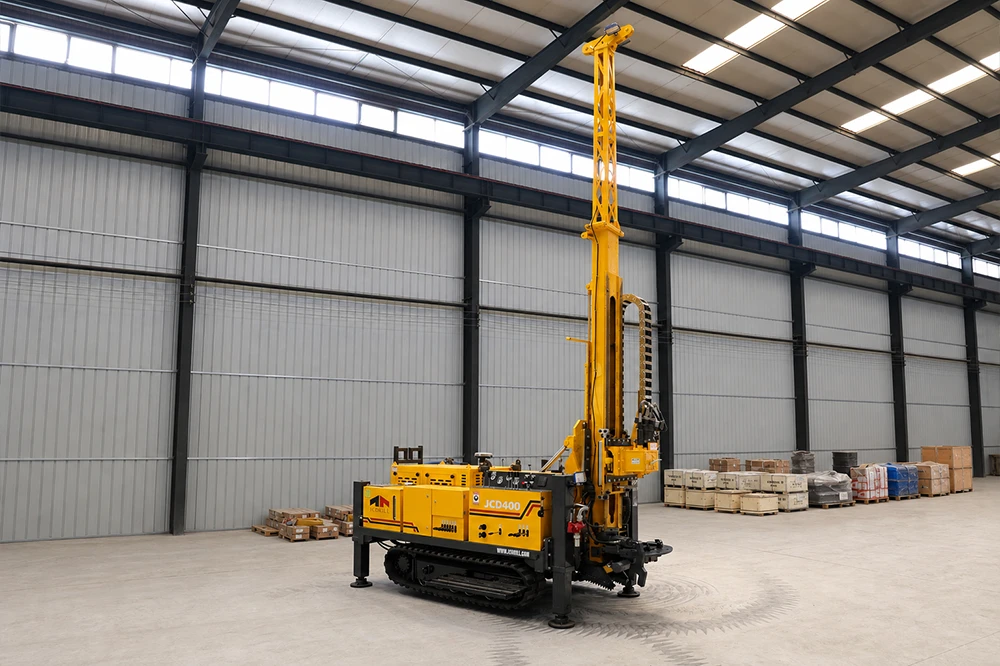

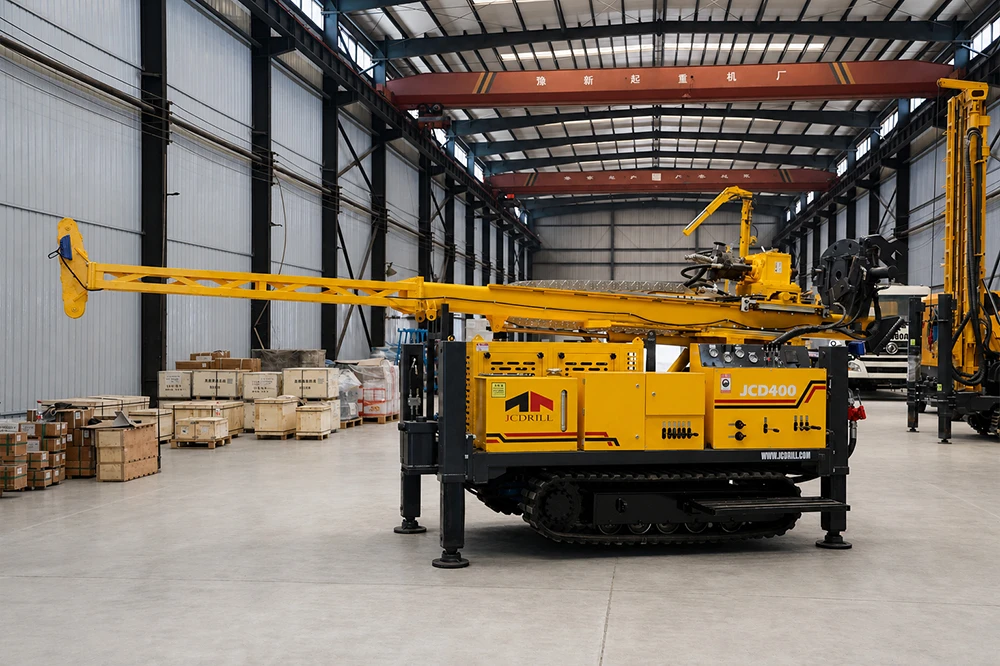

JCD400 Full Hydraulic Wireline Core Drilling Rig Crawler Mounted Diamond Drilling Equipment for Mine

Hole Range

HTW / NTW / BTW

Hole Depth

200 / 400 / 500m

Recommend Chassis Type

Truck
Crawler
Trailer

The JCD400 Full Hydraulic Core Drilling Rig is a compact and high-efficiency crawler-mounted rig designed for mineral exploration and geological coring applications. It is optimized for wireline diamond drilling systems such as HTW, NTW, and BTW, delivering stable and precise core sampling performance. Powered by a 70kW YUCHAI turbocharged diesel engine, the rig provides strong and consistent power output for all hydraulic operations including rotation, feed, lifting, and clamping. With a fully hydraulic transmission system, JCD400 ensures smooth operation, high efficiency, and accurate control in complex geological conditions. Its dual control mode (manual + remote) enhances operational safety and flexibility, while the robust mast structure supports both vertical and angled drilling from 45° to 90°. Designed for rugged terrains, it combines strong climbing ability, compact structure, and high drilling capacity, making it ideal for medium-depth exploration projects.

Inquire Now

Functions and Features

High-Performance YUCHAI Engine Equipped with a 70kW turbocharged YUCHAI diesel engine operating at 2400 RPM, providing stable and powerful energy output for long-term drilling operations.

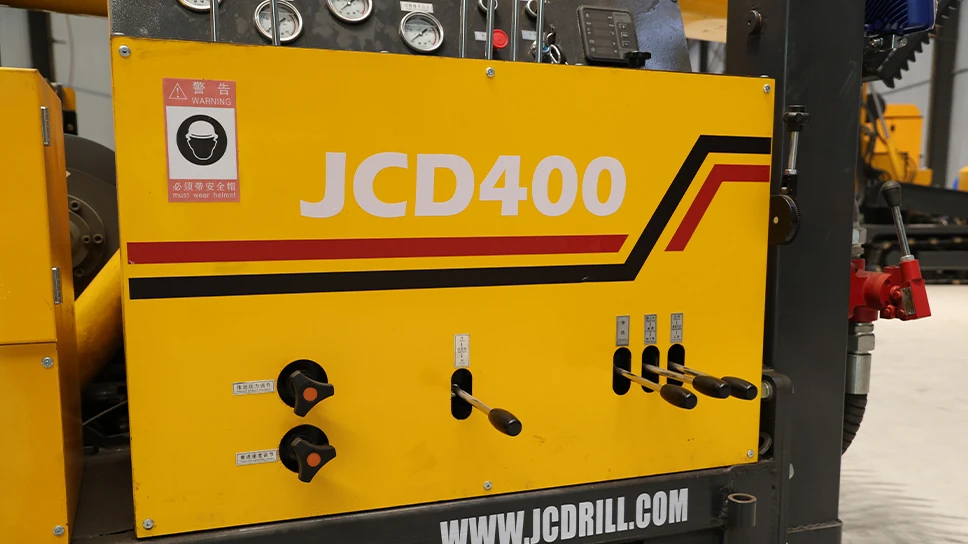

Dual Control Operation System Supports both manual and remote control modes, allowing safer and more flexible operation in complex or hazardous environments.

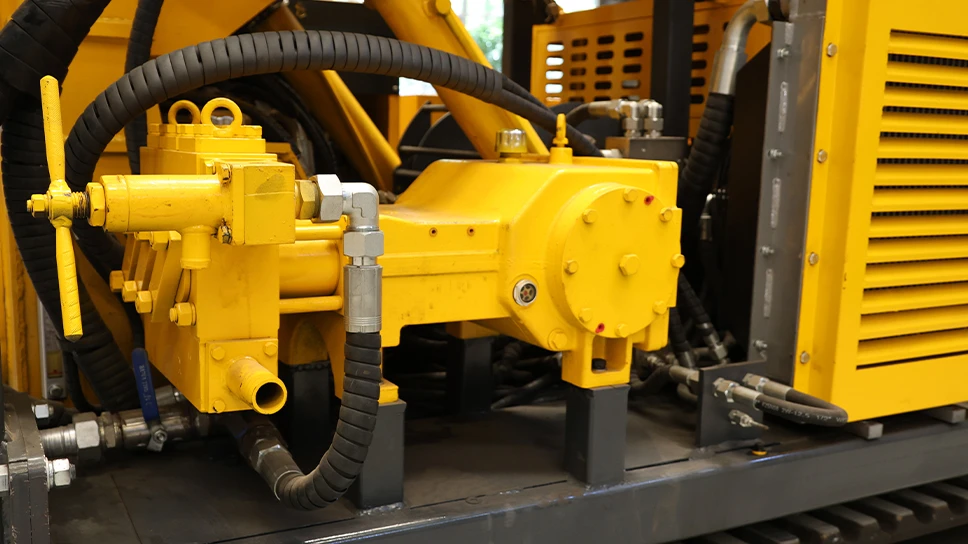

Efficient Mud Circulation System Equipped with BW-100 high-pressure mud pump, delivering up to 100 L/min flow and 7 MPa pressure for efficient cuttings removal.

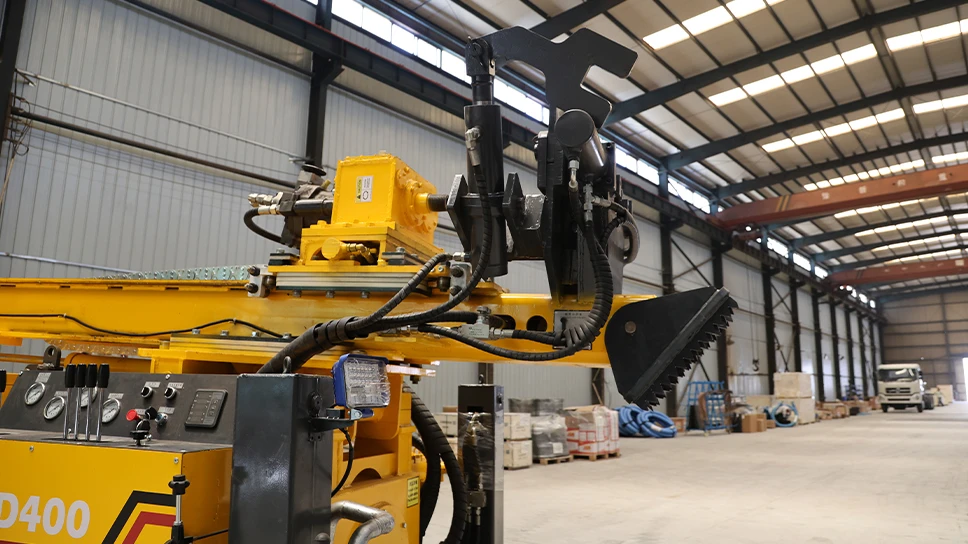

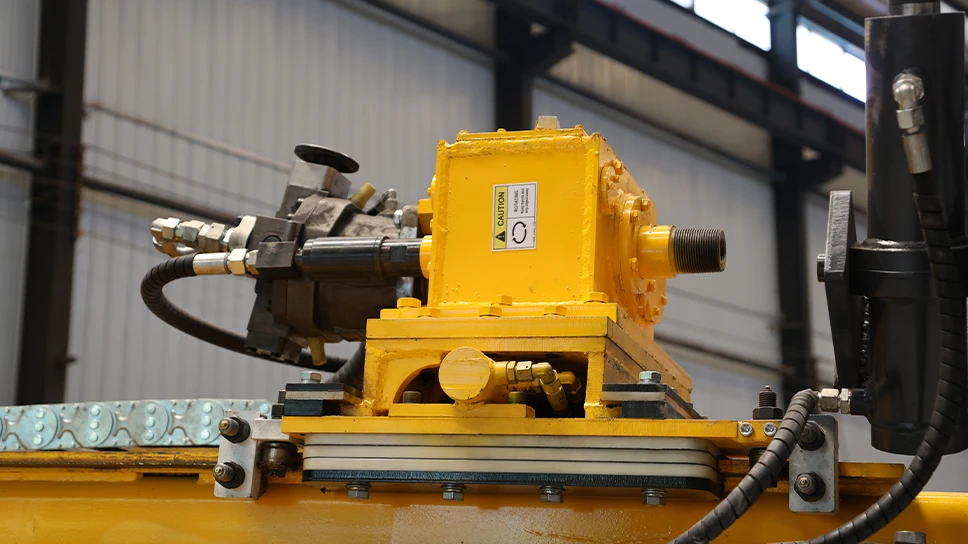

Full Hydraulic Power System All drilling functions including rotation, feeding, lifting, and clamping are driven by a fully hydraulic system, ensuring smooth operation, high precision, and reduced mechanical loss.
Wireline Core Drilling Compatibility Supports HTW, NTW, and BTW wireline diamond drilling systems, ensuring high core recovery rate and efficient mineral exploration performance.

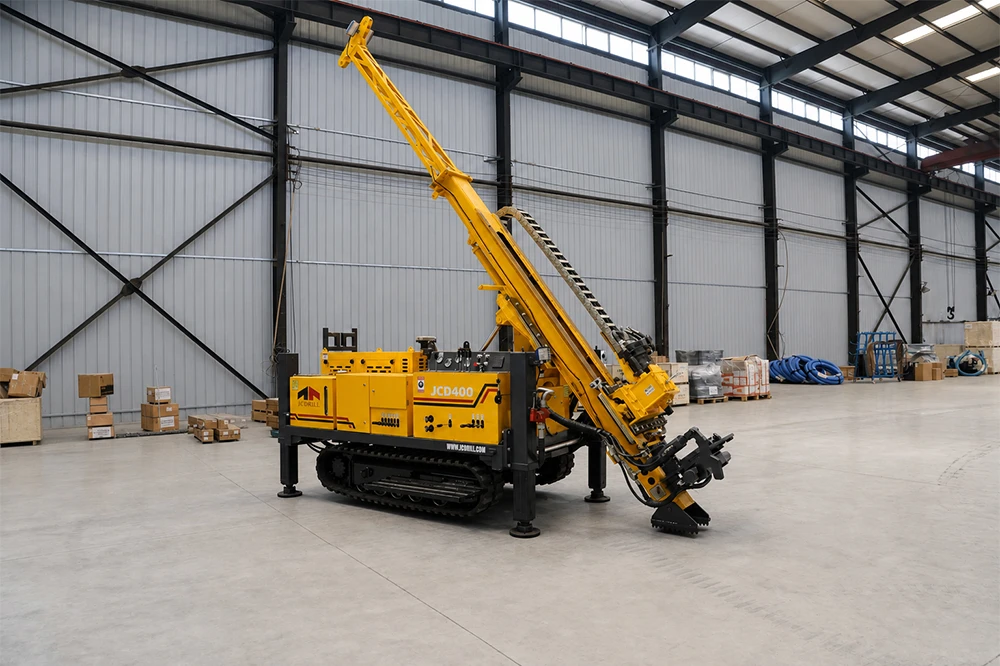

Strong Mast Structure (45°–90° Drilling) Ground-touching mast design enables both vertical and inclined drilling, improving adaptability across different geological formations.
High Mobility Crawler System Crawler chassis enables 3.5 km/h travel speed and up to 40° climbing ability, suitable for rough and mountainous terrain.

Features Introduction

Product Description

The JCD400 Full Hydraulic Wireline Diamond Core Drilling Rig is designed for efficient and reliable mineral exploration in medium-depth drilling projects. With a fully hydraulic transmission system and a 70kW YUCHAI turbocharged engine, it delivers stable power and precise operational control. The rig supports HTW, NTW, and BTW wireline coring systems for high recovery drilling efficiency.

Its 1900mm hydraulic feed stroke, 500m drilling capacity, and BW-100 high-pressure mud pump ensure strong adaptability across clay, sand, and rock formations. The dual control system improves safety and flexibility, while the crawler chassis and 40° climbing ability make it suitable for remote and rugged environments. Compact, powerful, and efficient, the JCD400 is an ideal solution for modern geological exploration projects.

Full Hydraulic Core Drilling System

Provides stable transmission of power with precise control over rotation, feed, and lifting for efficient wireline drilling.

70kW YUCHAI Engine Power Unit

Delivers strong and consistent energy output for continuous 500m depth drilling operations in complex terrain.

Crawler Mobility & Remote Control System

High-mobility crawler chassis with optional remote control ensures safe and flexible operation in rugged exploration sites.

Product Specifications

Specification	Unit	JCD400S
Drilling Capacity
Drilling Diameter		HTW-NTW-BTW
Drill Depth	m	200-400-500
Hydraulic System
Rated Pressure	MPA	20
Rated Flow	L/min	160
Heat Dissipation		Air Cooling
Engine
Brand		YUCHAI
Type		Turbocharger
Rated Speed	RPM	2400
Rated Power	kW	70
Drilling System
Torque	N.M.	350-700
Speed	RPM	1300
Tower Type		One-piece Ground-touching
Feeding Stroke	mm	1900
Drilling Angle	°	45-90
Max. Pull Up Capacity	Ton	14
Max. Push Down Capacity	Ton	7
Rope Hoist
Lifting Capacity	kg	600
Speed	RPM	100-300
Wire Rope Diameter	mm	6
Rope Capacity	m	600
Walking System
Operation Type		Manual & Remote Control
Walking Speed	KM/H	3.5
Climbing Angle	°	40
Mud Pump
Model		BW-100
Flow	L/MIN	0-100
Pressure	MPA	0-7
Weight & Dimensions
Transport Size	mm	420020502300
Weight	Ton	4.3

View Less
