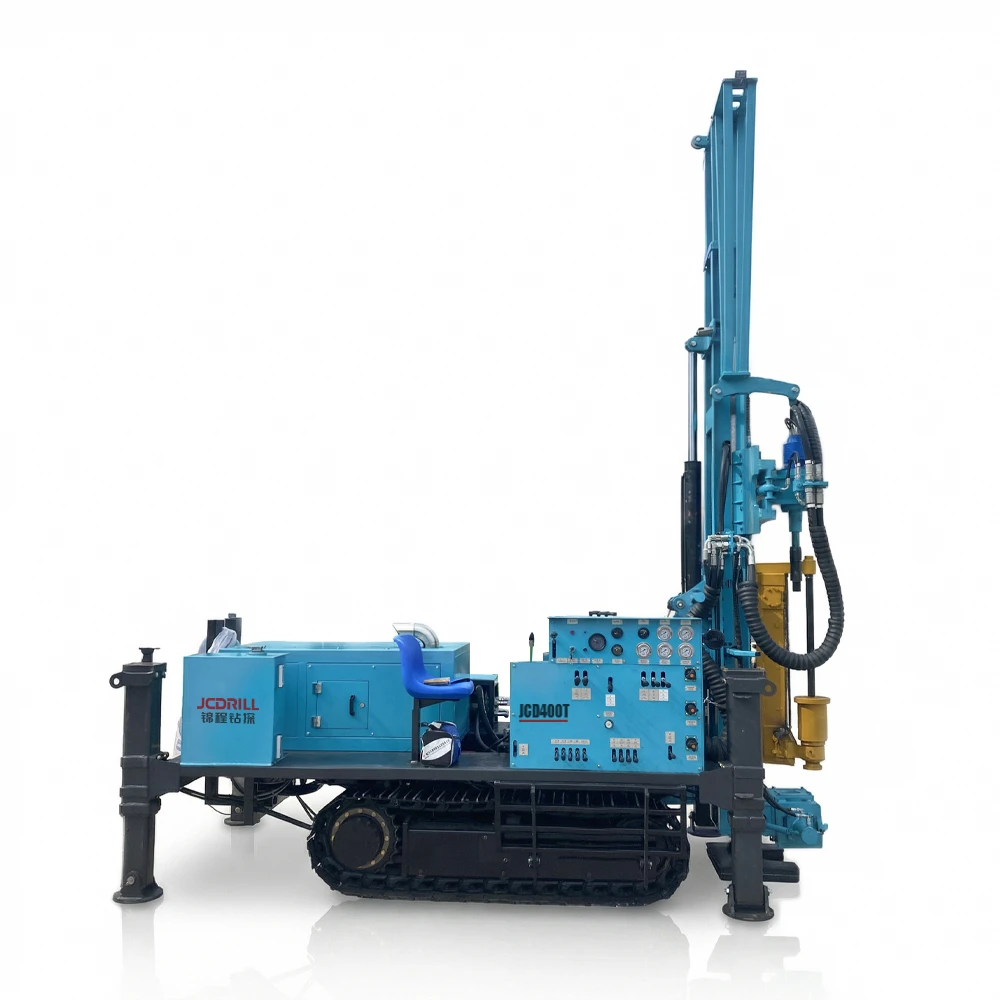

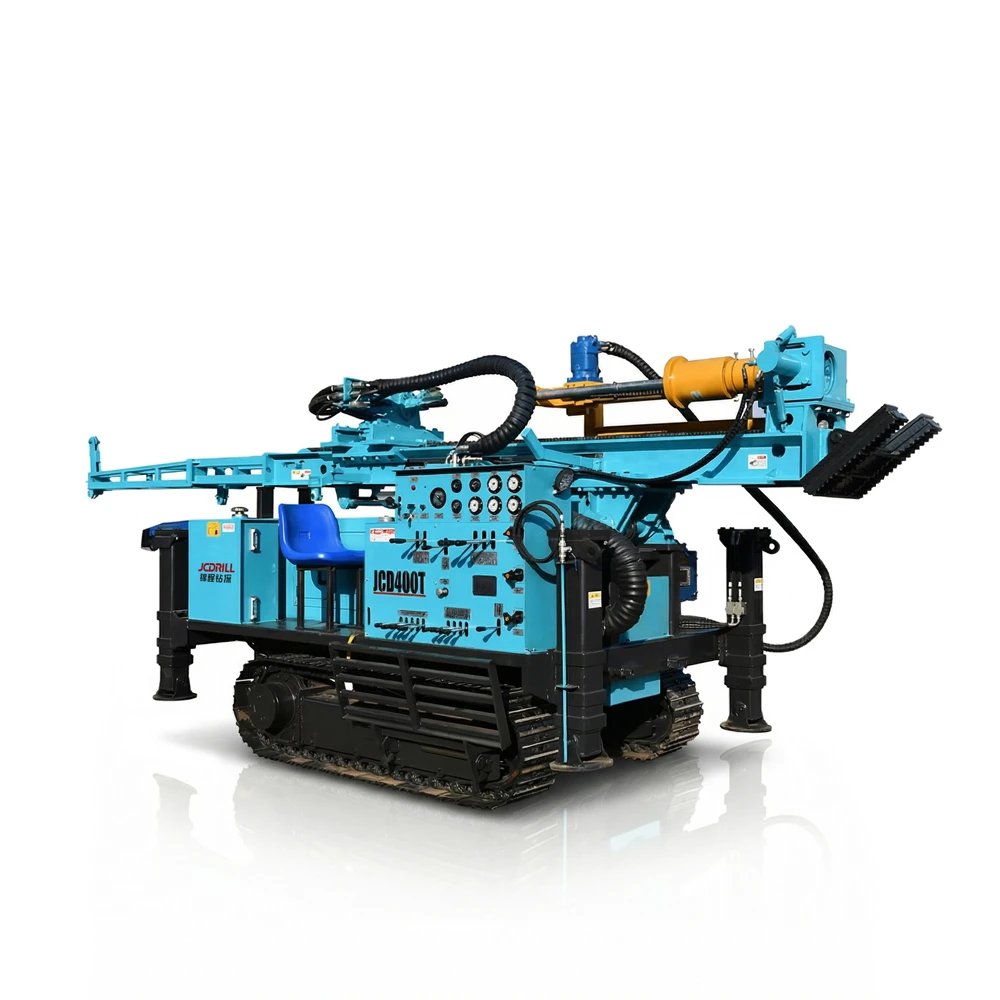

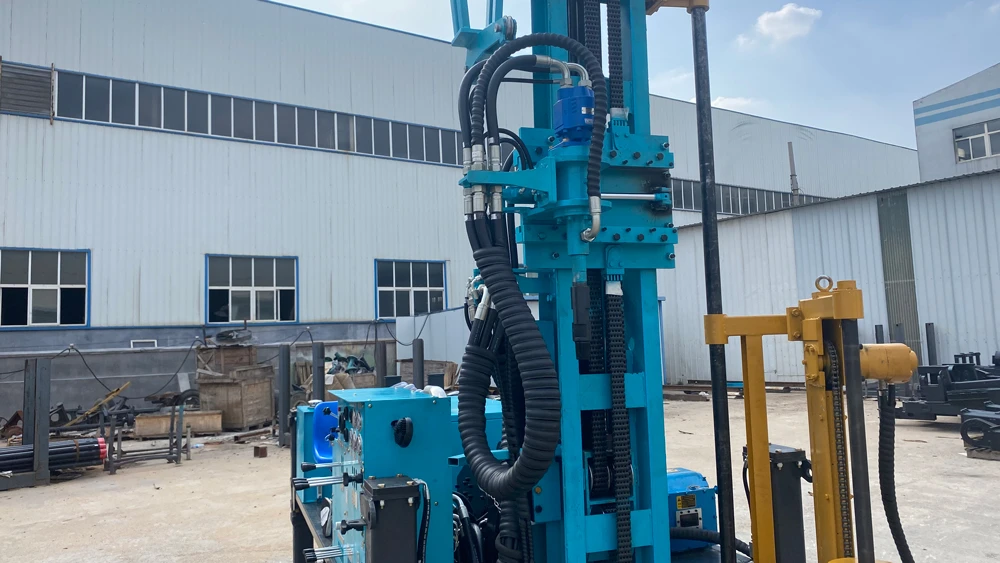

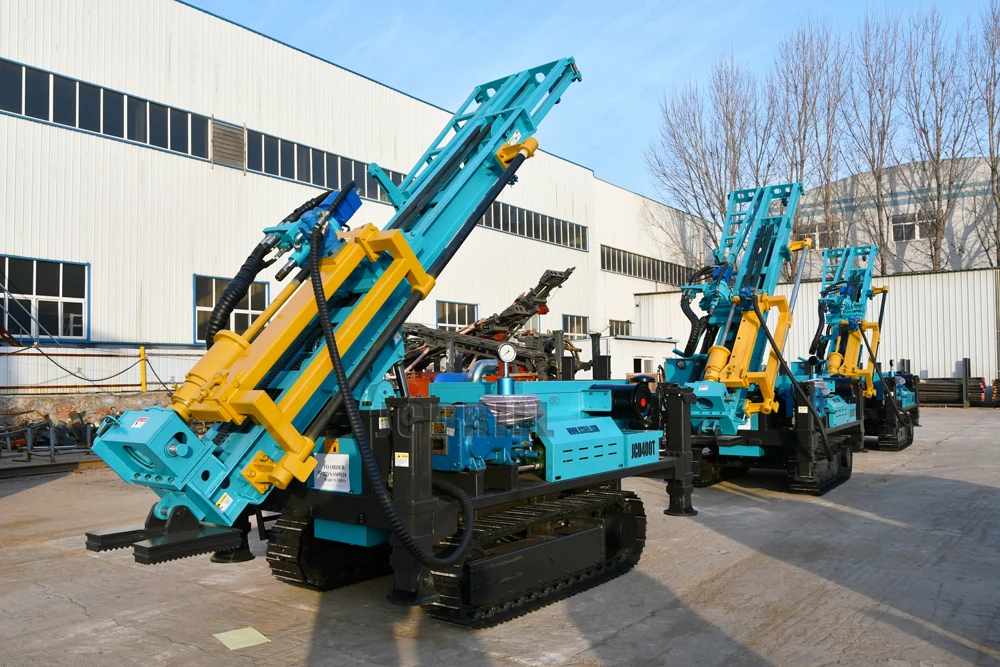

JCD400T Full Hydraulic Portable Core Drilling Rig with SPT for Wireline Diamond Exploratiion

Hole Range

BQ/ NQ/ HQ

Hole Depth

BQ:400m NQ:300m HQ:100m

Recommend Chassis Type

Truck
Crawler
Trailer
Skid

The JCD400T is a full hydraulic portable core drilling rig integrated with SPT (Standard Penetration Test) capability, designed for geological and geotechnical exploration in remote areas. It supports wireline diamond core drilling as well as in-situ soil testing, improving drilling efficiency and data accuracy. With a modular split-type structure, the rig can be easily transported and assembled in difficult terrains. Powered by a Cummins engine and advanced hydraulic system, it delivers stable performance, high penetration rates, and strong adaptability across various geological formations.

Inquire Now Brochure PDF

Functions and Features

Full Hydraulic Drive System Provides smooth, precise control with high efficiency and reduced mechanical wear.
Wireline Diamond Core Drilling Ensures high core recovery rate and efficient drilling performance.
High Performance Drill Head Multi-speed rotation with torque up to 2200 N·m, adaptable to different formations.

Integrated SPT Testing Function Supports Standard Penetration Test (SPT) for in-situ soil analysis during drilling operations.
Portable Modular Design Split-type structure enables easy transport by manpower or animals in remote areas.
Wide Drilling Angle Range Adjustable drilling angle from 45° to 90°, suitable for complex terrains.
Multi-Pump Hydraulic System Ensures stable pressure, high efficiency, and reliable continuous operation.

Features Introduction

Product Description

The JCD400T combines core drilling and SPT testing functions in one compact and portable system, making it ideal for integrated geological and soil investigation projects. Its full hydraulic drive ensures precise control during both drilling and testing operations. The modular design allows quick disassembly for transport to remote or mountainous areas. With adjustable drilling angles and reliable wireline system, the rig provides efficient core recovery while enabling accurate in-situ soil testing, reducing the need for additional equipment on site.

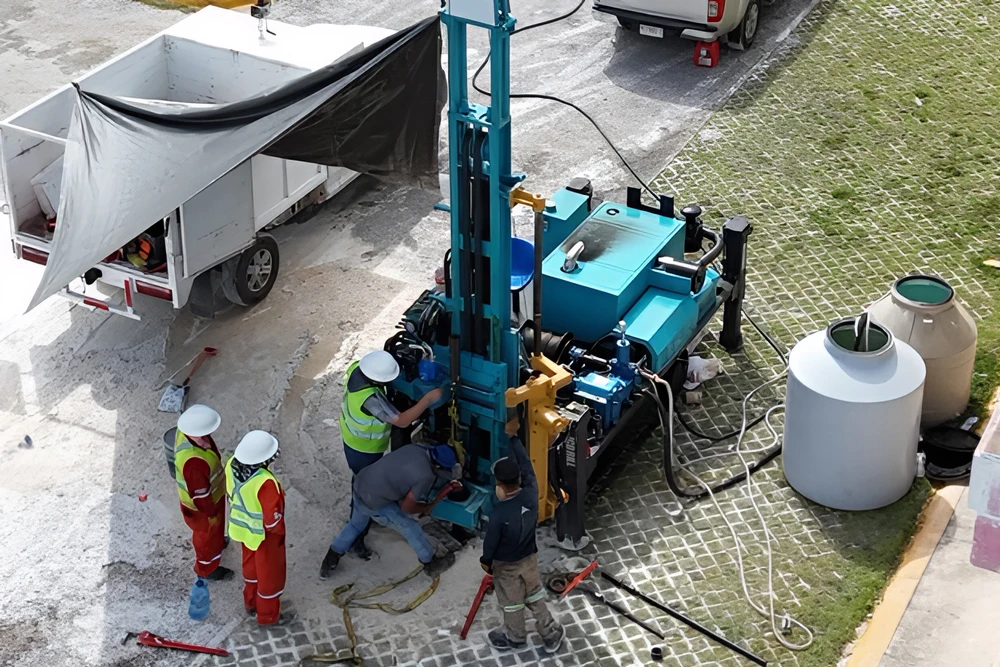

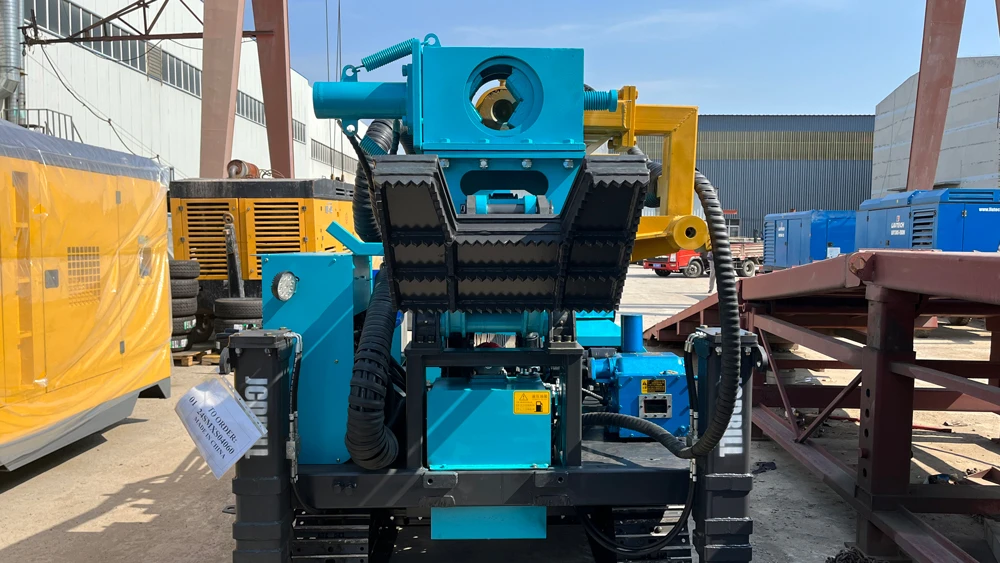

Integrated Drilling and SPT Testing

Combines core drilling and in-situ soil testing in one machine, improving efficiency.

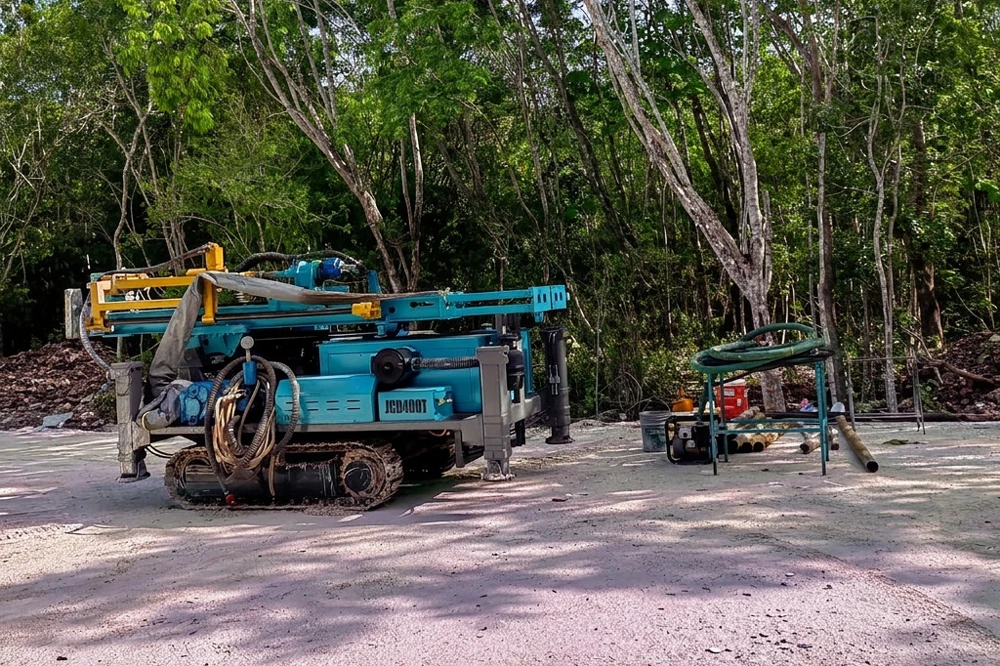

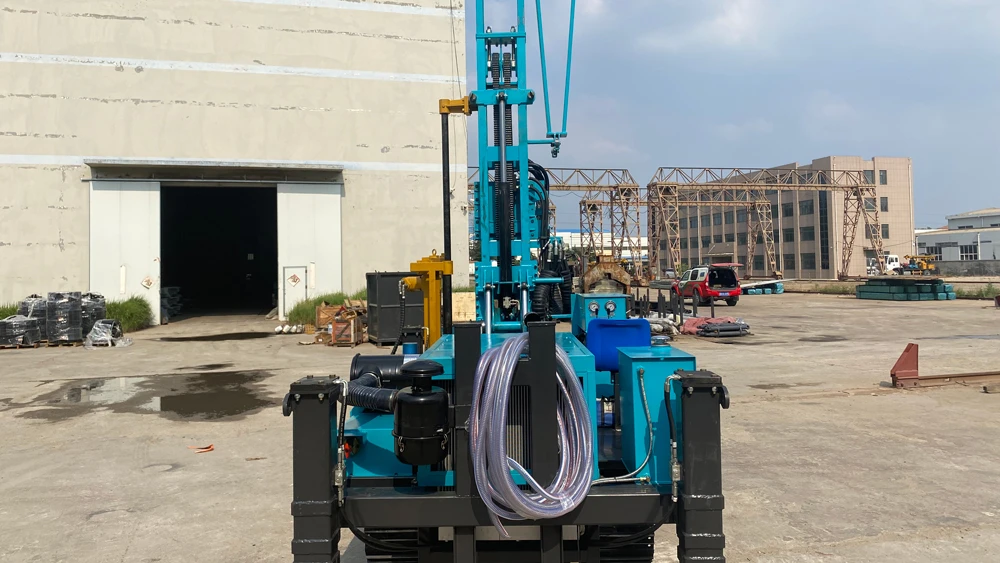

Portable for Remote Exploration

Modular split design allows easy transport and fast assembly in difficult terrains.

Full Hydraulic Precision Control

Ensures smooth drilling and accurate SPT operation with high reliability.

Product Specifications

Item		JCD400T
Diesel Engine	Model	Cummins 4BTA3.9-C100
	Power	74Kw (99HP)
	Rated RPM(Factory setting)	2200rpm
Drilling Capacity	BQ	400m
	NQ	300m
	HQ	100m
Drill Head	RPM	100~160rpm; 230~310rpm
	RPM	380~550rpm,850~1100rpm
	Max. Torque	2200Nm
	Max. Lifting capacity of Spindle	58 kN
	Max. Thrust Force	40 kN
Primary Pump	Hydraulic pump	1st Pump:156LPM at 22MPa
		2nd Pump:40LPM at 20MPa
		3rd Pump: 13 LPM at 20MPa
Capacity of Main Hoist	Hoisting force (single wire)	55kN
	Hoisting Speed (single wire)	0.45m/s
	Steel Wire Diameter	14 mm
Capacity of Wireline Hoist	Hoisting Force (single wire)	1200kN
	Hoisting Speed (single wire)	2.45m/s
	Steel Wire Length	350m
Mast	Mast Sliding Distance	800mm
	Mast Adjusting Angle	0°—90°
	Drilling Angle	45º off horizontal to 90ºvertical down
	Drill rod Length	3000mm
Mud Pump	Type	Reciprocating pump Triplex Plunger
Mud Pump	Model	BW160
Others	Weight (platform type)	5500 Kg
	Dimensions (L×W×H)	5600×2200×2400mm
	Transport Way	Crawler
