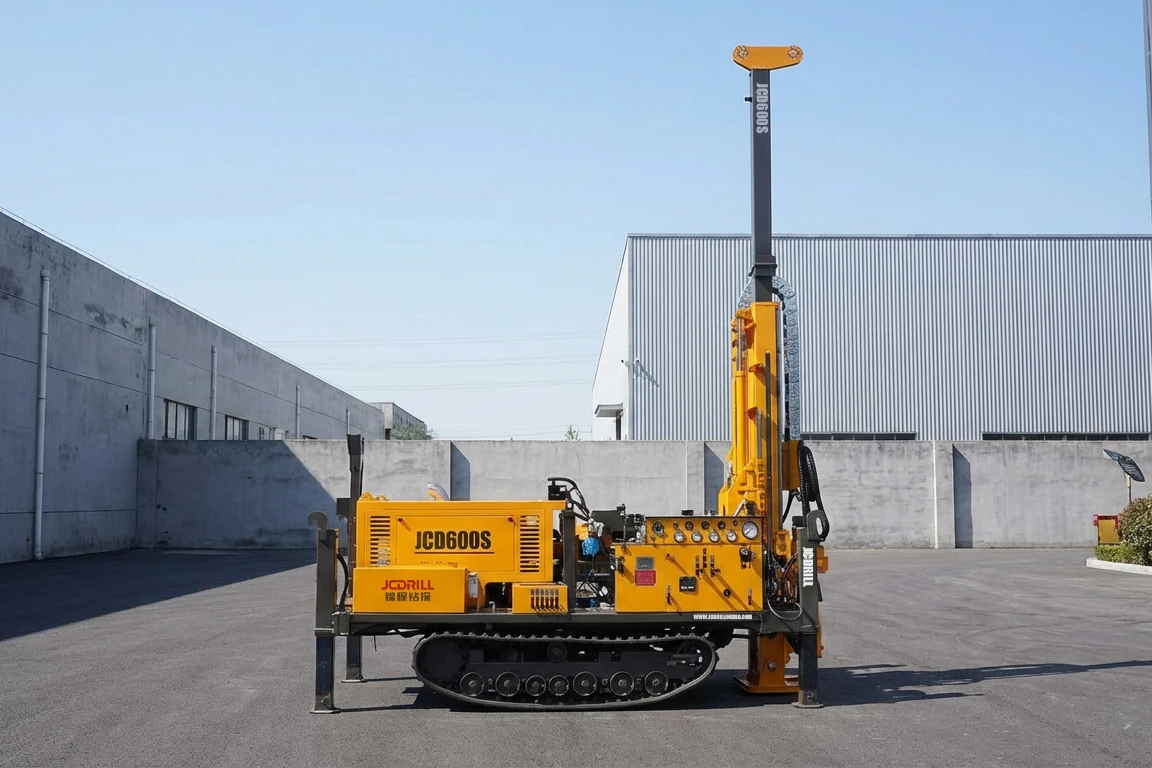

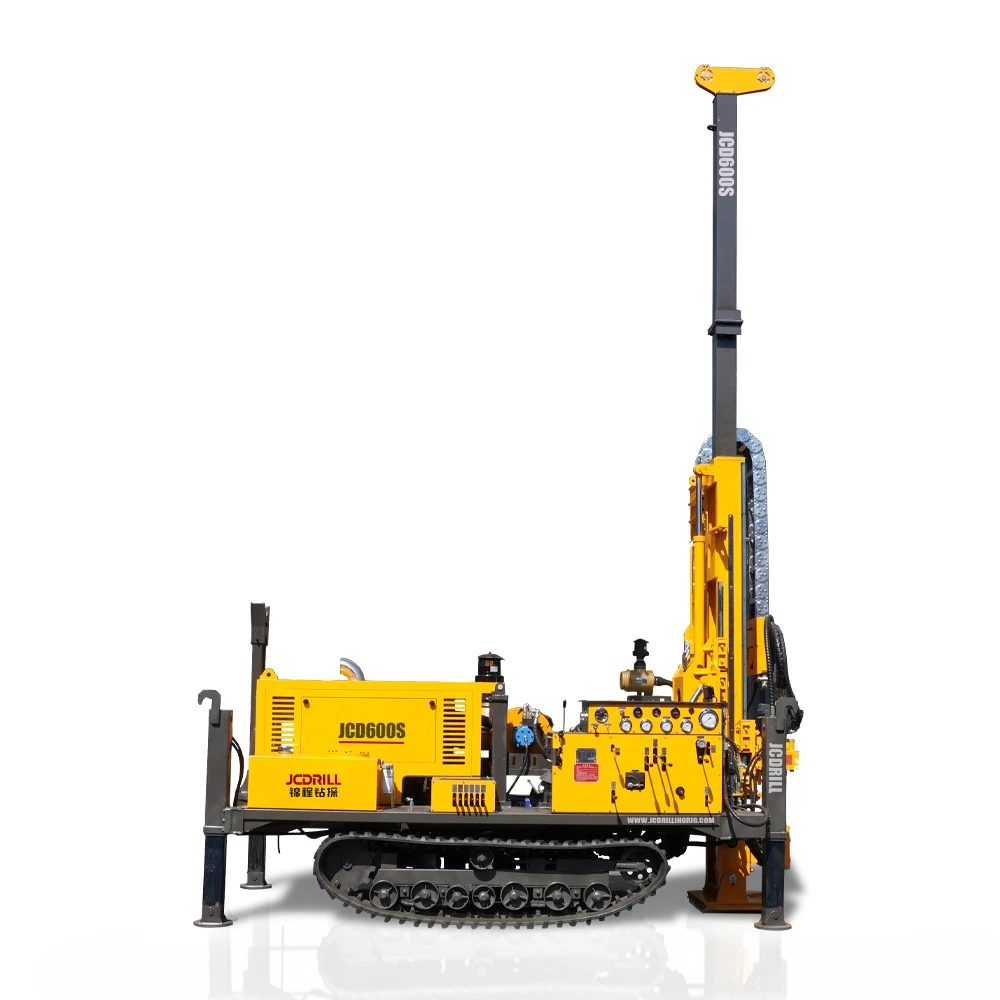

JCD600S Crawler Diamond Core Drilling Rig for Wireline Mineral Exploration

Hole Range

HTW / NTW / BTW

Hole Depth

350m / 700m / 800m

Recommend Chassis Type

Truck
Crawler
Trailer

The JCD600S is a robust crawler-mounted diamond core drilling rig designed for mineral exploration and geological investigation. It features a full hydraulic transmission system and supports wireline core drilling with HTW, NTW, and BTW drill rods, reaching a maximum drilling depth of up to 800 meters. Powered by a 92 kW YUCHAI turbocharged diesel engine, the rig delivers stable torque and reliable performance under demanding field conditions. Its high-pressure hydraulic system, ground-touching mast, and strong mobility make it suitable for medium to deep core drilling operations in complex terrains.

Inquire Now Brochure PDF

Functions and Features

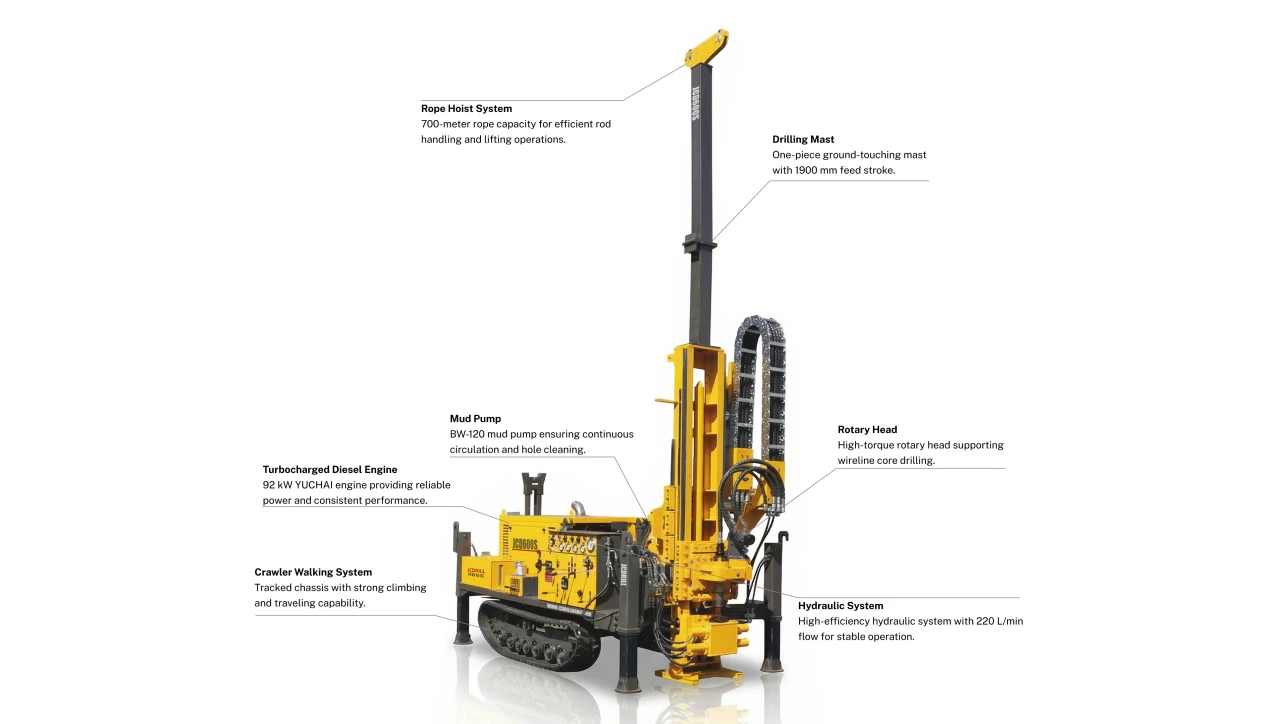

Main Components

High-Speed Rotation and Strong Torque Output With a rotation speed up to 1300 RPM and torque ranging from 450 to 1300 N·m, the JCD600S provides excellent penetration capability in various formations.
Ground-Touching One-Piece Mast The one-piece mast supports drilling angles from 45° to 90° and offers high stability and precision during vertical and inclined drilling operations.
Dual Operation Modes Supports both manual and remote control operation, enhancing safety, flexibility, and adaptability in different working environments.

Full Hydraulic Transmission System The rig adopts a full hydraulic transmission design with a rated pressure of 20 MPa and a flow rate of 220 L/min, ensuring smooth, efficient, and reliable drilling performance.
Wireline Diamond Core Drilling Capability Optimized for wireline coring using HTW, NTW, and BTW drill rods, enabling efficient core recovery and reduced downtime.
High-Pressure Mud Pump System Equipped with a BW-120 mud pump, delivering effective flushing and cuttings removal in soft to medium-hard geological conditions.

Product Description

The JCD600S Crawler Diamond Core Drilling Rig is a powerful and reliable drilling solution designed for wireline mineral exploration and geological investigation. It supports HTW, NTW, and BTW wireline diamond core drilling systems, with drilling depths of 350 m, 700 m, and up to 800 m, making it suitable for medium to deep core drilling projects in demanding field conditions.
The rig features a full hydraulic transmission system delivering smooth and efficient drilling performance, combined with a 92 kW YUCHAI turbocharged diesel engine that provides strong torque and stable power output. Equipped with a ground-touching one-piece mast adjustable from 45° to 90°, a high-pressure BW-120 mud pump, and crawler-mounted mobility, the JCD600S ensures excellent stability, flexibility, and adaptability in rugged terrains for mining, quarrying, and civil engineering applications.

High Torque & Efficient Penetration

With high-speed rotation and strong torque output, the JCD600S provides excellent penetration capability across soft to medium-hard geological formations.

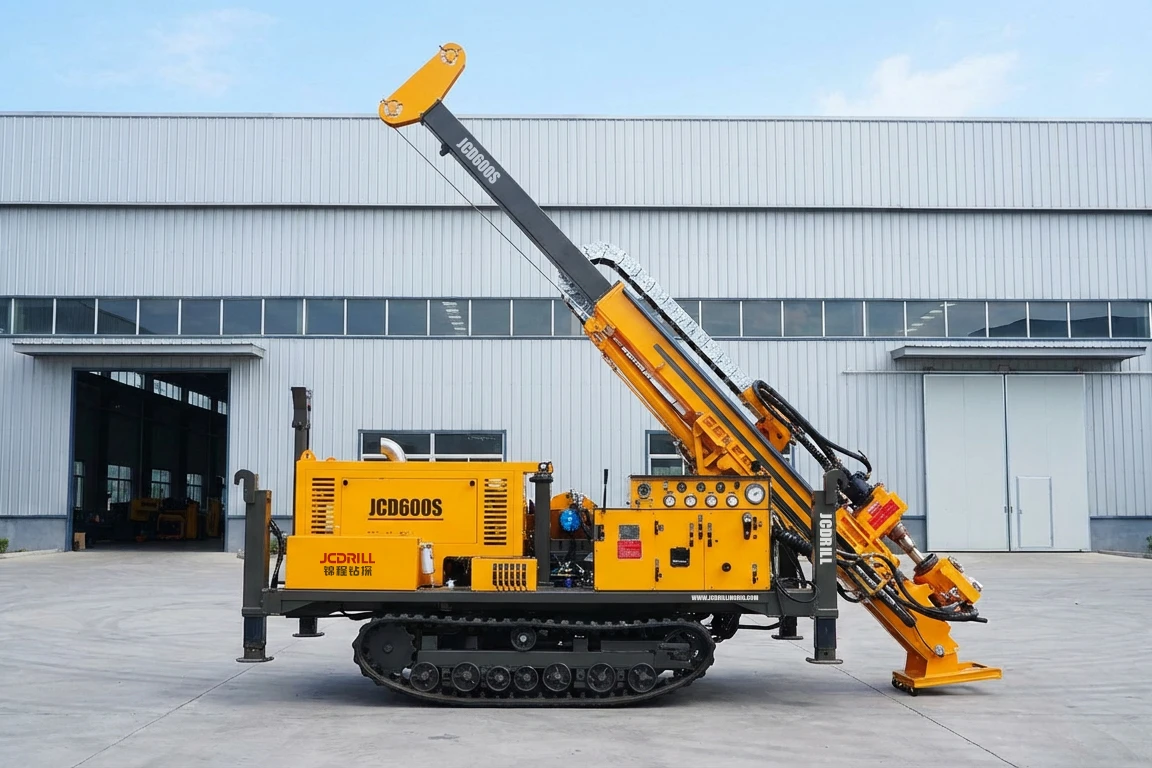

Ground-Touching Mast Design

The one-piece ground-touching mast enhances drilling stability and accuracy, supporting flexible drilling angles from 45° to 90° for vertical and inclined operations.

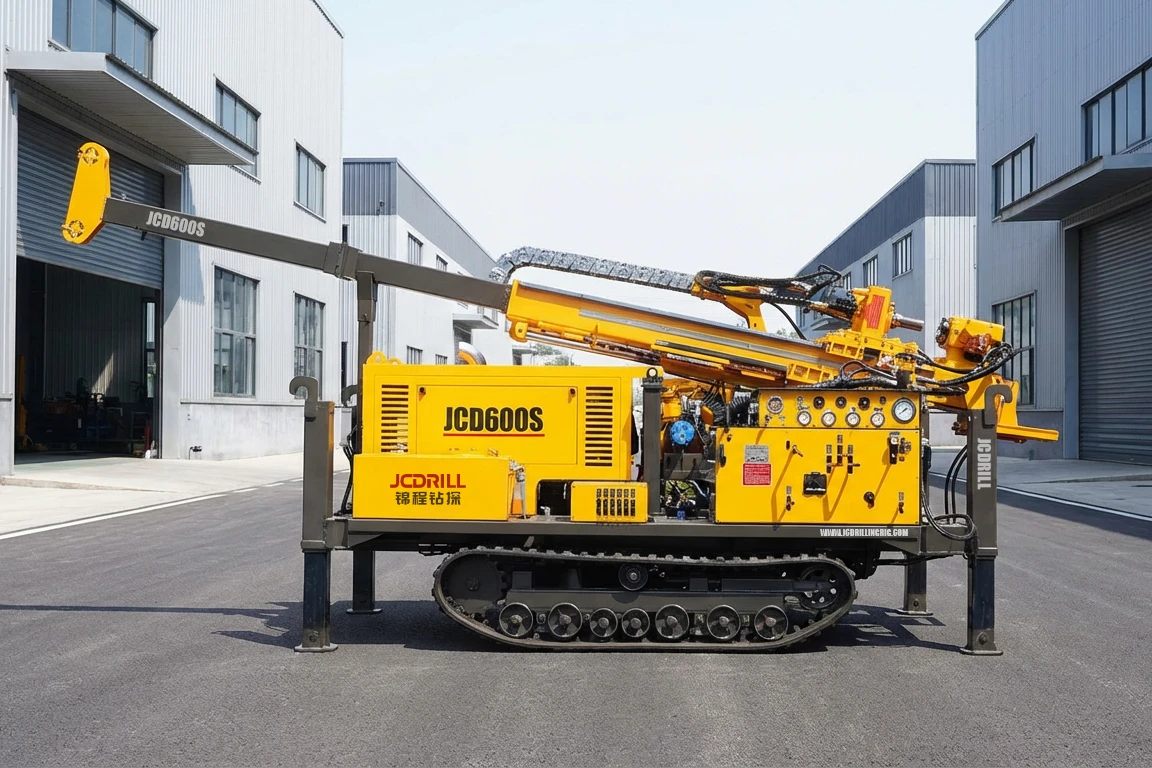

Crawler Mobility & Flexible Operation

The crawler chassis offers strong mobility in rugged terrain, while dual manual and remote control modes improve safety and operational flexibility on site.

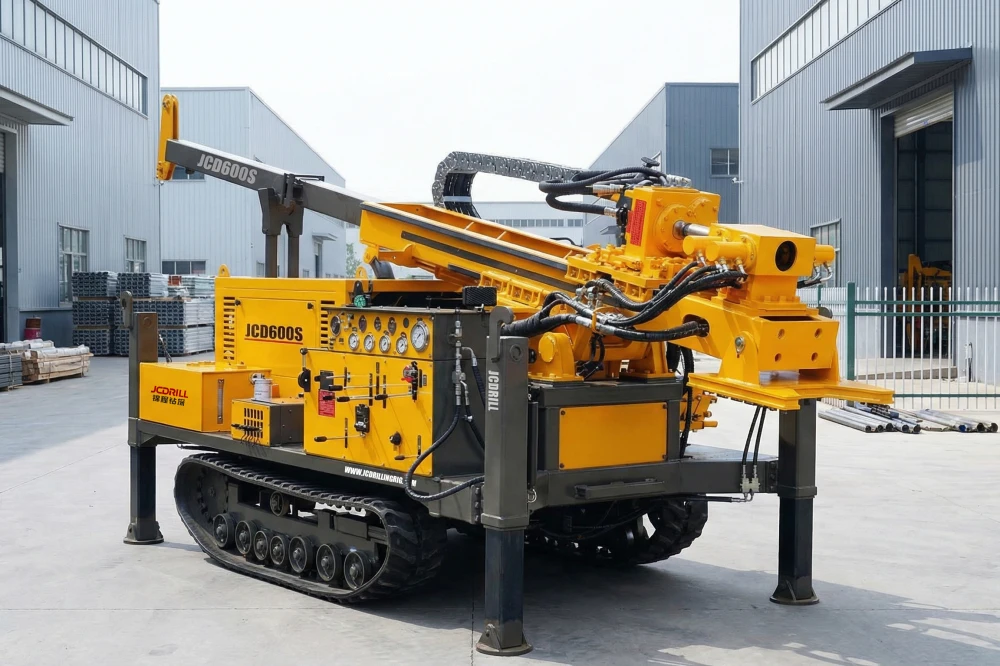

Full Hydraulic Drilling System

The full hydraulic transmission system ensures precise control of rotation, feeding, and lifting, delivering smooth and reliable drilling performance under high-load conditions.

Product Specifications

Specification	Unit	JCD600S
Drilling Capacity
Drill Diameter		HTW-NTW-BTW
Drill Depth	m	350-700-800
Hydraulic System
Rated Pressure	MPA	20
Rated Flow	L/min	220
Heat Dissipation		Air Cooling
Engine
Brand		YUCHAI
Type		Turbocharger
Rated Speed	RPM	2400
Rated Power	kW	92
Drilling System
Torque	N.M.	450-1300
Speed	RPM	1300
Tower Type		One-piece Ground-touching
Feeding Stroke	mm	1900
Drilling Angle	°	45-90
Max. Pull Up Capacity	Ton	16
Max. Push Down Capacity	Ton	8
Rope Hoist
Lifting Capacity	kg	600
Speed	RPM	100-300
Wire Rope Diameter	mm	6
Rope Capacity	m	700
Walking System
Operation Type		Manual & Remote Control
Walking Speed	KM/H	3.5
Climbing Angle	°	40
Mud Pump
Model		BW-120
Flow	L/MIN	0-120
Pressure	MPA	0-7
Weight & Dimensions
Transport Size	mm	420020502300
Weight	Ton	5/ 6

View Less
