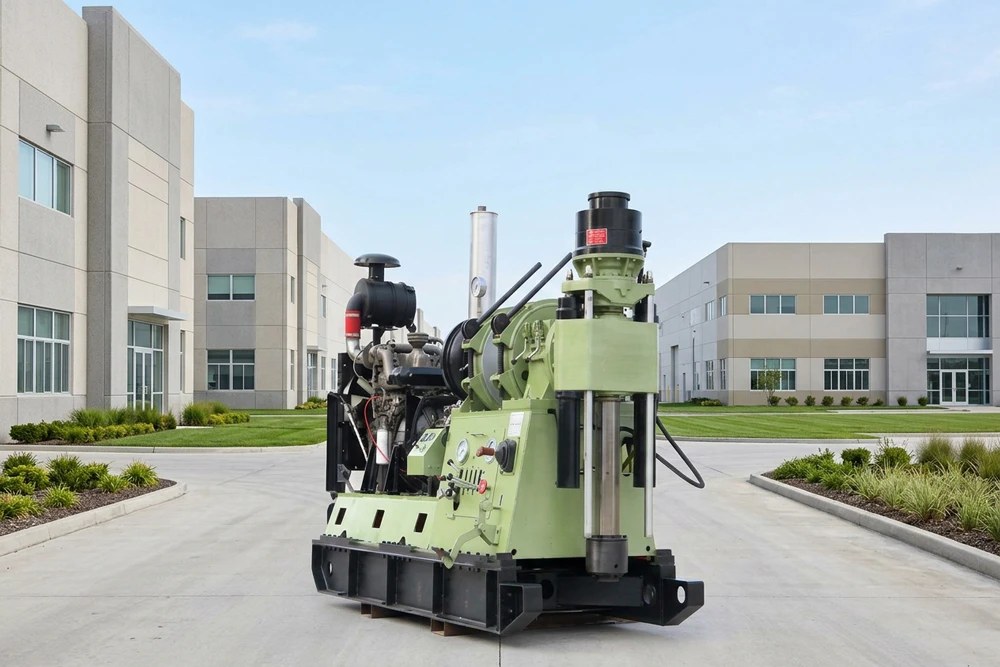

XY-5A Spindle Type Hydraulic Core Drilling Rig for Deep Geological Exploration

Hole Range

BQ / NQ / HQ / BW / NW / HW

Hole Depth

1800m

Recommend Chassis Type

Truck
Crawler
Trailer
Skid

The XY-5A is a spindle-type hydraulic core drilling rig designed for deep geological exploration and mineral investigation. It integrates advanced design concepts from both domestic and international drilling equipment, delivering strong drilling capacity and stable performance. The rig supports diamond and carbide drilling methods and is suitable for various formations. With a wide rotary speed range, high lifting capacity, and compact modular structure, the XY-5A is ideal for deep core drilling in mining, hydrology, and engineering exploration projects.

Inquire Now

Functions and Features

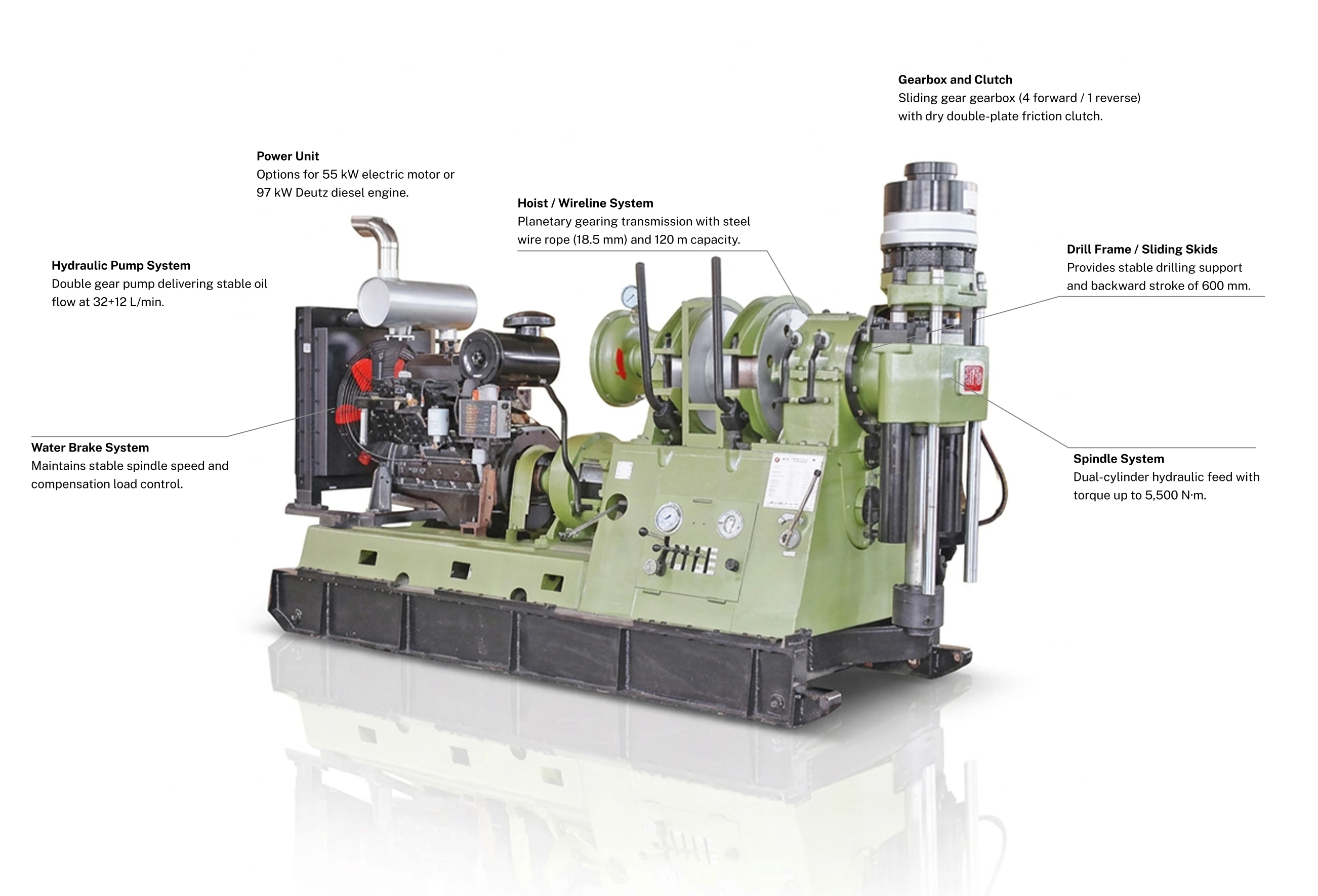

Main Components

Wide Drilling Depth Capability Supports drilling depths up to 1,800 m, adaptable to multiple core extraction methods.
Planetary Hoisting System Steel wire rope with high lifting speed and force ensures safe and precise core retrieval.
Versatile Drill Rod Compatibility Supports home-made rods, wireline rods, and DCDMA rods for multiple drilling applications.

High Torque Spindle System Dual-cylinder hydraulic spindle provides strong torque (5,500 N·m) and stable rotation for deep drilling.
Hydraulic Automatic Feed Smooth, efficient feed mechanism reduces operator workload and improves drilling efficiency.
Sliding Skid Drill Frame Modular frame allows easy assembly, flexible positioning, and low-position lift convenience.
Integrated Hydraulic System Double gear pump with working pressure up to 20 MPa ensures stable performance.

Product Description

The XY-5A is designed for deep underground and field drilling operations requiring high precision and efficiency. Its dual-cylinder hydraulic feed system ensures smooth and stable rod advancement. The high-capacity spindle delivers up to 5,500 N·m torque and 135 kN lifting force, enabling efficient penetration in hard rock formations. Modular sliding skid frame design allows easy assembly and flexible positioning. The rig’s planetary hoisting system and hydraulic clutch guarantee safe and controlled lifting, making it suitable for long-core drilling and various geological exploration applications.

High-Capacity Spindle

Dual-cylinder hydraulic spindle provides high torque and lifting force for deep drilling.

Efficient Hydraulic Feed

Hydraulic feed ensures smooth, continuous rod advancement and improved productivity.

Flexible Sliding Skid Frame

Compact, modular sliding skid allows easy transport, assembly, and low-position drilling.

Product Specifications

Sorts of Drill Rod		Drill Rod Spec.	Drilling Depth
Home made	Planer in and out	Φ43×6mm(Φ1.69×0.24 inch)	1,800 m (5904 feet)
		Φ54×6mm (Φ2.13×0.24 inch)	1,300 m (4264 feet)
		Φ67×6mm (Φ2.64×0.24 inch)	1,100 m (3608 feet)
	Thickened inner	Φ50×5.5mm (Φ1.97×0.22 inch)	1,500 m (4920 feet)
Drill Rod	Thickened inner	Φ60×6 mm (Φ2.36×0.24 inch)	1,200 m (3936 feet)
	Extracting core with wire line	Φ55.5×4.75 mm (Φ2.19×0.19 inch)	1,600 m (5248 feet)
		Φ71×5 mm (Φ2.80×0.20 inch)	1,300 m (4264 feet)
		Φ89×5 mm (Φ3.50×0.20 inch)	1,000 m (3280 feet)
DCDMA (Diamond Core Drill Manufacturer Association) made Drill Rod	Thickened inner	BW	1,500 m (4920 feet)
		NW	1,200 m (3936 feet)
		HW	900 m (2952 feet)
	Extracting core with wire line	BQ	1,800 m (5904 feet)
		NQ	1,300 m (4264 feet)
		HQ	1,000 m (3280 feet)
