60–210mm
English
Hole Range
60–210mm
Hole Depth
25m
Recommend Chassis Type
Crawler
Trailer
Skid

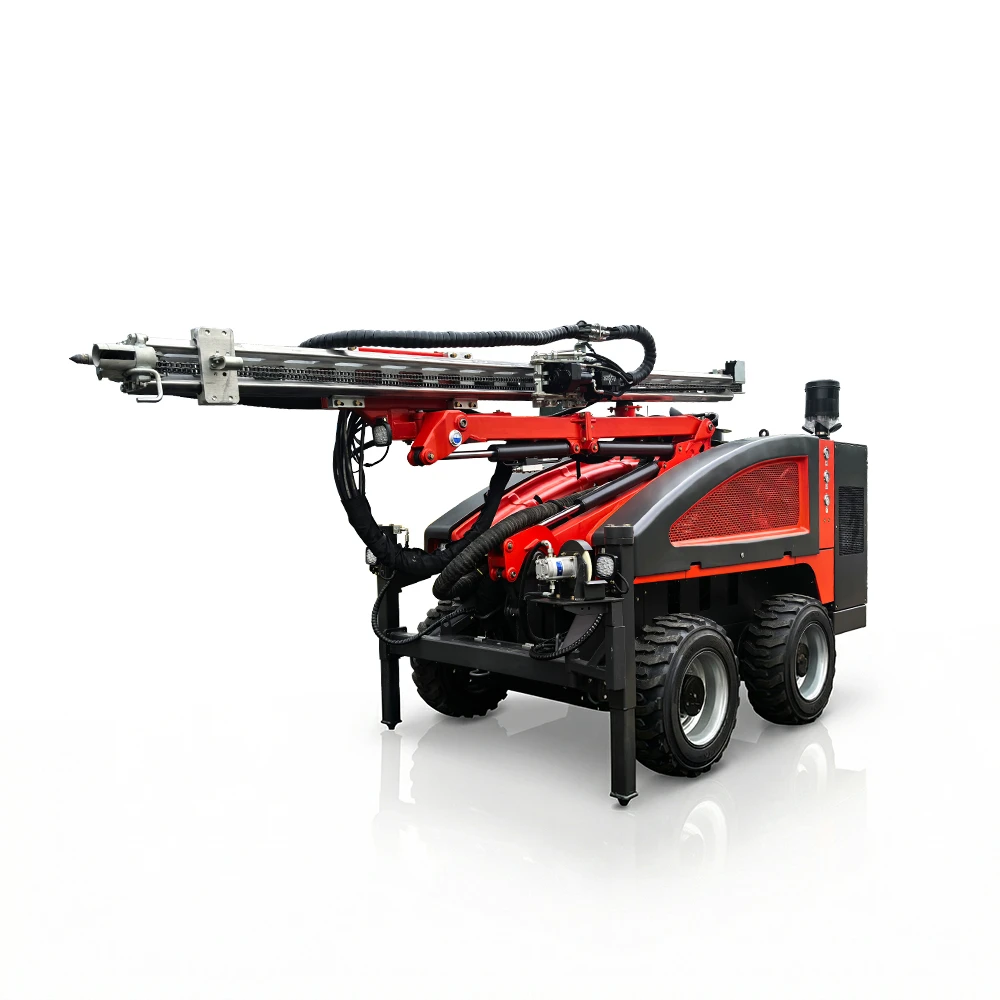

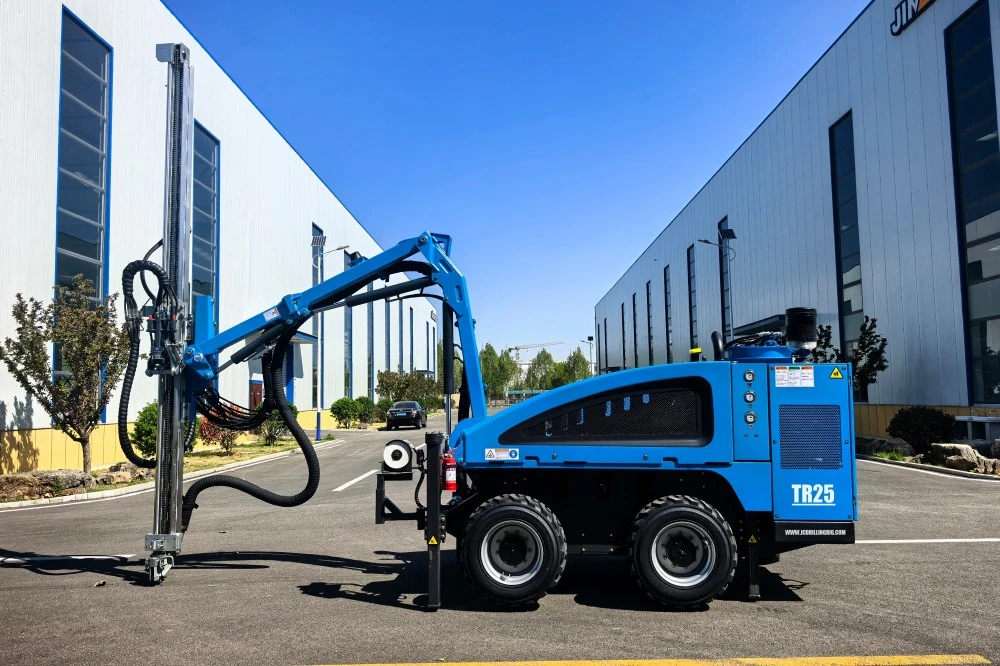

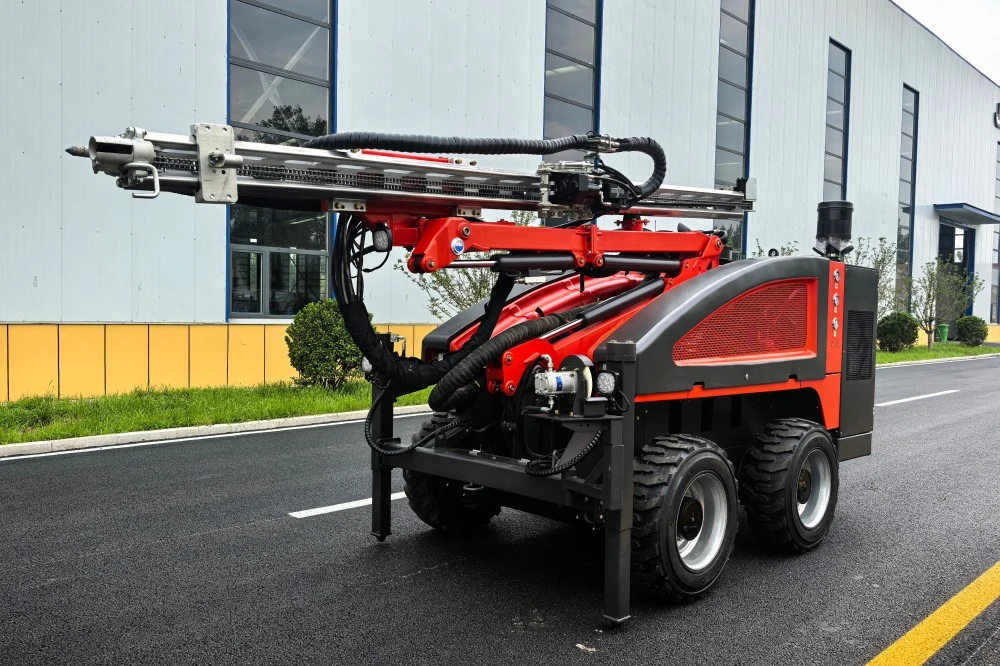

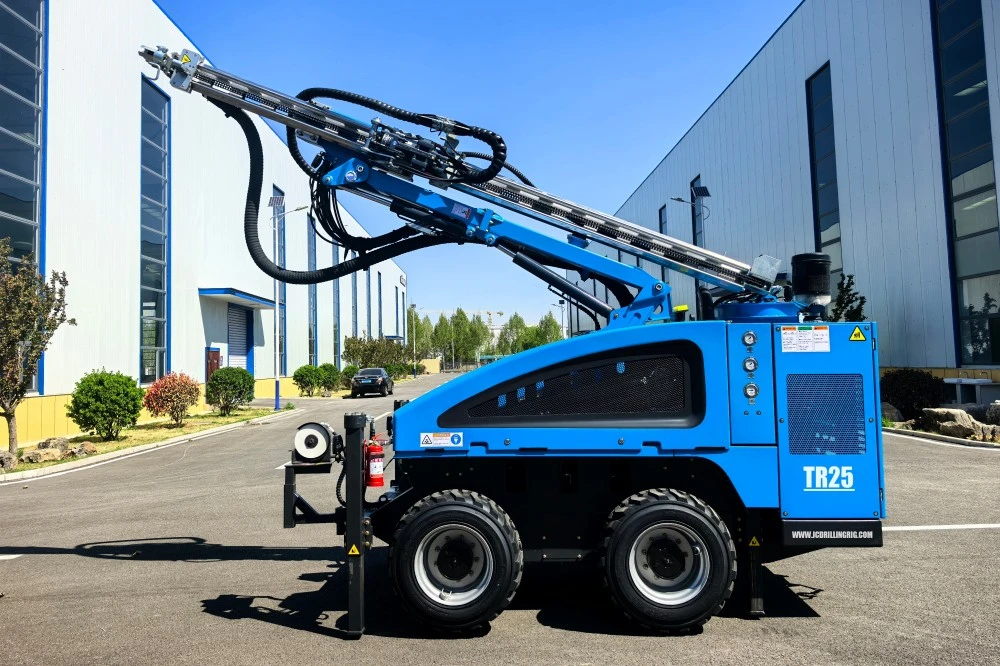

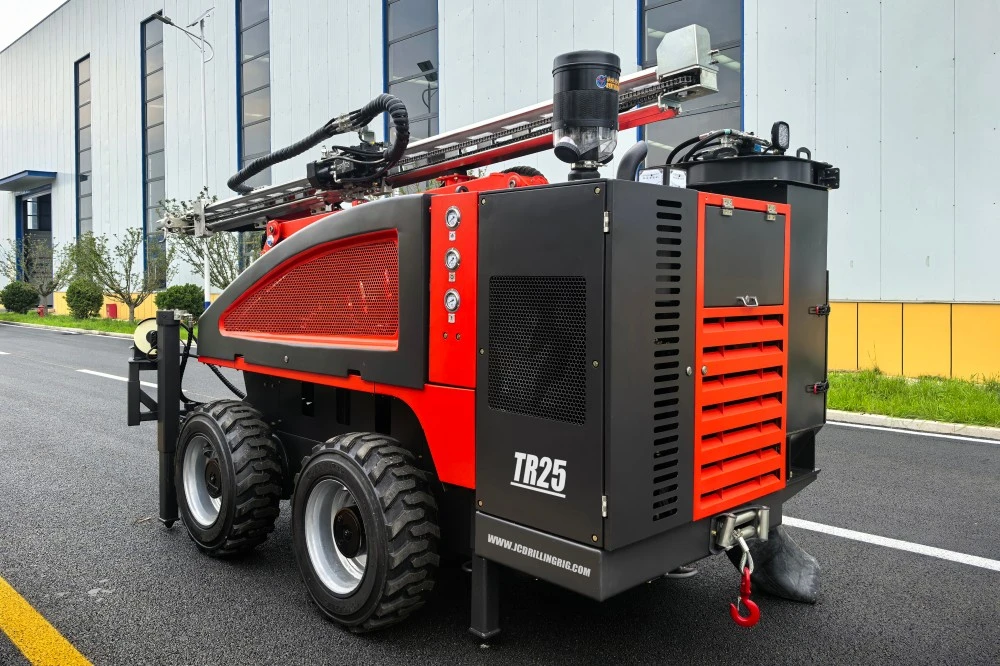

The TR25 is a compact full hydraulic anchor drilling rig specially designed for anchor borehole drilling in small tunnels and confined working spaces. With a compact structure, articulated system, and rotating table design, the rig supports multi-position and multi-angle drilling operations. Equipped with a rotary–percussive hydraulic drifter and powered by a Cummins diesel engine, the TR25 delivers stable torque output and reliable performance. Its crawler base, flexible operation, and compact dimensions make it suitable for anchoring construction where space is limited.
Product Description

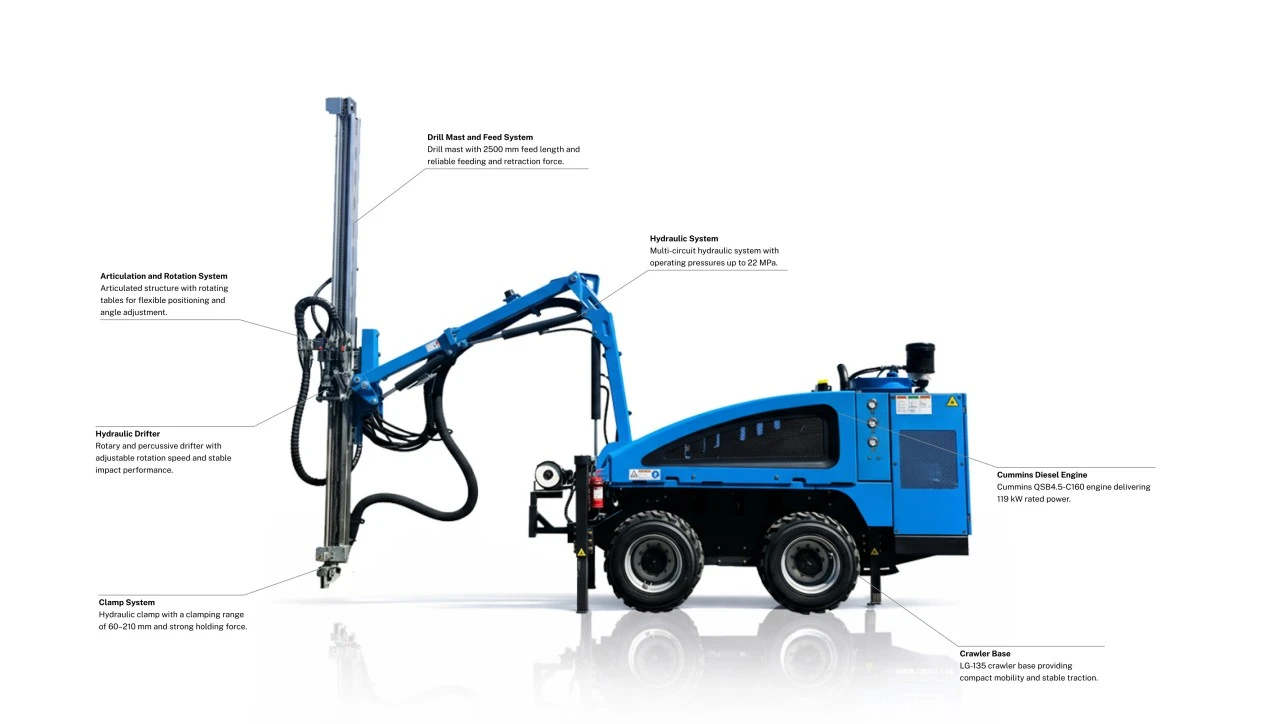

The TR25 Compact Full Hydraulic Anchor Drilling Rig is specially designed for drilling anchor boreholes in small tunnels and confined construction spaces. Its compact and articulated design, combined with a rotating table, allows multi-angle and multi-position drilling, making it highly adaptable for complex and restricted sites. Powered by a Cummins diesel engine and equipped with a rotary–percussive hydraulic drifter, the rig delivers stable torque output and consistent performance for a variety of anchoring applications.
Built on a crawler chassis, the TR25 provides excellent stability, maneuverability, and positioning on uneven terrain. The energy-efficient hydraulic system ensures reliable power with reduced energy consumption, while the flexible operation and compact dimensions make it ideal for small tunnel construction, civil engineering, mining, and quarry projects. Optional configurations include adjustable clamp sizes, rotary and percussive drilling modes, and custom hydraulic, mast, and feed system setups to meet specific project requirements.
Product Specifications
| Specification | Unit | TR25 |
| General | ||
| Hole Diameter | mm | 21-41 |
| Rod Diameter | mm | 19, 22 or 25 |
| Hammer Power | KW | 5 |
| Propulsion Power | KW | 48 |
| Impact Energy | J | 0.8 m³/min - 8 bar |
| Equipment Weight | kg | 3950 |
| Drilling System | ||
| Hammer Model | 430X | |
| Rod Tail Size | Hex 19-108 / Hex 22-108 / Hex 25-108 | |
| Working Pressure | MPa | 10-16 |
| Impact Frequency | Hz | 90 |
| Impact Power | KW | 5 |
| Maximum Torque | N.m | 194 |
| Rod Lubrication | Air | |
| Mast Parameters | ||
| Chain Model | 12A | |
| Mast Length | mm | 4700 |
| Mast Tilt Angle | ° | 110 |
| Single Stroke | mm | 3550 |
| Downward Thrust | kN | 3.7 |
| Swing Angle | ° | ±47 |
| Front Swing Arm | Semi-automatic | |
| Maximum Rod Length | mm | 4000 |
| Support Arm | ||
| Model | JT 120HD | |
| Length | mm | 3800 |
| Swing Angle | ° | ±45 |
| Drilling Area | m² | 10 |
| Hydraulic System | ||
| Hydraulic Type | Constant power system | |
| Filtration Precision | μm | 10 |
| Cooling Capacity | ° | 50 |
| Hydraulic Oil Tank | L | 85 |
| Lubrication Model | Q1U-20 | |
| Power System | ||
| Engine Model | YC4FA65-T300 | |
| Number of Pistons | pcs | 4 |
| Engine Power | KW | 48 |
| Hourly Fuel Consumption | L/h | 5-6 |
| Air Displacement | m³/min | 0.8 |
| Air Pressure | bar | 8 |
| Air Compressor Model | ERY504HS | |
| Fuel Tank | L | 70 |
| Control System | ||
| Rock Drilling Software System | Contrast system | |
| Rock Drilling Control | Wireless remote control | |
| Walking Control | Wireless remote control | |
| Dust Collection System | ||
| Model | RDC-65 | |
| Filter Area | m² | 5.7 |
| Motor Power | kW | 3 |
| Weight | kg | 163 |
| Walking System | ||
| Model | 4 rubber wheel drive | |
| Ground Clearance | mm | 230 |
| Traction Force | kN | 15 |
| Number of Wheels | pcs | 4 |
| Maximum Walking Speed | Km/h | 7 |
| Parament | ||
| Hammer Head | 430X | |
| Chain | 12A | |
| Support Arm | JT 120HD | |
| Chassis | On the frame | |
| Walking Rubber | 4 pcs | |
| Walking System | Diesel Engine | |
| Control System | Wireless remote control | |
