Underground Core Drilling Rig
An underground core drilling rig is a compact, modular diamond drilling machine engineered specifically for operation inside mine tunnels, drifts, crosscuts, and other confined underground environments. Unlike surface core drilling rigs — which are large, crawler-mounted or truck-mounted systems designed for open terrain — underground core drilling rigs are purpose-built around the constraints of the subsurface: restricted headroom, narrow access, limited ventilation, and the requirement to drill in any direction including horizontal, upward, and at steep negative angles.
Underground core drilling is used throughout the life of a mine for a range of critical geological and engineering tasks: defining ore body extents below and around existing workings, conducting infill drilling programs to tighten resource classifications, verifying geotechnical conditions for stope or excavation design, investigating tunnel face geology ahead of development, and checking for water-bearing features before blasting.

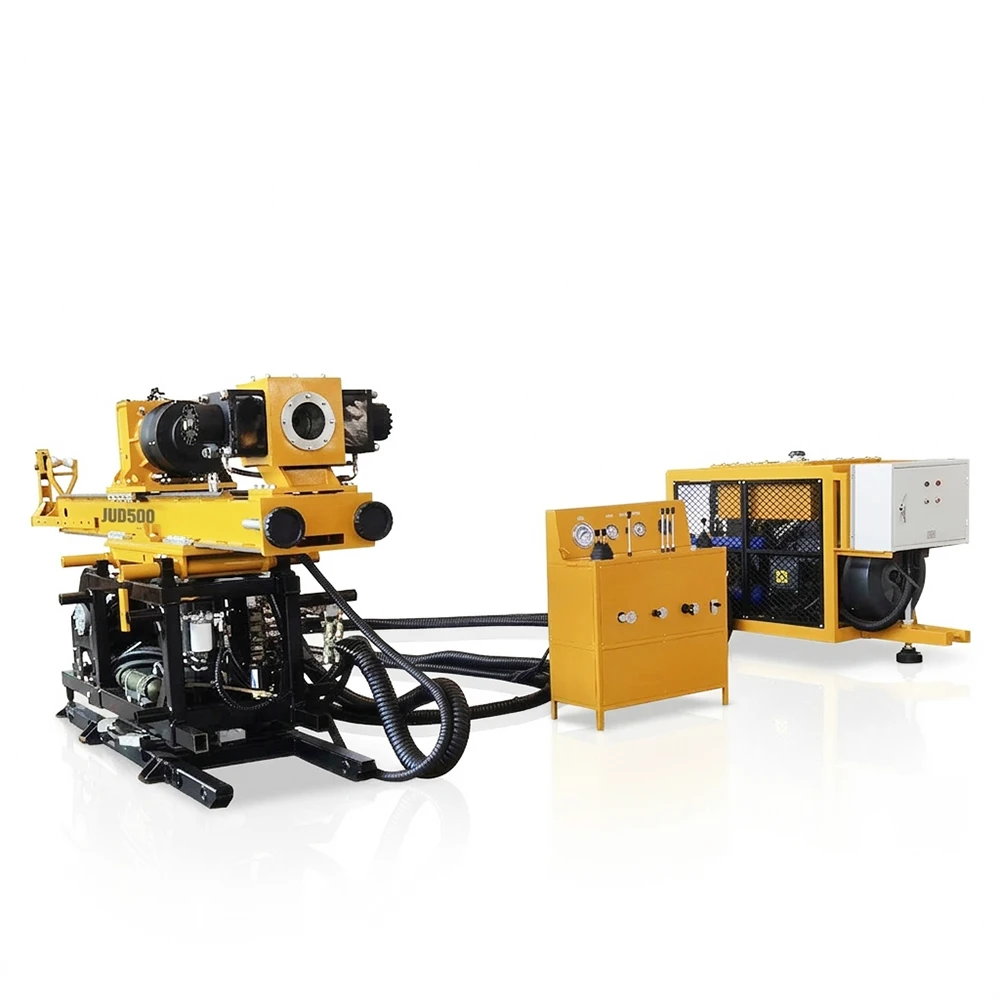

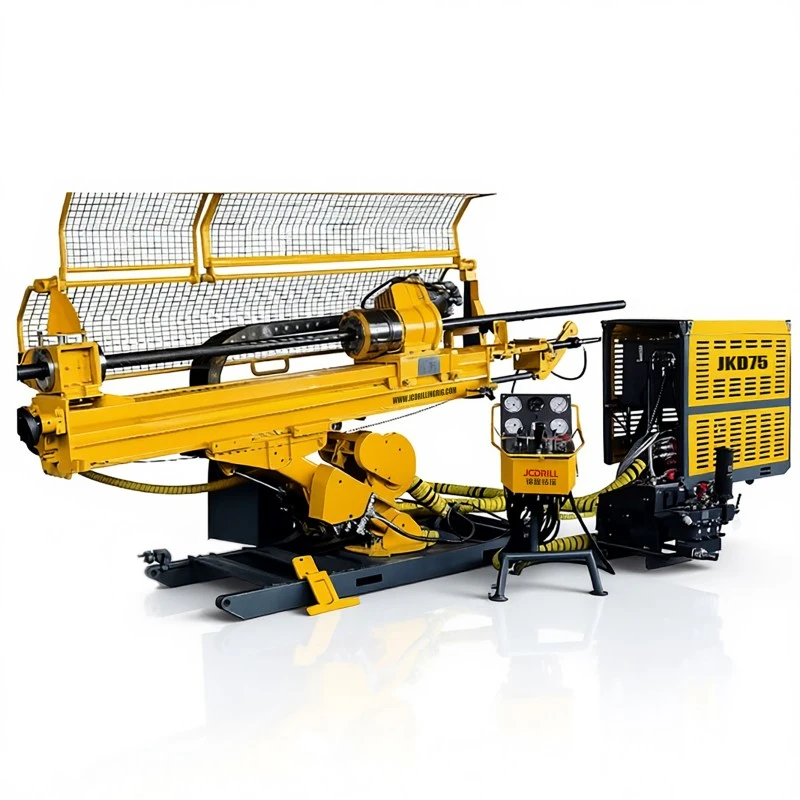

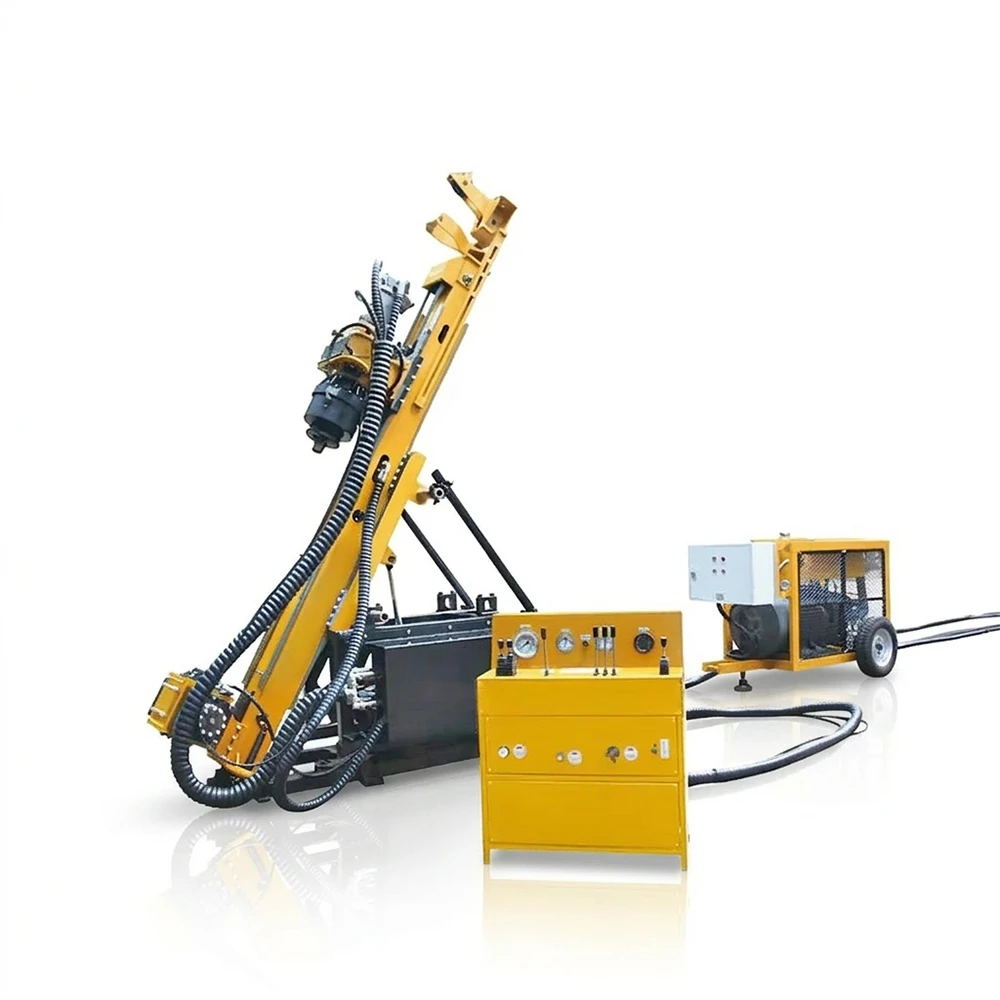

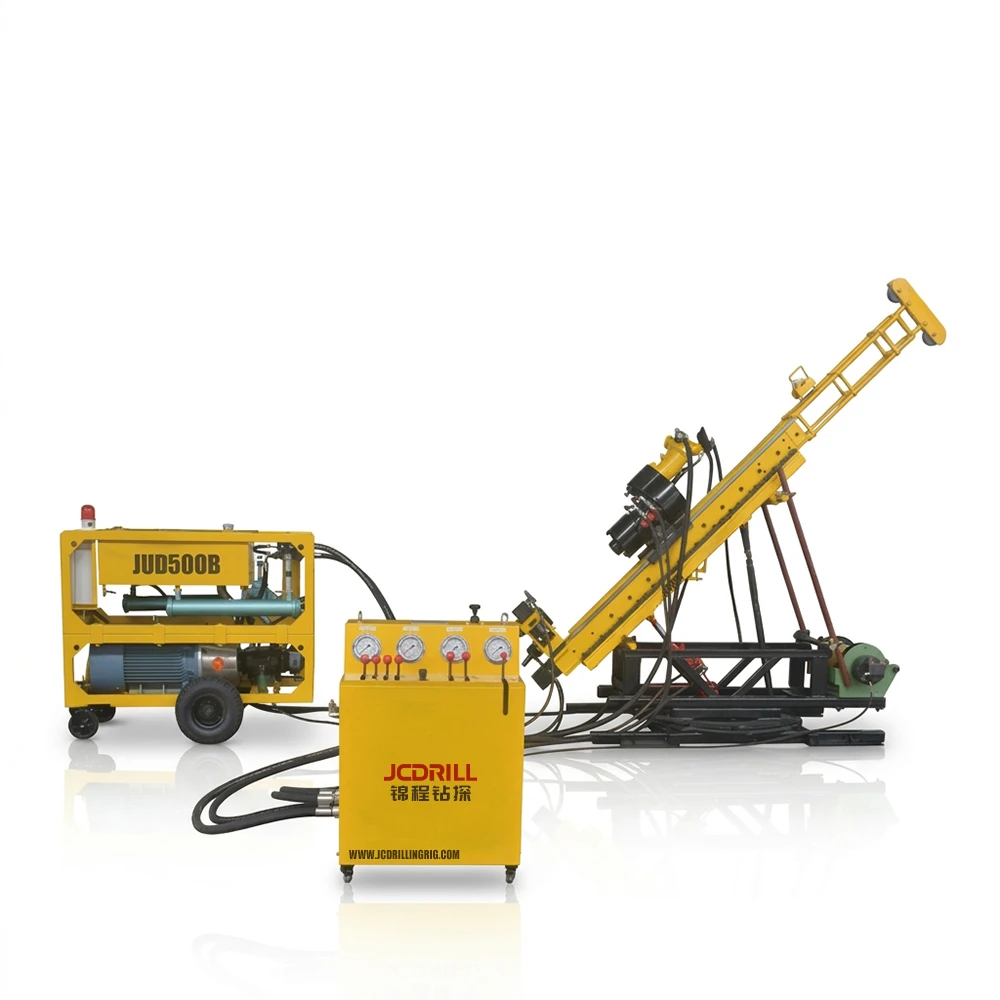

JCDRILL manufactures a full range of compact underground core drilling rigs for confined mine environments, available in electric and diesel configurations, with full hydraulic top-drive power heads and wireline diamond coring capability from 150m to 1,000m depth.
Compact, Low-Profile Frame JCDRILL underground core drilling rigs are built on low-profile structural steel bases with a slim cross-section. The overall machine dimensions are designed to pass through standard underground mine access openings. The low centre of gravity provides stability when drilling at steep upward angles or horizontal inclinations without requiring anchoring to the drift floor.
Modular Construction for Underground Transport Each JCDRILL underground core drilling rig disassembles into clearly defined transport modules. The heaviest individual module is designed to remain within the weight capacity of standard underground lift cages and man-transport vehicles. Assembly at the drill station is achievable with standard hand tools, enabling the crew to rig-in quickly at each new drill position.
Full Hydraulic Top-Drive Power Head The power head is fully hydraulically driven, with independent control of rotational speed and feed pressure. Stepless speed adjustment from 0 to 1,500+ RPM allows the driller to optimize diamond bit performance in variable underground formations — from weathered rock near mine openings to fresh competent basement rock at depth. The hydraulic circuit uses a fixed-displacement axial piston pump system for consistent performance at varying load.
360° Full-Angle Drilling Capability The mast assembly mounts on a hydraulic turntable that allows positioning at any azimuth and inclination. A hydraulic clamping system locks the mast in position once the target hole orientation is set, maintaining drilling angle stability throughout the entire borehole depth. This full-angle capability allows a single underground drill station to access multiple geological targets with different orientations.
Hydraulic Chuck and Rod Clamping System Handling drill rods in a confined underground space requires a reliable mechanical rod clamping system to prevent string drop during rod changes. JCDRILL underground rigs are equipped with a hydraulic chuck that provides automatic pressure-maintaining grip — maintaining clamp force even in the event of a temporary hydraulic pressure drop. The rod holder and chuck operate in synchronization for safe, controlled rod tripping at all angles.
Electric Motor with Explosion-Proof Option JCDRILL's primary underground core drilling rig configuration uses an explosion-proof electric motor driving the hydraulic power pack from mine-supplied power. The electric drive eliminates exhaust gases in confined underground workings, reduces heat generation, lowers noise levels, and significantly reduces ongoing fuel costs compared to diesel operation. Diesel engine variants with catalytic exhaust scrubbers are available where electric supply is unavailable underground.
Integrated Wireline Diamond Coring System JCDRILL underground core drilling rigs are designed for wireline core retrieval. The wireline system allows the inner core barrel to be retrieved to the drill collar through the drill string without removing the full rod string from the hole — critical for productivity on underground holes exceeding 150m depth, where a full string pull would consume most of a shift's drilling time.
The most common application of underground core drilling rigs is proving ore body continuity below and adjacent to active mining levels. From underground drill stations established in access drives, a compact underground core rig can drill fan patterns of holes in multiple directions to intersect the ore zone at different positions and depths — defining grade, width, and structural geometry without the need to establish a surface drill site above the target area.
This is particularly valuable in deep mines where surface drilling to the same depth would require extremely long holes with significant deviation management challenges, and where the time and cost of mobilizing a surface drill program is prohibitive.
As a mine transitions from Indicated to Measured resource categories, closer-spaced drilling is required to reduce the uncertainty in the geological model. Underground core drilling rigs allow infill holes to be drilled from existing underground infrastructure, minimizing the surface disturbance and cost of a surface infill program and delivering faster turnaround on assay and logging data.
Before each production stope is blasted and extracted, geotechnical and grade-control drilling is carried out to verify ore width, confirm waste rock contacts, and identify structural features that could affect stope stability. Underground core drilling rigs are used for short-hole stope definition drilling programs — typically targeting depths of 50m to 250m in patterns around the planned extraction envelope.
Underground core drilling is widely used by geotechnical engineers to characterize rock mass conditions ahead of new underground development — for tunnel design, pillar assessment, shaft sinking, or underground cavern construction. Core recovered from underground investigation holes provides Rock Quality Designation (RQD) data, point load strength, discontinuity frequency measurements, and samples for laboratory testing of rock mechanics parameters.
In civil engineering tunneling projects (road tunnels, rail tunnels, hydroelectric tunnels), compact underground core drilling rigs are deployed to probe ahead of the excavation face to identify fault zones, water-bearing features, and zones of weak rock that require pre-treatment before blasting or TBM advance.
In coal mining, underground diamond core drilling rigs are used to investigate coal seam continuity, thickness variation, roof and floor geology, and the presence of in-seam gas or water-bearing strata. Explosion-proof electric-powered underground rigs are mandatory in gassy coal mine environments.
In high-grade narrow vein deposits (gold, silver, tungsten), precise delineation of vein geometry is critical to maintaining mill feed grade. Underground core drilling from stope drives allows the drilling of short, accurate holes to define vein dip, strike, and true width before each mining block is extracted.
Several key parameters guide the selection of the appropriate JCDRILL underground core drilling rig for your project:
Target Drilling Depth For shallow underground investigation holes to 150m–300m (stope definition, geotechnical verification, face probing), the compact JCU-150 or JCU-300 is appropriate. For deep underground ore body extension programs targeting 500m or more from the drill station, specify the JCU-500 or JCU-800. For very deep underground holes exceeding 700m, the JCU-1000 provides the necessary hoisting capacity and rod handling capability.
Drilling Angle Requirements If your program requires predominantly downward or inclined drilling from level drives, all JCDRILL underground models support this. If upward drilling (drilling toward the surface or into the back of an excavation) is required, confirm this capability with your rig model selection — all JCDRILL underground rigs support full 360° angle drilling including vertical upward.
Power Supply Availability Electric motor drive is preferred wherever underground power supply is available. Confirm the available voltage and amperage at the underground supply point. If electric supply is not available at the intended drill stations, specify the diesel-engine variant with catalytic scrubber. Contact JCDRILL with your site power specifications for motor sizing confirmation.
Access Dimensions Provide the minimum cross-section dimensions of the access shaft, ore pass, or drift that the rig must pass through during transport. JCDRILL will confirm the maximum transport module dimensions for the specified model and advise on any dimension-specific configuration adjustments.
Rock Type and Formation Hard, abrasive crystalline rock (granite, quartzite, massive sulfide) demands high-torque drilling at controlled penetration rates. Softer formations (altered zones, clay-rich material) may cause core jamming that requires specific core barrel selection. JCDRILL's technical team can advise on core barrel and diamond bit selection for your anticipated formation.
Safety Classification of the Mine For gassy coal mines or metalliferous mines with flammable atmosphere risk, explosion-proof electrical components are mandatory. Confirm the mine's hazardous area classification before specifying electrical equipment. JCDRILL can supply explosion-proof electric motors and control panels conforming to international ATEX or IECEx standards.
Specialized Underground Engineering JCDRILL's underground core drilling rigs are engineered specifically for the physical and operational constraints of underground mine environments. The modular transport design, full-angle drilling capability, and electric-first power configuration reflect the real operational demands of underground exploration drilling — not simply a surface rig reduced in size.
Factory-Direct Pricing from China As a direct manufacturer in Beijing, China, JCDRILL supplies underground core drilling rigs at factory prices. This provides a substantial cost advantage compared to European or North American manufactured equivalents for comparable technical specifications.
ISO 9001 Certified Quality All JCDRILL underground core drilling rigs are manufactured under ISO 9001 certified quality management, covering material selection, machining precision, hydraulic circuit assembly, and pre-delivery function testing.
Global Delivery and Export Documentation JCDRILL exports underground drilling equipment to active mining operations worldwide, including projects in sub-Saharan Africa, South America, Southeast Asia, and Central Asia. We manage complete export documentation, sea freight logistics, and spare parts dispatch.
Comprehensive Spare Parts and Technical Support JCDRILL maintains inventory of critical spare parts for all current underground core drilling rig models. Remote technical support is available for maintenance guidance and troubleshooting. On-site commissioning and operator training can be arranged through our international service network.
Custom Configuration for Mine-Specific Requirements Every underground mine environment is different. JCDRILL works with clients to specify custom module weight limits, drift-profile-specific dimensions, custom voltage requirements, and non-standard rod handling configurations to match the operational reality of each underground project.
JCDRILL's technical sales team is available to assist with model selection, specification review, and quotation for underground core drilling rigs. To receive an accurate and fast quotation, please provide:
Contact us to speak with our underground drilling equipment specialists directly.
