JUD350 Full Hydraulic Underground Core Drilling Rig for Diamond Core Drilling and Geological Explora

Hole Range

BQ / NQ / HQ

Hole Depth

HQ: 350 m NQ: 480 m BQ: 600 m

Recommend Chassis Type

Crawler
Trailer
Skid

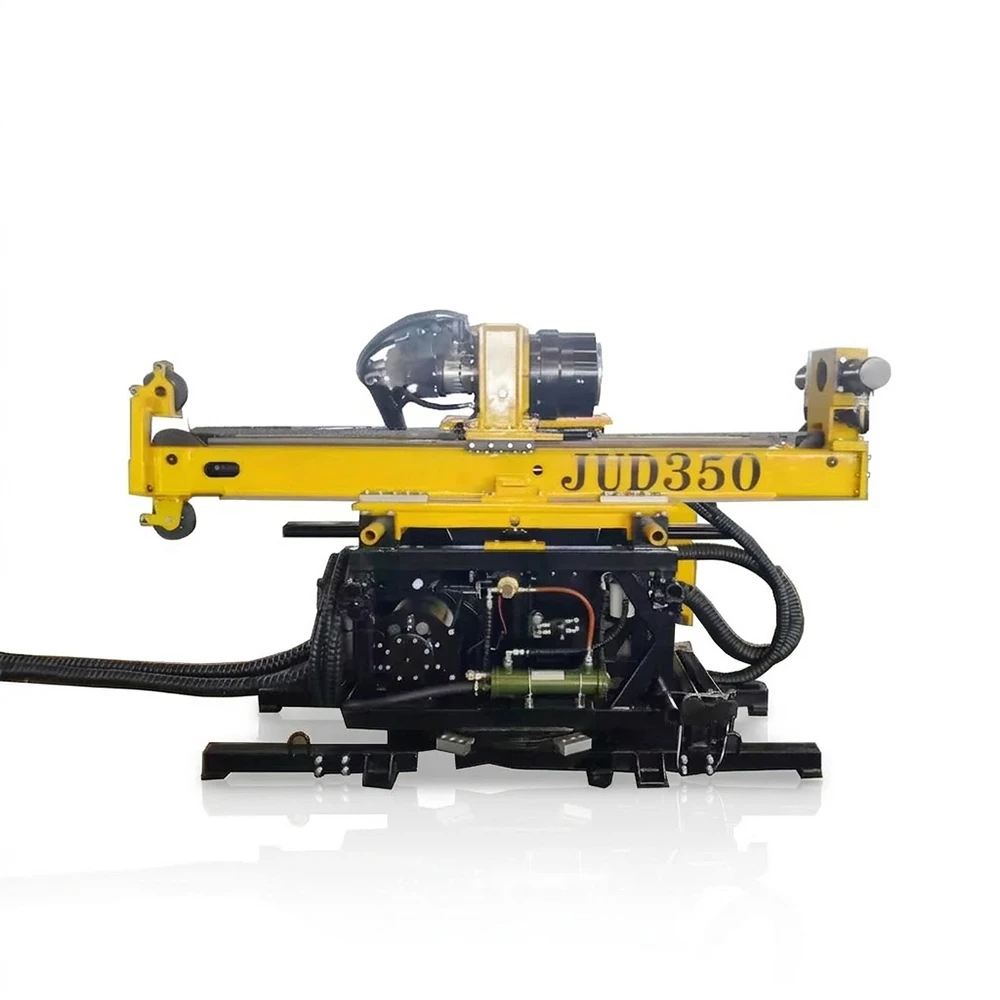

The JUD350 is a full hydraulic underground core drilling rig designed for geological exploration and underground drilling operations. It is widely used in coal mines, geological exploration, metallurgy, and engineering drilling projects. The rig supports diamond core drilling, carbide drilling, and other advanced drilling methods. With its modular structure, the JUD350 is compact, easy to transport, and convenient to assemble underground. The machine offers precise hydraulic control, stable drilling performance, and reliable operation, making it suitable for multi-angle underground drilling applications.

Inquire Now Brochure PDF

Functions and Features

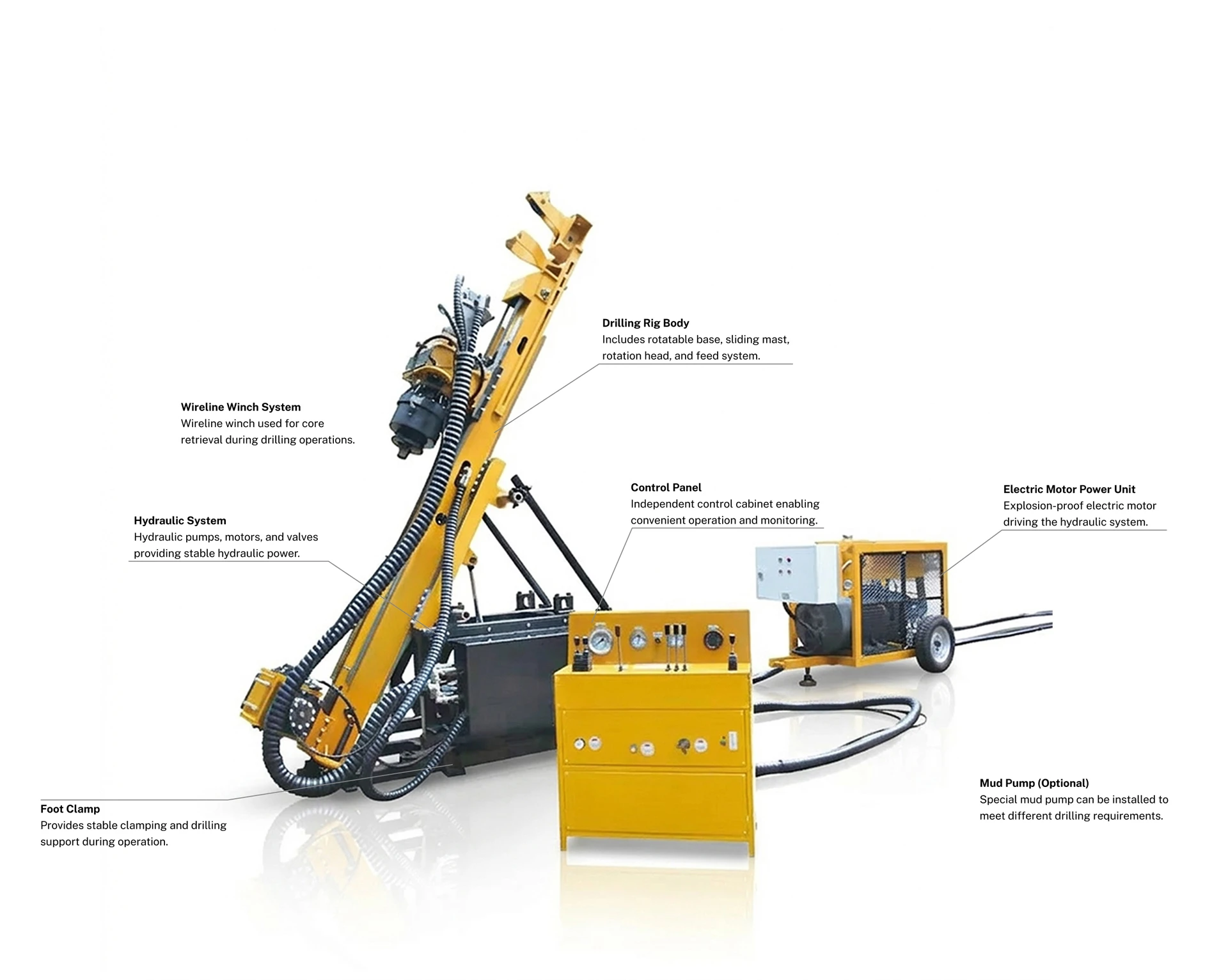

Main Components

Wide Rotation Speed Range Rotation speed up to 0–1200 rpm, allowing the rig to adapt to different drilling methods and formations.
Stable Mast System Sliding mast structure allows extension and retraction to improve drilling stability during operation.
Flexible Operation Remote control and flexible movement make the rig easy to operate in confined underground working environments.

Compact and Lightweight Structure The rig is small in size and light in weight, making it easy to move and install in underground environments.
High Torque Output Provides 1000 Nm rotary torque, ensuring stable drilling performance in hard rock formations.
Hydraulic Safety Chuck Hydraulic chuck provides reliable clamping and power-off protection during drilling operations.

Product Description

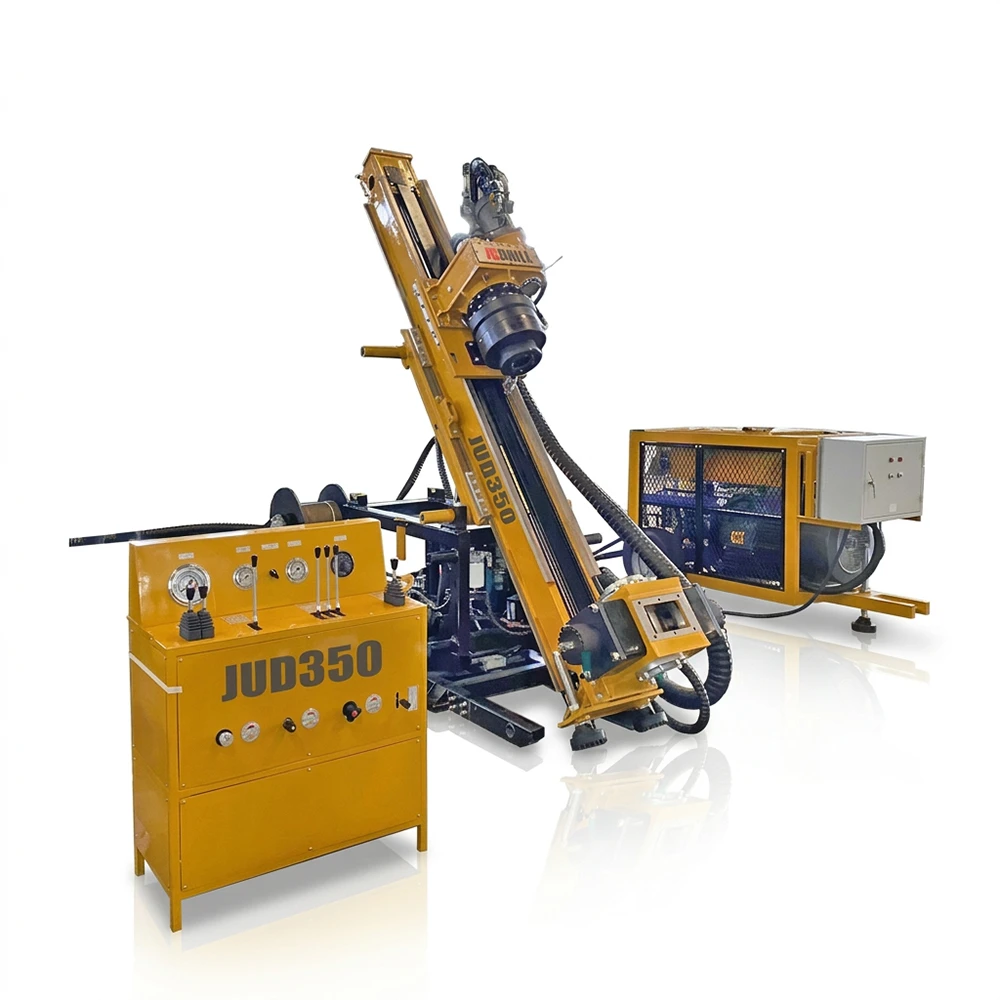

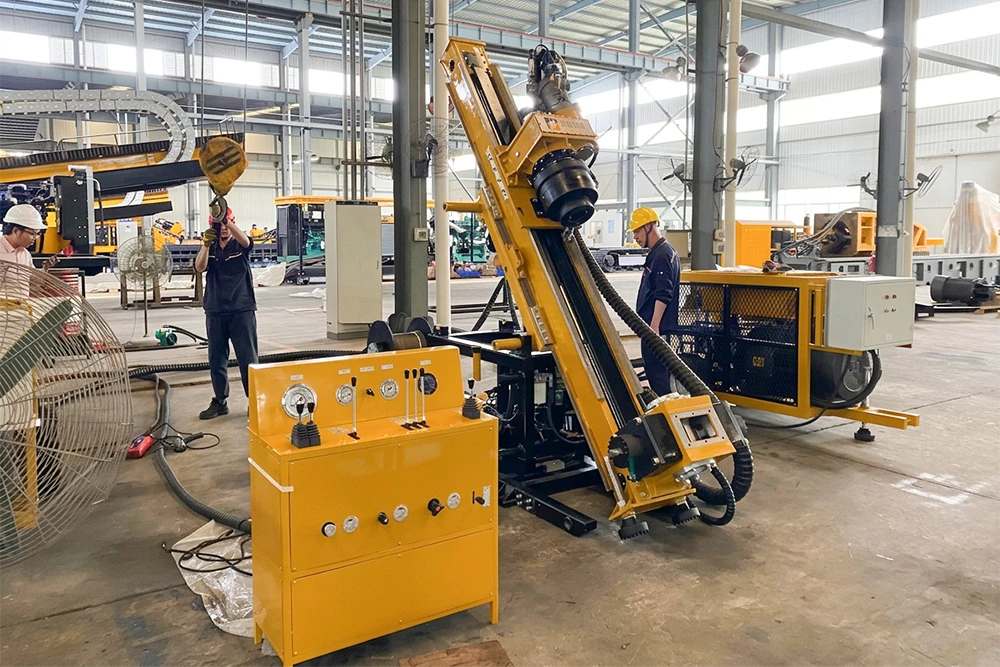

The JUD350 underground core drilling rig adopts a modular structural design that separates the rig body, power unit, and control system for convenient transportation and underground assembly. The hydraulic system is driven by an explosion-proof electric motor, providing stable rotation and feeding performance. With an adjustable mast and swinging arm structure, the rig allows flexible drilling angles from horizontal to vertical positions. Its wide rotary speed range and reliable hydraulic components ensure efficient and stable drilling performance in underground exploration projects.

Full Hydraulic Drive System

The JUD350 adopts a full hydraulic drive system powered by an explosion-proof electric motor. The hydraulic pump drives the hydraulic motor to rotate the drilling head while the feed movement is controlled by a cylinder and chain double-speed mechanism, ensuring stable and efficient drilling performance.

Modular Underground Design

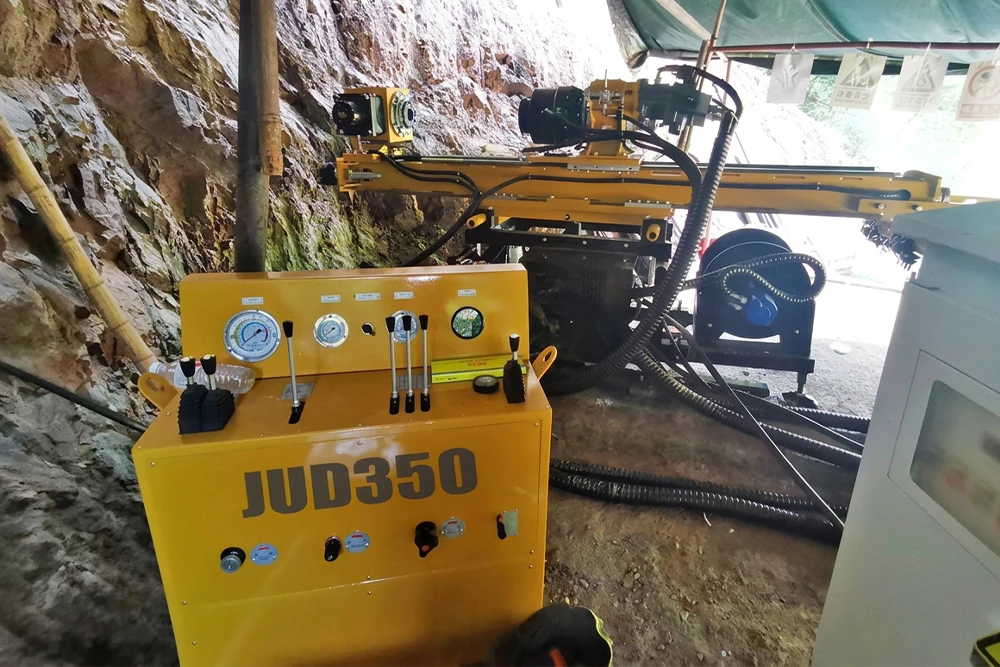

The rig features a modular block structure that allows quick disassembly and transportation. This design makes the drilling rig especially suitable for underground environments where equipment must be transported through narrow tunnels and installed quickly.

Multi-Angle Drilling Capability

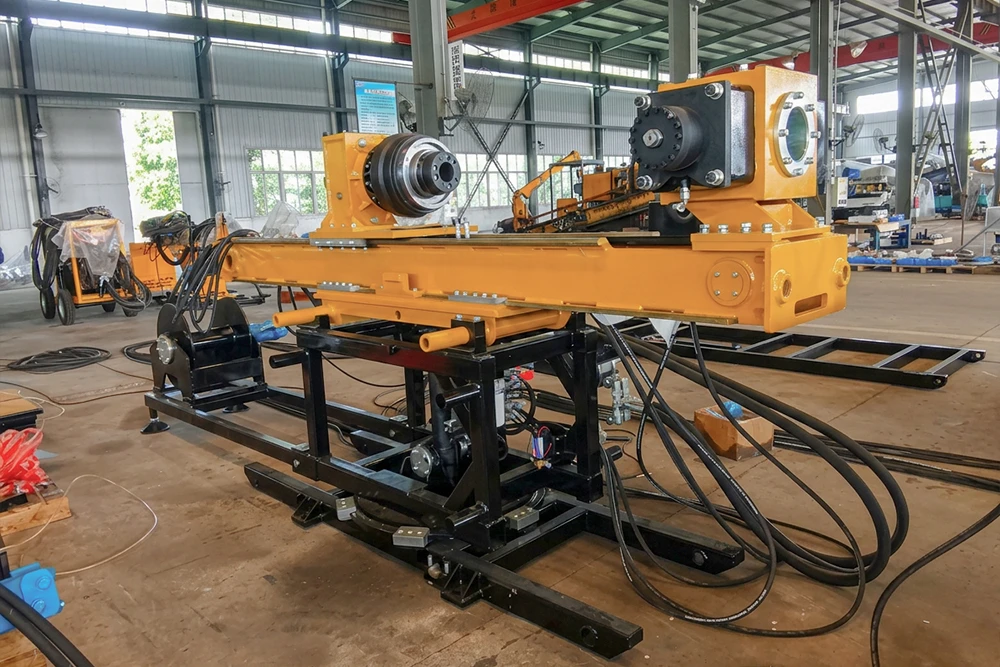

The swinging arm and adjustable mast allow luffing movement to support multi-angle drilling. The rig can perform horizontal, inclined, and vertical drilling operations, making it suitable for various underground drilling applications.

Product Specifications

Specification	Unit	JUD350
Drilling Depth(BQ)	m	600
Drilling Depth(NQ)	m	480
Drilling Depth(HQ)	m	350
Rated Powered of Electricity Motor	KW	55
Rated Speed of Motor	RPM	1480
Rotation Speed	RPM	0-1200
Rotary Torque	NM	1000
Lifting Force	KN	90
Feeding Force	KN	90
Feed Stroke	mm	1800
Drilling Angle	°	0-180
System Pressure	Mpa	28
Rope Dia of Wire Line Winch	mm	6
Single Wire Hoisting Capacity of Winch	KN	12
Dimension(Main Machine)	mm	4220×1020×1920
Dimension(Power Unit)	mm	2125×1140×1290
Dimension(Control Cabinet)	mm	960×550×1050
Weight(Main Machine)	kgs	2200
Weight(Power Unit)	kgs	1100
Weight(Control Cabinet)	kgs	130
