Mud Pump Supplier

Choosing the wrong mud pump supplier costs you more than a bad invoice — it costs you stuck strings, collapsed boreholes, and a rig sitting idle while you wait for a replacement part that should never have failed in the first place. A mud pump isn't an accessory bolted onto your rig; it's what keeps the entire drilling process alive — circulating fluid down the drill string to cool the bit, flush cuttings out of the hole, and hold the borehole wall stable under pressure. When it's undersized or built to a lower spec than your rig demands, you don't get a slightly weaker pump — you get a rig that can't finish the hole. At JC Drilling, we manufacture our BW-series mud pumps as an engineered match to our own rig platforms, not as a generic component sourced separately — because that's the only way pump selection actually protects your project.

What a Mud Pump Does ？

A mud pump is a high-pressure reciprocating machine — duplex or triplex, powered by diesel, electric, or hydraulic drive — that circulates drilling fluid from the surface, down through the drill string, and back up the borehole annulus. That circulation does three jobs at once: it cools the drill bit under continuous friction, carries cuttings out of the hole so they don't recirculate and re-clog the bit, and applies enough hydrostatic pressure to keep loose or unstable formations from collapsing in on the drill string mid-operation. Get the flow rate or discharge pressure wrong relative to your hole depth and diameter, and all three functions degrade simultaneously — which is why pump selection deserves the same engineering attention as the rig itself, not a same-spec swap from whichever drilling mud pump supplier quotes the lowest price.

Mud Pump Solutions by Drilling Applicatio

JCDRILL’s mud pump range can be summarized according to typical drilling requirements, helping buyers narrow the available models before comparing detailed flow, pressure, drive type and pump construction.

Mud Pumps for Core and Geological Drilling

Core drilling and geological exploration generally involve smaller boreholes, long drill strings and controlled fluid circulation. Buyers in this category usually prioritize sufficient discharge pressure, stable output, adjustable flow and a compact installation footprint.

Suitable applications include:

• Geological core drilling
• Mineral exploration
• Geotechnical investigation
• Coal and ore exploration
• Small-diameter boreholes
• Drilling-fluid circulation through long drill strings

Representative products:

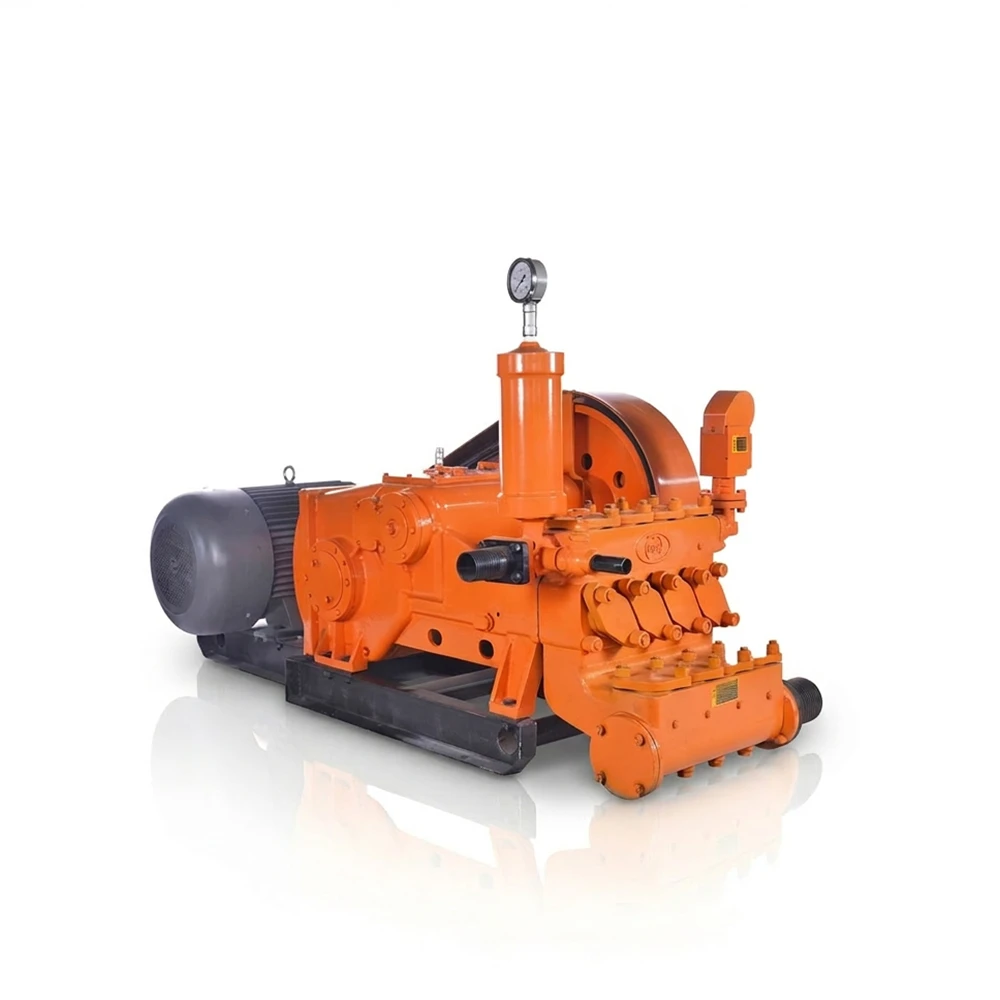

• JCM-150 Mud Pump – a compact option for geological investigation and controlled drilling-fluid circulation.

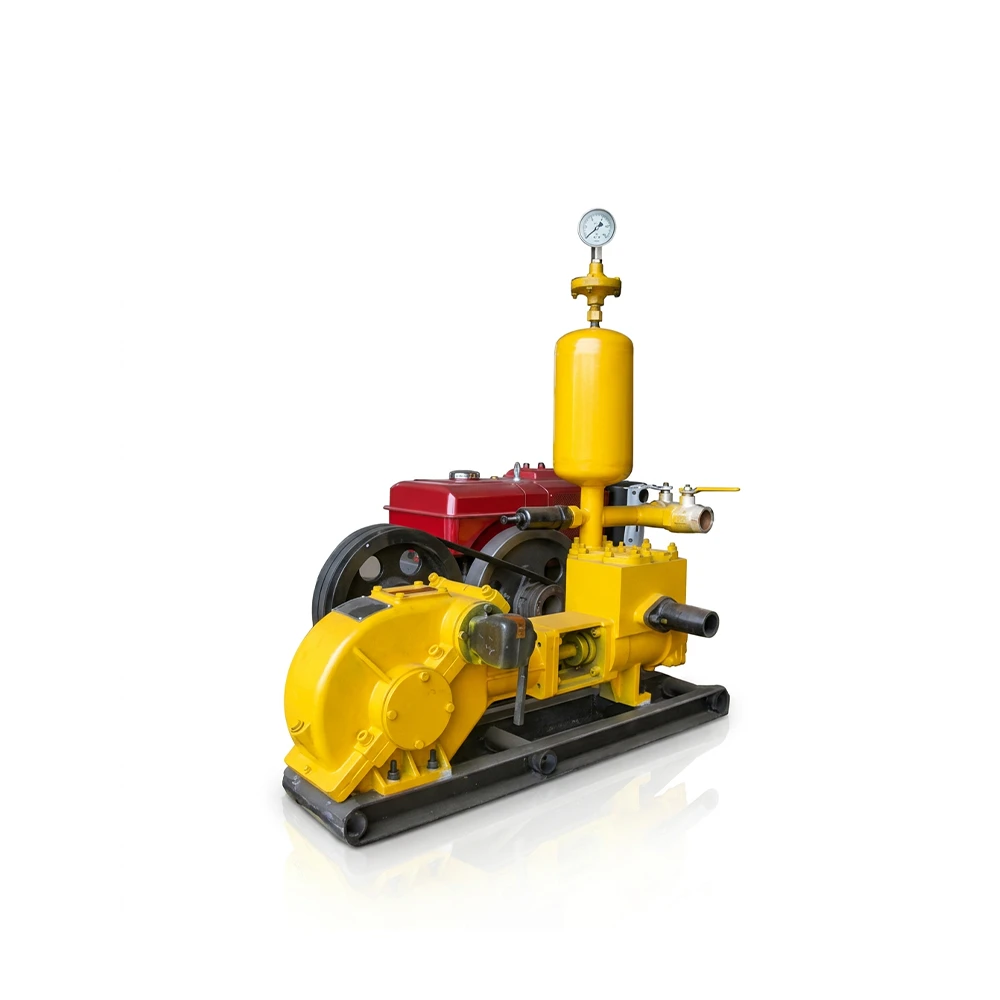

• BW160 Piston Mud Pump – suitable for projects requiring relatively low flow and higher discharge pressure.

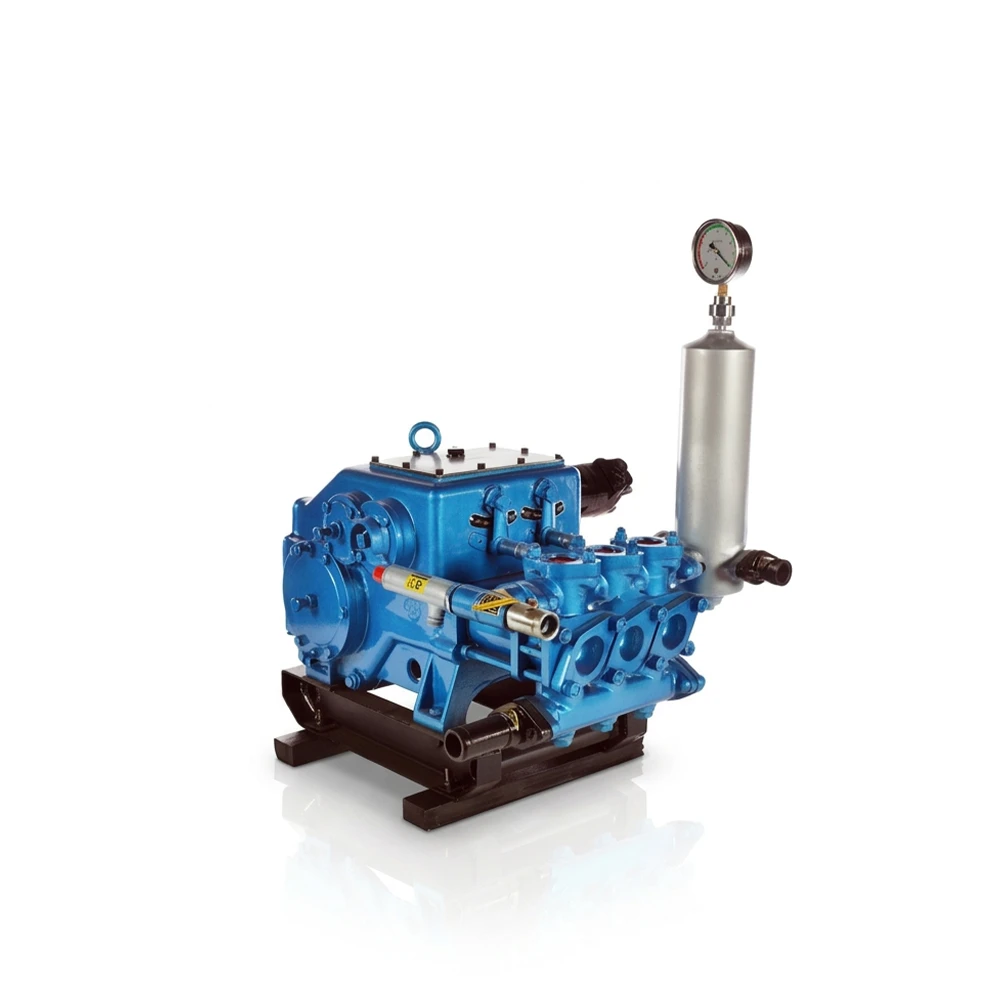

• BW160-10 Mud Pump – an alternative compact configuration for core, investigation and drilling-support work.

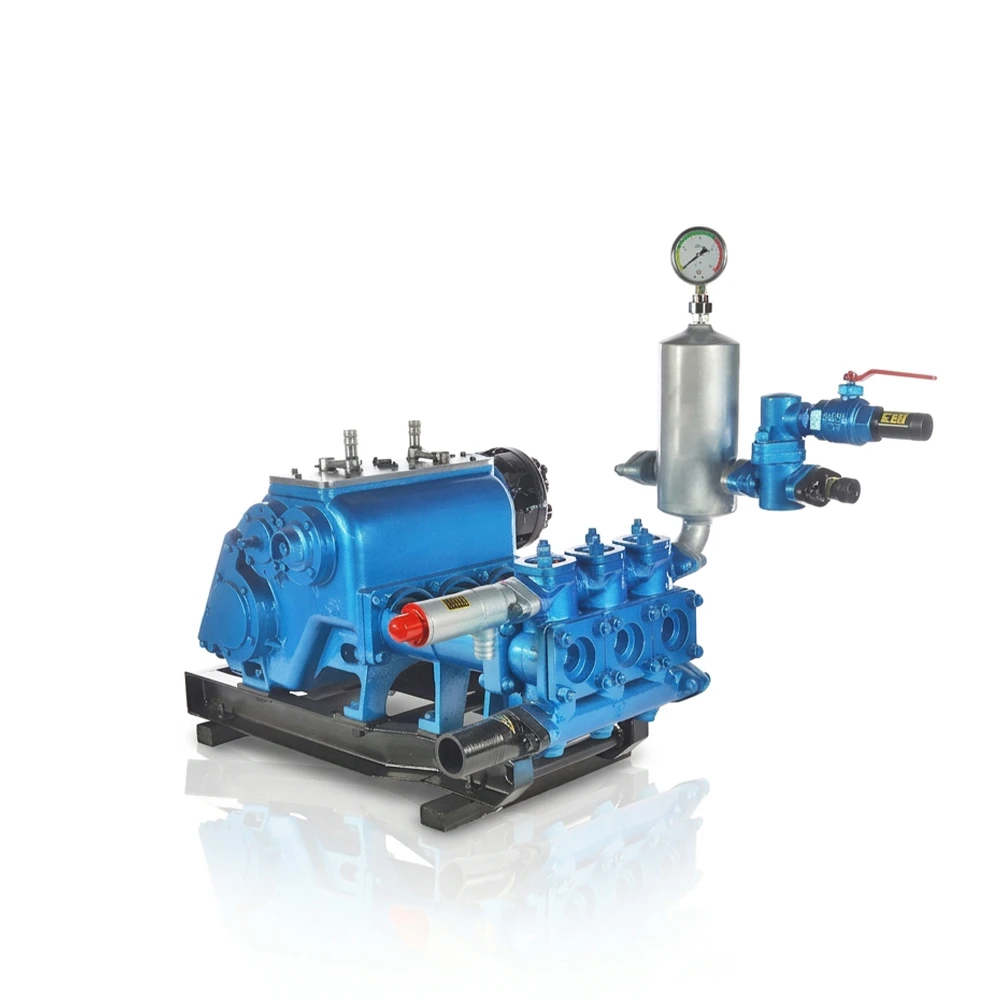

• BW250 Reciprocating Piston Mud Pump – offers a broader adjustable output range for different drilling stages.

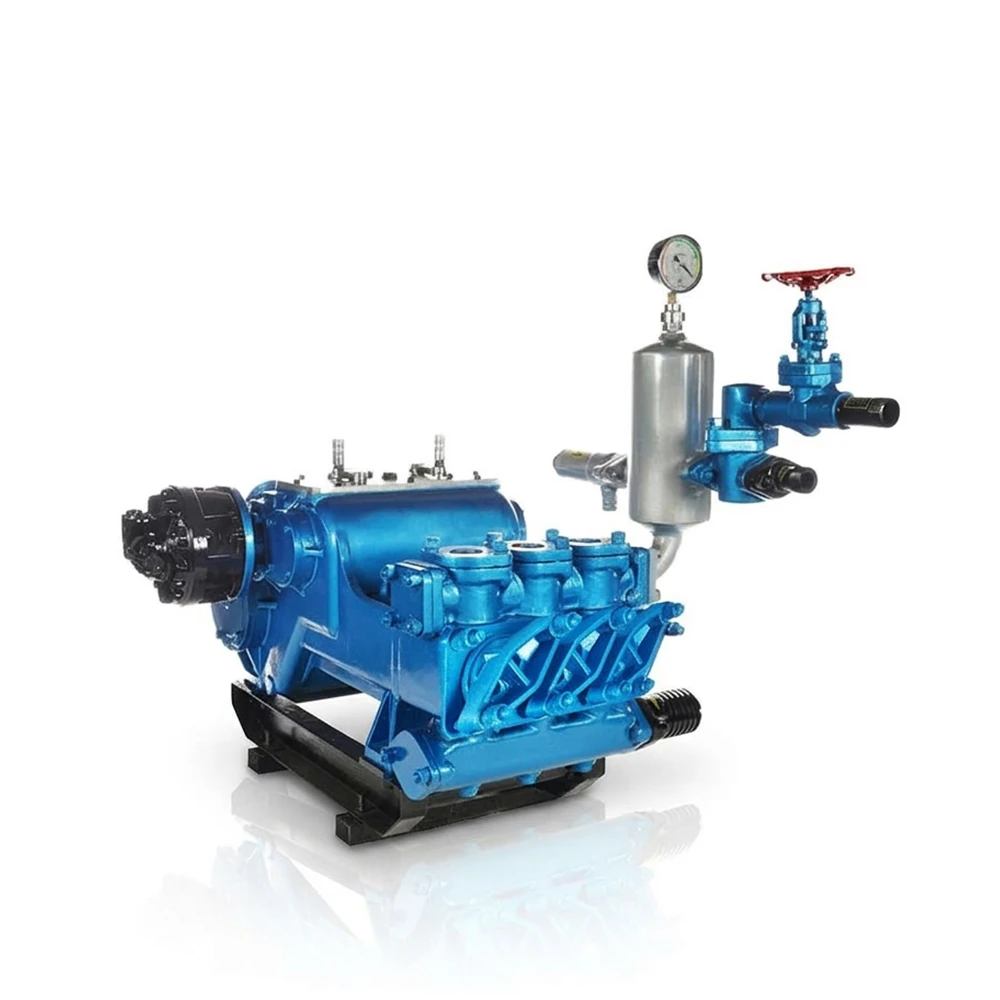

• BW320 Mud Pump – suitable for deeper core drilling programs requiring greater flow and pressure capacity.

Mud Pumps for Water Well and Engineering Drilling

Water well and engineering drilling normally require a balance between circulation volume, discharge pressure, mobility and operating cost. The pump must provide enough flow to remove cuttings without being unnecessarily oversized for the borehole.

Suitable applications include:

• Small and medium water wells
• Irrigation wells
• Geothermal boreholes
• Foundation investigation
• Engineering drilling
• Construction and infrastructure projects

Representative products:

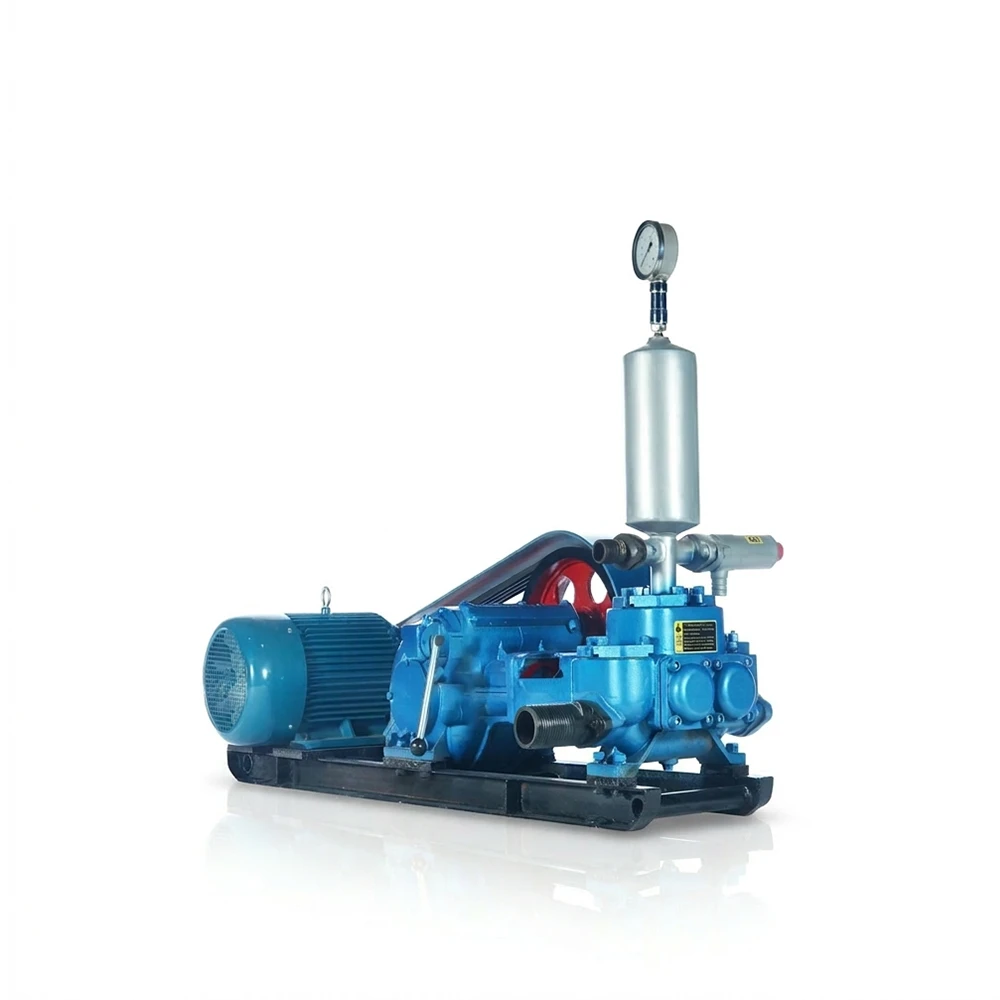

• BW200 Mud Pump for Water Well Drilling – a practical option for small-hole water wells, irrigation and general engineering projects.
• BW250 Reciprocating Piston Mud Pump – suitable when adjustable output is needed across several drilling conditions.
• BW320 Mud Pump – provides additional capacity for deeper wells and longer circulation systems.
• BW450 Water Drilling Mud Pump – suitable for projects requiring greater circulation volume.

High-Capacity Mud Pumps for Deep and Large Boreholes

Deep wells and larger-diameter boreholes create greater circulation resistance and a larger annular space. These projects usually require higher fluid delivery, sufficient operating pressure and a power system capable of supporting continuous operation.

Suitable applications include:

• Deep water well drilling
• Large-diameter boreholes
• Deep geological exploration
• Geothermal drilling
• High-cuttings-volume formations
• Heavy-duty engineering projects

Representative products:

• BW450 Water Drilling Mud Pump – provides a transition between general-purpose pumps and larger-capacity units.

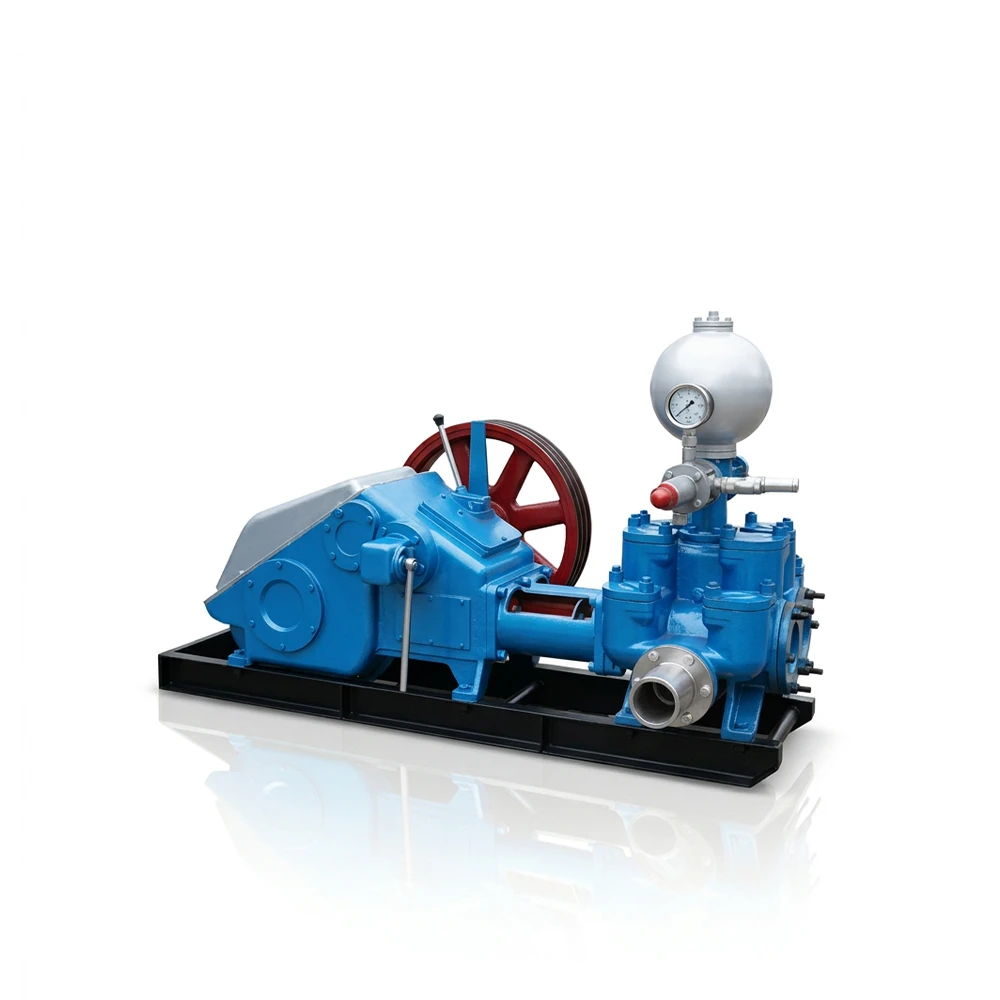

• BW850-2 Mud Pump for Deep Borehole Drilling – suited to applications where high circulation volume is the primary requirement.

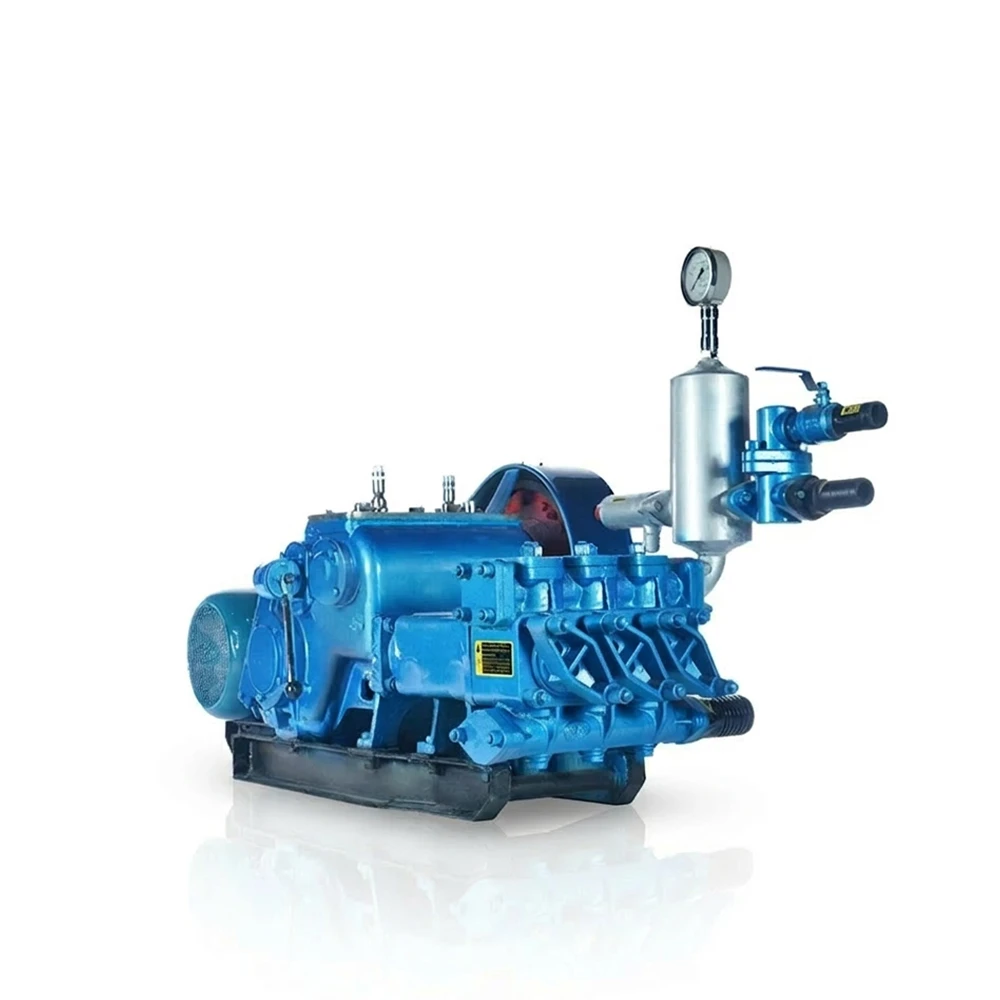

• BW850-5 Borehole Drilling Mud Pump – provides higher operating pressure for circulation systems with greater resistance.

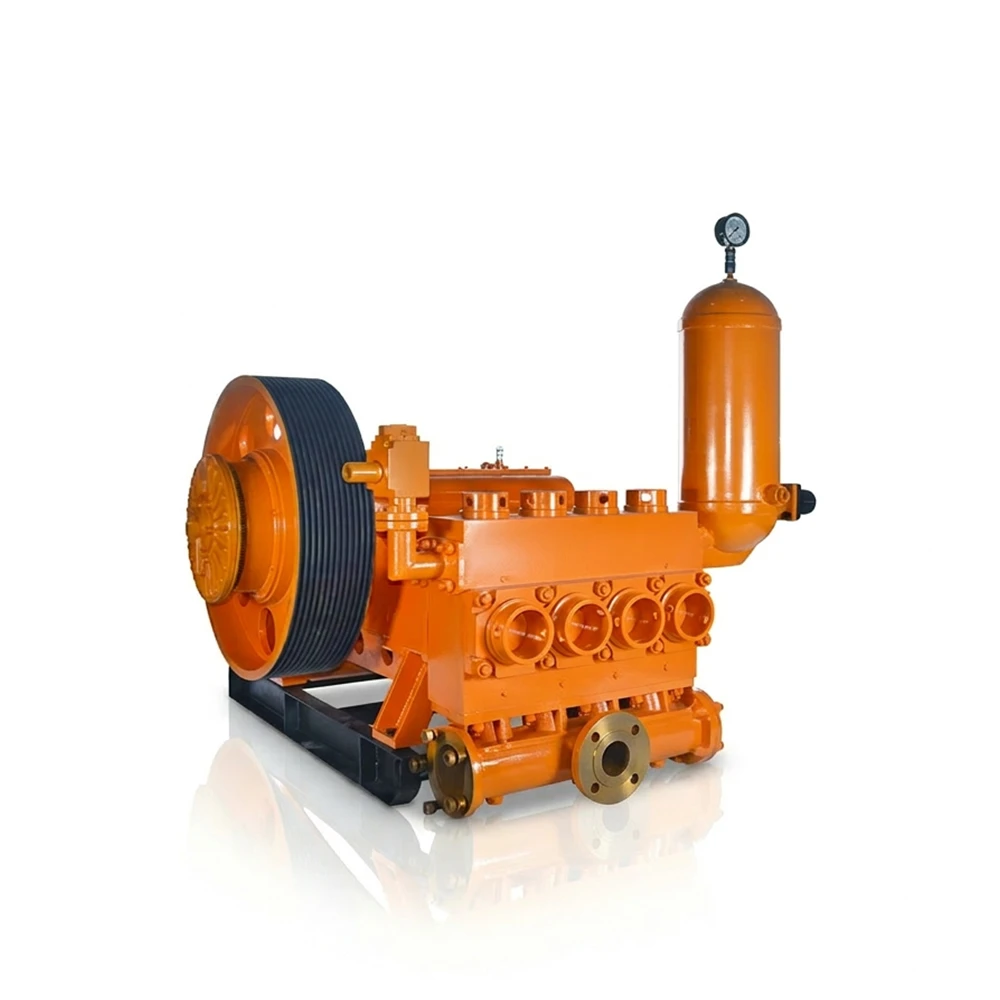

• BW1500-12 Heavy-Duty Mud Pump – intended for projects requiring very high flow and pressure capacity.

Centrifugal Slurry and Sand Pumps

Centrifugal slurry pumps should be considered separately from BW-series reciprocating drilling mud pumps. They are selected according to the required flow, total head, solids concentration, particle size, slurry density and abrasion level.

Suitable applications include:

• Slurry transfer
• Sand-containing fluid handling
• Sediment removal
• Mining fluid transfer
• Construction dewatering with suspended solids
• Project-specific solids-handling duties

Representative product:

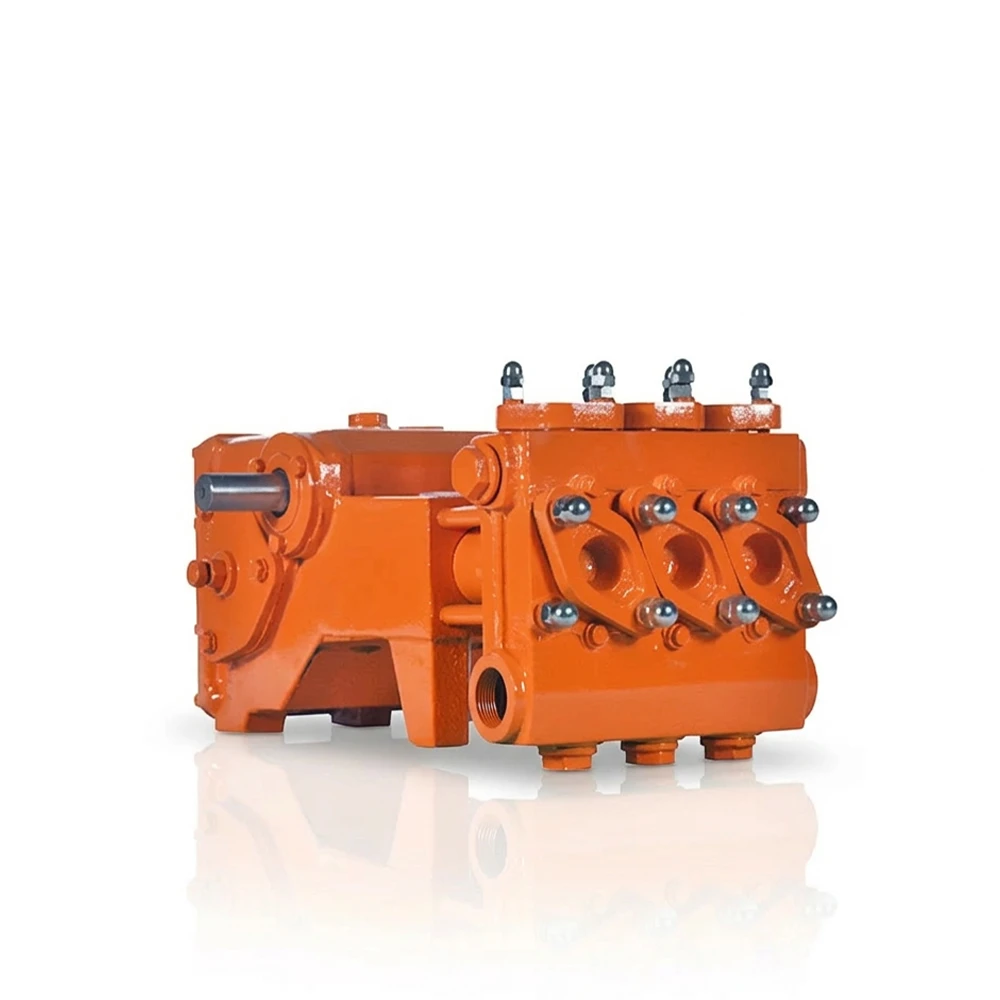

• JCM300 Centrifugal Slurry, Gravel and Sand Pump

The JCM300 should not be directly compared with reciprocating drilling mud pumps only by maximum flow or pressure. Its operating point must be selected from the required flow, head and slurry characteristics.

Built as a System

Because we manufacture both the drilling rigs and the mud pumps that run on them, every BW-series unit we supply is engineered against real rig duty cycles from day one, not adapted afterward:

• Rig-matched sizing — Our engineers size flow rate and discharge pressure specifically against the rig platforms we build, so you're not stacking tolerances between a rig from one factory and a pump from a completely different mud pump manufacturer.
• Full model range — From lower-flow duplex units for shallow water well work through high-pressure triplex pumps for deep and geothermal drilling, we cover the flow and pressure range most exploration and water well contractors need without over-speccing.
• Field-serviceable design — Accessible liners, valves, and wear parts mean routine maintenance doesn't take the rig off the job site for days at a time.
• One point of accountability — As a manufacturer supplying the complete drilling system, our after-sales and spare parts support covers the pump and the rig together, so you're never stuck between two vendors pointing fingers over a compatibility issue.

FAQ

Q:Can the maximum flow and maximum pressure be achieved at the same time?

Not always. Many reciprocating mud pumps provide different flow and pressure combinations according to pump speed, gear position, liner diameter or piston size. Buyers should compare the required operating flow at the required pressure rather than relying only on the two maximum values shown in a specification table.

Q:Can one mud pump be used for different drilling depths?

A pump with adjustable speeds, gears or liner options can serve different drilling stages, but it must still provide sufficient flow and pressure at the maximum planned depth. Buyers should size the pump around the most demanding expected operating condition rather than only the initial shallow-hole stage.

Q:Can a reciprocating mud pump handle sand and coarse particles?

Reciprocating drilling pumps can tolerate limited fine solids when properly configured and maintained, but they are not normally intended for coarse gravel or high concentrations of abrasive particles. A centrifugal slurry pump may be more appropriate for solids-heavy fluid transfer.

Get a Mud Pump Matched to Your Drilling Project

Not sure which pump fits your drilling rig and borehole conditions? Send JCDRILL your drilling method, hole diameter, maximum depth, drilling-fluid type, required flow and pressure, and preferred drive system. As an experienced mud pump supplier, we will help you compare suitable models, confirm rig compatibility, recommend the required accessories and prepare a quotation based on your actual project—not only a model number.

Request a Mud Pump Recommendation
