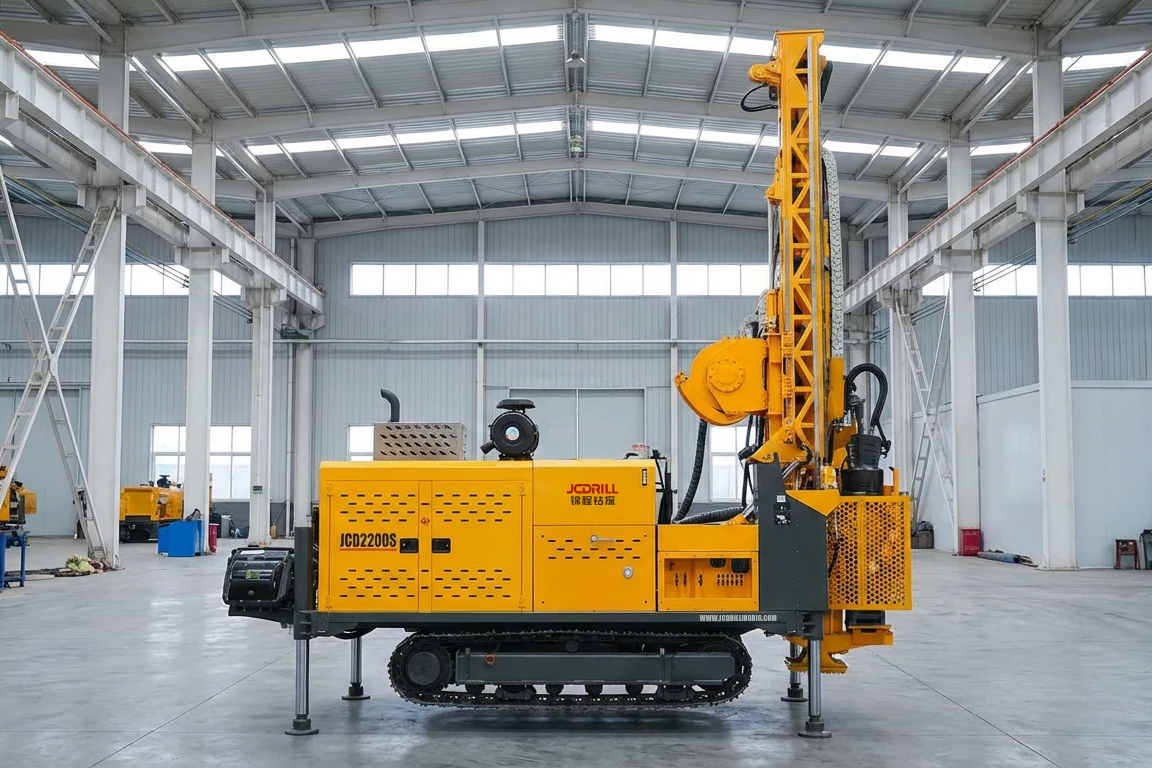

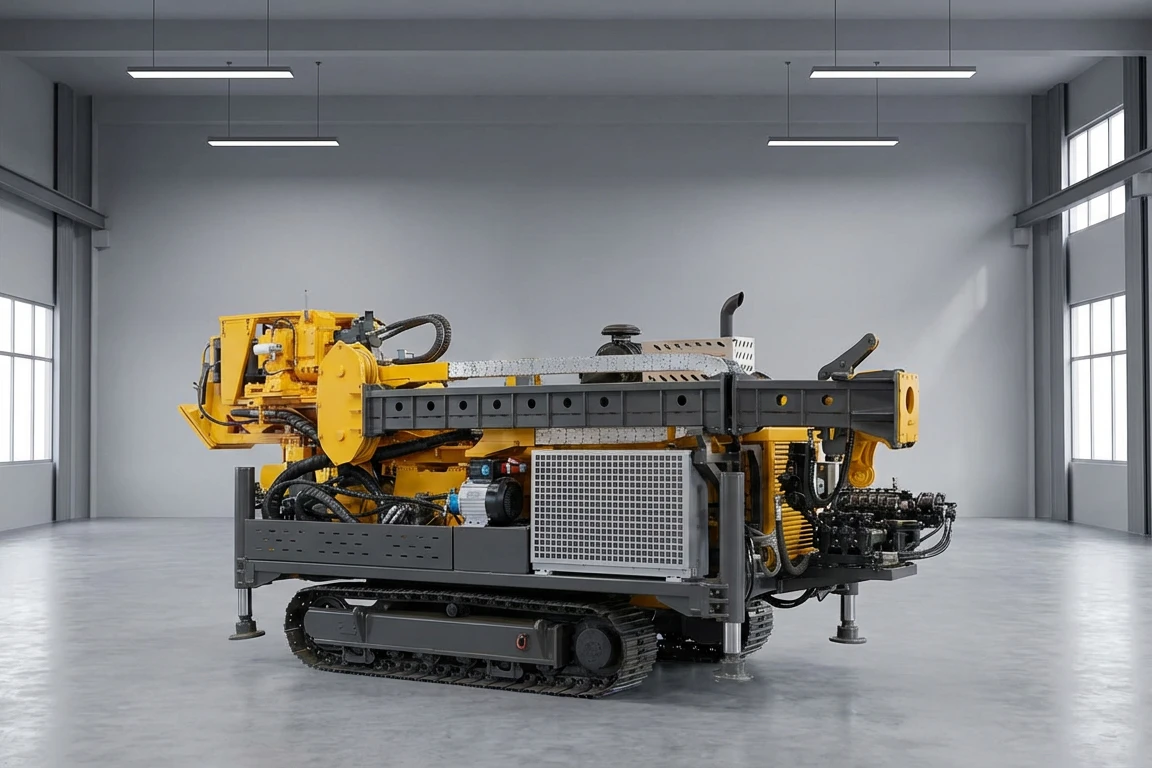

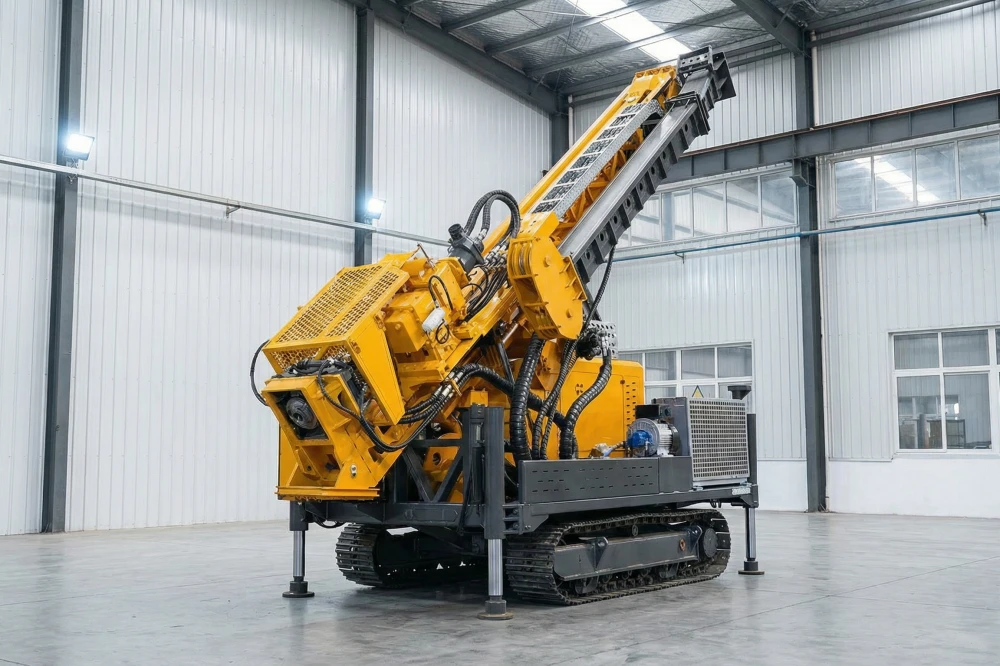

JCD2200S Crawler High-Torque Geological Diamond Core Drilling Rig for Deep Exploration

Hole Range

HTW, NTW, BTW

Hole Depth

1100m, 2200m, 2800m

Recommend Chassis Type

Truck
Crawler
Trailer

The JCD2200S is a robust crawler diamond core drilling rig engineered for demanding deep-hole applications in advanced exploration. Powered by a 179kW CUMMINS engine and a high-flow hydraulic system delivering 479L/min, it provides exceptional torque up to 10000Nm for tackling extreme geological formations. With support for HTW, NTW, and BTW sizes up to 2800 meters depth, this rig features a 3600mm feed stroke, 44-ton pull-up force, and adjustable angles from 45° to 90°. Its dual-rope hoist system enhances efficiency, while the BW-320 mud pump and 11kW generator ensure reliable operation in remote, rugged environments, making it ideal for long-duration projects.

Inquire Now Brochure PDF

Functions and Features

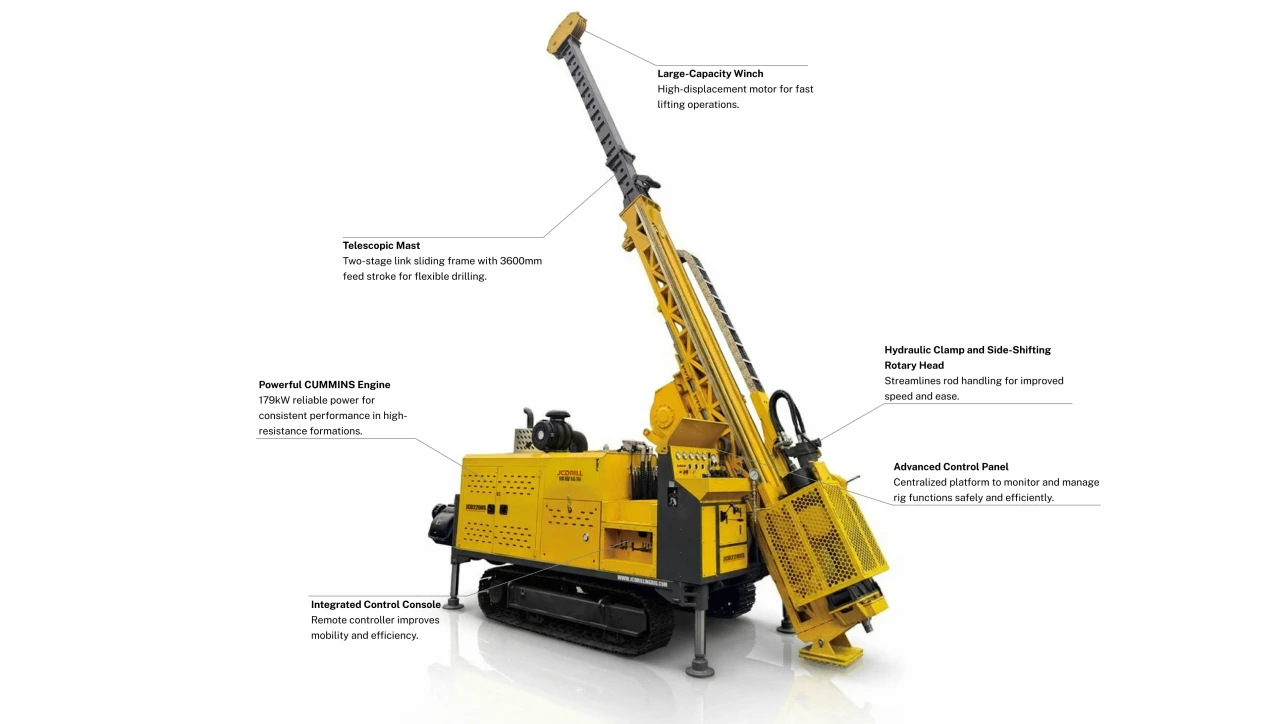

Main Components

High-Efficiency Improvement System A dual-rope hoist system-1000kg for fast rod handling and 15,000kg for heavy lifting-enhances operational efficiency and safety during long drilling cycles.
Continuous Operation Guarantee The rig features a BW-320 mud pump and an 11kW maintenance-free generator, offering continuous flushing and reliable power in remote environments, while maintaining excellent terrain adaptability and mobility.

Powerful Power System JCD2200S is equipped with a 179kW CUMMINS engine and a 479L/min high-flow hydraulic system, delivering sustained high torque up to 10000Nm for deep and heavy-duty drilling operations.
Deep Drilling Structure Its 3600mm feed stroke and 44-ton pull-up force provide the structural power and control needed for ultra-deep coring in dense formations, with adjustable drilling angles from 45° to 90°.

Product Description

The JCD2200S Crawler High-Torque Geological Diamond Core Drilling Rig is a heavy-duty drilling solution designed for ultra-deep geological exploration and long-duration field projects. It supports HTW, NTW, and BTW wireline diamond core drilling, with drilling depths of 1100 m, 2200 m, and up to 2800 m, making it suitable for extreme deep-hole coring in complex and high-resistance formations.
Powered by a 179 kW CUMMINS engine and a high-flow hydraulic system (479 L/min), the JCD2200S delivers exceptional torque up to 10,000 Nm and a 44-ton pull-up capacity for stable and efficient drilling. The rig features a one-piece ground-touching mast with a 3600 mm feed stroke, adjustable drilling angles from 45° to 90°, a dual-rope hoist system, and a BW-320 mud pump with an 11 kW generator, ensuring continuous, reliable operation in remote and rugged environments.

Ultra-High-Torque Power System

The high-output engine and large-flow hydraulic system deliver sustained torque up to 10,000 Nm, enabling efficient drilling in ultra-deep and high-resistance geological formations.

Heavy-Duty Deep Drilling Structure

With an extended feed stroke and 44-ton pull-up force, the reinforced mast structure ensures precise control and stability for deep and inclined coring operations.

Continuous Operation & Field Reliability

The dual-rope hoist system, high-capacity mud pump, and integrated generator support safe, efficient, and uninterrupted drilling during long-term projects in remote terrain.

Product Specifications

Specification	Unit	JCD2200S
Drilling Capacity		HTW-NTW-BTW
Drill Depth	m	1100-2200-2800
Hydraulic System
Rated Pressure	MPA	28
Rated Flow	L/min	479
Heat Dissipation		Air Cooling
Engine
Brand		CUMMINS
Type		Turbocharger
Rated Speed	RPM	2200
Rated Power	kW	179
Drilling System
Torque	N.M.	1600-10000
Speed	RPM	1200
Tower Type	One-piece Ground-touching
Feeding Stroke	mm	3600
Drilling Angle	°	45-90
Max. Pull Up Capacity	Ton	44
Max. Push Down Capacity	Ton	22
Rope Hoist
Lifting Capacity	kg	1000 / 15000
Speed	RPM	100-400 / 0-50
Wire Rope Diameter	mm	6/ 24
Rope Capacity	m	2200 / 45
Walking System
Operation Type	Manual & Remote Control
Walking Speed	KM/H	3.5
Climbing Angle	°	40
Mud Pump
Model		BW-320
Flow	L/MIN	0-320
Pressure	MPA	0-10
Hydraulic Generator
Type	Variable Frequency Brushless, Maintenance-Free
Power	kW	11
Voltage	V	220/380
Weight & Dimensions
Transport Size	mm	606021702500
Weight	Ton	13
