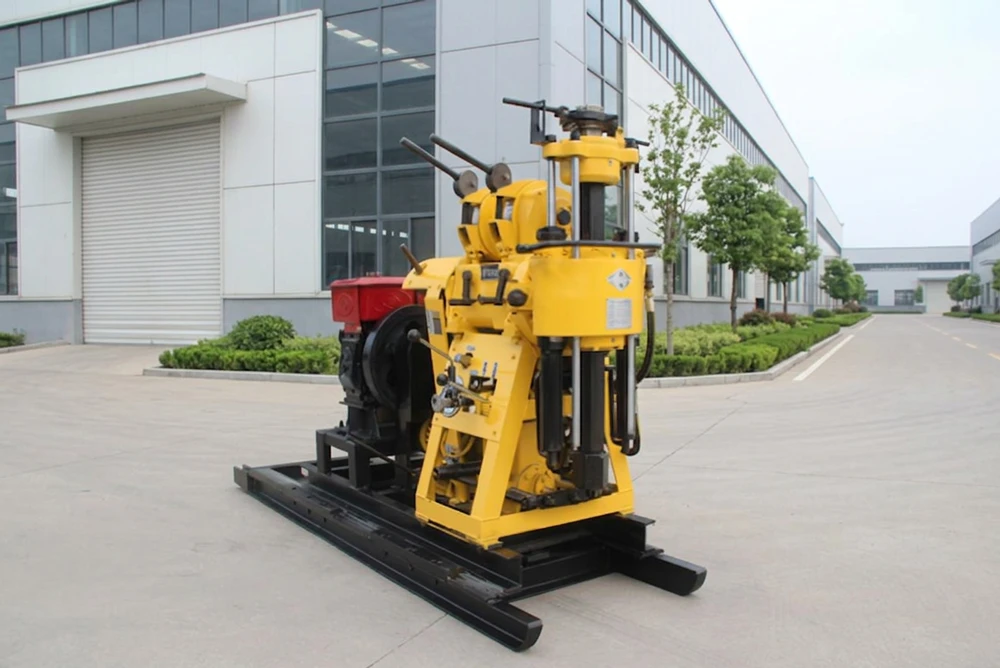

JXY130 Portable Core Drilling Rig for Geological Exploration and Water Well Drilling

Hole Range

75–220mm

Hole Depth

130m

Recommend Chassis Type

Truck
Crawler
Trailer
Skid

The JXY130 is a portable core drilling rig designed for geological exploration, water well drilling, and construction investigation projects. With a drilling depth of up to 130 meters and a compact, lightweight structure, it is suitable for both plain and mountainous areas. The rig supports multiple drilling methods and can adapt to different formations, including sandy clay and rock layers. Equipped with a hydraulic feeding system and reliable mechanical structure, the JXY130 provides efficient drilling performance with easy operation and convenient transportation.

Inquire Now Brochure PDF

Functions and Features

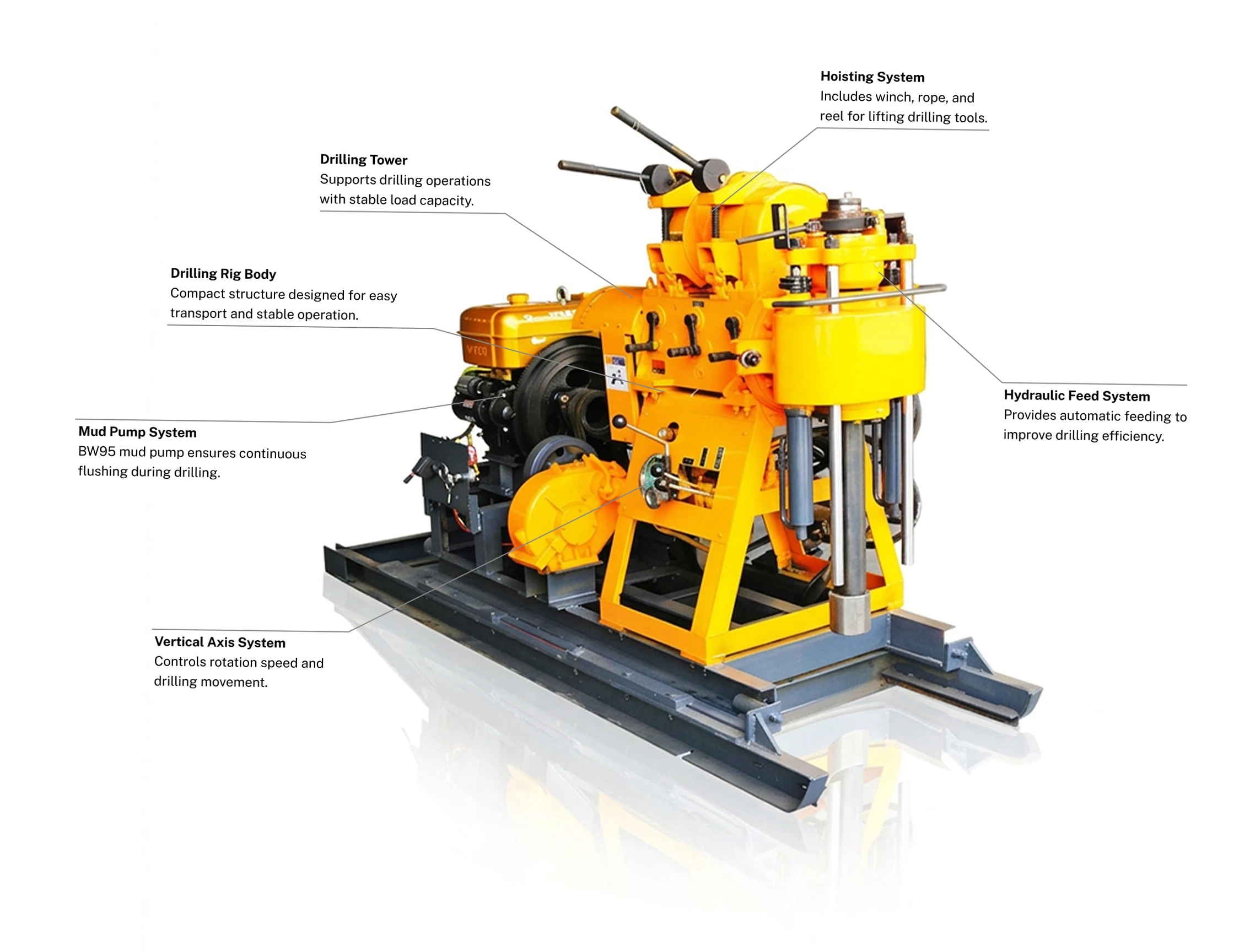

Main Components

Hydraulic Feeding System Improves drilling efficiency and reduces manual labor intensity.
Compact and Portable Design Lightweight structure with easy disassembly for quick relocation.
Hole Pressure Monitoring Equipped with pressure gauge for real-time monitoring of downhole conditions.

Wide Application Capability Suitable for geological exploration, water wells, road surveys, and blasting hole drilling.
Ball-Type Clamping Mechanism Allows non-stop rod handling, ensuring safer and more convenient operation.
Integrated Control System Centralized handle design simplifies operation and improves working efficiency.

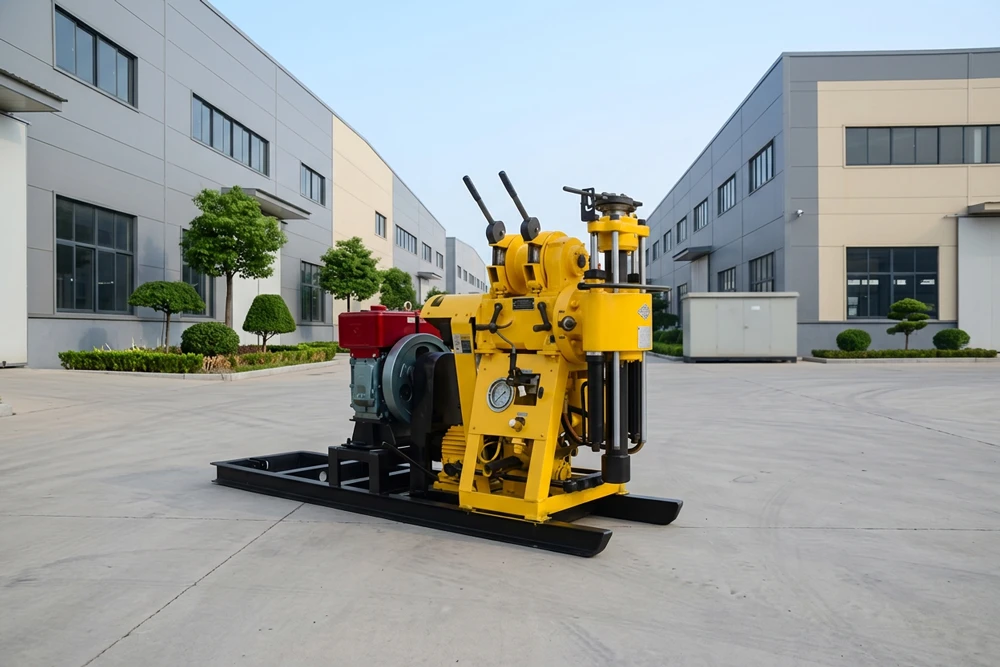

Product Description

The JXY130 drilling rig is designed for flexible and efficient field operations. Its compact structure allows easy transportation and quick setup, making it ideal for remote or hard-to-access areas. The hydraulic automatic feeding system improves drilling efficiency while reducing operator workload. With a stable hoisting system and integrated control layout, the rig ensures smooth operation and reliable performance across various drilling applications.

Portable and Easy to Relocate

Compact and lightweight design allows quick disassembly and easy transportation, ideal for remote and mountainous areas.

Efficient Hydraulic Feeding

Hydraulic automatic feed system improves drilling efficiency while reducing operator workload.

Versatile Drilling Capability

Supports multiple drilling methods and adapts to different soil and rock formations.

Product Specifications

Machine parameters
Drilling depth	130m
The largest hole diameter	φ75-φ220mm
Final hole diameter	75mm
Active drill pipe	53/59*4200mm
Drill rod diameter	φ42-60mm
Drilling inclination	90°～75°
Supporting power (diesel engine)	13.2/2200kW/r/min
Structure weight / size	2.40.81.4
Vertical axis
Vertical axis speed	142 285 570r/min
Vertical axis travel	450mm
Hoist
Single rope lift force	2000
Single rope to enhance speed	0.41 - 1.64m/s
Reel diameter	φ140mm
Rope diameter	φ9.3mm
Rope capacity	27m
Drilling tower
Rated load	18
Effective height	6.5
Tower legs specifications	73mm
Mud pump
Model	BW95
Flow	95L/min
Greatest pressure	1.2Mpa
The number of reciprocations	93/min
Suction pipe diameter	φ51mm*4.5m
High pressure water outlet pipe diameter	φ32mm*6m
