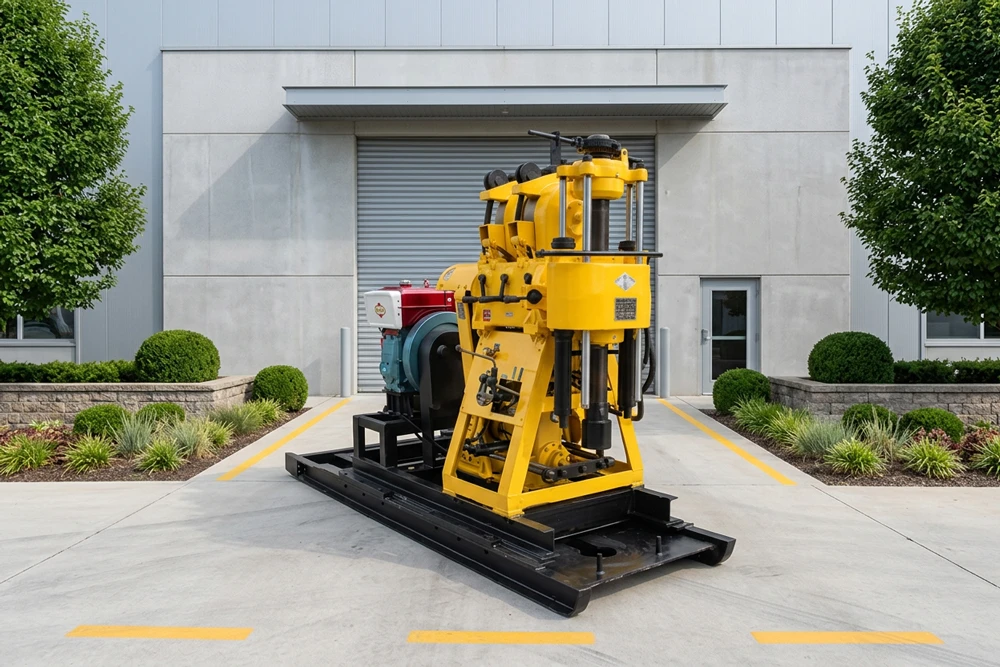

JXY200 High Efficiency Hydraulic Core Drilling Rig for 200m Depth Exploration

Hole Range

75-325mm

Hole Depth

200m

Recommend Chassis Type

Truck
Crawler
Trailer
Skid

The JXY200 is a high-efficiency hydraulic core drilling rig designed for medium-depth geological exploration and water well drilling. Featuring an upgraded drill shift chute system, it enables quick tool replacement to improve productivity and reduce labor intensity. The rig is suitable for drilling in sandy clay, gravel, and rock formations. With a reliable hydraulic feeding mechanism and robust structure, the JXY200 delivers stable performance and consistent drilling efficiency across various construction and exploration applications.

Inquire Now Brochure PDF

Functions and Features

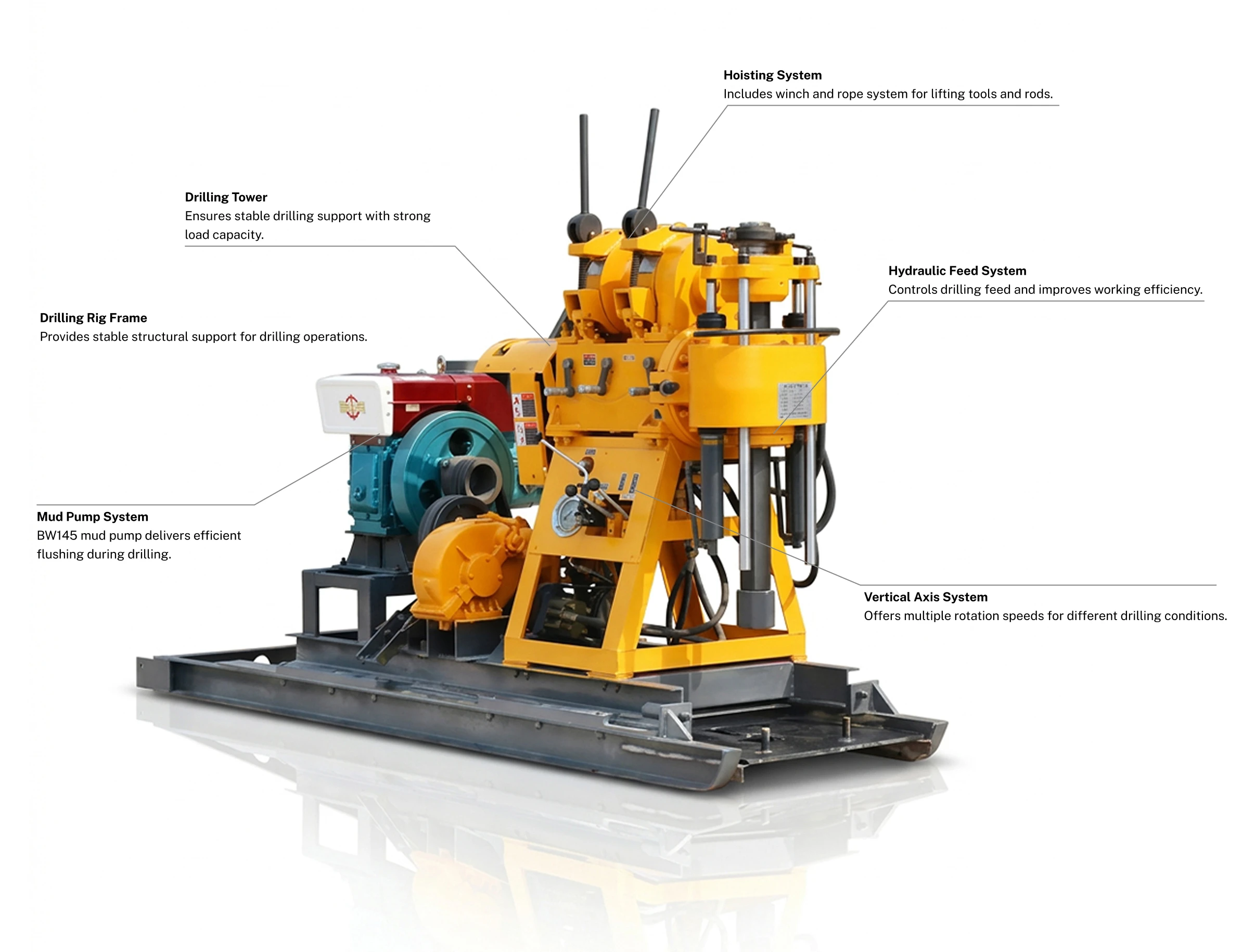

Main Components

Hydraulic Automatic Feeding Enhances drilling performance while reducing manual labor intensity.
Reinforced Structural Design Four bearing groups improve rigidity, suitable for gravel and complex formations.
High Torque Transmission System Patented taper clutch provides strong torque output and reliable operation.

Quick Tool Change System Equipped with a drill shift chute, allowing fast replacement of drilling tools to improve efficiency.
Ball-Type Clamping Mechanism Enables continuous rod handling without stopping, ensuring safe and efficient operation.
Heavy-Duty Hoisting System Double support structure increases stability and shock resistance.

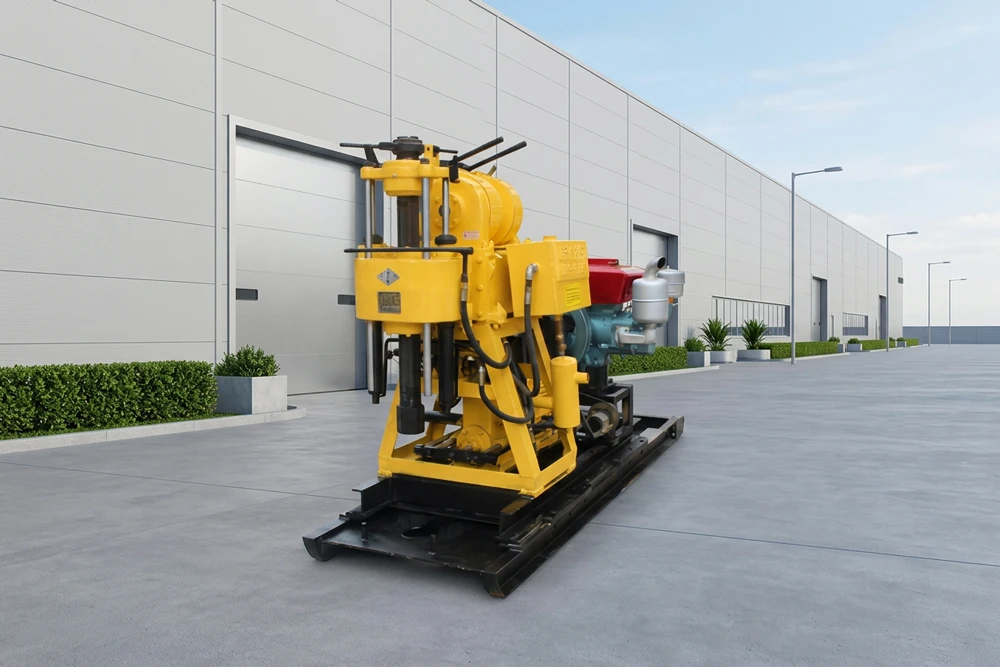

Product Description

The JXY200 drilling rig combines strong structural design with efficient hydraulic operation, making it suitable for demanding drilling environments. Its enhanced transmission system provides stable torque output, while the hydraulic feed system ensures smooth drilling performance. Designed for convenience and durability, the rig allows easy operation, fast setup, and reliable performance in complex geological conditions, improving overall work efficiency and reducing downtime.

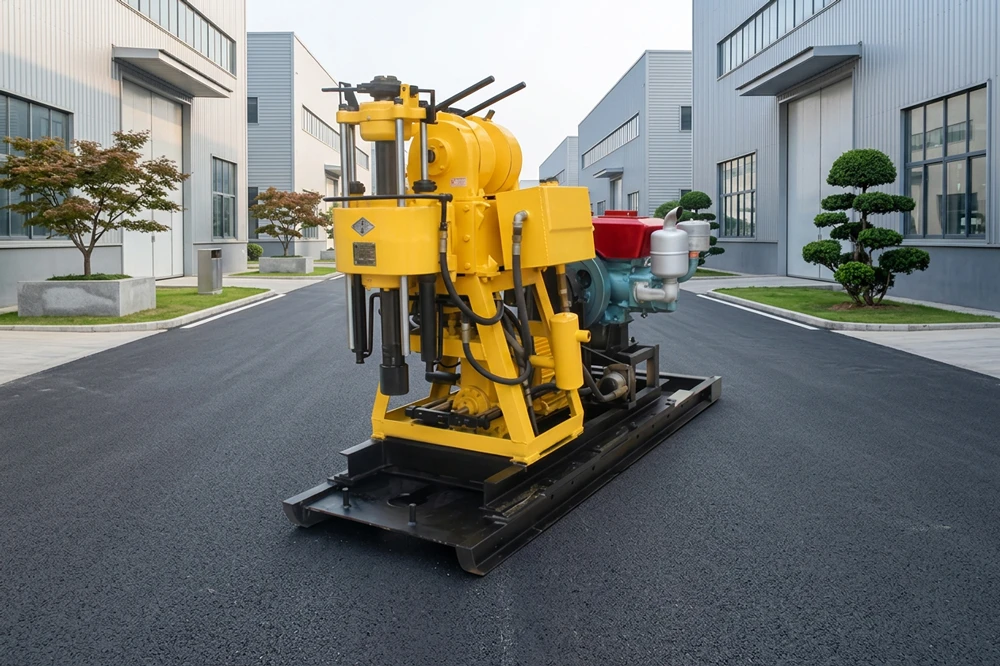

Fast Tool Change for Higher Efficiency

The drill shift chute system allows quick replacement of tools, reducing downtime and improving productivity.

Strong Structure for Tough Conditions

Reinforced design ensures stable performance in gravel, pebble, and complex geological formations.

Efficient Hydraulic Feeding System

Hydraulic automatic feeding improves drilling speed while lowering operator workload.

Product Specifications

Machine parameters
Drilling depth	200m
The largest hole diameter	φ75-φ325mm
Final hole diameter	75mm
Active drill pipe	53/59*4200mm
Drill rod diameter	φ42-φ60mm
Drilling inclination	90°～75°
Supporting power (diesel engine)	14.7kW/r/min
Structure weight / size	2.70.91.5
Vertical axis
Vertical axis speed	64/128/287/557r/min
Vertical axis travel	450mm
Hoist
Single rope lift force	2500
Single rope to enhance speed	0.12-0.95m/s
Reel diameter	φ140mm
Rope diameter	φ12.5mm
Rope capacity	35m
Drilling tower
Rated load	18
Effective height	6.5m
Tower legs specifications	φ89mm
Mud pump
Model	BW145
Flow	145L/min
Greatest pressure	2Mpa
The number of reciprocations	93N/min
Suction pipe diameter	φ51mm
High pressure water outlet pipe diameter	φ32mm

View Less
