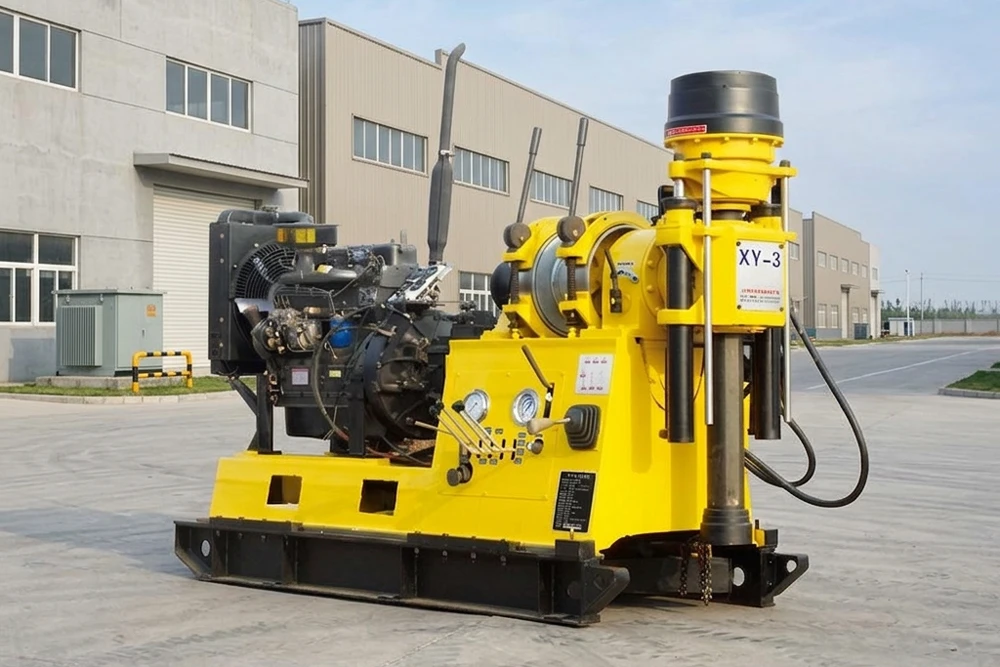

JXY600 Skid Mounted Hydraulic Core Drilling Rig for Deep Water Well and Geological Exploration

Hole Range

60-600mm

Hole Depth

600m

Recommend Chassis Type

Truck
Crawler
Trailer
Skid

The JXY600 is a trailer-mounted hydraulic core drilling rig designed for deep water well drilling and geological exploration projects. Equipped with a hydraulic feed system and vertical spindle structure, it delivers stable performance and high drilling efficiency. The rig features a wide speed range, strong lifting capacity, and flexible operation, making it suitable for both sedimentary and hard rock formations. Its compact design, combined with convenient transportation and easy setup, makes the JXY600 an ideal solution for rural water supply and deep drilling applications.

Inquire Now Brochure PDF

Functions and Features

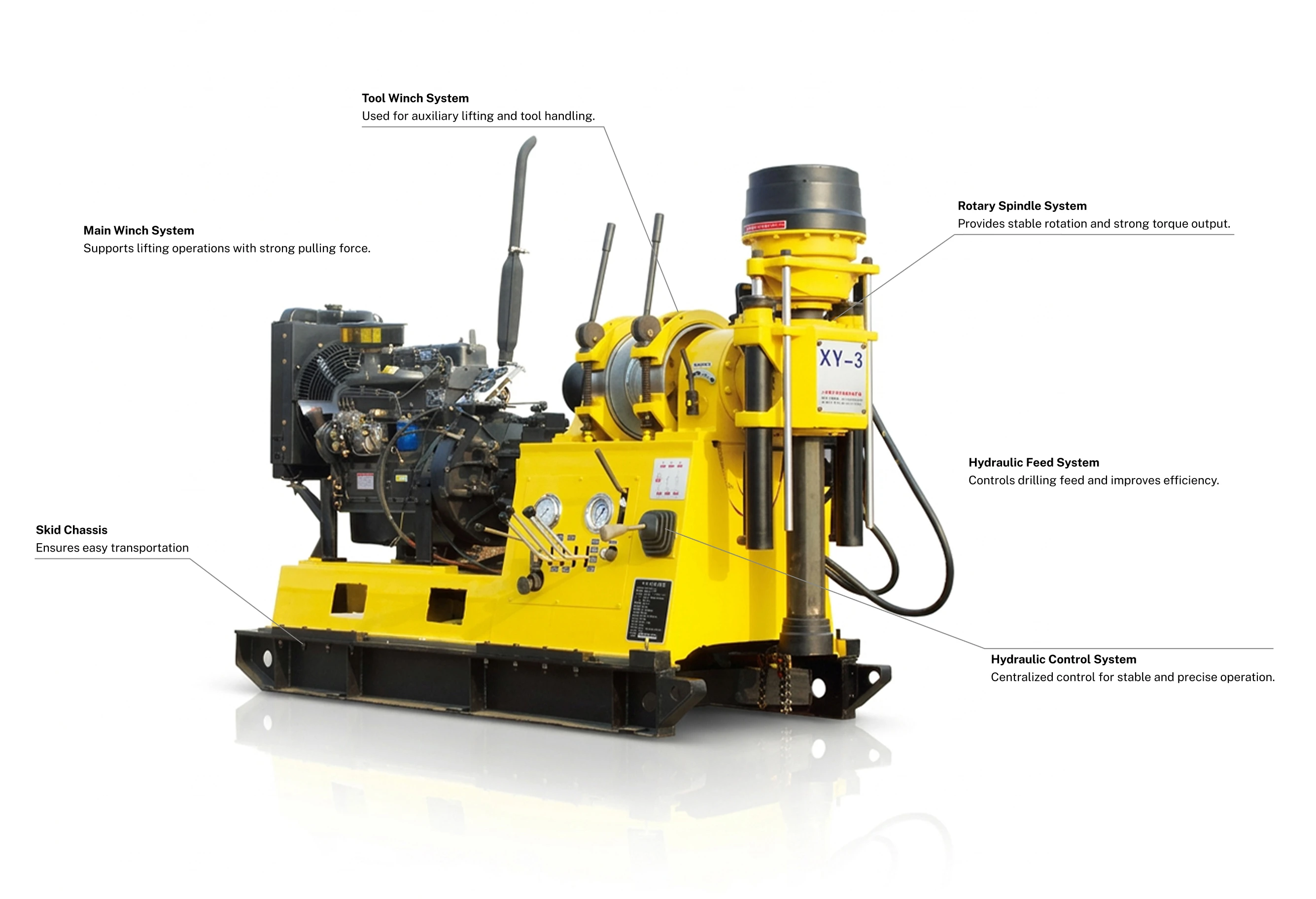

Main Components

Hydraulic Feed Mechanism Improves drilling efficiency and reduces labor intensity during operation.
Advanced Hydraulic System Compact control layout ensures easy operation and reliable performance.
Hydraulic Mast Operation Hydraulic lifting system ensures safe and convenient mast operation.

Trailer Mounted Design Equipped with wheel chassis for convenient transportation and quick site relocation.
Wide Speed Range Control 8 forward and 2 reverse speeds provide flexible adjustment for different formations.
High Torque Spindle System Delivers strong torque output for deep drilling and hard rock applications.

Product Description

The JXY600 drilling rig is engineered for high-efficiency deep drilling with enhanced mobility and stability. Its trailer-mounted design allows easy transportation and quick deployment on site. The hydraulic feed system improves drilling performance while reducing operator workload. With a powerful spindle system and wide speed adjustment range, the rig adapts to various drilling conditions. The integrated control layout and pressure monitoring system ensure safe, precise, and reliable operation in both soft and hard formations.

Easy Transportation with Trailer Design

Trailer-mounted structure allows quick relocation and convenient on-site setup.

High Efficiency Hydraulic Feeding

Hydraulic feed system improves drilling speed while reducing manual workload.

Wide Application for Deep Drilling

Suitable for both sedimentary layers and hard rock formations, ideal for deep water well drilling.

Product Specifications

Specification	Unit	JXY600
Drilling depth	m	75	219	273	500	600
Drilling Dia.	mm	600	210	150	80	60
Open hole Dia.	mm	600
End hole Dia.	mm	75
Drilling rod	mm	42,50,60,76
Drilling angle	°	65-90°
Rotary Spindle
Spindle forward speed	r/min	30-1050
Spindle reverse speed	r/min	29-137
Spindle stroke	mm	560
Spindle inner diameter	mm	96
Spindle lifting capacity	Kg	6000
Spindle Max.Torque	N/M	3800
Main Winch (Hydraulic)
Single line lifting speed	m/s	0.5-1.9
Tightrope diameter	mm	12.5
Hoist single line lifting	Kg	4000
Roller diameter	mm	300
Roller cubic measure	m	50
Tools Winch
Tightrope diameter	mm	6
Roller diameter	mm	140
Roller cubic measure	m	450
Drilling rig Power(choose one between the following two)
Diesel engine	kw/h	38/50
Electric motor	KW	22kw
Trailer
Loading Capacity	T	4
Walking Speed	km/h	25
Mini turning radius	m	6.8
Weight&Size
Weight	kg	3000
Dimension	mm	3700×1850×3200
